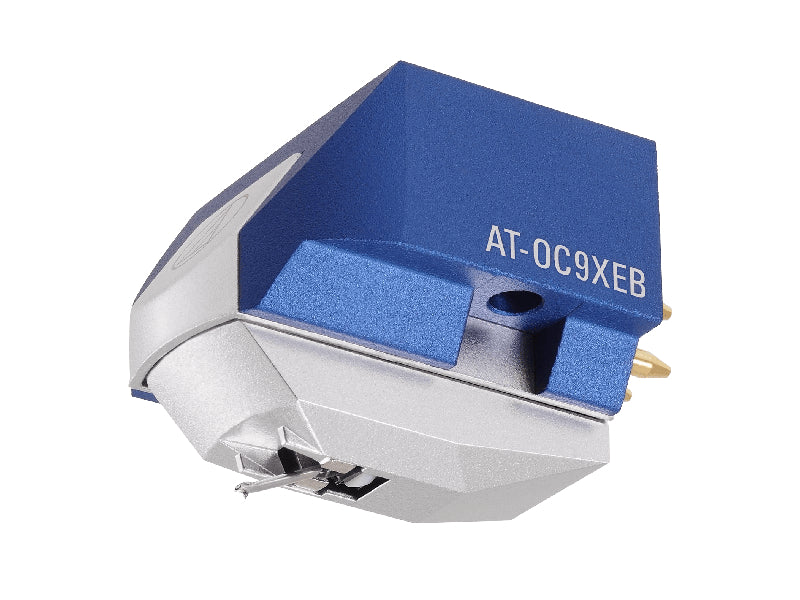

Audio Technica AT-OC9XEB Moving Coil Cartridge


Sale price£229.00

Tax included. Stock information

1 in stock

Pickup also available at Doug Brady HiFi

Usually ready in 1 hour

Audio Technica  AT-OC9XEB Moving Coil Cartridge

Audio Technica AT-OC9XEB Moving Coil Cartridge

Doug Brady HiFi

Pickup also available, usually ready in 1 hour

Kingsway Studios
Kingsway North
Warrington WA1 3NU
United Kingdom

+441925828009

AT-OC9XEB

The next Generation of the legendary OC9 cartridge series

Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. An excellent affordable introduction to the characteristics that is moving coil.

  • Features bonded Elliptical stylus and aluminium cantilever
  • A neodymium magnet and pure iron yoke provides increased magnetic energy
  • Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
  • Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve the purest signal possible

Elliptical Bonded Stylus

Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.

Easy mounting

Threaded holes in the cartridge body enable the cartridge to be mounted on to the headshell, or integral tonearm, with just two screws M2.6 – no nuts or bolts required.

Aluminium Body

Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction

Made in Japan

Produced in the Audio-Technica Fukui factory in Japan under strict quality control for precise manufacturing.



AT-OC9XEB

The next Generation of the legendary OC9 cartridge series

Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. An excellent affordable introduction to the characteristics that is moving coil.

  • Features bonded Elliptical stylus and aluminium cantilever
  • A neodymium magnet and pure iron yoke provides increased magnetic energy
  • Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
  • Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve the purest signal possible

Elliptical Bonded Stylus

Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.

Easy mounting

Threaded holes in the cartridge body enable the cartridge to be mounted on to the headshell, or integral tonearm, with just two screws M2.6 – no nuts or bolts required.

Aluminium Body

Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction

Made in Japan

Produced in the Audio-Technica Fukui factory in Japan under strict quality control for precise manufacturing.

Specifications

Cartridge & Stylus
Frequency Response 20 - 30,000 Hz
Channel Separation 25 dB (1 kHz)
Vertical Tracking Angle 20 degrees
Stylus Construction Bonded round shank
Recommended Load Impedance Min 100 Ohms
Coil Impedance 12 Ohms (1 kHz)
DC Resistance 12 Ohms
Coil Inductance 25 μH (1 kHz)
Output Voltage 0.32 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape Elliptical Bonded
Cantilever Aluminium pipe
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 9 x 10 – 6 cm / dyne (100 Hz)
Mounting 1/2” centers / Threaded inserts
Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm
Accessories Included 1 non magnetic screw driver,
1 brush; 2 washers,
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
Body Material Aluminium
Model AT-OC9XEB
Stylus Size 0.3 x 0.7 mil
Terminal Pins Brass
Weight 7.6 g
Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
