Audiolab

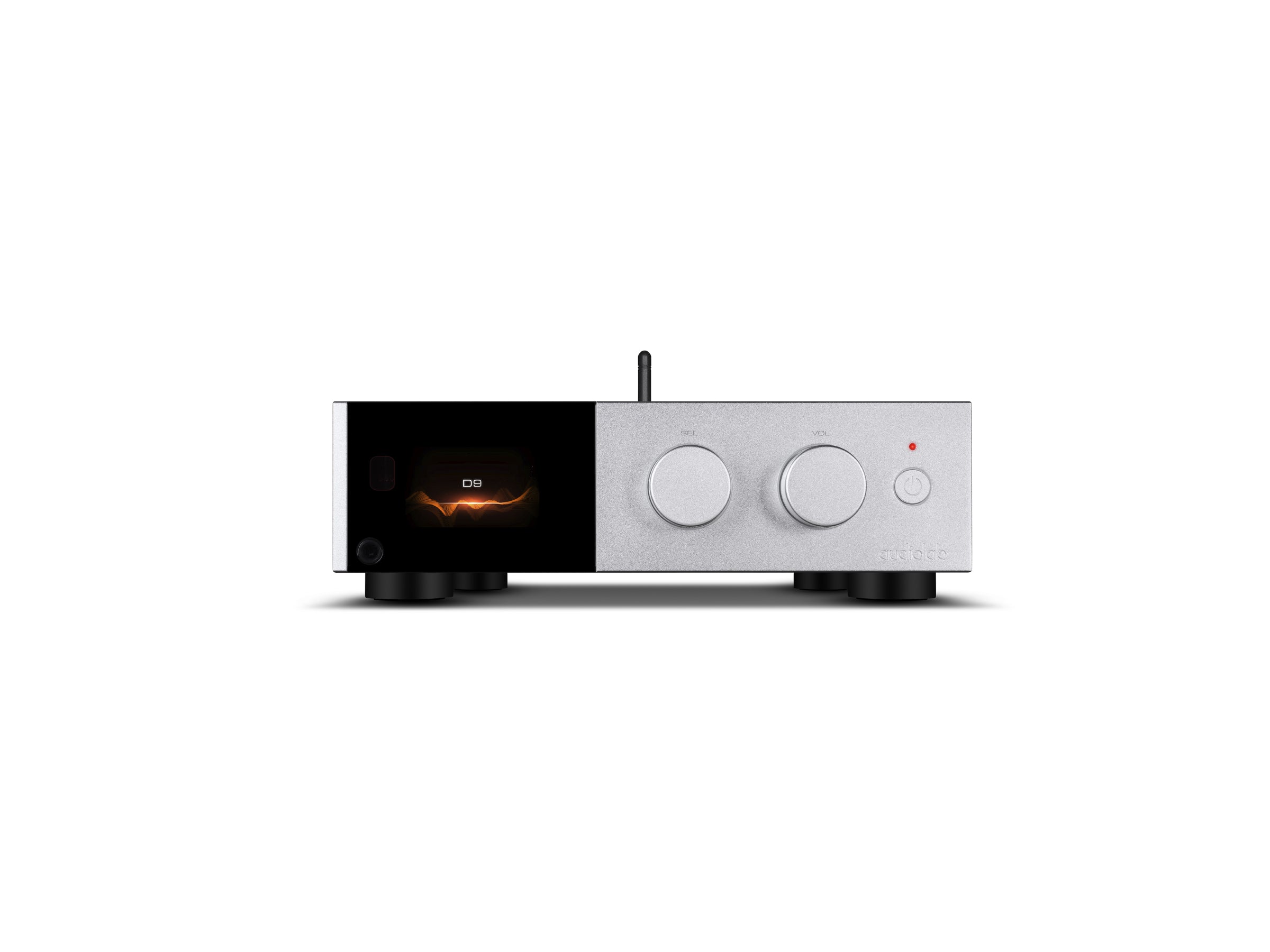

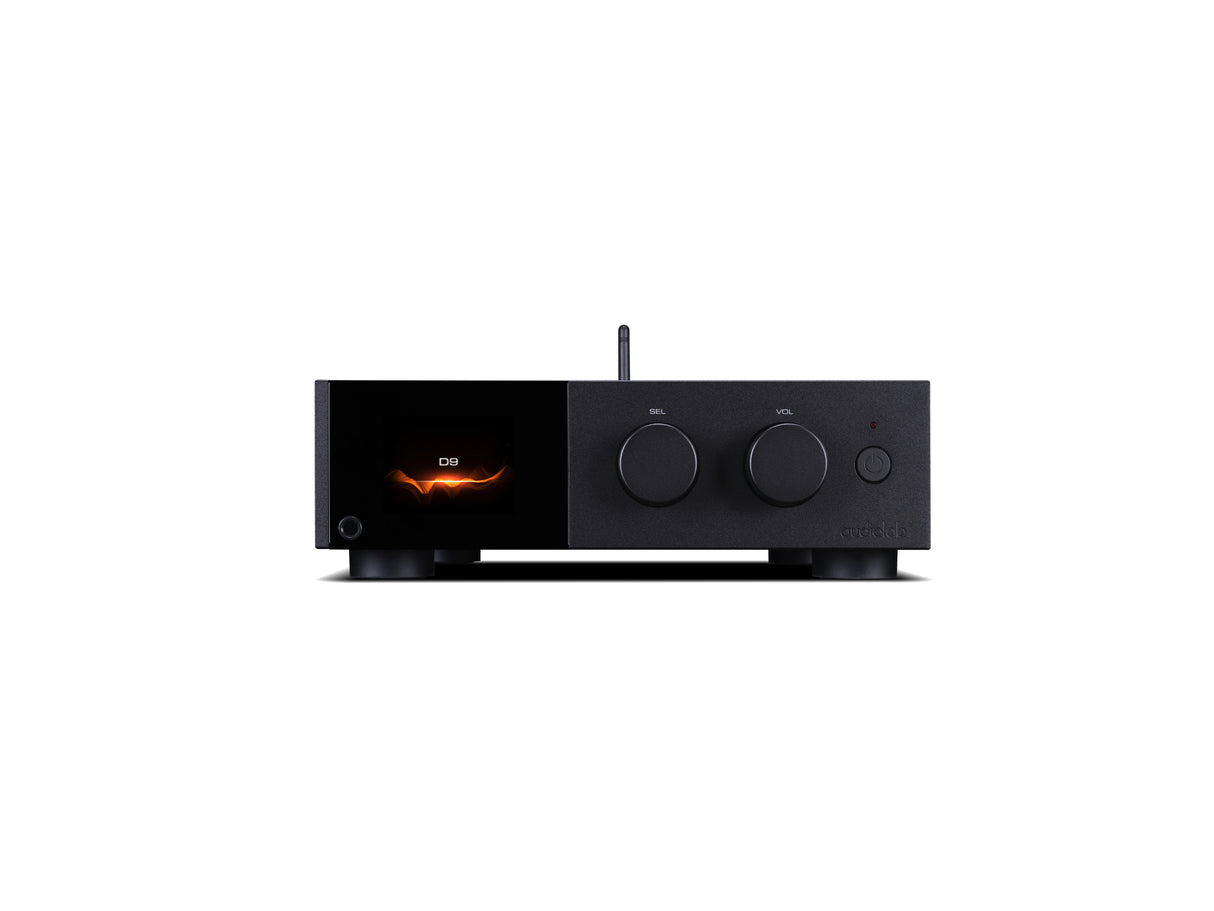

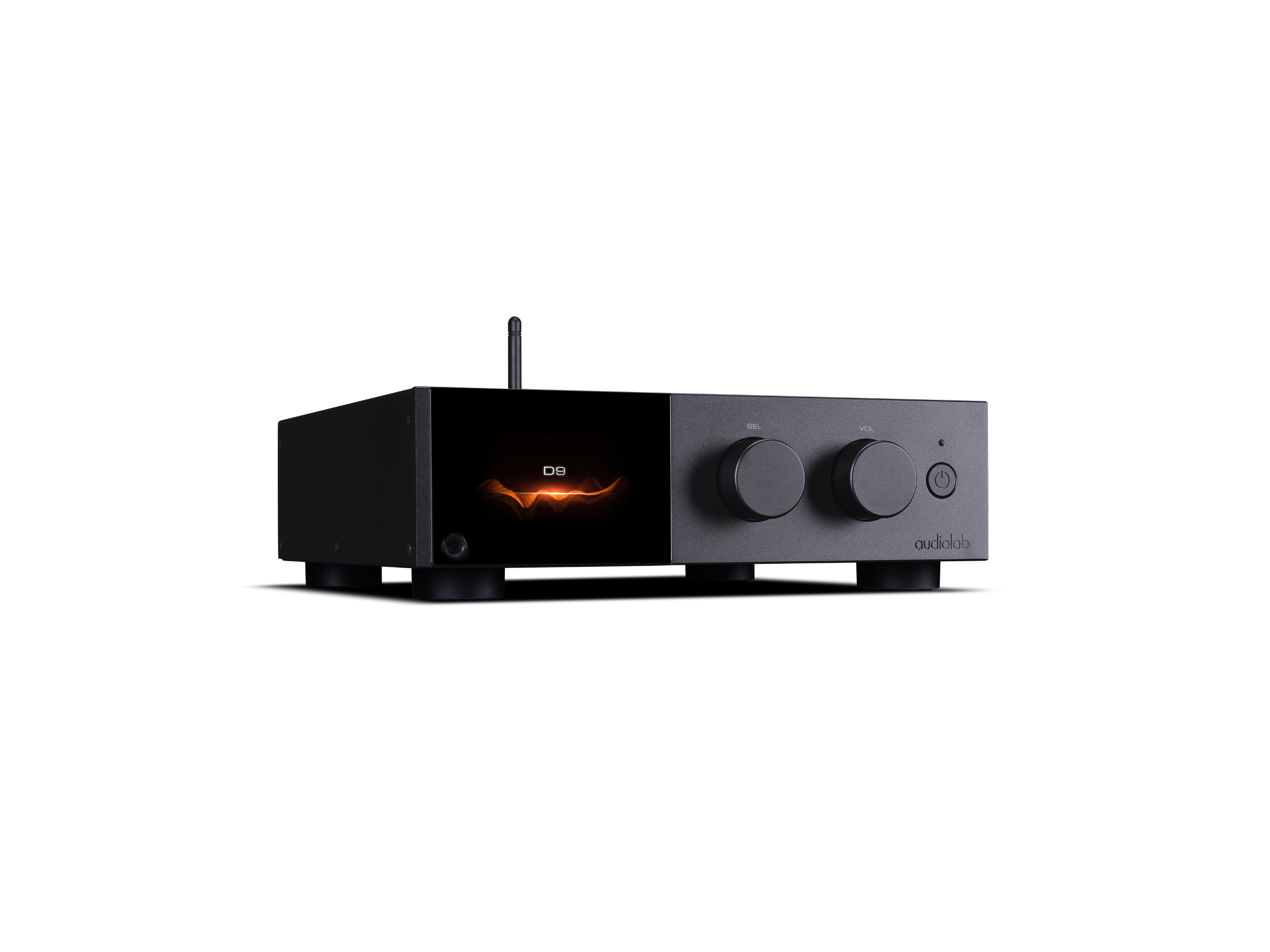

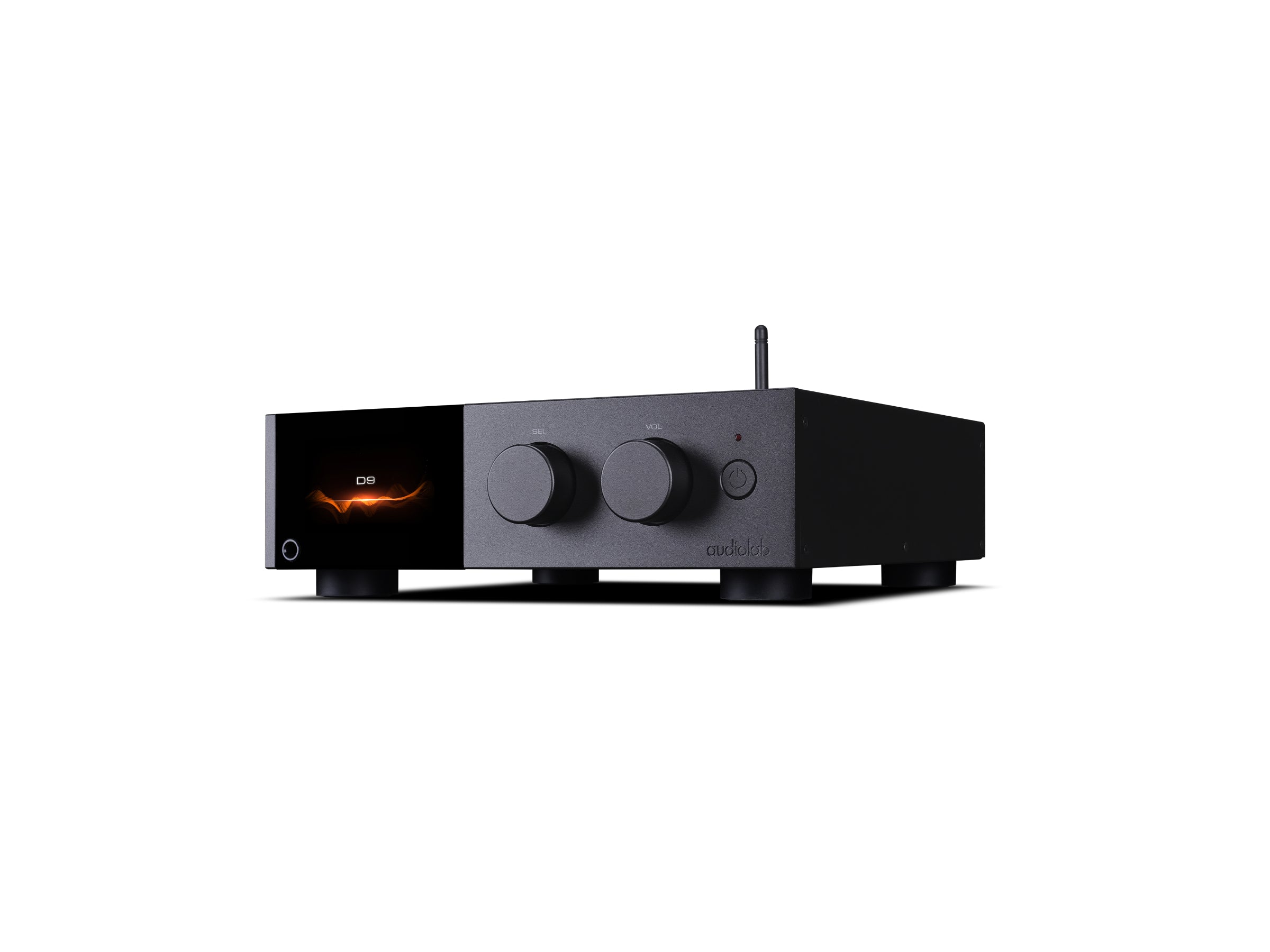

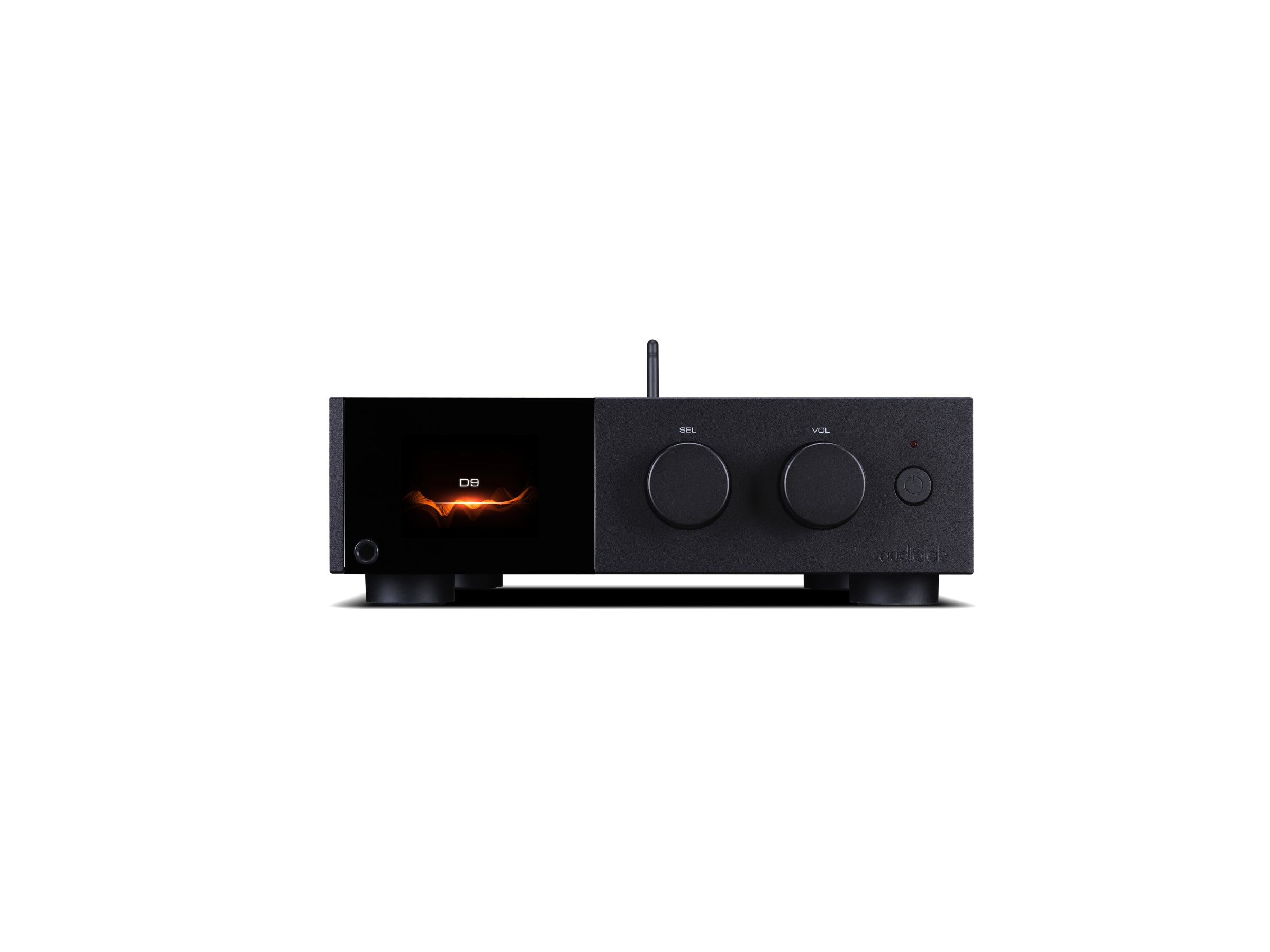

Audiolab D9 DAC Headphone Amplifier

£1,099.00
Tax included Shipping calculated at checkout.

The high end Audiolab D9 DAC and headphone amplifier has broad connectivity. With its USB HDD playback, and hi-res Bluetooth 5.1 streaming, it is built for versatility.

At the core of the Audiolab D9 is the state-of-the-art ESS Sabre32 ES9038PRO DAC, a 32-bit reference-class chipset celebrated for its exceptional signal-to-noise ratio, ultra-low distortion, and expansive dynamic range. This leading-edge digital-to-analogue converter, supported by HyperStream® II architecture and Time Domain Jitter Eliminator, guarantees outstanding levels of detail, precision, and sonic clarity. The result is an audio performance that meets the expectations of even the most demanding audiophiles, preserving the full integrity of the original recording.

Precision

Supporting high-resolution audio formats, the D9 is engineered to handle PCM up to 32-bit/768kHz and DSD up to 22.5MHz (DSD512), along with full MQA decoding for authentic master-quality playback. HyperStream II and advanced jitter elimination technologies use a refined clocking system that ensures superb timing accuracy and minimal phase noise, creating a naturally accurate, three-dimensional soundstage. Five user-selectable DAC reconstruction filters allow fine-tuning of playback characteristics, and users can choose to upsample digital audio to 352.8kHz or 384kHz, further enhancing detail retrieval and musical nuance.

Unmatched Connectivity

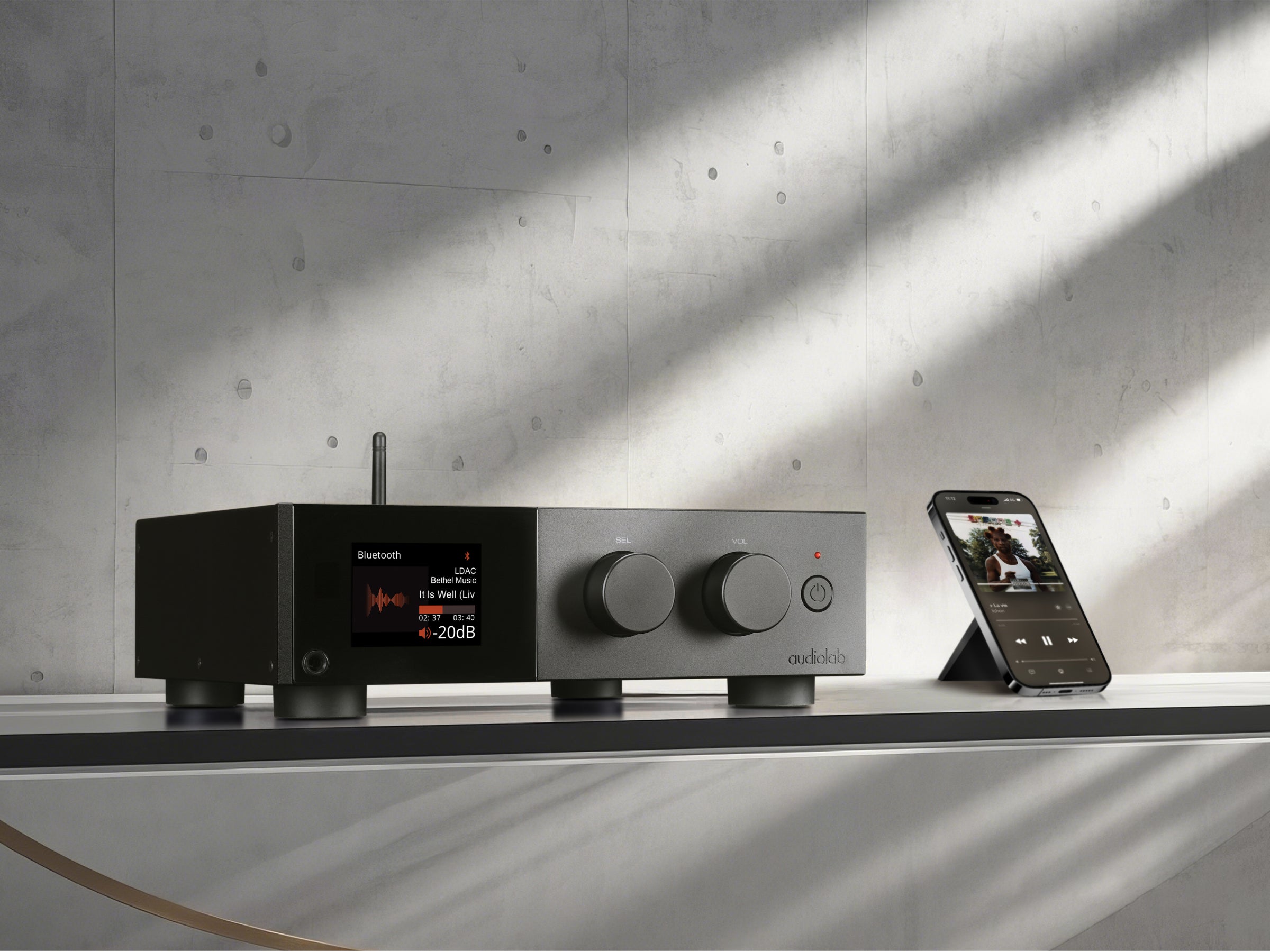

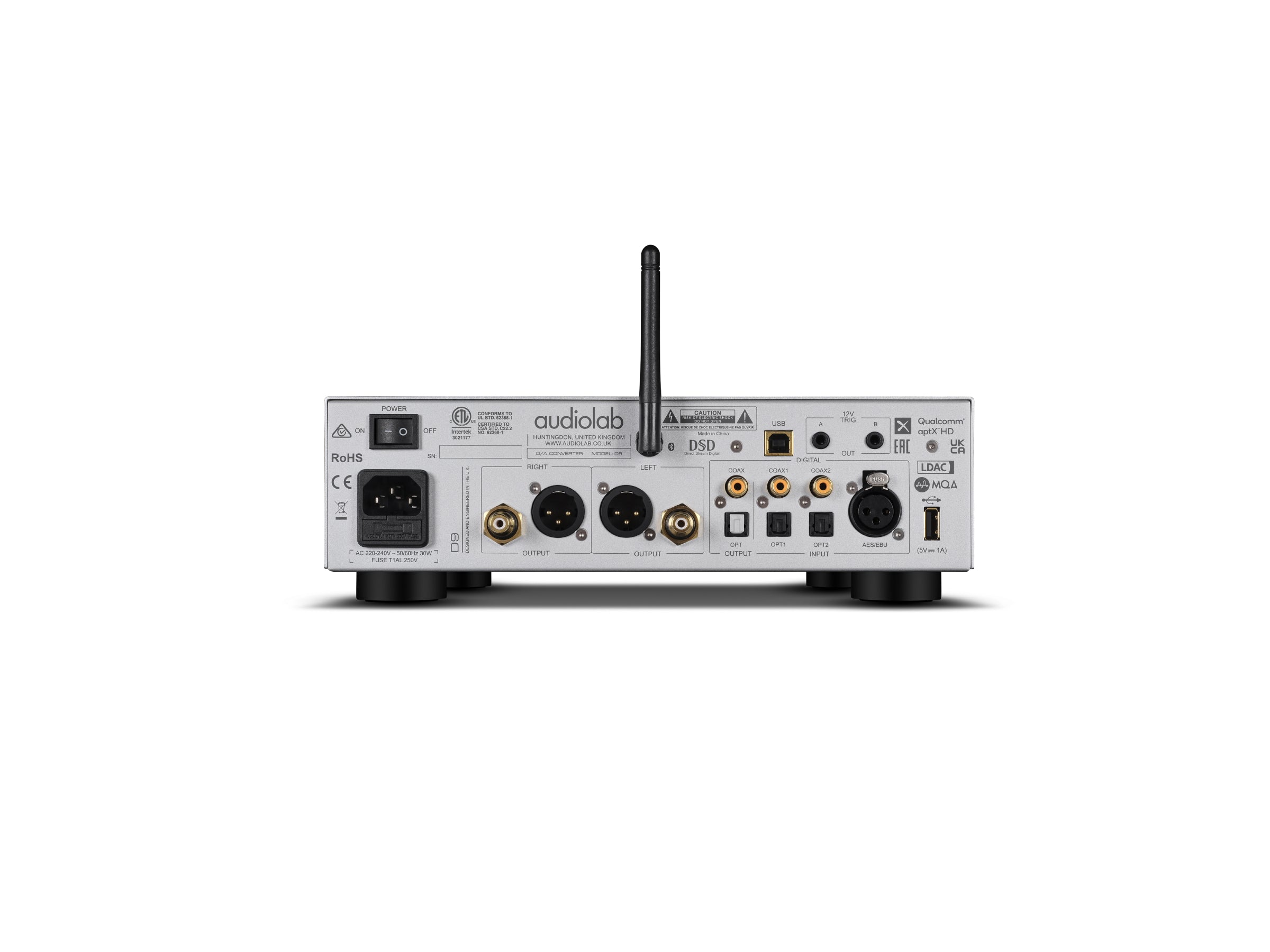

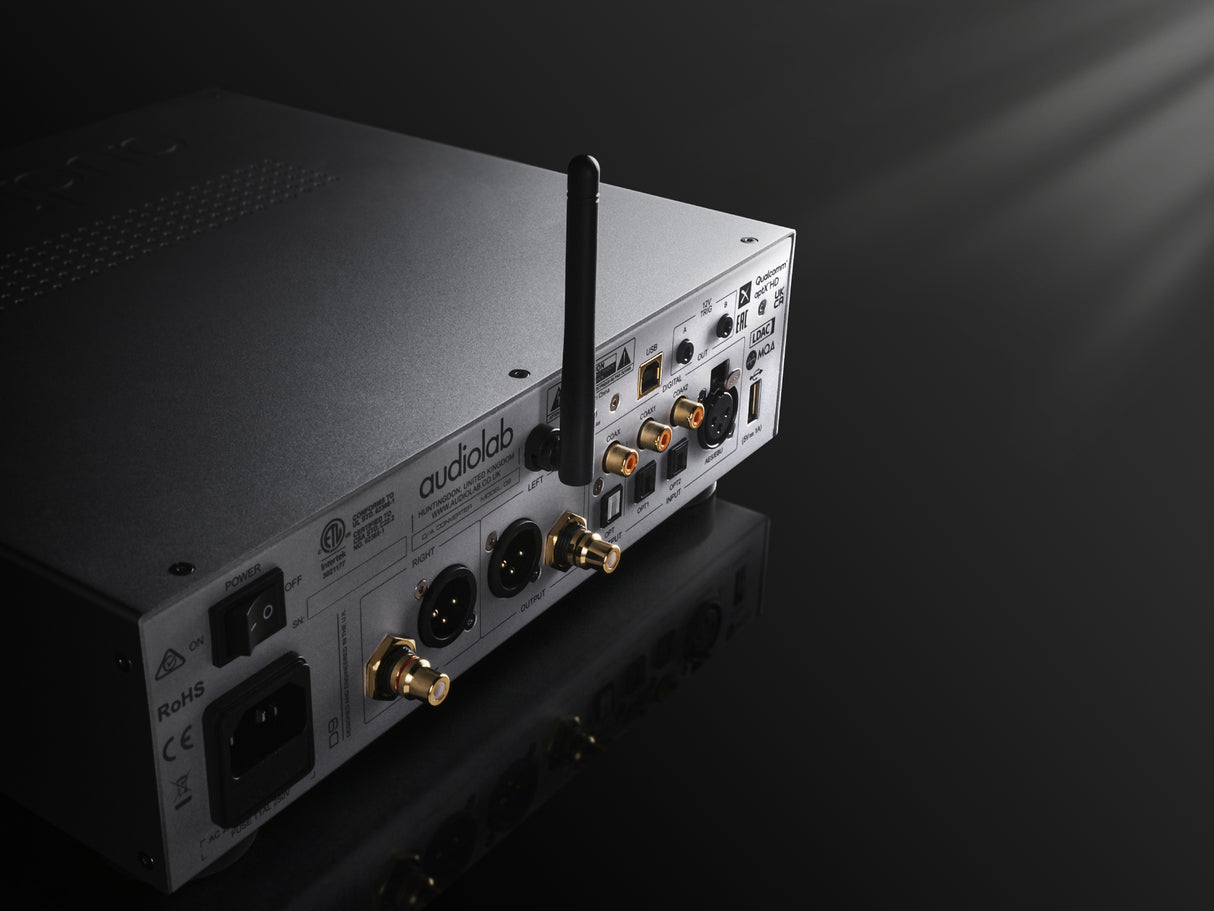

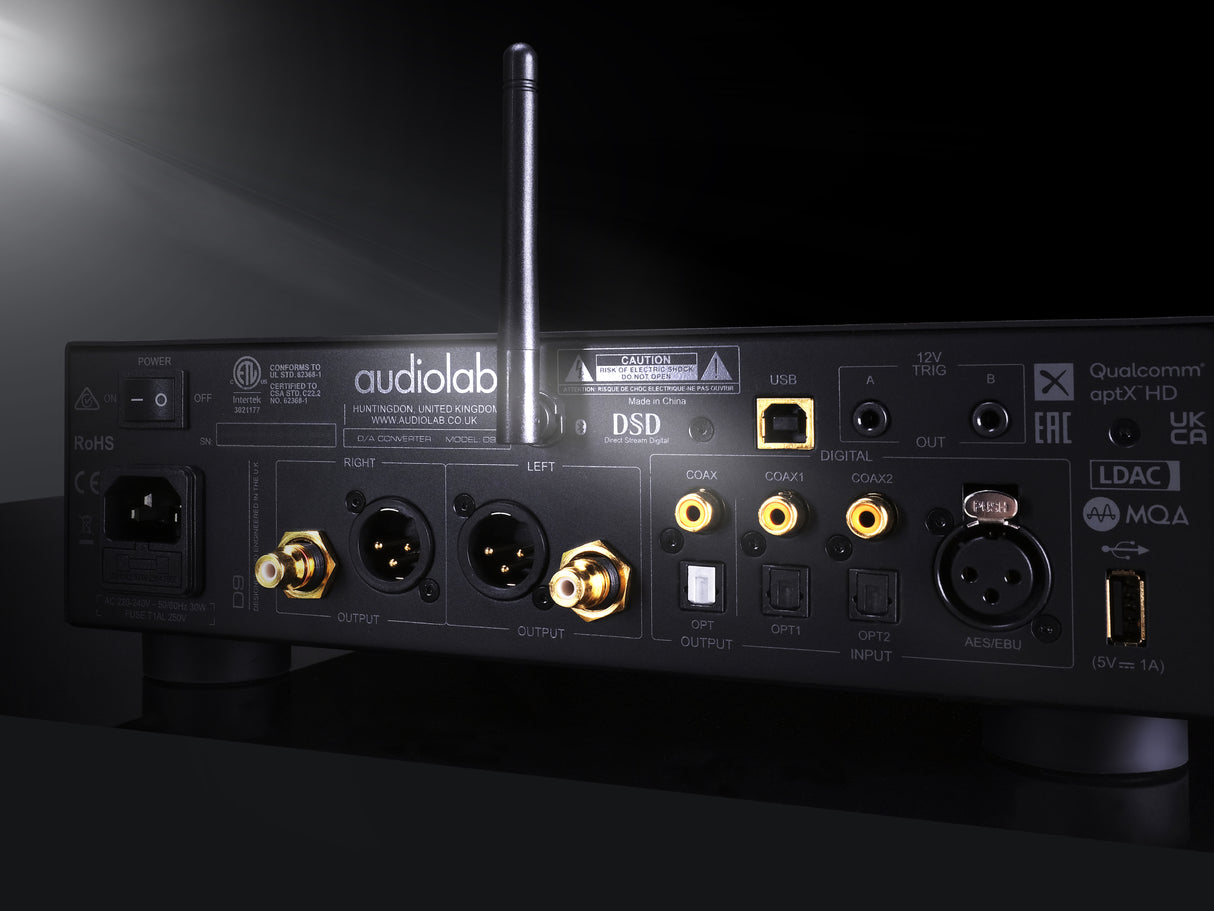

Designed as a versatile digital hub, the Audiolab D9 offers a wide array of connectivity options for seamless integration into complex audio systems. It includes two coaxial and two optical S/PDIF digital inputs, USB drive connectivity, and a new AES/EBU input suited for professional-grade setups. Outputs for coaxial and optical S/PDIF support system expansion, while playback from USB HDDs and Bluetooth 5.1 with aptX HD and LDAC offer flexible options for high-resolution wireless streaming from smart devices. Balanced XLR and unbalanced RCA analogue outputs ensure pristine signal transmission for both high-fidelity home systems and audiophile environments.

Can-Jam

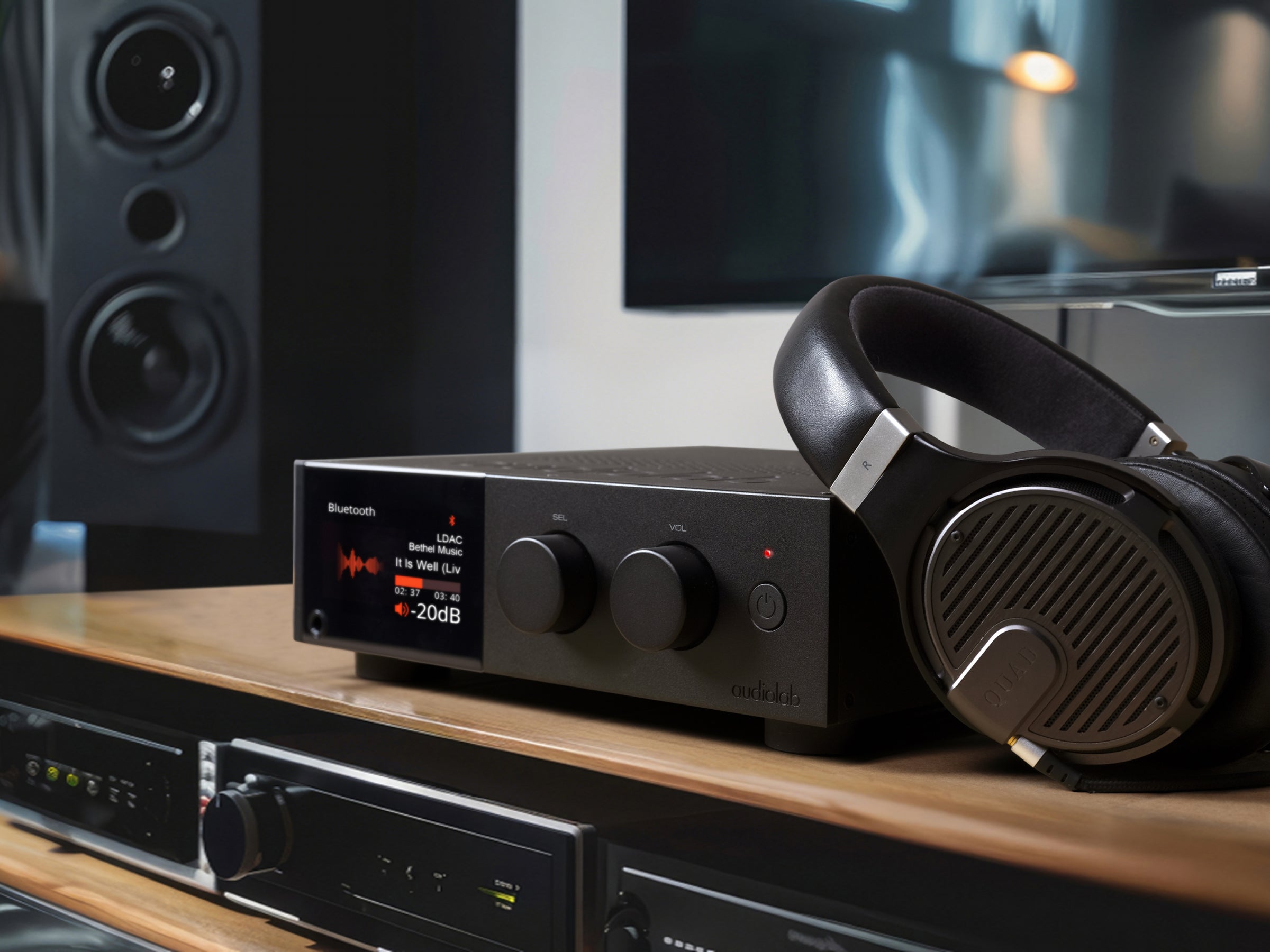

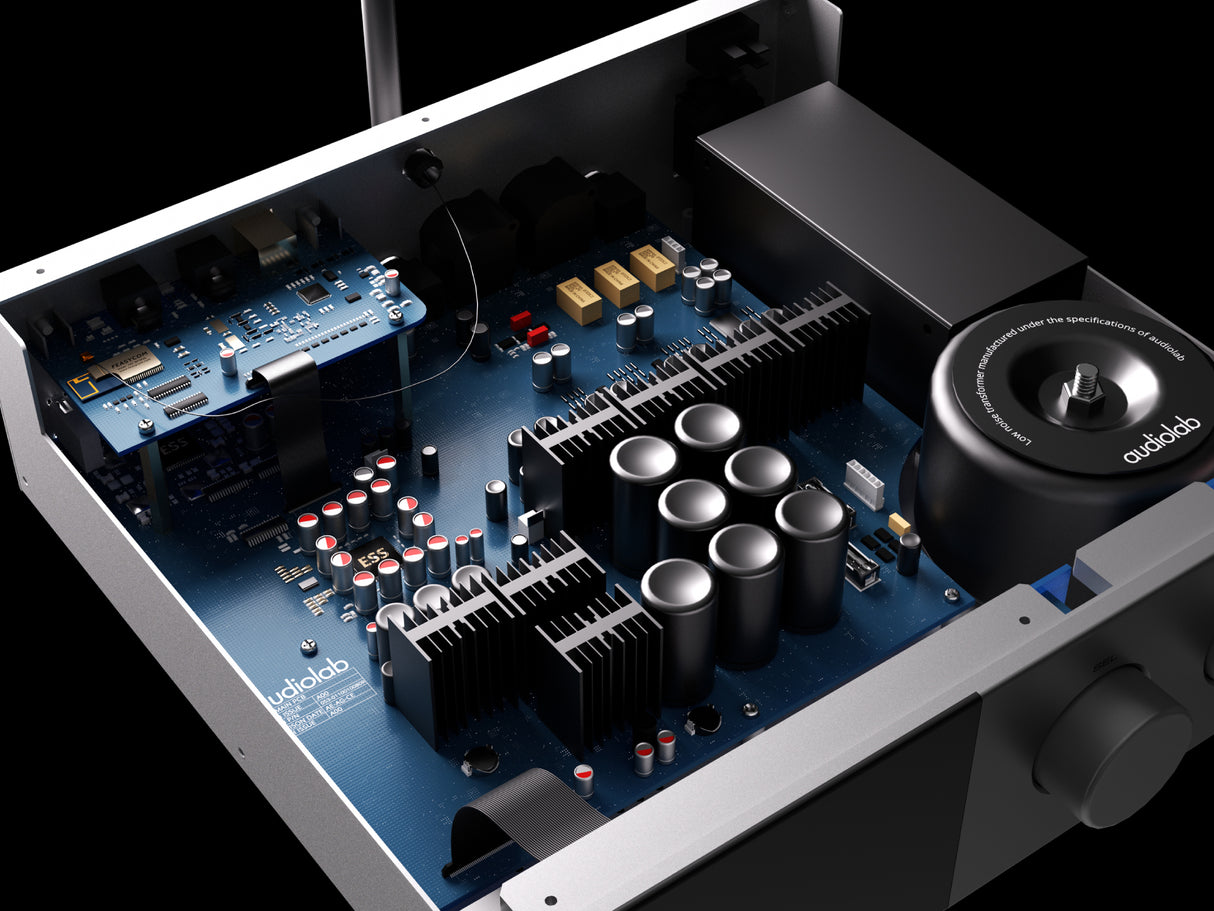

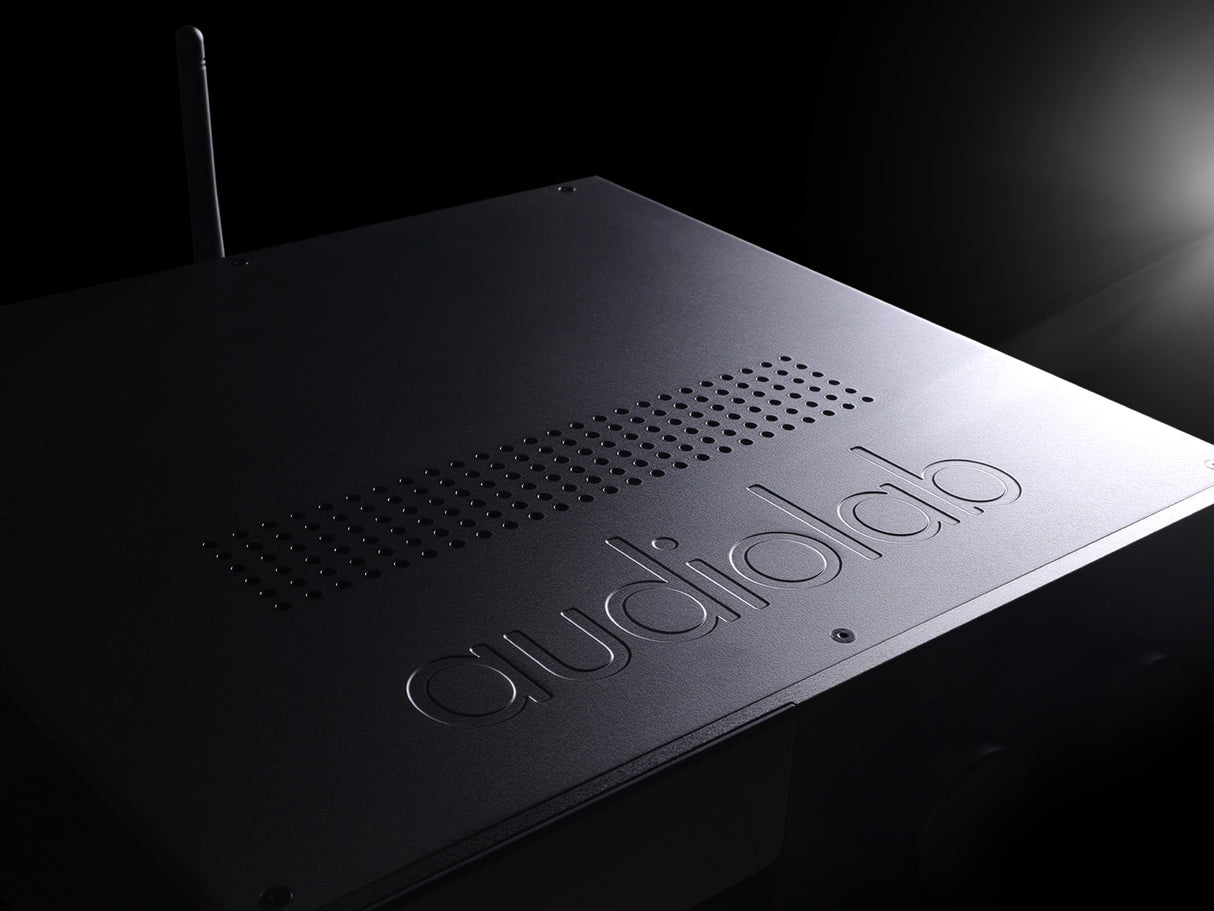

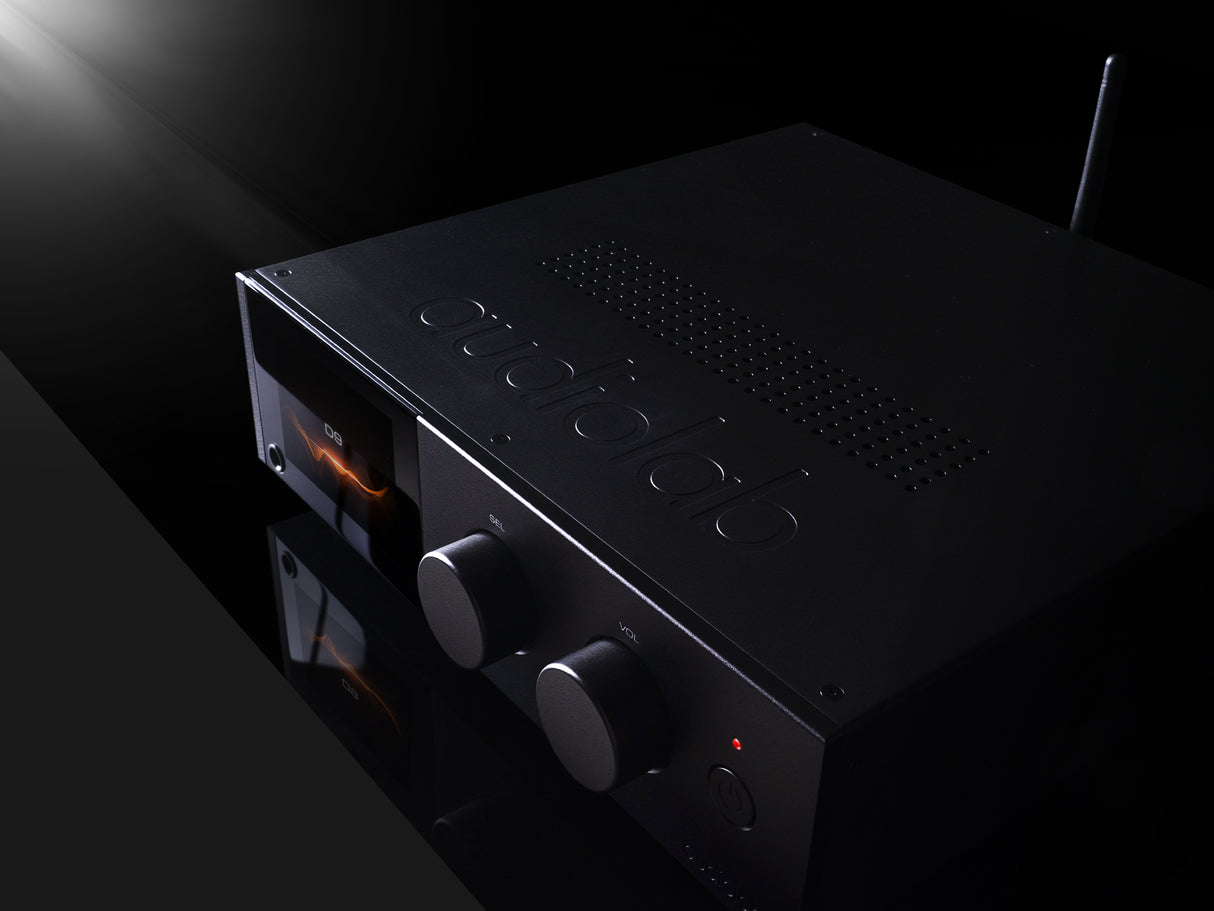

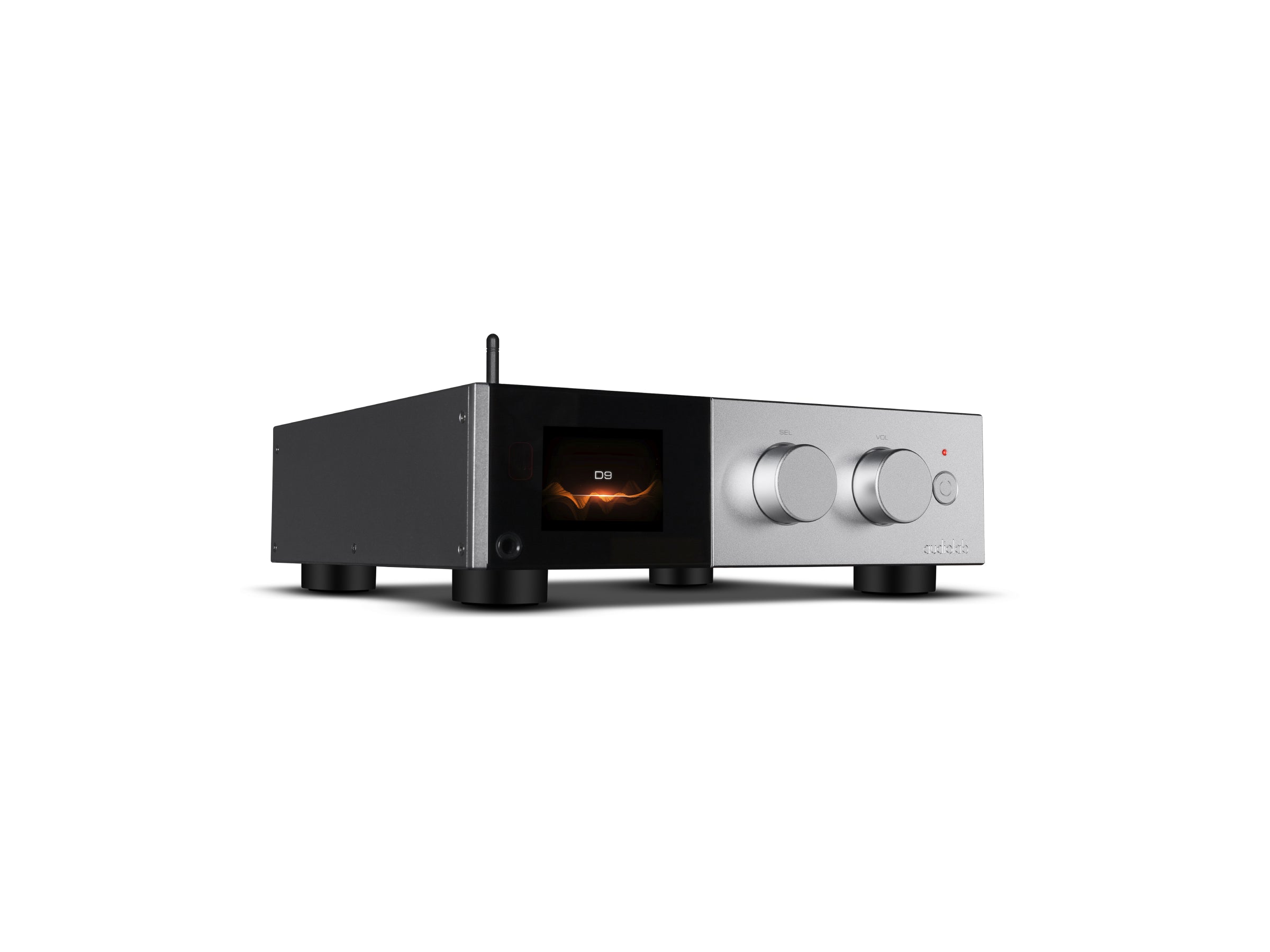

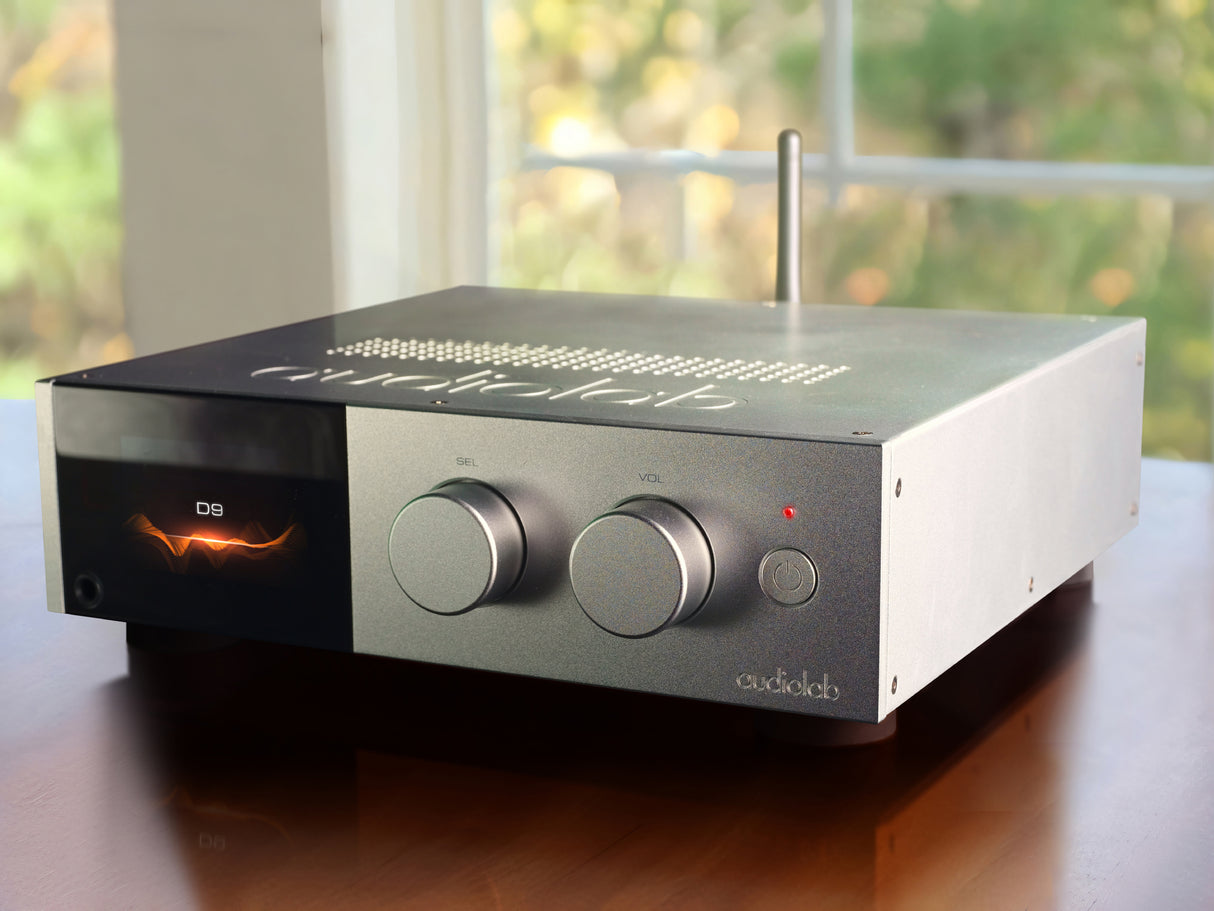

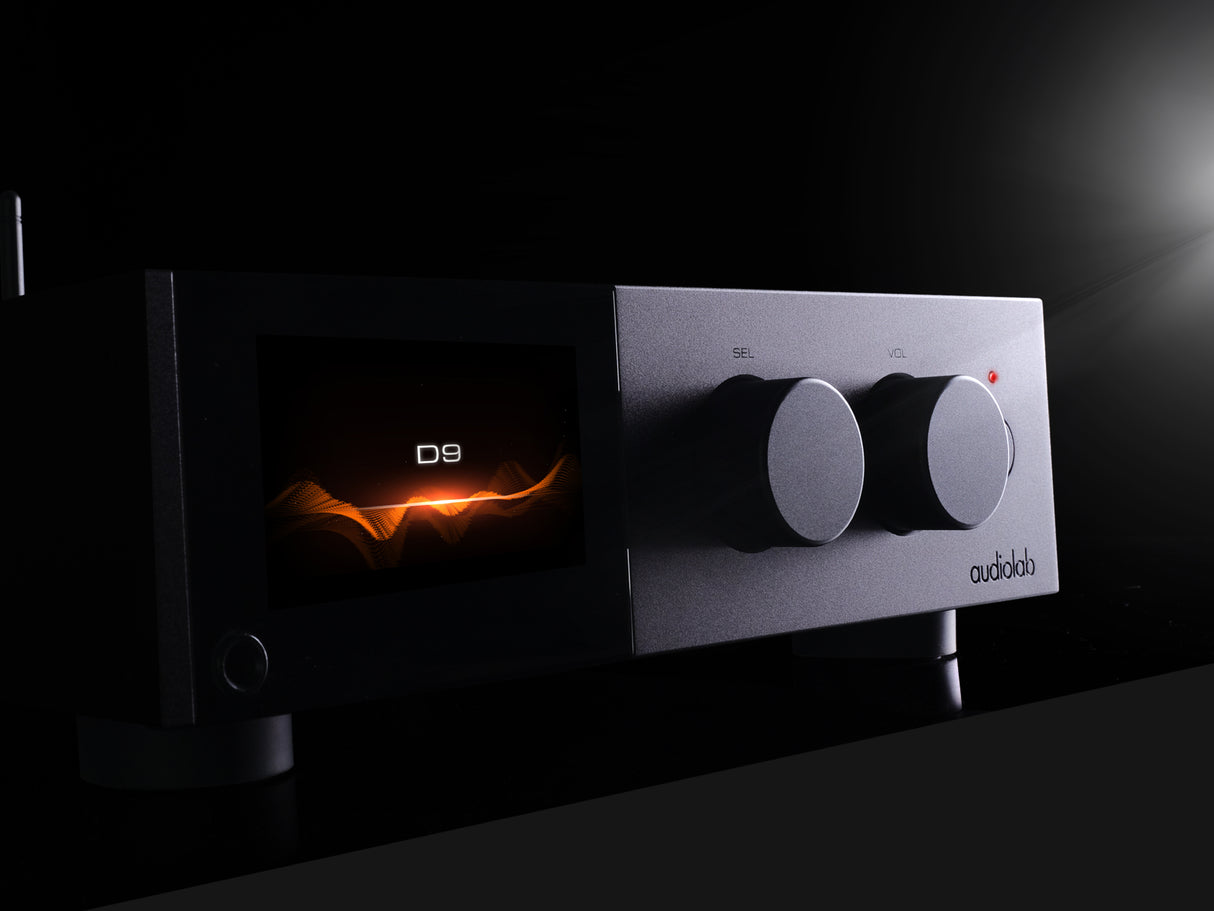

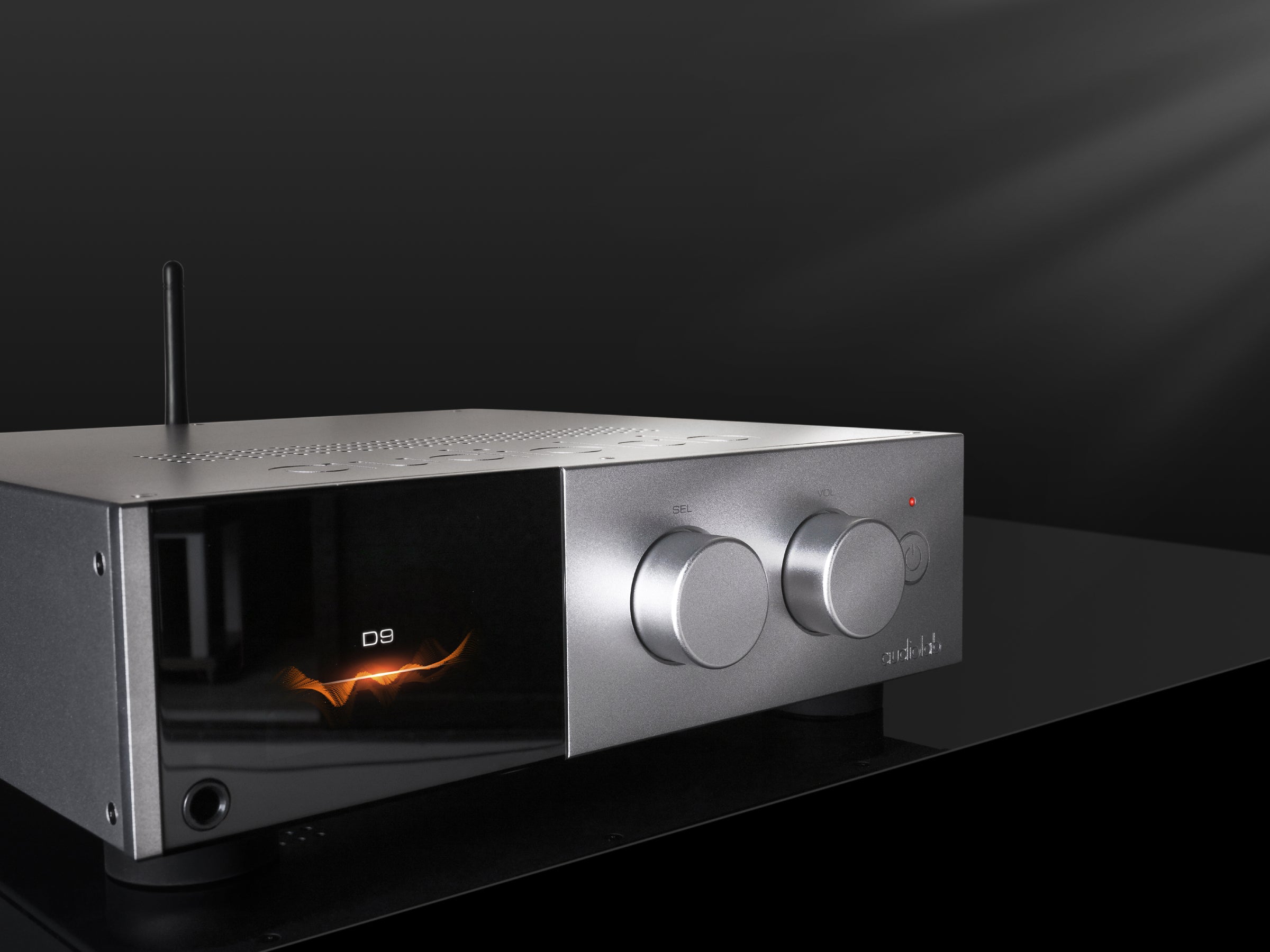

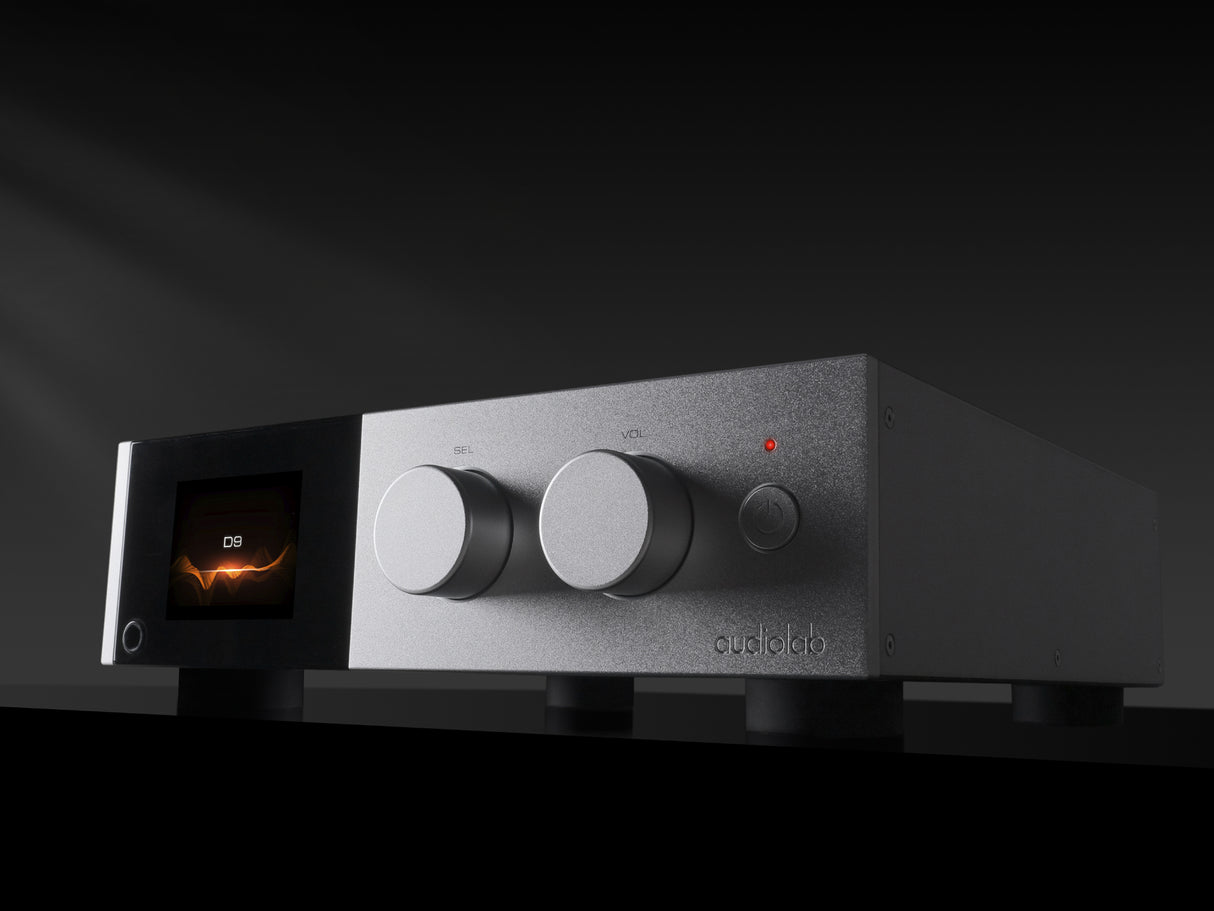

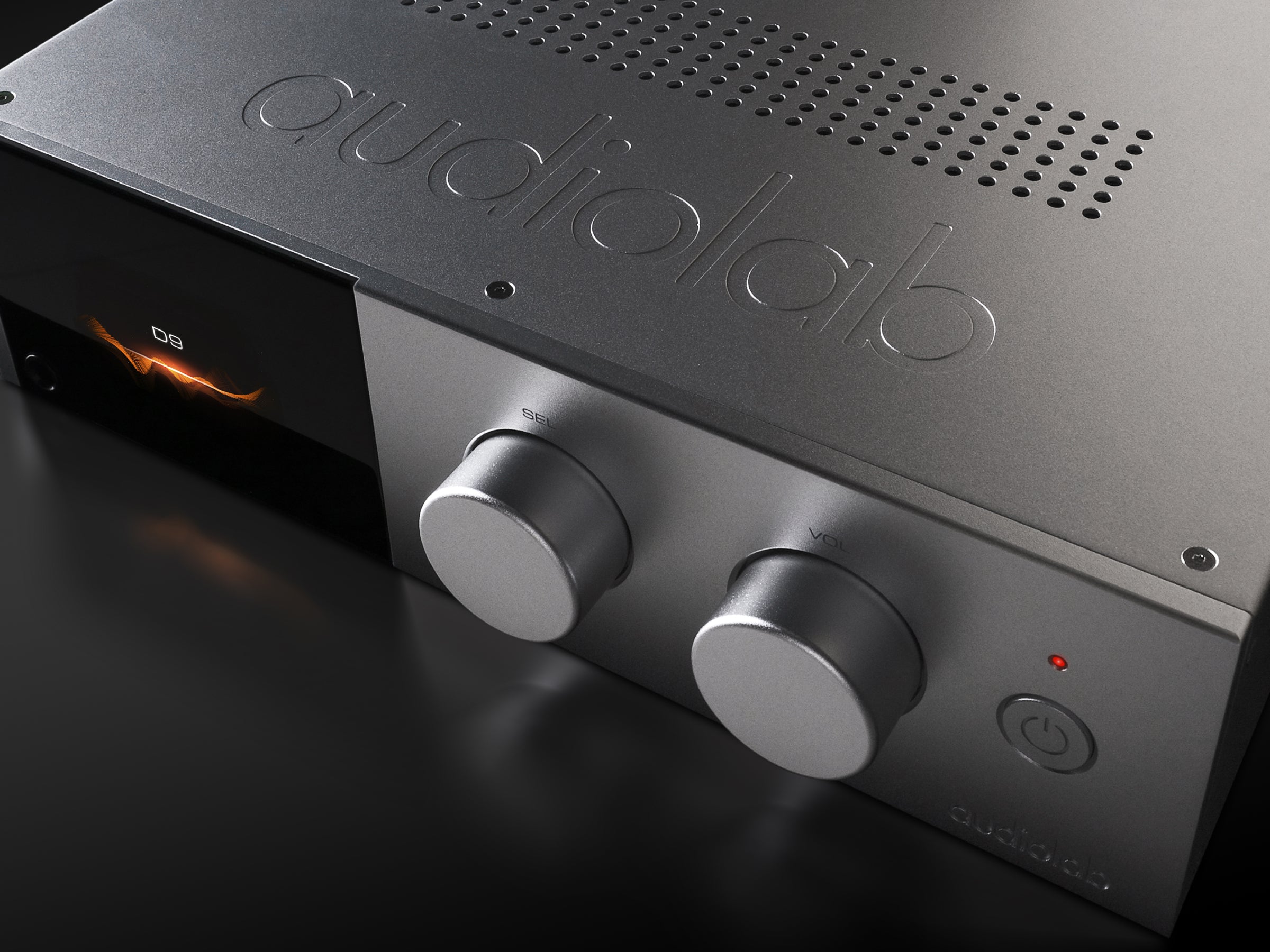

In addition to its digital prowess, the D9 also serves as a high-power headphone amplifier, employing current-feedback circuitry for wide bandwidth and high slew rate performance. Suitable for all headphone types, it guarantees exceptional clarity and dynamic control. Housed in a sleek aluminium chassis that ensures both durability and resistance to interference, the unit features a vibrant 2.8" full-colour IPS display and an intuitive user interface, with multilingual menus and remote control support. Real-time playback information and total control over filter settings and playback sources place the D9 a step ahead of similarly priced alternatives, making it a true benchmark in digital audio conversion.

Specifications

Model: D9
General Description: DAC
Design Philosophy And Core Technology: ES9038Pro 32-bit DAC
MQA Full decoder (PC USB, Coax / Optical)
2.8" 480x640 large size full-view IPS LCD
Bluetooth 5.1 (aptX / aptX HD / LDAC) streaming
Dedicated Current-Feedback Headphone Amp
VU Digital / VU Analogue Meter
USB HDD Playback with MP3 / WMA / AAC / WAV / FLAC / APE compatibility
USB Firmware Upgrade

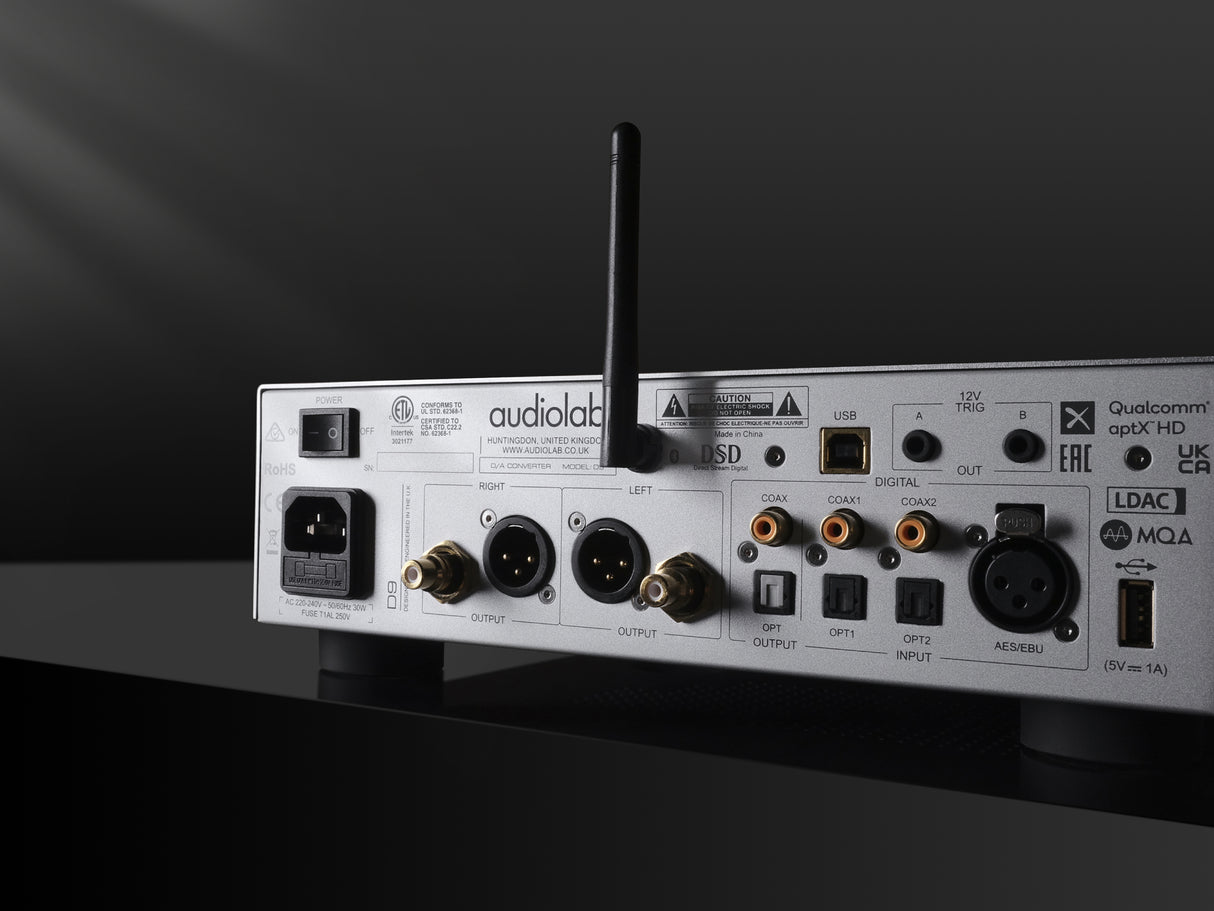

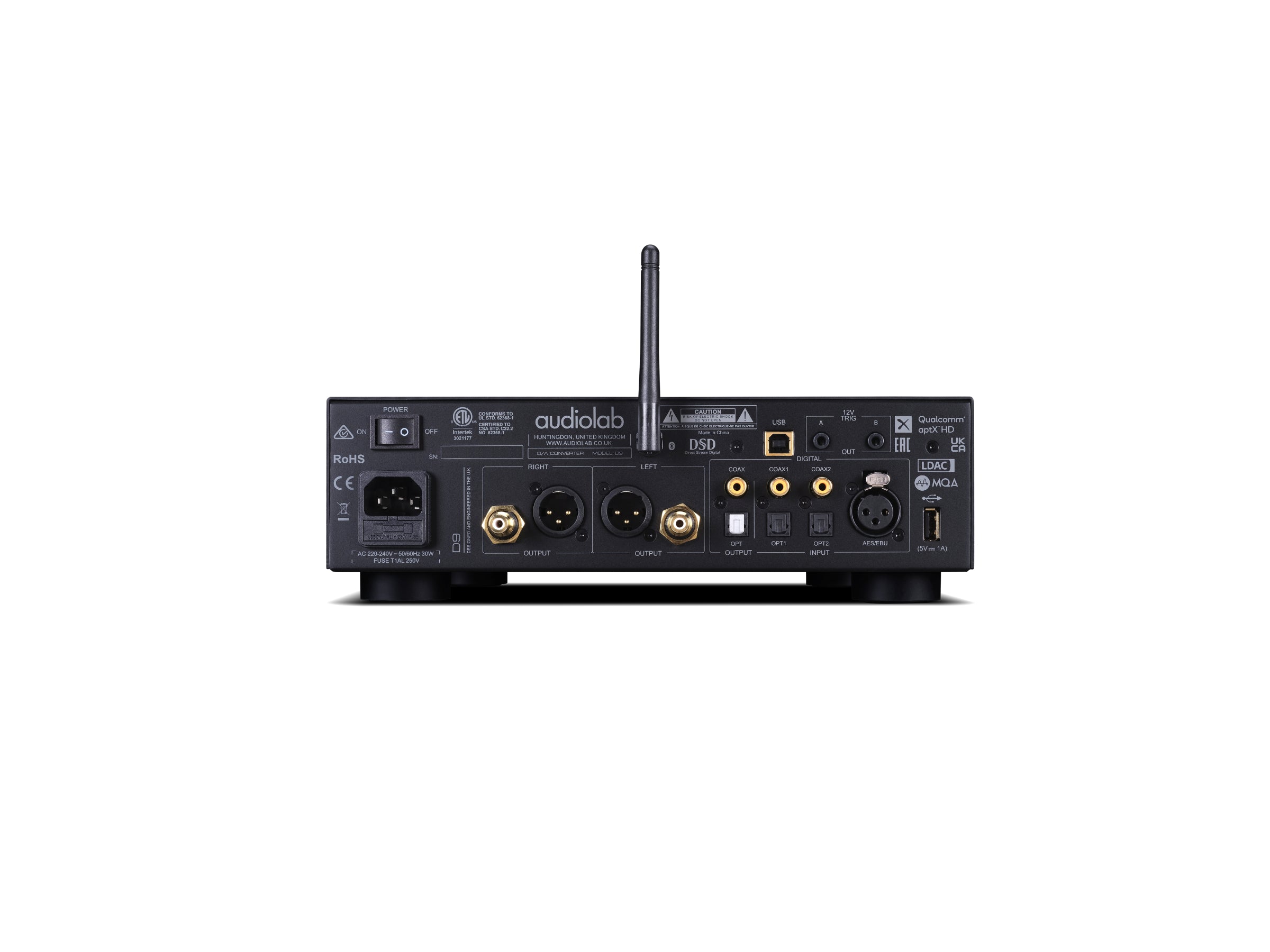

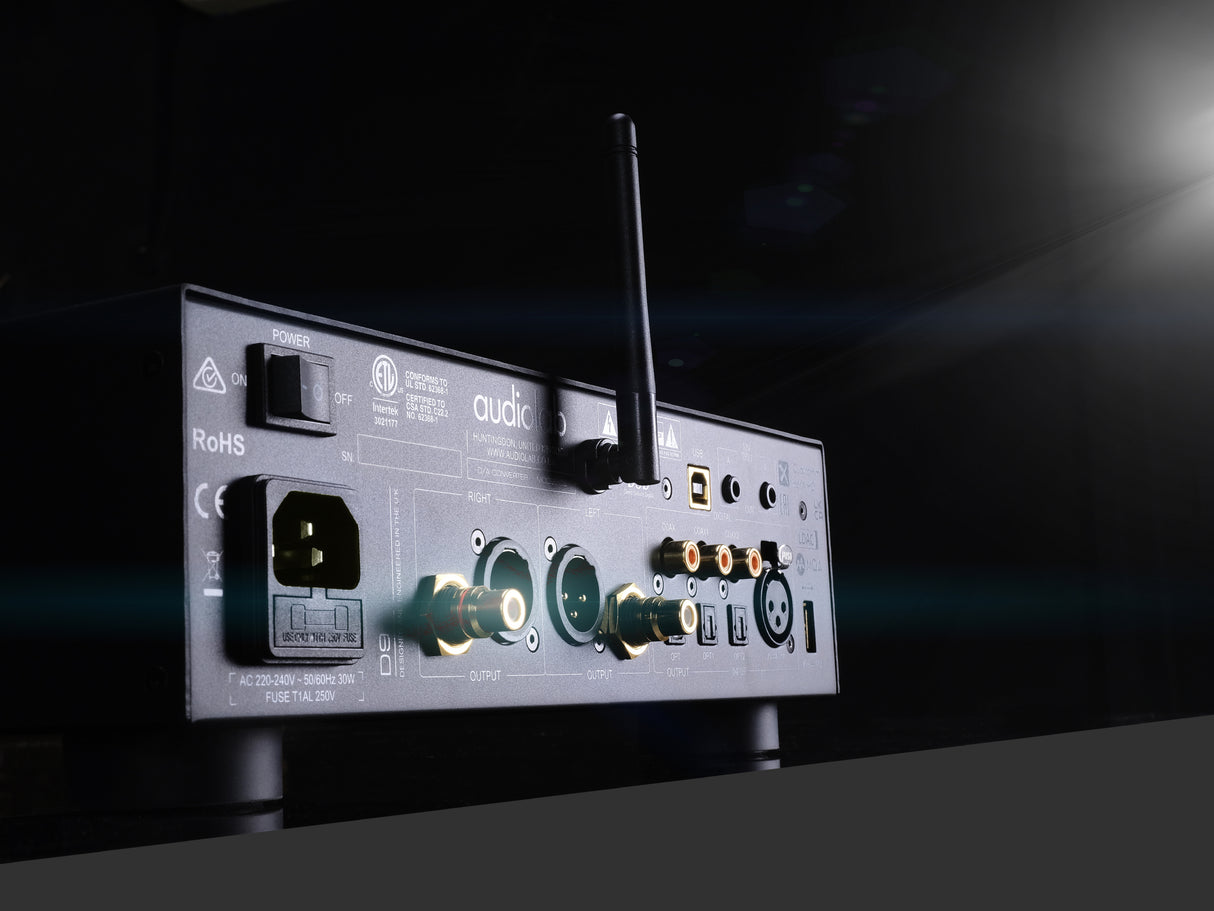

Inputs: 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B),
1 x USB HDD (USB A), 1 x Bluetooth (aptX / aptX HD), 1 x AES3/EBU
Outputs: 1 x RCA, 1 x XLR, 1 x Headphone, 2 x 12V Trigger, 1 x Optical, 1 x Coax
Sampling Frequency: Optical / Coaxial: 44.1kHz–192kHz
USB HDD: 44.1kHz–96kHz
PC USB: 44.1kHz–768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
DAC:
D To A Converter: ES9038Pro
Output Level (0dBFS, 1kHz): 2.05Vrms (RCA), 4.1Vrms (XLR)
Total Harmonic Distortion (THD): < 0.001% (1kHz @ 0dBFS)
Frequency Response: 20Hz–20kHz (+/-0.1dB)
Output Impedance: Not specified
Max. Sampling Frequency: USB HDD: 96kHz
Optical, Coaxial: 192kHz
PC USB: PCM768kHz, DSD512
Signal-To-Noise Ratio (S/N): > 118dB (A-weighted, RCA)
> 123dB (A-weighted, XLR)
Headphone Amplifier:
Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW)
Output Impedance: 2.35 ohm
Load Impedance: 20–600 ohm
General:
Standby Power Consumption: < 0.5W
Net Weight: 4.2 kg
Gross Weight: 5.8 kg
Dimensions (mm) (W x H x D): W: 315 x H: 88.3 x D: 277mm
Carton Size (mm) (W x H x D): W: 409 x H: 220 x D: 451mm
Finish: Black, Silver
Power Requirements: 220–240V ~ 50/60Hz
100–120V ~ 50/60Hz
Standard Accessories: Power Cord, Remote Control, User Manual, etc.
