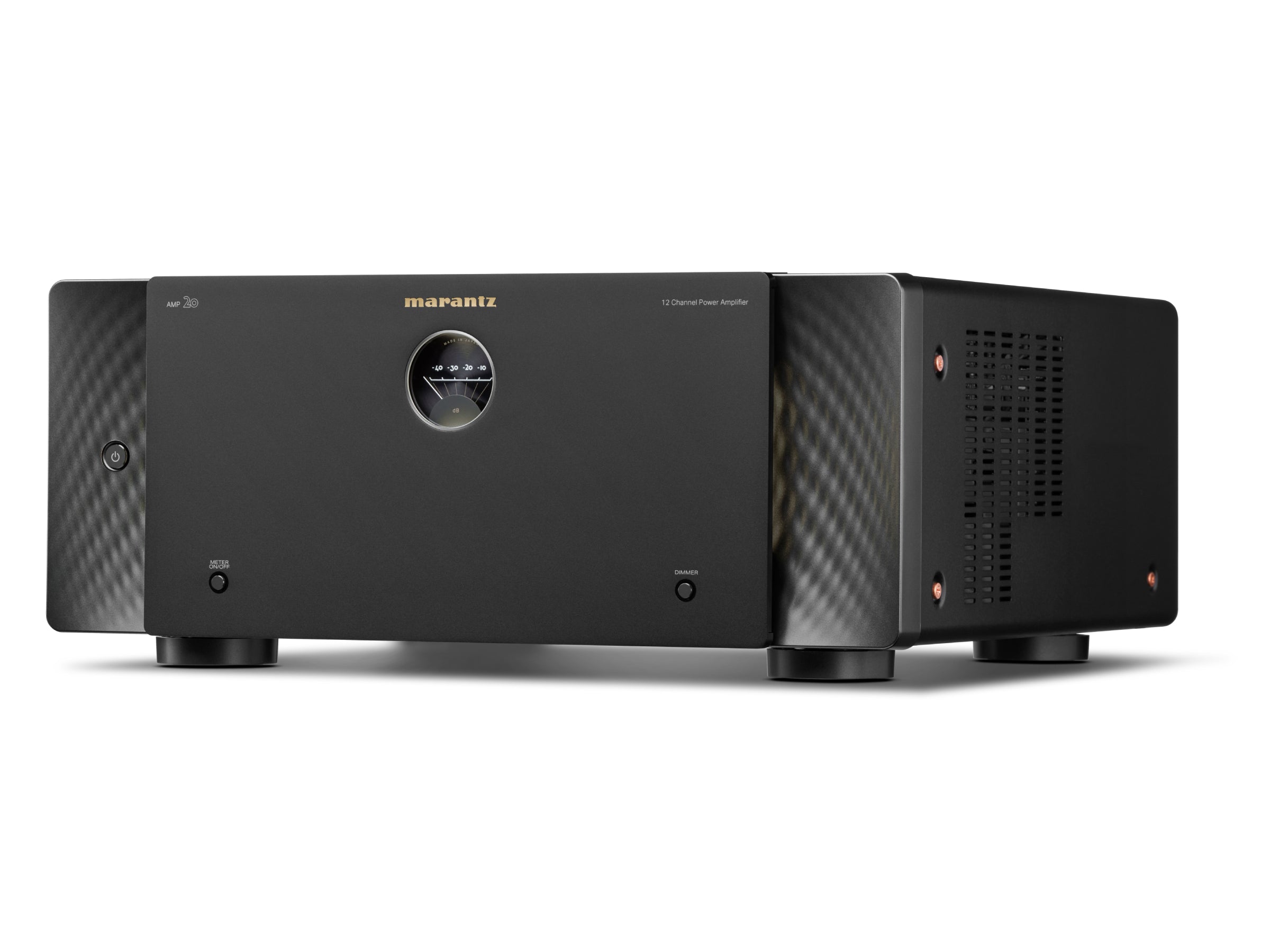

Marantz Amp 20 12 Channel Power Amplifier
Features
- Detailed and immersive sound transforms your home theater
- 200 watts per channel into 8Ω / 400 watts per channel into 4Ω
- 12 channels power large home theaters
- Bi-amp mode drives high- and low-frequency sections of loudspeakers independently
- BTL Mode (Bridge mode) combines two channels into a single 400-watt per channel into 8Ω
- Perfect match for Marantz AV 20 preamplifier
- Balanced XLR input is ideal for reducing input noise

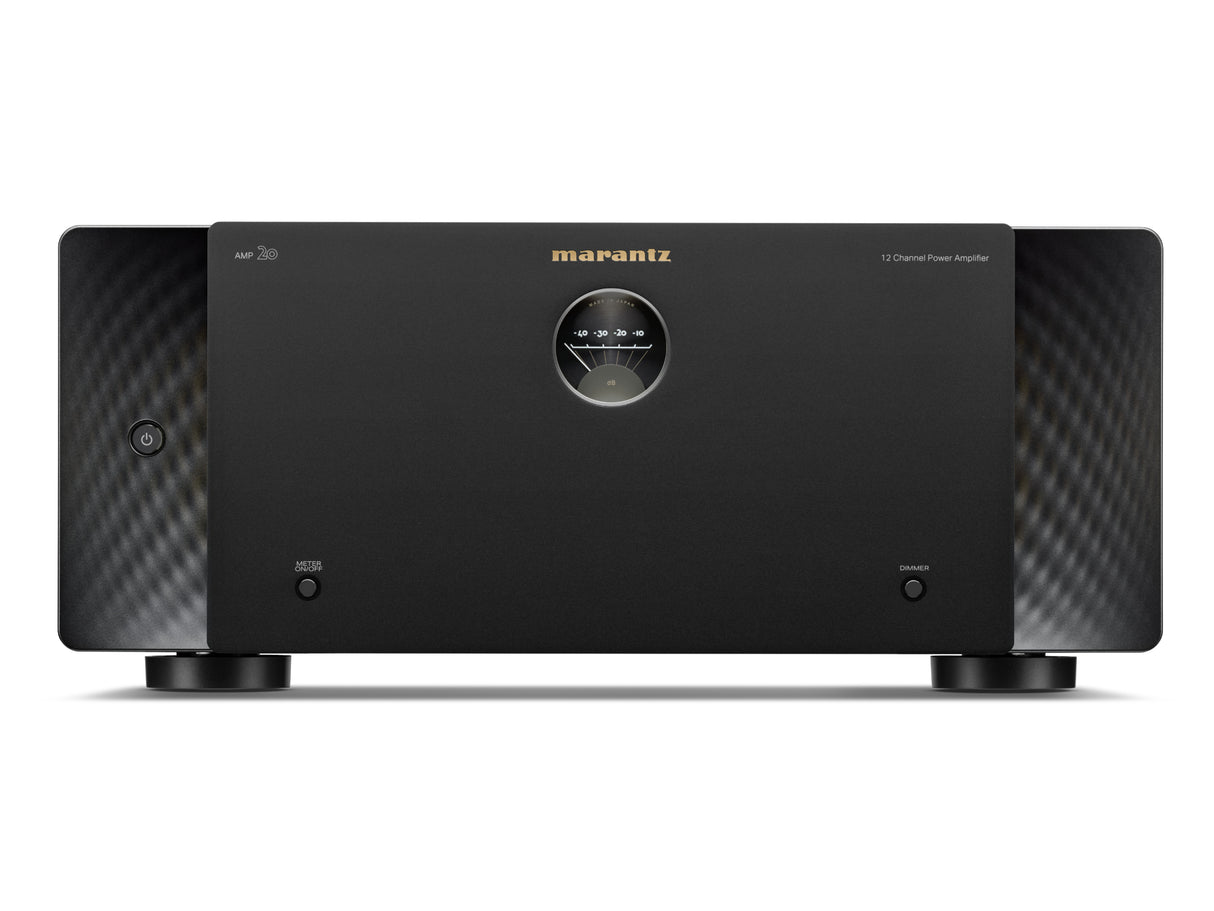

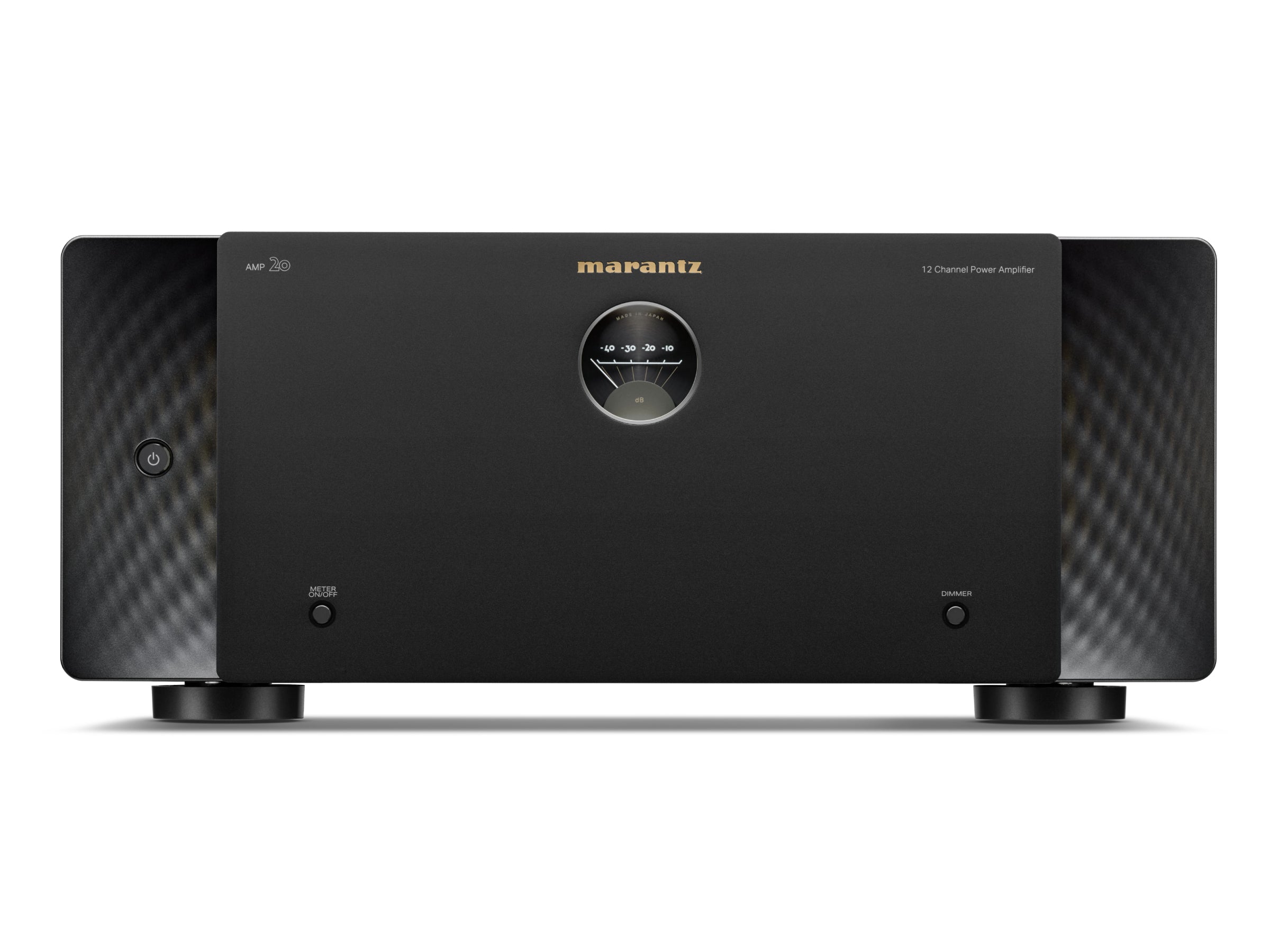

- Porthole with analog meter measures outputSoft side lights cast a warm glow on the front surface of the amplifier
- Elegant design matches rich, warm sound
Advanced Amplification Technology

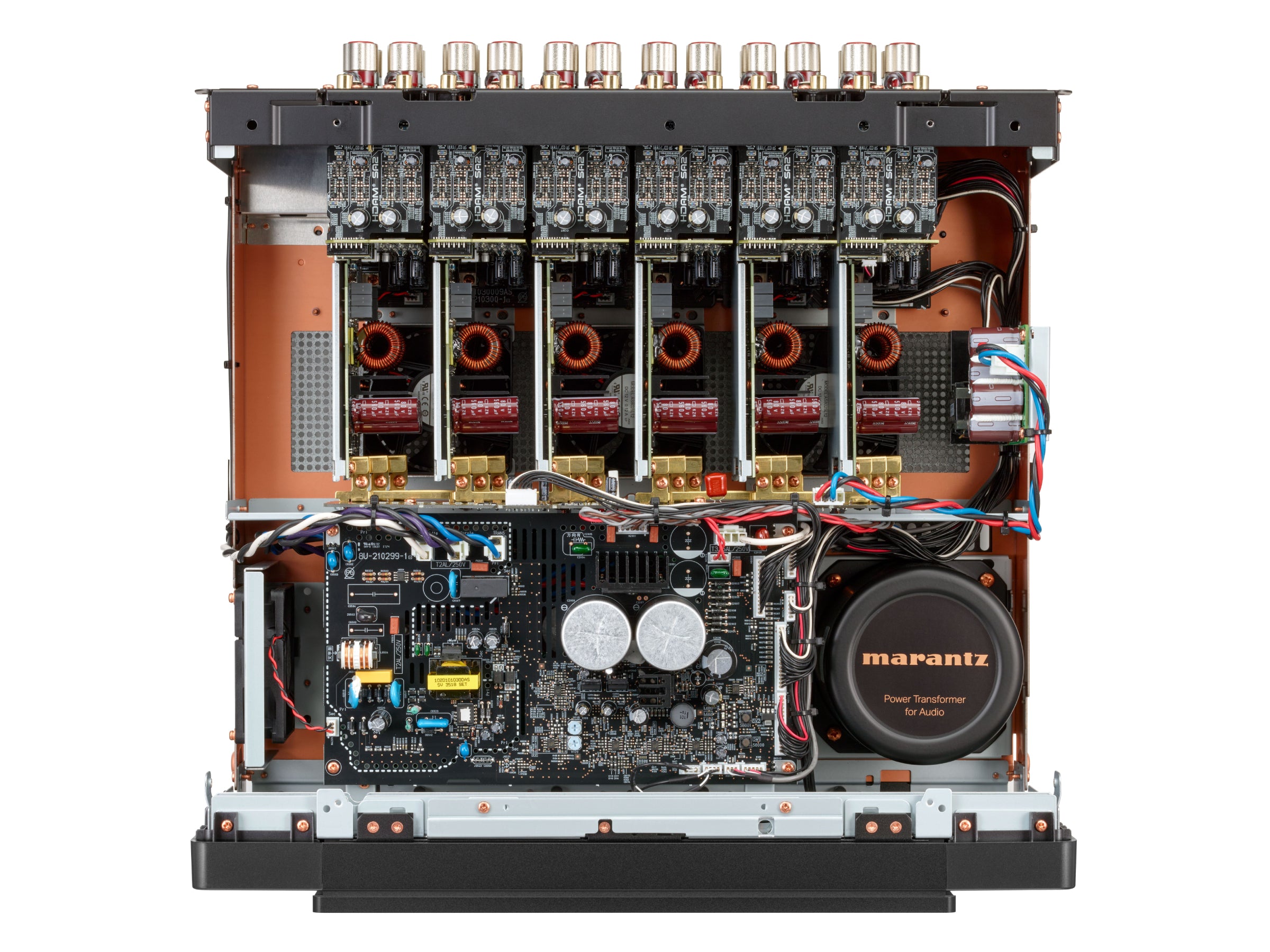

Equipped with Marantz’s custom-developed Class D amplification and refined HDAM-SA2 technology, the AMP 20 ensures an unparalleled sound experience. The Sound Master at Marantz has meticulously tuned the AMP 20, selecting premium components to achieve the best possible performance, creating a truly remarkable theatrical experience at home. Each of the 12 channels is capable of delivering 200 watts of power, ensuring superb sound quality at every volume level.
Optimal Performance with Marantz Products

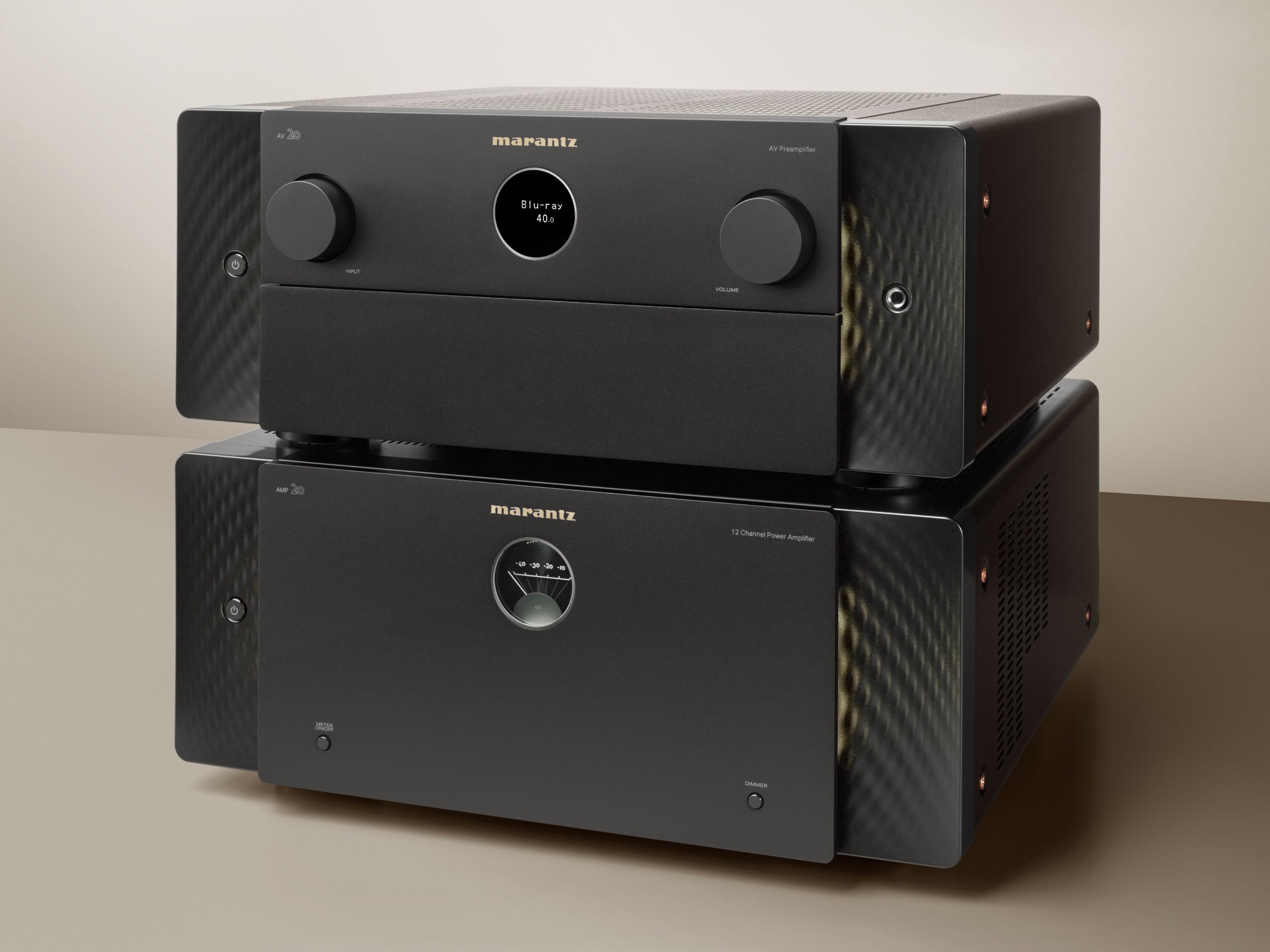

For the highest performance, the AMP 20 should be paired with other Marantz components, such as the AV 20. This combination ensures that you experience the full potential of the AMP 20, providing a seamlessly integrated home theatre system that excels in both sound quality and reliability.
Specifications

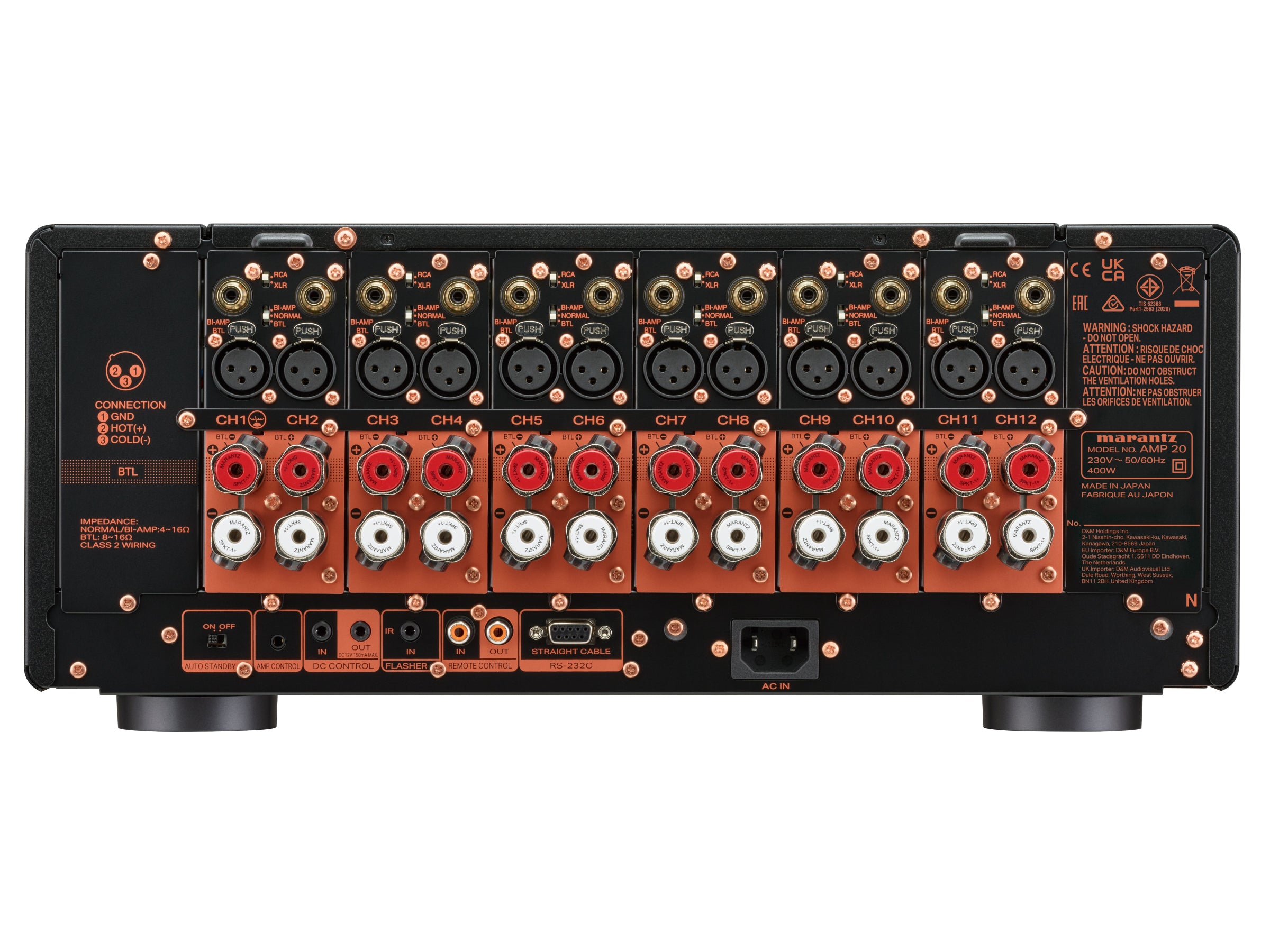

| Inputs Outputs: | |
| Main Amplifier In: | Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.) |
| Speaker Terminal: | SPKT-1+ |
| Number of Speaker Terminals: | 12 |
| Bi-Amp Drive / BTL Drive: | Yes / Yes |
| Level Meter: | Yes |
| Chassis: | Copper Plated |
| Multi-Room CI: | RS232 Control |
| IR Flasher In: | Yes |
| Marantz Remote Bus: | Yes |
| DC Trigger Input/ Output: | 1 / 1 |
| Specifications: | |
| Number of Poweramps: | 12 |
| Power Output (8 Ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL: | 200W / 400W |
| Power Output (4 Ohm, 1 kHz, 0.7% 2ch Drive) Normal: | 400W |
| Power Output (8 Ohm, 1 kHz, 0.7% 5ch Drive) Normal: | 200W |
| General: | |
| Front Display: | Level Meter |
| Auto Power Off: | Yes |
| Metal Front Panel: | Yes |
| Power Consumption: | 400W |
| Power Consumption, No-Sound: | 110W |
| Standby Consumption: | 0.2W |
| Maximum Dimensions (W × D × H): | 17.4 × 17.4 × 7.5 in. |
| Weight: | 39.7 lbs |

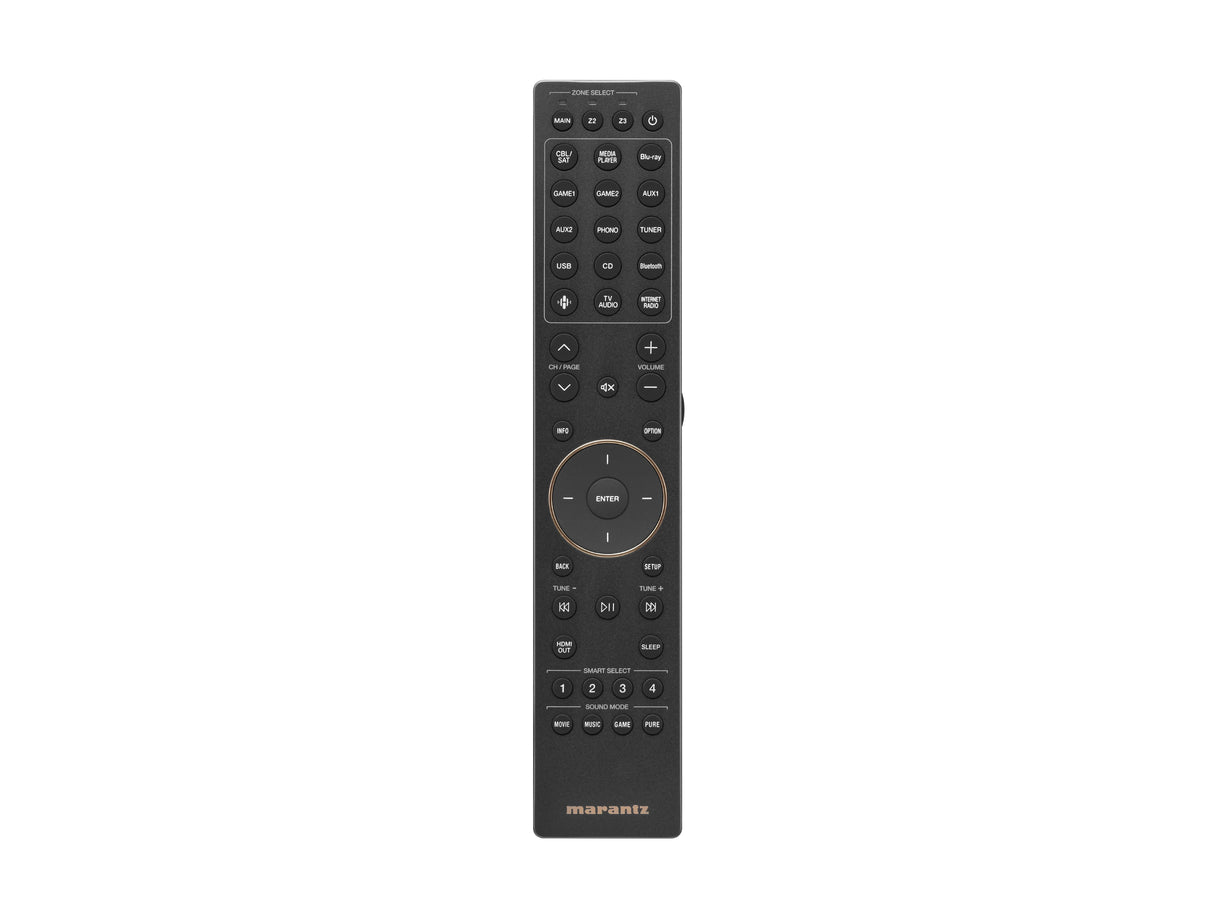

| What's in the Box: | Main unit, quick start guide, AC cord, Amp control cable, Remote control cable, SP terminal wrench |
| UPC Code: | 747192143930 |
