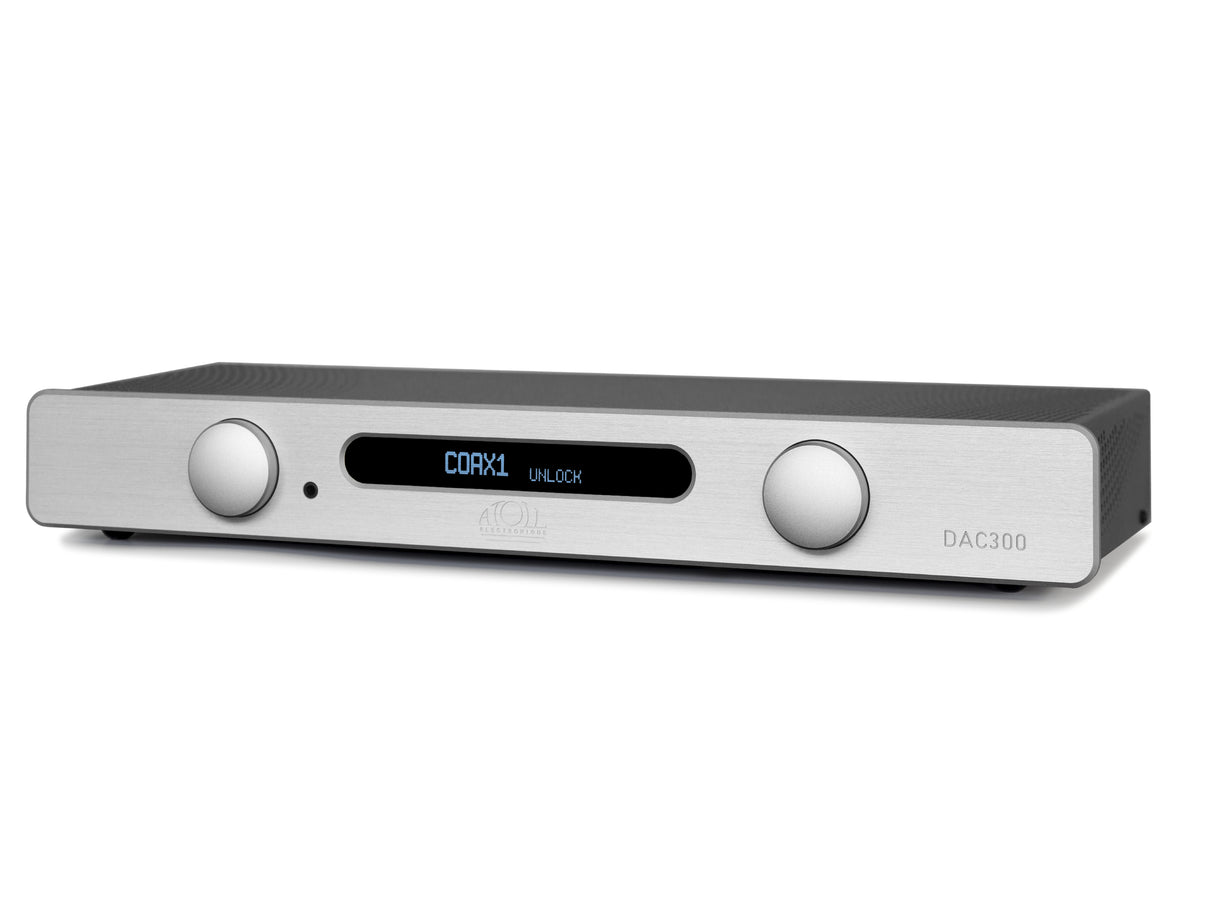

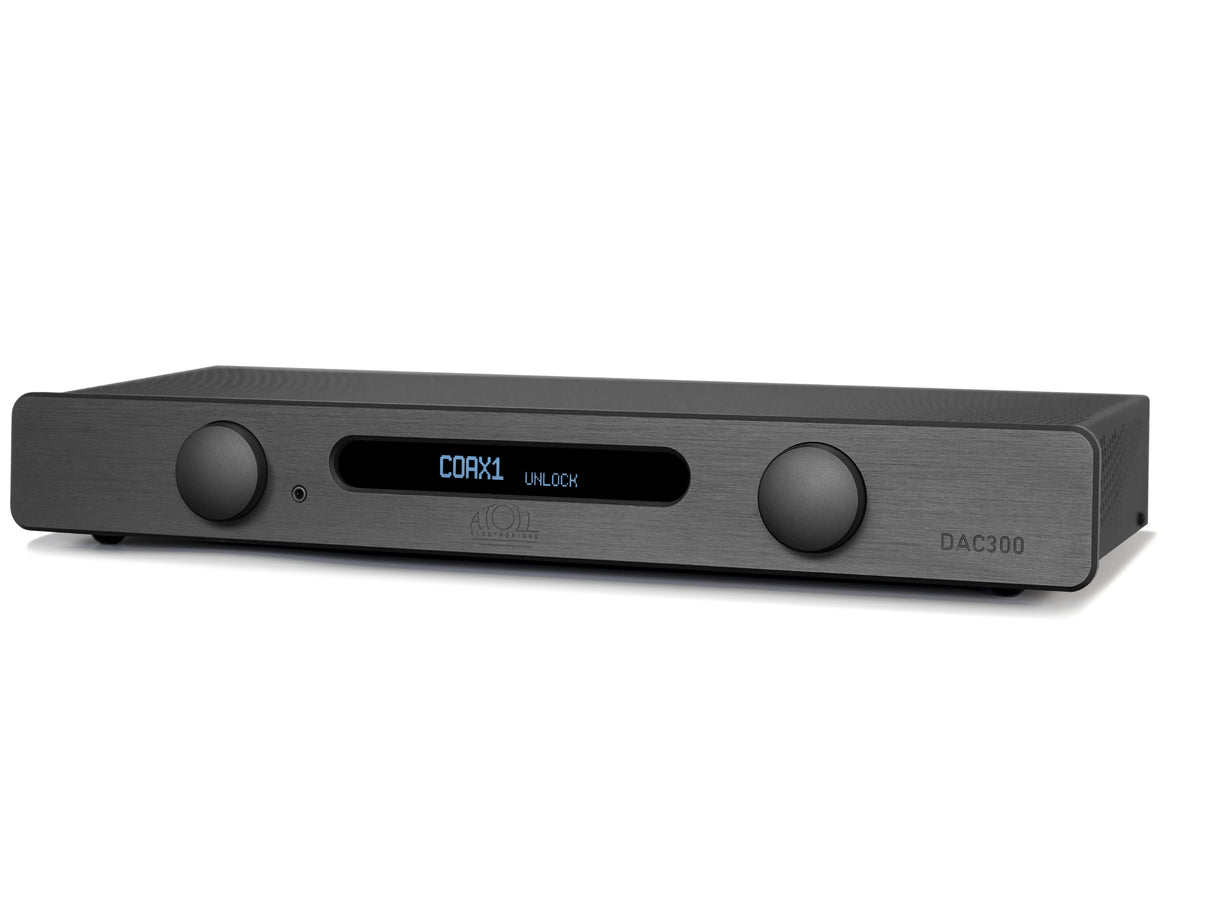

Atoll DAC300 Signature
The Atoll Flagship DAC
The Atoll DAC300 is designed to deliver the highest quality audio from any favorite music. Featuring the acclaimed SABRE ES9038PRO converter, known for its exceptional musicality, and custom-designed feedback-free audio stages, this device stands as the flagship of Atoll's converter range. The secret to its superior performance lies in its meticulously engineered components: advanced analog signal processing stages, robust power supplies (transformers, filtering, regulation), precise digital signal processing prior to conversion, and high-quality key components such as clocks, transistors, and capacitors.
Features
- 8 mm brushed aluminium front.
- 3 independent very low noise linear transformers (including 2 reserved for the audio line).
-
SABRE ES9038PRO converter (32 bits/768 kHz):
– Dynamic: 137 dB.
– THD at 1 kHz (0 dBF): -122 dB.
– Signal/Noise ratio: 132 dB. - SABRE ES9311EQ power supply with very low noise (<1 μVrms).
- Separate digital and stage line power supplies.
- Ultra-high precision low jitter clock.
- Asynchronous USB-B input can convert PCM up to 768 kHz and DSD64, 128, 256 and 512 (XMOS USB interface with a specific program designed for ATOLL).
- Volume management by disengageable converter (BY-PASS ON or OFF).
- Unbalanced and balanced output lines.
- 12 independent voltage regulations.
- Symmetrical power supply of the audio output stages (low noise transformers).
- ESA series CLARITY CAP audio MKP link capacitors.
- High-frequency capacitors with silver mica technology.
- Output stages with discrete components, without feedback, polarized in class A.
- Specific transformer for digital stages.
- Standard ATOLL global remote control.
Specifications
| Connectivity: | |
| Digital Inputs: | 3 Coaxial. 3 Toslink optics. 1 AES/EBU. 1 Bluetooth®. 1 USB-B. |
| Digital Outputs: | 1 Coaxial and 1 optical. |
| Analogue Outputs: | 1 Stereo unbalanced RCA. 1 Balanced stereo XLR. 1 Headphone jack Ø 3.5 mm. |
| Specifications: | |
| Power Supply: | 2×10 VA + 10 VA |
| Total of Capacitors: | 20,030 μF |
| Frequency Response: | 5 Hz – 20 kHz |
| Converter: | ES9038PRO |
| Dynamic: | 137 dB |
| THD at 1 kHz (0 dBF): | -122 dB |
| Signal-to-Noise Ratio: | 132 dB |
| Output Level (Line): | Maximum line: 2.25 Vrms |
| Output Level (XLR): | Maximum XLR: 2.25 Vrms |
| Dimensions: | 440×308×63 mm |
| Weight: | 5 kg |
