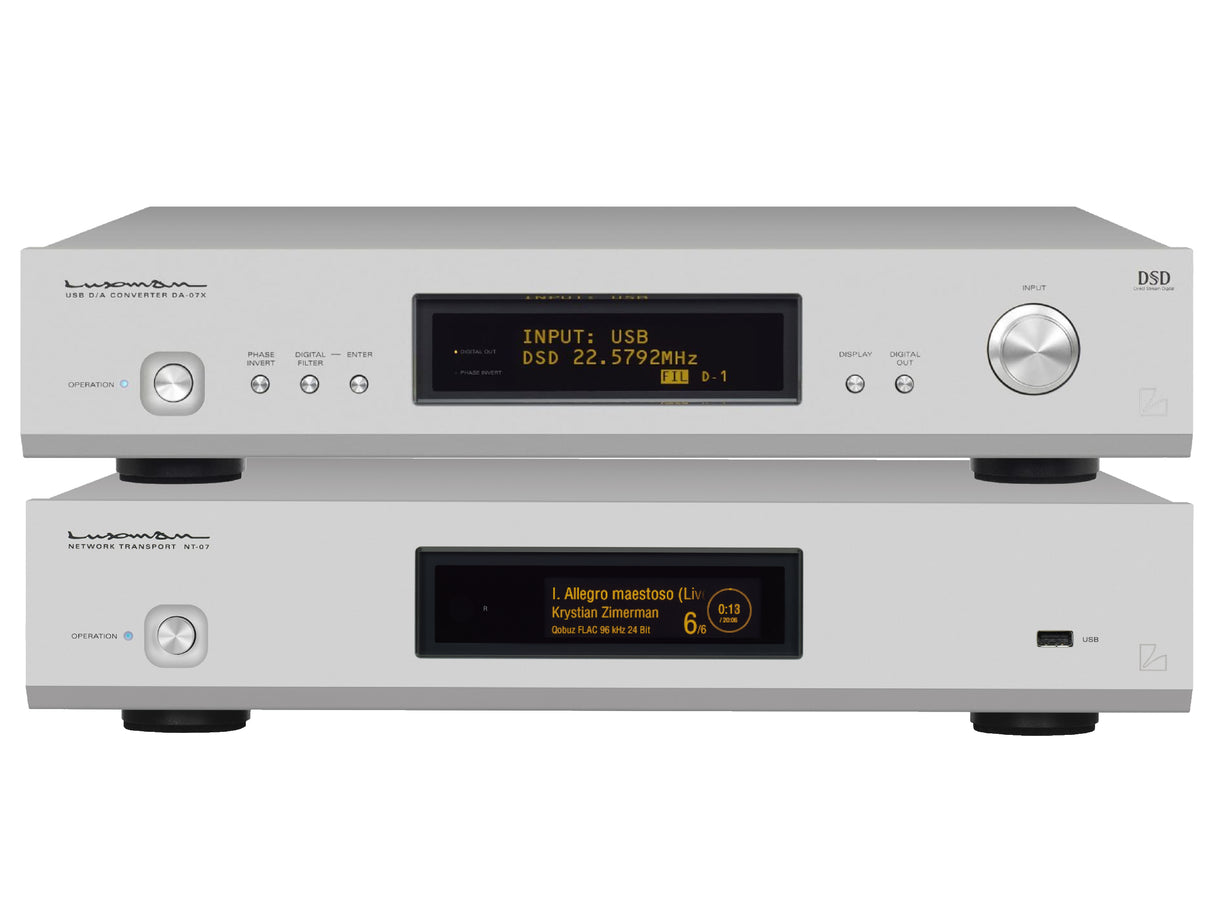

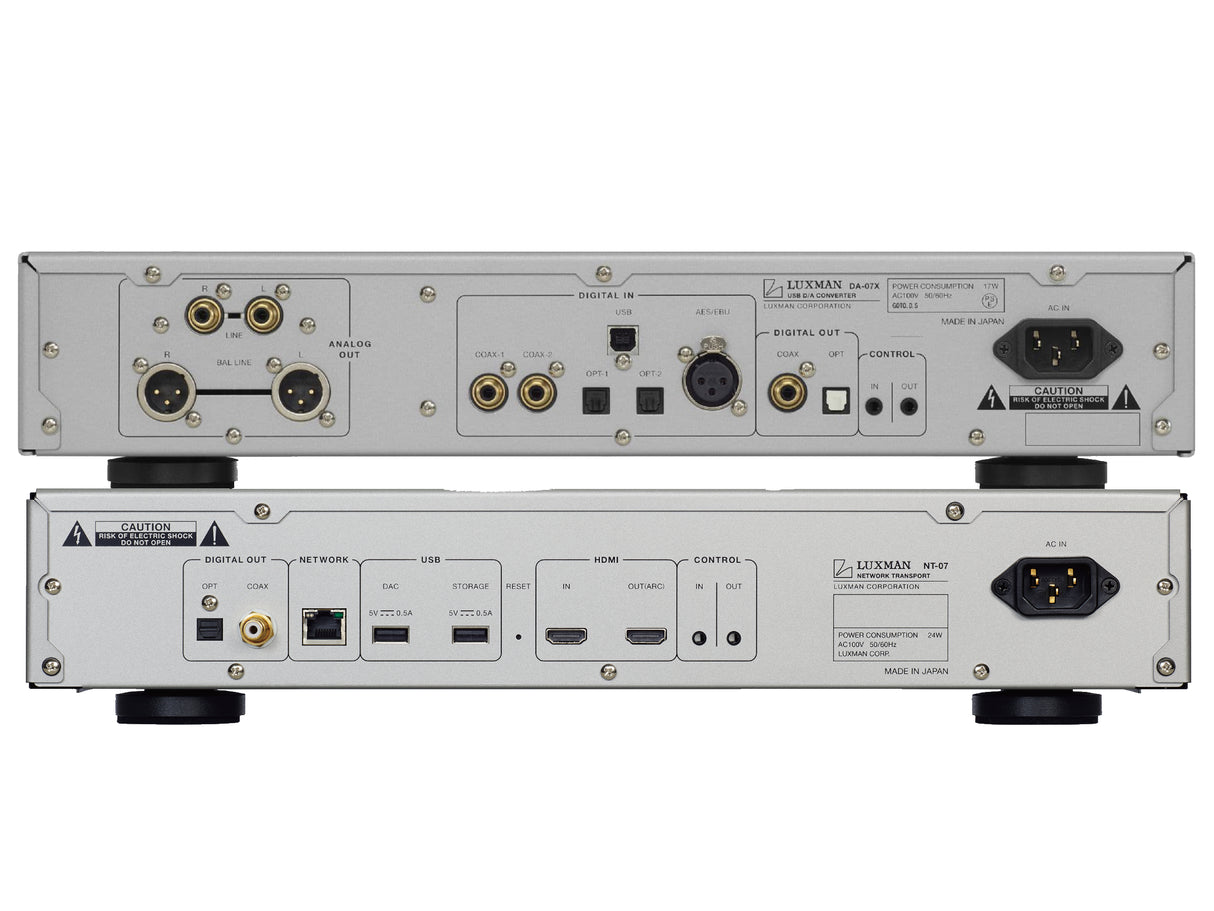

LUXMAN NT-07 + DA-07X Network Streaming Transport + DAC
A High Performance Combination
Utilising the USB A-to-B connection from the Luxman NT-07 to DA-07X is the suggested route with these 2 units as this gives the user the highest bit-rate and best performance.
LUXMAN DA-07X
Continuing the success of LUXMAN'S D-07 CD player, LUXMAN is proud to introduced its the LUXMAN DA-07X, a new high-end D/A converter.
Extensive research and development went into the creation of the Luxman D-07X SACD/CD player, released in 2022, which received high praise from reviewers and disc enthusiasts. Building on the success of this, removing the disc transport and playback protocols, the company was able to focus on improving functionality, sound quality, and performance, resulting in the LUXMAN DA-07, the cutting-edge DAC product.
As streaming has become the modern replacement for CDs, a physical medium that has been popular for over 40 years, audio streaming is now a primary source for music lovers. Streaming services have rapidly gained attention, offering excellent sound quality and user convenience to satisfy today’s audiophiles. With the growing reliance on digital music distribution, standalone D/A converters have become essential, standing alongside traditional components like amplifiers and speakers.
ROHM MUS-IC High Performance DAC
The DA-07X continues the legacy of the DA-06, a popular DAC model released in 2013, while incorporating advanced digital processing technology from LUXMAN's flagship D-10X SACD/CD players. It uses top-of-the-range BD34301EKV DAC chips from ROHM’s “MUS-IC” series, configured in a dual mono setup. Its proprietary USB input provides a powerful high-resolution processing environment, supporting PCM signals up to 768kHz/32bit and DSD data up to 22.5MHz, along with full support for MQA decoding.

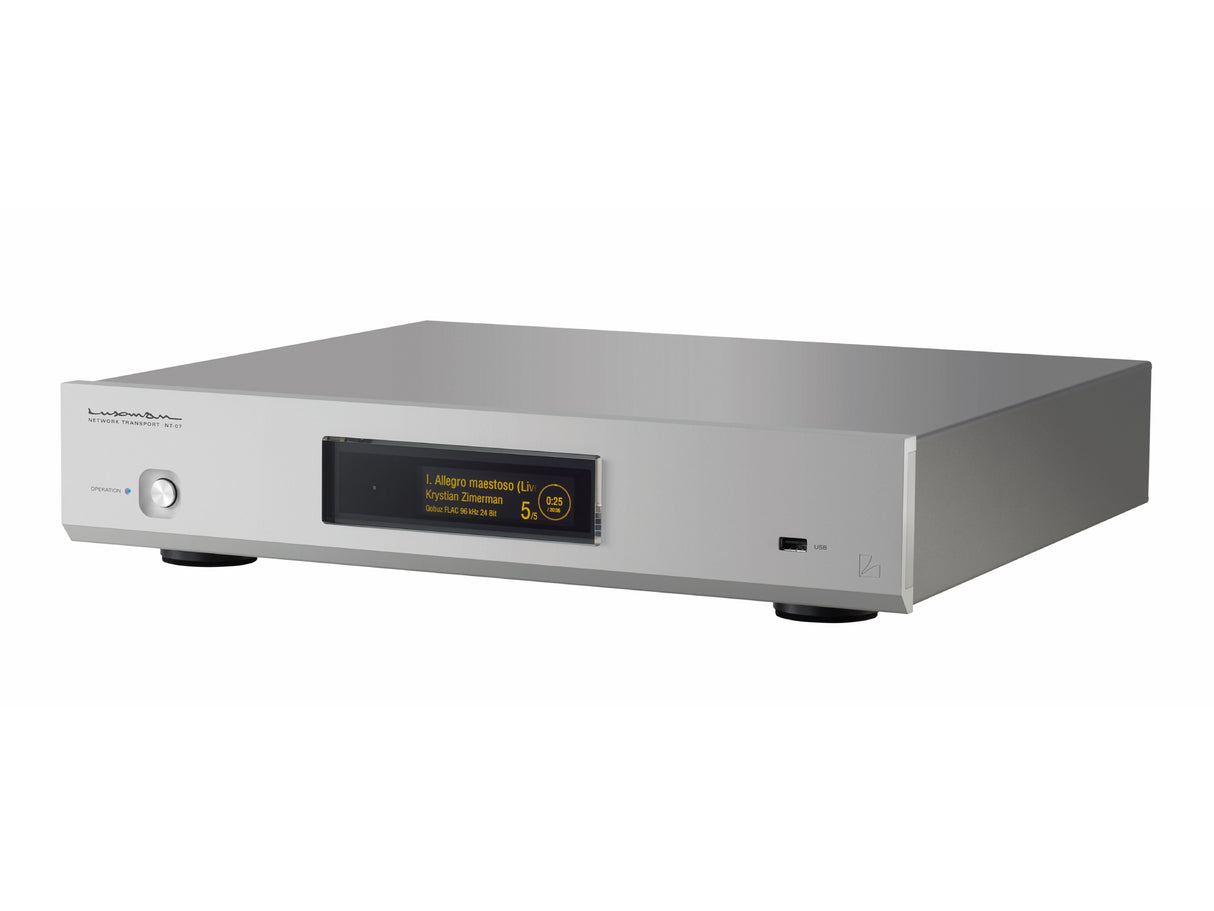

The LUXMAN NT-07
The LUXMAN NT-07 is the brand's first network transport, engineered to deliver outstanding sound quality by integrating the latest digital audio technology with LUXMAN’s decades of expertise.
The NT-07 transport is meticulously tuned to offer a rich musical experience, and supports a wide range of audio sources including USB, HDMI, NAS, and streaming services. Designed with an audio-centric approach, the NT-07 ensures both high performance and an intuitive user experience. Paired with existing D/A converters, it promises to elevate digital audio playback to a new level.
The NT-07 creates a sophisticated network audio environment by connecting with USB, optical, or coaxial digital D/A converters. Key audio sources include NAS (Network Attached Storage), which supports the OpenHome platform, external USB storage, and a variety of streaming services. Its high-speed application processor ensures smooth operation and effortless handling of complex functions, making it ideal for managing multiple high-resolution sources without compromising on sound quality.
NT-07 Specifications
| Digital Input: | Network: 1000 Base-T (Gigabit Ethernet) HDMI: PCM 2 channel, 4K pass-through, ARC (Audio Return Channel) supported |
| Digital Output: | USB (USB2.0), OPT, COAX HDMI: PCM 2 channel, 4K pass-through, ARC (Audio Return Channel) supported |
| Storage Connection: | USB x 2 terminals (USB2.0, single partition, FAT32, exFAT, NTFS) |
| Supported Sampling Frequencies: | USB: PCM 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit) DSD: 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit) COAX / OPT / HDMI (ARC): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 24-bit) |
| Supported Formats: | WAV, AIFF, FLAC, ALAC, MQA, MP3, AAC, DSD (DSF, DFF) |
| Streaming Protocols: | UPnP (OpenHome), TIDAL Connect, Spotify Connect, Roon Ready |
| Power Supply: | 230 V～(50 Hz) / 115 V～ (60 Hz) |
| Power Consumption: | 27 W (HDMI in/output when connected to USB storage) 5.9 W (HDMI in/output when USB storage is disconnected) |
| Dimensions: | 440 (W) x 92 (H) x 398 (D) mm (Front side display of 3 mm and rear side terminal of 13 mm included in depth) |
| Net Weight: | 10.3 kg (main unit) |

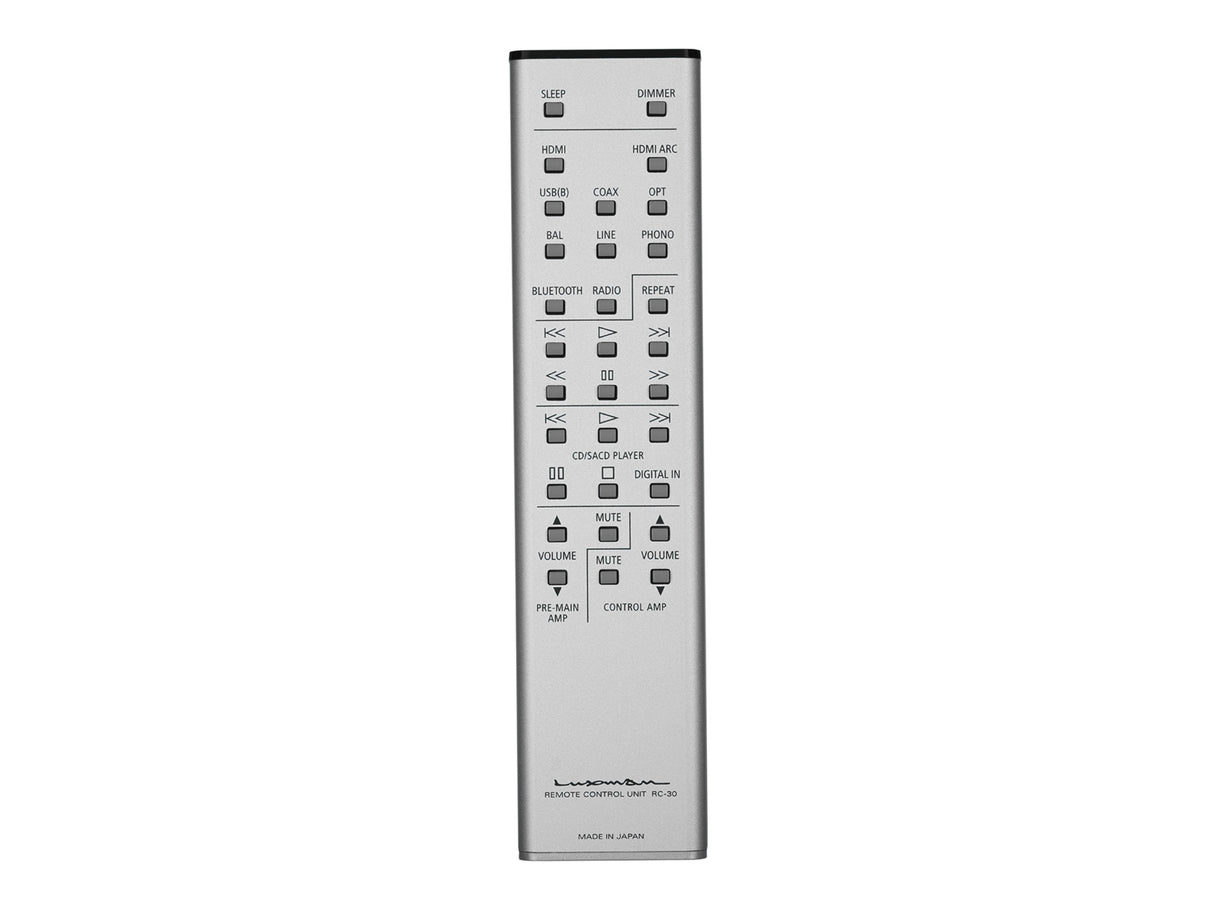

| Accessories: | Remote control (RC-30), Power cable |
DA-07X Specifications
| DAC Chipset: | Dual-Mono ROHM "MUS-IC" BD34301EKV |
| Inputs: | 2x Coax, 2x Optical, 1x USB-B, 1x AES/EBU |
| Digital Output: | 1x Coax, 1x Optical |
| Analogue Outputs: | 1x Line/RCA, 1x XLR Balanced |
| Format: | 2-channel D/A converter |
| Supported Sampling Frequencies: |
USB Input (PCM): 44.1kHz to 768kHz (16, 24, 32bit) USB Input (DSD): 2.8MHz to 22.5MHz (1bit) COAX/OPT/AES/EBU Input: 44.1kHz to 192kHz (16, 20, 24bit) |
| Digital Input: | 1x USB, 2x COAX, 2x OPT, 1x Balanced (AES/EBU) |
| Digital Output: | 1x COAX, 1x OPT |
| Analogue Output: | Output Voltage: Unbalanced 2.4V, Balanced 2.4V (DSD 2.3V) Output Impedance: Unbalanced 300Ω, Balanced 600Ω |
| Frequency Response: | 5Hz - 20kHz (+0, -0.4dB) 5Hz - 47kHz (+0, -3.0dB) |
| Total Harmonic Distortion: | Unbalanced: 0.001% Balanced: 0.001% |
| S/N Ratio: | 124dB (IHF-A) |
| DAC IC: | ROHM BD34301EKV (monaural mode) x 2 |
| Power Consumption: | 21W |
| Dimensions: | 440(W) x 92(H) x 402(D) mm (including front knob of 14mm and rear terminal of 8mm) |
| Weight: | 12.8kg (main unit) |
| Accessories: | Power cable |
