Monitor Audio Anthra W10 Subwoofer

£1,649.00

Tax included Shipping calculated at checkout.

The Monitor Audio Anthra W10 Subwoofer is the most compact model in the Anthra subwoofer range designed to deliver deep, agile bass in smaller to mid-sized spaces.

Includes Monitor Audio 5 Year Manufacturer Warranty

Finish

Product variants

Includes FREE 3m Chord ClearwayX Subwoofer Cable - Worth £120

Free Next Day Delivery*

Free next weekday delivery

When you spend over £75, we will send you a tracking number where DPD will give a one hour delivery window. Services available Monday to Friday (excluding public holidays) to most mainland UK addresses for in stock items ordered before our cut-off time at 3:30pm. Terms apply.

Free Saturday delivery

When you spend over £299. We will send you a tracking number where DPD will give a one hour delivery window. Services available to most mainland UK addresses for in stock items ordered before our cut-off time on Friday 3pm. Terms apply.

Free Sunday delivery

When you spend over £299. We will send you a tracking number where DPD will give a one hour delivery window. Services available to most mainland UK addresses for in stock items ordered before our cut-off time on Saturday 2pm. (Sunday delivery location) Terms apply.

Reserve for Collection

Some of our manufacturers request for their items not to be sold online. For these items please call to order 01925 828009

Remote locations

Standard next day delivery is free for all orders to most UK mainland addresses. All other delivery prices are determined by the destination, the service chosen and the value and weight of your order. Addresses in the Scottish Highlands, offshore, Northern Ireland & Ireland may incur additional delivery costs, depending on the items ordered.

Returns Policy

If for any reason you’re not completely satisfied with your purchase, we’re happy to offer a refund within 30 days, provided you inform us of your intention within 14 days of receiving your item and return it to us within the 30-day period.

For our full returns policy, click here.

The Monitor Audio Anthra W10 Subwoofer is the most compact model in the Anthra subwoofer range. It features a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver, powered by a 500 Watt Class-D amplifier. All of this is housed in a sealed-box cabinet, which is extensively internally braced for optimal performance. The design ensures that the subwoofer delivers deep, agile bass in smaller to mid-sized spaces.

Features

1 x 10” (25cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium (C-CAM) high-excursion driver for super-clean performance
1 x 500 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume
Massive motor assembles and longer round-wound voice coils, which are dual layered and made of copper-coated aluminium wire (CCAW) for precise control at extreme low frequencies
2 inch full-colour LCD display screen with rotary dial for menu selection and basic setup
RCA inputs (left/right. The left Input is LFE)
RCA outputs allows daisy chain of up to 4 Anthra subwoofers
XLR inputs for professional installation connectivity option
XLR outputs allows daisy chain of up to four Anthra subwoofers

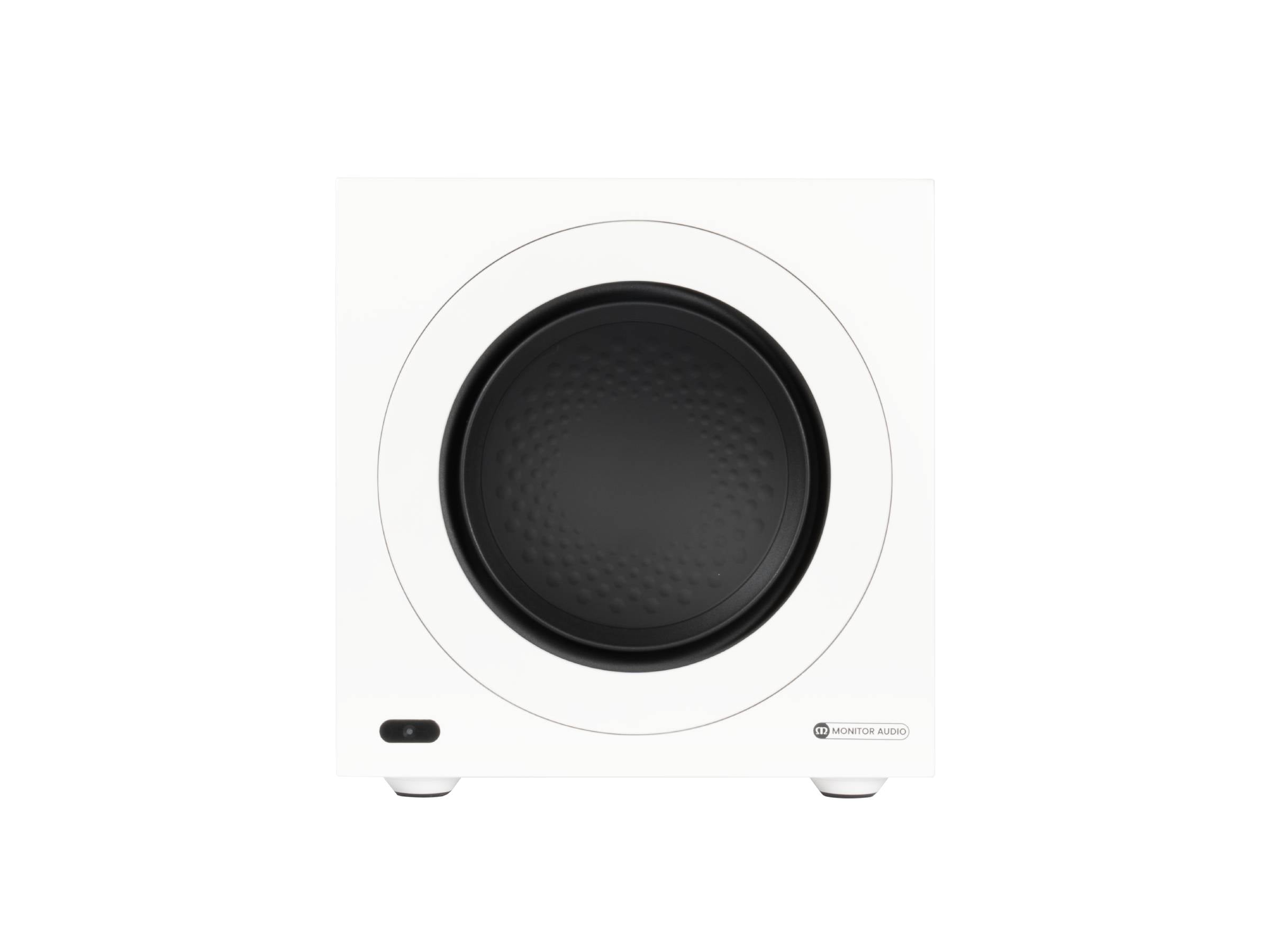

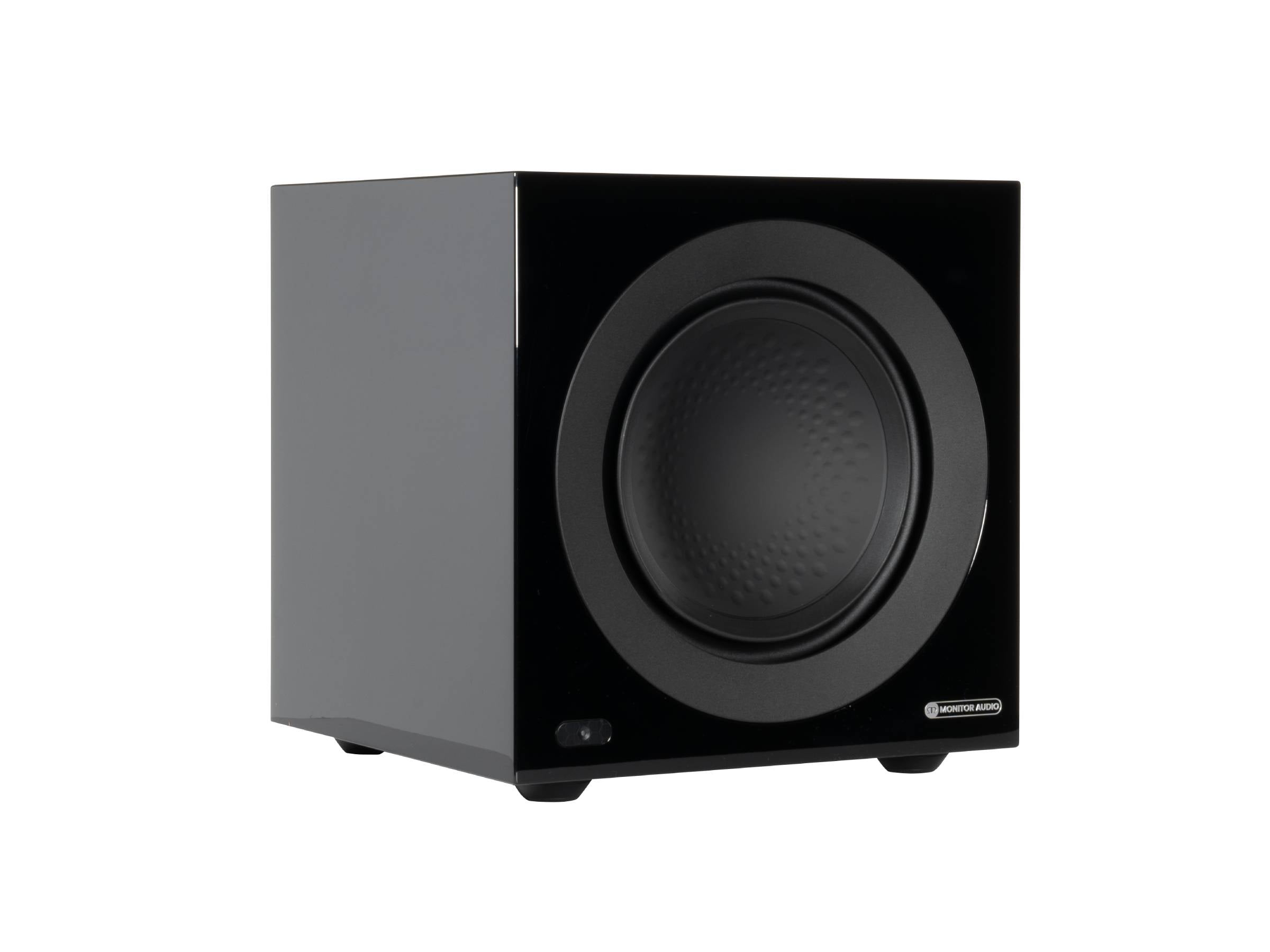

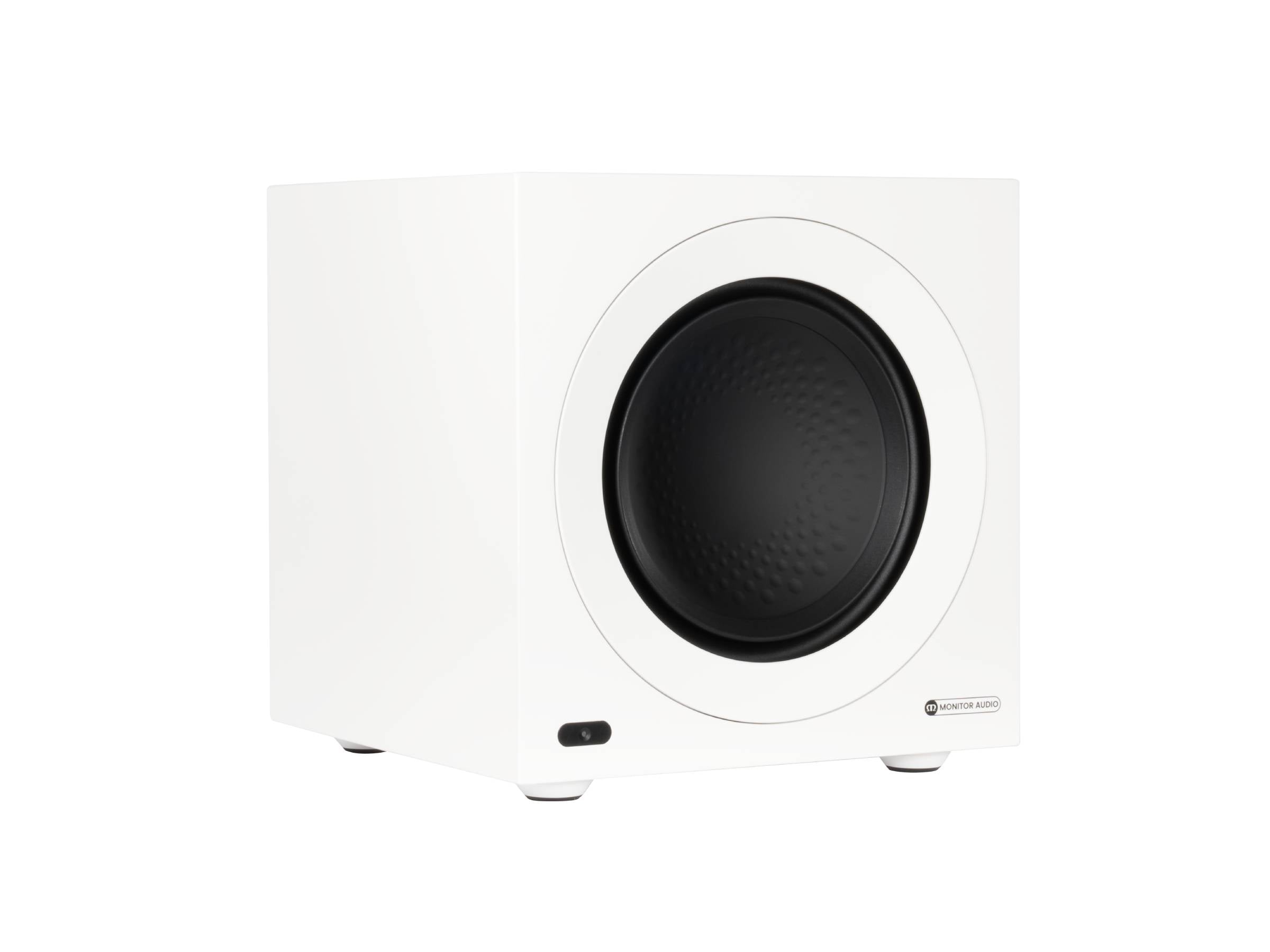

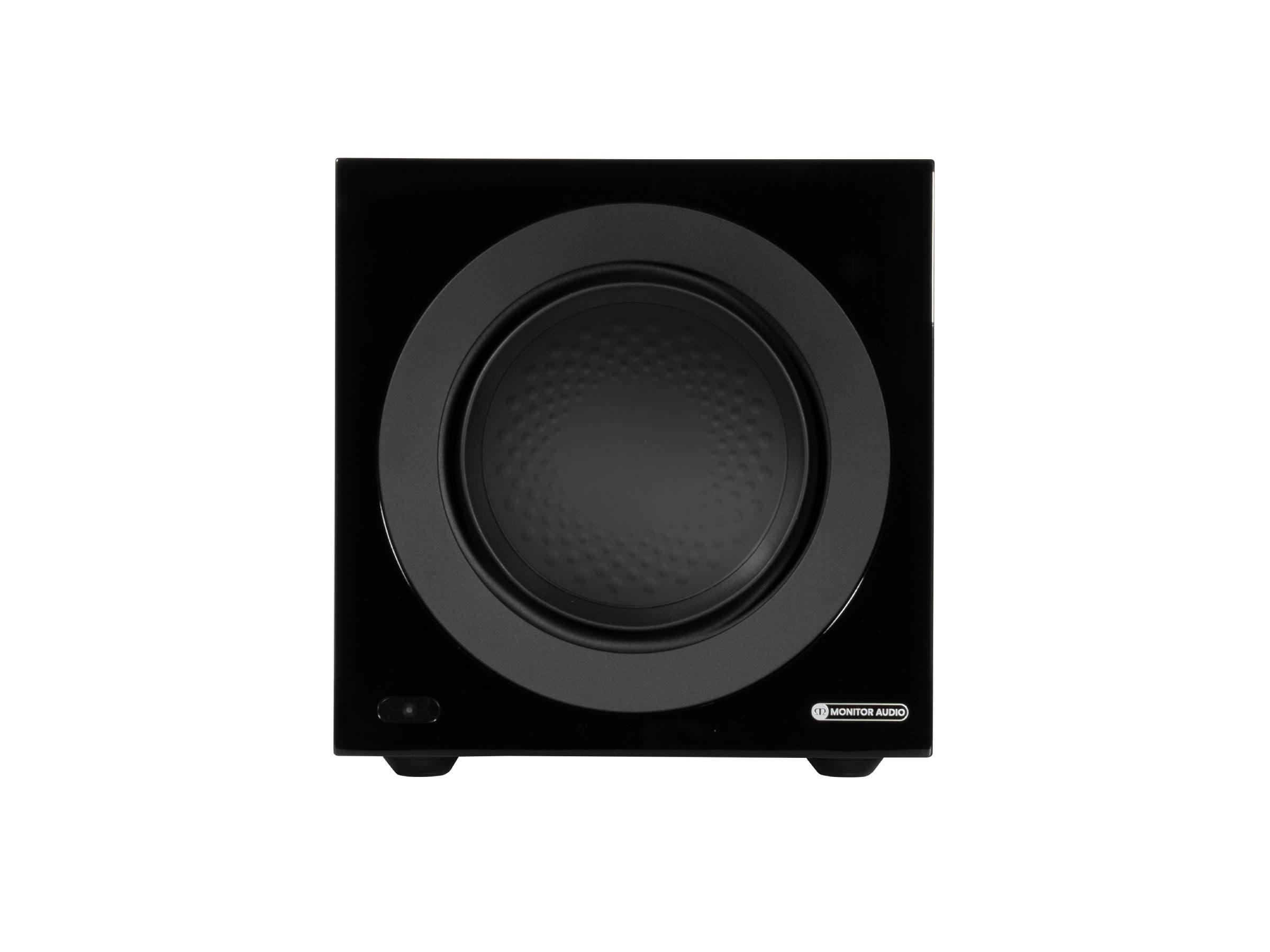

Available in Gloss Black and Satin White finishes
MaestroUnite Setup for Monitor Audio Anthra Subwoofers allows a user complete bespoke setup. Available to download from the App Store and Google Play.

Setup and Connectivity Features

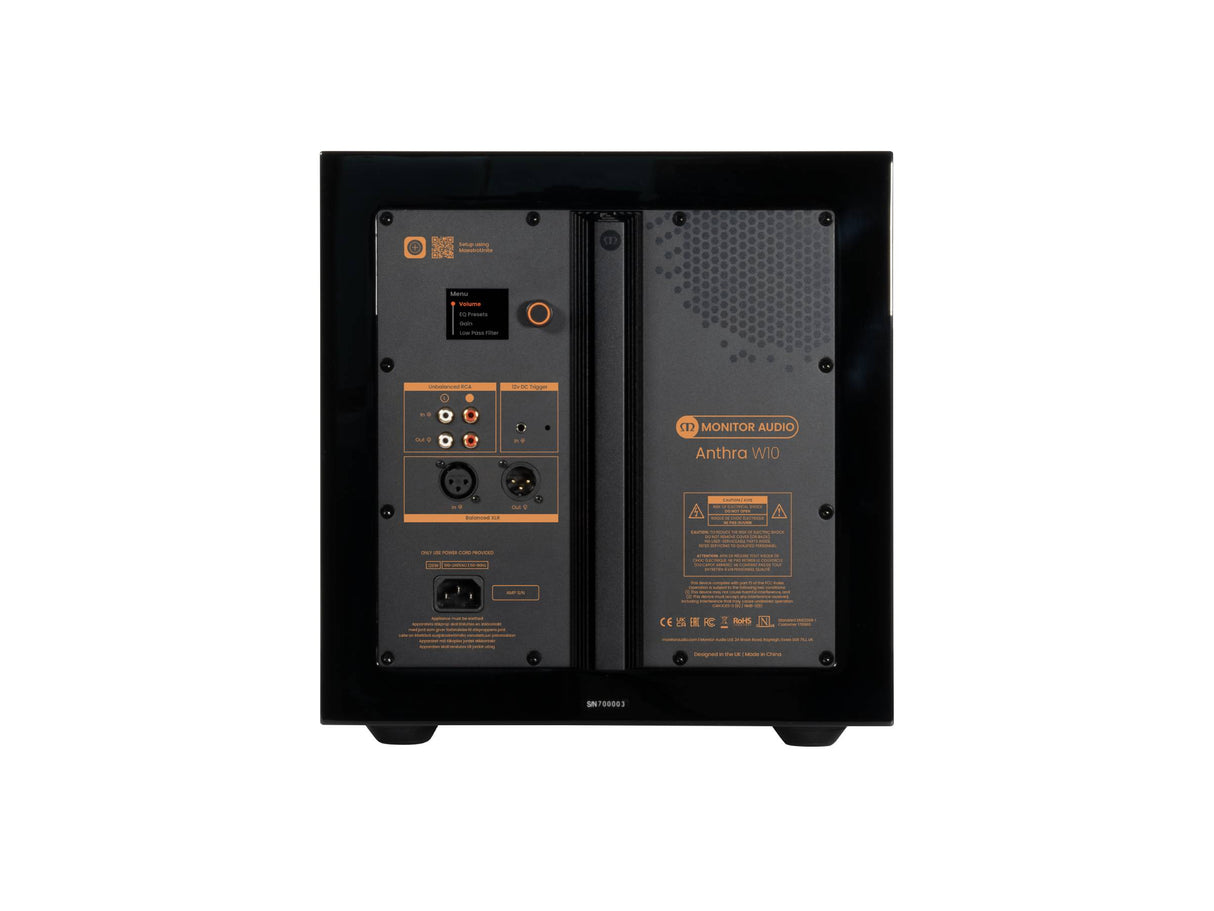

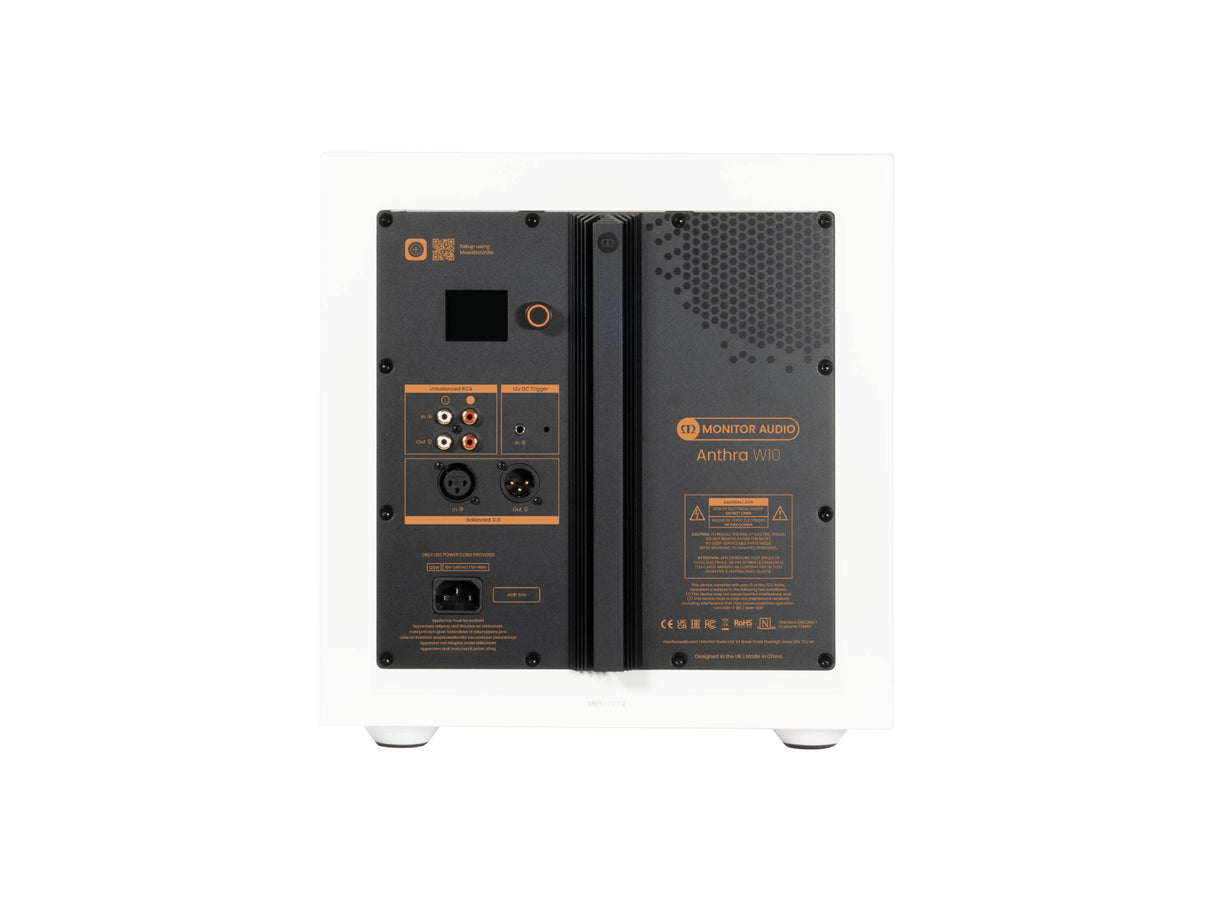

The Anthra W10 subwoofer can be used independently or linked with up to three additional Anthra subwoofers, allowing for a dynamic, immersive listening experience. A full-colour LCD display and rotary dial on the rear panel provide easy access to basic setup and EQ preset selection. For more advanced features, such as DSP configuration and multi-subwoofer connectivity, the MaestroUnite app offers a user-friendly interface to adjust the settings for an enhanced audio experience.

Specifications

System format:	Active – Sealed Cabinet
Drive unit complement:	1x 10" (254 mm) High Linear-Excursion Triple Suspension Driver
Amplifier classification:	High-Efficiency Class-D
Lower frequency limit:	-6dB @17Hz
Upper frequency limit:	(LPF Off) -6dB @400Hz
Driver excursion (pk-pk):	50 mm
DSP:	28 Bit 50 MIPS Configurable through MaestroUnite
Analogue digital conversion:	Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
Amplifier output power, 240Vac:	Instantaneous: 500 W* Continuous short-term: 425 W**
Amplifier output power, 120Vac:	Instantaneous: 450 W Continuous short-term: 390 W
LED UI control:	Brightness, On-Off
Phase control:	0-360 Degrees measured at LPF Crossover
Low pass filter:	20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
Custom EQ:	Configurable through MaestroUnite; 3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
Volume level:	Wide adjustable input gain to allow maximum output from a wide range of input signals
Inputs:	Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE) Mono/LFE Balanced XLR
Outputs:	Stereo unbalanced outputs with unbuffered throughput from RCA Inputs Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input
Mains input voltage:	Universal Mains, 85-265VAC
External dimensions (without feet) (HxWxD):	321 x 321 x 321 mm
Power consumption:	120 W
Cabinet construction:	Braced 18 mm thick MDF with 36 mm front baffle

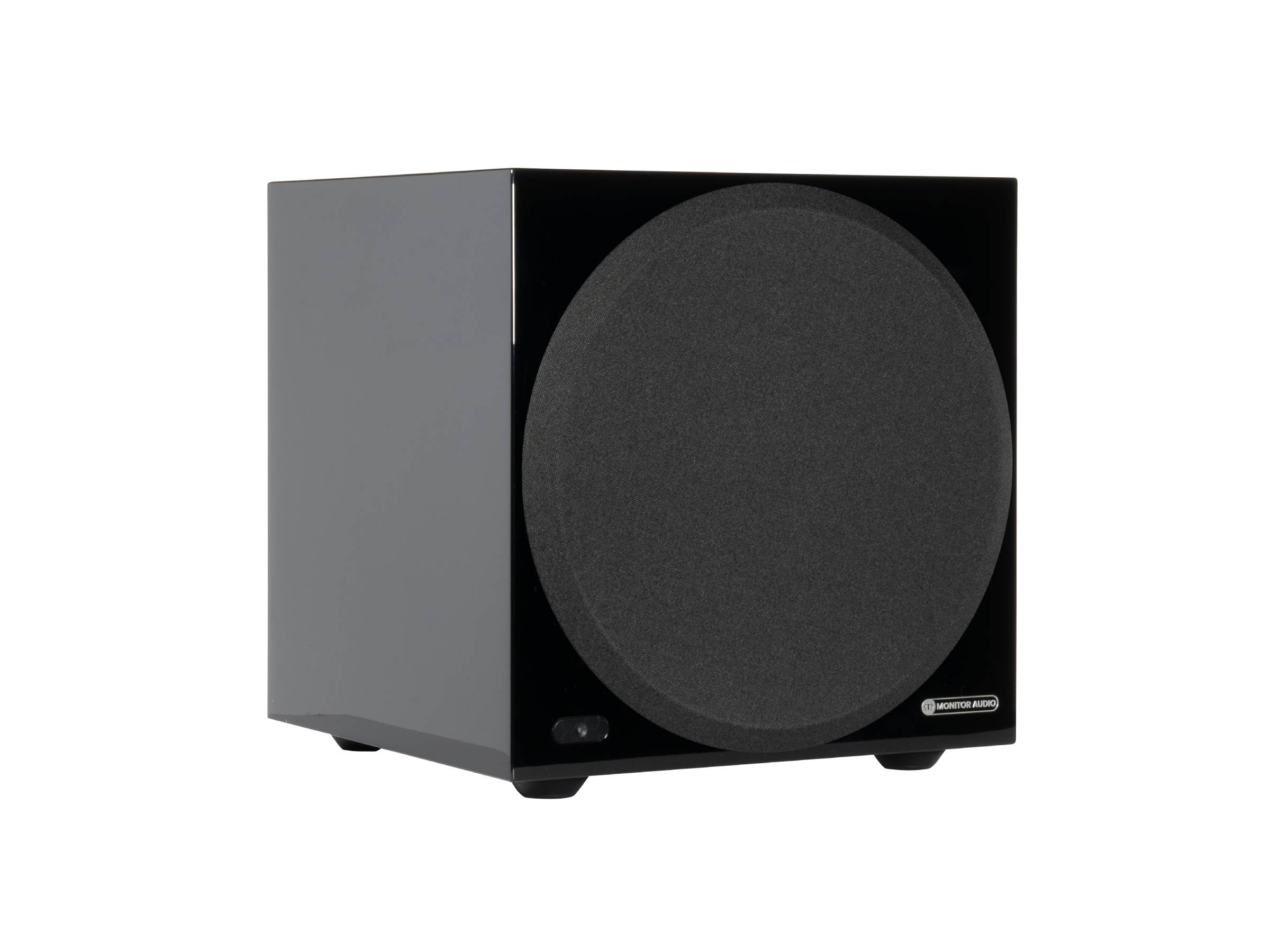

Grille:	Cloth covered magnetically attached Grilles
Weight:	20.06 kg (44 lb 1 oz)
Note:	* Maximum RMS output for an instantaneous signal ** Sinewave for 10 seconds
