Monitor Audio Anthra W12 Subwoofer
Couldn't load pickup availability
Monitor Audio Anthra W12 Subwoofer

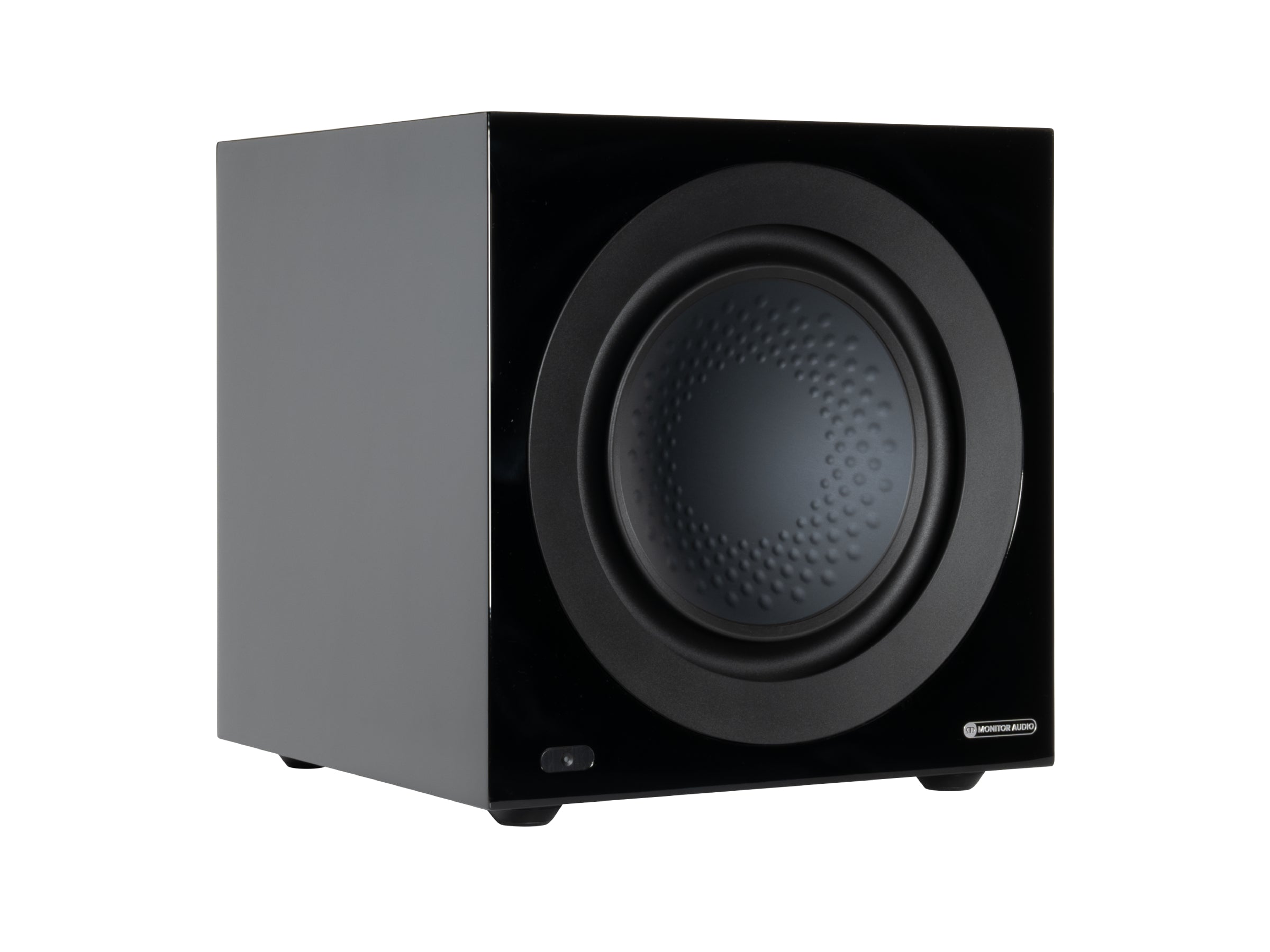

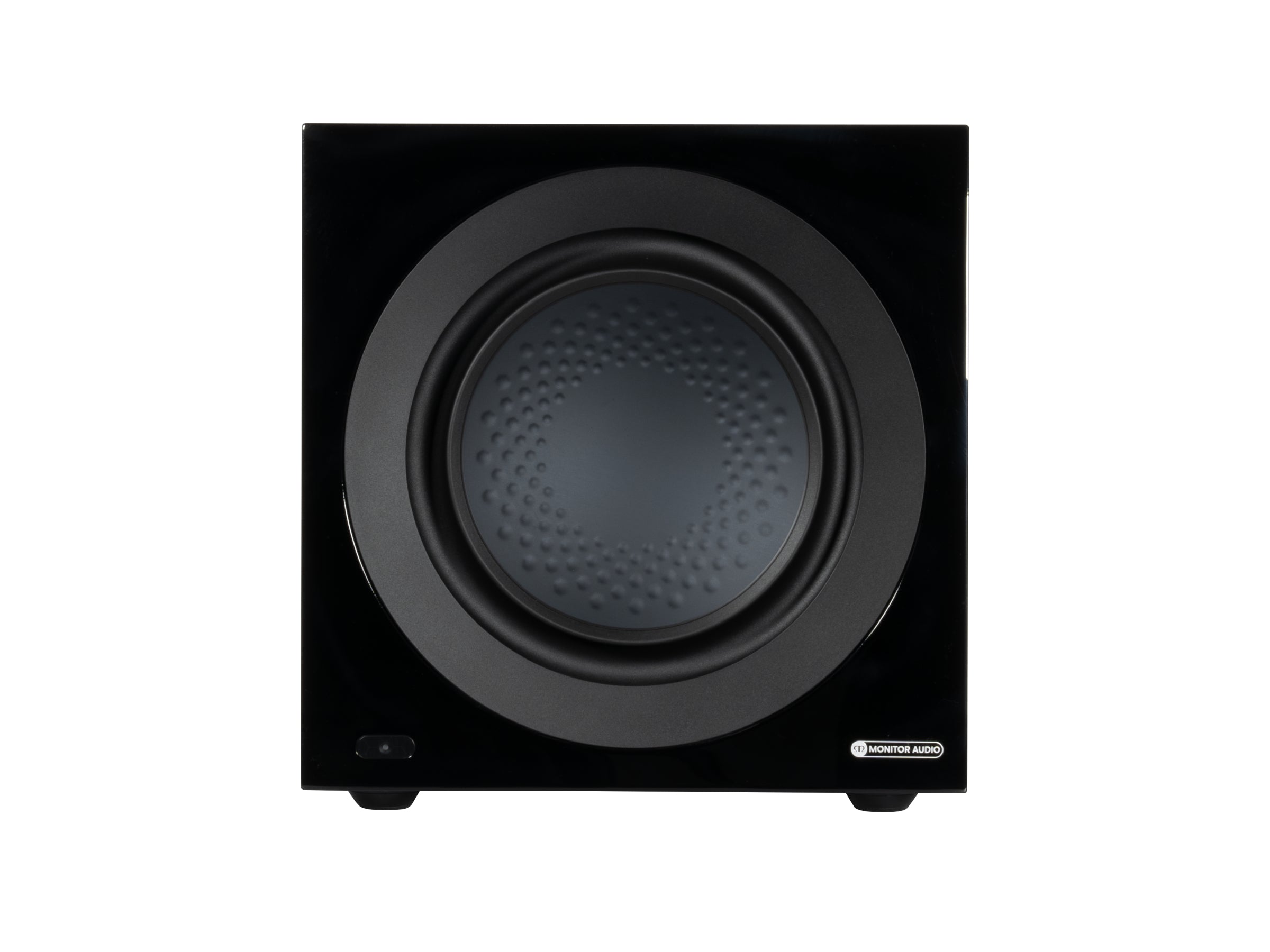

The Monitor Audio Anthra W12 is the mid-sized model within the Anthra subwoofer series. It features a 12” (30 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 1,000 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.
Features
- 1 x 12” (30cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium (C-CAM) high-excursion driver for super-clean performance
- 1 x 1000 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume
- Massive motor assembles and longer round-wound voice coils, which are dual layered and made of copper-coated aluminium wire (CCAW) for precise control at extreme low frequencies
- 2 inch full-colour LCD display screen with rotary dial for menu selection and basic setup
- RCA inputs (left/right. The left Input is LFE)
- RCA outputs allows daisy chain of up to 4 Anthra subwoofers
- XLR inputs for professional installation connectivity option
- XLR outputs allows daisy chain of up to four Anthra subwoofers

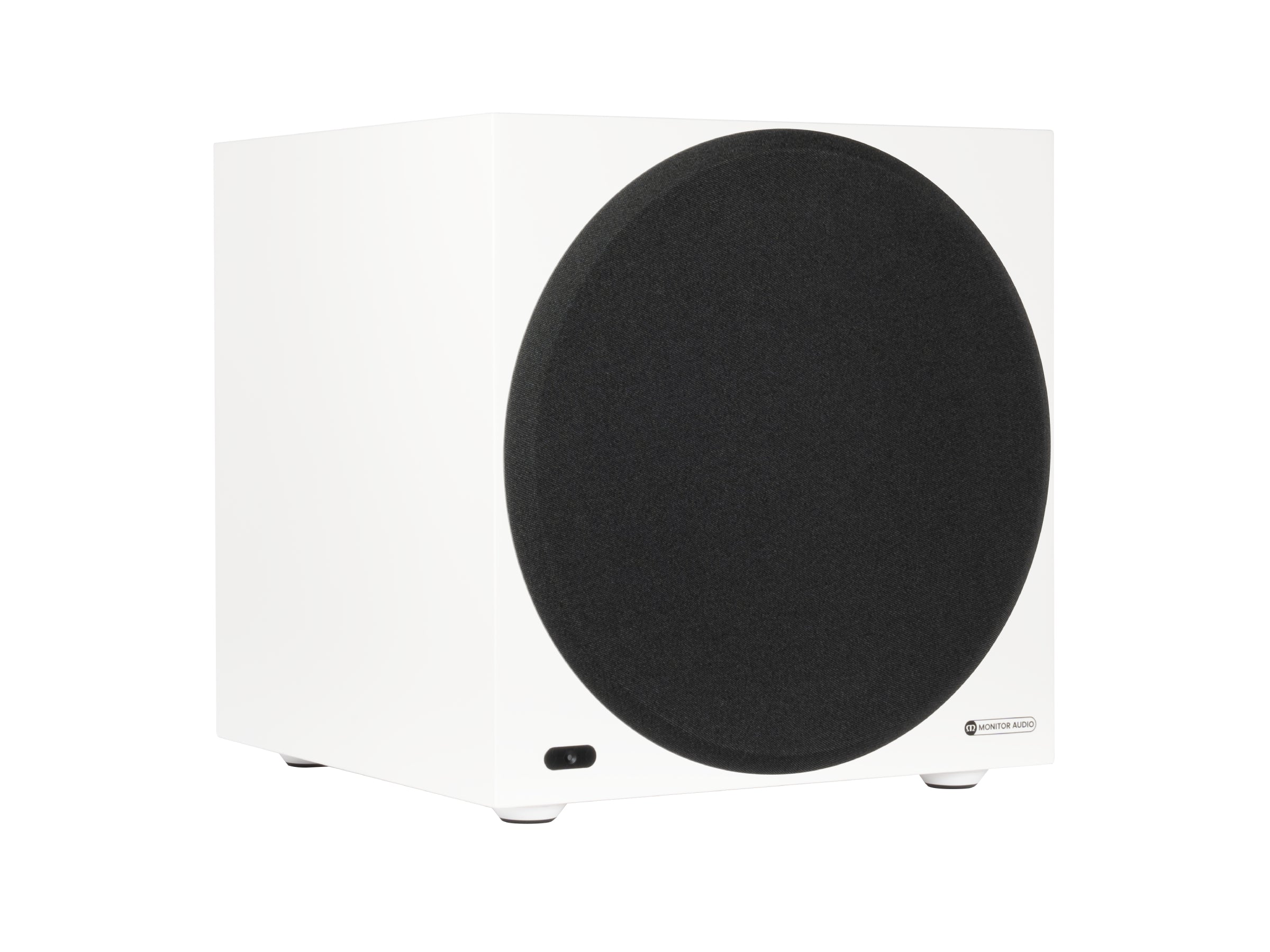

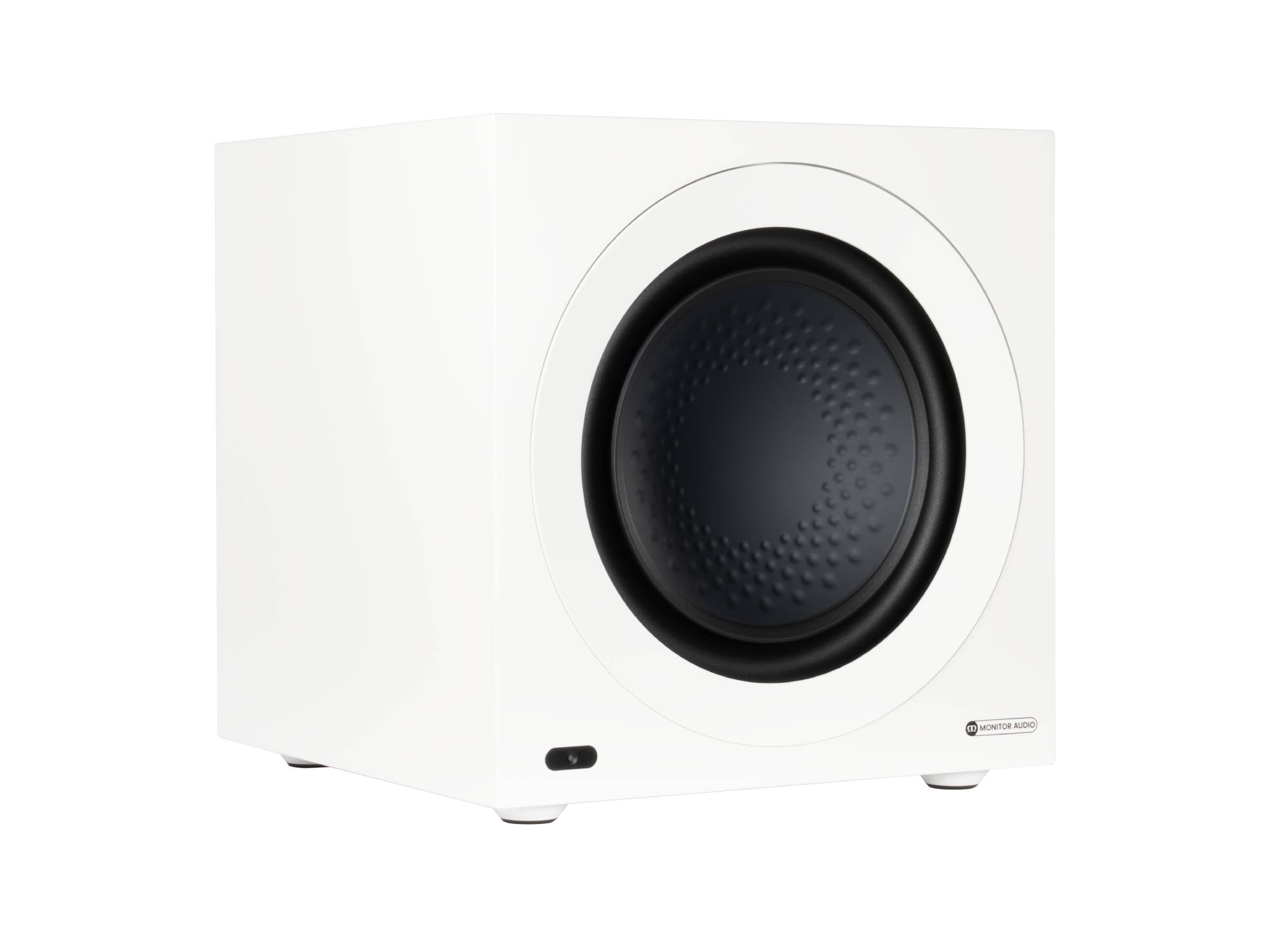

- Available in Gloss Black and Satin White finishes
- MaestroUnite Setup for Monitor Audio Anthra Subwoofers allows a user complete bespoke setup. Available to download from the App Store and Google Play.
The Anthra W12 subwoofer is expertly engineered to deliver exceptional bass performance in medium to large spaces. It features a powerful 1,000 Watt Class-D amplifier driving a 12” (30 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W12 can operate independently or be linked with up to three additional Anthra subwoofers, offering a truly immersive and ultra-dynamic audio experience.
Setup and Connectivity

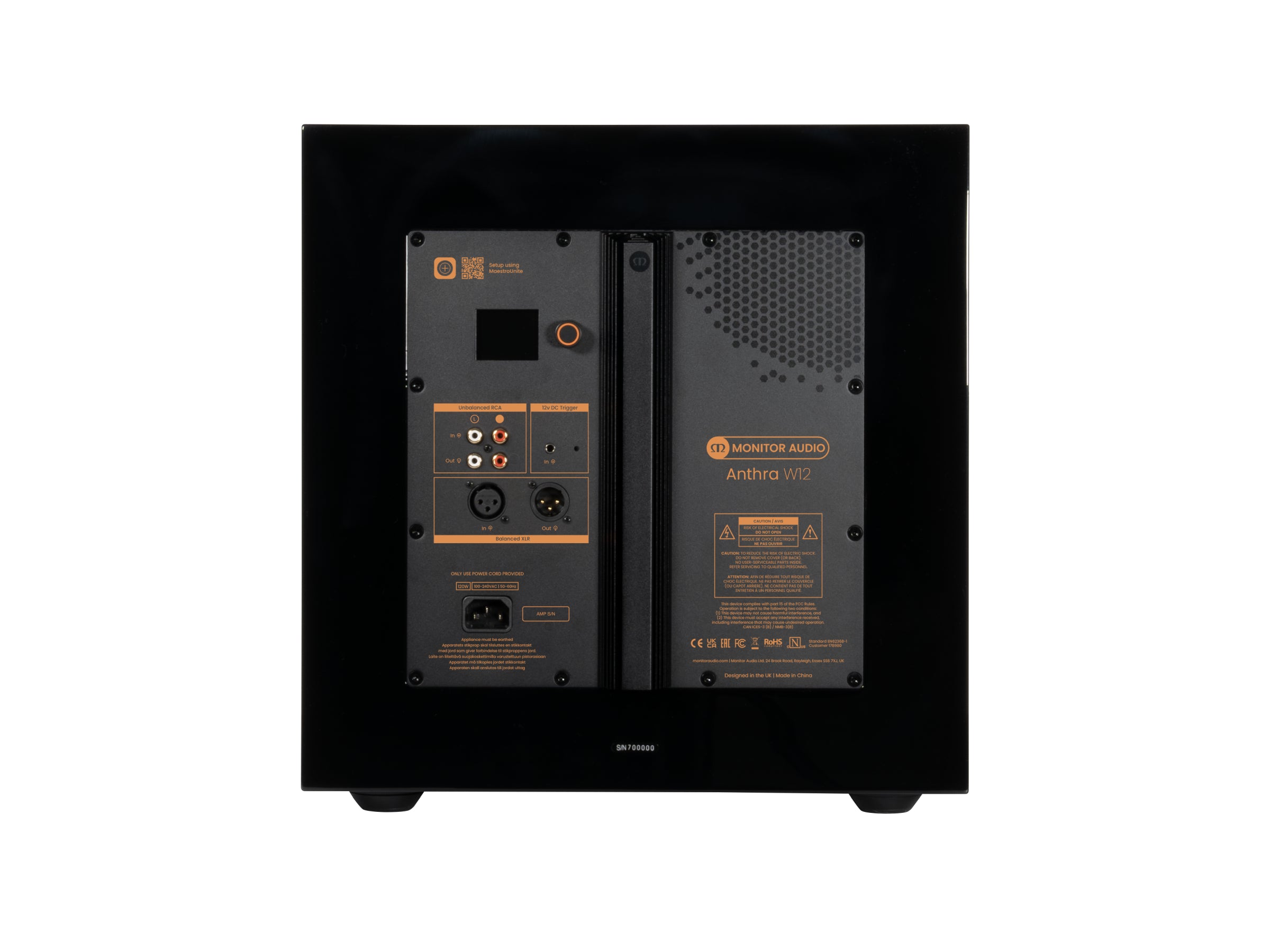

For ease of use, the subwoofer is equipped with a full-colour LCD display and a rotary dial on the rear panel, enabling straightforward setup and EQ preset selection. Advanced features, including DSP configuration and multi-subwoofer connectivity, are accessible via the MaestroUnite app, providing users with enhanced control over the system's performance.
Specifications
| System format: | Active - Sealed Cabinet |
| Drive unit complement: | 1x 12" (305 mm) High Linear-Excursion Triple Suspension Driver |
| Amplifier classification: | High-Efficiency Class-D |
| Lower frequency limit: | -6dB @16Hz |
| Upper frequency limit: | (LPF Off) -6dB @400Hz |
| Driver excursion (pk-pk): | 50 mm |
| DSP: | 28 Bit 50 MIPS Configurable through MaestroUnite |
| Analogue digital conversion: | Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals |
| Amplifier output power, 240Vac: | Instantaneous: 1700 W* Continuous short-term: 900 W** |
| Amplifier output power, 120Vac: | Instantaneous: 1325 W Continuous short-term: 700 W |
| LED UI control: | Brightness, On-Off |
| Phase control: | 0-360 Degrees measured at LPF Crossover |
| Low pass filter: | 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct |
| Custom EQ: | Configurable through MaestroUnite; 3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass) |
| Volume level: | Wide adjustable input gain to allow maximum output from a wide range of input signals |
| Inputs: | Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE) Mono/LFE Balanced XLR |
| Outputs: | Stereo unbalanced outputs with unbuffered throughput from RCA Inputs Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input |
| Mains input voltage: | Universal Mains, 85-265VAC |
| External dimensions (without feet) (HxWxD): | 374 x 374 x 374 mm |
| Power consumption: | 200 W |
| Cabinet construction: | Braced 25 mm thick MDF with 36 mm front baffle |
| Grille: | Cloth covered magnetically attached Grilles |
| Weight: | 32.4 kg |
| Note: | * Maximum RMS output for an instantaneous signal ** Sinewave for 10 seconds |
