Exposure

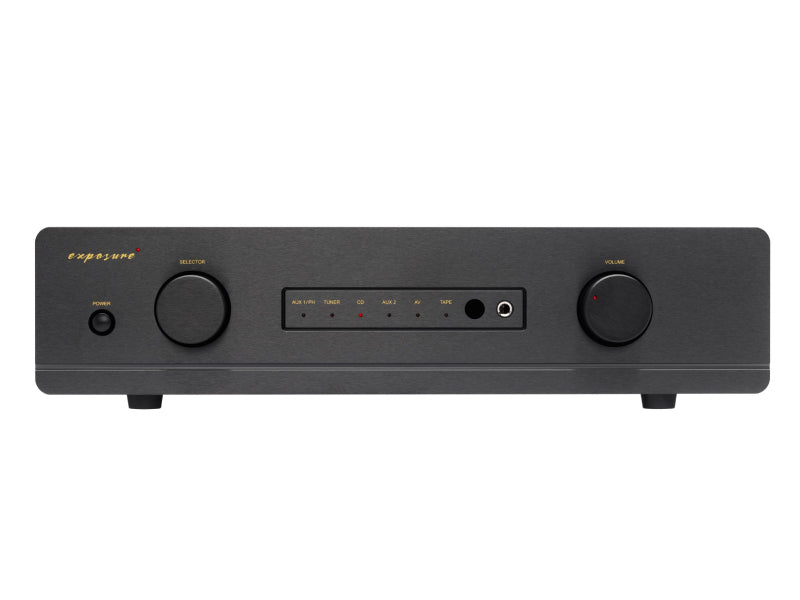

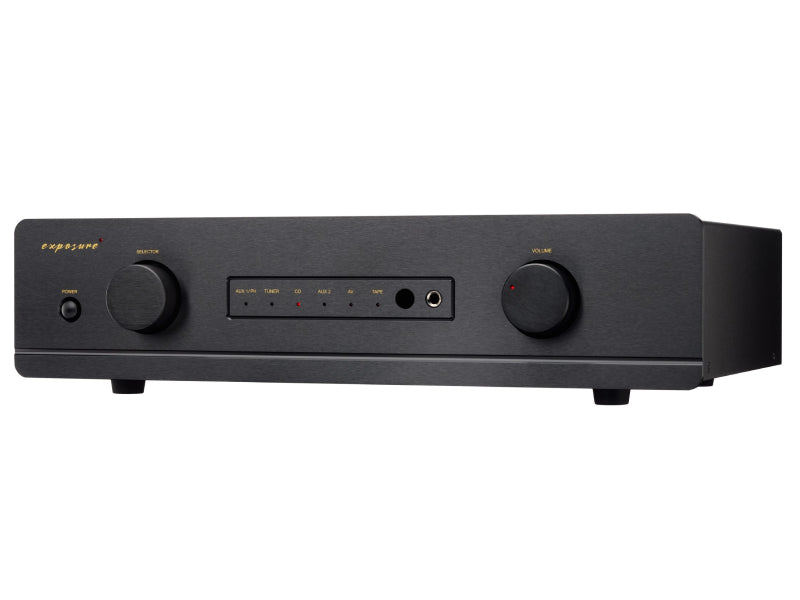

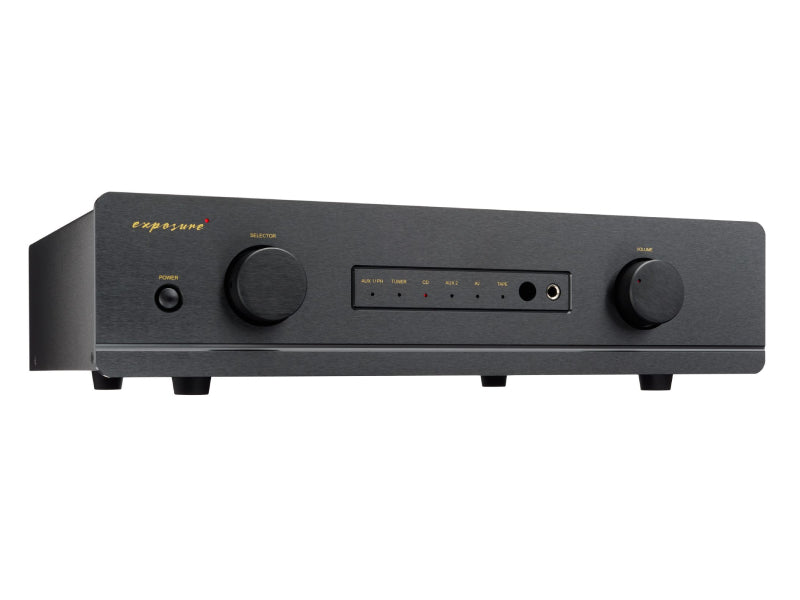

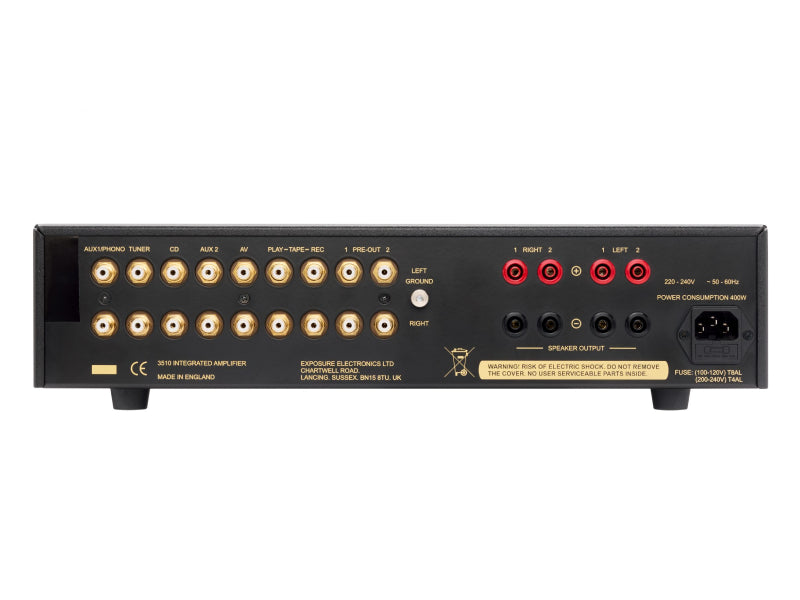

Exposure 3510 Integrated Amplifier

£2,600.00
Tax included Shipping calculated at checkout.

Made in Britain

Exposure has been perfecting the art of creating real Hi-Fi for real music lovers since 1974. The Exposure 3510 Integrated amplifier is a master-class in amplification. The 3510 will deliver your music with an accuracy and power you would never expect from a product so competitively priced. Designed, engineered and proudly manufactured in Britain by a talented team of audio engineers who are passionate about the reproduction of music.

Features

  • 110W RMS per channel into 8 Ohms
  • Six line inputs
  • Option to fit a MC or MM phono module OR plug in DAC option
  • Bi-wiring compatible
  • Separate pre-amp output
  • High quality capacitors used in the signal path
  • Uniquely tuned short signal and power supply path PCB
  • Cascode circuitry utilised for improved power supply immunity
  • Fast bipolar transistor output stage for dynamic and vivid performance
  • All aluminium casework and extruded front panel to control resonance and stray electro-magnetic fields
  • Remote control
  • Three year guarantee
  • Available in black or titanium

3510 MM or MC Board Options

Features

  • All discrete transistor audio stages
  • High quality parts used throughout
  • Tight tolerance parts used for accurate equalisation
  • Low noise power supply regulators
  • DC coupled input stage

3510 DAC Plug-In Board Option

Features

  • All discrete transistor output stage
  • High quality parts used throughout
  • Tight tolerance parts used for analogue filtering
  • Low noise audio stage power supply regulators

DAC Specifications

2V RMS output for full scale input
THD @ 1KHz < 0.005%
One Coax (BNC) input sample rate supported : 32, 44.1, 48, 88.2, 96, 176.4 & 192kHz @ up to 24 bits.
USB2 input sample rate supported : 44.1, 48, 88.2, 96, 176.4 & 192kHz PCM @ up to 24 bits.

DSD x64 (DoP)

Amp Specifications

Amplifier Outputs

Outputs Power : 110W per channel at 1kHz into 8 Ohms

Pre-Amplifier

Pre-Amplifier Output : 1.9V for rated input (gain +18dB full volume)

Maximum Output : 7.7V RMS @ 1kHz

Frequency Response : 20Hz - 20kHz ± 0.5dB

Total Harmonic Distortion : <0.03% at rated output, ref. 1kHz

Signal to Noise Ratio : >100dB, ref. rated output

Channel Separation : >60dB, 20Hz - 20kHz

Headphone

Output Impedance : <12 Ohms at 1kHz

Maximum Level into 33 Ohms at 1kHz & 0.05% THD : 4.8V RMS, (700mW)

Total Harmonic Distortion at 2V Output 1kHz : <0.02%, (120mW)

Maximum Level into 330 Ohms at 1kHz & 0.02% THD : 7V RMS (150mW)

Total Harmonic Distortion at 2V Output 1kHz : <0.015%, (12mW)

Inputs (Line)

Input Impedance : 17K Ohms minimum (line input)

Input Sensitivity : 250mV

General Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)

Fuse : T4AL for 220/240V units

Power Consumption : <400W, 8 Ohms load, both channels driven

Dimensions (HxWxD) : 115mm x 440mm x 300mm

Net Weight : 12kg

Gross Weight : 14kg
