IsoAcoustics OREA Isolation Puck
OREA Series: Eliminates parasitic vibrations, and providing greater sound clarity and focus. The OREA’s are ideal for electronic components including Amplifiers, DAC’s, CD Players, Speakers, and Turntables. Made of machined stainless steel, these isolators have a low-profile design to minimize any increase in height.
Each OREA model are designed for different weight capacities. They each have a coloured ring on the bottom isolator that denotes the model and weight capacity. The OREA series are packaged individually to allow greater flexibility when determining the number of units to use. We recommend a minimum of 3 units under each component, depending on weight.
The upper flange of the OREA’s are designed to provide a suction cup like effect and adhere to the underside of the component, while the lower flange adheres to the supporting surface. All the energy is managed within the core of the OREA’s, which are tuned to work within specific weight ranges. This results in greater sound clarity and a more open soundstage providing authentic, three-dimensional sound.
The OREA’s are designed to be used in multiples to match the weight of the component or speaker. The total weight capacity is calculated as follows:
Total Weight Capacity = [Weight cap. per isolator] x [Qty of Isolators]
|OREA Graphite||OREA Bronze||OREA Indigo||OREA Bordeaux|
|Dimensions(WxH)||40 x 27mm||50 x 29mm||58 x 33mm||67 x 36mm|
|Weight Capacity||1.8kg each||3.6kg each||7.2kg each||14.5kg each|
It is common to use 3 or 4 OREA isolators for each component or speaker, but keep in mind that it is most important to stay within the weight capacity of the OREA isolator.

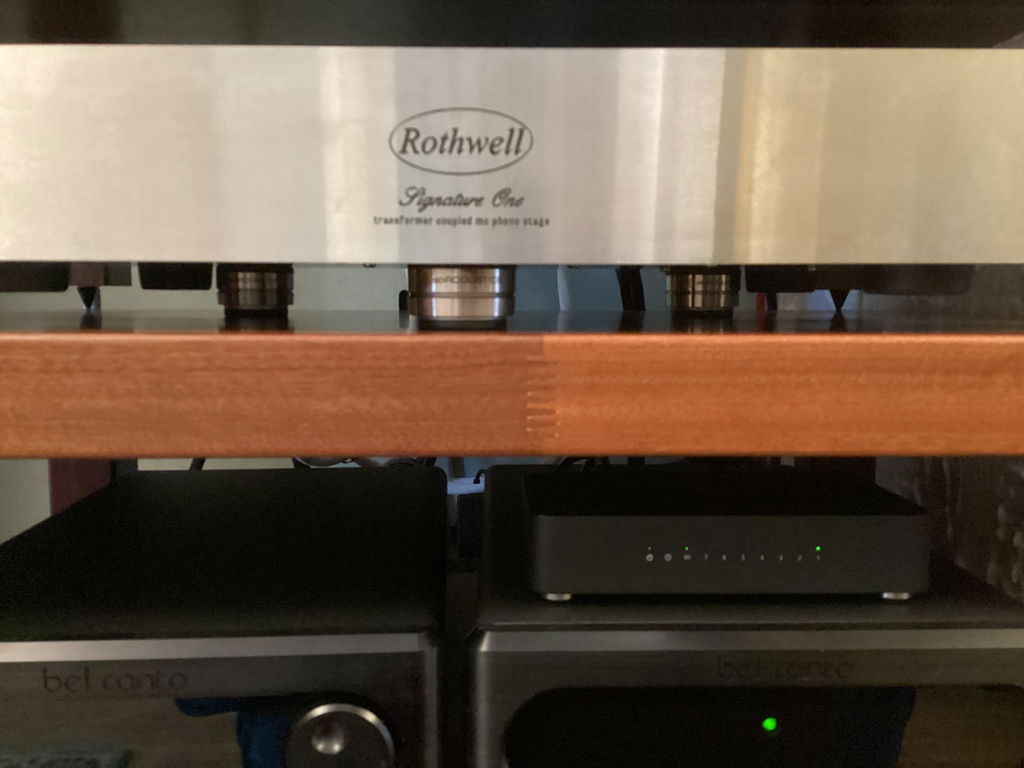

The weight distribution of the component can also be taken into account. If for example the component is heaviest at the back, then it is common to use 3 isolators with 2 positioned at the back corners and 1 positioned front/center.
If you are unsure and need advice please get in contact.
