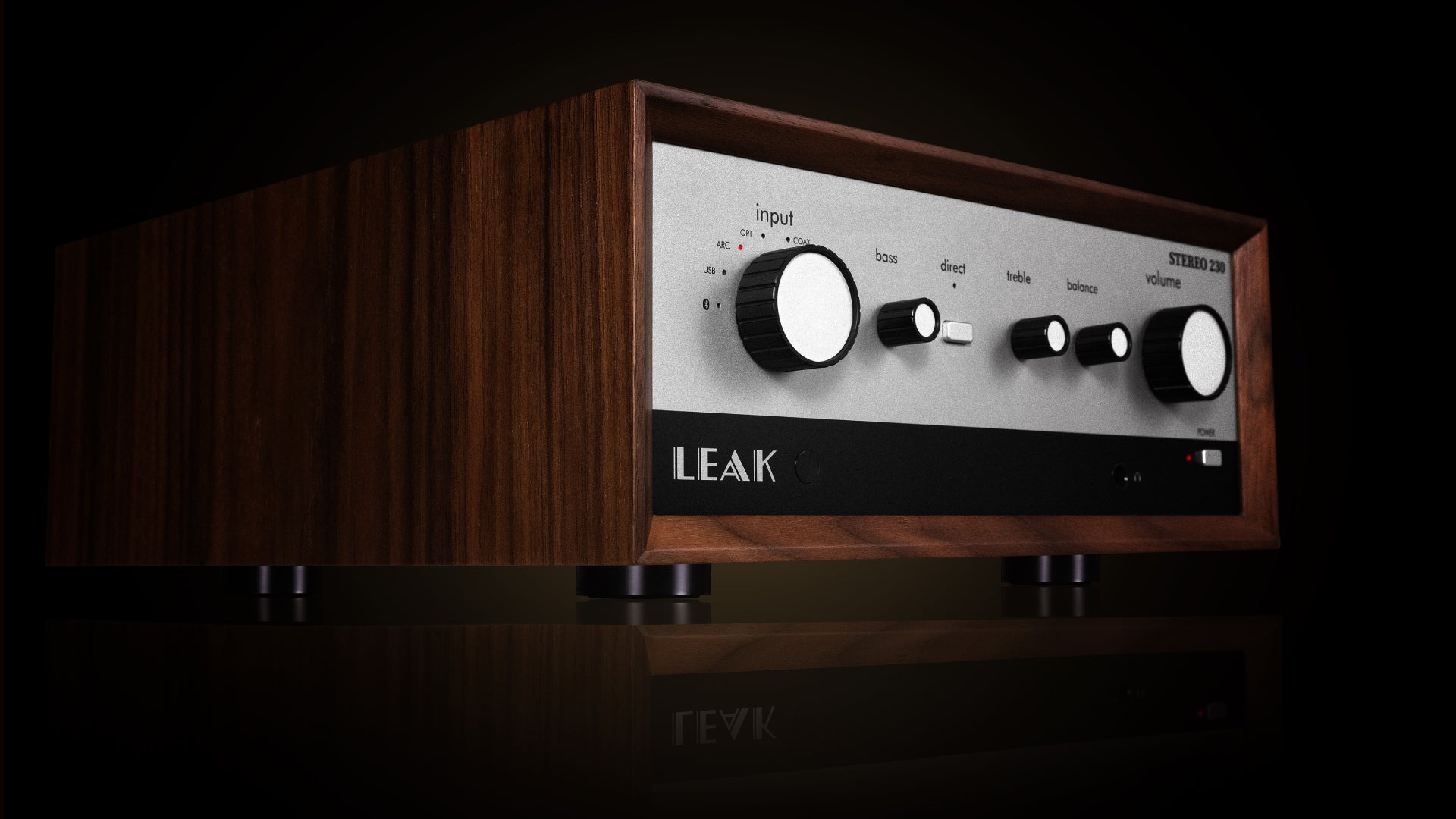

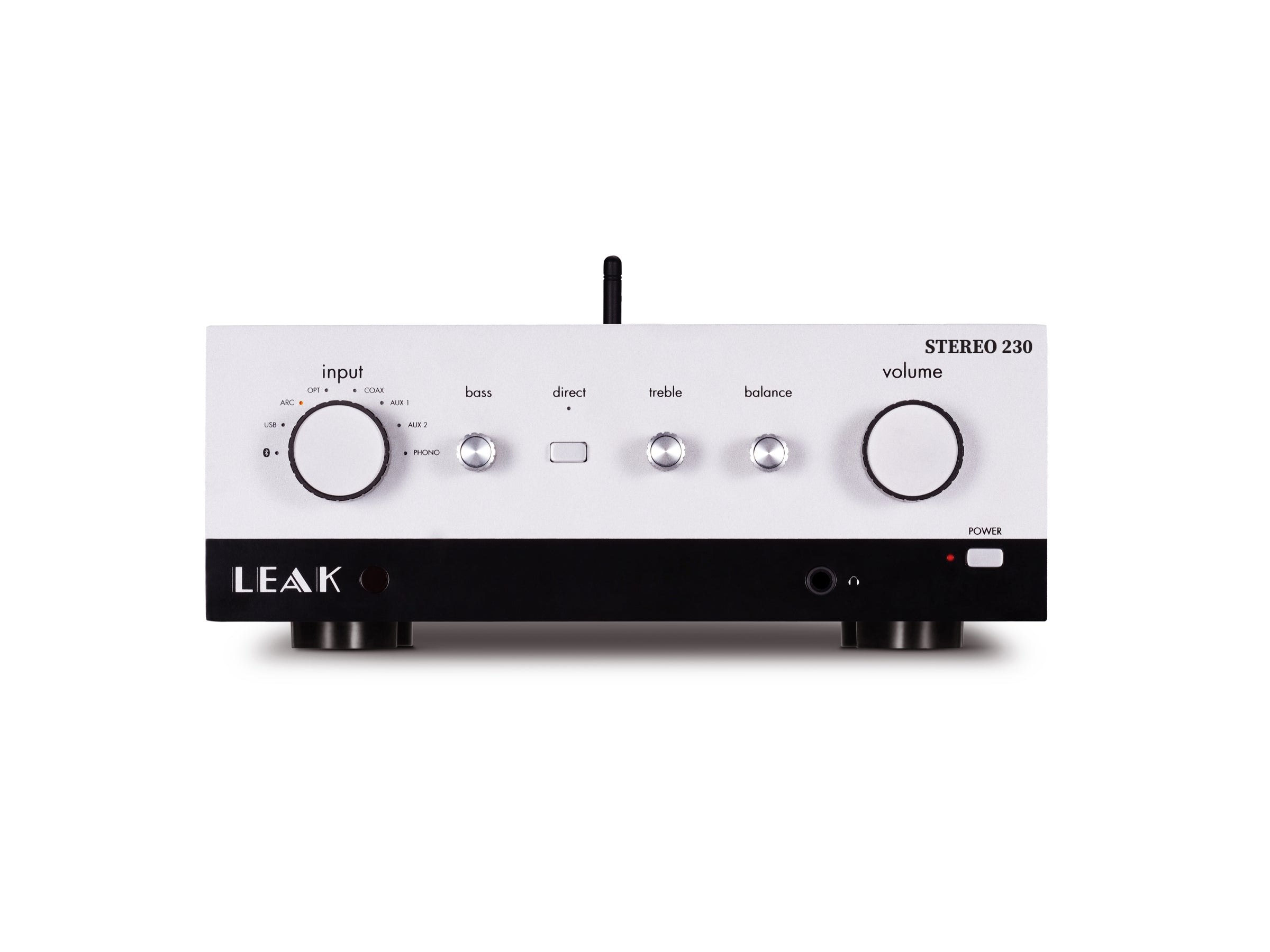

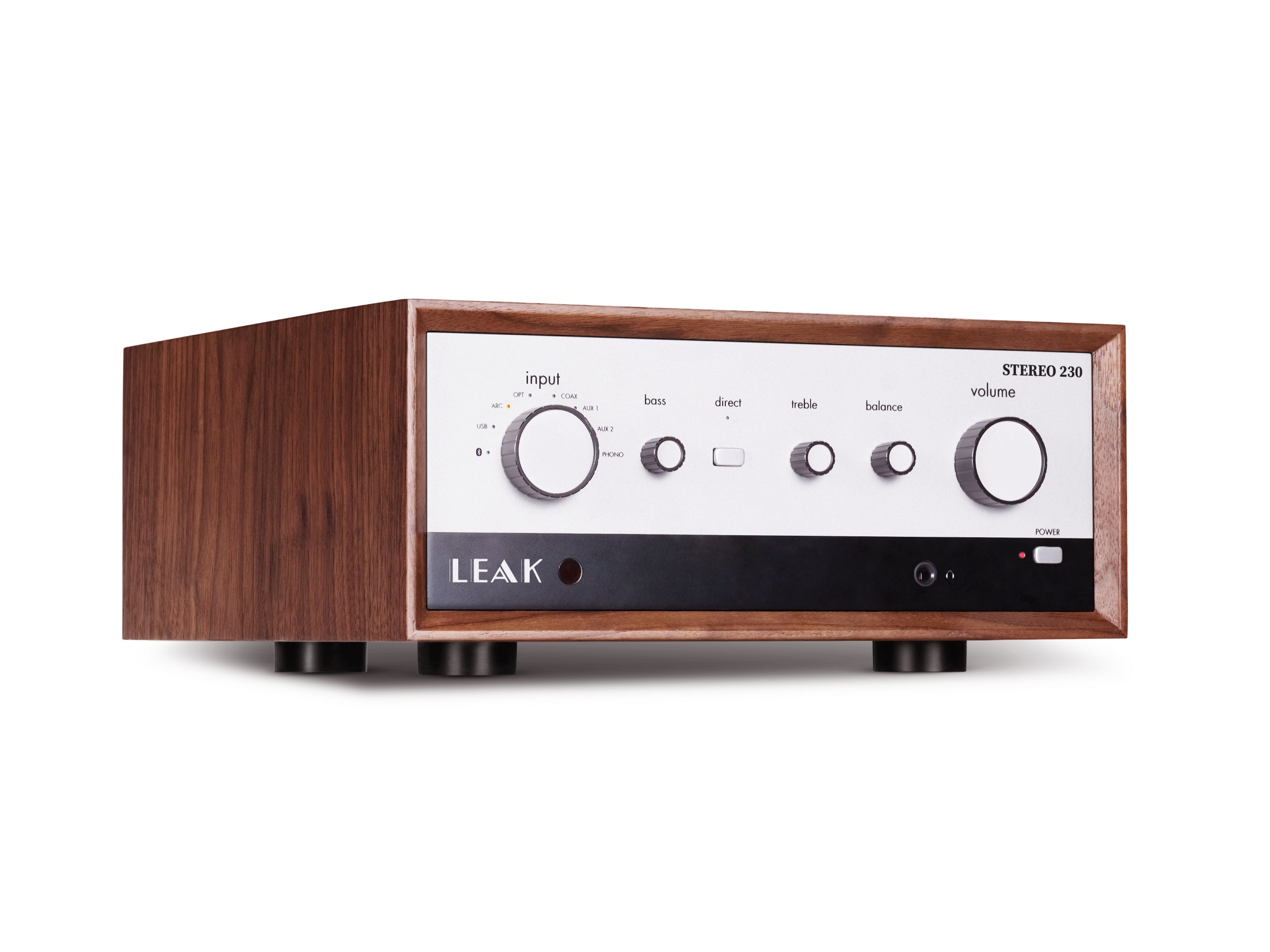

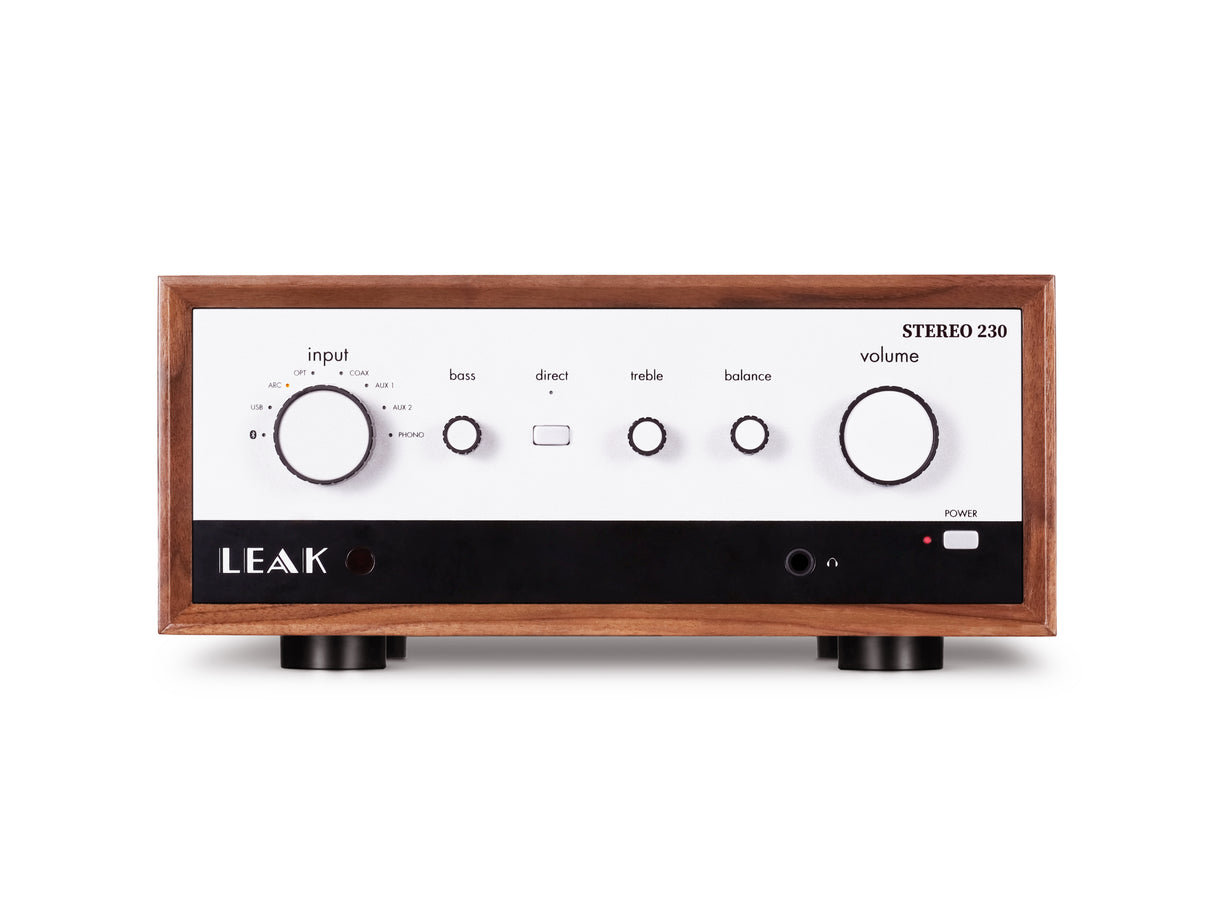

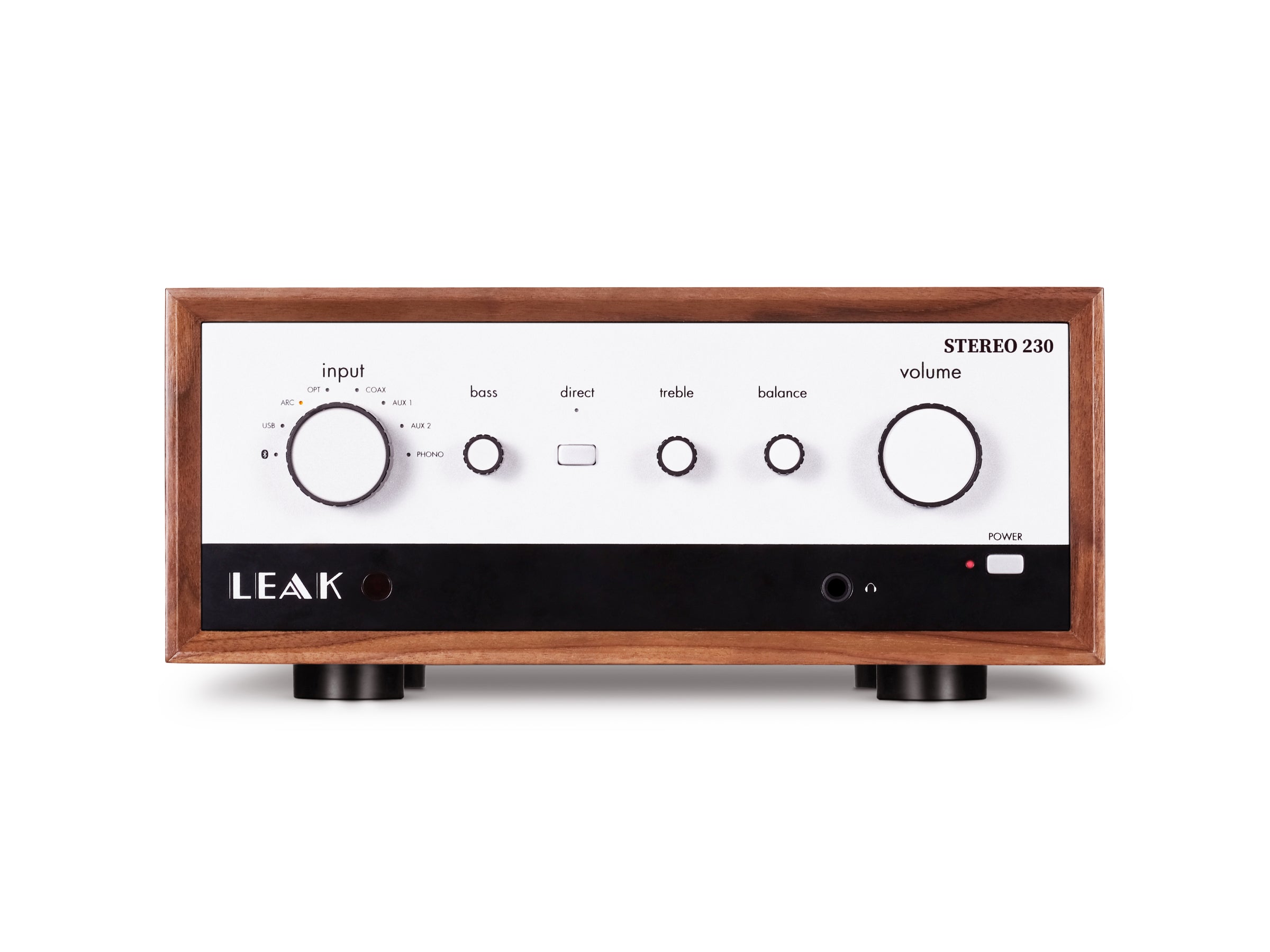

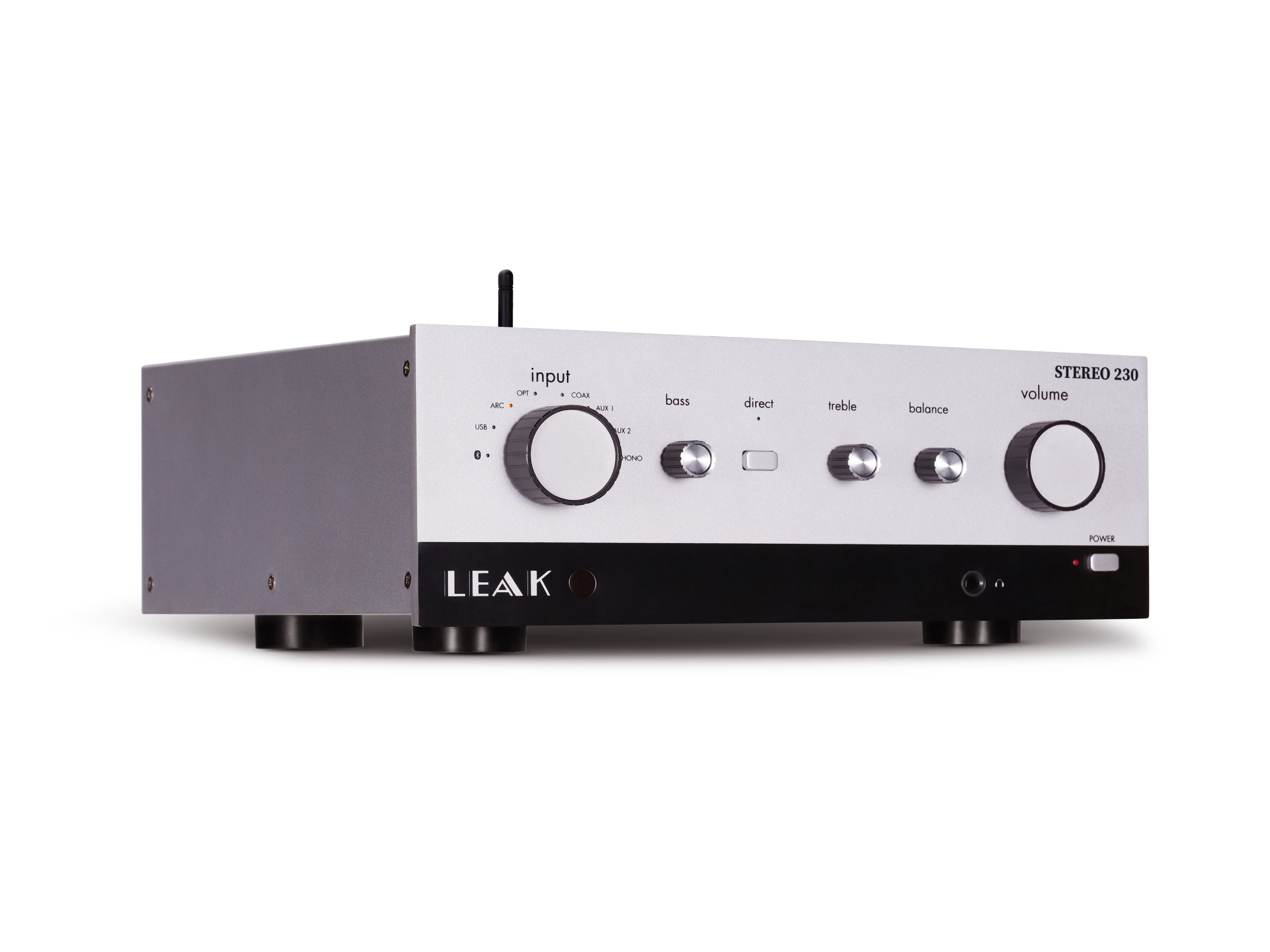

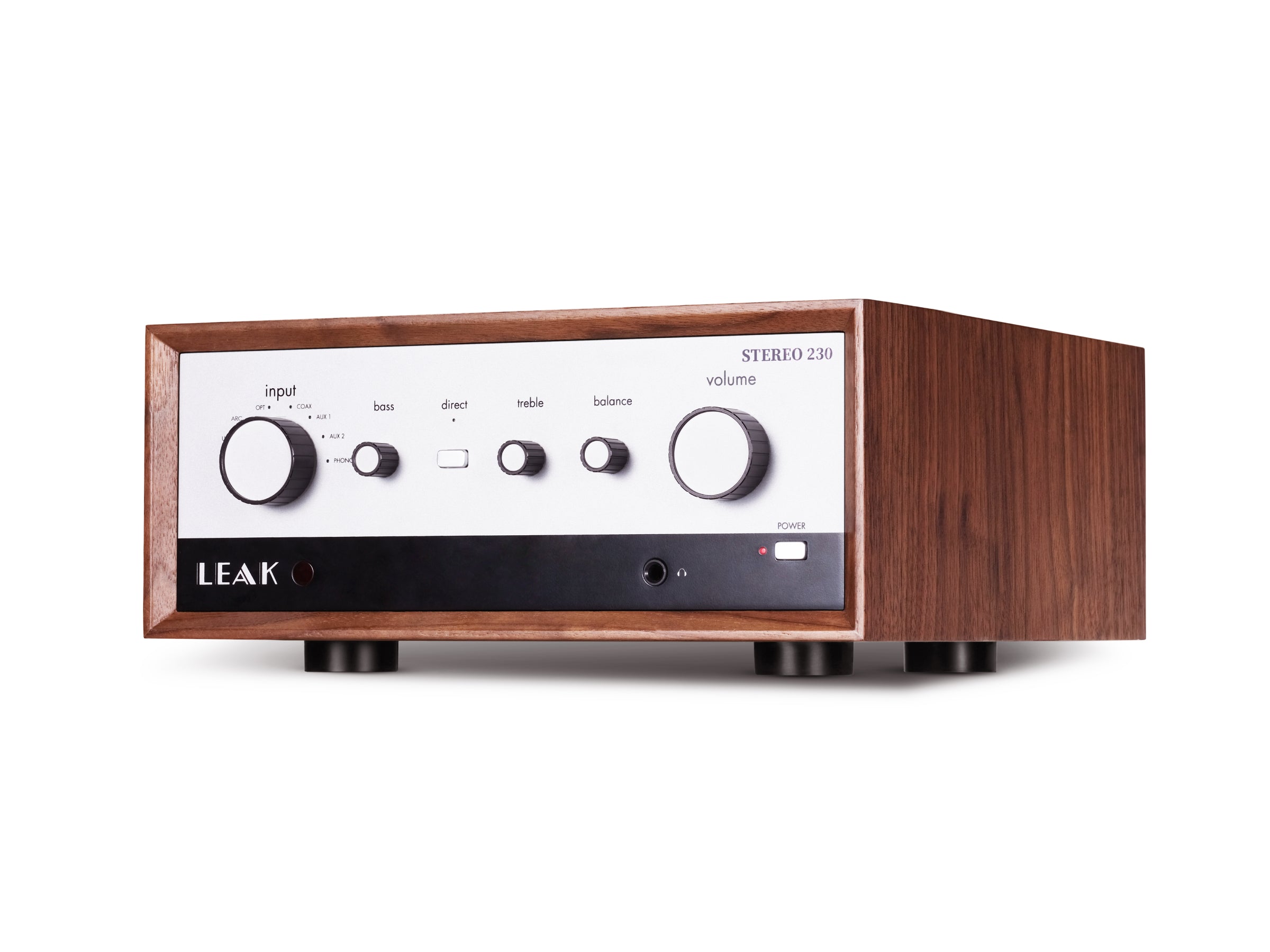

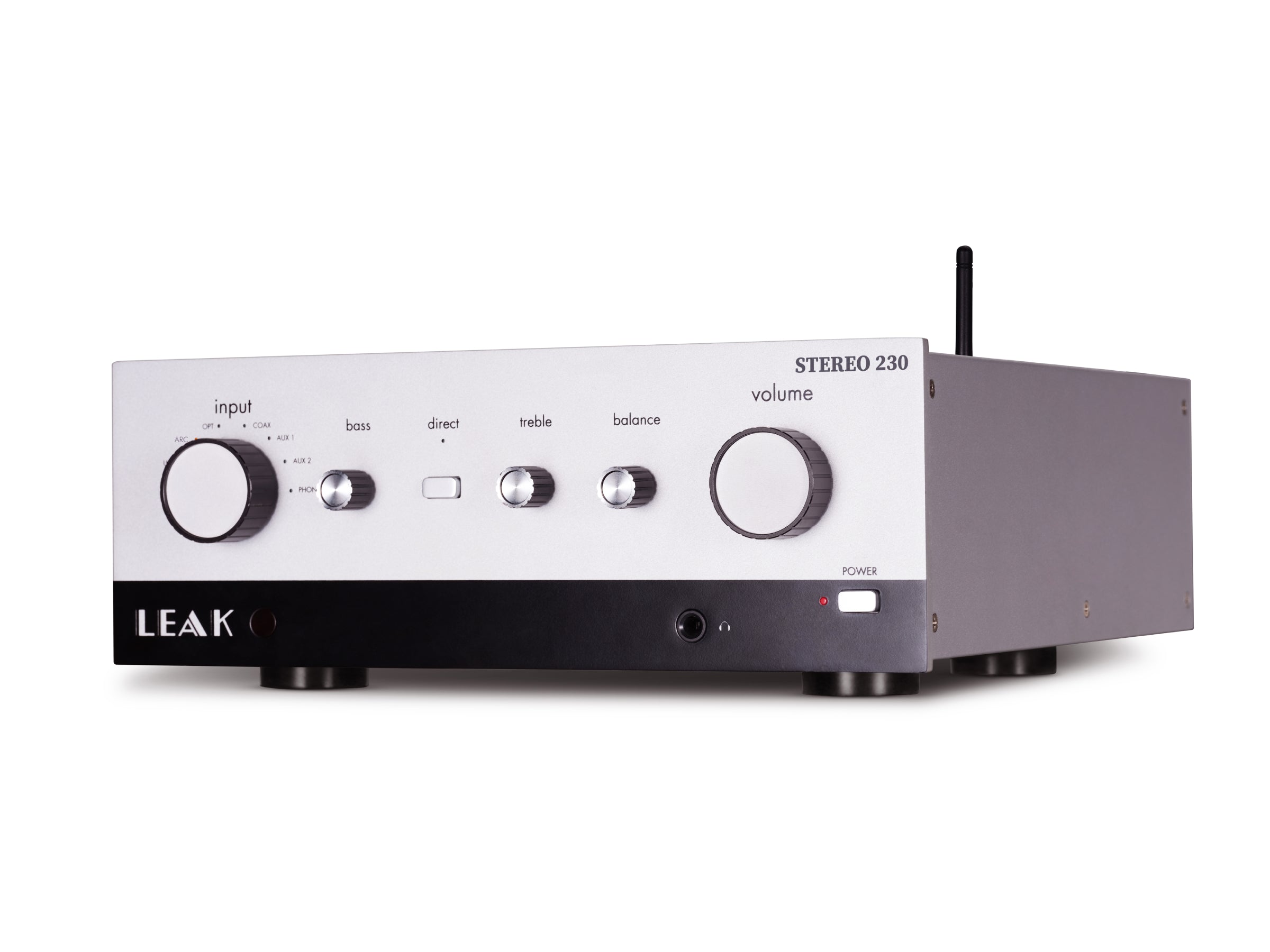

LEAK STEREO 230 Integrated Amplifier
Welcome Back
Firmly re-established as a mainstay in the Hi-Fi industry, LEAK continues to expand its product portfolio with the introduction of the LEAK STEREO 230. This high-performance, high-fidelity integrated amplifier is expertly designed for the modern-day audio and movie enthusiast, offering a versatile solution for those who seek both quality and functionality in their home entertainment systems.
Greater Substance
Building upon the success of the STEREO 130, the LEAK STEREO 230 introduces enhanced power, increased functionality, and greater substance, all aimed at satisfying the most discerning audiophiles. With its powerful 115W per channel output, it is well-equipped to handle a wide variety of sources, providing superior amplification for an immersive listening experience.
Versatility
One of the key innovations of the LEAK STEREO 230 is the inclusion of HDMI ARC connectivity, enabling high-quality audio for AV applications. This feature ensures that the amplifier meets the demands of both audiophiles and cinephiles, delivering an exceptional experience whether for music or film. The unit also boasts a built-in Moving Magnet (MM) phono pre-amplifier, allowing direct connection to turntable record players, enhancing its versatility.
Easy Streaming
In keeping with modern music streaming preferences, the LEAK STEREO 230 is equipped with aptX and AAC Bluetooth codecs, allowing users to stream CD-quality audio wirelessly from portable music players, smartphones, and tablets. Its design remains true to LEAK’s tradition of performance, reliability, and craftsmanship, blending contemporary technology with the brand’s classic styling for a truly standout product.
Specification
| Design Philosophy and Core Technology: | · 2 x 75W (8ohm) / 2 x 115W (4ohm) Class AB |
| · ST MOSFET TDA7293 Dual Parallel Amplifier | |
| · ES9038Q2M 32-bit DAC | |
| · Built-in Certified Hardware MQA Full Decoder (PC USB, Coax, Optical) | |
| · Support Bluetooth 5.0 (aptX / aptX LL) streaming | |
| · Low Noise Moving Magnet Phono stage | |
| · Dedicated Current-Feedback Headphone AMP | |
| · Support USB Upgrade | |

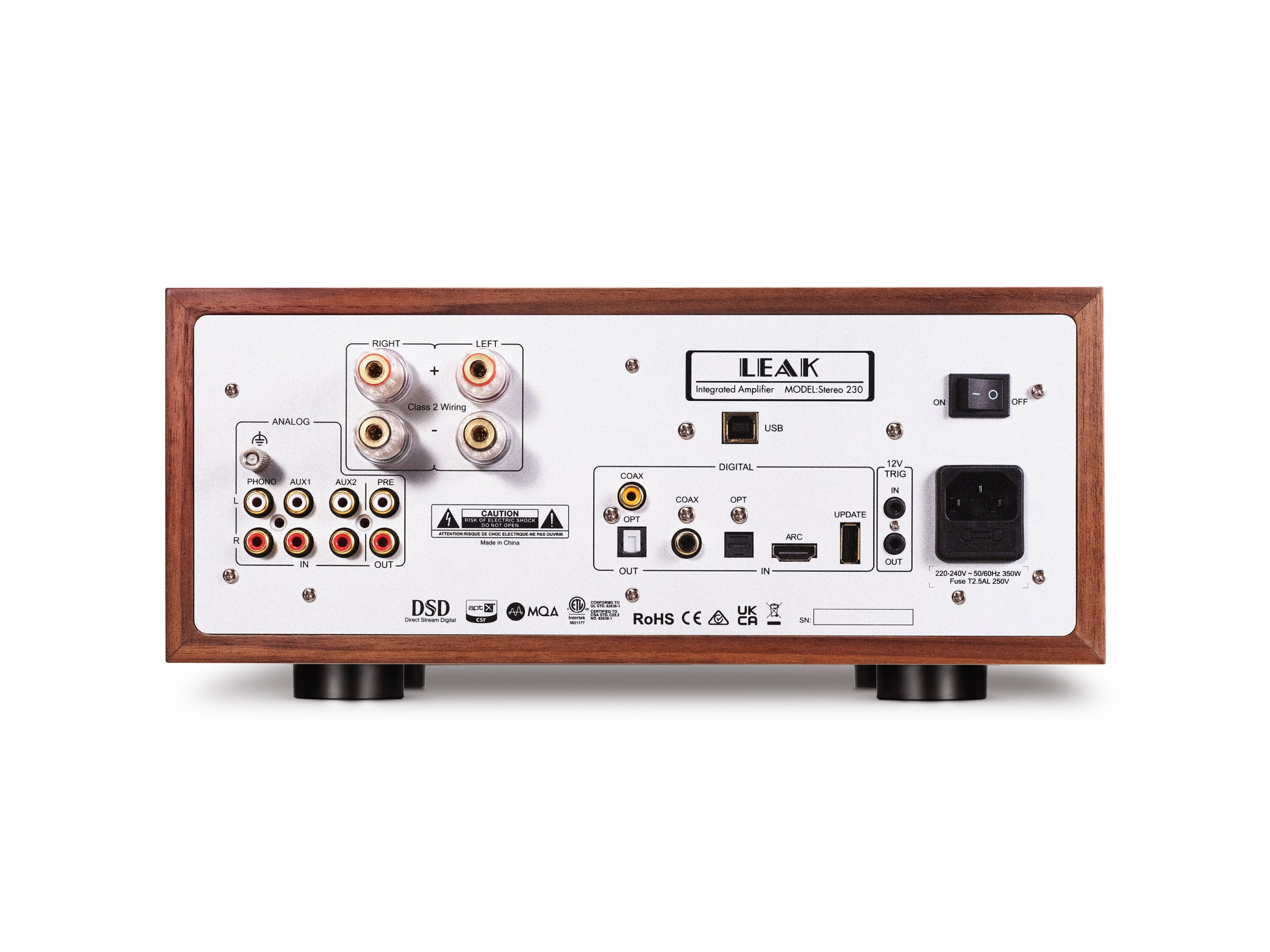

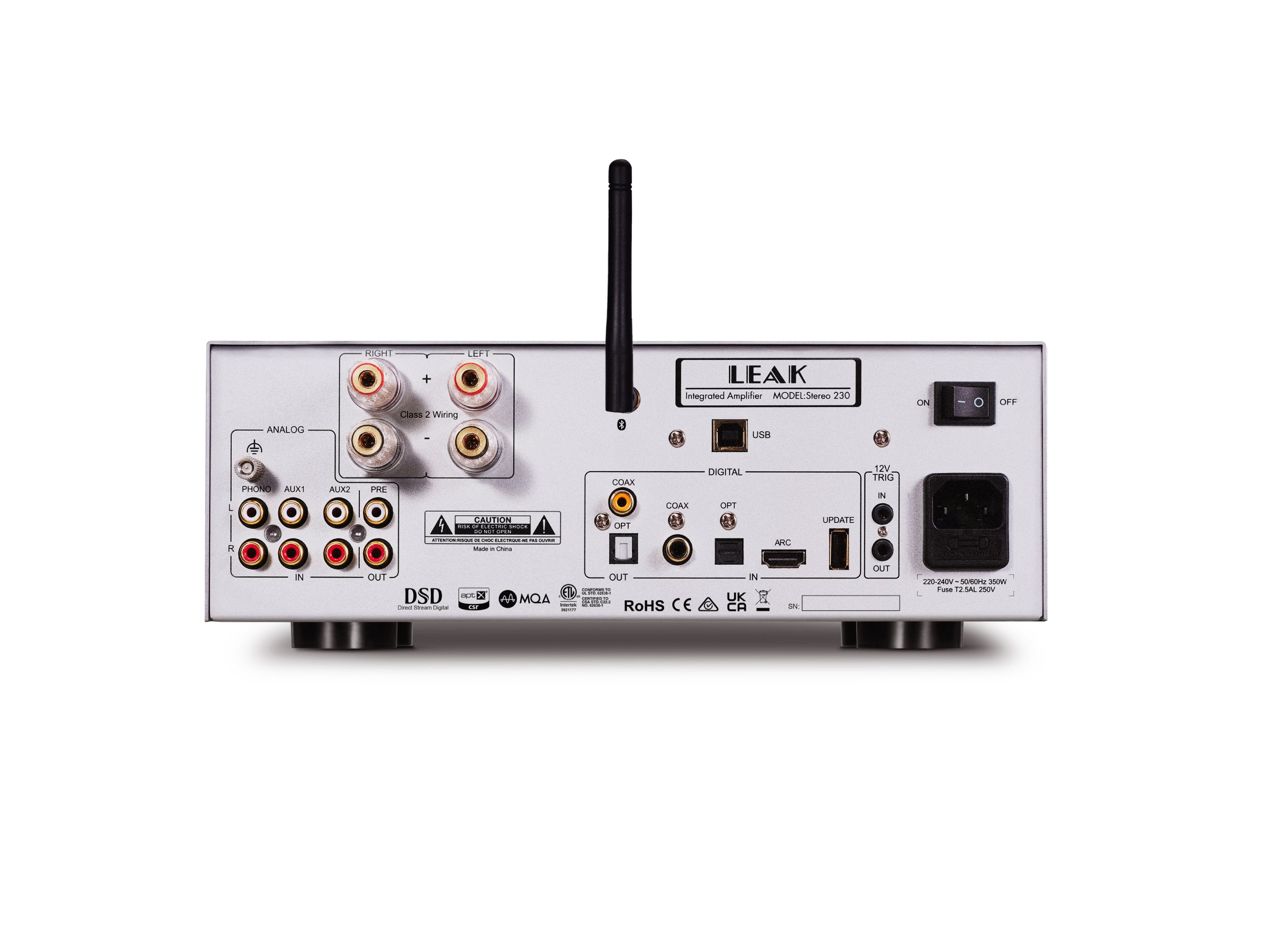

| Inputs: | 2 x Analogue, 1 x Phono (MM), 1 x SPDIF (Coax), 1 x SPDIF (Optical), 1 x HDMI ARC, |
| 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX LL), 1 x 12V Trigger | |
| Outputs: | 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
| Sampling Frequency: | Optical/Coaxial: 44.1kHz ---192kHz |
| PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 | |
| Preamplifier Section: | |
| Gain: | +41dB (Phono MM) |
| Input Sensitivity: | 550mV (Line, Volume =MAX) 4.8mV (Phone MM, Volume=MAX) |
| Input Impedance: | 10K (Line) 47K // 100pF (Phono MM) |
| Total Harmonic Distortion (THD): | <0.001% (1kHz @2V, TONE=On) |
| Frequency Response: | 20Hz-20kHz (+/-0.1dB) |
| Output Voltage: | 2.3V max. (Volume = MAX) |
| Output Impedance: | 100ohm |
| Signal-to-Noise Ratio: | >110dB (Line, A-weighted); >75dB (Phono MM, A-weighted) |
| DAC: | |
| D to A Converter: | ES9038Q2M |
| Total Harmonic Distortion (THD): | <0.002% (1kHz @ 0dBFS) |
| Output level (0dBFS, 1KHz): | 2.3Vrms |
| Max. Sampling Frequency: | Optical, Coaxial: 192kHz, PC USB: PCM768kHz, DSD512 |
| Signal-to-Noise Ratio (S/N): | >115dB (A-weighted) |
| Power Amplifier Section: | |
| Gain: | +32dB |
| Rated Power Output: | 2 x 75W (8ohm, THD<1%); 2 x 115W (4ohm, THD<1%) |
| Frequency Response: | 20Hz-20kHz (+/-0.3dB) |
| Total Harmonic Distortion (THD): | <0.003% (1kHz @30W/8ohm) |
| Input Sensitivity: | 550mV |
| Signal-to-Noise Ratio (S/N): | >109dB (A-weighted) |
| Headphone Amplifier: | |
| Total Harmonic Distortion (THD): | <0.01% (1kHz, 50mW) |
| Output Impedance: | 4.7ohm |
| Load Impedance: | 16-600ohm |
| General: | |
| Standby Power Consumption: | <0.5W |
| Net Weight: | 12.7kg (Walnut) / 11.1kg (Silver) |
| Gross Weight: | 15.2kg (Walnut) / 12.7kg (Silver) |
| Dimensions (mm) (W x H x D): | 328147414 (Walnut) / 300115414 (Silver) |
| Carton Size (mm) (W x H x D): | 514428210 (Walnut / Silver) |
| Finish: | Walnut / Silver |
| Power Requirements (depending on region): | 220-240V ~ 50/ 60Hz 100-120V ~ 50/ 60Hz |

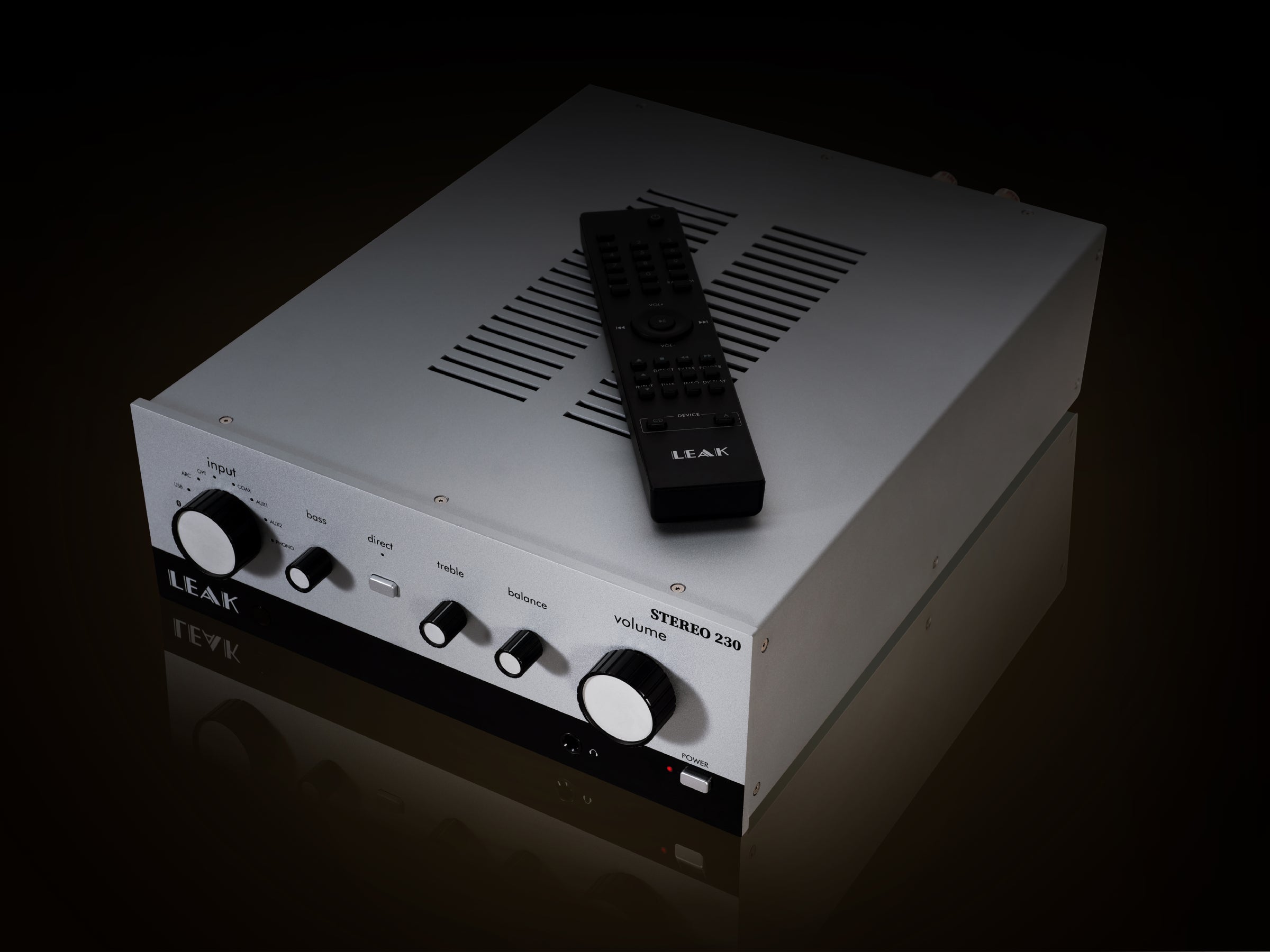

| Standard Accessories: | Power Cord, Remote Control, User Manual, Antennas, etc. |
