Naim NAC 332 Preamplifier

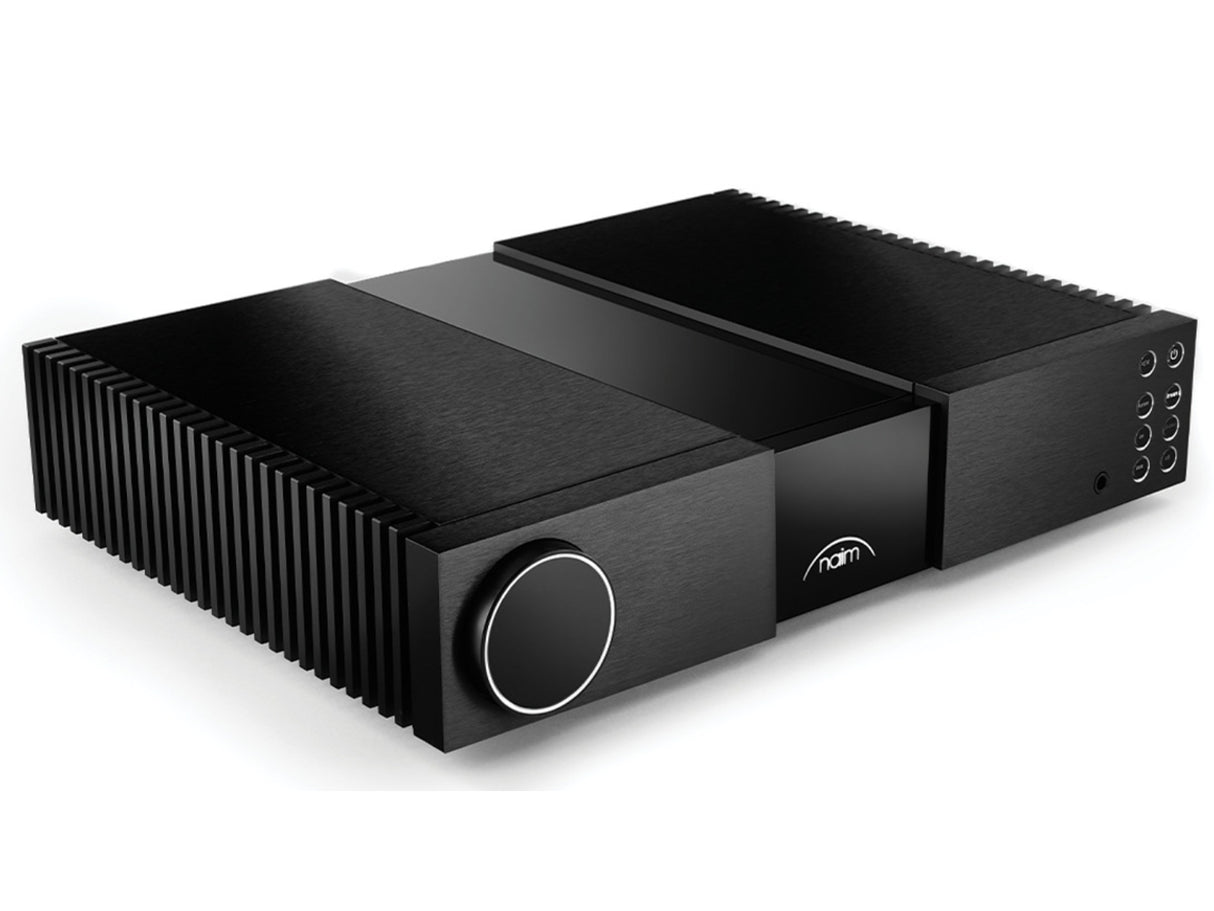

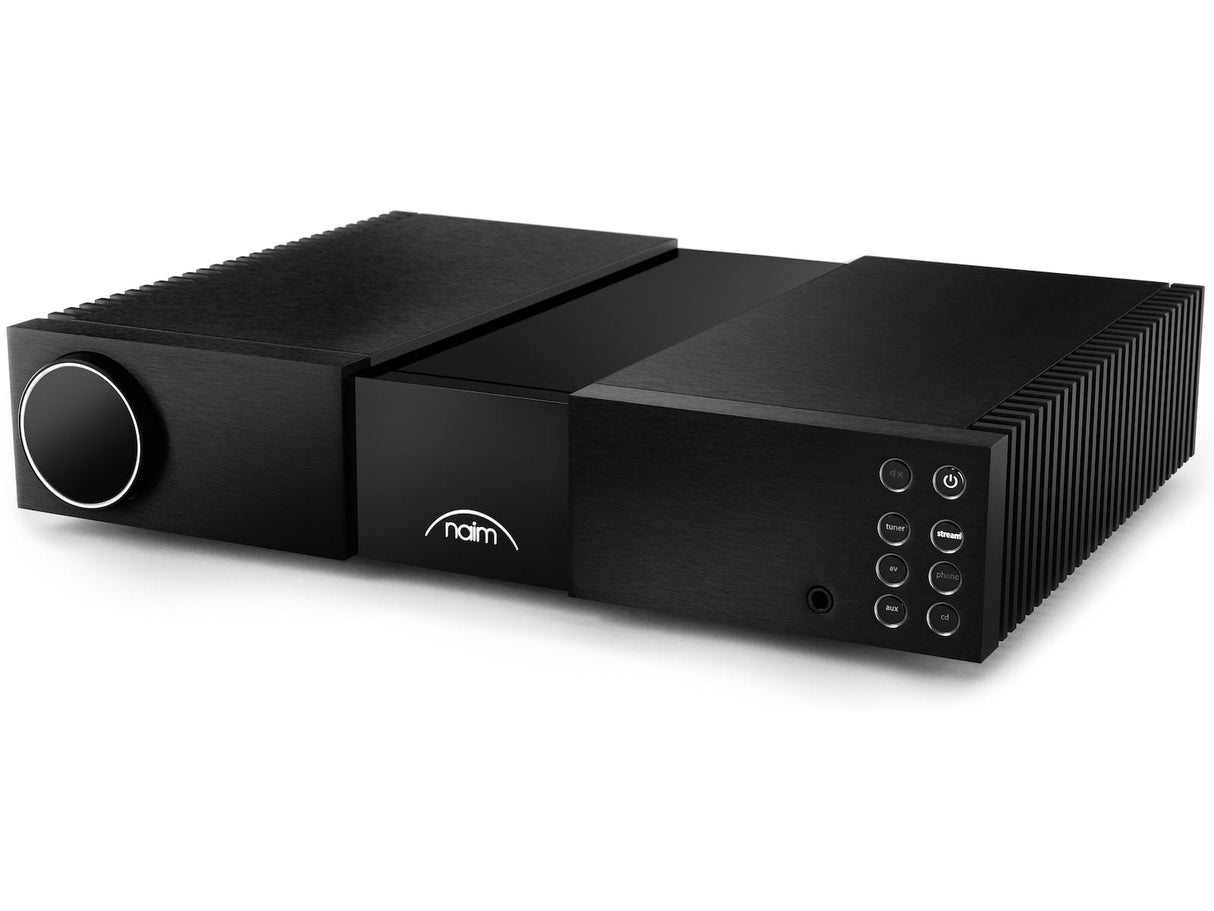

Naim NAC 332 pre amplifier is a versatile analogue control centre for your hi-fi system. It has a multiplicity of inputs and outputs as well as a sophisticated volume control and switching circuit. There is a separate class A headphone amplifier and remote control, which can be used for volume and input switching.
Any source can be connected to this no-compromise device. Every element of the internal circuits and purist design is optimsed for the best possible sound quality without compromise, right down to details that may be overlooked by other manufacturers.

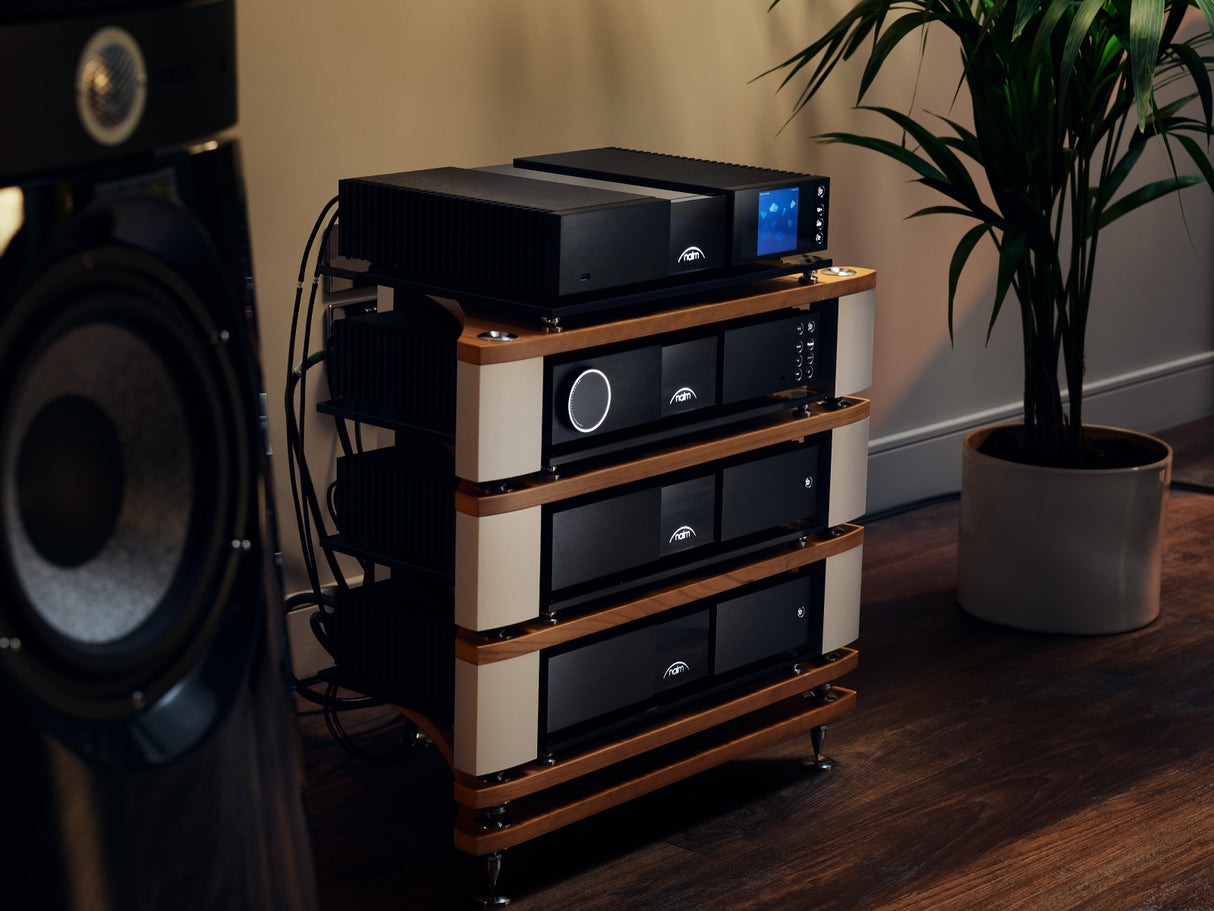

Upgrade options include an external power supply as well as an external phono preamp. NAC 332 is an ideal partner for the NAP 350 monobloc power amplifiers along with NSS 333 streamer, but of course, can be matched well with other Naim power amplification and other excellent hi-fi separates.
Naim precision design
Several innovations are used with the NAC 332. Firstly, the volume control is analogue and uses fixed resistors that give maximum accuracy and channel balance. A super smooth optical encoder is used to covert the volume signal into mechanical motion. The input switching is also done using reed relays. As a result the sound volume, and switching, are not processed by any sound degrading electronic switching.
Additionally, the balanced input circuits use two single-ended, Class A buffer and filter circuits. This then feeds a class A op-amp. The inputs are configurable and can be mapped to different input buttons. The remote control is bi-directional with the volume level also being indicated on the remote.
Upgrade options
There are two upgrade options for the NAC 332 pre amp, involving external power supplies, as well as an external phono preamp. An NPX 300 upgrade PSU, can be connected via the multi-pin Burndy connectors. One for analogue power and one for digital. Next there is an 8-pin Din socket that connects to the NVC TT phono preamp. This socket also caries the + /- power feeds for the preamp.
Excellent connectivity

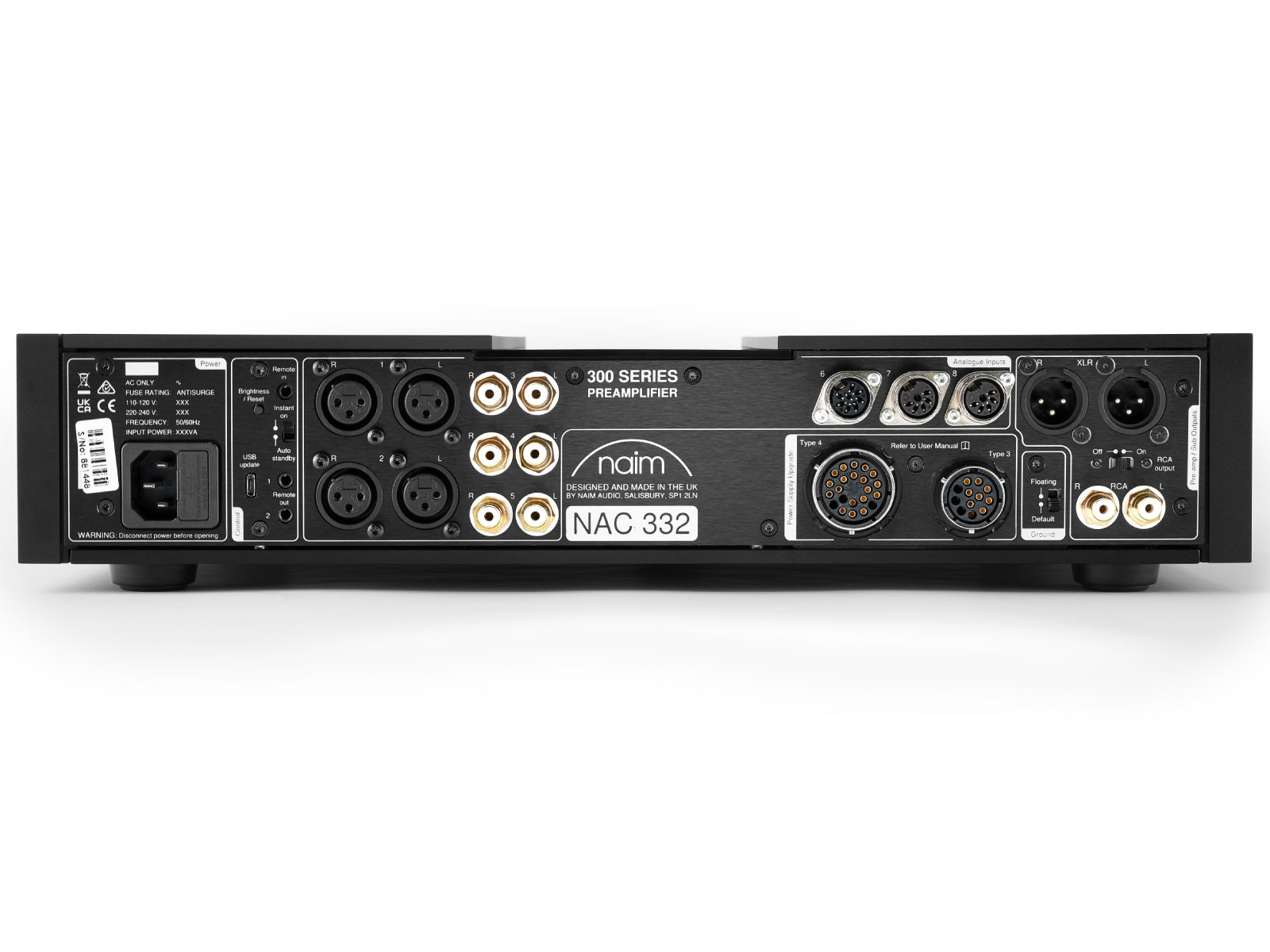

There are no less than eight analogue inputs, six of which can be assigned to different buttons. Inputs include four balanced XLR inputs as well as six RCA connectors. There are also three DIN inputs. The preamp output uses two Class A stages, that connect to your amplifier via balanced XLR connectors. Finally, there are also two RCA outputs for connecting to a subwoofer. There are also inputs and outputs for the remote control of the unit.
Case design

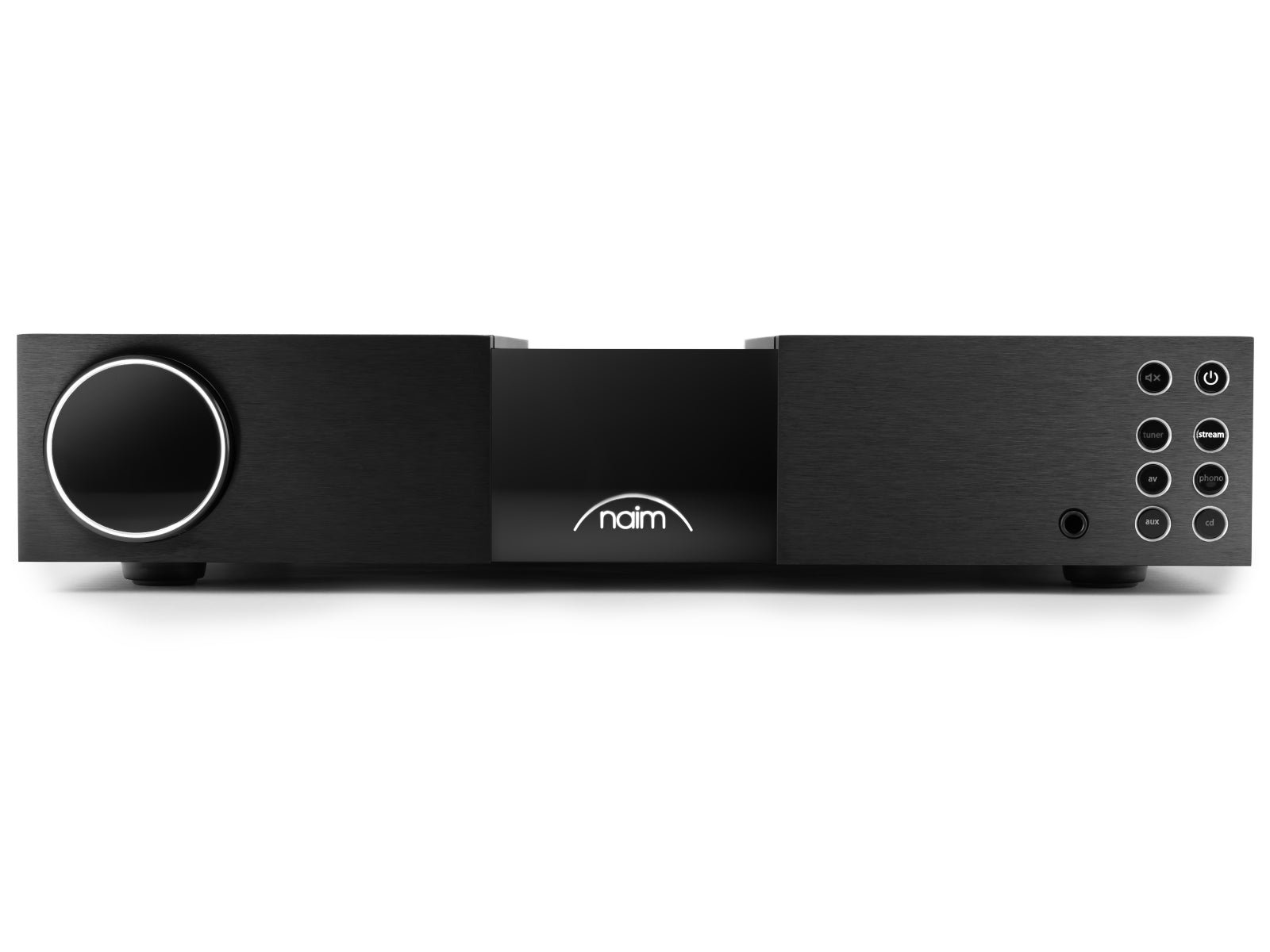

All of the Naim range use aluminium casings. Aluminium has several benefits. It is good at shielding sensitive electronics. Interference can come from stray magnetic fields as well as vibrations from transformers. Additionally, it has good thermal stability. Naim uses 20mm aluminium billets for the front panels, as well as 5mm panels for the top and bottom. The case is then brushed, sandblasted and anodised, for a long lasting finish to match the other latest models in the Naim range.
Why pre/power rather than integrated amplifier?
Separating the pre amplifier from the power amplifier has several advantages. One is interference, having everything in one box can lead to crosstalk as well as interference from the power supply. That is why the NAC 332 has an external power supply option. Moreover, digital circuits such as DACs, can generate high frequencies, that have to be shielded. Having high gain circuits next to power amplifiers can also cause interference problems.
Next, is the audio signal path, often volume control is done using electronic means. This adds another layer of processing to the audio signal. Hence the NAC 332 features an analogue control. This uses fixed value resistors, replacing a potentiometer based system. Potentiometers can get noisy electrically and have poor accuracy.
Specifications
| Product Type: | Preamplifier |
| Control: | Bi-directional ZigBee remote and front panelInter-product communications with NSS 333 via ZigBeeOptical 3.5 mm output for synchronised control of compatible products (e.g. NAP 250 / 350) |
| Analogue Audio Inputs: |
1 × 8-pin DIN (47 kΩ, 2.2 V typical, 9.5 Vrms max) 2 × 5-pin DIN (47 kΩ, 2.2 V typical, 9.5 Vrms max) 3 × RCA pairs (47 kΩ, 2.2 V typical, 9.5 Vrms max) 2 × XLR balanced pairs (100 kΩ, 2.2 V typical, 9.5 V max) 8-pin DIN compatible with 5-pin DIN 8-pin DIN provides ±18 V for compatible external phono stages (e.g. NVC TT) |
| Analogue Audio Outputs: |
1 × XLR pair (balanced, 10 Vrms max) 1 × RCA pair (10 Vrms max) 1 × 6.35 mm headphone jack (1.5 W into 16 Ω) |
| Distortion: | Line: 0.003% @ 2.2 V input, volume at 0 dB, 1 kHzLine: 0.018% @ 2.2 V input, volume at 0 dB, 20 kHz |
| Crosstalk: | Line: 90 dB at 1 kHz, volume at 0 dBLine: 70 dB at 20 kHz, volume at 0 dB |
| Signal-To-Noise Ratio: | Line: 104 dB ref. 2.2 V, A-weighted, volume at 0 dB |
| Frequency Response: | Line: 3 Hz to 40 kHz (−3 dB) |
| Gain: | Preamplifier at maximum volume: 15.5 dB |
| USB Connectivity: | 1 × Micro USB socket (for updates) |
| Weight: | 24.25 lbs (11 kg) |
| Dimensions (H × W × D): | 3⅝ × 17 × 12½ in (9.15 × 43.2 × 31.75 cm) |
| Mains Supply: | 230 V, 50/60 Hz |
| Power Consumption: | Typical use: 20 WNetwork standby mode: <2 WStandby mode: <0.5 W |
