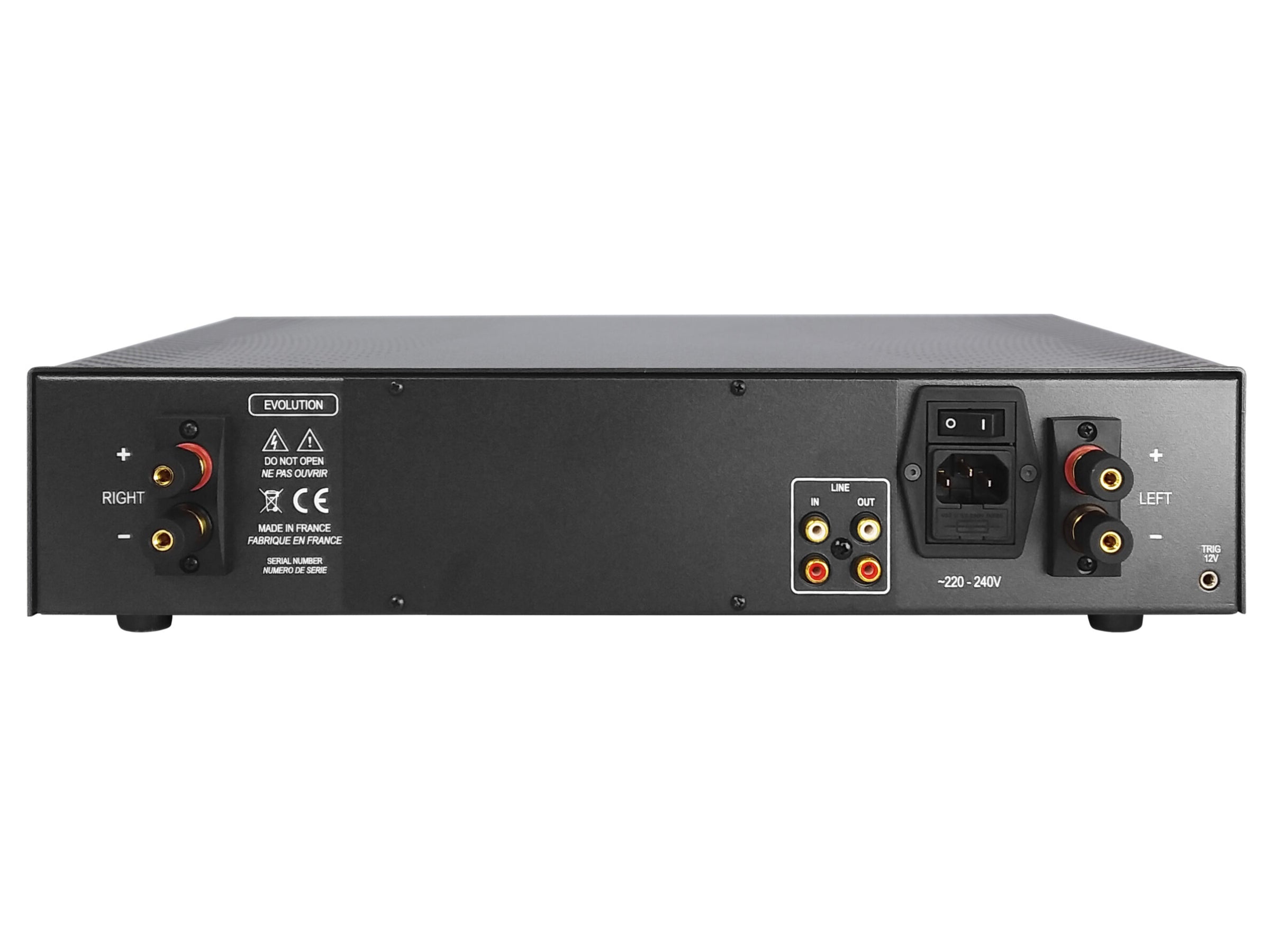

Atoll AM200 EVO Power Amplifier
Regular price
£1,500.00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Couldn't load pickup availability
Atoll AM200 EVO Power Amplifier
Regular price
£1,500.00
Unit price
/
Unavailable
The Atoll Electronique AM200 Evolution block is suitable for most Hi-Fi or audio-video applications. Very scalable, it can be used alone or in bi-amplification.
It can be associated with an integrated amplifier or an ATOLL preamplifier. It is bridgeable in a monoblock via an internal switch. It is equipped as standard with a 12V Trigger input (direct ignition in conjunction with a preamp).
Features
- 8 mm brushed, micro-blasted and anodized aluminum front panel, high-precision engraving.
- 1.5 mm steel chassis.
- Two 340 VA toroidal transformers each.
- High-quality and shielded MKP link capacitors.
- Bipolar transistor and LED current sources to ensure perfect voltage stability.
- Discrete balanced audio stages.
- MOS-FET power transistor.
- Class A/B output stage biasing.
- Custom PCB with nickel/gold finish.
- Mono block bridgeable.
- New tellurium copper speaker outputs.
- 12V Trigger input.
Specifications
| Connectivity: | 1 RCA stereo analogue input |
| 1 RCA stereo analogue output | |
| 12V Trigger input | |
| Loudspeaker outputs on gold-plated screw terminal blocks | |
| Power Wrms/channel/8Ω: | 120 W |
| Power Wrms/channel/4Ω: | 200 W |
| Pulse Power/channel: | 300 W |
| Power Supply: | 2×340 VA |
| Total Capacitive: | 59,420 µF |
| Number of Inputs: | 1 RCA |
| Consumption with Switch Off: | 0 W |
| Consumption in Operation: | 20 W – 600 W |
| Input Impedance: | 220 kΩ |
| Sensitivity: | 1.77 V |
| Signal/Noise Ratio: | 100 dB |
| Distortion at 1 kHz: | 0.05% |
| Bandwidth: | 5 Hz – 200 kHz |
| Rise Time: | 1.5 µs |
| Dimensions: | 440×295×95 mm |
| Weight: | 12 kg |
