Rotel RA-1592MKII Integrated Amplifier
The Rotel 1592MKII Integrated Amplifier comes complete with source inputs including aptX and AAC high quality wireless Bluetooth streaming, MQA decoding and rendering via PC-USB, PCM PC-USB audio up to 32-bit/384kHz, Moving Magnet Phono Stage, Analog, Digital, XLR Balanced and front panel USB for iOS devices. As a Roon Tested product the RA-1592MKII ensures the best experience using Roon software so you can just enjoy the music.
Features
- Certified Roon Tested
- Supports MQA and MQA Studio
- 2 x 350 Watts of robust Class AB power, 4 Ohms
- Moving Magnet Phono input for turntable connection
- Wireless aptX™ and AAC Bluetooth
- Premium 32-bit/384kHz Digital to Analogue Converter
All of this means that the Rotel RA-1592MKII can handle almost any type of music source or file type for your convenience.
The RA-1592 MKII Integrated Amplifier includes circuit design innovations, optimization of audio signal paths and updates to critical power supply components delivering a breath-taking performance with dynamic rhythm and timing.

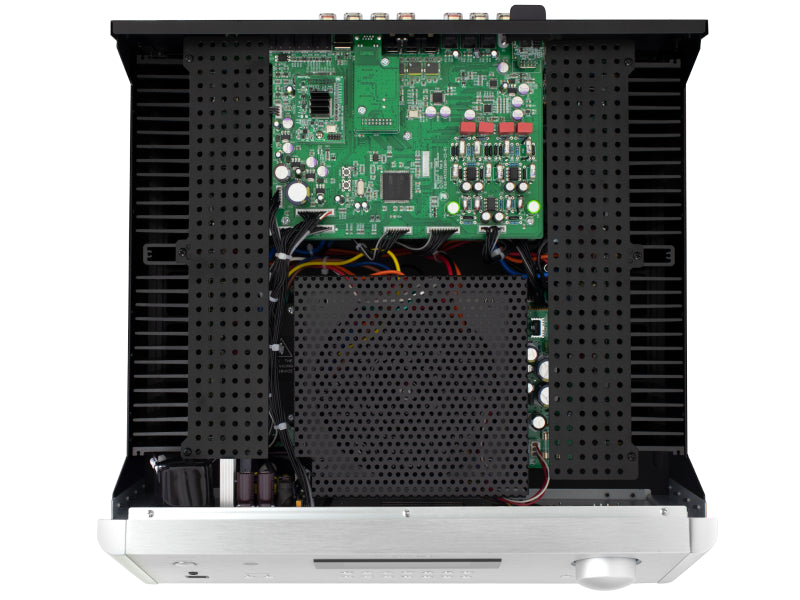

Utilising Rotel’s best-in-class preamplifier topology and award-winning power amplifier technology, the RA-1592MKII is a no-compromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.
The RA-1592MKII supports your favourite sources including Analog, XLR, Digital, aptX™ and AAC wireless Bluetooth, PC-USB supporting MQA and 32-bit/384kHz PCM, and Moving Magnet Phono stage. Digital to Analogue conversion utilizes a Texas Instruments premium DAC with precisely tuned output filter circuits delivering unprecedented acoustic detail, wide sound stage and exacting positioning.
Just plug in your digital source with the appropriate cable, and away you go!
The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

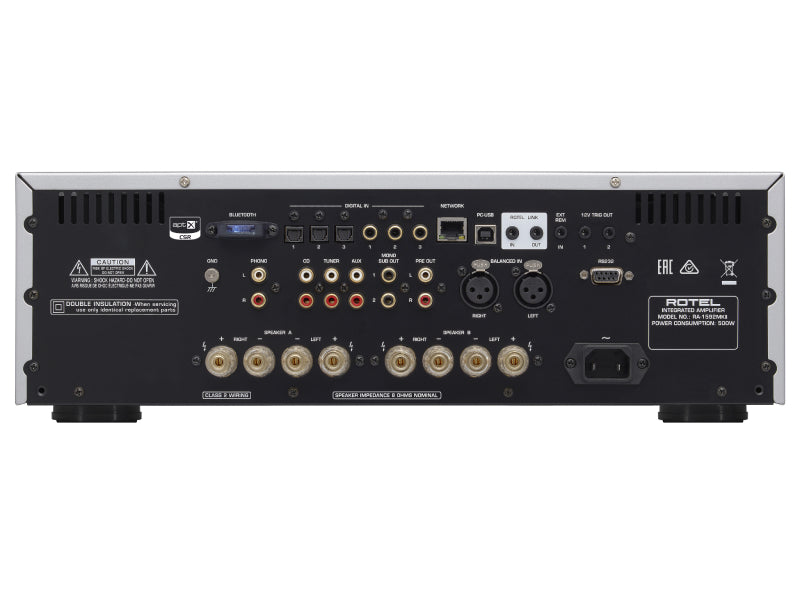

Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers ensure seamless integration with control systems.
Specifications
|
Maximum Power Output: |
350W/Ch (4Ω) |
|
Continuous Power Output: |
200W/Ch (8Ω) |
|
Total Harmonic Distortion (THD): |
<0.008% |
|
Frequency Response: |
Line Level Inputs: 10Hz - 100kHz, ±0.5dB Digital Inputs: 10Hz - 90kHz, ±2dB Phono Input: 20Hz - 20kHz, ±0.5dB |
|
S/N Ratio (IHF "A" Weighted): |
Line Level Inputs: 103dB Digital Inputs: 102dB Phono Input: 80dB |
|
Dimensions (W × H × D): |
431 × 144 × 425mm 17" × 5.7" × 16" |
|
Front Panel Height: |
3U / 132.6mm (5.25") |
|
Power Requirements: |
230V, 50Hz |
|
Power Consumption: |
500W |
|
Standby Power Consumption: |
<0.5W |
|
Net Weight: |
17.63kg (38.87lbs.) |
|
BTU Rating: |
1239 BTU/h |
|
Intermodulation Distortion: |
(60Hz:7kHz, 4:1) <0.03% |
|
Damping Factor: |
600 |
|
Input Sensitivity: |
Line Level Inputs (RCA): 340mV Line Level Inputs (XLR): 540mV Digital Inputs: 0 dBfs Phono Input (MM): 5.2mV |
|
Input Impedance: |
Line Level Inputs (RCA): 100kΩ Line Level Inputs (XLR): 100kΩ Digital Inputs: 75Ω Phono Input (MM): 47kΩ |
|
Input Overload: |
Line Level Inputs (RCA): 3.5V Line Level Inputs (XLR): 5.5V Phono Input: 52mV |
|
Preout Level: |
1.9V |
|
Output Impedance: |
100Ω |
|
Coax/Optical Digital Input Signals: |
LPCM (Up to 24-bit/192kHz) |
|
PC-USB: |
USB Audio Class 1 (up to 24-bit/192kHz) USB Audio Class 2 (up to 32-bit/384kHz) *Driver installation required MQA and MQA Studio (up to 24-bit/384kHz ) Roon Tested |
