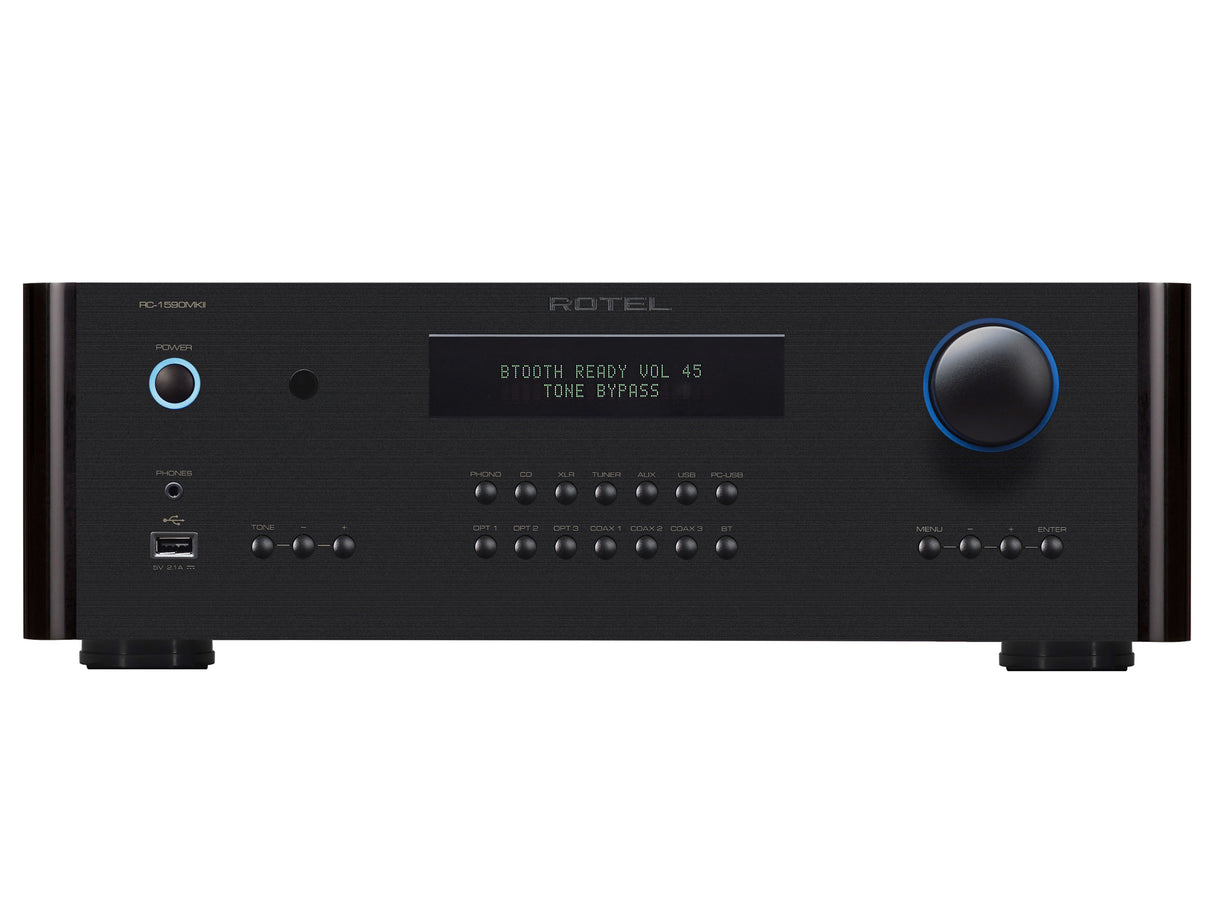

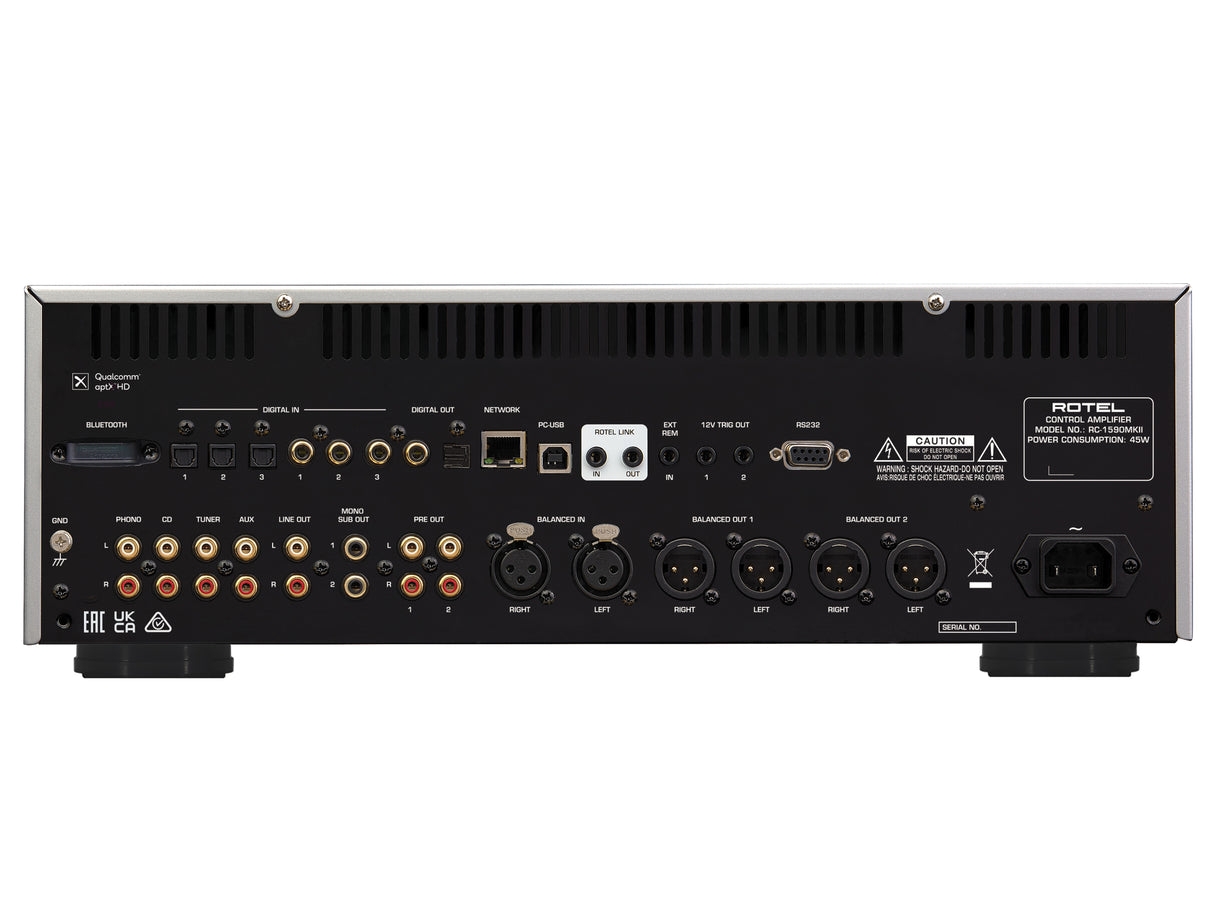

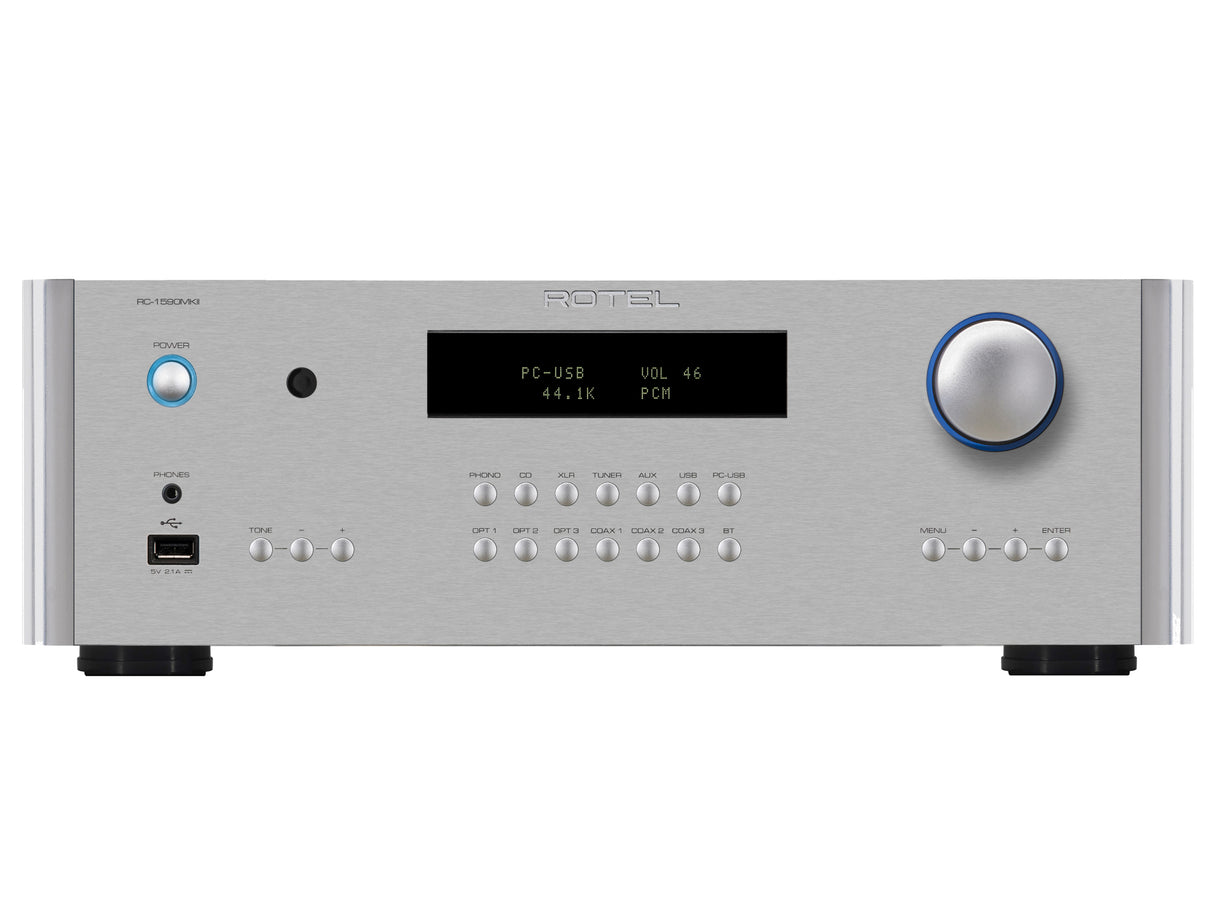

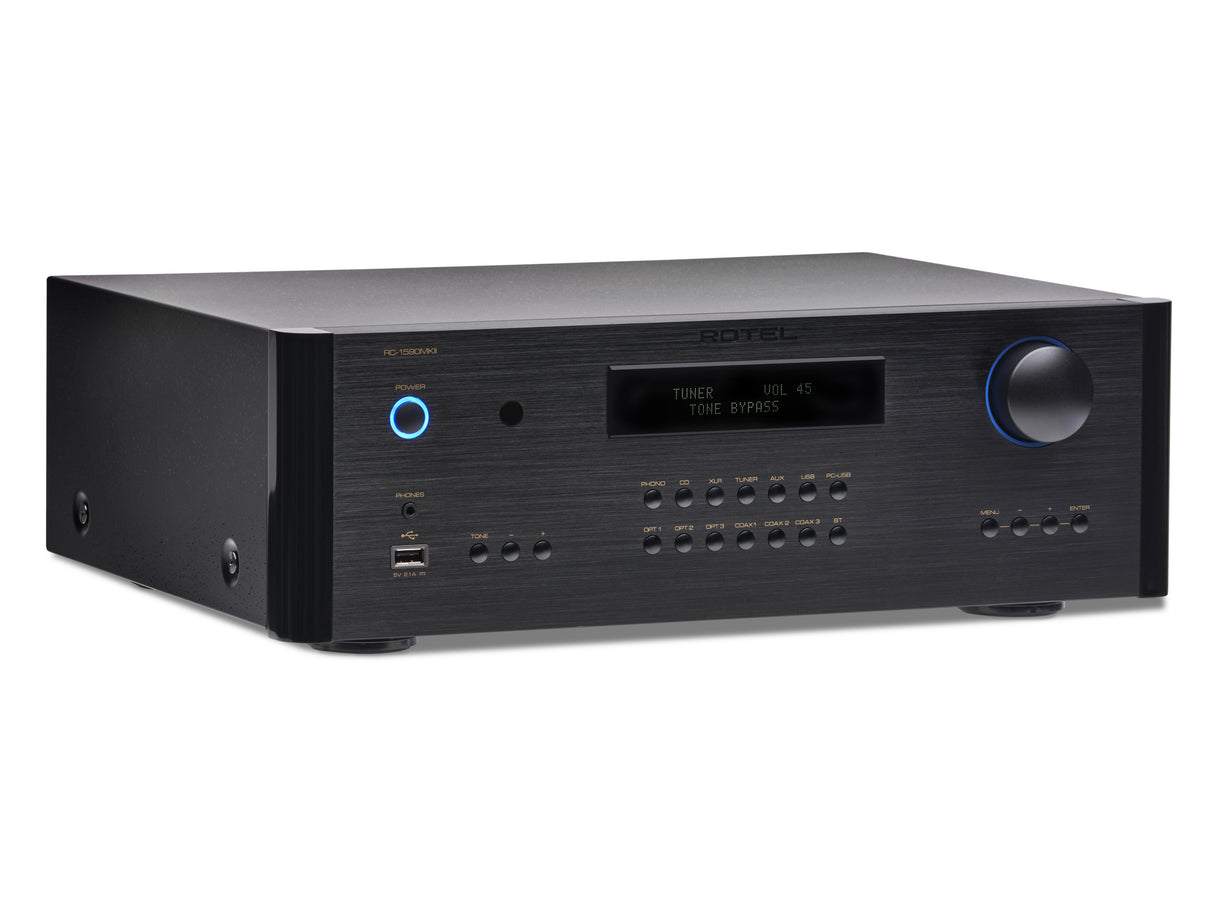

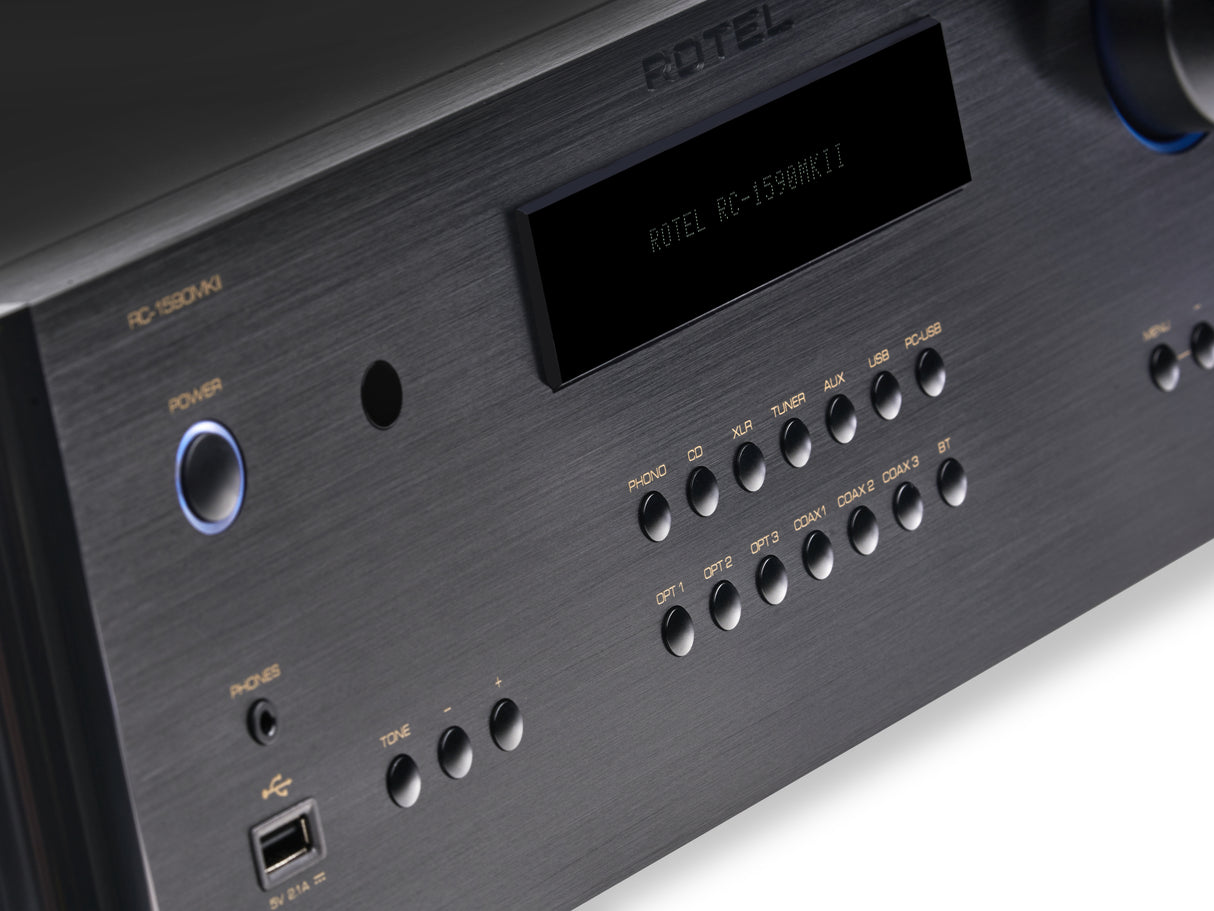

Rotel RC-1590MKII Stereo Preamplifier
Couldn't load pickup availability
Free Next Day Delivery*
Free Next Day Delivery*
Returns Policy
Returns Policy
Reference audio systems deserve reference audio equipment. The Rotel RC-1590MKII is exactly that, a reference preamplifier rendering analogue and digital sources with natural expression in a wide and open sound stage in stunning clarity.
The heart of the RC-1590MKII begins with the power supply featuring dual in-house manufacture toroidal transformers. The transformers are physically and electrically isolated supplying dedicated analogue and digital supply voltages to all critical circuits through low ESR slit-foil capacitors eliminating unwanted distortion and an extremely low noise floor.
Digital source inputs are processed utilising an audiophile grade Texas Instruments 32-bit/384kHz Digital to Audio Converter (DAC) with custom engineered, proprietary acoustically tuned external output filter circuits rendering even the finest details with exceptional clarity and exact positioning.
Analogue signal paths feature DIRECT-PATH bypass modes eliminating unnecessary circuits maintaining signal integrity and further eliminating unwanted noise and distortion drawing you even closer and immersing you in the music.
The RC-1590MKII supports a full array of inputs ensuring connection to your favourite sources including a Moving Magnet Phono input for vinyl lovers, Analogue, Digital, XLR Balanced, high quality aptX and AAC wireless Bluetooth, and PC-USB (32-bit/384kHz) supporting MQA unfolding and rendering as well as certified Roon Tested.
Dual RCA and XLR output connection provide the ultimate flexibility including bi-amplification installations. A subwoofer output is also included.
The RC-1590MKII proudly continues Rotel’s 60-year legacy and heritage with our ongoing promises of performance, value, and unwavering commitment to quality. Authentic, engaging, and spacious – the RC-1590MKII proudly represents this iconic brand.
Specifications
|
Dimensions (W x H x D): |
431 × 144 × 348mm 17" × 5.7" × 13.9" |
|
Front Panel Height: |
3U / 132.6mm (5.25") |
|
Power Requirements: |
120V, 60Hz |
|
Power Consumption: |
45W |
|
Standby Power Consumption: |
<0.5W |
|
Net Weight: |
10.1kg (22.27lbs.) |
|
BTU Rating: |
78 BTU/h |
|
Total Harmonic Distortion (THD): |
(20Hz–20kHz) <0.002% |
|
Frequency Response: |
Line Level Inputs :10Hz - 100kHz (+0dB, +0.1dB) Digital Inputs:20Hz - 20kHz (0±0.5dB, Max) Phono Input:20Hz - 20kHz (+0.3dB, -0.2dB) |
|
S/N Ratio (IHF “A” Weighted): |
Line Level Inputs (RCA): 117dB Line Level Inputs (XLR): 115 dB Digital Inputs: 108dB Phono Input: 80dB |
|
Intermodulation Distortion (60Hz:7kHz, 4:1): |
<0.002% |
|
Input Sensitivity: |
Line Level Inputs (RCA): 150mV Line Level Inputs (XLR): 250mV Digital Inputs: 0dBFs Phono Input (MM): 2.5mV |
|
Input Impedance: |
Line Level Inputs (RCA): 100kΩ Line Level Inputs (XLR): 100kΩ Digital Inputs: 75Ω Phono Input (MM): 47kΩ |
|
Input Overload: |
Line Level Inputs (RCA): 4V Line Level Inputs (XLR): 5.5V Phono Input: 64mV |
|
Output Level: |
Unbalanced (RCA): 1V Balanced (XLR): 2V |
|
Channel Separation: |
Line Level Inputs (RCA): >85dB Line Level Inputs (XLR): >75dB Phono Input: >85dB |
|
Tone Controls: |
±10dB at 100Hz / 10kHz |
|
Preamplifier Output Level: |
1.65 V (at - 20 dB) |
|
Coax/Optical Digital Input Signals: |
LPCM (Up to 24-bit/192kHz) |
|
PC-USB: |
USB Audio Class 1 (up to 24-bit/96kHz) USB Audio Class 2 (up to 32-bit/384kHz) *Driver Installation Required MQA and MQA Studio (up to 24-bit/384kHz) Roon Tested |
