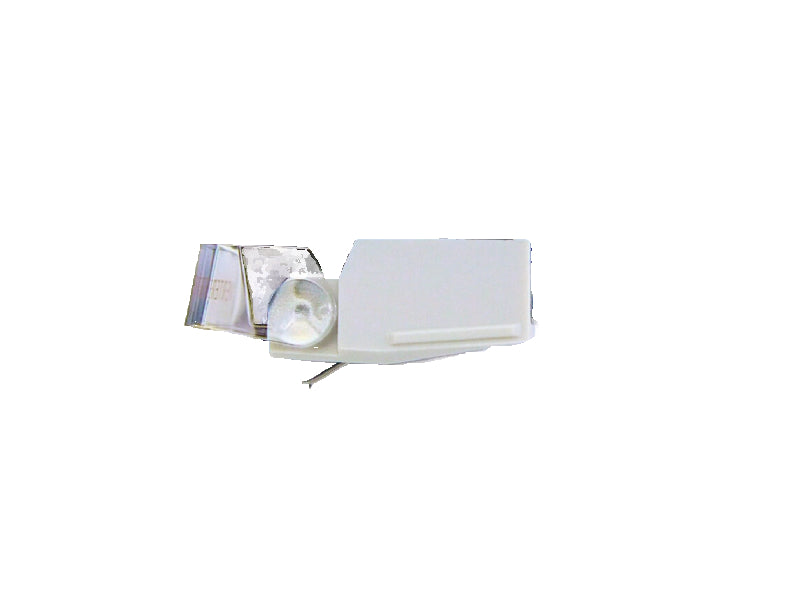

The Vertere Magneto Stylus is the replacement stylus for the Magneto Cartridge which is factory fitted to the Vertere  DG-1 ‘Plug & Play’ Dynamic Groove record player

The Dual Magnet design replicates the structure of the cutter head.

A ‘V’ form two magnet design mimics the Left & Right channel sides of the record groove. This feature, with the permalloy centre shield plate, provides a higher frequency response with electrical crosstalk typically better than 40dB.

The Magneto utilises a finely finished Elliptical stylus to ensure outstanding tracking ability and super quiet tracing of the record groove. Use of laminated Para-toroidal coils with ‘V’ geometry of the magnets also gives rise to higher efficiency in generating the output signal.


Features

  • Replaceable Stylus

  • Integrated Stylus Guard

Technical Specifications


Frequency Response
20 - 23,000Hz

Channel Separation
27dB (1kHz)

Output Channel Balance
1.5dB (1kHz)

Output Voltage
4.0mV (1kHz, 5cm/sec.)

Vertical Tracking Angle
23˚

Vertical Tracking Force Range
1.8 – 2.2g (2.0g standard)

Stylus Shape
Elliptical Bonded

Stylus Size
0.3 x 0.7 mil

Stylus Construction
Bonded Round Shank


Cantilever
Aluminium Tube

Coil Resistance
800Ω (DC)

Static Compliance
35 x 10⁶ cm/dyne

Dynamic Compliance
8 x 10⁶ cm/dyne (100Hz)

Recommended Load Impedance
47,000Ω

Recommended Load Capacitance
100 – 200pF
