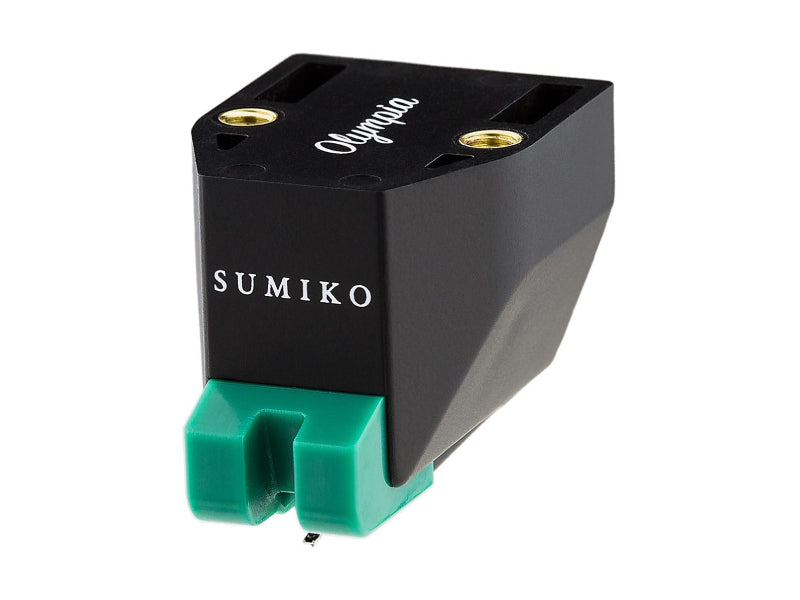

Sumiko Olympia Moving Magnet Cartridge
The Oyster Series' premium Moving Magnet cartridge range features four models with a matching aesthetic, all named after a different type of Oyster.
Features
- Moving Magnet cartridge with 0.3 x 0.7 micron Elliptical stylus
- Dynamic performance with greater refinement
- Low-resonance body and generator system
- Pure copper internal wiring
- Overhead mounting design
- High output for easy matching to a phono stage
- Easy to set-up and install
- RS Olympia and Moonstone replacement stylus available
The Sumiko Olympia is the "second step" in the range and features a finely polished elliptical stylus for a level of acoustic refinement that defies belief. In combination with the range's integrated body and generator system that significantly reduces internal resonances, the Olympia delivers greater dynamic punch from a broad frequency response. The improved stylus also sits on a bespoke cantilever, mounted to a smaller magnet for more refined movements resulting in greater channel separation and a slightly lower but still powerful 4mV output.
The Olympia utilises the same cartridge body as the Rainier and Moonstone, allowing for easy stylus upgrades to the superior Moonstone.
Specifications
| Output Voltage: | 4 m V |
| Channel Balance (@ 1000Hz): | 1.5 dB |
| Channel Separation (@ 1000Hz): | 30 dB |
| Channel Separation (@ 15000Hz): | 15 dB |
| Frequency Range (@ -3dB): | 6000 Hz |
| Frequency Response (20 - 20,000Hz): | 12 - 30000 dB |
| Tracking Ability (@ 315Hz at recommended tracking force): | 60 μm |
| Compliance, Dynamic, Lateral: | 12 μm |
| Stylus Type: | 0.3 x 0.7mil elliptical |
| Tracking Force Range: | 1.8 - 2.2 g |
| Recommended Tracking force: | 2.0 g |
| Tracking Angle: | 25° |
| Internal Impedance: | 1130 Ω |
| Internal Inductance: | 450 mH |
| Magnet Type: | Alnico |
| Cantilever Material: | Aluminium tube |
| Coil Wire Material: | Pure copper |
| Recommended Load Impedance: | 47000 Ω |
| Recommended Load Capacitance: | 100 - 200 pF |
| Cartridge Weight: | 6.5 g |
