Velodyne DB-10 Subwoofer
The Deep Blue (DB) series introduces a completely new subwoofer platform developed using Velodyne Acoustics technologies. It boasts modern styling and unmatched performance, delivering dynamic and accurate output. The platform features a new industrial design, advanced driver technology, and an innovative amplifier design. Available in 8”, 10”, 12”, and 15” sizes, the DB subwoofers succeed the successful SPL I series, known for their small form factor closed box design.
Advanced Design and Performance Features
The DB subwoofers feature a rigidly braced MDF closed box with a front-firing woofer, ensuring impactful performance without cabinet noise. The small form factor makes it easy to integrate into any listening setup. The high excursion driver, equipped with a dual ferrite magnet and a four-layer voice coil, is designed for maximum output with minimal distortion. Line-level and speaker-level inputs provide versatile connectivity. With a variable crossover and phase control, users can fine-tune the sub’s output to seamlessly blend with the mids and highs from their main speakers and optimise bass response for their room’s acoustics.
Features
- Quad voice coil provides high efficiency, fast rise times and pulse fidelity with double ferrite magnets
- Enclosed cabinet made of solid MDF material prevents distortion and vibration
- With adjustable level, crossover frequency and phase, the Deep Blue subwoofers can be flexibly adapted to the listening room and existing equipment
- For connectivity, RCA input jacks are provided for the left and right channels, as well as a dedicated subwoofer input with loop-through capability
Specifications
| Driver: | 10″ forward firing | |||
|---|---|---|---|---|
| Amplifier Class AB: | 850 watts dynamic 350 watts RMS power |
|||
| Frequency Response: Overall Frequency Response: (± 3 dB) |
16 – 280 Hz 28 – 180 Hz |
|||
| Low Pass Crossover: | 50 Hz to 180 Hz (12 dB/Octave) | |||
| Phase: | 0 to 180 degrees | |||
| Cabinet Design: | MDF Closed Box with 52mm / 2” front Baffle | |||
| Magnet Structure: | Dual ferrite magnet motor | |||
| Woofer: | 10” high excursion double vented basket driver with PP inforced Membrane | |||
| Voice Coil: | Four Layer 2″ / 52mm Voicecoil | |||

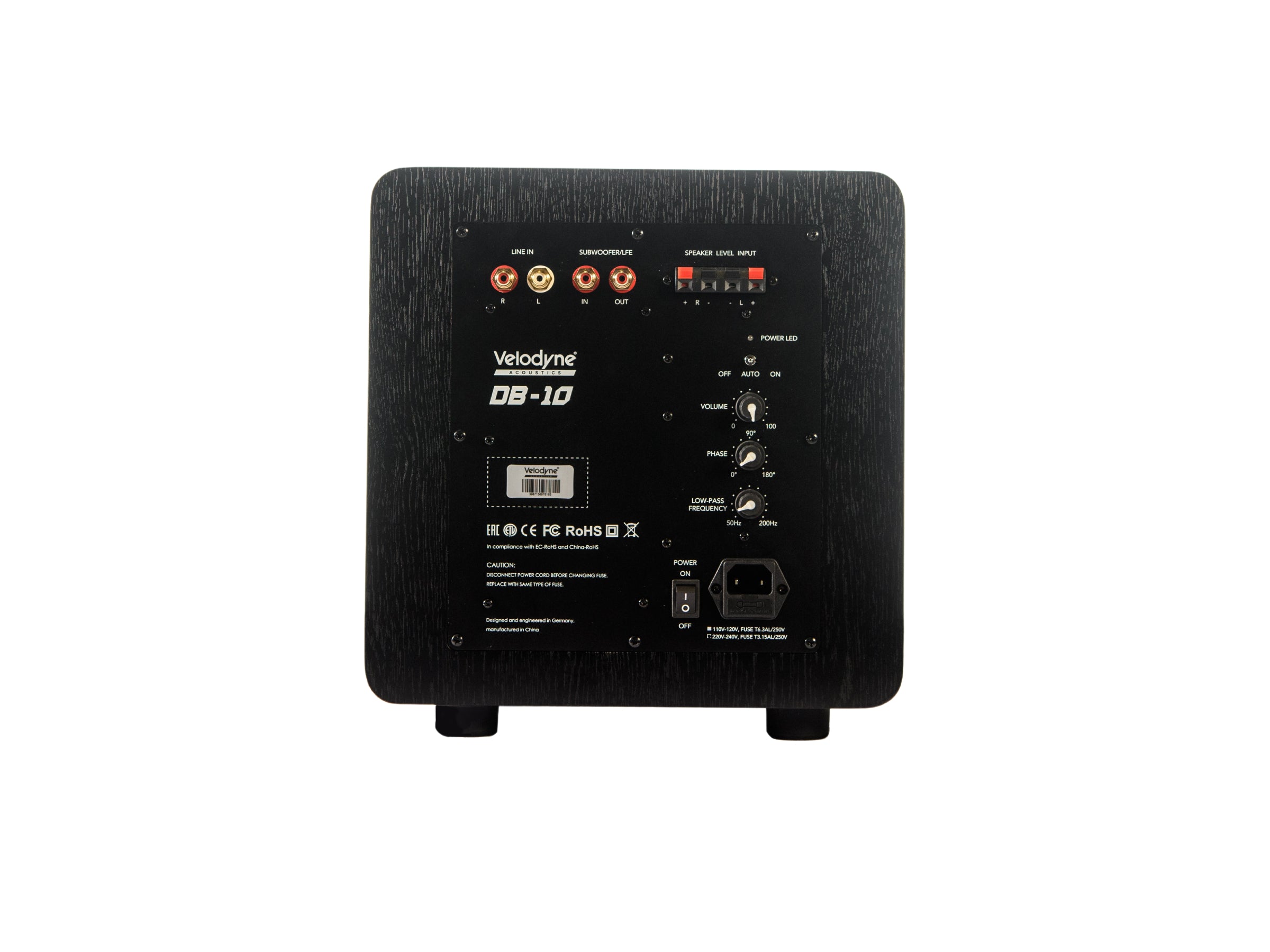

| Input: | GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel | |||
| Output: | Gold plated LFE /RCA | |||
| Power Selector: | Off / Auto / On | |||
| Finishes: | Black | |||
| Dimensions: (W/H/D) (includes feet and connectors) | 29,6 x 31,6 x 34,8 cm | |||
| Weight: (approx) | 11 kg | |||
| Shipping Weight: (approx) | 12,5 kg | |||
