ATC SCM11 Loudspeaker


Sale price£1,520.00

Tax included. Stock information

1 in stock
Finish:

Finish

Pickup also available at Doug Brady HiFi

Usually ready in 1 hour

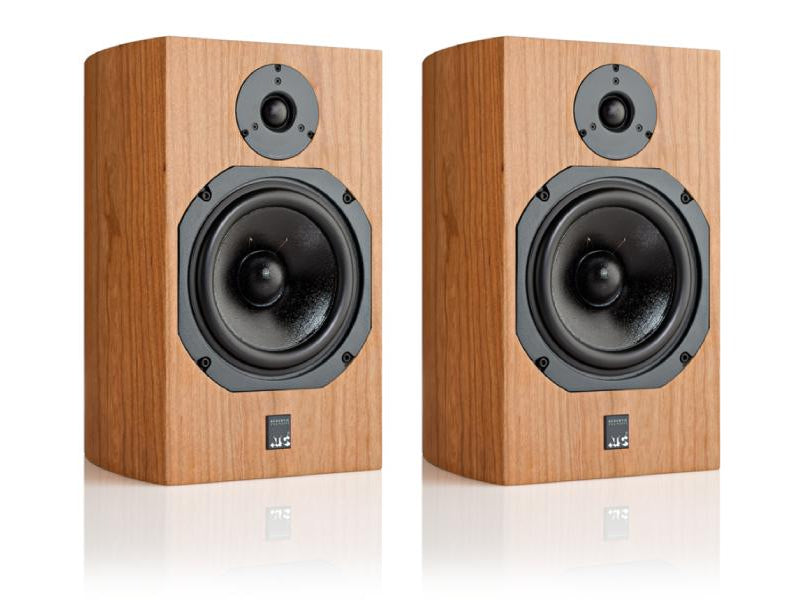

ATC SCM11 Loudspeaker Cherry

ATC SCM11 Loudspeaker

Cherry

Doug Brady HiFi

Pickup also available, usually ready in 1 hour

Kingsway Studios
Kingsway North
Warrington WA1 3NU
United Kingdom

+441925828009

ATC, Acoustic Transducer Company, is a specialist British manufacturer of loudspeaker drive units and complete sound reproduction systems, including the relevant electronic equipment. ATC designs and manufactures loudspeaker drive units and systems to achieve levels of performance far in excess of the industry norm.  This is achieved by adopting a thoroughly professional engineering approach to the issue of basic design, materials science and production technology.

From modest beginnings ATC has grown to become one of the very few manufacturers successful across both domestic and professional audio. By selecting ATC you join a group of music lovers, professional audio engineers, studios and musicians across the world that understand and value the engineering that goes into an ATC product.

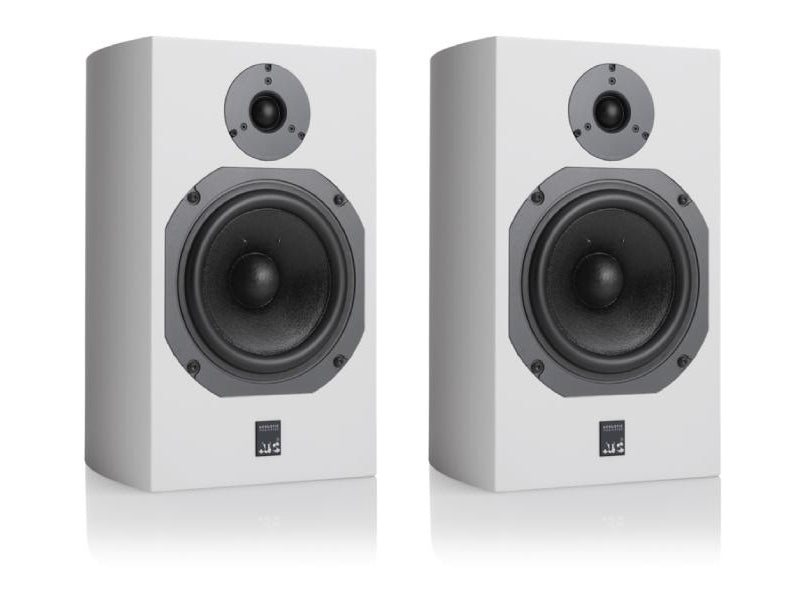

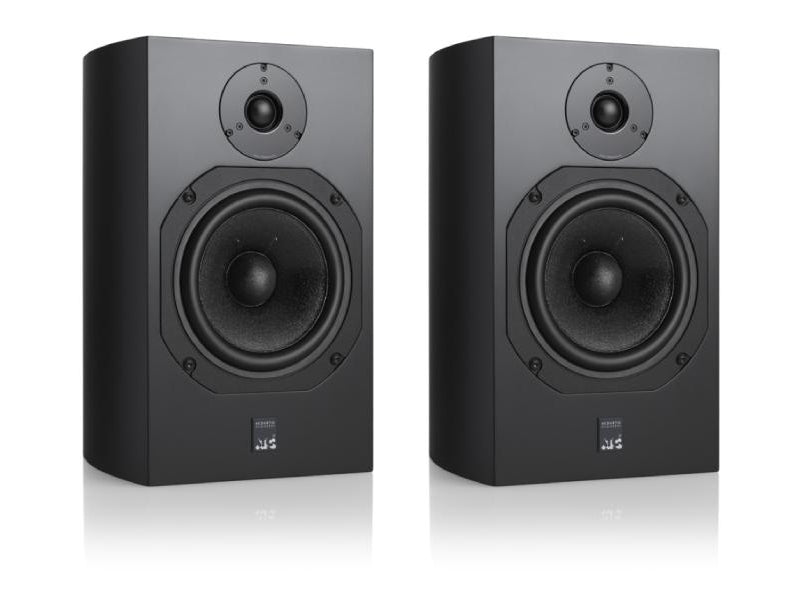

ATC SCM11

Overview

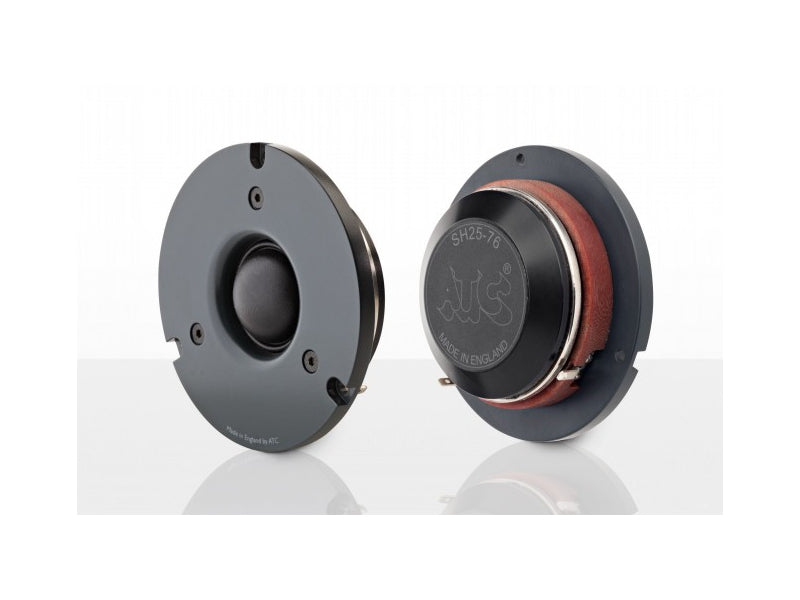

  • New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
  • Precision undercut bass pole.

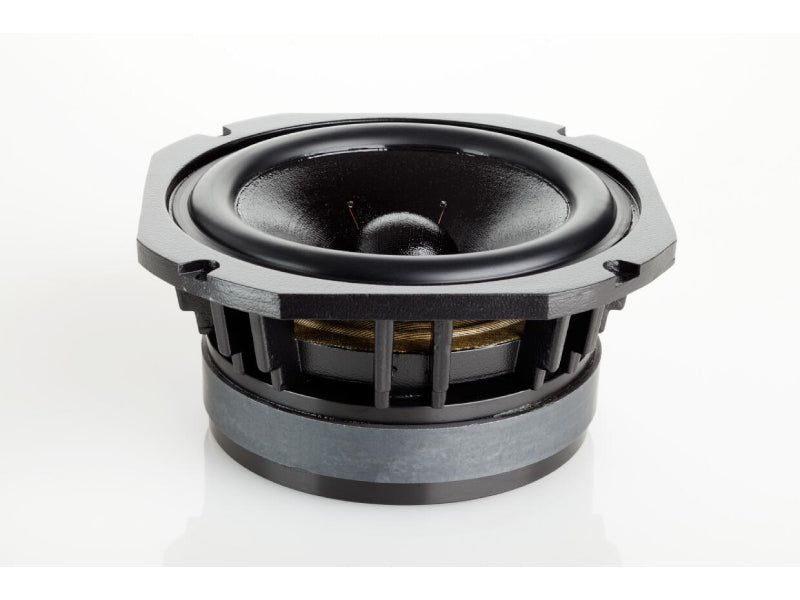

  • “CLD” driver technology with 45mm integral soft dome.
  • In-house, hand-wound precision flat wire coil.
  • Massive optimised motor assembly.
  • Flat impedance curve allowing easy load for amplifiers.
  • 6 year warranty.

Specifications

Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm CLD
Matched Response: ±0.5dB
Frequency Response (-6dB): 56Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 108dB
Recommended Power Amplifier:  75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.2kHz
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 381x232x236mm (grill adds 28mm depth)
Weight: 10.9kg
