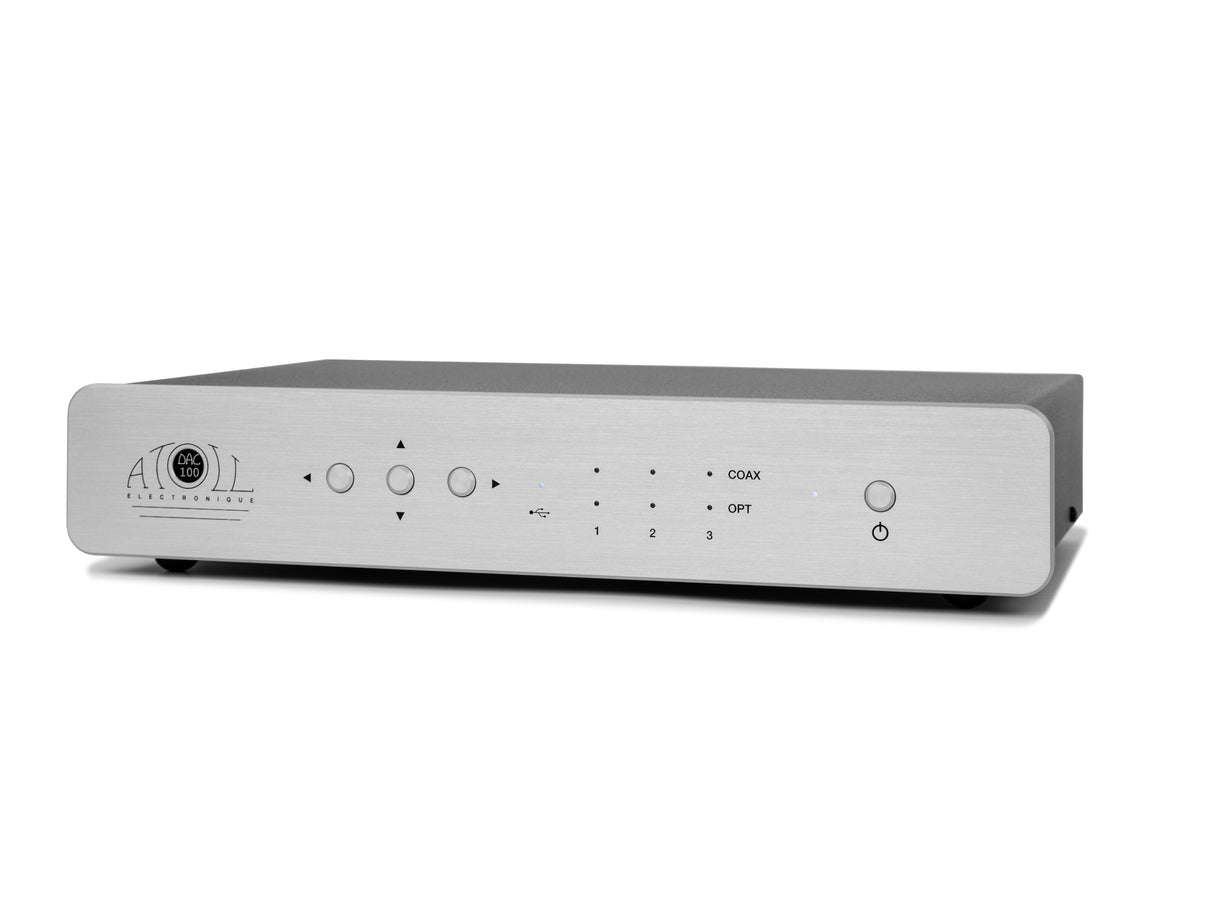

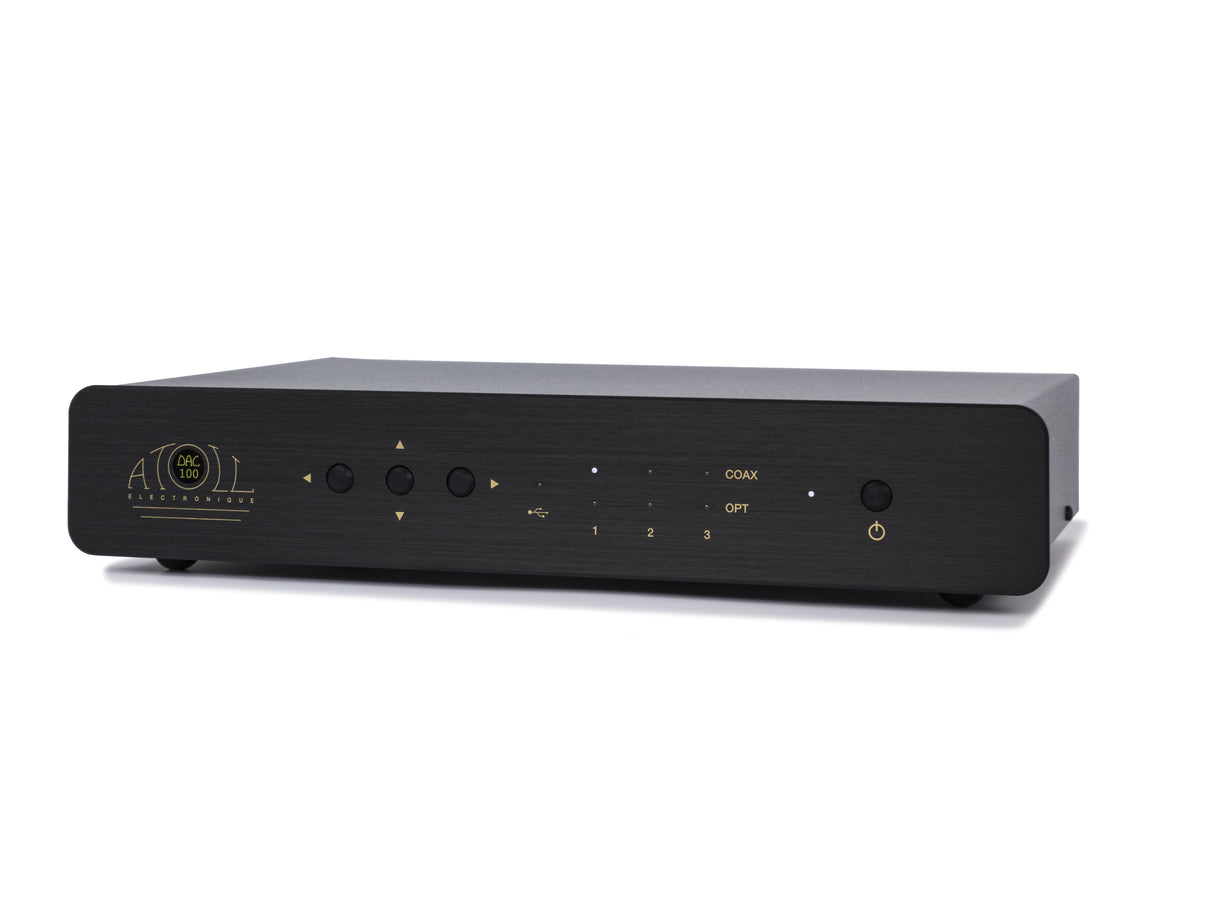

Atoll DAC100 Signature
Superior Sound Quality
The Atoll DAC100 Signature DAC is designed to deliver exceptional sound quality, revealing the true essence of your favorite music. While many focus on the importance of a high-end converter chip, Atoll understands that musicality also depends on superior line signal processing, robust power supplies, precise digital signal handling, and top-quality components such as clocks, transistors, and capacitors.
Optional Atoll Remote
The optional Atoll remote control for the DAC100 Signature. This versatile remote allows for easy input selection and output level attenuation, and can also be used to control all Atoll products, including integrated amplifiers, preamps, tuners, DACs, and CD players.
Features
- 4 mm brushed aluminium front.
- 2 independent transformers (including one reserved for the line audio).
- D/A converter: BURR-BROWN PCM1796:
– Dynamic: 123 dB.
– Distortion rate: 0,0005%.
– Signal/Noise ratio: 123 dB. - Asynchronous USB-B input can convert PCM up to 192 kHz and DSD64 and 128 (XMOS).
- USB interface with a specific program designed for ATOLL).
- Volume attenuation by the converter (from the remote control only).
- Unbalanced line outputs.
- 7 regulated power supplies.
- MKP capacitors in audio link.
- Output stages with discrete components, without feedback, polarized in class A.
- Separate digital and line stage power supplies.
- Specific transformer for digital stages.
- Controllable with the ATOLL global remote control.
Specifications
| Connectivity: | |
| Inputs: | 3 Optical inputs. 3 Coaxial inputs. 1 USB input (type B). |
| Outputs: | 1 Stereo RCA output. 1 Optical digital output and 1 coaxial digital output. |
| Power Supply: | 4.6 + 3.2 VA |
| Total of Capacitors: | 6,991 μF |
| Frequency Response: | 5 Hz – 20 kHz |
| D/A Converter: | BURR-BROWN PCM1796 |
| Dynamic: | 123 dB |
| THD at 1 kHz (0 dBF): | 0.0005% |
| Signal-to-Noise Ratio: | 123 dB |
| Output Level: | 2.8 Vrms |
| Dimensions: | 320×210×63 mm |
| Weight: | 2 kg |
