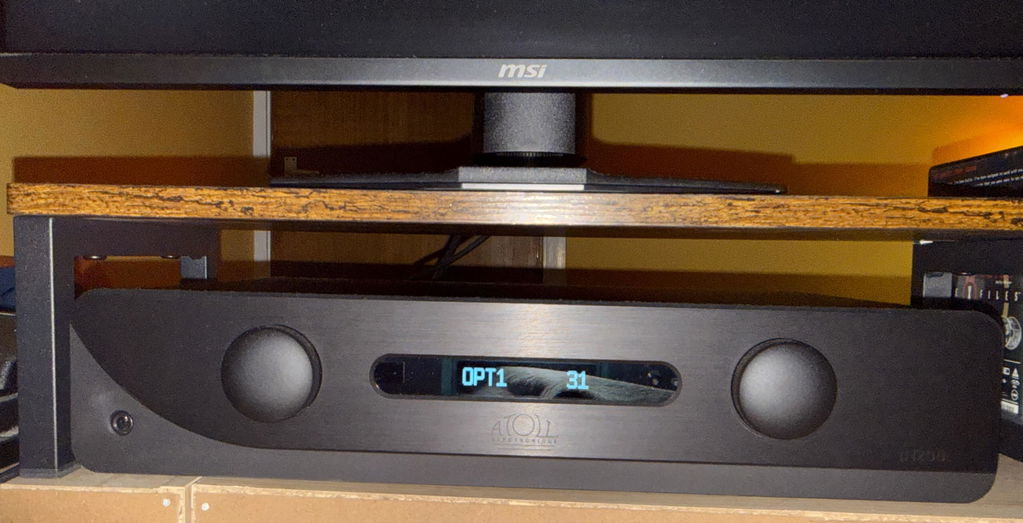

Atoll IN200 EVO Integrated Amplifier
Couldn't load pickup availability
Atoll IN200 EVO Integrated Amplifier
The Atoll IN200 integrated amp-preamp is manufactured with the greatest care: Atoll choose the best possible components to achieve the highest level of sound performance. This rigorous search for perfection goes through the design of proprietary ATOLL circuits in order to preserve the integrity of the most subtle musical signals.
Features
- 8 mm brushed, micro-blasted and anodized aluminium front panel, high-precision engraving.
- 1.5 mm steel chassis.
- Two 340 VA toroidal transformers for the audio stages plus 10 VA for the digital stages.
- High-quality and shielded MKP coupling capacitors.
- Bipolar transistor and
- LED current sources to ensure perfect voltage stability.
- New tellurium copper speaker outputs.
- Possibility of choosing standby mode: Low consumption or preheating.
- Precise adjustment of the balance, possibility to memorize it.
- Double-sided printed circuits with nickel/gold finish.
- Possibility to rename the inputs.
- High-contrast OLED display (on or off mode after 5 seconds of inactivity).
- ATOLL global remote control supplied as standard.
- The IN200 EVO is compatible with the DA200 boards (optional).
Atoll's balanced MOS-FET amplifier circuits offer excellent harmonic gradients and have no memory effect. Every moment, the current is immediately delivered to your speakers. This is one of the secrets of the musicality that ATOLL amplifiers enjoy.
Specifications
| Inputs: | - 5 Audio inputs (RCA): AUX (P100 phono stage), CD, TUNER, DVD, TAPE (IN + OUT) - 1 BY-PASS input (used as a power amplifier) |
| Outputs: | - 2 Line preamp outputs (for bi-amplification or to connect a subwoofer) - 1 Trigger output (12V) |
| Various: | - 1 Headphone jack Ø 6.35 mm - Internal wiring of loudspeaker outputs with specific audio cable - Gold-plated (RCA) connectors |
| Power: | - Wrms/channel/8Ω (230V): 120 W - Wrms/channel/4Ω (230V): 200 W - Power supply: 2×340 VA + 10 VA - Total capacitive: 59,220 µF |
| Power Consumption: | - With switch off: 0 W - In standby (low consumption): <0.5 W - In preheating mode: 18 W - In operation: 19 W – 600 W |
| Technical Specifications: | - Input impedance: 220 kΩ - Maximum input level: 3.5 Vrms - Sensitivity: 350 mV - Signal/noise ratio: 100 dB - Distortion (1 kHz): 0.05% (10 W) |
| Performance: | - Bandwidth: 5 Hz – 100 kHz - Rise time: 2.5 µs |
| Dimensions & Weight: | - Dimensions: 440×309×95 mm - Weight: 12 Kg |
| Optional Phono Board: | - AUX input options: P100 (configurable MM or MC) P50 (MM) |
| Optional Digital Board: | - DA200 - 2 Coaxial inputs (24 bits/192 kHz) - 2 Optical inputs (24 bits/192 kHz) - 1 Bluetooth receiver - 1 USB-B input: PCM & DSD |
| Driver Information: | - USB input on the optional DAC board requires a specific driver for Windows. - Not required for MAC or Linux. |
| Driver Download: | - XMOS-Stereo-USB-Audio-Class2-Driver-30BB_v4.13.0.exe |
