Atoll PH100 Phono Stage
What We Think,
With easily accessible configuration options for MM/MC and input impedance, this preamp is a top choice for audiophiles looking to elevate their vinyl experience.
Atoll PH100 Phono Preamp
The Atoll PH100 phono stage is an external module featuring a dedicated power supply with two high-end transformers, one for each channel, ensuring very low noise and enhanced performance. Additionally, it includes four voltage regulators, all shielded by a metal box to protect against any interference with the audio stages. Crafted entirely from discrete components, the PH100 avoids the use of link capacitors, enhancing its audio fidelity.
Configuration options, including MM/MC and input impedance, are conveniently accessible from the rear of the chassis, allowing for easy adjustments. The design and construction of the PH100 prioritize exceptional sound quality and reliability, making it an excellent choice for audiophiles seeking to enhance their vinyl listening experience.
Features
- 4 mm brushed aluminium front.
- 2 very low noise linear transformers 3,2 VA each.
- 4 regulated power supplies.

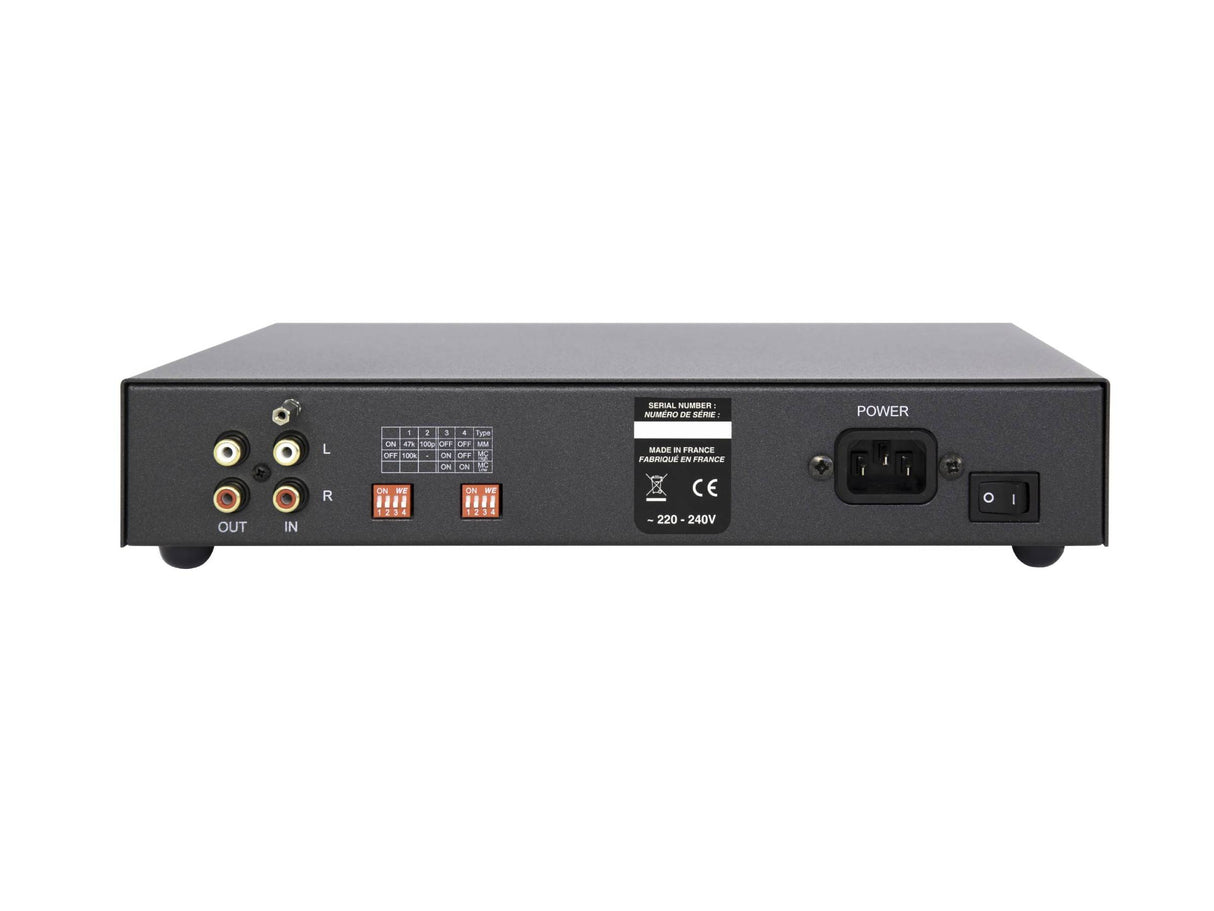

Connectivity
Ground
1 Module signal output.
1 Turntable signal input.
Settings block (Left channel).
Settings block (Right channel).
Specifications
| Power supply: | 6.4 VA |
| Total capacitance: | 11,280 µF |
| Cell type: | MM / MC |
| Input impedance: | 47 kΩ or 100 kΩ (*) |
| Input capacitance: | 100 pF or nothing (*) |
| MM gain: | 40 dB (*) |
| High-level MC gain: | 47 dB (*) |
| Low-level MC gain: | 60 dB (*) |
| Signal-to-noise ratio at 1 kHz: | 80 dB |
| Crosstalk at 1 kHz: | <-85 dB |
| Total Harmonic Distortion: | 0.05% |
| Dimensions: | 320 × 210 × 63 mm |
| Weight: | 2 kg |
(*) Depending on the switch position.
(Data subject to change).
