B&W CCM663 In-Ceiling Speakers (Pair)
Couldn't load pickup availability
B&W CCM663 Premium 6" Ceiling Speakers
The B&W CCM663 is a true high performance ceiling-mount speaker...

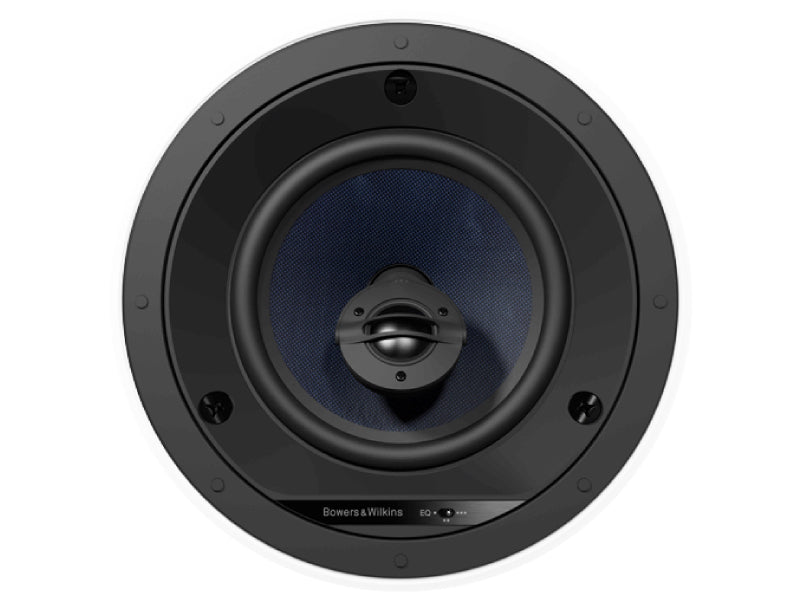

The tweeter has a 25mm (1in) aluminium dome and its housing pivots for adjustable off-axis treble response. The bass/midrange driver’s die-cast chassis provides extra rigidity which results in a cleaner, faster bass, and a three-position EQ switch for a better off-axis response.

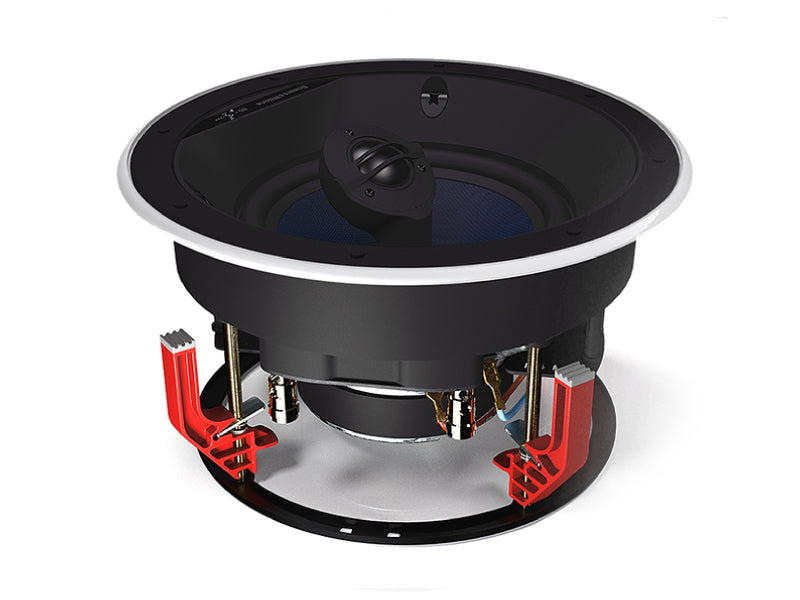

The blue Kevlar® cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.
Specifications
Description |
2-way in-ceiling system |
Drive Units |
1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter, 1x ø150mm (6in) blue Kevlar® cone bass/midrange |
Frequency Range (-6dB) |
45Hz – 50kHz |
Recommended Amp Power |
25 – 130w |
Sensitivity SPL (2.83V, 1m) |
88dB |
Impedance Nominal (min) |
8Ω (4.5Ω) |
Frame diameter |
240mm (9.5in) |
Cut-out diameter |
202mm (8in) |
Depth behind surface |
133mm (5.2in) |
Protrusion |
4mm (0.2in) |
Pre-mount Kit |
C6 |
Back Box |
6C |
