Chord Electronics

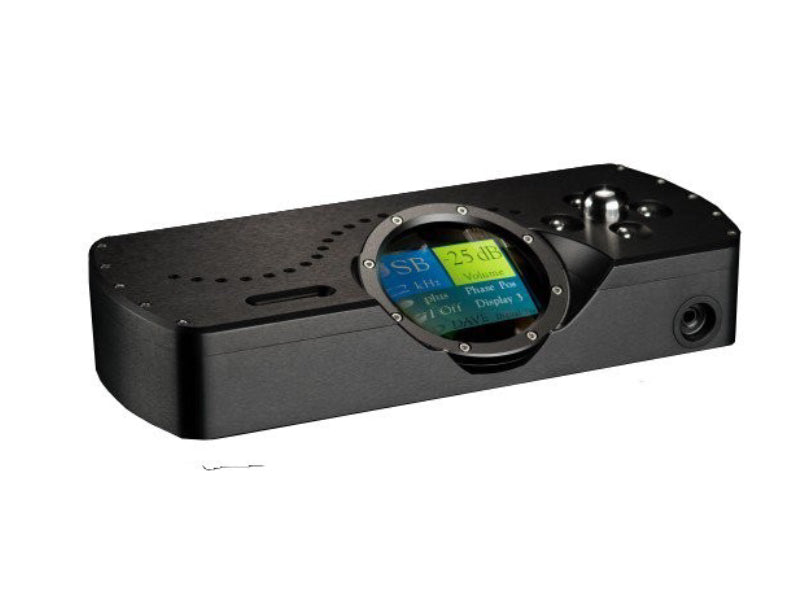

Chord Electronics Dave DAC Reference Digital to Analogue Converter

£9,995

Stock Availability : Only 1 left in stock.

Chord Electronics Made in BritianChord Electronics 5 Year Warranty

Possibly the best DAC in the world. Using proprietary technologies painstakingly developed by Robert Watts over the past twenty-years, DAVE is Chord Electronics most advanced FPGA DAC to date.

Handling the conversion of your music with absolute precision, and exceptionally low noise, yields an organic performance that simply cannot be matched.

DAVE, which is also a reference-level headphone amplifier and digital preamp, distils over twenty years of Chord Electronics’ research, development and advanced engineering into one device. At its heart lies the advanced Spartan 6 Field Programmable Gate Array (FPGA) with 1,000x the processing power of a traditional mass-produced chip DAC. DAVE’s FPGA is loaded with over a million lines of code to confront complex timing issues head-on, with speed and precision.

The FPGA’s extraordinary capability enables a number of key sonic benefits, including significantly improved timing and the best noise-shaper performance of any known DAC. DAVE’s technology delivers music with unmatched reality and musicality, with an unrivalled timing response. The device’s lossless digital volume control outputs the signal direct to your power amplifier for the purest experience.

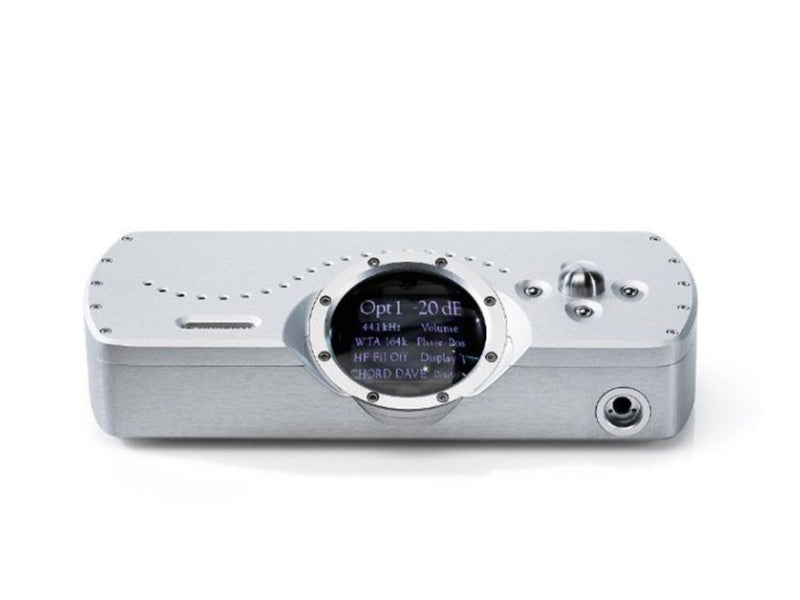

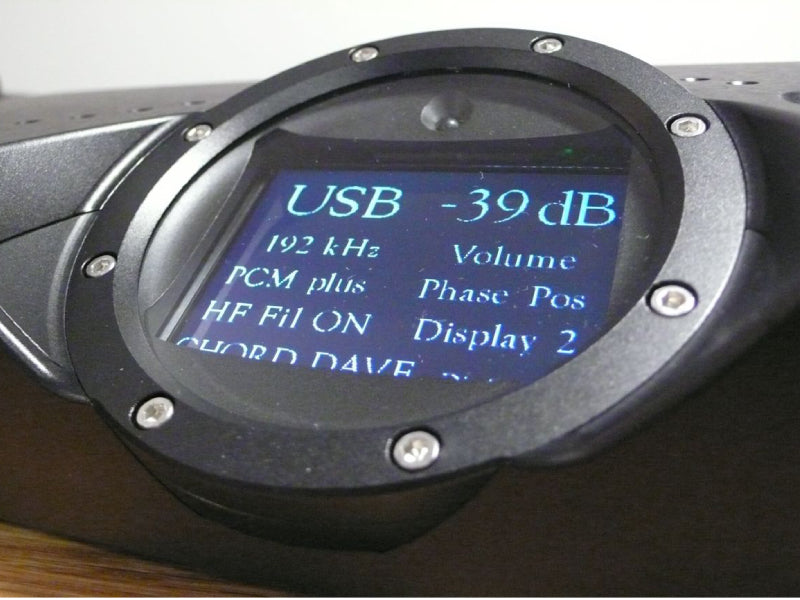

DAVE has a large LC display, showing input, sample frequency, volume and set-up configurations options, within our famous porthole design. On its fascia, DAVE also features a rotary encoder with a large stainless steel controller and ball buttons, enabling direct interactivity in addition to the supplied remote control.

THIS IS HOW A DAC SHOULD SOUND...

Not all DACs are created equal. Using proprietary technologies painstakingly developed by Robert Watts over the past twenty-years, DAVE is our most advanced FPGA DAC to date.

Handling the conversion of your music with absolute precision, and exceptionally low noise, yields an organic performance that simply cannot be matched.



Features

Frequency response: 20Hz to 20kHz flat within +/-0.1dB (HF filter off)

Tap length filter: 164,000

THD + N: 127.5dB (AWT)

Channel separation: >125dB @ 1KHz

Dynamic range: 127.5dB (AWT)

Sample frequencies: 44.1Khz – 768Khz (16 – 32bit) and DSD64 to DSD512 native DSD + DoP (input dependant)

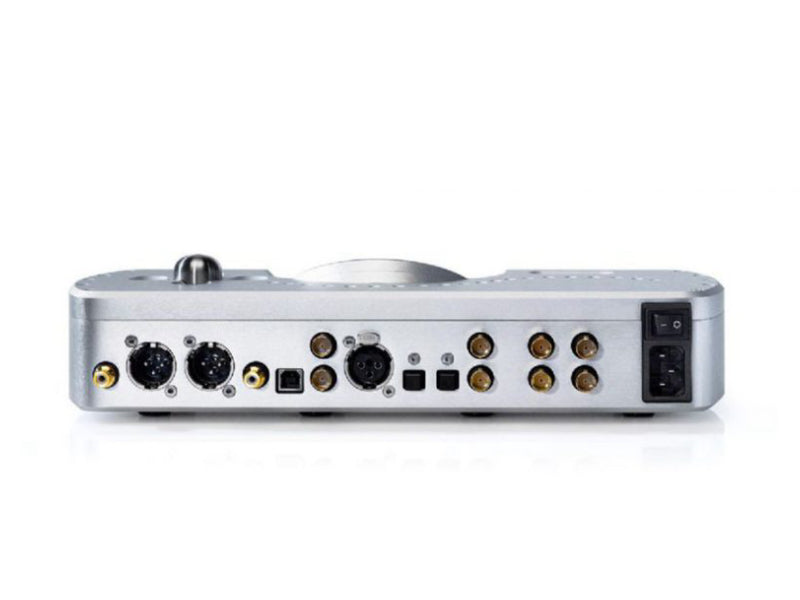

Digital inputs:

4x 75Ω S/PDIF BNC Coax – 44.1kHz to 384kHz

1x AES XLR – 44.1kHz to 96kHz

2x Fibre Optic TOSLINK – 44.1kHz to 96kHz

1x USB Type B – 44.1kHz to 768kHz (16 – 32bit) – PCM and DSD

Analogue outputs:

1x Stereo Pair of Unbalanced RCA

1x Stereo Pair of Balanced XLR

1x ¼” TRS Jack Headphone Output

Specifications

Frequency Response:

20Hz to 20kHz +/- 0.1dB

THD +N:

-127.5dB (AWT)

Channel Separation:

>125dB @ 1kHz

Dynamic Range:

127.5dB (AWT)

Headphone Output:

1% THD 6.8v RMS with 300Ω (154mW)

1% THD 6.8v RMS with 33Ω (1.4w)

Output Impedance:

0.055Ω (short circuit protected)

Operating voltage:

90v AC – 250v AV auto switching 50Hz – 60Hz

Dimensions (including connectors):

7.8cm (H) 33.5cm (W) 15.2cm (D)

Weight:

5kg

INCLUDED ACCESSORIES

1.5m Type A to Type B USB Cable
1.5m 10a IEC Mains Power Lead
Reference Dave Remote
Dave Owners Manual
