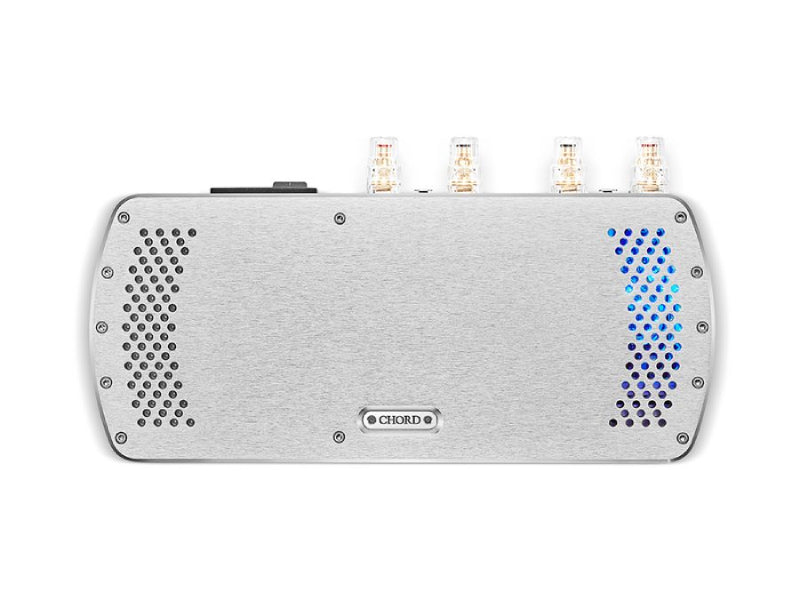

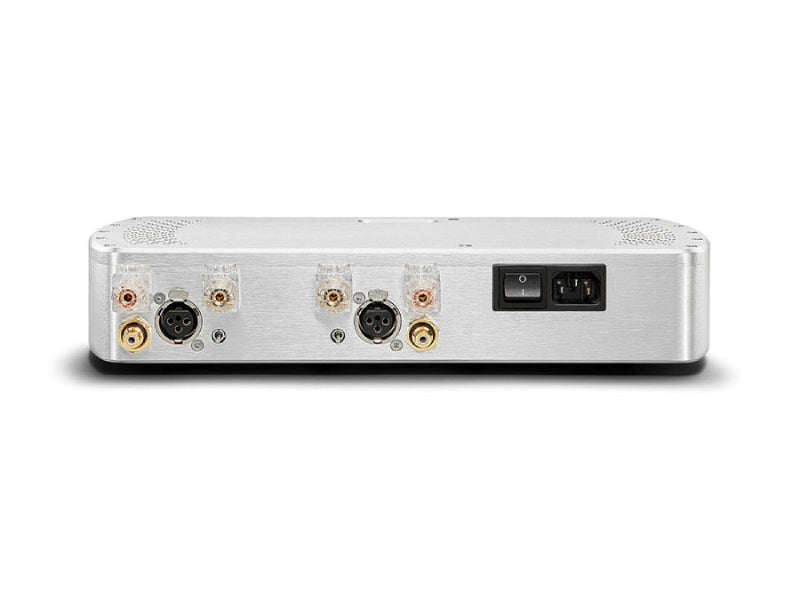

Chord Electronics ÉTUDE Stereo Power Amplifier

£3,900.00

Chord Electronics Made in Britian

Chord Electronics a British HiFi manufacture, develop award-winning proprietary processes without compromise; technology at the apogee of its game. They are unapologetically unique: they don’t follow convention, they provide extraordinary sound and a mechanical design to suit your lifestyle.

As with all Chord Electronics products, their avionics heritage inspires only the highest quality: all of their products start life as a single billet of aircraft-grade aluminium. This is just one of the hundreds of processes that help shape their multi-award-winning devices; the same standards, care and attention run through the production of all of Chord electronics units.

When you place an order for a device in the Table Top range and above, your purchase is assigned to an engineer who will begin the process of curating each individual component before carefully crafting the unit to the highest standards. Only once it has passed numerous measured and listening tests, will it qualify for a Chord Electronics name badge. Naturally, this is a bespoke process that takes time, however, during your products’ build, you are more than welcome to ask us any questions that you may have.

Chord Electronics Choral Étude is a 150w Class AB stereo power amplifier featuring the first fundamentally new topology since Chord Electronics’ inception in 1989, using highly advanced technologies seen within the aerospace industry.

The Choral Étude has been designed to both compliment and exploit the full potential of the multi-award winning DAVE DAC, which has preamp functionality, and the brand new topology has even faster power delivery than exiting designs, offering unrivalled dynamics, life-like delivery of transient information, plus effortless control over loudspeaker drive units.

The design for Étude is based upon multi-feedback and dual feed-forward error-correction amplifier technology that intelligently adjusts and compensates the individual linearity of the 250-watt lateral structure high-power proprietary MOSFETs. Internally there are three individual high frequency switch mode power supply units, one for each active power rail and a final for the auxiliary rails. When paired with advanced internal shielding, active cooled plenum chamber design, and custom Chord Electronics MOSFETs, you have Étude, an world class extremely fast crystal clear amplifier.

Although the amplifier is conservatively rated at 150W into 4Ω, if you run Étude in bridged mono mode you can increase this to 300W into 4Ω.

Weight: 3.45kg

SPECIFICATIONS

Output Power:

150w RMS per channel @ 0.05% distortion into 4Ω

Frequency Range:

5Hz – 100kHz +/- 0.5dB

Gain:

30dB

Channel Separation:

Better than 95dB

Input Impedance:

100kΩ Unbalanced/Balanced

Input Capacitance:

<30pf

Output Impedance:

0.02Ω

Output Inductance:

2.6μH

Dimensions:

6.7cm (H) 33.5cm (W) 17.5 (D)
