Chord Electronics ULTIMA Reference Power Amplifier Mono

£30,000.00

Due to an agreement with the manufacturer, we are unable to sell this item online. However if you wish to purchase this item please contact us on 01925 828009 or sales@dougbrayhifi.com

Chord Electronics a British HiFi manufacture, develop award-winning proprietary processes without compromise; technology at the apogee of its game. They are unapologetically unique: they don’t follow convention, they provide extraordinary sound and a mechanical design to suit your lifestyle.

As with all Chord Electronics products, their avionics heritage inspires only the highest quality: all of their products start life as a single billet of aircraft-grade aluminium. This is just one of the hundreds of processes that help shape their multi-award-winning devices; the same standards, care and attention run through the production of all of Chord electronics units.

When you place an order for a device in the Table Top range and above, your purchase is assigned to an engineer who will begin the process of curating each individual component before carefully crafting the unit to the highest standards. Only once it has passed numerous measured and listening tests, will it qualify for a Chord Electronics name badge. Naturally, this is a bespoke process that takes time, however, during your products’ build, you are more than welcome to ask your retailer any questions that you may have.

The Chord Electronics ULTIMA mono power amplifiers have been conceived for the very finest high-end audio systems, those which by their very nature, tend to have the most demanding and most difficult-to-drive large loudspeakers. They deliver unsurpassed power delivery and are capable of effortlessly driving any speaker.

ULTIMA is the company’s most accomplished amplifier in its 30-year history and one that draws on Chord Electronics’ three decades of proprietary-technology amplifier manufacturing. It features an all-new circuit topology, the first completely new design since those early days. The new dual-feed forward error-correction amplifier technology is a progression of Dr Malcolm J Hawksford’s (emeritus professor at Essex University) technical paper, refined by Bob Cordell of Bell Labs.

ULTIMA contains Chord Electronics’ next-generation amplifier tech, a design which features Cordell’s advanced dual-feedforward error-correction topology, plus John Franks’ own advanced concepts in ultra-high-frequency power supplies.

The ULTIMA mono amplifier unit has an incredible 64 proprietary MOSFET power devices that demand the most advanced and refined drive circuitry, suitably devoid of sound-degrading components. The drive circuitry features an ultra-low-distortion, high-voltage amplifier operating at very high speed: 300 volts-per-microsecond technologies with advanced feed-forward and feedback compensation techniques.

ULTIMA is incredibly powerful and offers 780 watts into 8 ohms, 1,400 watts into 4 ohms and 2,500 watts into 2 ohms. ULTIMA’s peak output current exceeds 500 amps, an extremely high current differentiated by the speed at which the dynamic peaks can be delivered, bringing astonishing dynamics, fidelity and unrivalled musicality.

ULTIMA is truly an unprecedented amplifier design with exceptional performance and is one of the most advanced hi-fi amplifiers in the world.

FEATURES

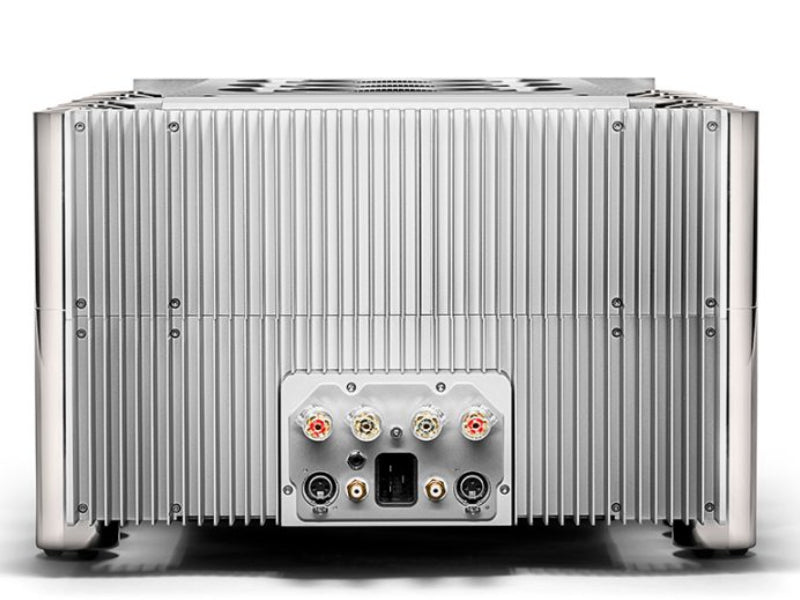

Inputs:

1x Balanced XLR Inverted Input

1x Balanced XLR Non-inverted Input

1x Gold Plated Unbalanced RCA Inverted Input

1x Gold Plated Unbalanced RCA Non-inverted Input

1x 12v Trigger Input – Chord Electronics Auto Start

Output:

2x Pair of High Quality, High Current, Gold Plated Type Speaker Terminals (Bi-wireable)

SPECIFICATIONS

Output Power:

780w RMS per channel @ 0.005% distortion into 8Ω

1405w RMS per channel into 4Ω

Frequency Response:

-1dB @ 0.2Hz to 46kHz and -3dB 0.1Hz to 200kHz

Signal to Noise Ratio:

Better than -90dB

Input Impedance:

100kΩ Unbalanced/Balanced

Output Impedance:

0.04Ω

Dimensions with included Integra Legs:

30.5cm (H) x 48cm (W) x 75cm (D)

Dimensions with optional Side Blocks:

28.5cm (H) x 42cm (W) x 75cm (D)
