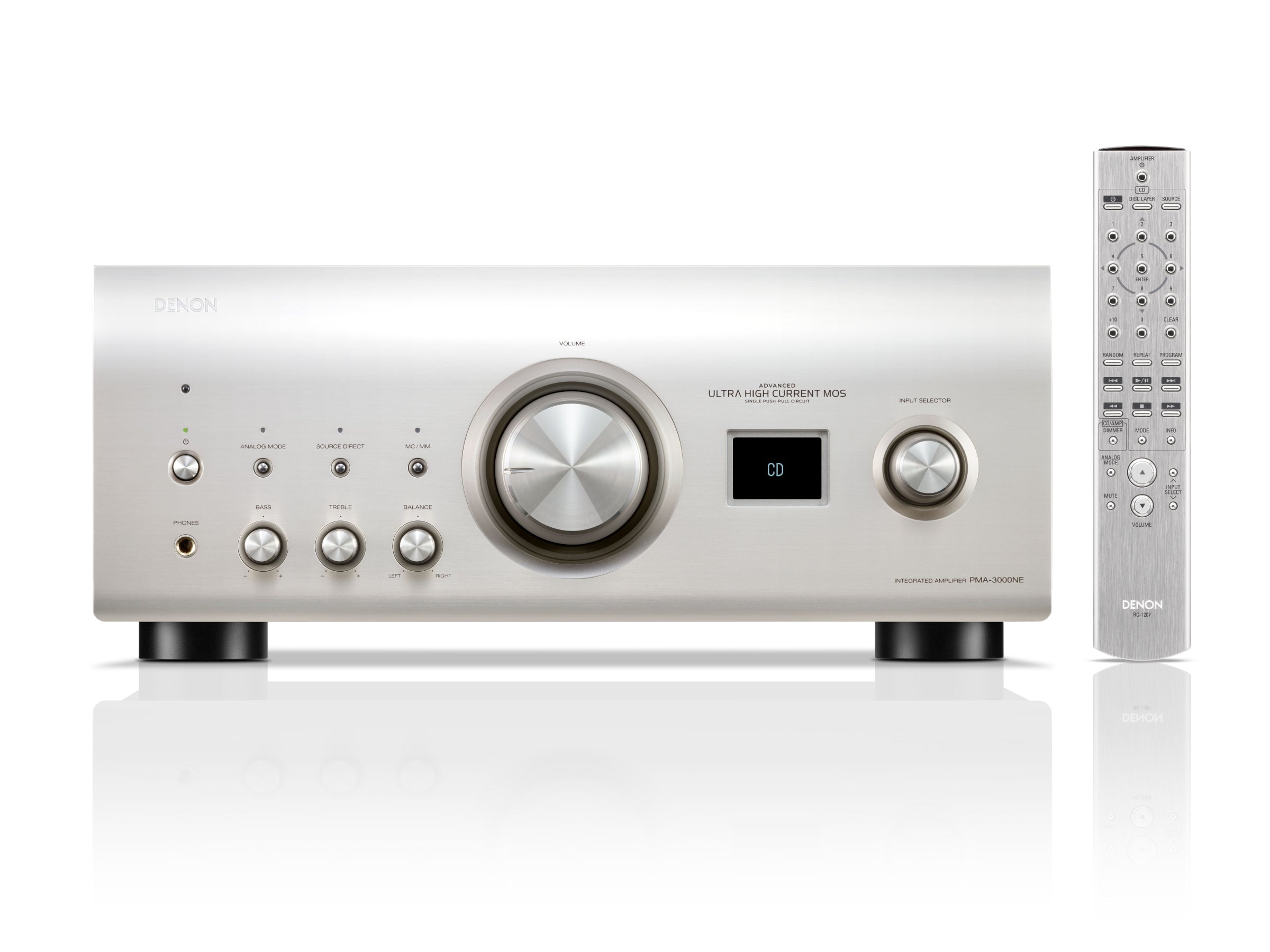

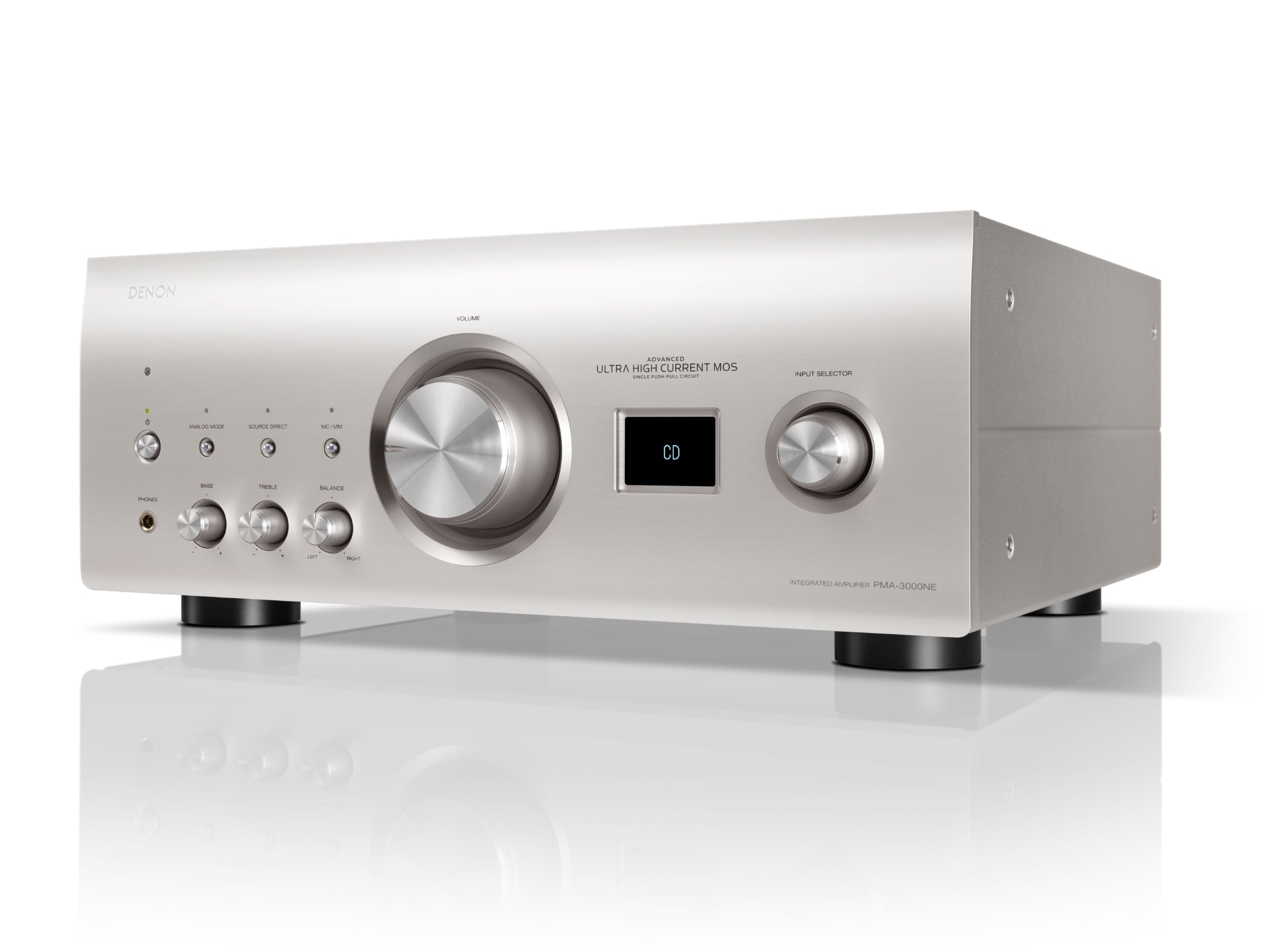

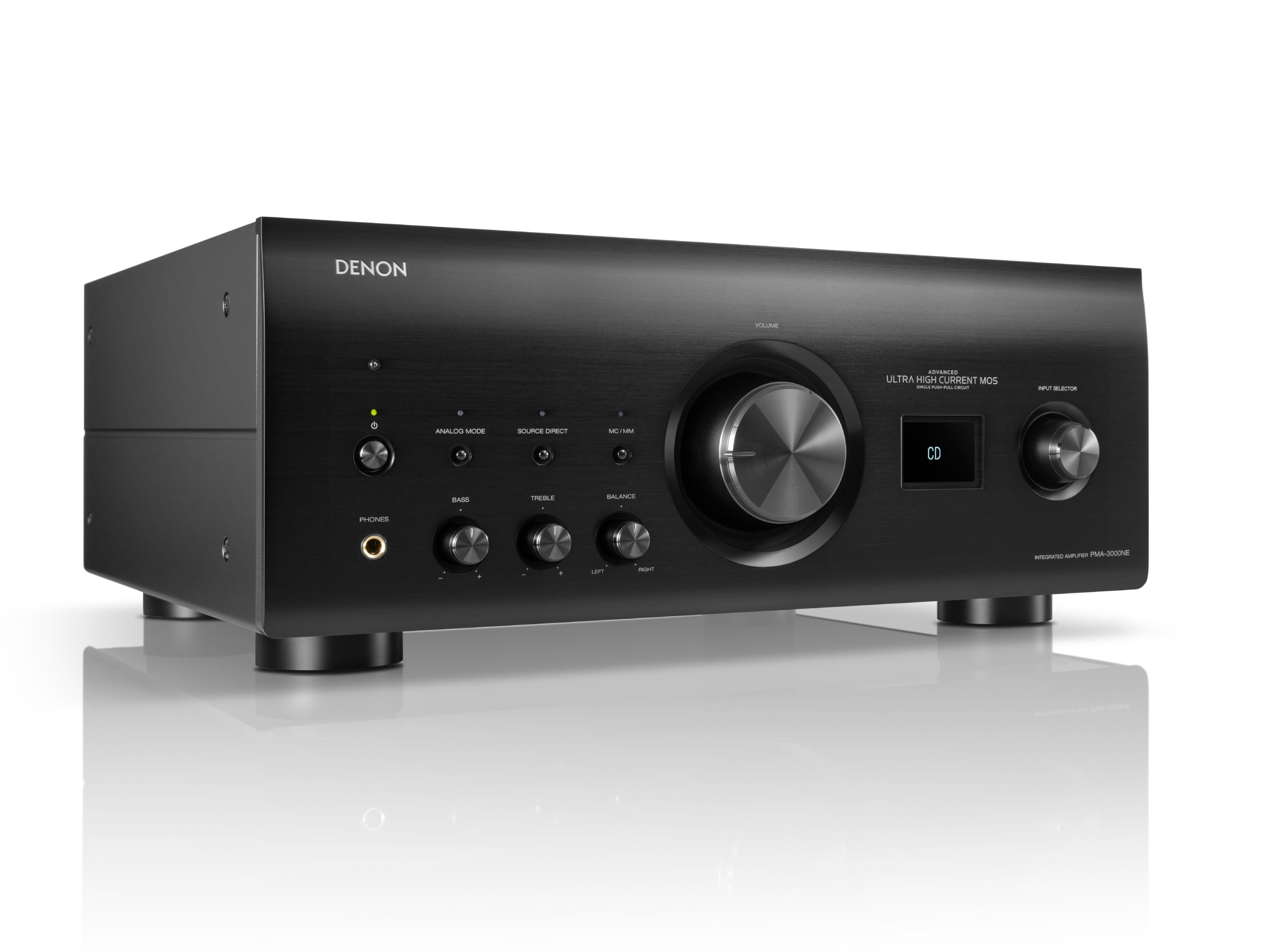

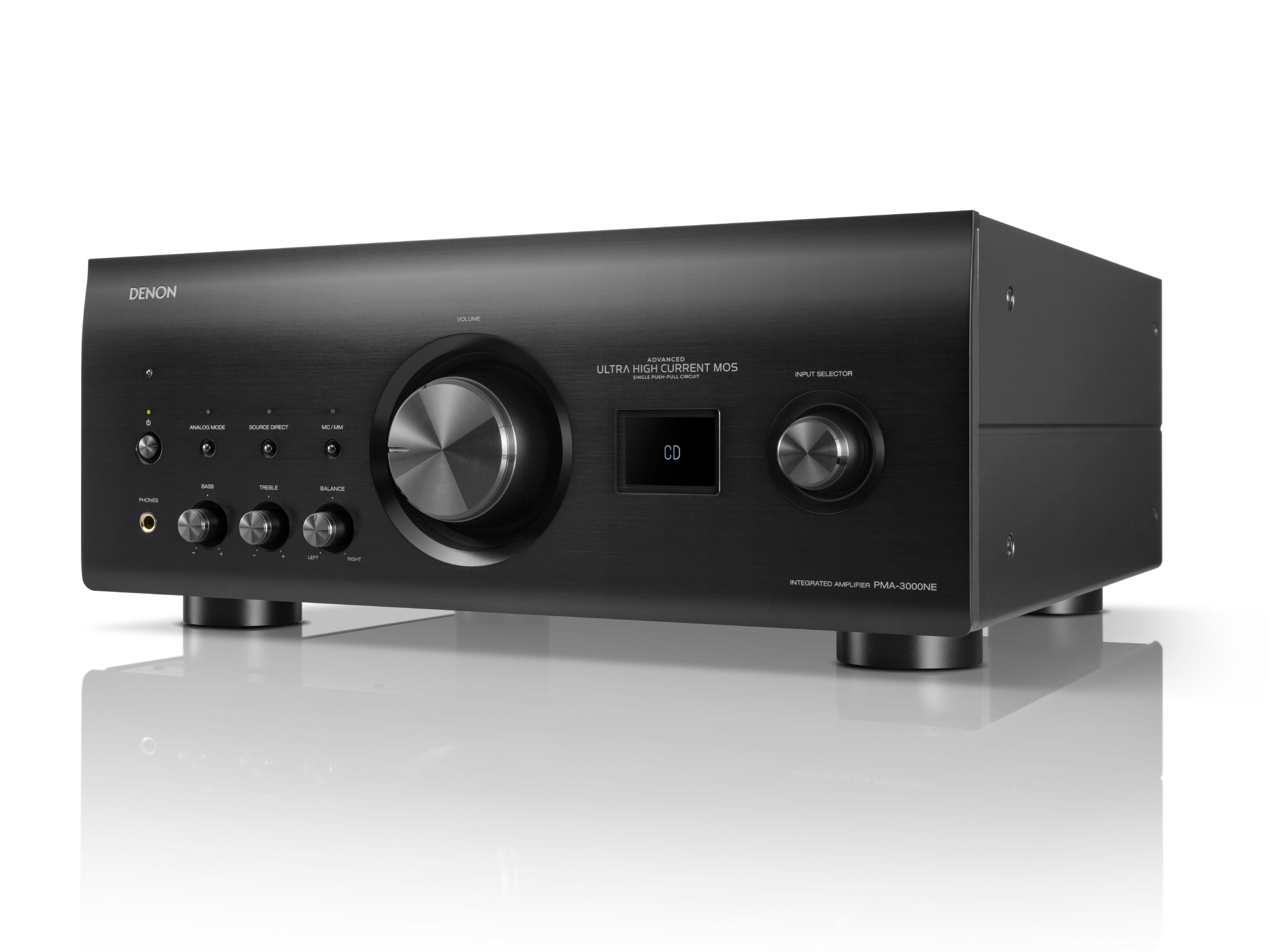

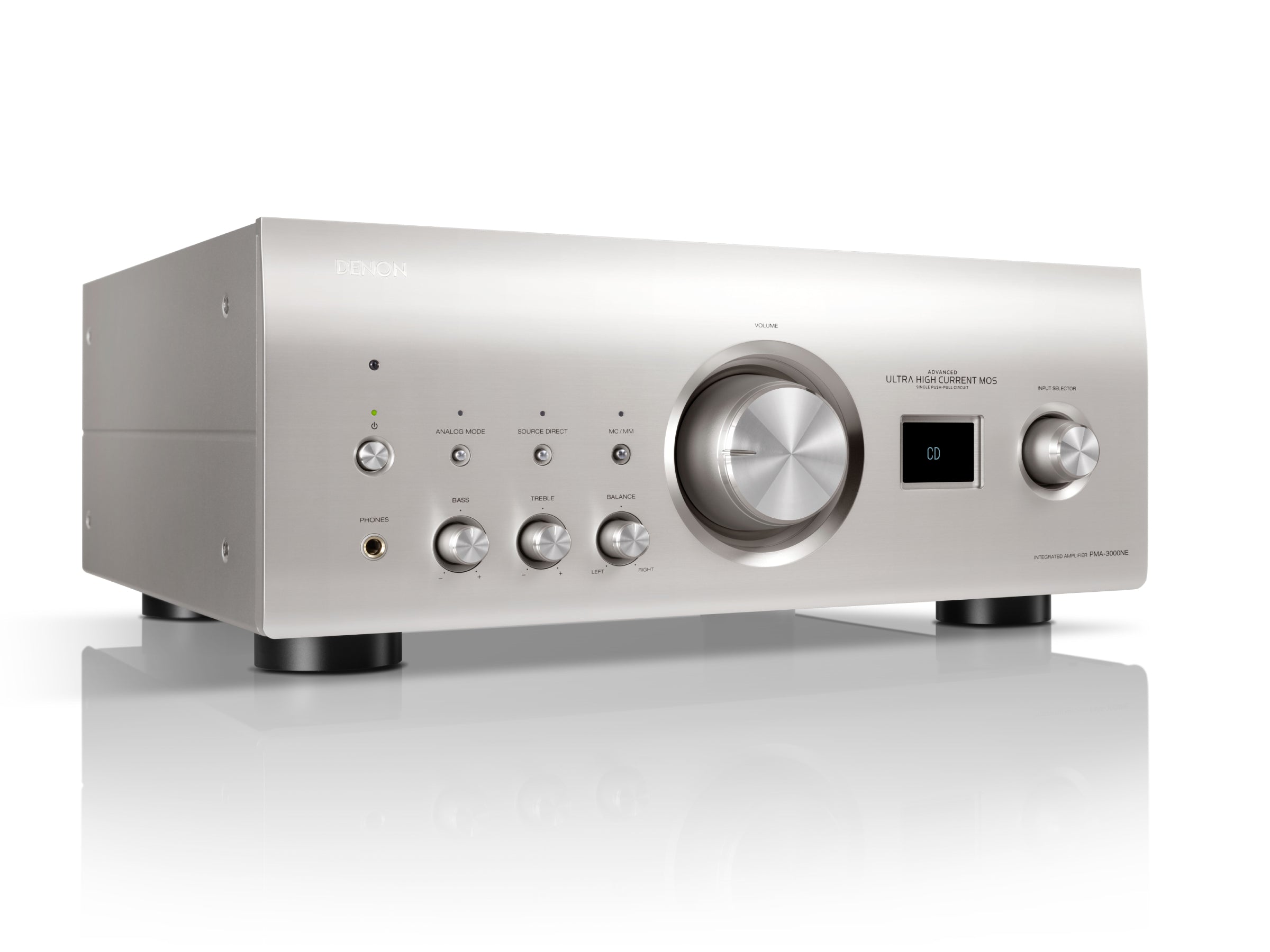

Denon PMA-3000NE Integrated Amplifier
The Denon PMA-3000NE integrated amplifier delivers 160W per channel at 4 ohms and 80W per channel at 8 ohms, driving even the most demanding speaker to deliver superior sound in any scenario. With a Moving Magnet and Moving Coil Phono stage built in, this is an excellent solution for those looking for high quality audio for your vinyl records.
Designed and manufactured at Denon facilities in Shirakawa, Japan.
Drives even the most demanding speakers:
A push-pull amplifier, delivering 80W/channel into 8 ohms and 160W/channel into 4 ohms, effortlessly accommodates a range of speaker types and impedances.
Seamlessly integrate high-resolution digital audio:
Digital connections, including optical, coaxial, and USB-B, support up to 384kHz/32-bit. Ultra AL32 Processing waveform interpolation produces smooth, high-resolution sound.
Unlock your vinyl collection’s full potential:
The PMA-3000NE's phono stage supports both MM and MC cartridges, for the most faithful sonic reproduction regardless of cartridge type.
Pure Analogue mode
Pure Analogue mode bypasses digital circuitry for a pure, all-analogue sound. A Source Direct function bypasses the tone controls so that the signal path is as short and clean as possible, for enhanced clarity.
Precision control
Microcontroller-managed volume, balance, and tone controls offer precise digital adjustments with the feel of analogue. It’s the ultimate blend of modern functionality and old-school charm.
Specifications
Specifications - Audio:
| Rated Output Power | 80W + 80W (8 ohm, 20 Hz-20 kHz, THD 0.07%) 160W + 160W (4 ohm, 1 kHz, THD 0.7%) |
|---|---|
| Total Harmonic Distortion | 0.01% (Rated output: –3 dB), 8 ohm, 1 kHz |
| Input Sensitivity: Phono Input | MM: 2.5 mV / 47 kohm, MC: 200 μV / 100 ohm |
| Input Sensitivity: CD/LINE/RECORDER | 135 mV / 19 kohm |
| Input Sensitivity: Power Amp Input | 0.9V / 47 kohm (EXT. PRE) |
| Signal to Noise Ratio | PHONO (MM): 89 dB, PHONO (MC): 74 dB, CD: 107 dB |
Specifications - Power:
| Power Consumption | 400W |
|---|---|
| At Standby | 0.2W TV autoplay off, 0.4W TV autoplay on |
Audio Features - Analogue:

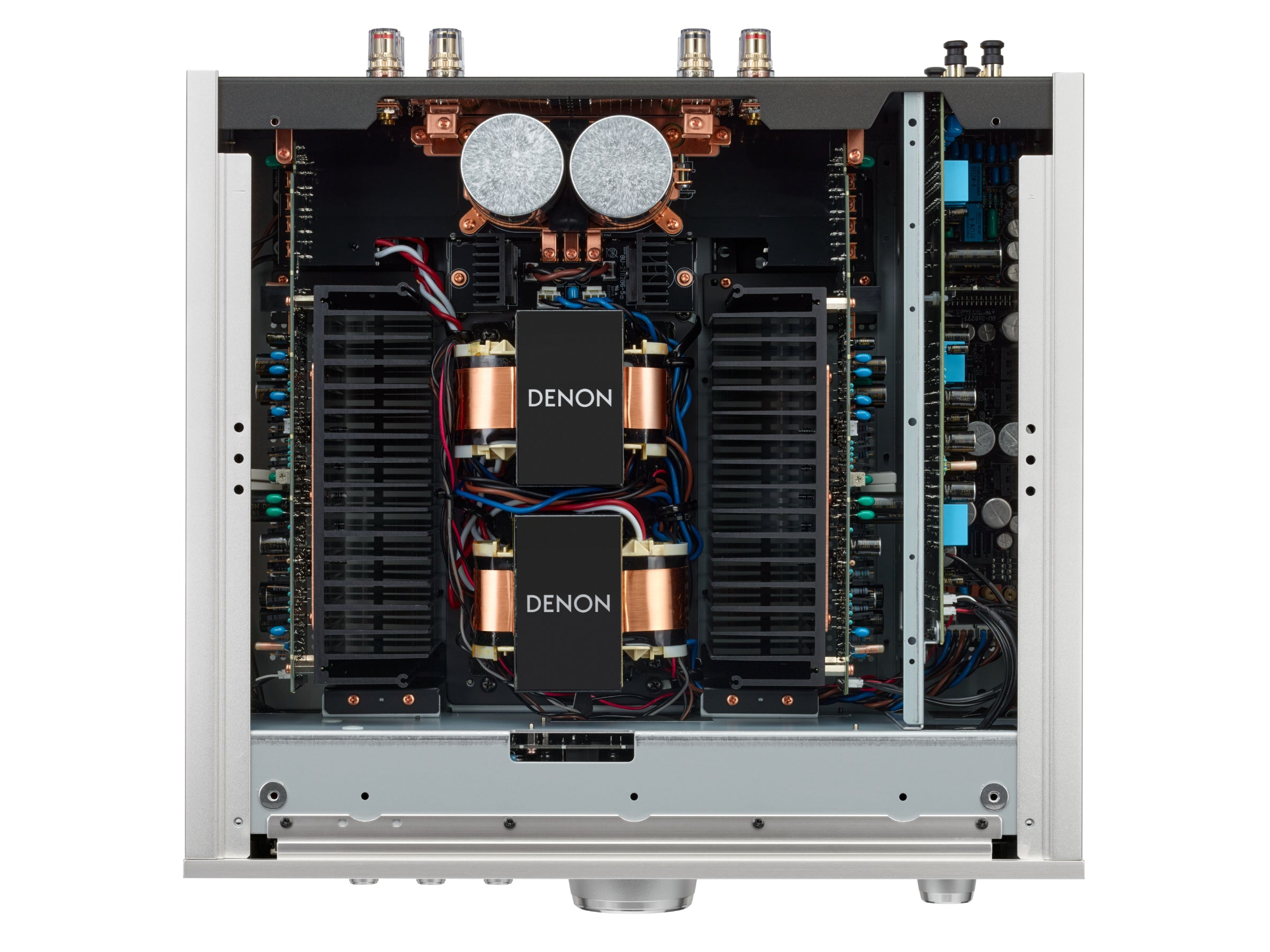

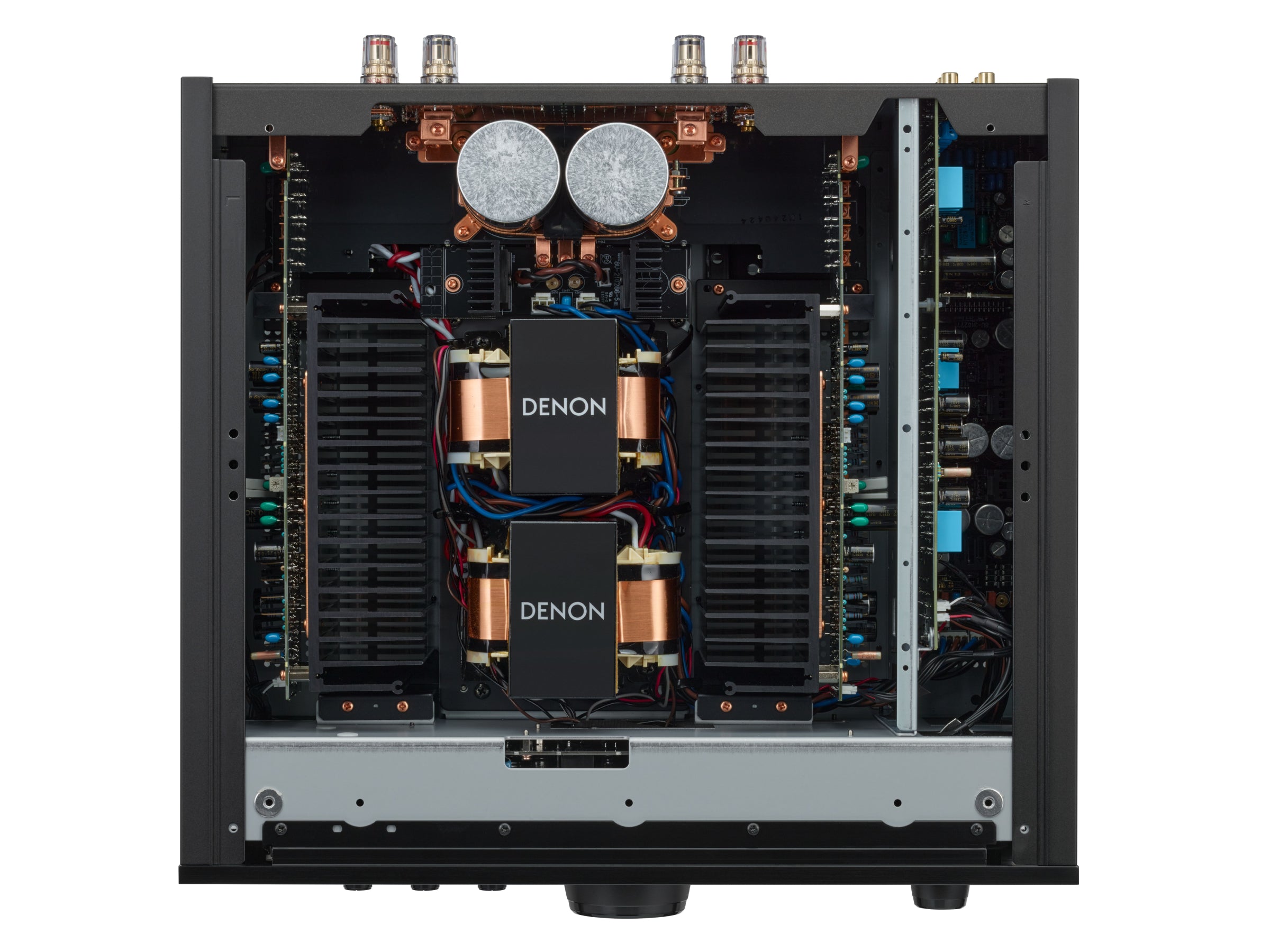

| Power Amplifier Circuit | New UHC-MOS, Single Push Pull |
|---|---|
| Preamplifier Circuit | Variable Gain Preamp (OP AMP) |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes |
| Source Direct | Yes |
| Analogue Amp Mode | Yes (button on front panel) |
Audio Features - Digital:
| DAC Circuit | ES9018K2M x 4 |
|---|---|
| Digital Processing | Ultra AL32 Processing |
| DAC Master Clock Design | Yes |
| Asynchronous Mode (for USB-B input) | Yes |

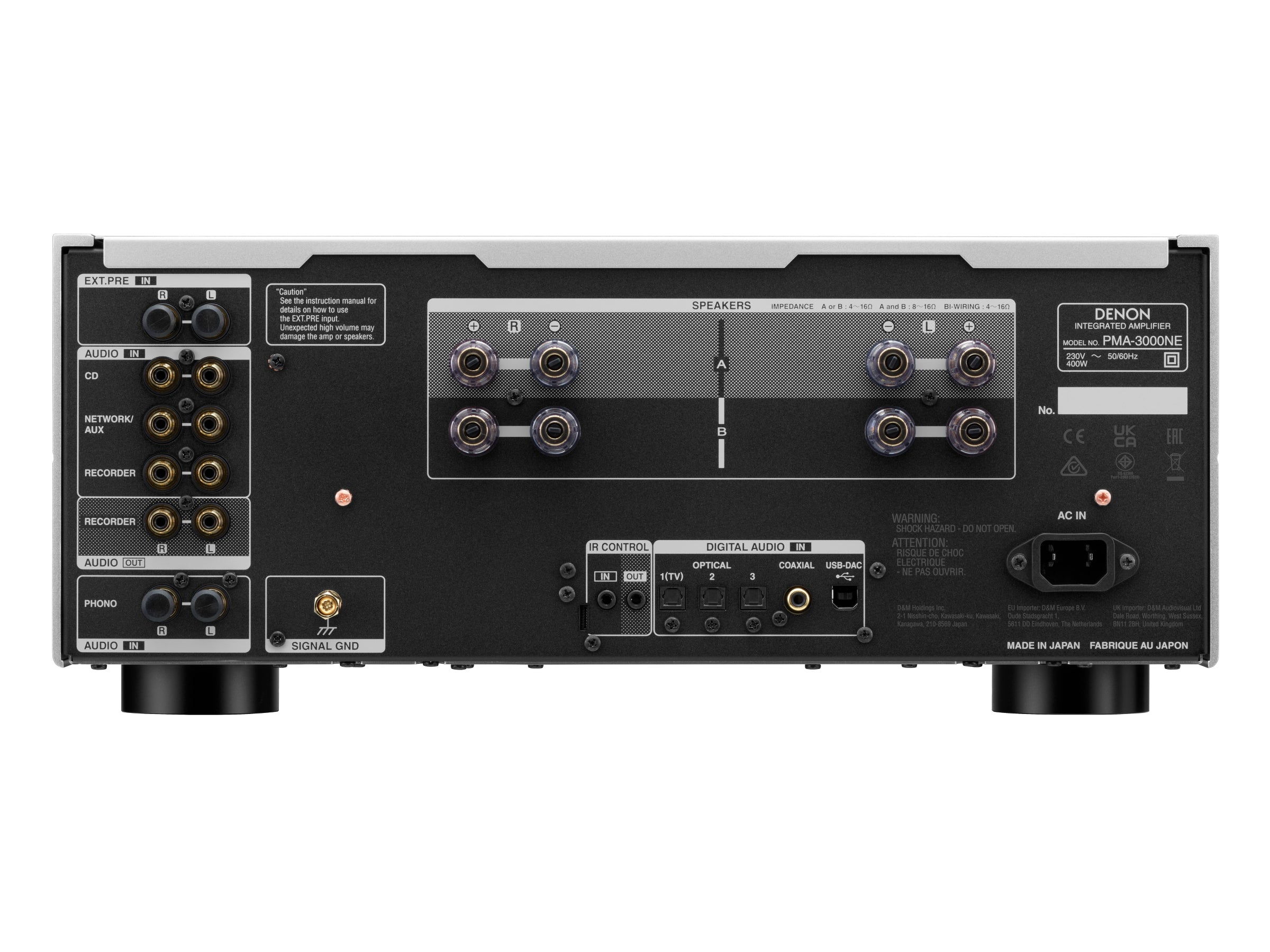

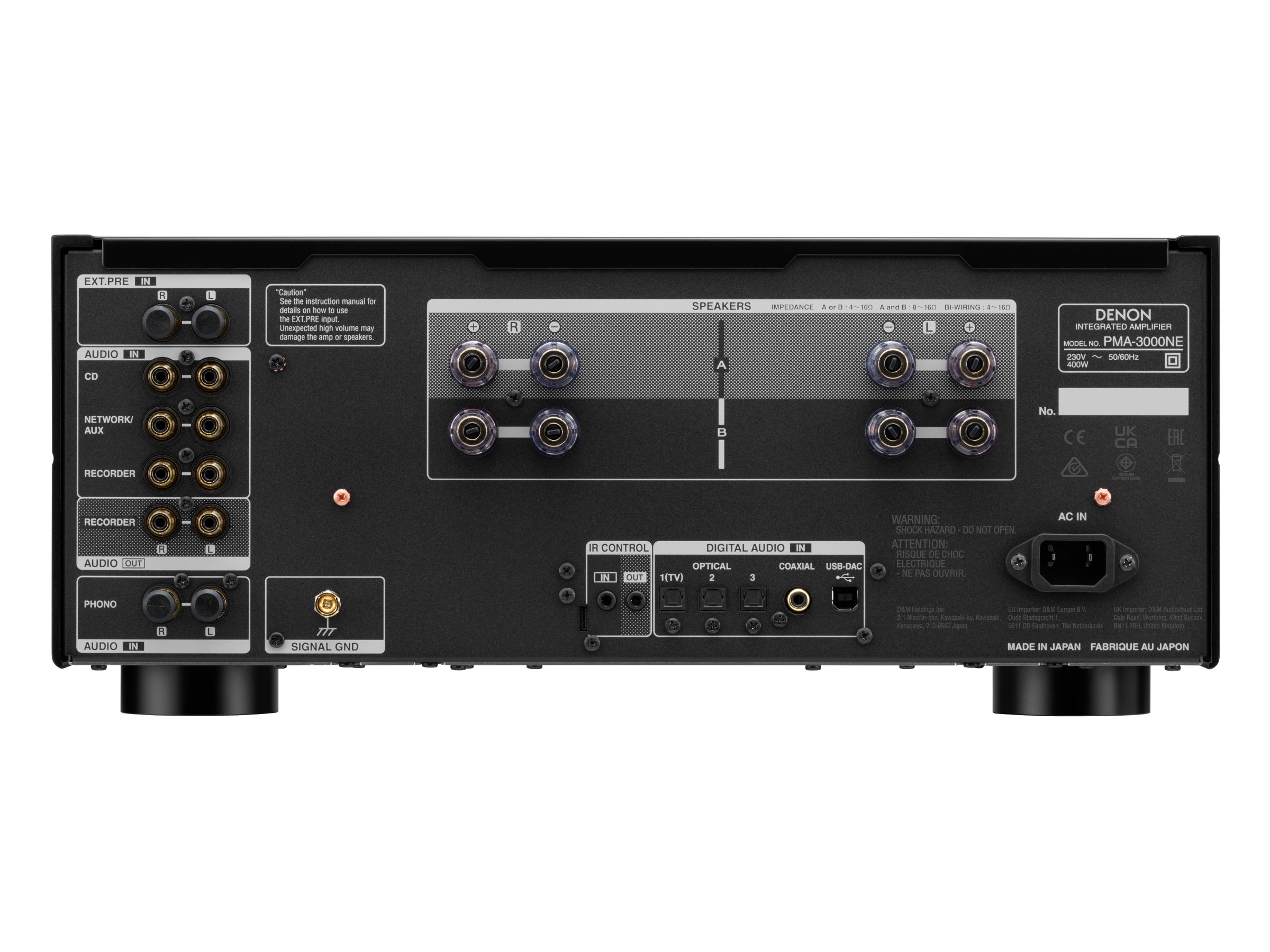

Connectivity - Audio Video:
| Phono Input | Yes (MM / MC) *default = MM |
|---|---|
| Analogue Input (incl. Phono) / REC Out (RCA) | 4 / 1 (Gold Plated) (Brass Machining type for all CD/PHONO/AUX/RECORDER) |
| Optical Input / Output (Maximum Support) | 3 / 0 (192 kHz/24-bit) |
| Coaxial Input / Output (Maximum Support) | 1 / 0 (192 kHz/24-bit) |
| Speaker Terminal | Gold Plated w/Cover |
| Headphone Output | 1 (Turns off the speaker automatically when headphone is inserted) |
Connectivity - Control/Other:

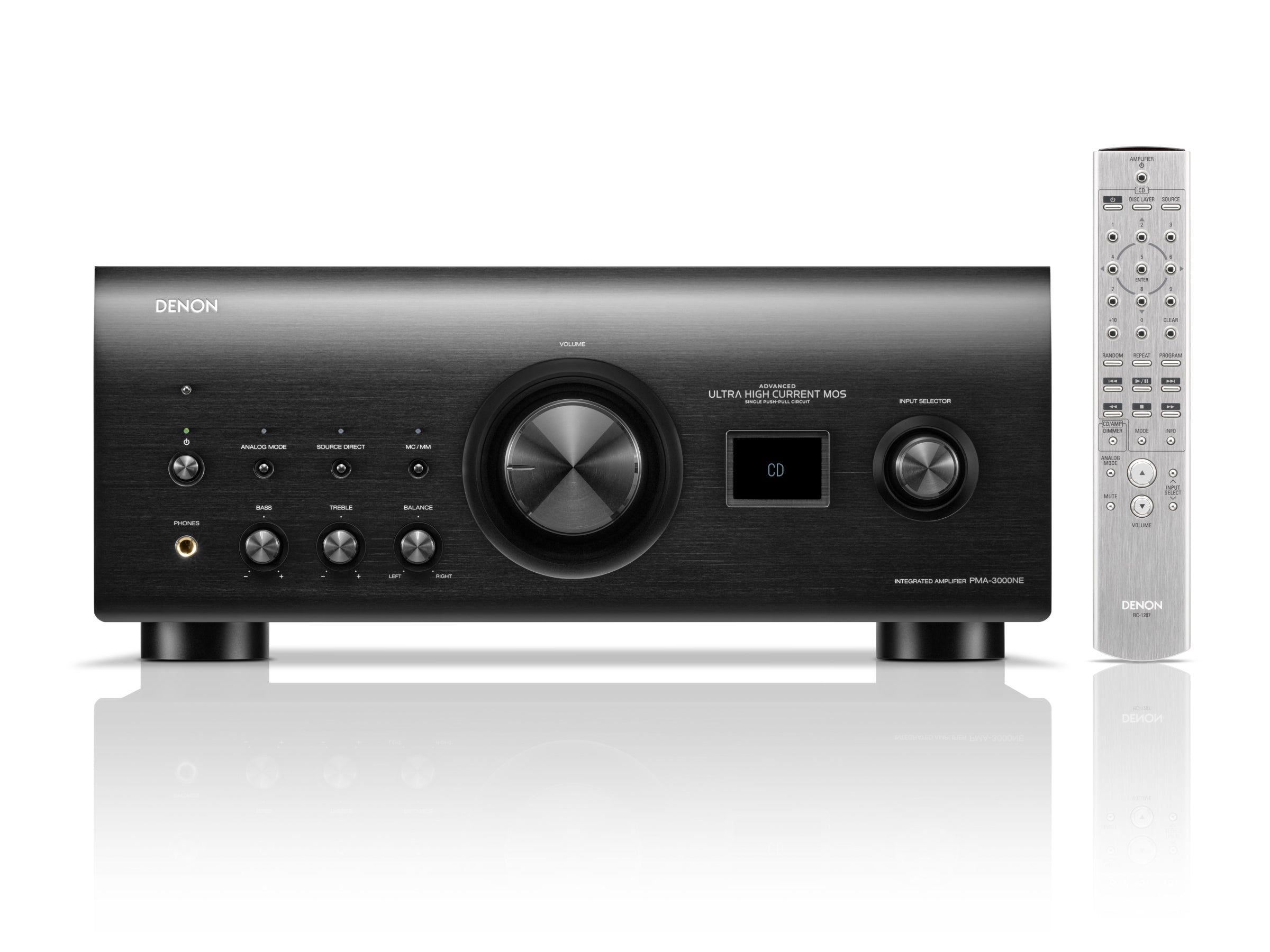

| Remote Control | Yes |
|---|---|
| Remote Control Bus Terminal | Yes (mini jack) |
Connectivity - USB B:
| USB B (USB DAC) | 1 (Rear) |
|---|---|
| PCM Sample Rate / Resolution | ~384 kHz/32-bit |
| DSD Audio Streaming | ~11.2MHz |
General:
| Unit (W × H × D) | 434mm x 182mm x 443mm |
|---|---|
| Net Weight | 24.6kg |
