LUXMAN CL-38uC Vacuum Tube Amplifier
Tax included. Stock information
%20circuitry%20throughout%20all%20stages%20to%20deliver%20exceptional%20sound%20quality....){kind=link}
The Luxman CL-38uC is a visually appealing custom vacuum tube control amplifier that features SRPP (Shunt Regulated Push Pull) circuitry throughout all stages to deliver exceptional sound quality. This model includes a genuine phono equalizer with independent MC transformers for both MC-low and MC-high impedance inputs, selectable via a lever switch. Additionally, tone controls are available, allowing listeners to finely adjust the sound to their preference. The refined exterior design, combined with newly integrated balanced inputs, establishes this amplifier as a new benchmark in its class.
Legacy
Luxman has a long-standing legacy in the vacuum tube amplifier market, dating back to the launch of their SQ-5A vacuum tube integrated amplifier in 1961. Since then, Luxman has continuously developed vacuum tube amplifiers without interruption, producing models highly regarded by audiophiles. Many of these signature models remain cherished by music enthusiasts even decades after their release. The CL-38uC, along with the MQ-88uC power amplifier, exemplifies Luxman’s enduring tradition of crafting vacuum tube products with a blend of modern and classic design elements.
High Quality Components

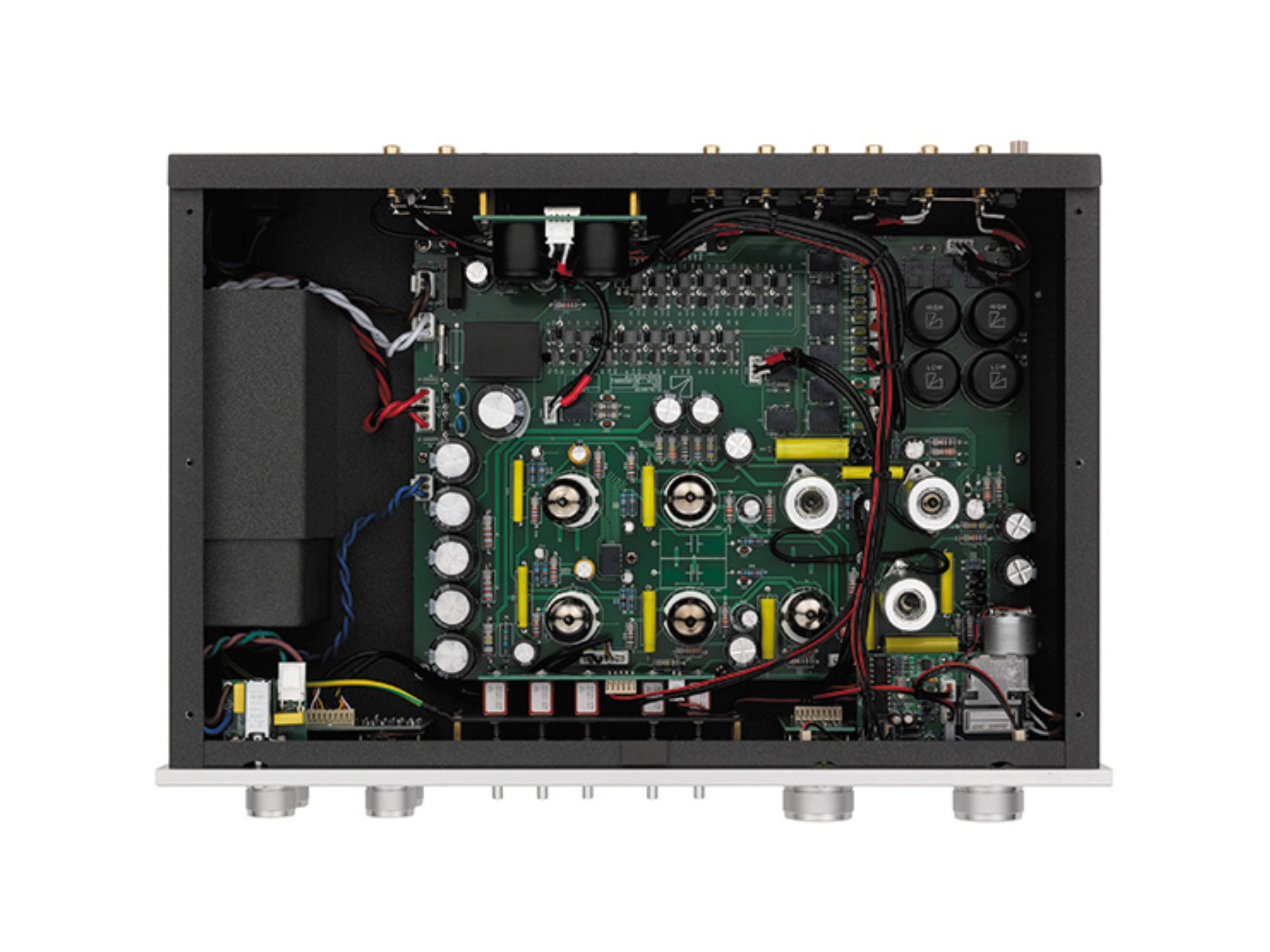

The quality of individual components is crucial to the performance of vacuum tube amplifiers, which is why the CL-38uC employs Luxman’s custom high-quality transformers and capacitors. Nichicon-made, high-voltage metalised polypropylene film coupling capacitors are used for their superior tonal quality, adding a smooth, natural sound. Additionally, internal wiring has been shortened to further enhance audio quality, reflecting Luxman's commitment to superior craftsmanship and sound precision.
Revival

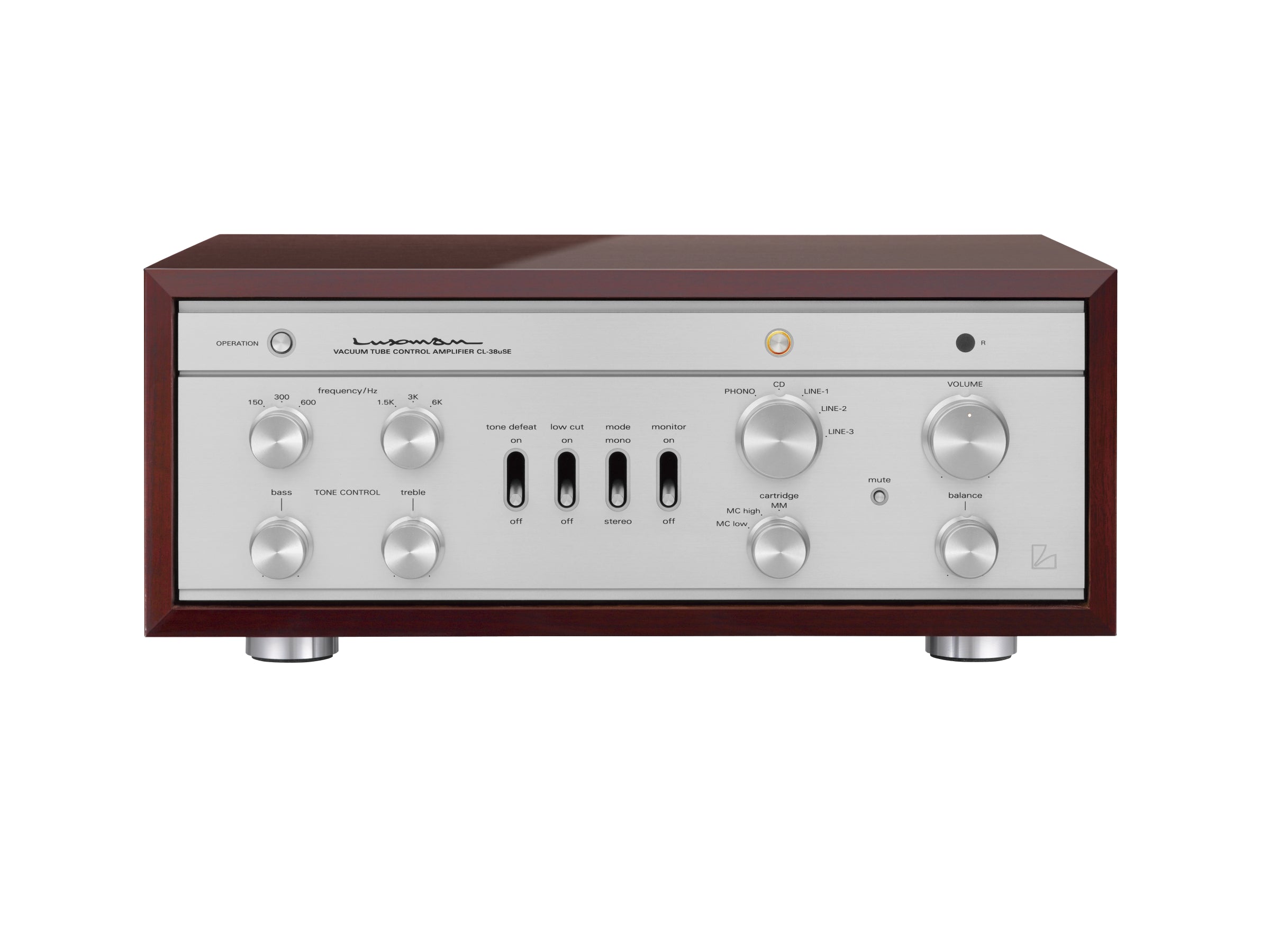

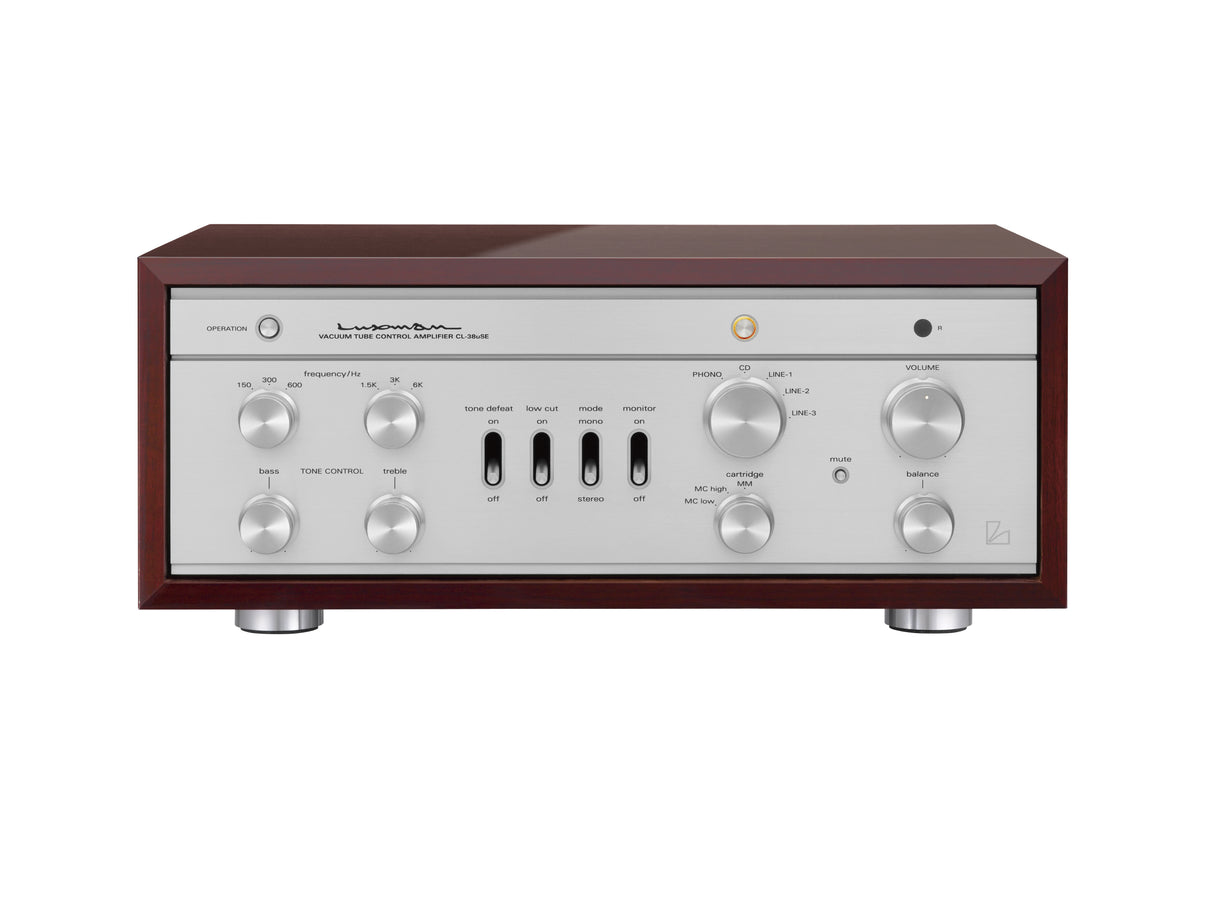

The design of the CL-38uC and MQ-88uC draws inspiration from the golden era of vacuum tube amplifiers, incorporating contemporary technology while maintaining a classic aesthetic. The CL-38uC's design is based on the CL-35 from 1970, while the MQ-88uC takes cues from the MQ-60, released in 1969. These models feature elegant front panels with traditional knobs and lever switches, evoking a sense of nostalgia while delivering cutting-edge performance. Listeners can enjoy both the timeless style and modern audio capabilities of these products.
Reliability & Class
Built with reliability in mind, the CL-38uC undergoes a rigorous testing process, including a 48-hour performance check post-assembly. Luxman has chosen JJ Electronic vacuum tubes for their durability and reliable performance under the challenging conditions of vacuum tube amplifiers. Encased in a traditional wooden chassis, the CL-38uC features a 440mm wide frame to accommodate modern Luxman equipment, while the internal chassis acts as an omnidirectional shield, reducing noise and magnetic interference. These design elements contribute to its long-lasting quality and superb audio performance.
Specifications
| Input Sensitivity/ Input Impedance: | PHONO (MM): 2.0mV/47kΩ PHONO (MC high): 0.3mV/100Ω PHONO (MC low): 0.08mV/30Ω LINE: 190mV/50kΩ BAL.LINE: 190mV/20kΩ *2 |
| Output/ Output Impedance: | Rated 1V/300Ω |
| Frequency Response: | PHONO: 20Hz to 20kHz (±0.5dB) LINE/BAL.LINE: 10Hz to 70kHz (within -3.0dB) |
| Total Harmonic Distortion: | 0.006% or less (1kHz) 0.06% or less (20Hz to 20kHz) |
| S/N Ratio (IHF-A): | PHONO (MM): 68dB or more PHONO (MC high): 63dB or more PHONO (MC low): 60dB or more LINE/BAL.LINE: 100dB or more |
| Tone Control: | ±8dB, selectable frequency range BASS: 150/300/600Hz, TREBLE: 1.5k/3k/6kHz |
| Low Cut: | 30Hz(-6dB/oct.) |
| Circuit: | SRPP |
| Vacuum Tubes: | ECC83S×3, ECC82×5 |
| Power Supply: | 230V~(50Hz)/115V~(60Hz) |
| Power Consumption: | 35W |
| External Dimensions: | 440(W) x 169(H) x 307(D) mm 19mm front panel knob and 12mm rear panel terminals are included in the depth measurement |
| Net Weight: | 13.3kg (main unit) |
| Accessories: | Remote control (RA-19), Power cable |
