Luxman

Luxman D-07X Super Audio CD Player

£9,999.00

The Luxman D-07X Super Audio CD Player brings out unprecedented sound from CDs and SACDs. The D-07X inherits the luxurious styling and oustanding performance of the Luxman flagship model, the D-10X. This advanced digital media player delivers overwhelming performance. It truly conveys the ambience and feeling of recorded music over a wide range of media, delivering the finest listening experience.

Luxman D-07X CD Mechanism

HIghly robust drive mechanism

The D-07X employs a left-side mechanical layout with an asymmetric configuration that realizes the shortest and ideal audio signal path and affords space for high quality analog circuitry. The disc drive section that supports CD and SACD playback is based on our original, highly robust LxDTM mechanism, which achieves high precision and stable signal reading performance, comparable to the D-10X flagship model. The disc tray is made of die-cast aluminum, eliminating unnecessary vibration and resonance effects on the loader mechanism and enabling precise and smooth loading operation.

Luxman Advanced DAC circuitry

Advanced DAC circuitry, reproducing digital media with excellent sound quality

Following standards set by our D-10X flagship model, high-end BD34301EKV DAC chips manufactured by Rohm Co., Ltd. in dual monaural configuration lie at the core of the digital circuitry that processes various digital media from discs, such as CDs and SACDs, to the latest high resolution audio files with exceptional quality. Over a USB input from a PC, Mac, NAS for audio, etc., the D-07X supports a wide range of format encoding up to PCM768kHz/32 bit and DSD22.4MHz.

Furthermore, for the popular high-quality format MQA (MQA-CD/MQA file), which expands the field of optical discs, streaming USB, COAX, and optical. The clocking system is designed to support accurate digital signal processing and is equipped with two high-precision, low-jitter, ultra-low phase noise modules that reduce noise near the oscillation frequency to a minimum. There is also a built-in, 2-mode analog FIR filter that allows you to select your preferred sound quality when playing SACD or DSD files.

Newly developed discrete buffer circuitry

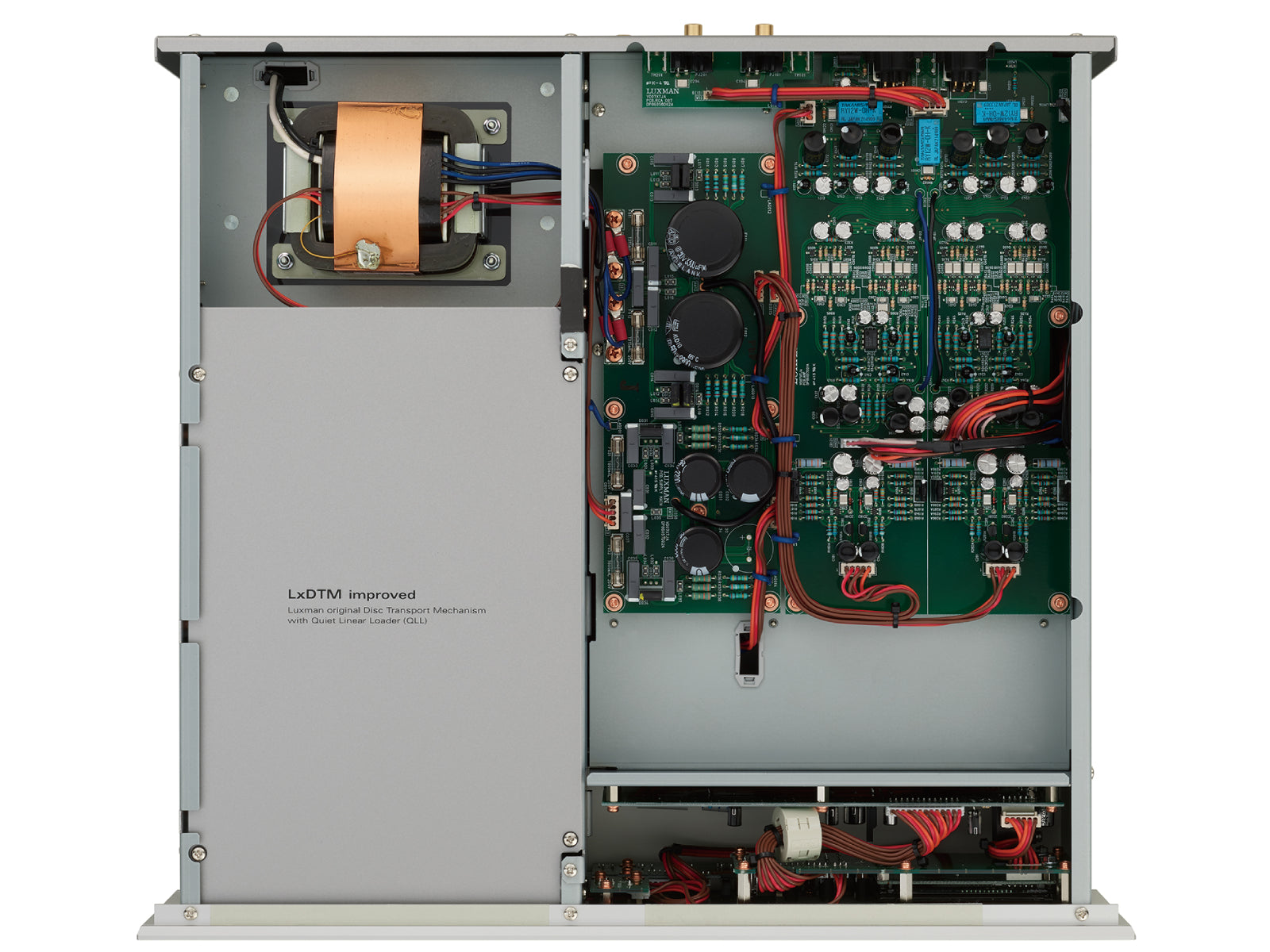

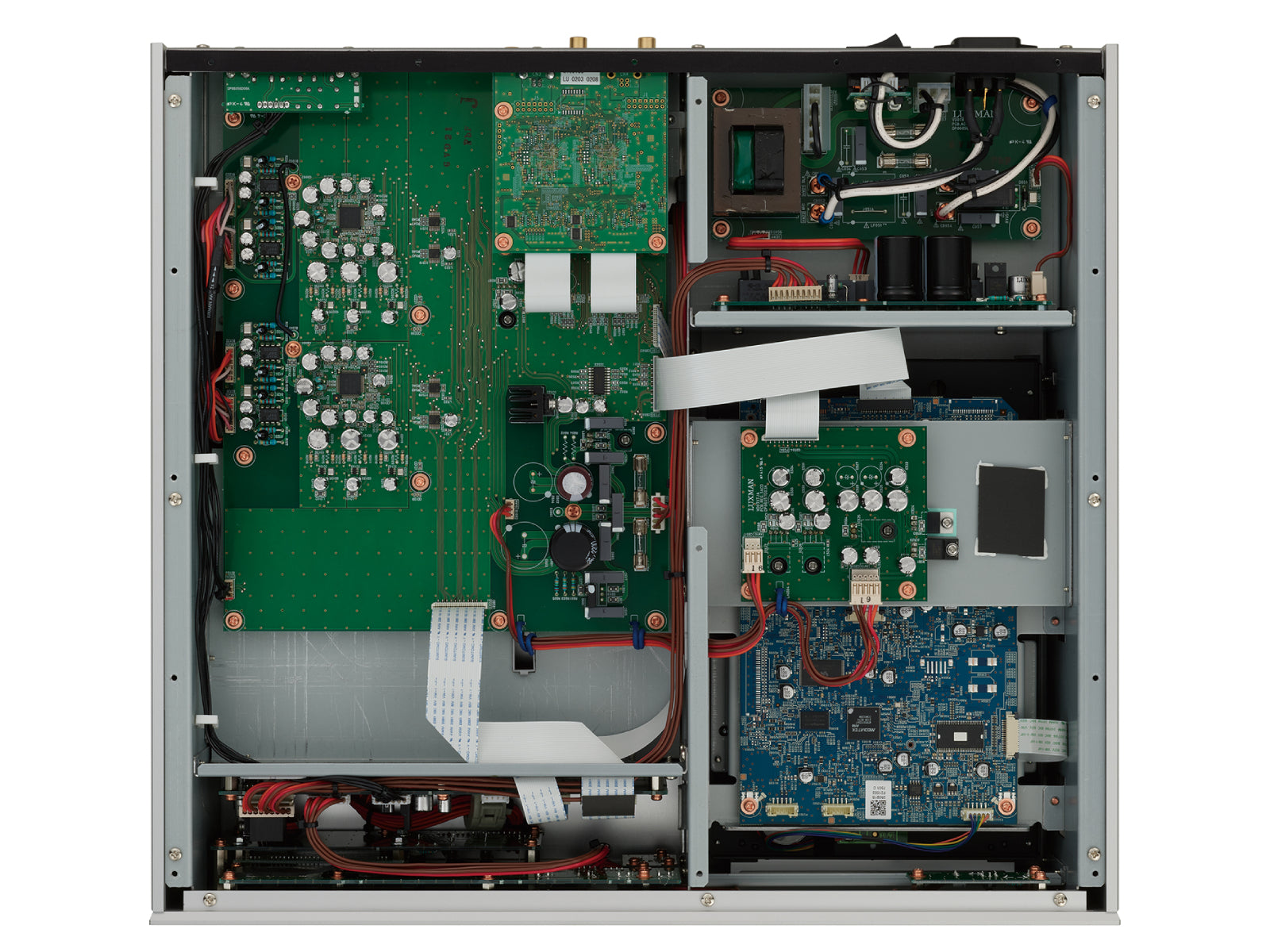

As a component that handles digital sources, high-precision signal reading by the drive mechanism and advanced digital signal processing are very important, but it goes without saying that the high performance analog output circuitry which determines the final audio quality is the most important factor in realizing that deep musical expression expected from high-end components designed by LUXMAN. The D-07X has a newly developed I/V conversion system that receives the differential outputs of the paired BD34301EKV DAC chips, operating in monaural mode, and feeds four discrete, perfectly matched amplifier modules. High-quality buffer circuitry lowers the impedance of the output signal. The unit powerfully drives any integrated amplifier or control amplifier that would be the next stage component. Out-of-audible-range filtering, which is essential for digital players, is performed in the buffer stage instead of having an independent LPF stage, enabling the reproduction of natural and smooth analog waveforms, resulting in higher clarity and more immediate sound quality.

Large-capacity power supply

The D-07X’s power transformer capacity has been increased by 50% compared to our D-06u model. Large capacity filter capacitors and independent regulator blocks have been installed for each circuit to develop a highly stable overall power supply environment traditional to LUXMAN. Again, clean and stable power has been achieved.

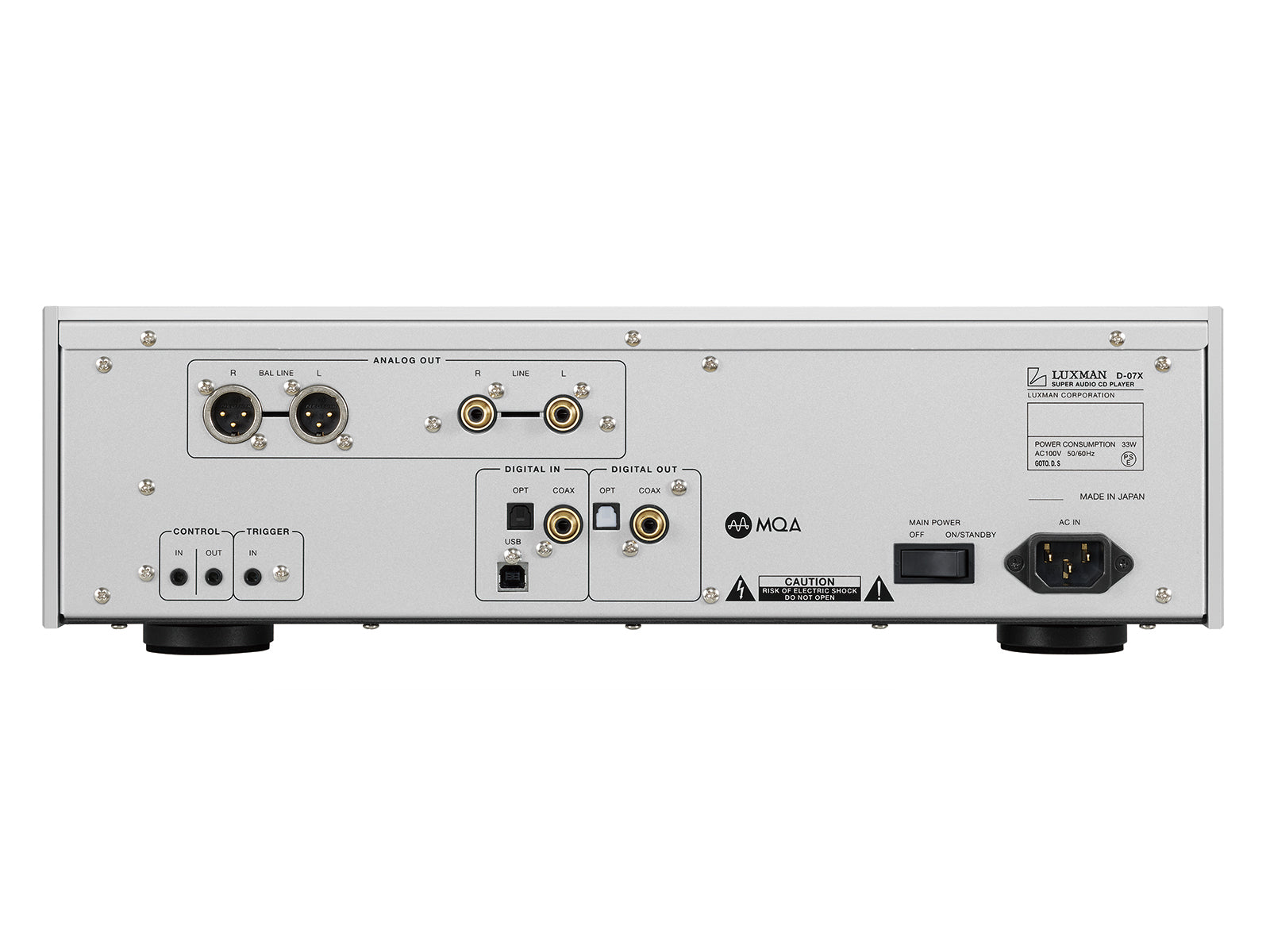

Abundant input / output terminals

The analog outputs are equipped with both 32mm pitch, gold-plated RCA terminals and newly adopted, Neutrik shielded XLR terminals. Abundant digital connectivity features a USB terminal that supports PCM/DSD input, with coaxial and optical input terminals that support PCM formats up to 192kHz/24bit, and coaxail and optical output terminals.

Specifications

Supported discs SACD, CD (CD-R, CD-RW, MQA-CD)
Supported sampling
frequencies
USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit)
USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit)
Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)
Analog output voltage /
impedance
Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω
For SACD / DSD : 2.3 V
Frequency response CD : 5 Hz to 20 kHz (+0, -1.0 dB)
SACD : 5 Hz to 38 kHz (+0, -3.0 dB)
USB : 5 Hz to 47 kHz (+0, -3.0 dB)
Total harmonic distortion CD : 0.0016 %, SACD : 0.0007 %, USB : 0.001 %
S/N ratio (IHF-A) CD : 122 dB, SACD : 125 dB, USB : 122 dB
D/A converter ROHM BD34301EKV (monaural mode) x 2
Power supply 230 V~(50 Hz) / 115 V~ (60 Hz)
Power consumption 37W
Dimensions 440(W) x 132(H) x 410(D) mm
front side knob of 2 mm and rear side terminal of 8 mm included in depth
Net weight 17.0 kg
Accessories Remote control (RD-29), Power cable
