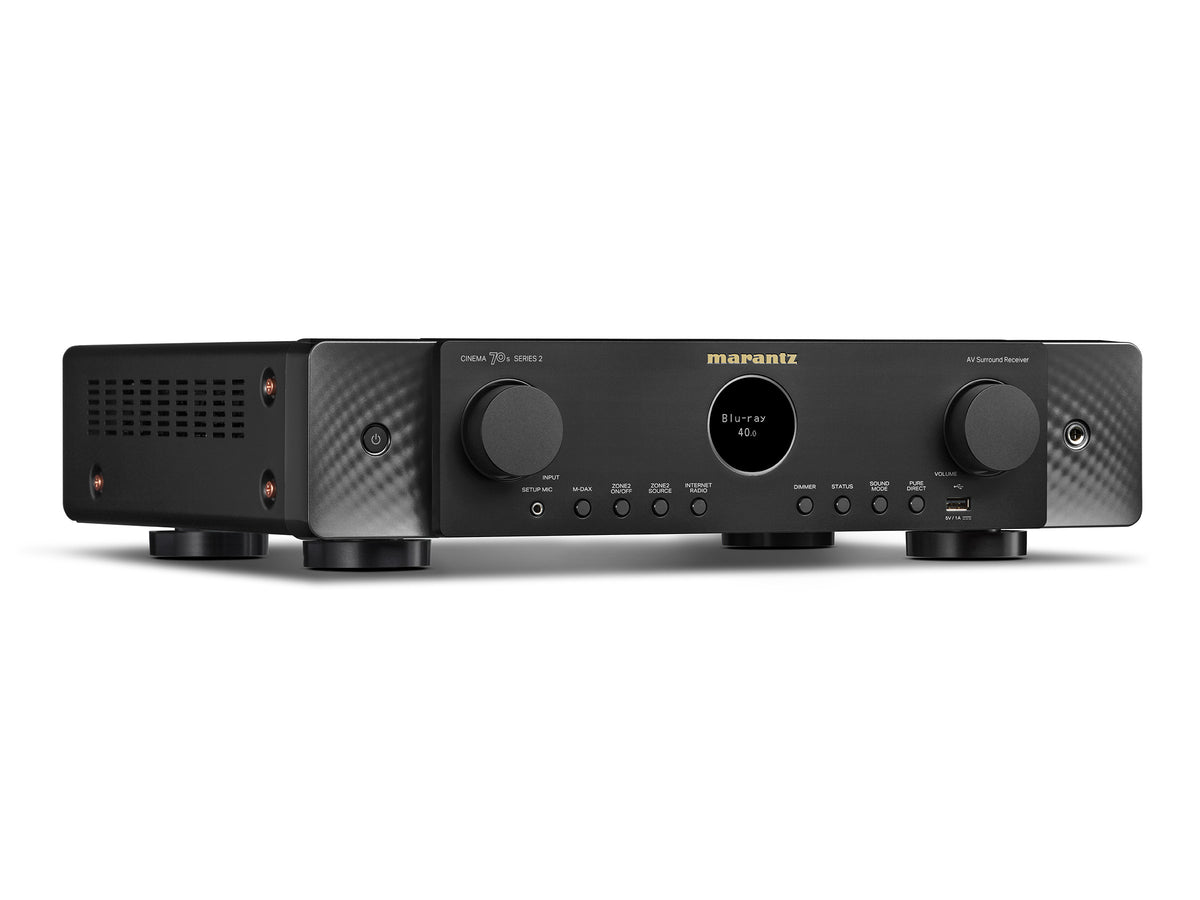

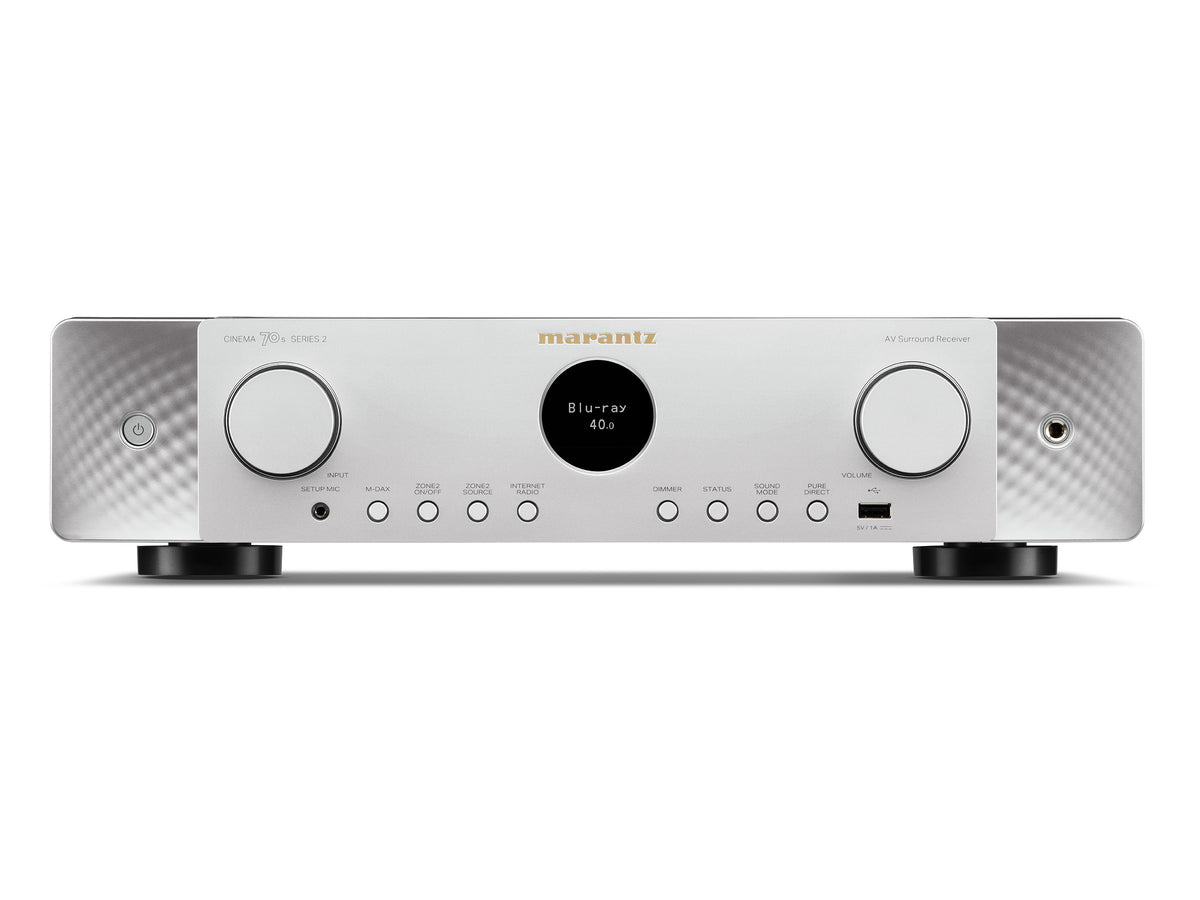

Marantz CINEMA 70s Series 2 AV Receiver

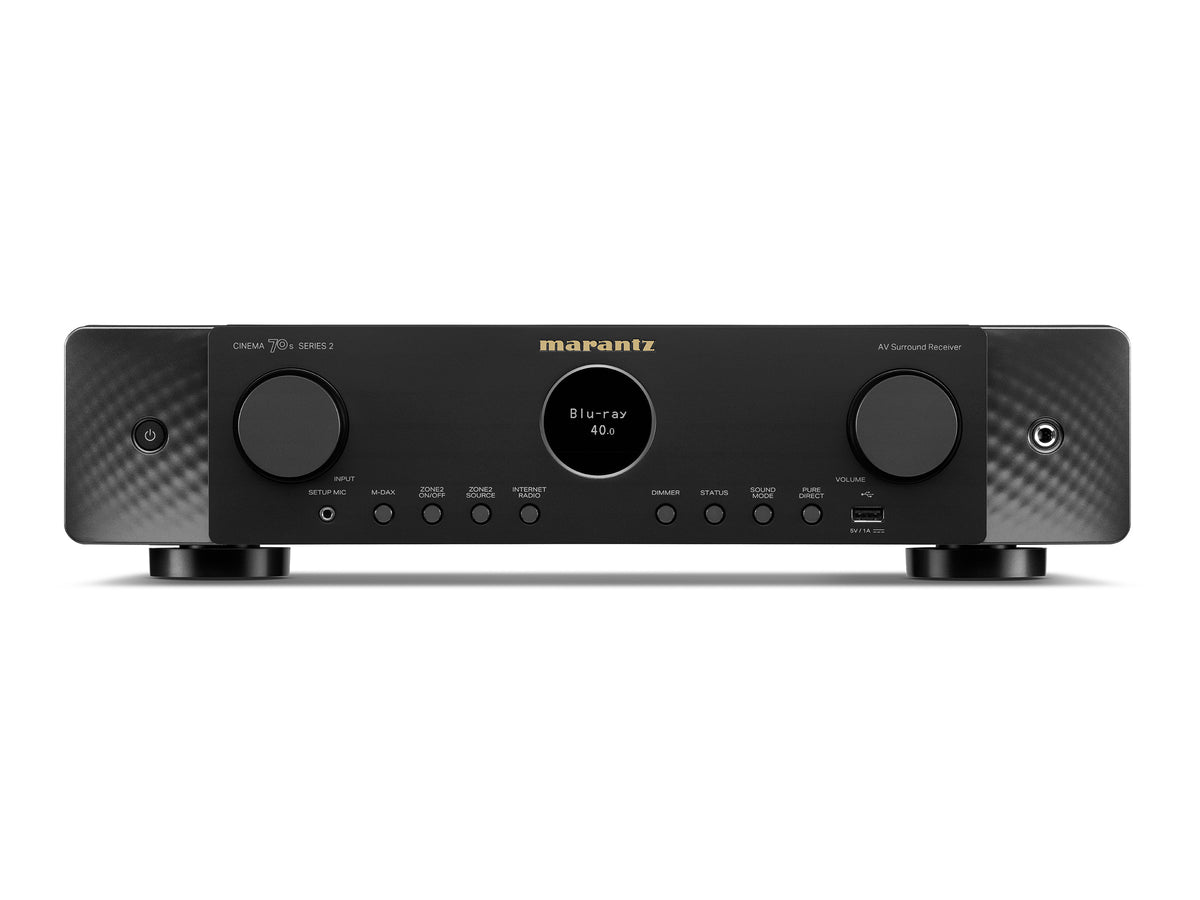

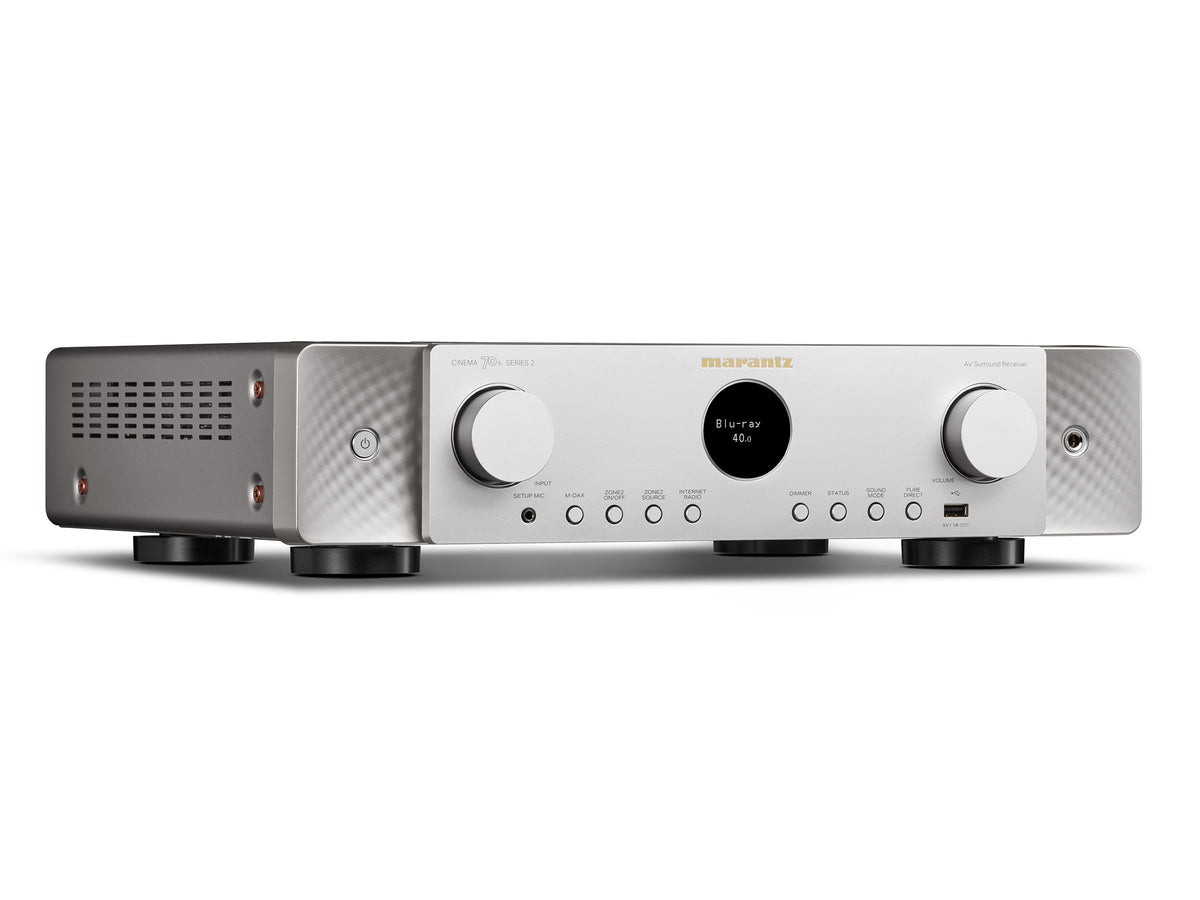

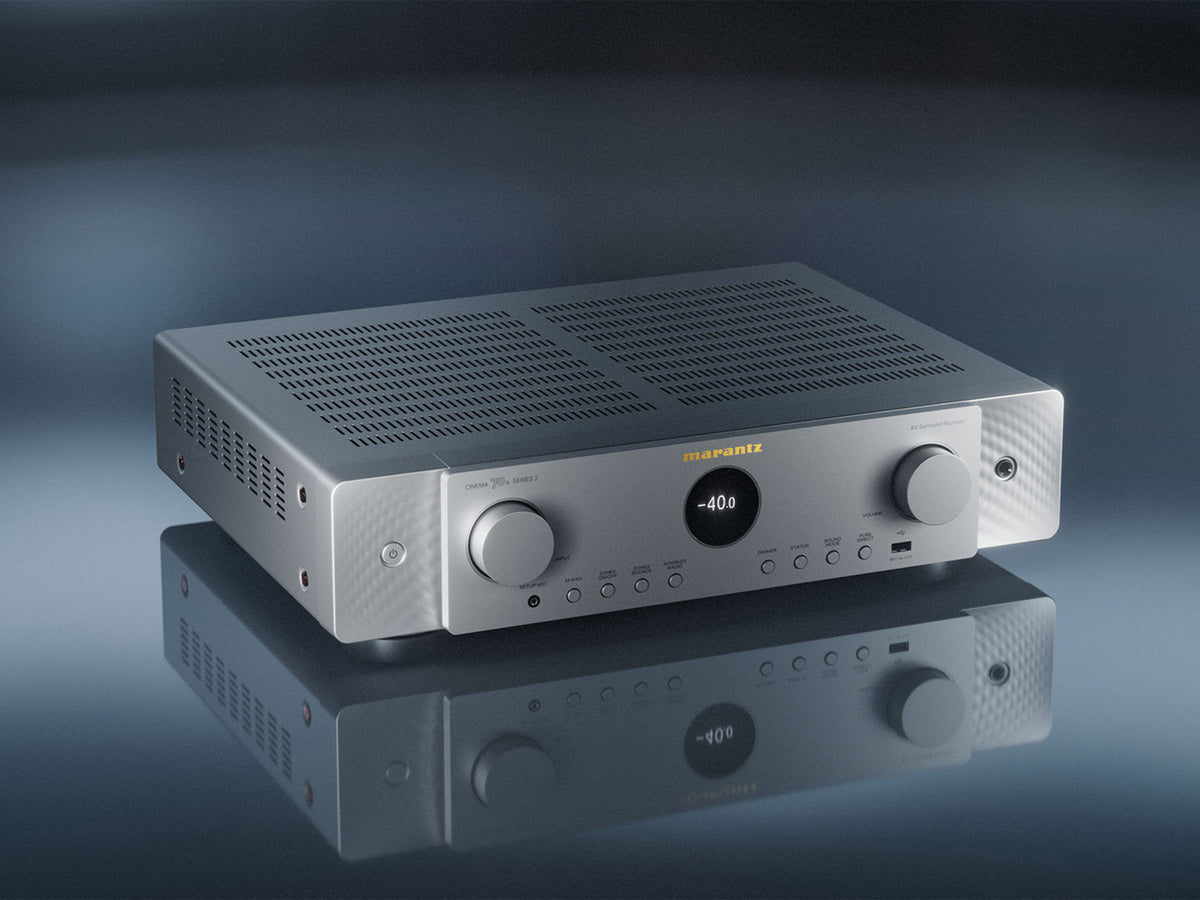

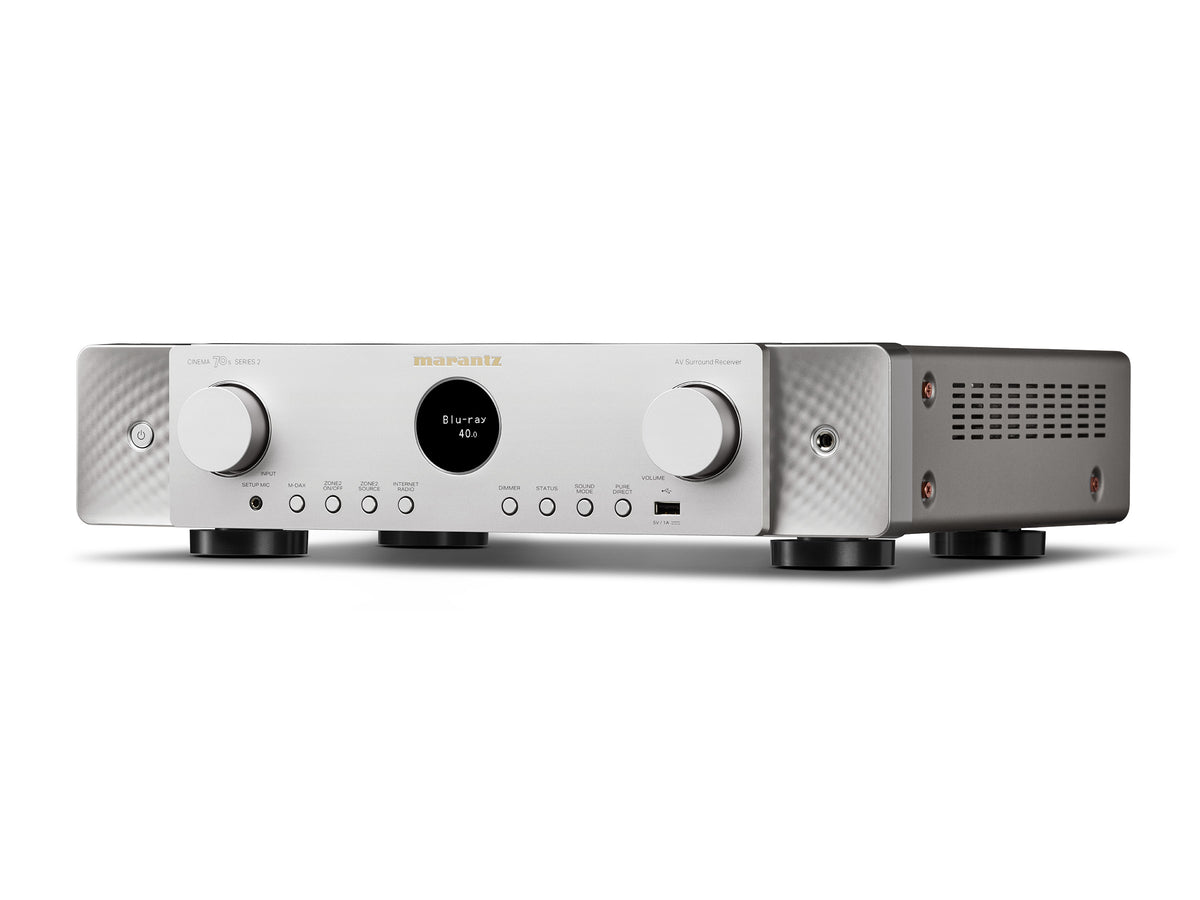

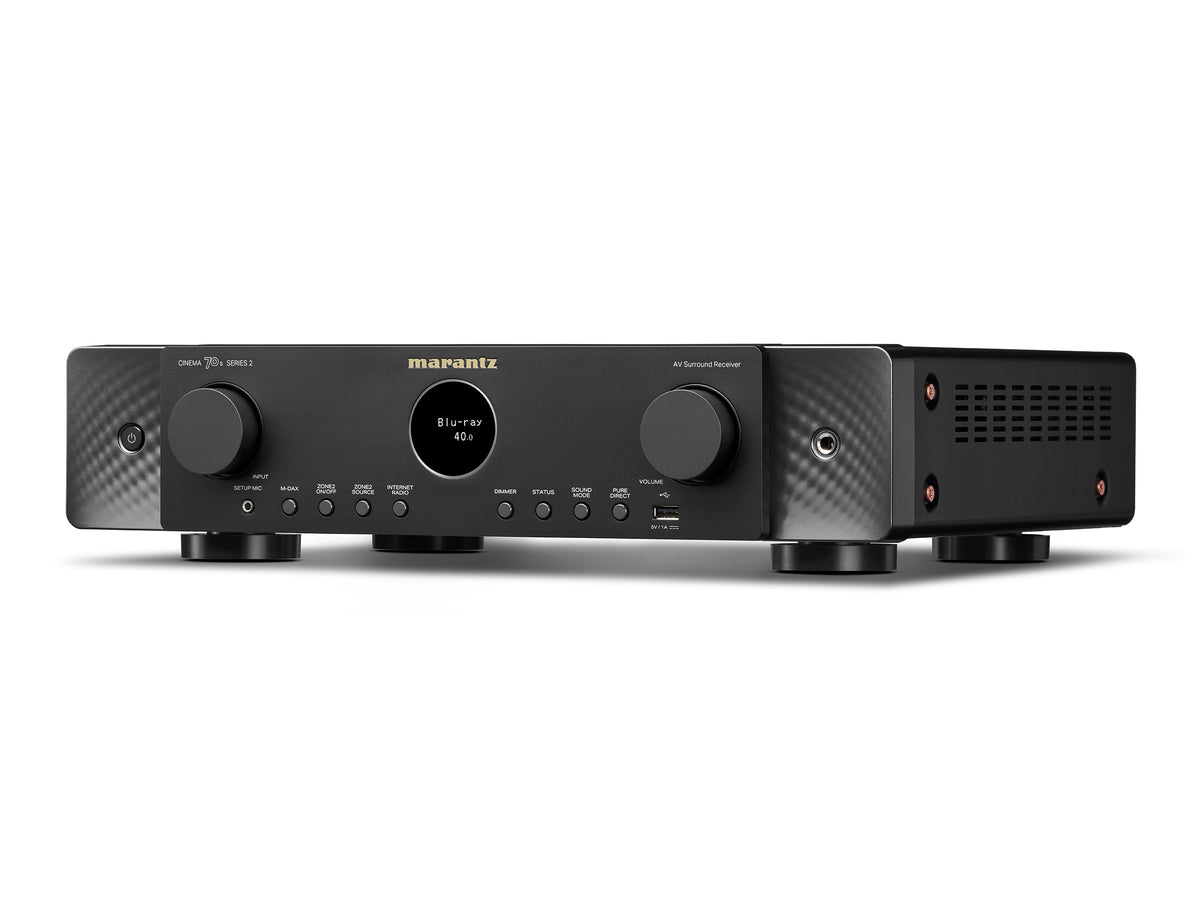

The Marantz CINEMA 70s Series 2 is a slimline 7.2-channel AV receiver for home cinema systems where a full-height receiver won't fit. It powers seven channels at 50 watts each, decodes Dolby Atmos and DTS:X, and has six HDMI inputs and an eARC output, with HEOS streaming built in. Room calibration is handled by Audyssey MultEQ XT, with Dirac Live available as an optional upgrade.
Features
- Slimline chassis, around 11cm tall
- Seven channels of amplification at 50 W per channel, plus two subwoofer outputs
- Dolby Atmos, DTS:X and DTS Virtual:X decoding
- Six HDMI inputs (three with 8K/60Hz and 4K/120Hz pass-through) and an eARC output
- Audyssey MultEQ XT room calibration, with optional Dirac Live upgrade
- HEOS multi-room streaming, AirPlay 2, Bluetooth and Roon Ready
Sound
The Series 2 adds an upgraded 32-bit, eight-channel DAC. As with the rest of the CINEMA range, the receiver is tuned by Marantz's Sound Master, with the aim of a balanced sound that suits music as well as film soundtracks. Pure Direct mode switches off processing and circuitry that isn't needed for straightforward listening.
Connections and Gaming

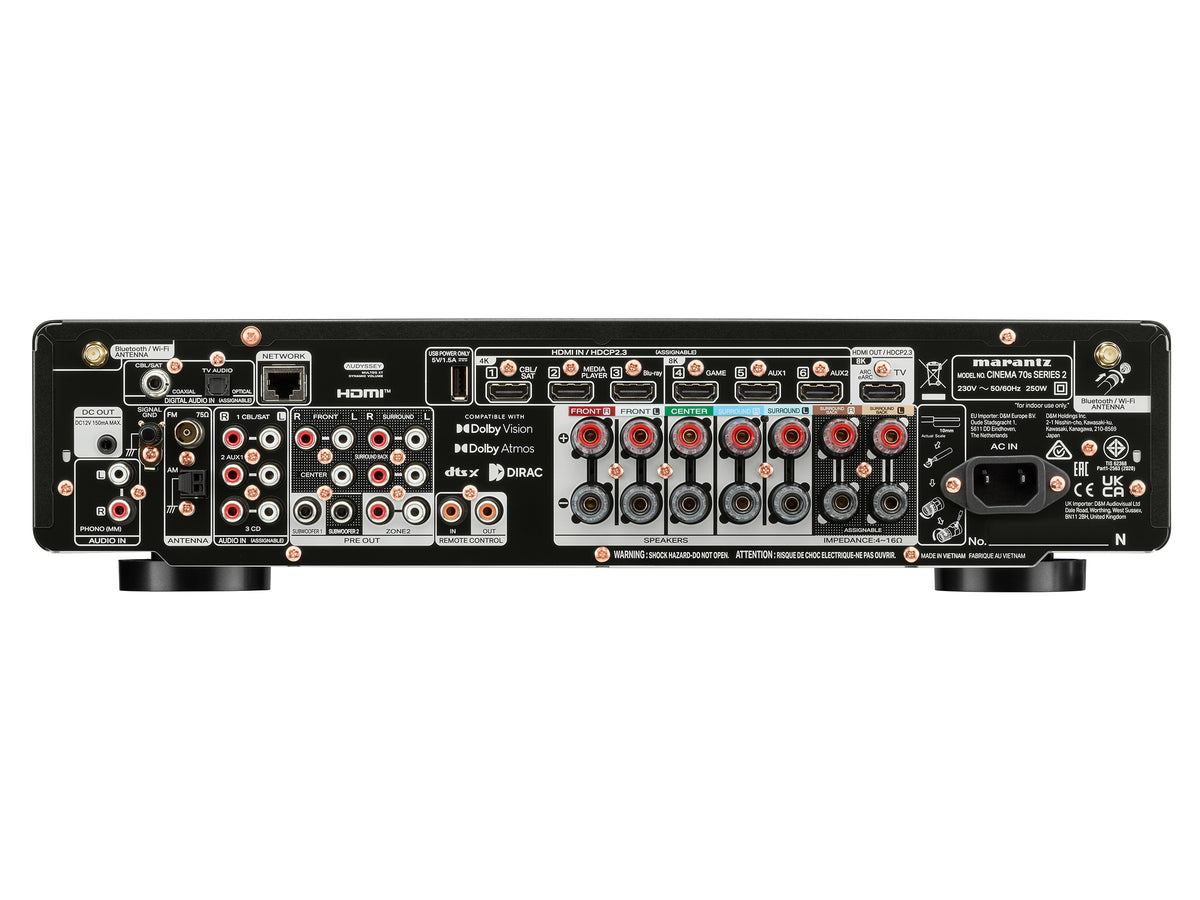

Three of the six HDMI inputs pass 8K/60Hz and 4K/120Hz signals at up to 40Gbps, and the receiver supports Dolby Vision, HDR10+, HLG and Dynamic HDR. For gaming, it passes through VRR, ALLM and Quick Frame Transport, and is AMD FreeSync compatible on HDMI inputs 4 to 6. Other connections include a moving-magnet phono stage, three analogue inputs, optical and coaxial digital inputs, a front USB port and a 7.2-channel pre-out for adding external power amplifiers.
Streaming and Multi-Room
HEOS brings streaming services and internet radio together in one app, and links the receiver with other HEOS products around the home. Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2 and Bluetooth are all supported, the receiver is Roon Ready, and it can send audio to Bluetooth headphones. A second zone can be run from the receiver's own amplifier or from its pre-outs.
Setup and Control
An on-screen setup assistant guides you through connecting and configuring your speakers, and the supplied microphone is used to calibrate the system to your room. Day-to-day control is via the remote or the Marantz AVR Remote and HEOS apps, and custom installers have IP control, an IR flasher input and a DC trigger output to work with.
Specifications
| Number of Power Amplifiers: | 7 |
| Power Output (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven): | 50 W |
| Power Output (6 Ohms, 1 kHz, 0.7% THD, 2 Channels Driven): | 70 W |
| Discrete Power Amplifier: | Yes |
| Power Transformer: | EI |
| Dolby Formats: | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualisation, Dolby Atmos Music, Dolby Surround |
| DTS Formats: | DTS-HD, DTS:X, DTS Neural:X, DTS Virtual:X |
| Multichannel Stereo: | Yes |
| Maximum Processing (Preamp) Channels: | 7.1 |
| Pure Direct: | Yes |
| Room Correction: | Audyssey MultEQ XT |
| Audyssey Dynamic EQ / Dynamic Volume: | Yes / Yes |
| Dirac Live: | Optional upgrade |
| Subwoofer Mode (Standard / Directional): | Yes / No |
| Variable Crossover: | Yes |
| Optimised Bass Redirection: | Yes |
| Compressed Audio Enhancer (MDAX2): | Yes |
| HDMI Inputs (Rear / Front): | 6 / 0 |
| HDMI Outputs (Main / Zone): | 1 / 0 |
| 8K/60Hz and 4K/120Hz Pass-Through (In / Out): | 3 / 1 (up to 40Gbps) |
| HDCP 2.3: | Yes |
| HDMI Upscaling: | 1080p/4K to 8K |
| eARC / ARC: | Yes / Yes |
| HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: | Yes / Yes / Yes / Yes / Yes |
| ALLM (Auto Low Latency Mode) Pass-Through: | Yes |
| Variable Refresh Rate / Quick Frame Transport / Quick Media Switching: | Yes / Yes / No |
| AMD FreeSync Compatible: | Yes (HDMI 4–6) |
| 3D Pass-Through: | Yes |
| HDMI Pass-Through in Standby: | Yes |
| CEC: | Yes |
| Auto Lip Sync: | Yes |
| Analogue In / Out: | 3 / 0 |
| Phono (MM) Input: | Yes |
| Digital Inputs (Optical / Coaxial): | 1 / 1 |
| Multichannel Pre-Out: | 7.2 |
| Subwoofer Outputs: | 2 |
| Multi-Room Out (Analogue / Digital): | 1 / 0 |
| Number of Speaker Terminals: | 7 |
| Speaker Terminals: | Regular Screw |
| Speaker A / B: | Assignable |
| Bi-Amp Drive: | Assignable |
| Multi-Room Speaker Terminals: | Assignable |
| Front Inputs: | USB |
| USB Audio / Made for iPod / Made for iPhone: | Yes / No / No |
| AM/FM Tuner: | Yes |
| HEOS Multi-Room and Streaming: | Yes |
| Wi-Fi / Bluetooth / Ethernet: | Yes / Yes / Yes |
| Bluetooth Transmit to Headphones: | Yes (with volume control) |
| AirPlay: | AirPlay 2 |
| Network Audio Sharing: | Yes |
| Lossy Formats: | MP3 / WMA / AAC |
| Lossless Formats: | FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 |
| DSD Audio Streaming: | 2.8 MHz / 5.6 MHz |
| Gapless Playback: | FLAC, WAV, ALAC, DSD |
| Internet Radio: | TuneIn |
| Spotify Connect / TIDAL Connect / Qobuz Connect: | Yes / Yes / Yes |
| Pandora / SiriusXM: | Yes / Yes |
| Other Streaming Services: | Amazon Music / TIDAL / Deezer / iHeartRadio / SoundCloud / Mood Mix |
| Roon Ready: | Yes |
| Smartphone Apps: | Marantz AVR Remote, HEOS |
| Tablet App Compatibility: | Android / iOS / Amazon Kindle |
| Multi-Room Zones: | 2 |
| Zone Audio Sources (HDMI / Optical, Coaxial / Network, USB / Analogue): | No / Yes (2ch) / Yes / Yes |
| Zone Audio Output (Speaker / Pre-Out): | Yes / Yes |
| HEOS Link Compatibility (IR / IP): | Yes / Yes |
| IP Control / RS-232 Control / Web Control / App Control: | Yes / No / Yes / Yes |
| IR Flasher Input / Marantz Remote Bus: | Yes / Yes |
| DC Trigger Outputs: | 1 |
| HDMI Diagnostics: | Yes |
| Front Display: | Porthole OLED |
| Graphical User Interface: | HD GUI, 3 languages |
| Setup Assistant / Smart Select: | Yes / Yes |
| Firmware Update (Network / USB): | Yes / Yes |
| ECO Mode / Auto Power Off / Sleep Timer: | Yes / Yes / Yes |
| Finish: | Black |
| Remote Control: | RC055SR |
| Power Consumption: | 250 W |
| Power Consumption, No Sound (ECO On / Off): | 30 W / 40 W |
| Standby Power Consumption: | 0.2 W |
| CEC Standby Power Consumption: | 0.5 W |
| Network Standby Power Consumption: | Less than 2.0 W |
| Dimensions, Antenna Horizontal (W x D x H): | 442 x 384 x 109 mm (17.4 x 15.1 x 4.3 in) |
| Dimensions, Antenna Vertical (W x D x H): | 442 x 384 x 178 mm (17.4 x 15.1 x 7.0 in) |
| Dimensions, Without Antenna (W x D x H): | 442 x 373 x 109 mm (17.4 x 14.7 x 4.3 in) |
| Weight: | 8.7 kg (19.2 lb) |
