Marantz Model 10 Reference Integrated Amplifier
The Marantz MODEL 10 Reference integrated amplifier promises to be a new reference amplifier for Marantz. The MODEL 10 features their newly designed dual-mono symmetrical amplifier topology and is Marantz's most powerful, highest performing amplifier. It promises to be a must hear when looking for an amplifier in this class.
Features
- 2 Channels
- 250 Watts per Channel with lowest distortion ever from Marantz
- All-New Marantz SMPS
- Fully balanced design with dual mono amplifiers and individual power supplies and individual power supplies
- Phono MM/MC
- Power Amplifier mode with Pre-Amplifier switch off for use with LINK 10n
- FCBS supports use of multiple MODEL 10 amps to power larger systems
- Copper-plated chassis
- Compartmentalized, ultra-rigid construction for minimised internal interference plus exclusive meshtop cover with background illumination
A New Benchmark
MODEL 10 is a testament to decades of expertise in audio engineering, embodying the pinnacle of craftsmanship and innovation. From its triple-layer aluminum chassis with copper shielding to its entirely original multi-layer PCBs, isolated sub-enclosures, and newly developed HDAM modules, every element of MODEL 10 has been designed with precision. This meticulous construction and integration of state-of-the-art technologies establish a new benchmark in high-fidelity audio, combining superior performance with elegant design.
Marantz Master Sound
MODEL 10 retains the classic Marantz sonic signature, characterized by warmth, spaciousness, and exceptional resolution. Through advancements in design and precise tuning by the Marantz Sound Master, this amplifier delivers the purest expression of the Marantz sound to date. The result is an audio experience marked by unprecedented detail, minimal distortion, and an expanded dynamic range, offering listeners a deeper, more immersive auditory experience.
Refinement and Power

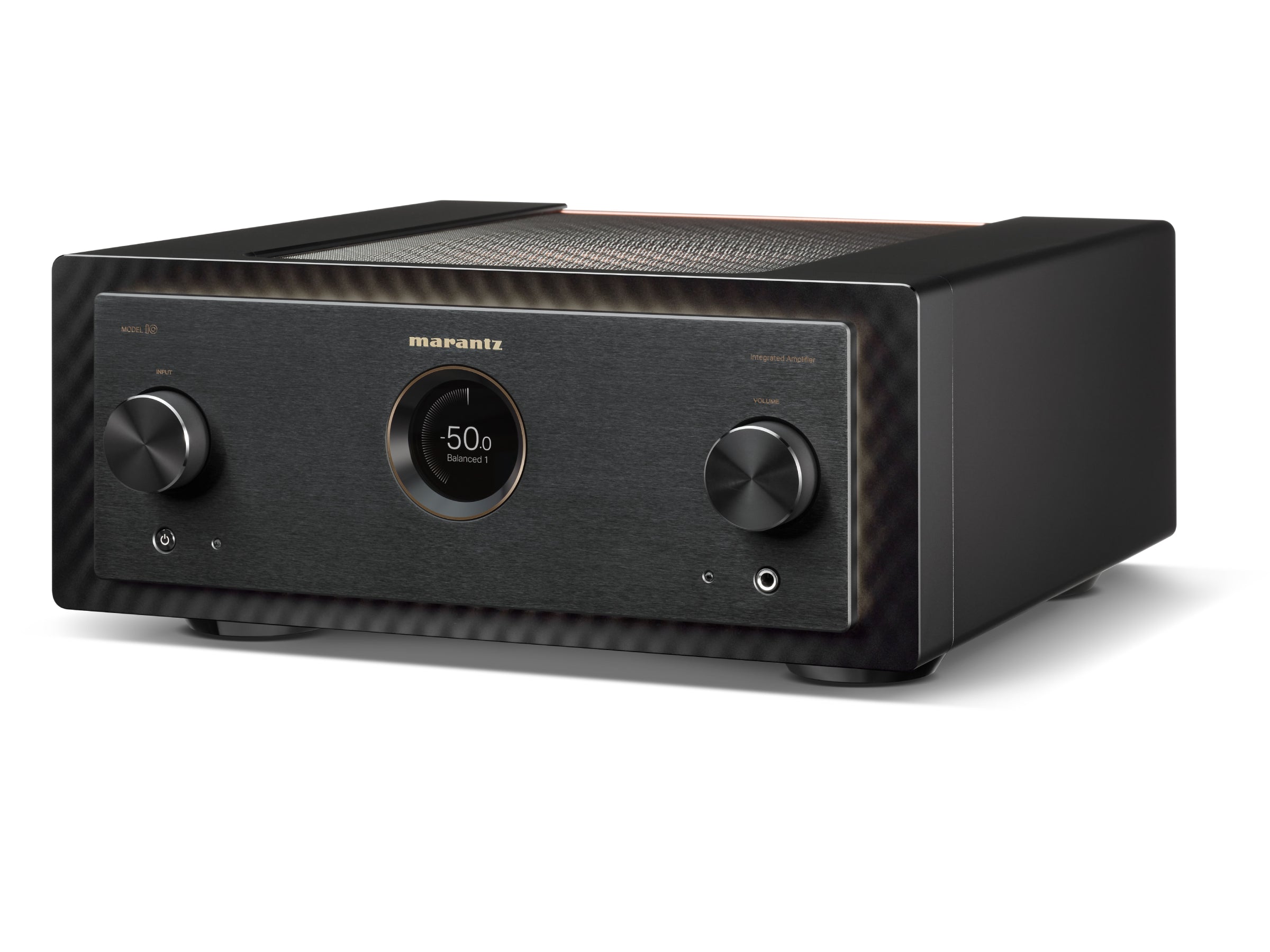

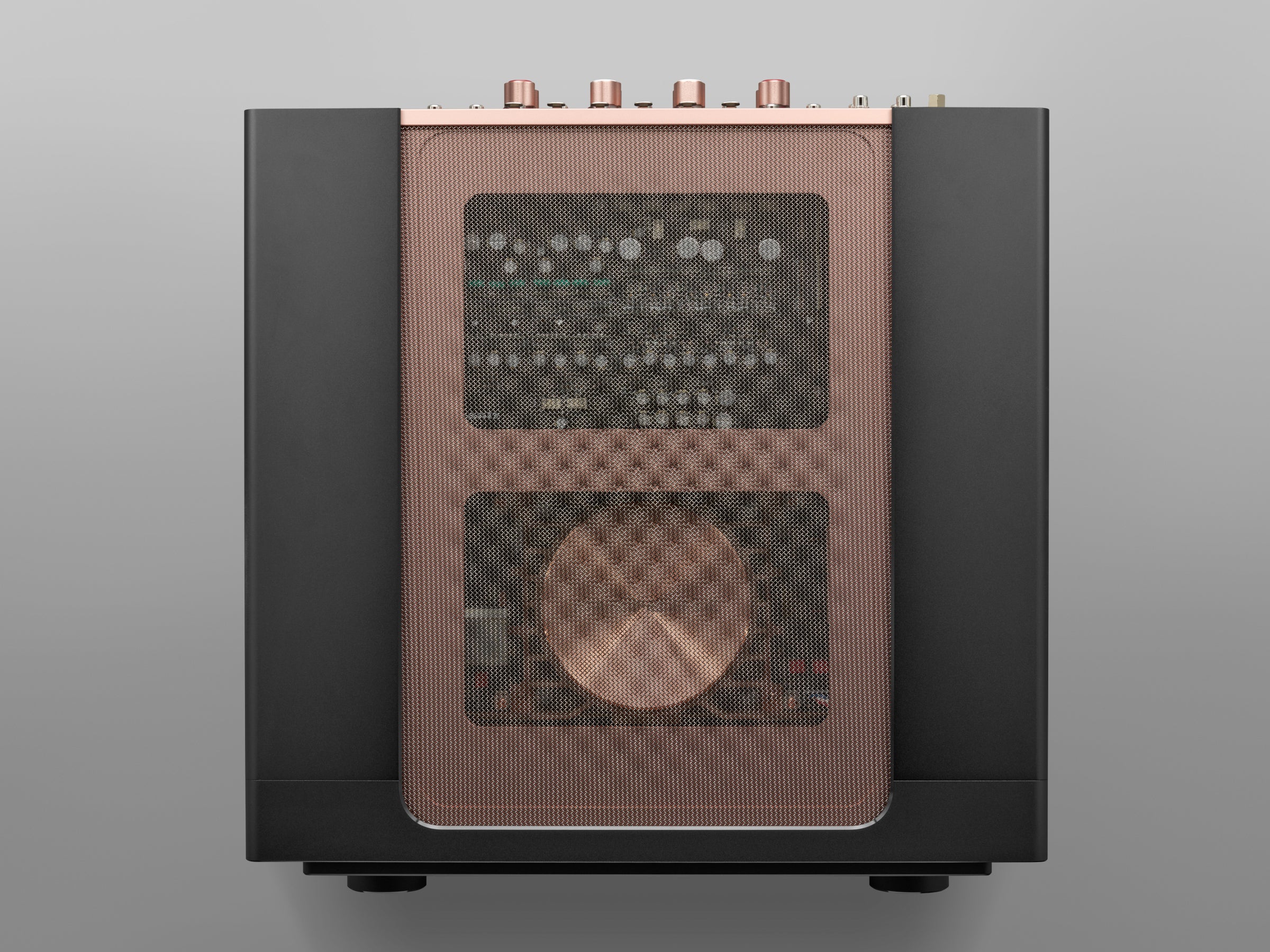

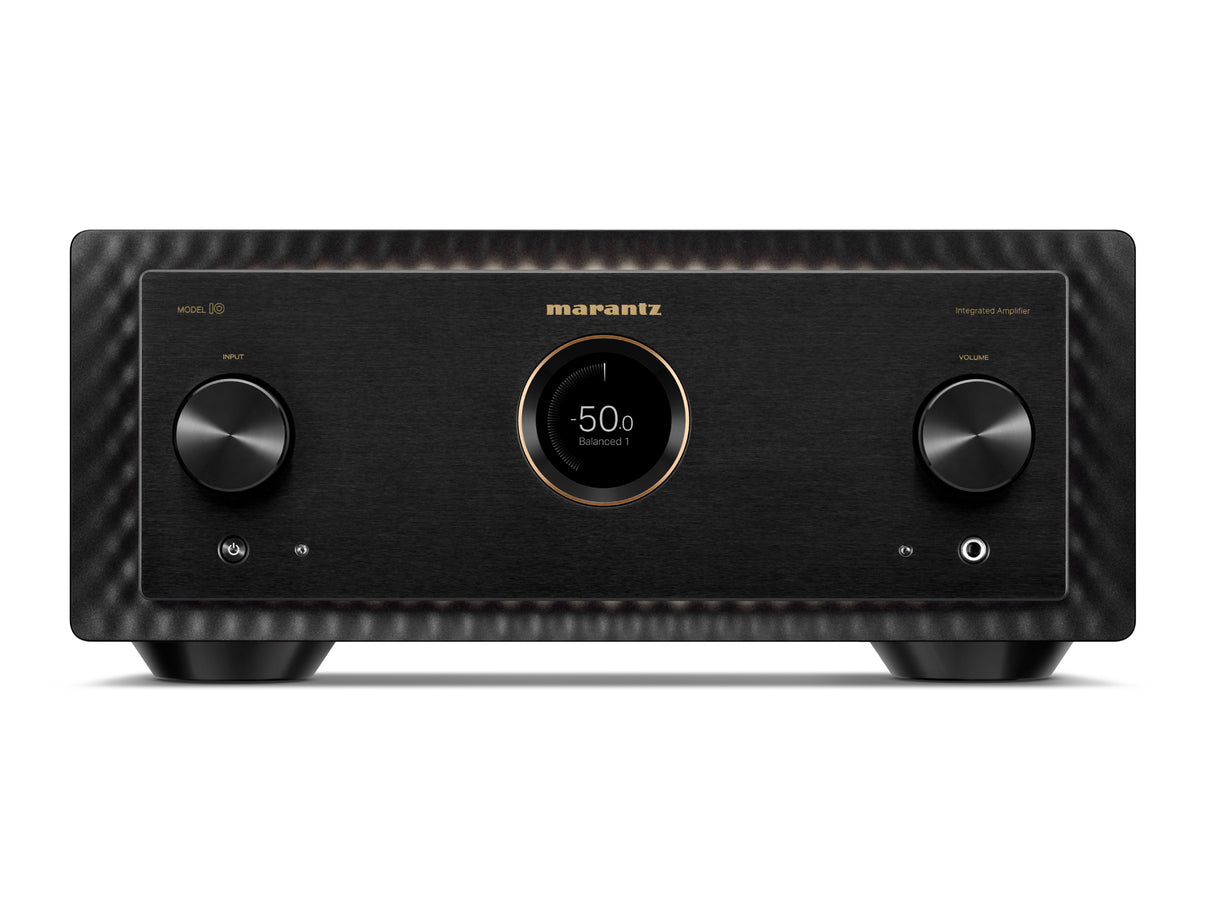

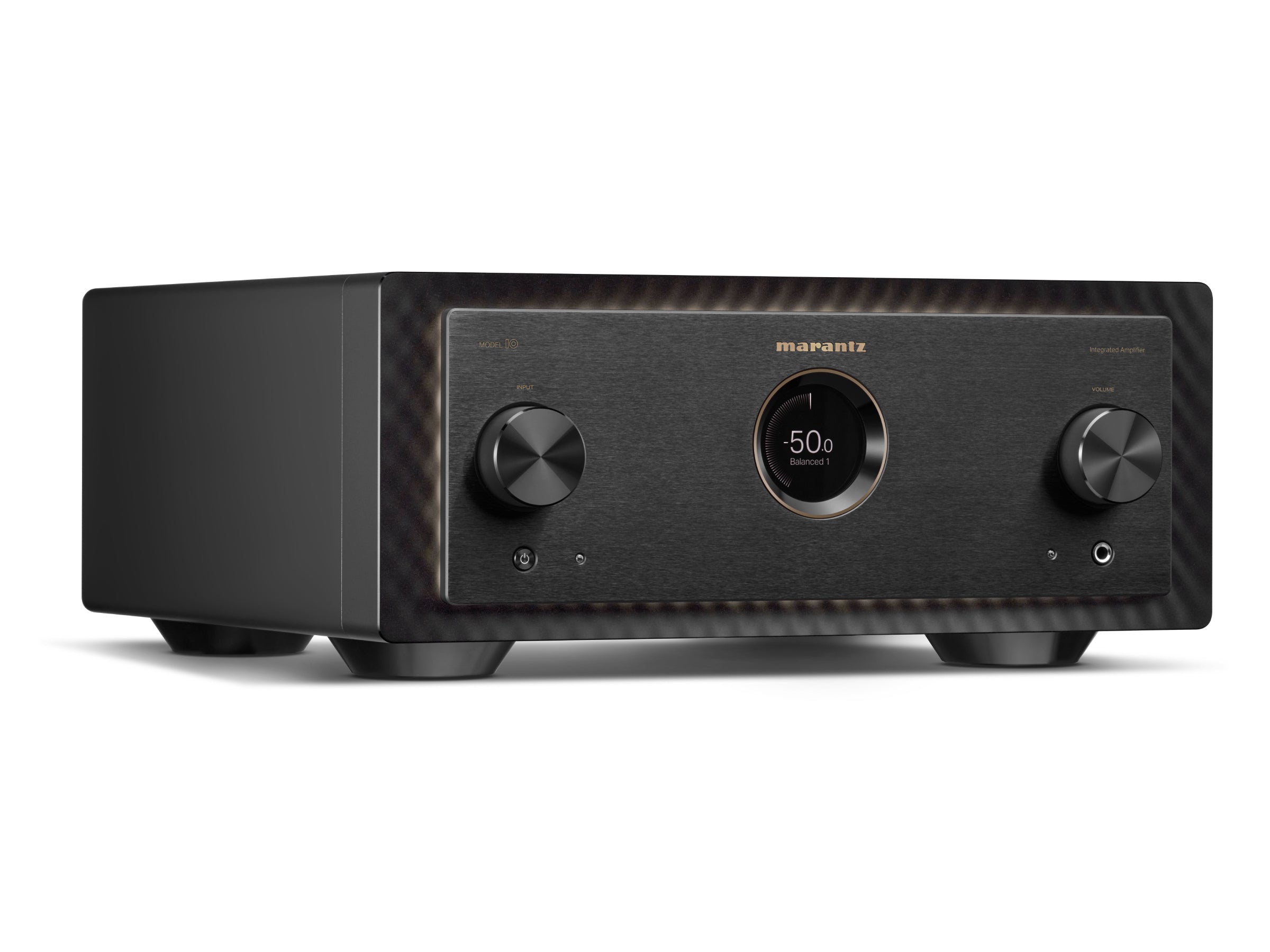

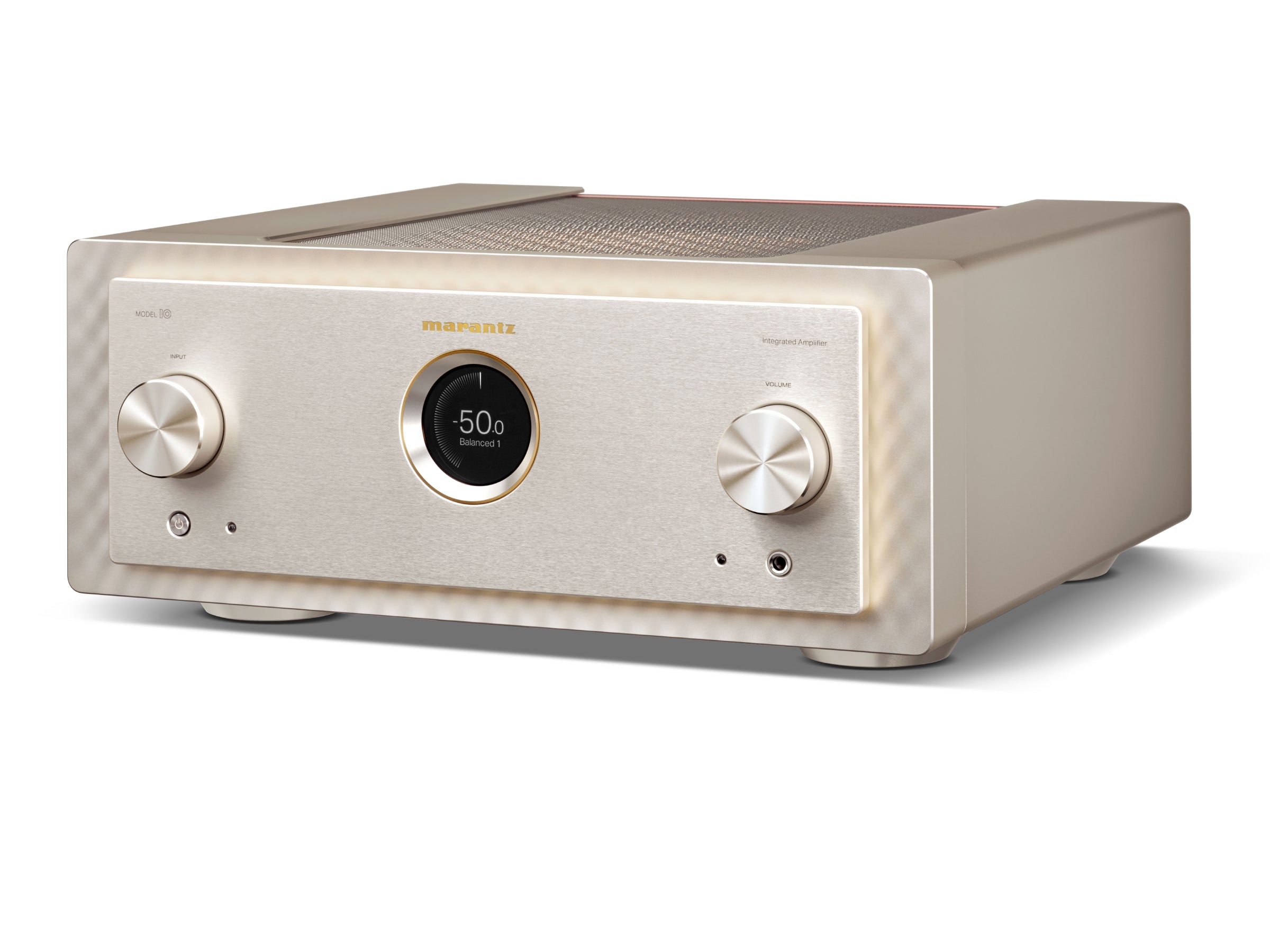

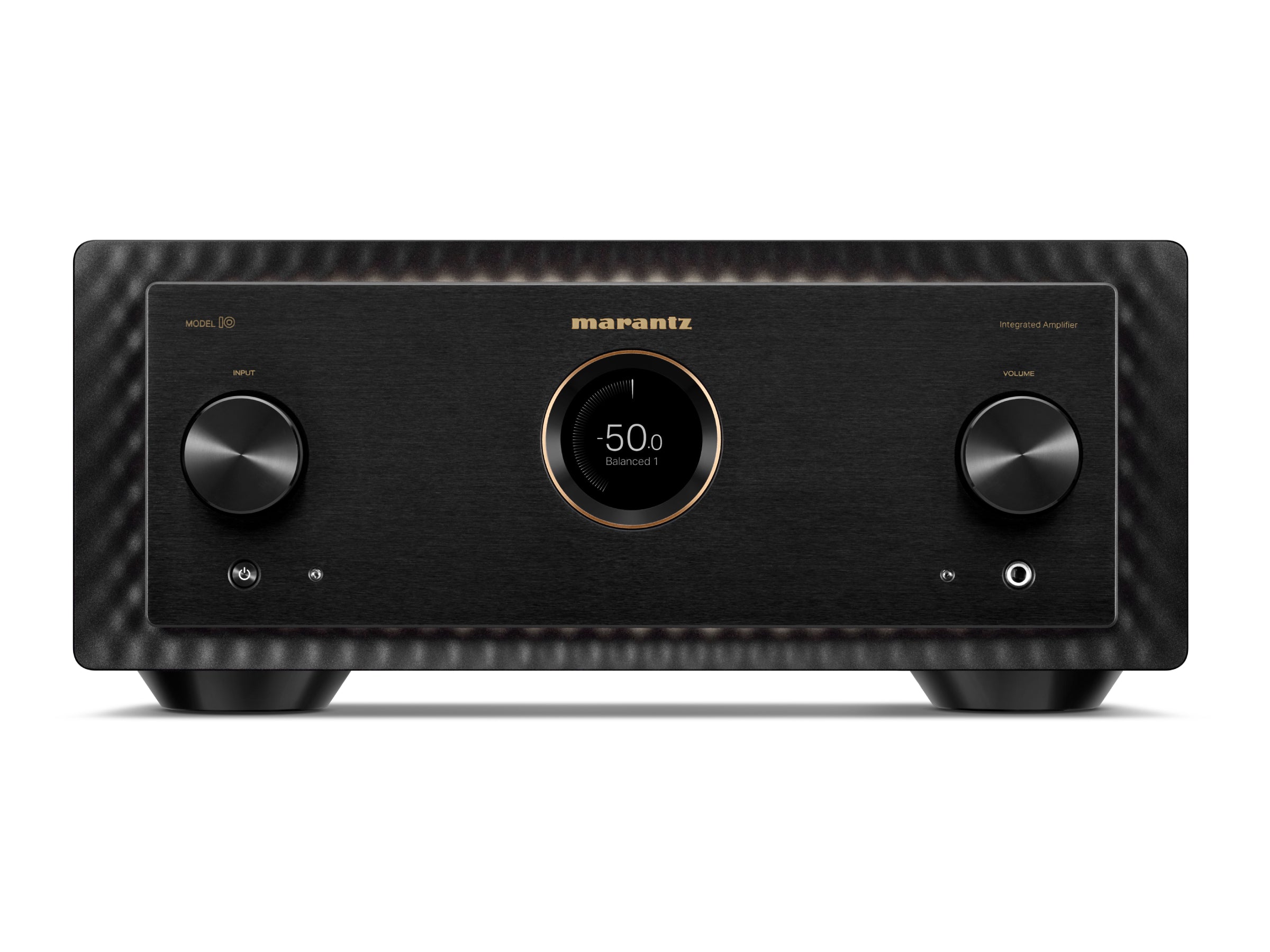

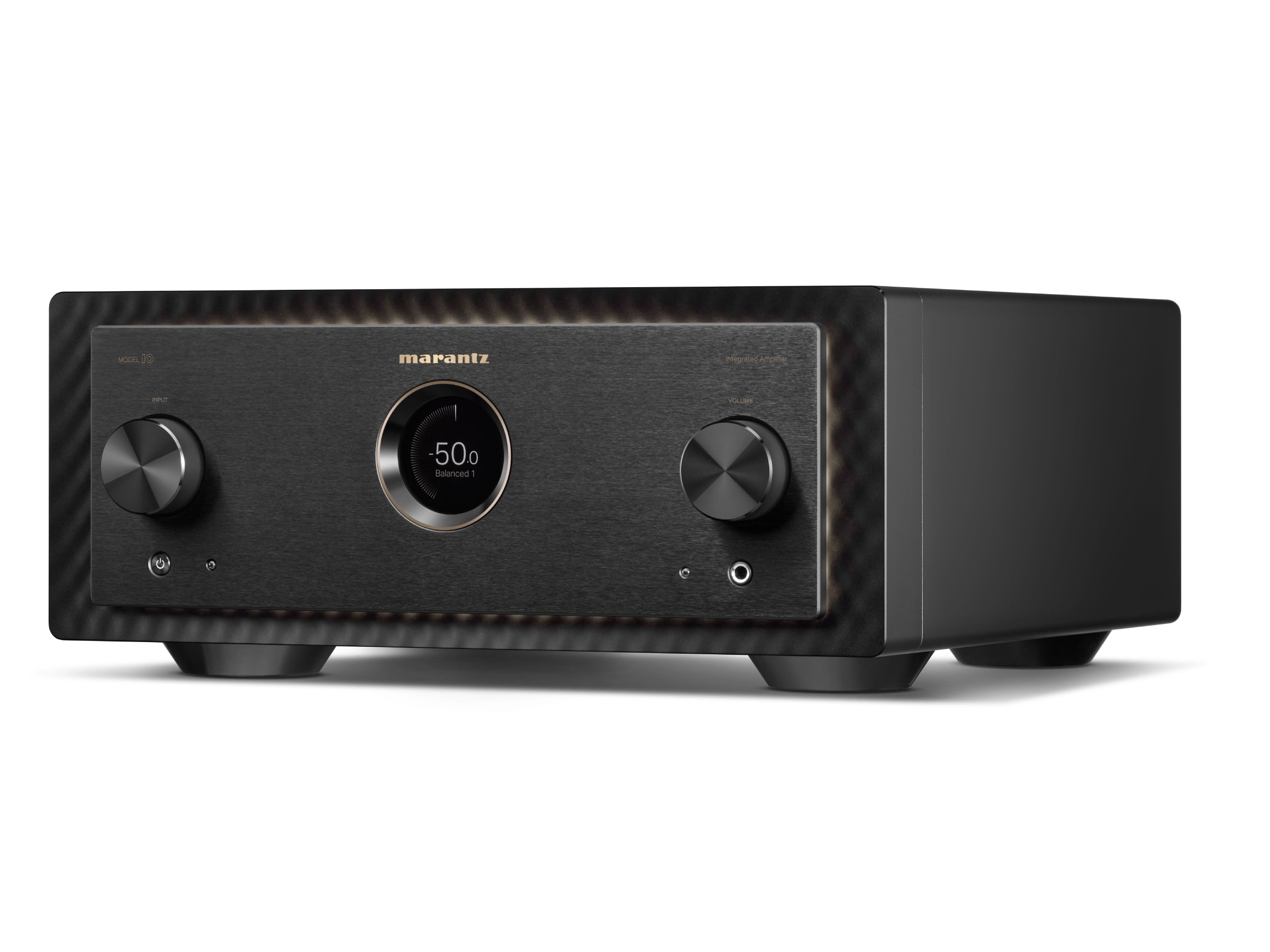

Encased in a copper-plated, triple-layered chassis, MODEL 10 features a brushed aluminum front and an illuminated mesh cover grille that showcases its inner components. The amplifier’s lighting highlights the meticulously arranged circuit boards, high-quality components, and a specially designed transformer case. Reflecting Marantz’s design heritage, the front porthole houses a high-resolution full-color OLED display for volume and input selection, accompanied by a digital VU meter that echoes the style of vintage analog meters.
Expanding the MODEL 10 Collection
Conceived and engineered in Shirakawa, Japan, MODEL 10 is designed to deliver the highest levels performance. Following its launch, the MODEL 10 collection will expand with the introduction of the SACD 10, a statement-quality SACD player crafted to the same rigorous standards as the amplifier.
Completing this exceptional lineup will be the LINK 10n Streaming Preamplifier, solidifying the MODEL 10 series as a comprehensive suite of high-end stereo components.
Specifications
| Rated Output Power: | 250W + 250W (8ohm, 20Hz-20kHz, THD 0.05%) |
| 500W + 500W (4ohm, 20Hz-20kHz, THD 0.05%) | |
| Speaker Impedance: | 4~16ohm |
| Frequency Response: | 5Hz~60kHz +0dB/-3dB |
| 20Hz~20kHz +0dB/-0.3dB | |
| Total Harmonic Distortion: | 0.005% (125W, 8ohm, 20-20kHz) (CCIF IMD, DFD IMD) |
| Damping Factor: | 500 (8ohm, 20Hz-20kHz) |
| Input Sensitivity: Phono Input: | MM: 3.6 mV / 36 kohm |
| MC (Low): 400 μV / 33 ohm | |
| MC (Mid): 400 μV / 100 ohm | |
| MC (High): 400 μV / 390 ohm | |
| RIAA Deviation: | 20 Hz - 20 kHz ±0.5 dB (MM/MC) |
| Phono Maximum Input: | MM: 80mV |
| MC: 8mV | |
| Input Sensitivity: CD/LINE/RECORDER | 350 mV/41kohm (Unbalanced) |
| 700 mV/36kohm | |
| Input Sensitivity: Power Amp Input: | Unbalanced: 1.58V / 41kohm (Gain: 29dB) |
| Balanced: 3.16V / 15kohm (Gain: 24dB) | |
| SN Ratio: | PHONO (MM): 88dB |
| PHONO (MC): 76dB | |
| CD: 122dB | |
| Balanced: 122dB | |
| Headphone Output Level: | 130mW / 32 ohms |
| Tone Control: | BASS: 50Hz ±10dB |
| TREBLE: 15kHz ±10dB | |
| Power Consumption: | 270W |
| 0.1W (at Standby) | |
| Phono Input: | Yes (MM / MC) |
| Marantz Musical Premium Phono EQ with Selectable MC impedance (3 positions) | |

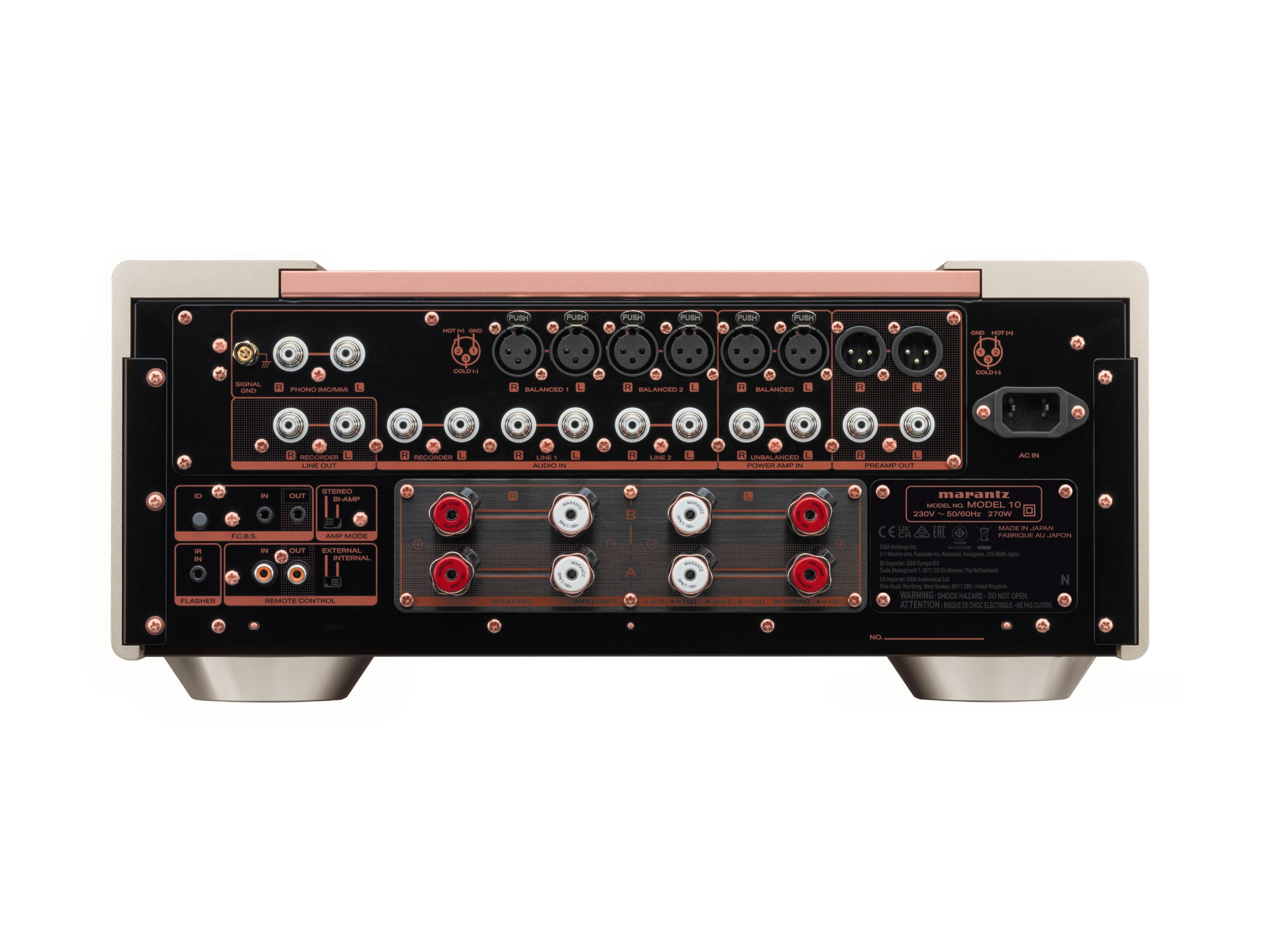

| Analog Input: (including Phono) / REC Out (RCA) | 4 / 1 |
| (LINE1, LINE2, PHONO: Thick nickel plated independent terminals) | |
| (RECORDER: Thick nickel plated independent terminals) | |
| Balanced XLR Input: | 2 |
| Power Amp Direct: | Yes (RCA: Thick nickel plated independent terminals / XLR) |
| Pre-Out: | Yes (RCA: Thick nickel plated independent terminals / XLR) |
| 2 Sets of Speaker Output: | Yes (Bi-wiring) |
| Speaker Terminal: | Marantz Original SPKT-100+, 2 (High quality and high-purity copper plated) |
| Headphone Output: | 1 (Turns off the speaker automatically when headphone is inserted) |
| Heatsink for Power Amplifier: | Extruded Aluminum |
| Foot: | Solid Aluminum Copper plated (H: 18.5mm) |
| Input Selector: | Solid aluminum (Bearing construction) |
| Front (Center) Panel: | Anodized machined aluminum |
| Front Panel Illumination: | Yes (All sides, Dimmer) |
| Side Cover: | Aluminum (Thickness: Max 15.8mm) |
| Top Cover: | Aluminum (Thickness: 6mm) |
| Top Cover (Center) Ventilation Hole Material: | Stainless mesh |
| Interior Illumination: | Yes, dimmable |
| Rear Panel: | Copper Plated |
| Chassis Material: | Copper Plated |
| Bottom Layer / Bottom Plate: | Triple layer Copper plated |
| Volume Knob: | Solid aluminum (Bearing construction) |
| Unit Dimensions: (W × H × D mm) | 440 × 192 × 473 |
| Cabinet Size: (W × H × D mm) | 440 × 192 × 422 |
| Net Weight: | 33.7kg |
| Packaging Dimensions: (W × H × D mm) | 600 × 379 × 540 |
| Packaging Gross Weight: | 39.0kg |
| Carton Color: | 1 Colour (Material color: Brown, Printing: Black) |

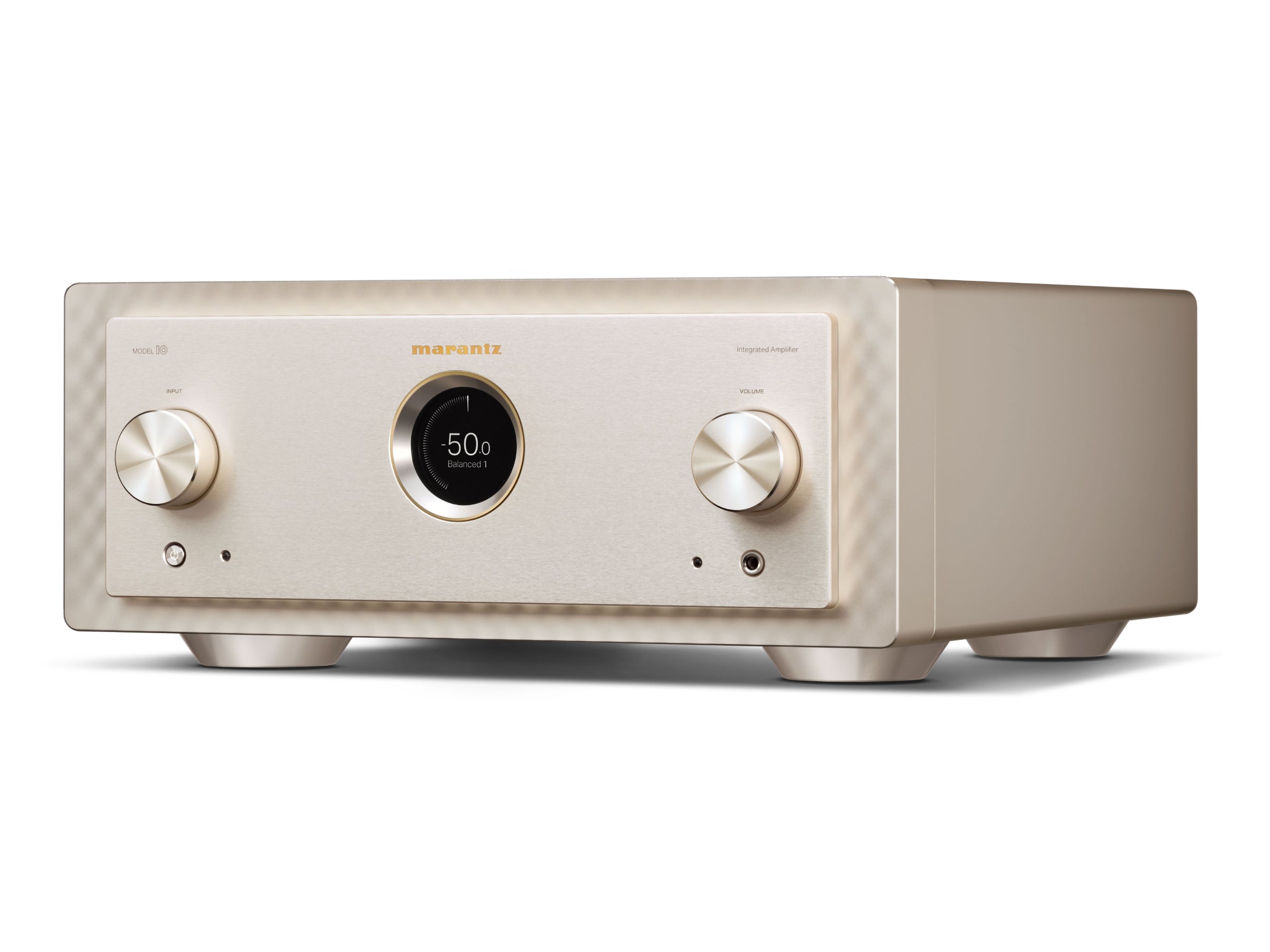

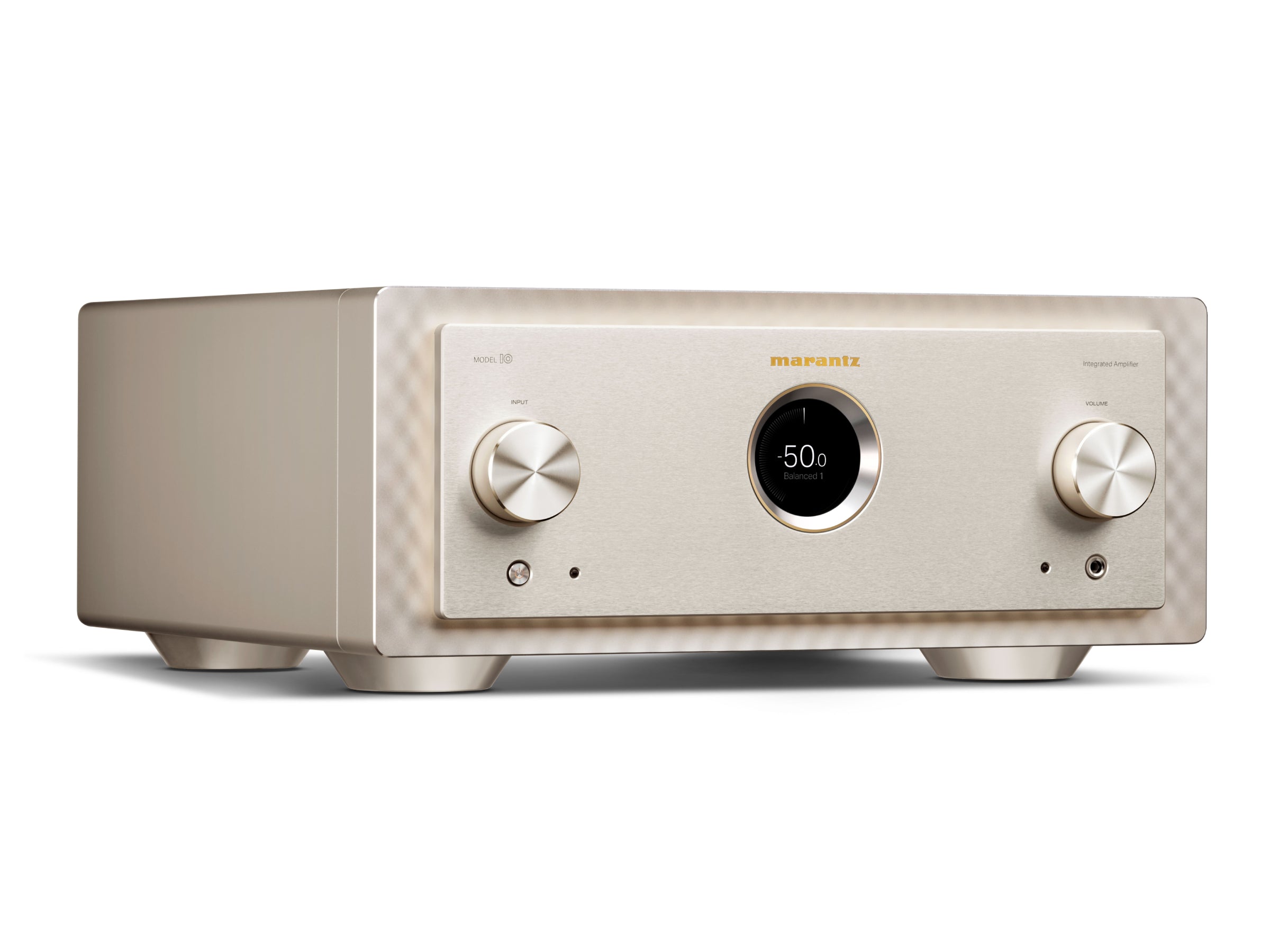

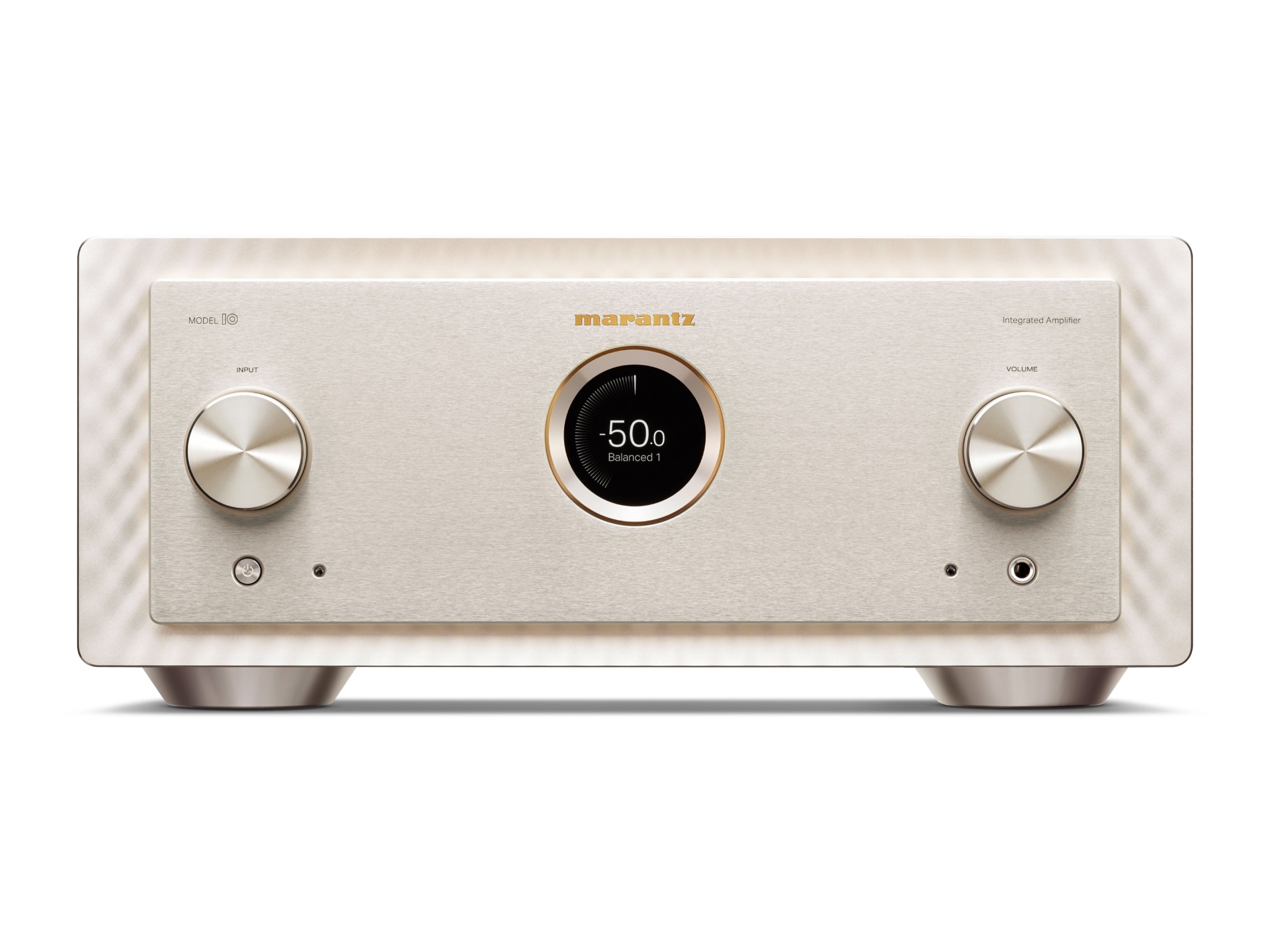

| Panel Color: | Black / Marantz Champagne |
Control
| Remote Control Bus Terminal: | Yes (RC-5 In / Out) |
| Remote Internal / External Switch: | Yes |
| Flasher Input: | Yes |
| AC Inlet: | Yes |
| Other: (Bus System) | F.C.B.S. (Floating Control Bus System) |

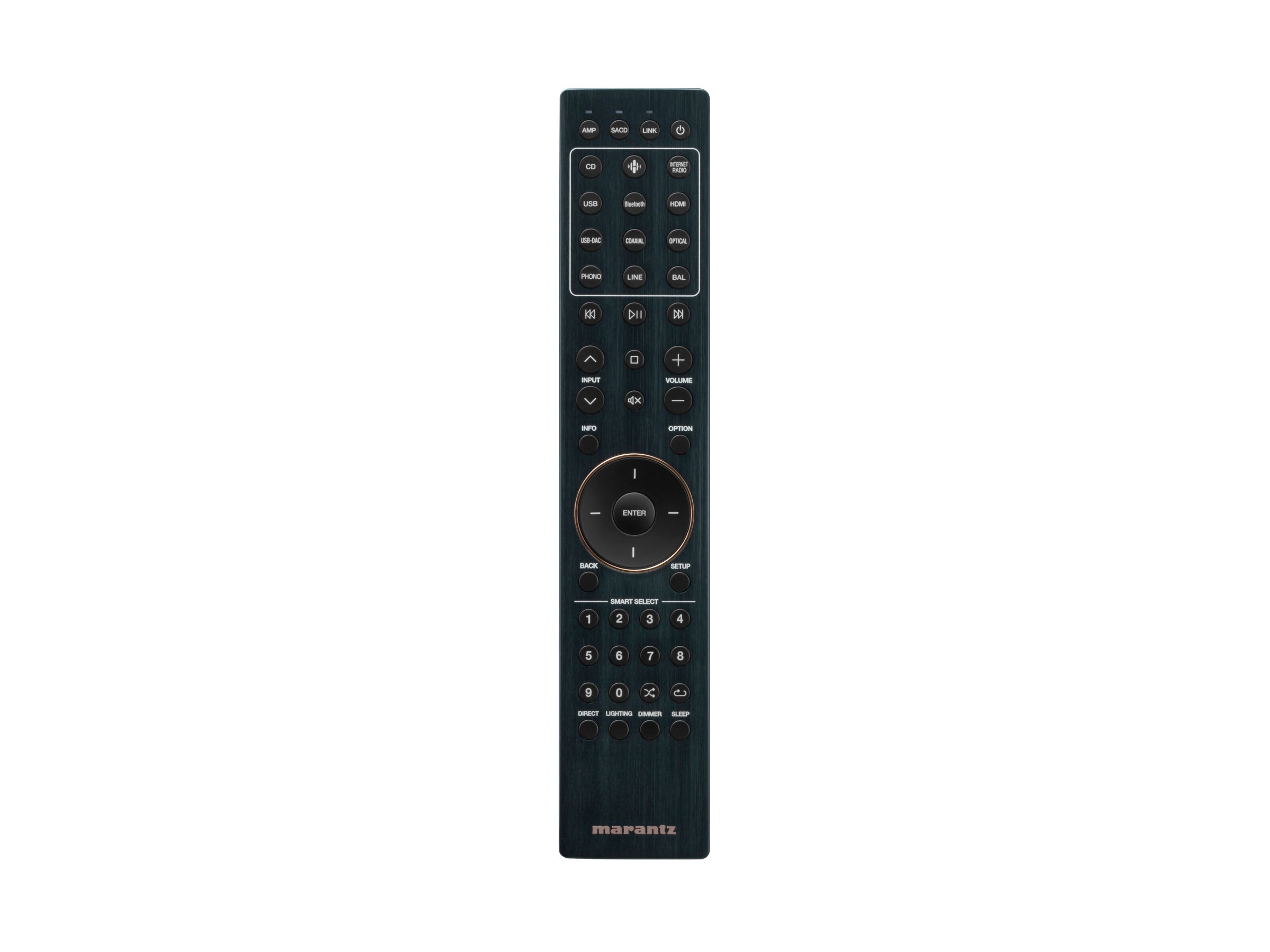

| Remote Controller: | 10 series Universal Remote control |
| Unit Control: (Button) | Tact Switch: 1 (POWER) |
| Unit Control: (Knob) | 2 (VOLUME, INPUT SELECTOR) |
| LED Indicators: | POWER: 1 White, Protection: 1 Orange, Illumination (Edge): White, Interior: White |
| Front Panel Display: | New HD TFT Color Display |
| Dimmer for Front Display: | 20 steps |
| Level Meter: | Yes (HD Display) |
| Volume Display: | -infinity/-99.5dB - 0dB / 0.5 step (default), 0-100 / 0.5 step, switchable |
| Last Function Memory: | Yes |
| Auto Standby Mode: | Yes |
| Remote Controller Model: | RC004PMND |
| Battery: | Yes (AAA ×2) |
| Power Cord: | Yes (ALL region / Audio Grade / OFC) |
| Other: (Certificate of Authenticity) | CoA card |
