Mission

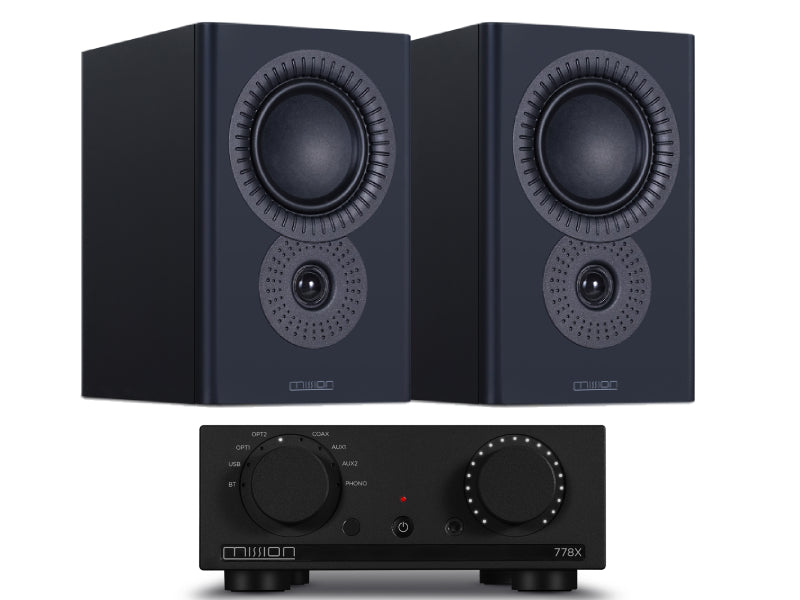

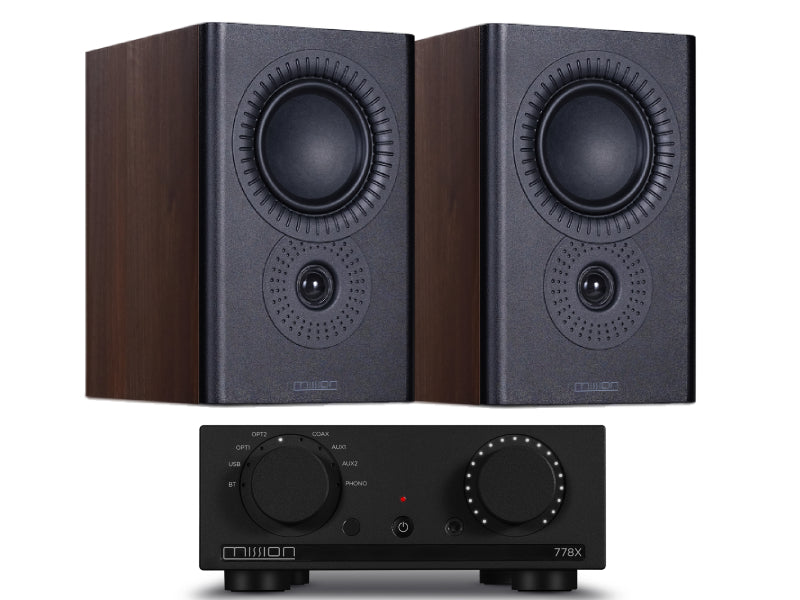

Mission 778x with Mission LX-2 MkII System Package

£649 £779

Stock Availability : Only 1 left in stock.

This Mission system combines the new Mission 778X integrated amplifier with new Mission LX-2 MkII speakers. The Mission System’s all round performance is engaging, detailed and refined. Detail, timing and dynamics excel, regardless of source or medium. Designed for the modern-day music enthusiast with a nod to Mission's heritage, the Mission 778X does not discriminate when it comes to expression and enjoyment of your music reproduction.  the new amp is a great sonic match for Mission’s current range, just as the 778 was in its day. Mission is promoting two package deals that combine the 778X with popular standmount models from its range, forming great-value, high-quality audio systems.

The Mission 778x with Mission LX-2 MkII System Package is available from mid December 2022 in a choice of silver or black for the amplifier and Matt Black, Matt White or Walnut for the speakers.

Perfect for Turntables

The Mission 778X integrated phono stage is based around a JFET-based circuit with precise RIAA equalisation. It’s optimised for MM cartridges and as such, it’s a high-quality, low-noise input that eliminates any need for an additional phono pre-amp.

Bluetooth wireless connection

Complementing the typical RCA line inputs are digital and coax connection options and a built-in Bluetooth receiver with an aptX and AAC codec, meaning the 778X offers CD performance via Bluetooth wireless connection. The convenience of streaming music from smart devices, such as phones, tablets or PCs have never sounded so good!

High-performance DAC

That’s not all in terms of digital music facilitation. The 778X is also equipped with a high-performance ESS ES9018K2M Reference chip with ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator. In the world of digital music files, this means the 778X offers class-leading, ultra-low noise digital audio file compatibility, with a sampling rate of up to 384kHz (PCM) and DSD256!

Headphone amplifier

Equal in performance to standalone headphone amplifiers, beyond the price- class of this complete system, the design offers high-speed output signal transition thanks to a high slew rate. The result is a dynamic, detailed and engaging performance with all manner of headphone types.

A Complete MISSION SYSTEM

Mission also has a choice of two complete systems that combine the 778X with popular standmount models from the Mission range of speakers, forming great-value, high-quality audio systems. This system includes a pair of Mission LX-2 MkII speakers at a package price of £649, saving £130 from the individual RRPs. The second upgrades the speakers to the Mission QX-2 MkII at a package price of £799, saving a total of £150. In both cases, the speakers are available in a choice of matt black, matt white or walnut.

778X Specifications

Model 778X
General Description Digital-to-Analogue Converter, Stereo Amplifier
Design Philosophy and Core Technology • Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
• ESS Sabre32 ES9018K2M Reference Chip
• Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
• Dedicated High-performance, Low-noise MM Phono Stage
• Headphone AMP With High-speed Output Signal Transition
• USB Upgrade Support
• Large Tractile Controls With LED Level Indicators
Inputs 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC),
2 x AUX,1 x RCA (Phono MM)
Outputs 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
Sampling Frequency Optical / Coaxial: 44.1kHz-192kHz;
PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
Preamplifier Section
Gain (max.) +0dB (Line), +47dB (Phono MM)
Input Sensitivity 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
Input Impedance 10K (AUX); 47K//100pF (Phono MM)
Total Harmonic Distortion (THD) <0.003%
Frequency Response (ref. 1kHz) 20Hz-20kHz (±0.1dB)
PRE Output Level 2.1Vrms (max.)
PRE Output SNR >110dB (A-weighted)
DAC
D to A Converter ESS Sabre32 ES9018K2M
Resolution 32-bit
Max. Sampling Frequency Optical/Coaxial: 192kHz;
USB: PCM 384kHz / 11.2896MHz (DSD256)
Total Harmonic Distortion (THD) < 0.001% (1KHz @ 0dBFS)
Output level (0dBFS, 1KHz) 2.1Vrms
Power Amplifier Section
Gain +31dB
Rated Power Output 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
Frequency Response (ref. 1kHz) 20Hz-20KHz (± 0.5dB)
Total Harmonic Distortion (THD) <0.005% (30W / 8 ohms)
Input Sensitivity 540mV (RCA AUX In); 2.5mV (Phono MM)
Signal-to-Noise Ratio (SNR) >108dB (ref. 45W, A-weighted)
Crosstalk @1K >80dB (ref.1W)
Standby Power Consumption <0.5W
Headphone Amplifier
Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW )
Output Impedance 4.7 ohms
Load impedance 20-600 ohms
General
Dimensions (mm) (W x H x D) 236x98x380.6
Carton Size (mm) ( W X H X D) 450x392x175
Net Weight 6.3kg
Finish Black / Silver
Power requirements (depending on region) 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz
Standard Accessories Power Cord, Remote Control, User Manual, Antenna



LX-2 MKII Specifications


General description 2-way bookshelf speaker
Enclosure type bass reflex
Transducer complement 2-way
Bass driver 5"(130mm) composite fibre
Treble driver 25mm microfibre dome
AV shield No
Sensitivity (2.83V @ 1m) 87dB
Recommended amplifier power 20-100W
Peak SPL 103dB
Nominal impedance 8Ω Compatible
Minimum impedance 3.8Ω
Frequency response (+/-3dB) 55Hz ~ 20kHz
Bass extension(-6dB) 50Hz
Crossover frequency 3.2kHz
Cabinet Volume (in litres) 8.5L
Height (on plinth) 305mm
Width 200mm
Depth (with terminals) (250+8)mm
Carton size 535 x 350 x 400mm
Net weight 6.34kg/pcs
Gross weight 14.4kg/ctn
Finish Walnut Pearl / Lux White / Lux Black
