Naim NAP 250 power amplifier (new sixth-generation)

£5,699

NAP 250 – THE ICONIC POWER AMP: BACK AND BETTER THAN EVER

The new Naim NAP 250 is a 100W per channel dual-model design, with full power regulation. It’s a party-proof design: its heatsink reacts as the volume increases, keeping things cool. Other enhancements include the addition of true balanced XLR connections, plus a range of trickle-down technology from Naim’s flagship Statement amplifier, including an eddy-current circuit breaker between the speaker outputs.

To drive the speakers – and music – of your choice to new heights, simply pair the NSC 222 with its perfect partner: the Naim NAP 250 power amplifier. In continuous production since 1975, the NAP 250 has gained iconic status. Featuring trickle-down technology from Naim’s flagship Statement amplifier, the new sixth-generation model delivers more power, even better performance, and greater system-matching flexibility.

To get the best out of your loudspeakers and music, combine the NSC 222 with its perfect partner: the NAP 250 power amplifier. First appearing in 1975, NAP 250 has become an iconic product. Today, it delivers more power than ever and offers ever more flexibility within a complete system. The cutting-edge engineering work involved in the NAP 250 results in unrivalled performance. It delivers 100 watts of A/B class power per channel, fully adjustable to set your music free in the most remarkable way.

The best of Naim

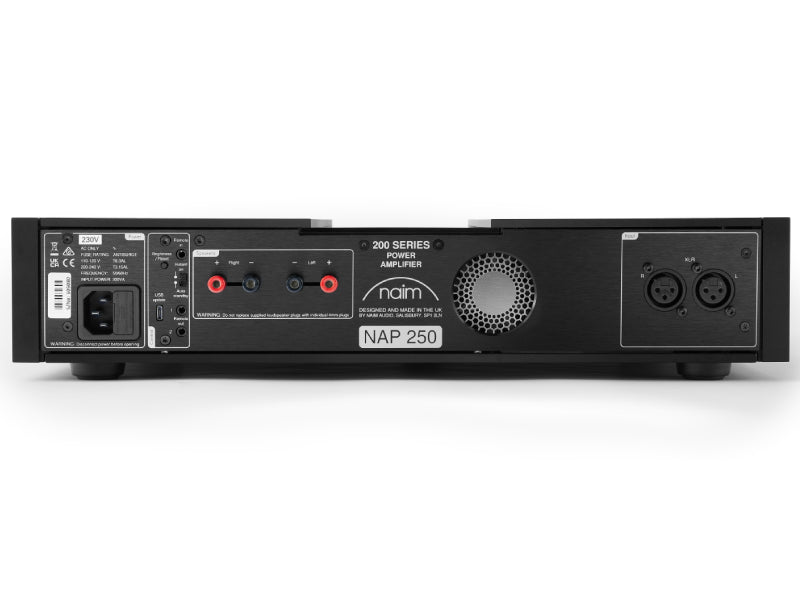

The cutting-edge design of the NAP 250 means it can be used even at high sound levels: its heat sink reacts to the increased volume, keeping the product “cool”. Other improvements include the addition of symmetrical XLR connections and a series of technologies derived from Naim's iconic Statement amplifier, including a eddy current separator available between the loudspeaker outputs. It also incorporates the Naim Audio DR (Discrete Regulator) technology found in the Statement, to benefit from the stable, fluid power supply we know to be essential.

Perfect integration in a complete system

The NAP 250 can be connected to any of the New Classic products, but also to the previous Classic lines using a new range of specific cabling. Above all, it is the perfect partner for the NSC 222 preamplifier and streamer.

Specification

Damping factor into 8

36

Signal to noise ratio ref 100W 8 A-weighted

111dB

Signal to noise ratio ref 1W 8 A-weighted

91dB

Input signal for clipping

1V RMS

Peak current into 1 (1kHz 1mS)

+/-28 amps peak (780W peak power)

Burst power 2

300 Watts 2 @1% THD+N  (1kHz for 20mS, repeat 500mS IHF)

Audio Inputs

2 x True balanced via XLR, 47k
34k singled ended via legacy adaptor lead

Audio Outputs
Crosstalk

60 dB

THD + N

at 2/3rds full power 8 @1kHz (0.013%)

Power Output

100 Watts 8 @0.1% THD+N (100W @0.1%)
190 Watts 4 @1% THD+N

Frequency Response

-3dB @ 1.4Hz to 100kHz

Gain

+29 dB

Physical
Weight

37.04lbs (16.8kg)

Dimensions (HxWxD)

35/8x17x121/2" (9.15x43.2x31.75cm)

Power
Mains Supply

115V or 230V, 50/60Hz

Power Consumption

Passive consumption: 26W (idle)
Standby consumption: <0.5W

Product Type
Type

Power Amplifier
