Ortofon 2M Black LVB 250 Cartridge
Pickup available at Doug Brady HiFi
Usually ready in 1 hour

Ortofon 2M Black LVB 250 Cartridge
Doug Brady HiFi
Kingsway Studios
Kingsway North
Warrington WA1 3NU
United Kingdom

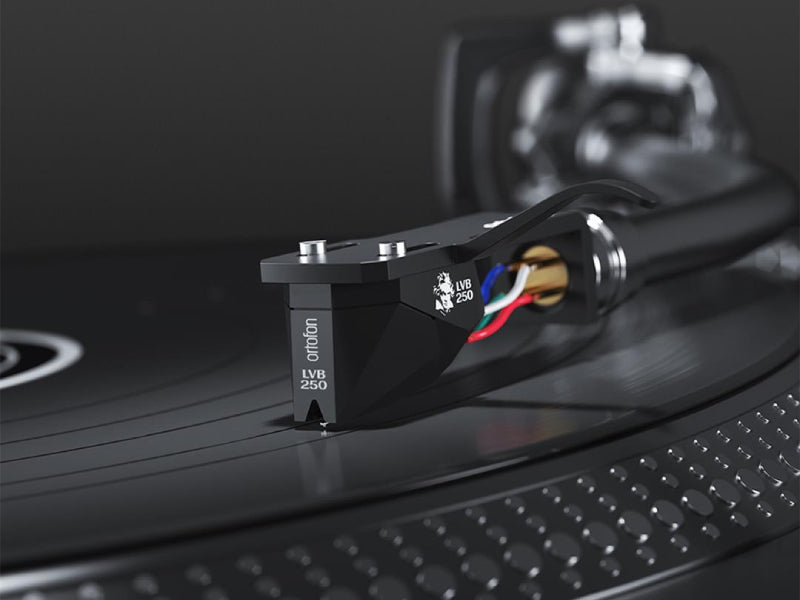

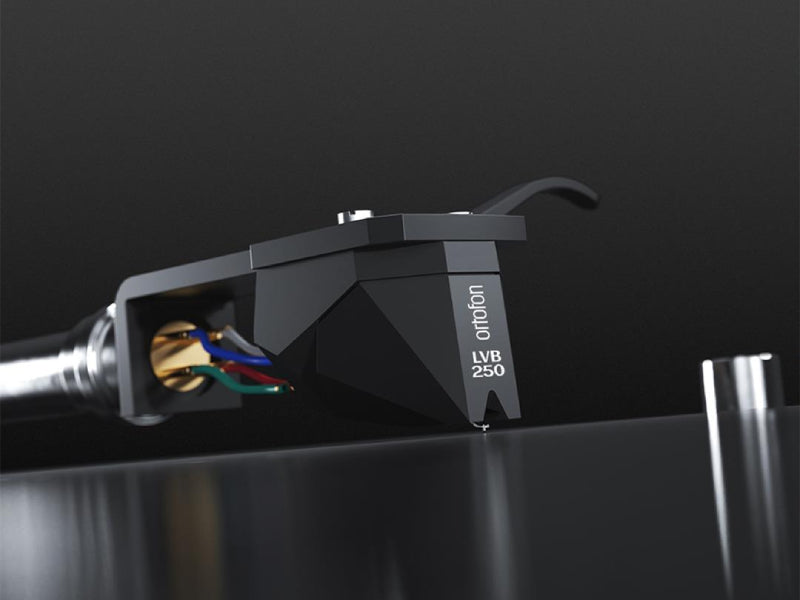

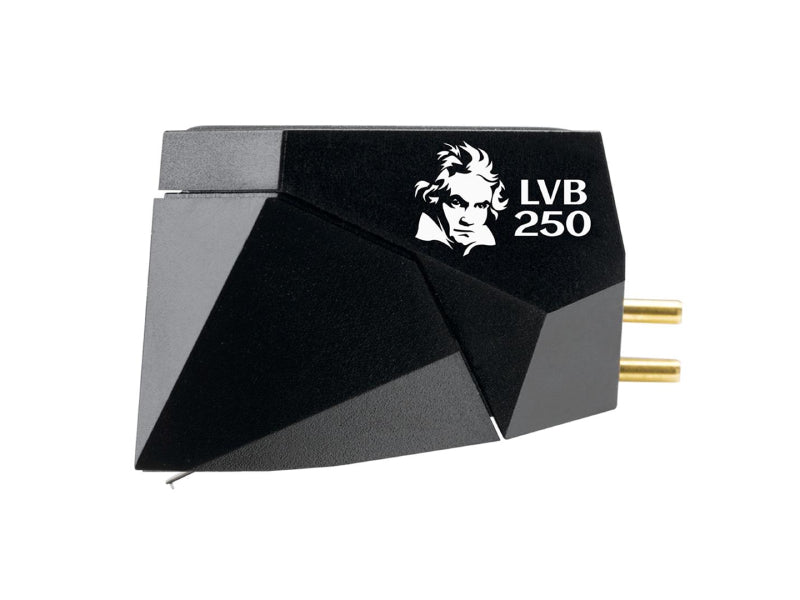

Built to celebrate the 250th anniversary of Ludwig Van Beethoven the Ortofon 2M Black LVB 250 Cartridge has a Nude Shibata diamond stylus, mounted on a boron cantilever.
The 2M Black from Ortofon is widely acknowledged as being one of the best MM cartridges on the market, being open, fast, detailed, vivid, full of vitality and sonically spectacular. The 2M Black LVB 250 Cartridge further improves on this, the Nude Shibata stylus’s slim, highly polished profile allows for an exceedingly wide contact area with the record groove walls and ensures notably detailed reproduction throughout the spectrum, including even the highest frequencies. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed, and responsiveness to the sound.
Technical Data
Output Voltage (at 1kHz, 5cm/sec): | 5mV |
Channel Balance at 1kHz: | <1dB |
Channel Separation at 1kHz: | >27dB |
Channel Separation at 15kHz: | 15dB |
Frequency Response 20Hz - 20kHz: | +2 / -1dB |
Tracking Ability at 315Hz: | Typically 80μm |
Compliance, Dynamic, Lateral: | 22μm / mN |
Stylus Type: | Nude Shibata |
Stylus Tip Radius r / R: | 6 / 50μm |
Tracking Force Range: | 1.5 - 1.7g (15 - 17mN) |
Recommended Tracking Force: | 1.6g (16mN) |
Tracking Angle: | 20º |
Internal Impedance / DC Resistance: | 1.2kΩ |
Internal Inductance: | 630mH |
Recommended Load Resistance: | 47kΩ |
Recommended Load Capacitance: | 150 - 300pF |
Cartridge Colour Body / Stylus: | Black / Black |
Cartridge Weight: | 7.2g |
Replacement Stylus Unit: | Stylus 2M Black LVB 250 |
Interchangeable with: |
2M Bronze 2M Black |
