Ortofon 2M Blue Plug and Play MK II MM Cartridge

£195.00 £230.00
Tax included Shipping calculated at checkout.

This Plug and Play version of the 2M Blue cartridge. It provides a practical and straightforward solution for turntables with SME-style arms, such as those produced by Technics, allowing for easy and efficient installation.


This Plug and Play version of the 2M Blue cartridge offers the same exceptional sound quality as the standard model, but it is specifically designed for tonearms without a conventional headshell. It provides a practical and straightforward solution for turntables with SME-style arms, such as those produced by Technics, allowing for easy and efficient installation.

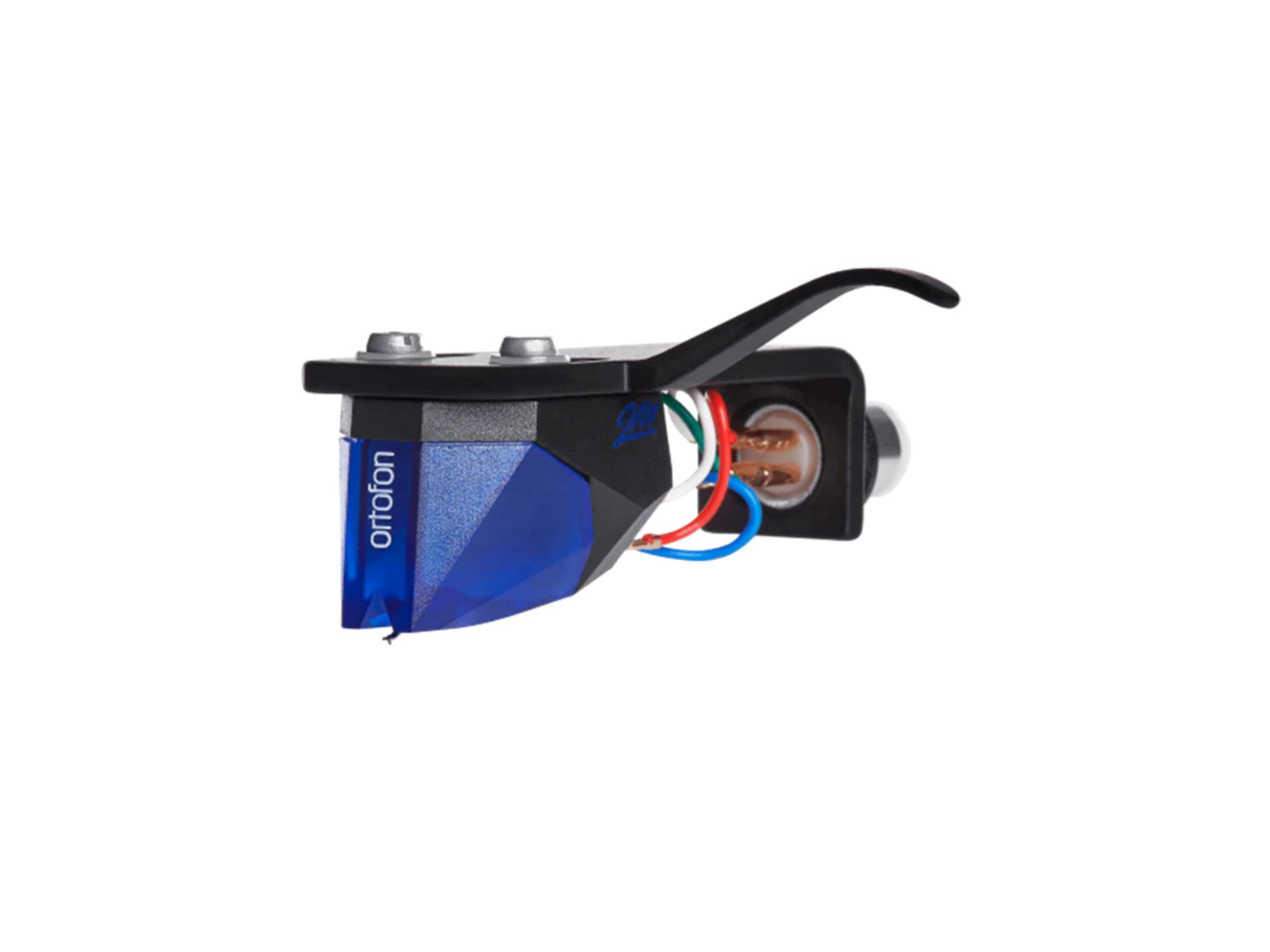

The Ortofon 2M Blue Premounted MM Cartridge, pre-installed on the Ortofon SH-4 Headshell, is an excellent choice for those seeking an uncomplicated setup. Its well-balanced dimensions and weight ensure compatibility with a wide range of modern tonearms, making it an ideal option for simplifying the initial setup of your turntable system.

Engineered with precision, the 2M Blue features a nude elliptical diamond stylus, mounted on a cantilever with split pole magnets, which works seamlessly with a refined copper coil system. This moving magnet design boosts the output to 5.5 mV, offering superior sonic performance and greater accuracy compared to the 2M Red. With its open and dynamic sound, coupled with a subtle warmth, the 2M Blue provides excellent versatility across various playback systems and phono preamps, making it a standout choice for audiophiles seeking clarity and precision in their music.

Features

  • Fitted on the Ortofon SH-4 Headshell
  • High-performance 2M Blue cartridge for immersive audio experiences
  • Precision-machined nude elliptical diamond stylus for superior sound reproduction
  • Compatible with a variety of SME tonearms and turntable
  • Delivers open, dynamic sound with a subtle touch of warmth

Specifications

Output voltage at 1000 Hz, 5cm/sec: 5.5 mV
Channel balance at 1 kHz: 1.5 dB
Channel separation at 1 kHz: 25 dB
Channel separation at 15 kHz: 15 dB
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: nude elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1,6-2,0g (16-20 mN)
Tracking force, recommended: 1,8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1,3 kOhm
Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge weight: 7.2 g
Premounted cartridge weight: 16.7 g
