Ortofon 2M Red Plug and Play MK II MM Cartridge
Tax included. Stock information
Ease of Use

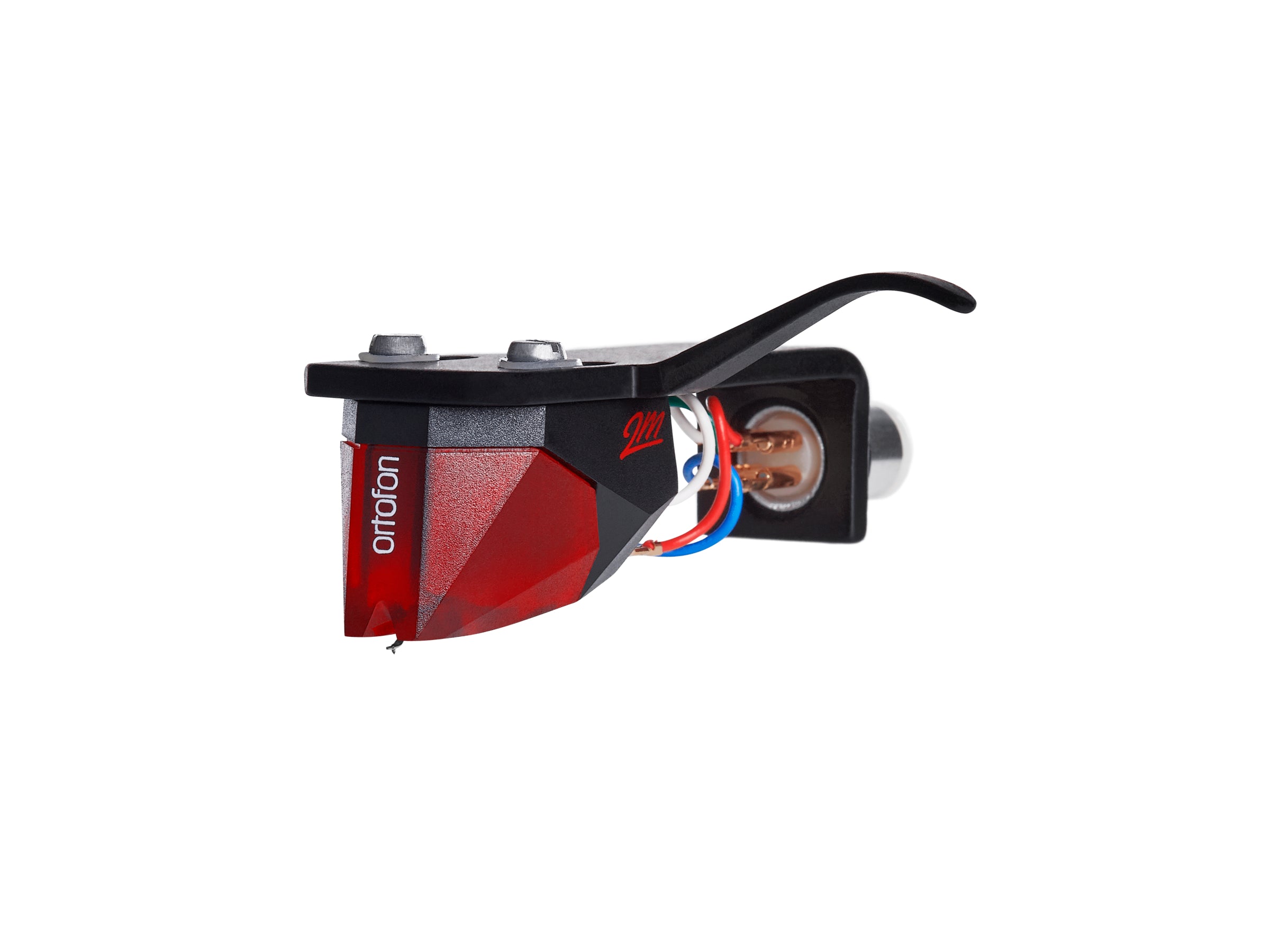

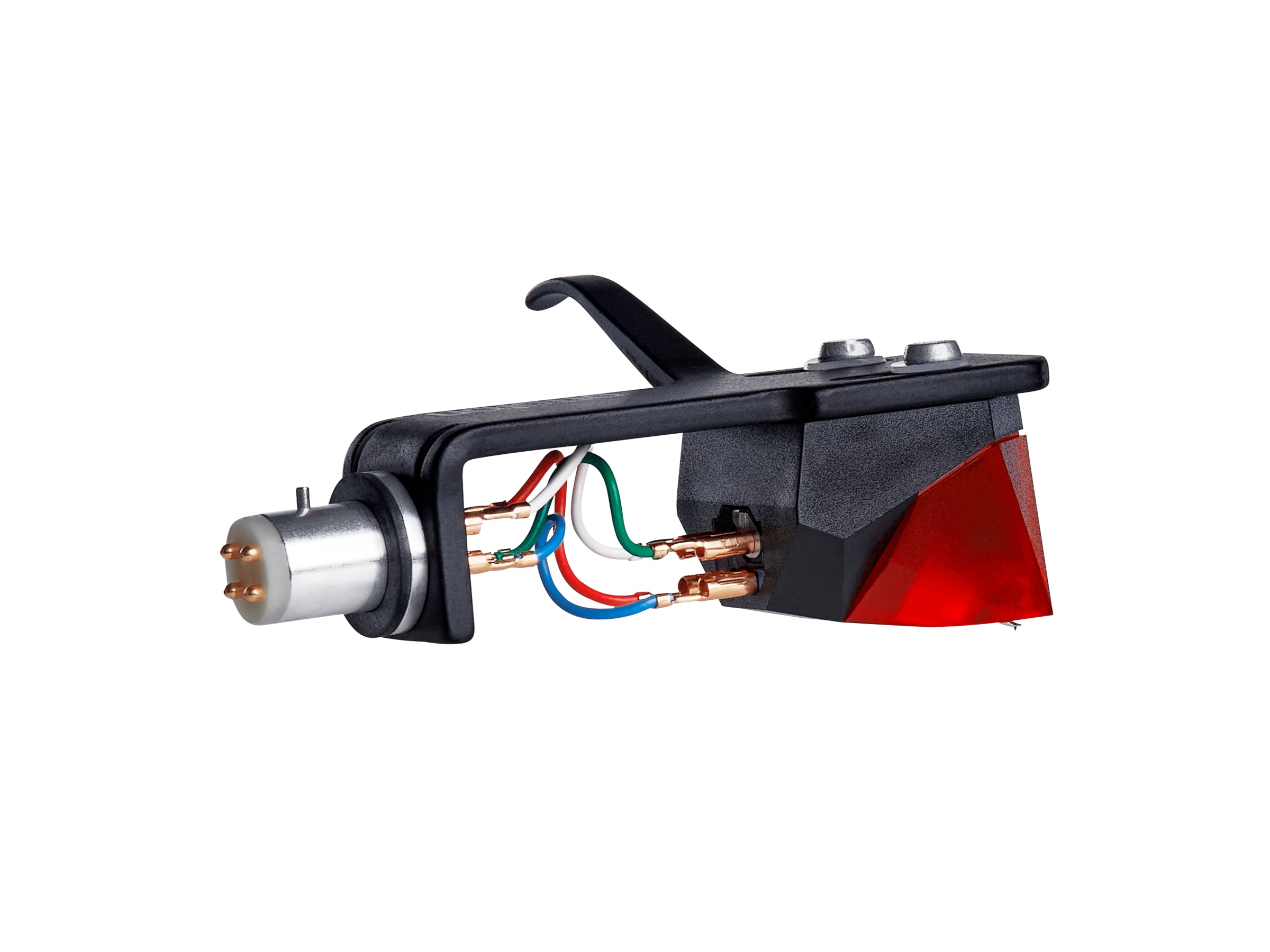

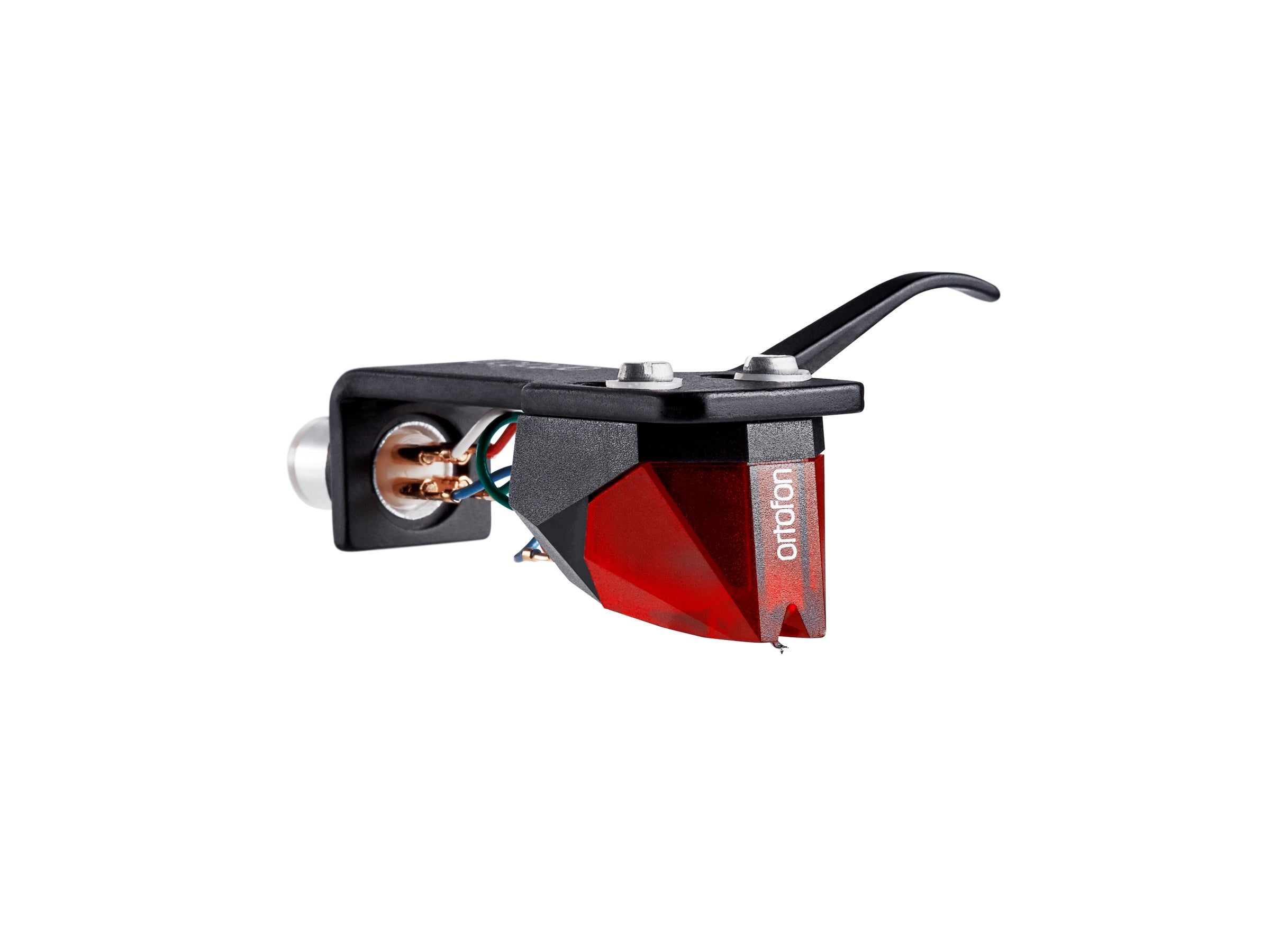

The Ortofon 2M Red PnP MkII is the latest version of the 2M Red cartridge, specifically designed for tonearms that accept direct plug-in mounting. This Plug and Play version delivers the same excellent sound quality as the standard 2M Red but is tailored for tonearms without a traditional headshell, offering a practical and straightforward installation for turntables with an SME style arm, such as Technics.
Manufactured from a high-rigidity compound used in the medical industry, the 2M Red Plug and Play effectively reduces unwanted vibrations. It features a universal mount fitting for a wide range of tonearms and utilizes a polished elliptical diamond stylus. The cartridge's interchangeable stylus design ensures easy maintenance and long-term usability.
Specifications
| Output Voltage: (at 1kHz, 5cm/sec) | 5.5mV |
| Channel Balance at 1kHz: | 1.5dB |
| Channel Separation at 1kHz: | 22dB |
| Channel Separation at 15kHz: | 15dB |
| Frequency Range (at -3dB): | 20 Hz - 22 kHz |
| Frequency Response 20Hz - 20kHz: | +3 / -1dB |
| Tracking Ability at 315Hz: | Typically 70μm |
| Compliance, Dynamic, Lateral: | 20μm / mN |
| Stylus Type: | Elliptical |
| Stylus Tip Radius r / R: | 8 / 18μm |
| Tracking Force Range: | 1.6 - 2.0g (16 - 20mN) |
| Recommended Tracking Force: | 1.8g (18mN) |
| Tracking Angle: | 20º |
| Internal Impedance / DC Resistance: | 1.3kΩ |
| Internal Inductance: | 700mH |
| Recommended Load Resistance: | 47kΩ |
| Recommended Load Capacitance: | 150 - 300pF |
| Cartridge Colour Body / Stylus: | Black / Red |
| Weight: | 23g |
