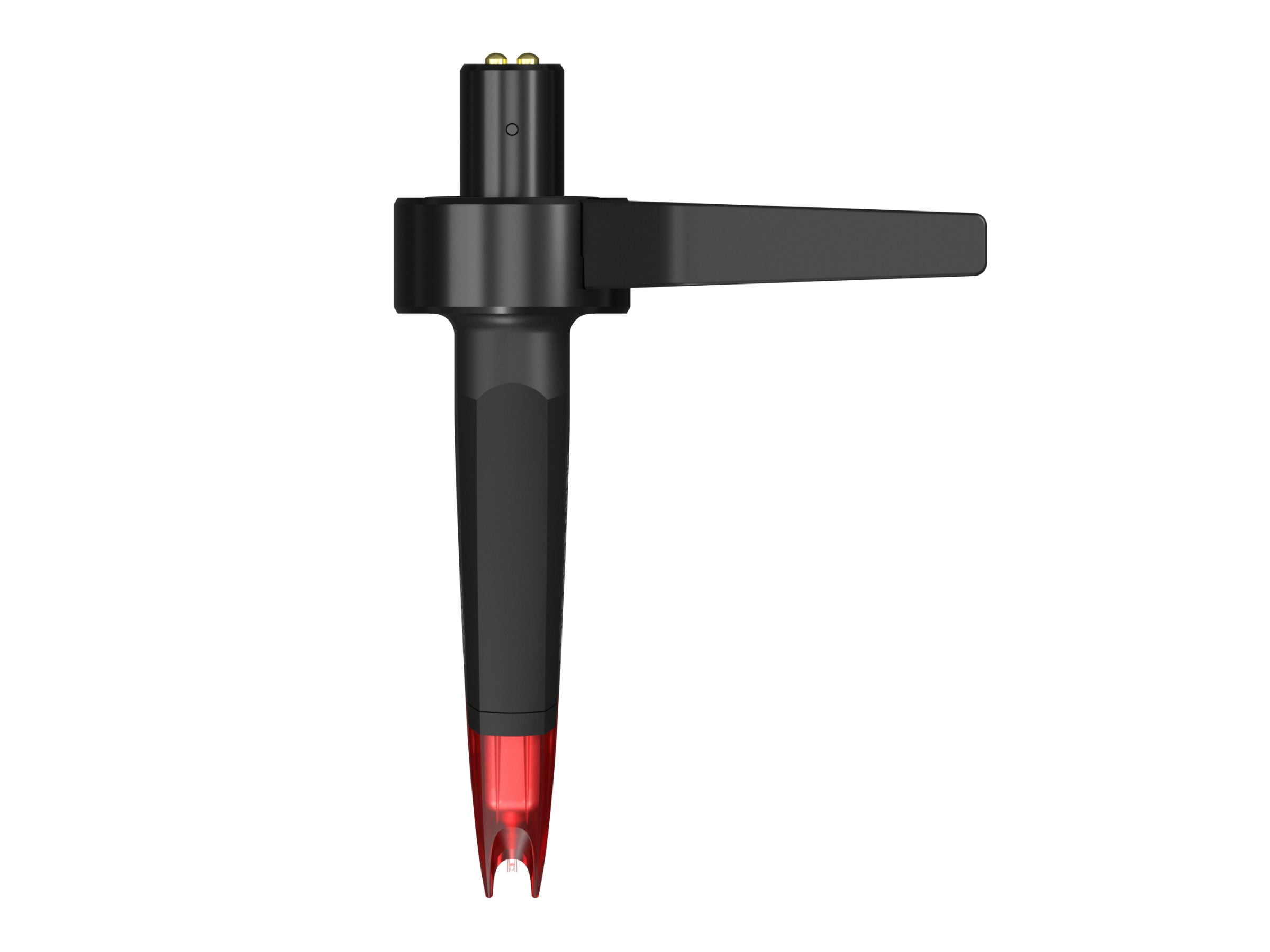

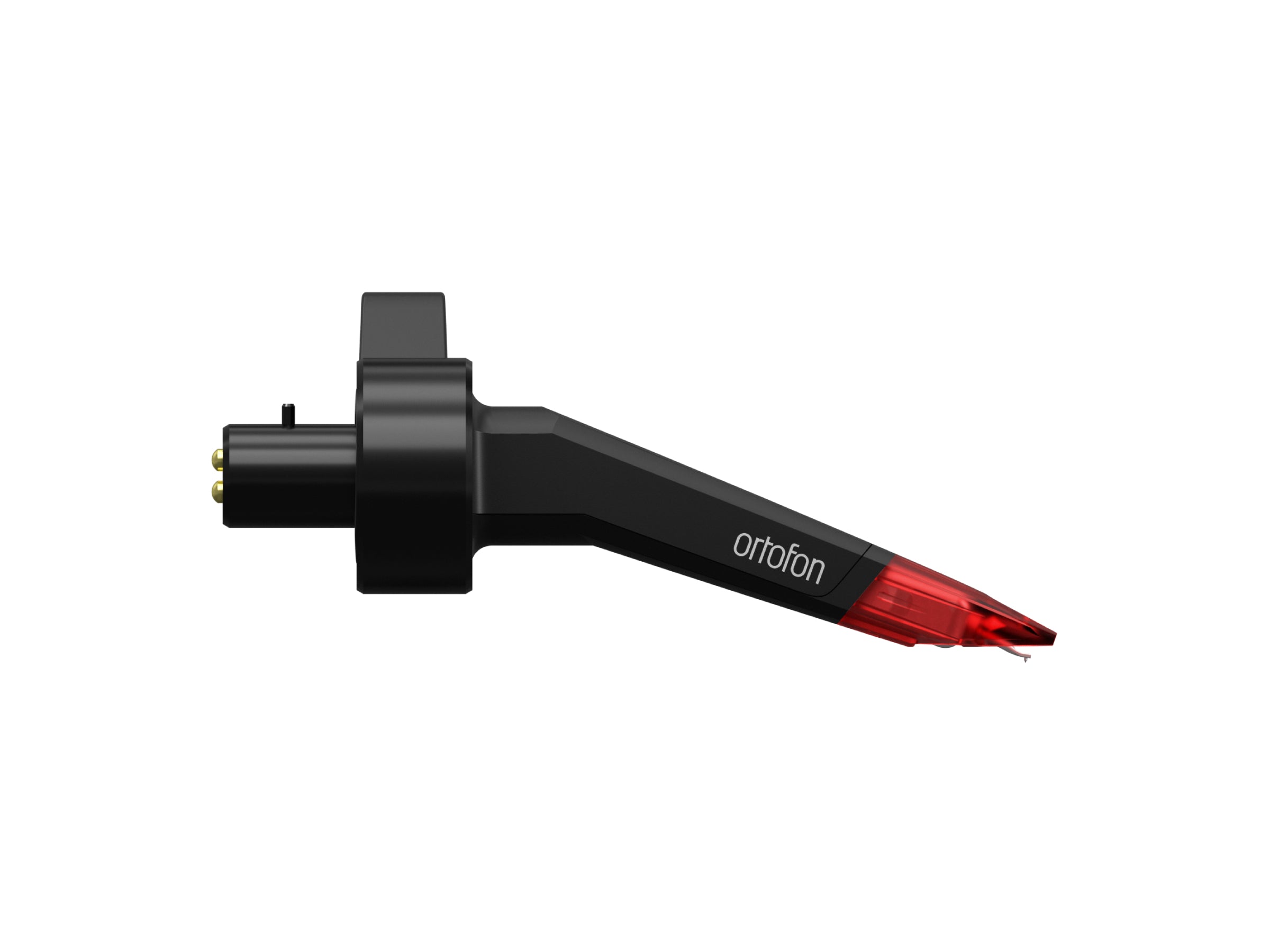

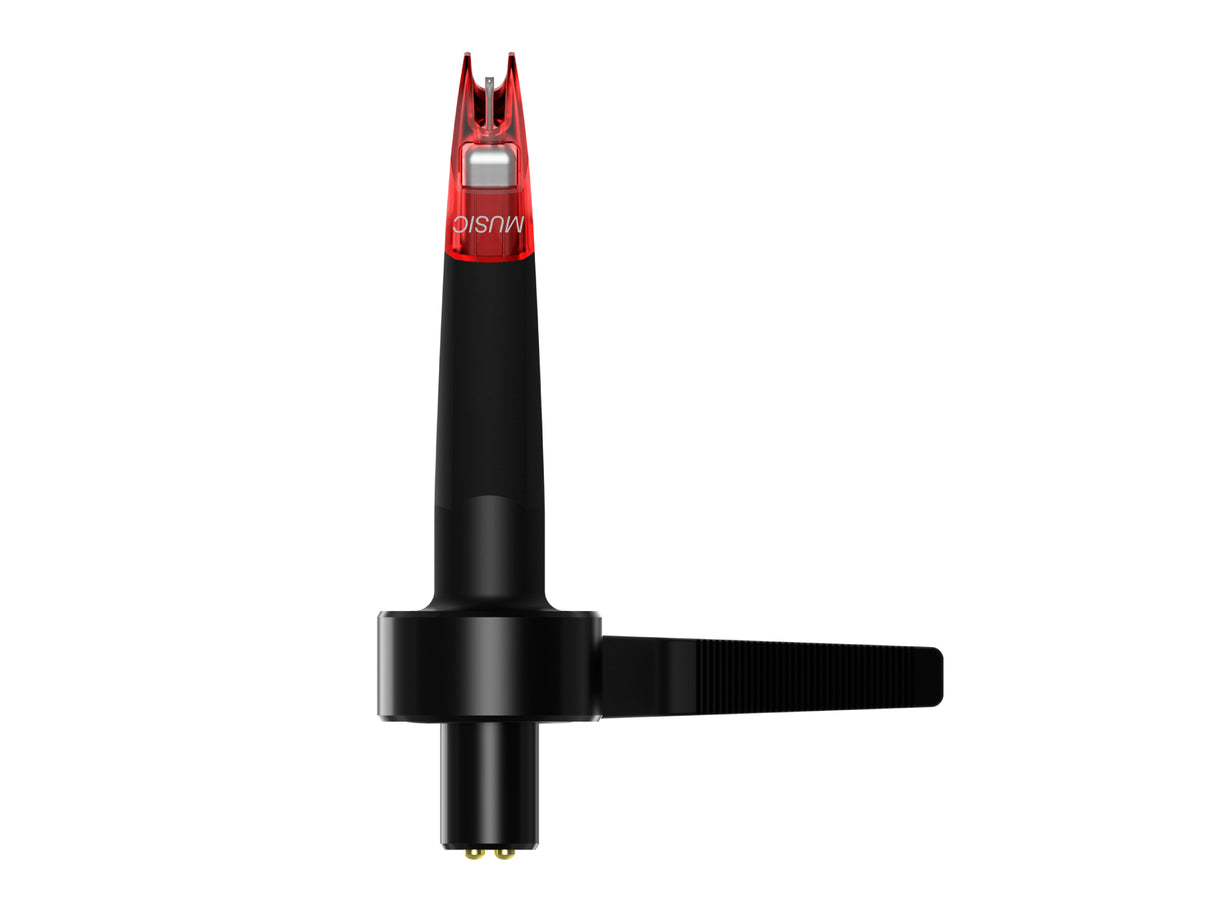

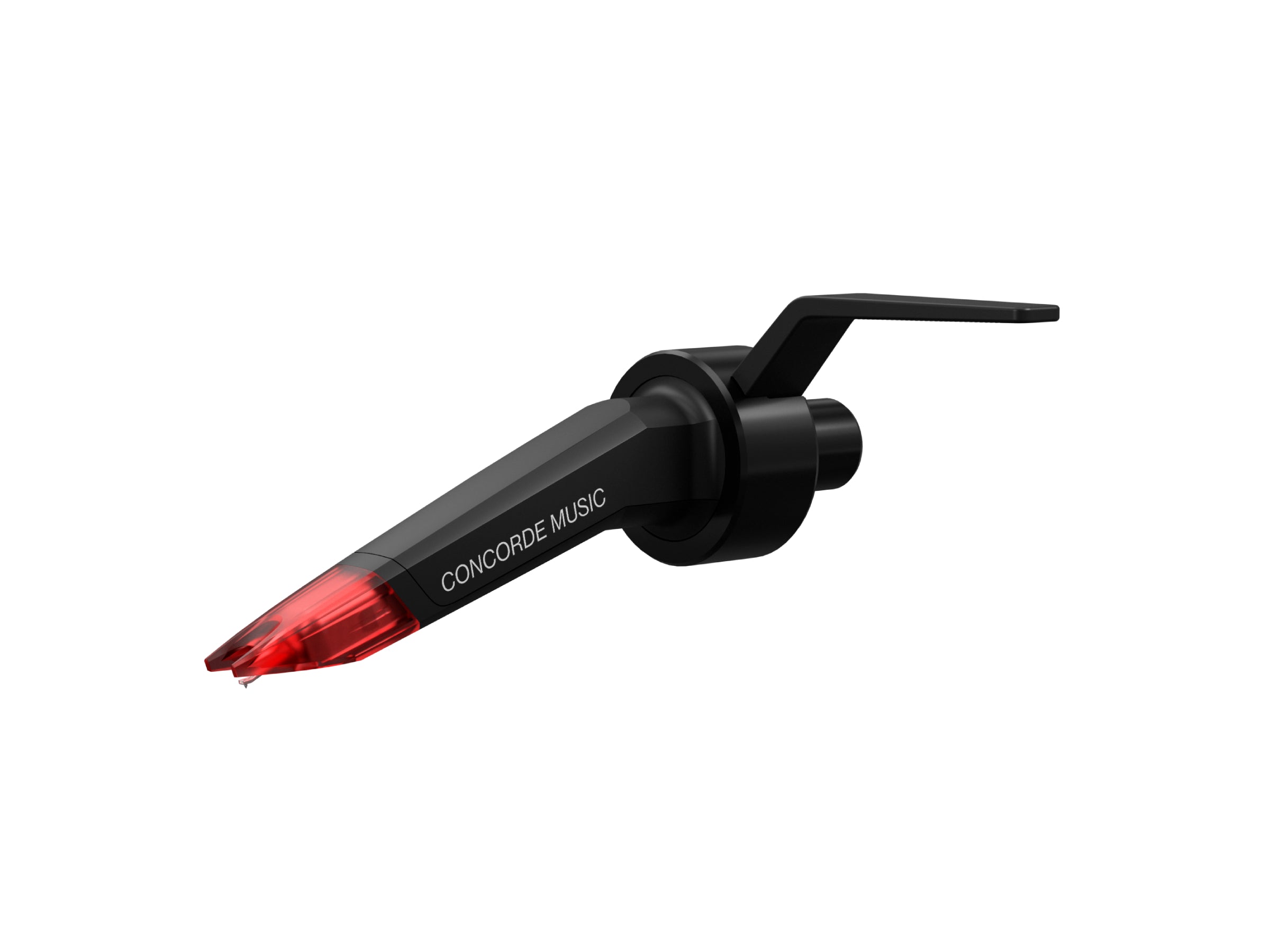

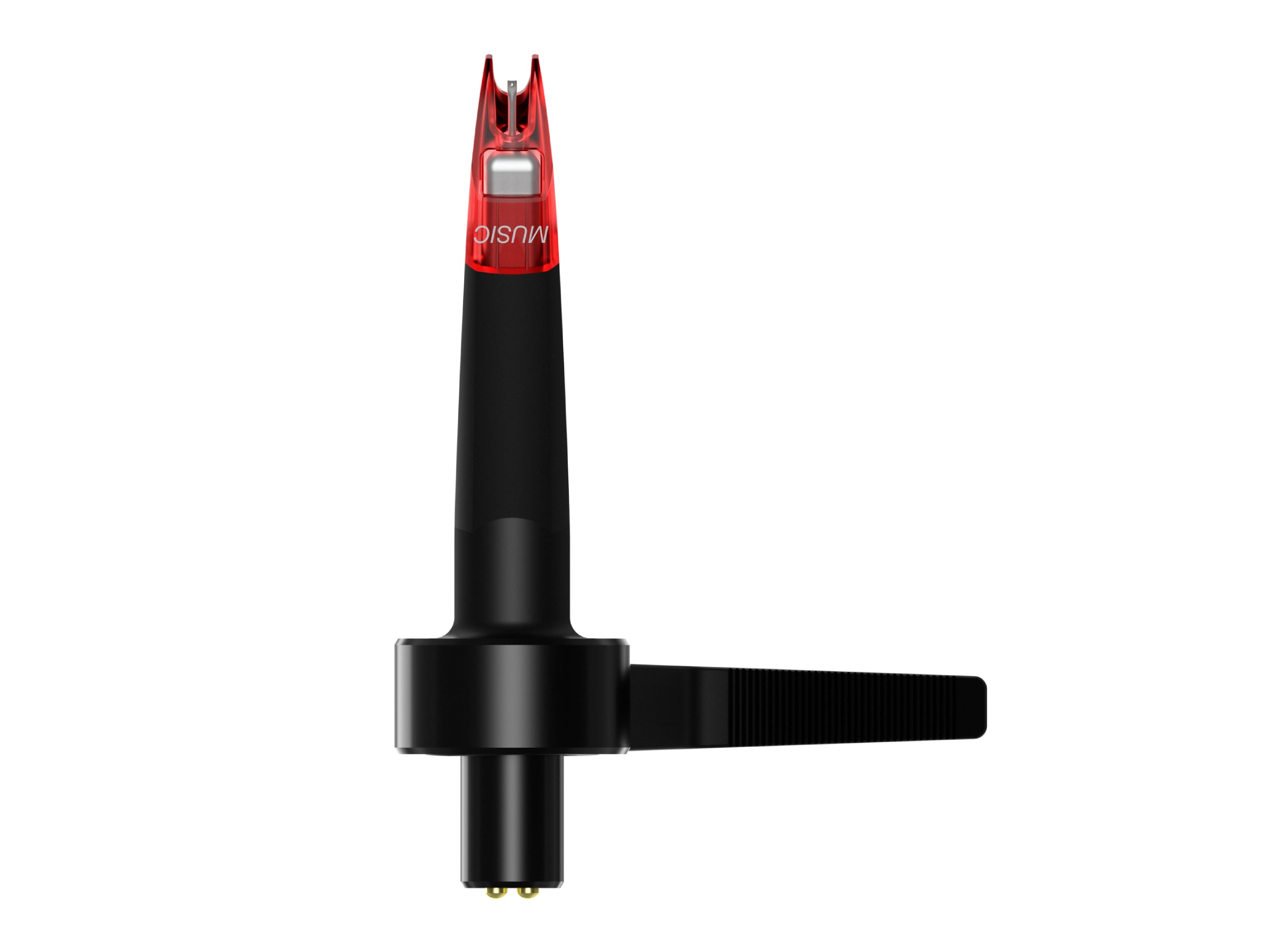

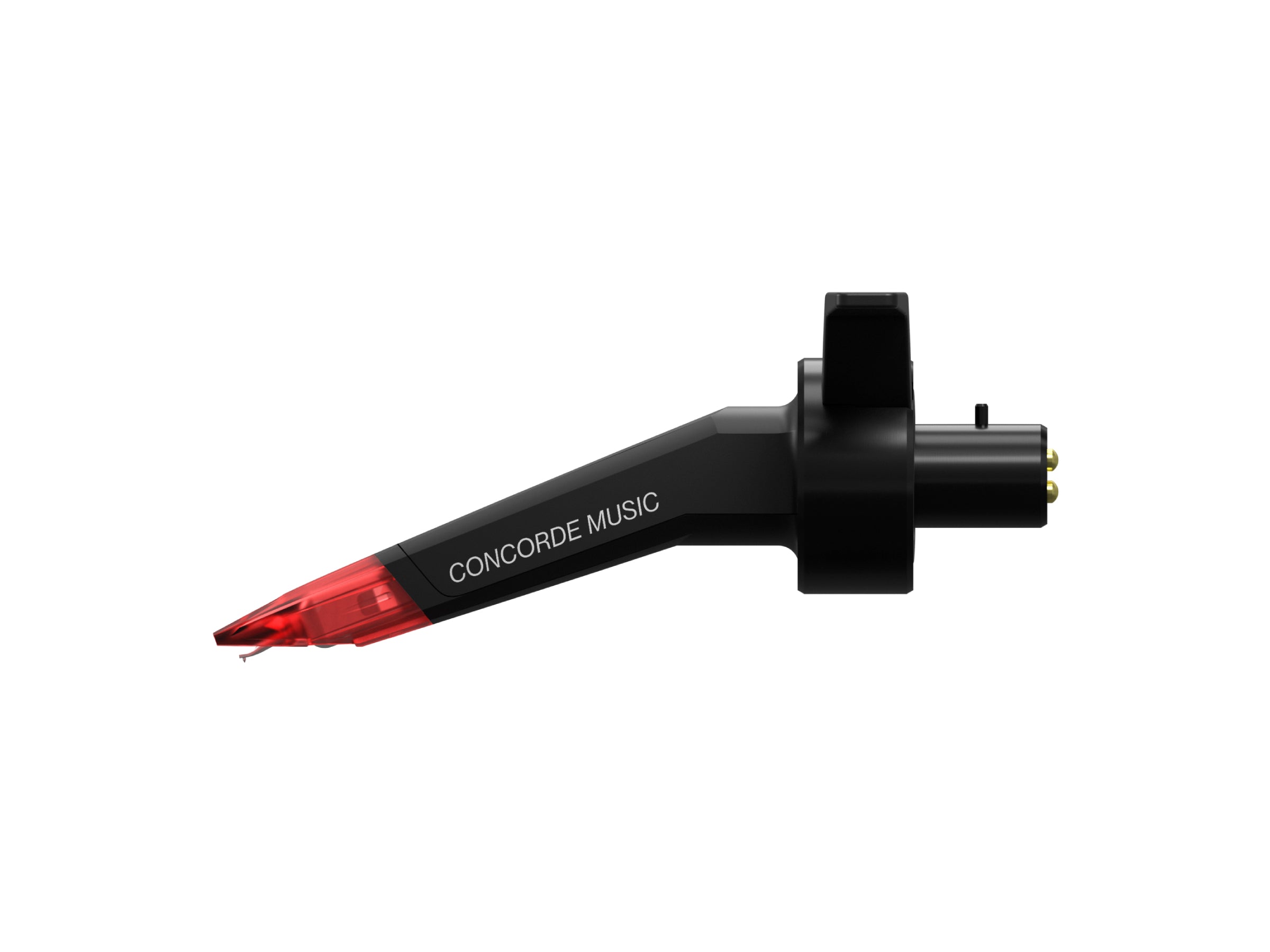

Ortofon Concorde Music Red Cartridge
Tax included. Stock information
Pickup also available at Doug Brady HiFi
Usually ready in 1 hour
![Ortofon Concorde Music Red Cartridge](http://dougbradyhifi.com/cdn/shop/files/OrtofonConcordeMusicRedCartridge_1.jpg?v=1716291632&width=2400)
Ortofon Concorde Music Red Cartridge
Doug Brady HiFi
Kingsway Studios
Kingsway North
Warrington WA1 3NU
United Kingdom
Doug Brady HiFi (Warehouse)
Kingsway Studios - Warehouse
Kingsway North
Warrington WA1 3NU
United Kingdom
The Ortofon Concorde series is designed for direct mounting on SME-style tonearms. These cartridges are commonly used with DJ-style turntables featuring S-shaped arms, such as Technics 1210 turntables, and can be easily slid onto the tonearm without the need for screws, unlike traditional cartridges. While they reflect their DJ heritage, these SME-style cartridges also deliver the high-fidelity audio quality desired by audiophiles.
The Concorde Music Red
The Ortofon Concorde Music Red has been intricately designed to provide a superior vinyl listening experience and is a great sound and entry into the concorde family with a captivating sound. It is equipped with a sophisticated quad-coil generating system and split-pole pins that enhance channel balance and separation. Notable features of this product are:
- Elliptical Diamond Stylus: Polished to the industry's highest standards and mounted on a premium aluminum cantilever, this ensures optimal transmission of groove modulations from your vinyl records.
- Upgradeable Design: The stylus can be easily upgraded throughout the Concorde Music series up to the Concorde Music Black LVB 250, offering flexibility and long-term value.
- Exclusive Ortofon Rubber Suspension: Developed in-house by Ortofon, this unique rubber compound is crucial for the cartridge's high performance, enhancing sound quality.
- Immersive Sound Experience: The cartridge brings out the subtle nuances in your favorite recordings, providing an inviting soundstage with increased resolution and detail.
- Direct-Mounting for SME-Style Tonearms: Mounting directly into the tonearm from turntables manufactures like Technics, Audio Technica, Thorens and Pro-Ject's with S-Shape arms brings the high-fidelity audio experience back to its roots combining the sleek design and ease of use that made the original Concorde cartridges a game-changer in the hi-fi world.
The Concorde Music series, with its interchangeable styli, offers a versatile choice for audiophiles. Whether you're a seasoned audiophile or a former DJ transitioning to home listening, the Concorde Music Red allows for a superior upgrade path, enhancing your vinyl experience.
The Concorde Music range reinvents high-fidelity audio by combining sleek design and ease of use, maintaining the legacy of the original Concorde cartridges that revolutionized the hi-fi world. Discover unparalleled sound quality and find your perfect match with Concorde Music.
Specifications
Channel Balance At 1 Khz | 1.5 dB |
Output Voltage At 1 Khz, 5cm/sec |
6mV |
Channel Seperation At 1 Khz |
22 dB |
Channel Seperation At 15 Khz |
15 dB |
Frequency Response 20 Hz - 20 Khz |
+3 / -1 dB |
Tracking Ability At 315hz At Recommended Tracking Force |
80 µm |
Compliance, Dynamic, Lateral |
15 µm/mN |
Stylus Type |
Elliptical diamond on Aluminium cantilever |
Stylus Tip Radius |
r/R 8/18 µm |
Tracking force, recommended | 1.8g |
Tracking Angle |
20° |
Internal Impedance, DC Resistance |
1.27 kΩ |
Cartridge Colour |
Black/Red |
Cartridge Weight |
18 g |
Recommended Load Resistance |
47 kΩ |
Internal Inductance |
815 mH |
Recommended Load Capacitance | 150-300 pF |
