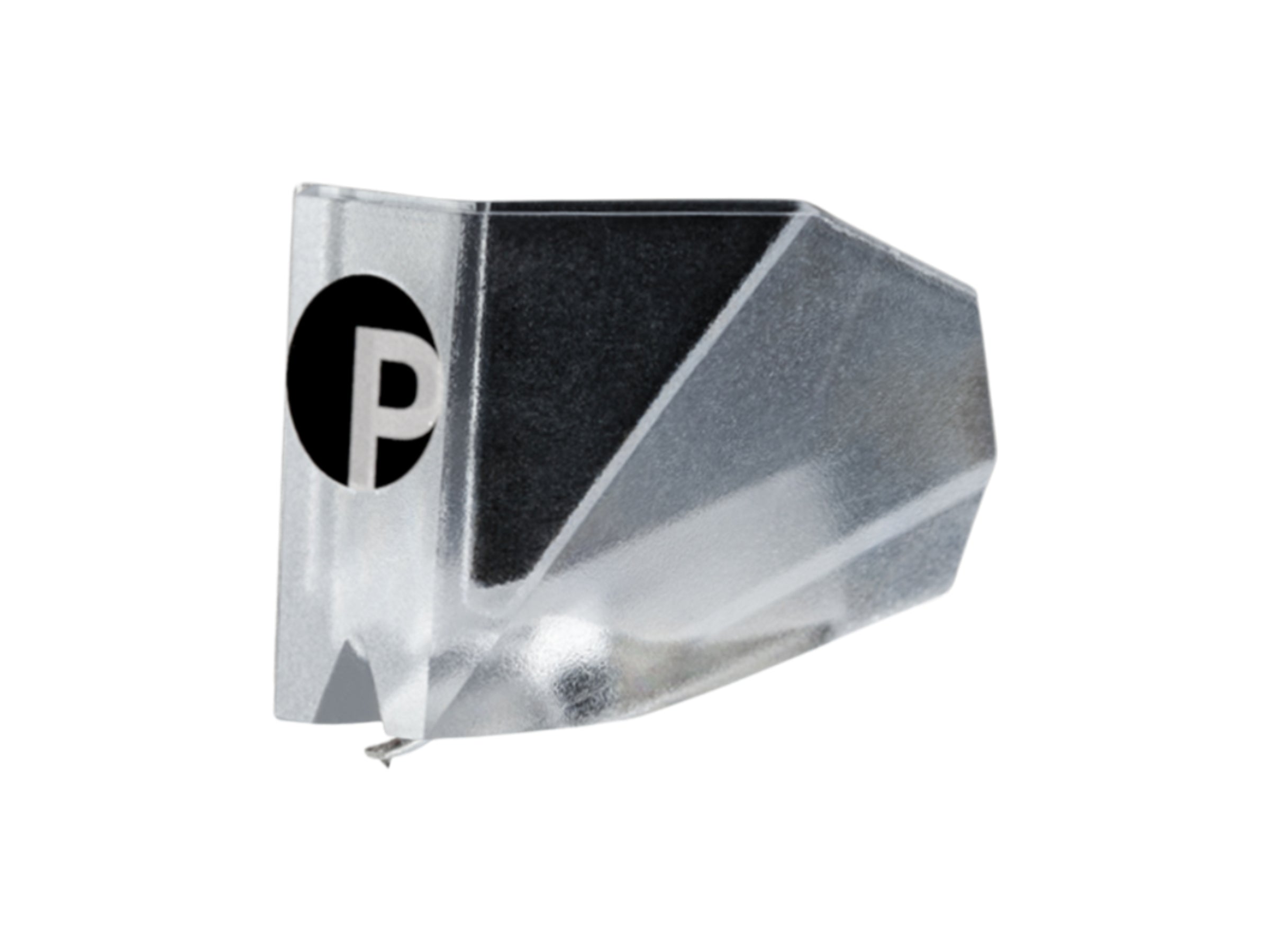

The Pro-Ject Pick It Moving Magnet EVO Replacement Stylus is equipped with a special elliptical stylus tip. It provides detailed sound reproduction and expansive imaging. It is a no-nonsense performer with fascinating musical resources. Attached to a strong cantilever, used in DJ cartridges, this cartridge will not just sound great, it is also very strong.
The cartridge is made from a unique combination of technologies. One of which is Ortofon‘s well known split pole pins. This enables it to have a flat frequency response, which is comparable to MC cartridges.
Specifications
| Cartridge Principle: | MM (Moving-Magnet) |
| Output Voltage: | 7 mV |
| Channel Separation at 1 kHz: | 22 dB |
| Trackability (315 Hz, Lateral): | 70 µm |
| Frequency Response: | 20–20,000 Hz (+3 / -1 dB) |
| Stylus Type: | Elliptical |
| Stylus Tip Radius: | r/R 8/18 μm |
| Tracking Force (Range): | 1.6–2 g (mN) |
| Recommended Tracking Force: | 1.8 g (mN) |
| Tracking Angle: | 20° |
| Recommended Load Resistance: | 47 kΩ |
| Recommended Load Capacitance: | 150–300 pF |
