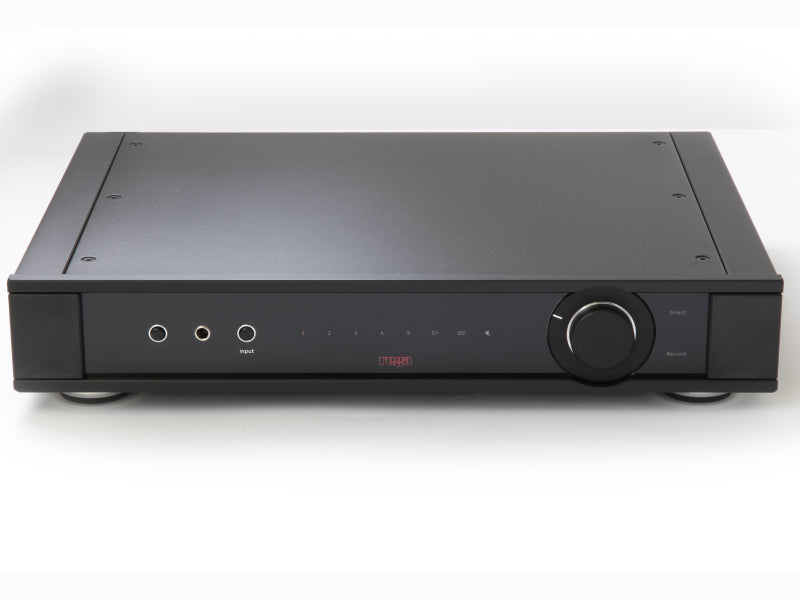

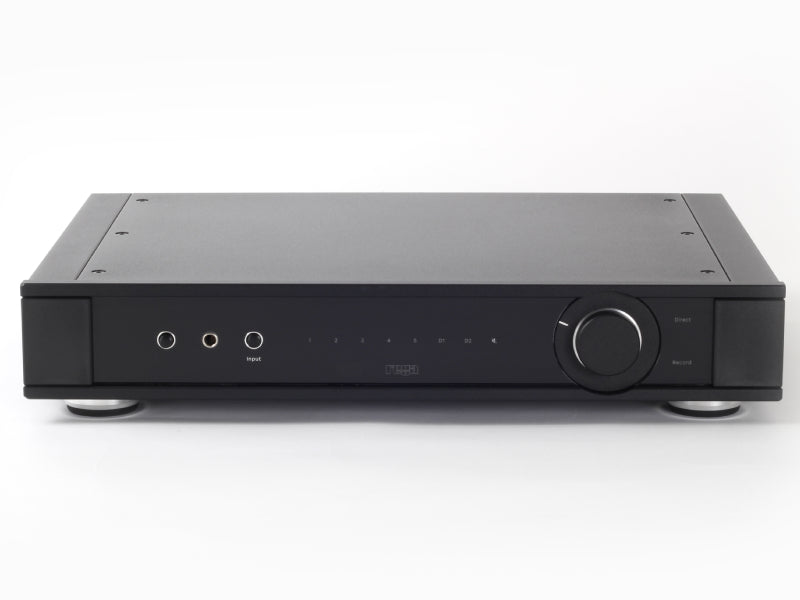

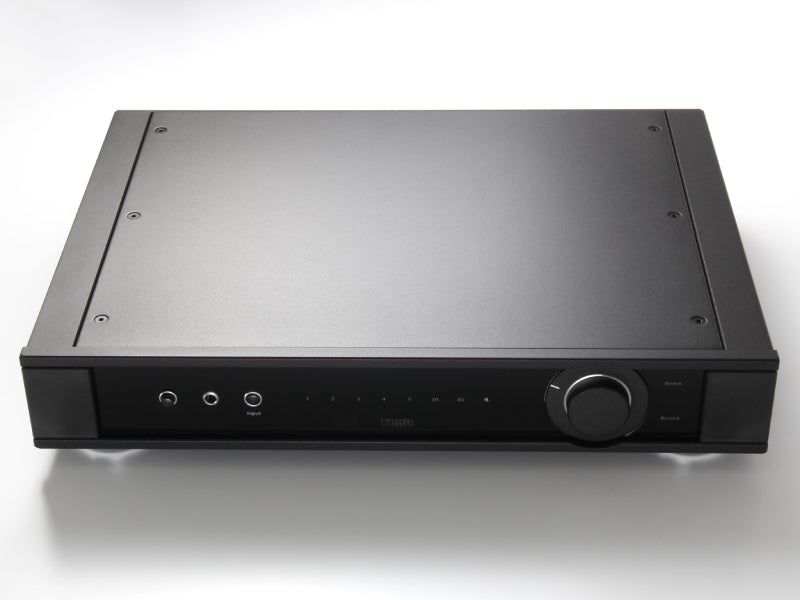

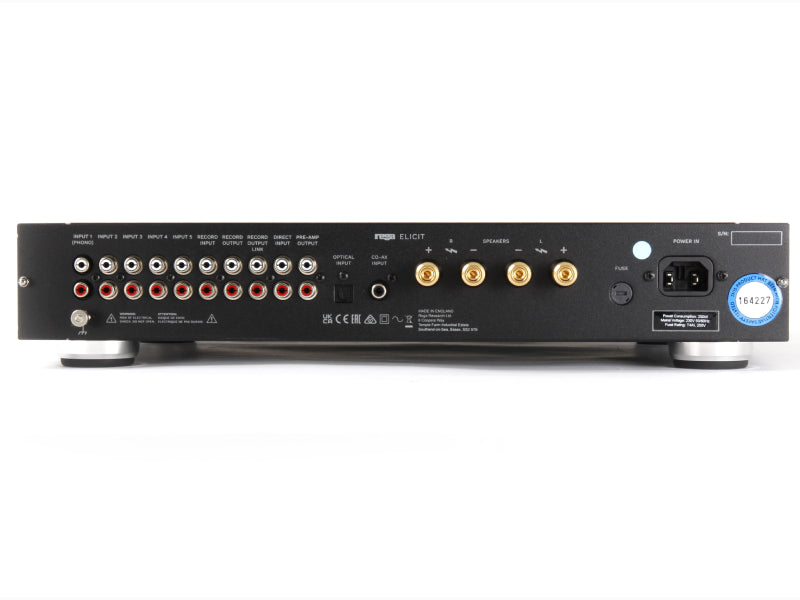

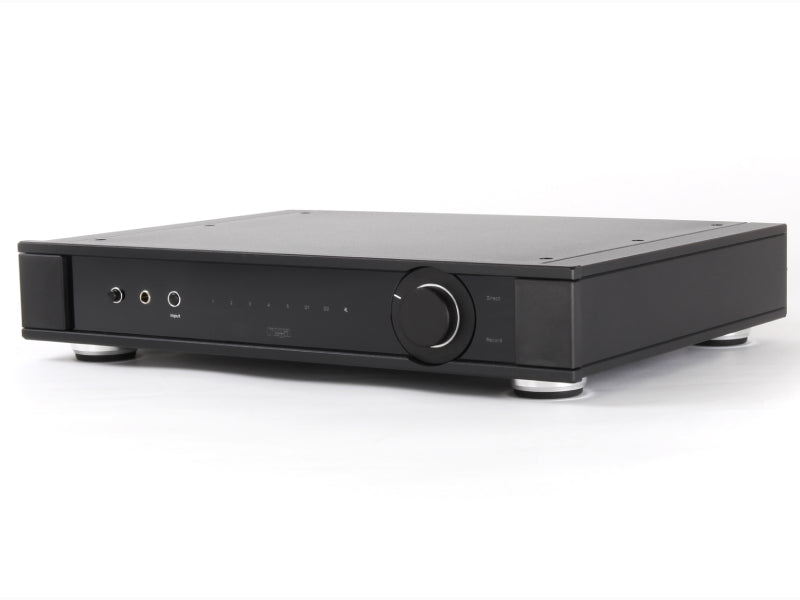

Rega Elicit MK5 Integrated Amplifier
The all new Rega Elicit MK5 stereo integrated amplifier is designed and built to the highest standard. Housed in our latest custom case to match the rest of the Rega range, the new MK5 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 105 W per channel into 8 Ω loads (127 W into 6 Ω).
Rega engineers have taken great care to incorporate a high-quality MM phono stage, the headphone input socket has been integrated such that the speaker switching is performed by the output mute relay so as not to obstruct the signal path. the Rega engineers have incorporated a new design Rega DAC offering digital connectivity and greater flexibility with a variety of other products.

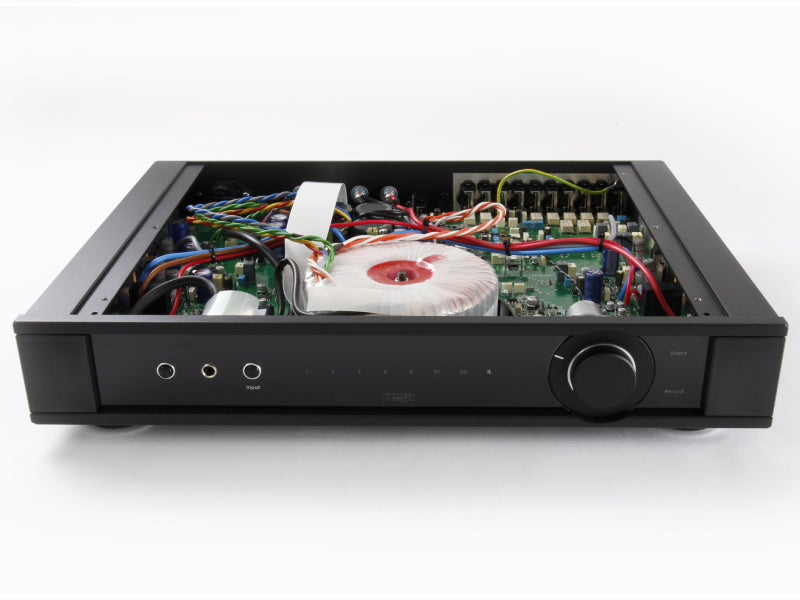

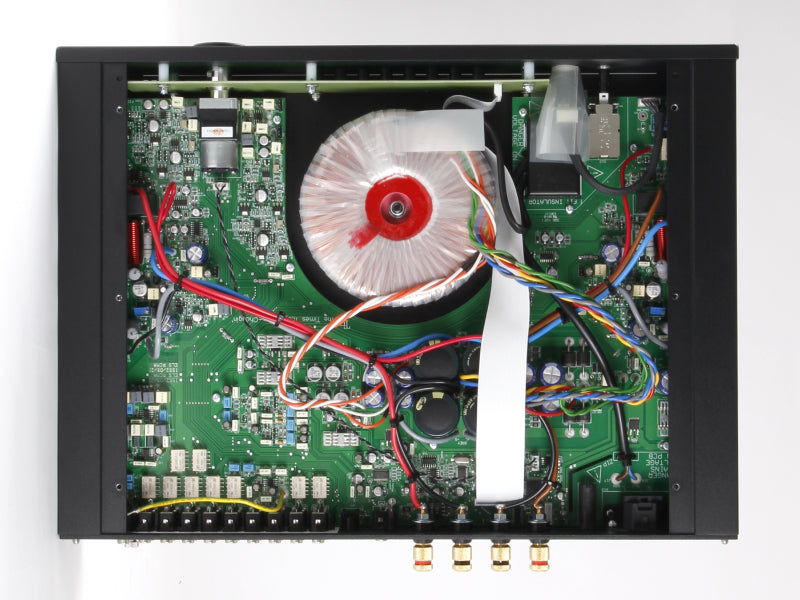

The Elicit MK5 now shares other design features taken directly from the highly acclaimed Aethos amplifier. You will find the same discrete FET based pre-amplifier circuit, plus an Alps volume potentiometer has been introduced to further improve sonic and technical performance. As you would expect, special attention has been paid to the selection of key audio components. Discrete circuitry, high-quality relays, polypropylene capacitors, and Sanken output transistors are used throughout the design.
Key features:
- 105 W per channel into 8 Ω
- High quality moving magnet phono stage

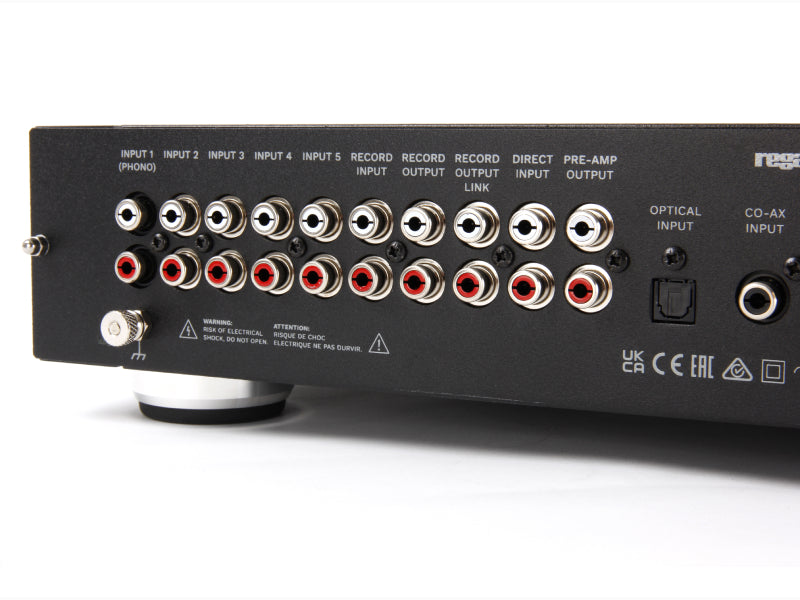

- 2 x Digital inputs - 1 x optical and 1 x Co-Axial
- High performance Rega DAC circuit for digital inputs
- 4 Line level inputs
- Headphone input
- Direct Input
- Record input
- New advanced pre-amplifier
- Alps volume potentiometer
- Thermal Cut-Out
TECHNICAL SPECIFICATIONS
- Power Outputs at rated 230/115 V Supply voltage
-
105 W per channel into 8 Ω
127 W per channel into 6 Ω
162 w per channel into 4 Ω - Dimensions (W × H × D)
-
432 x 82 x 340 (D includes loudspeaker terminals)
- Weight
-
12.5Kg
- Supported Sampling Rates kHz
-
32, 44.1, 48, 88.2, 96, 176.4, 192kHz
- Supported Bit Depth
-
16 to 24 bit
