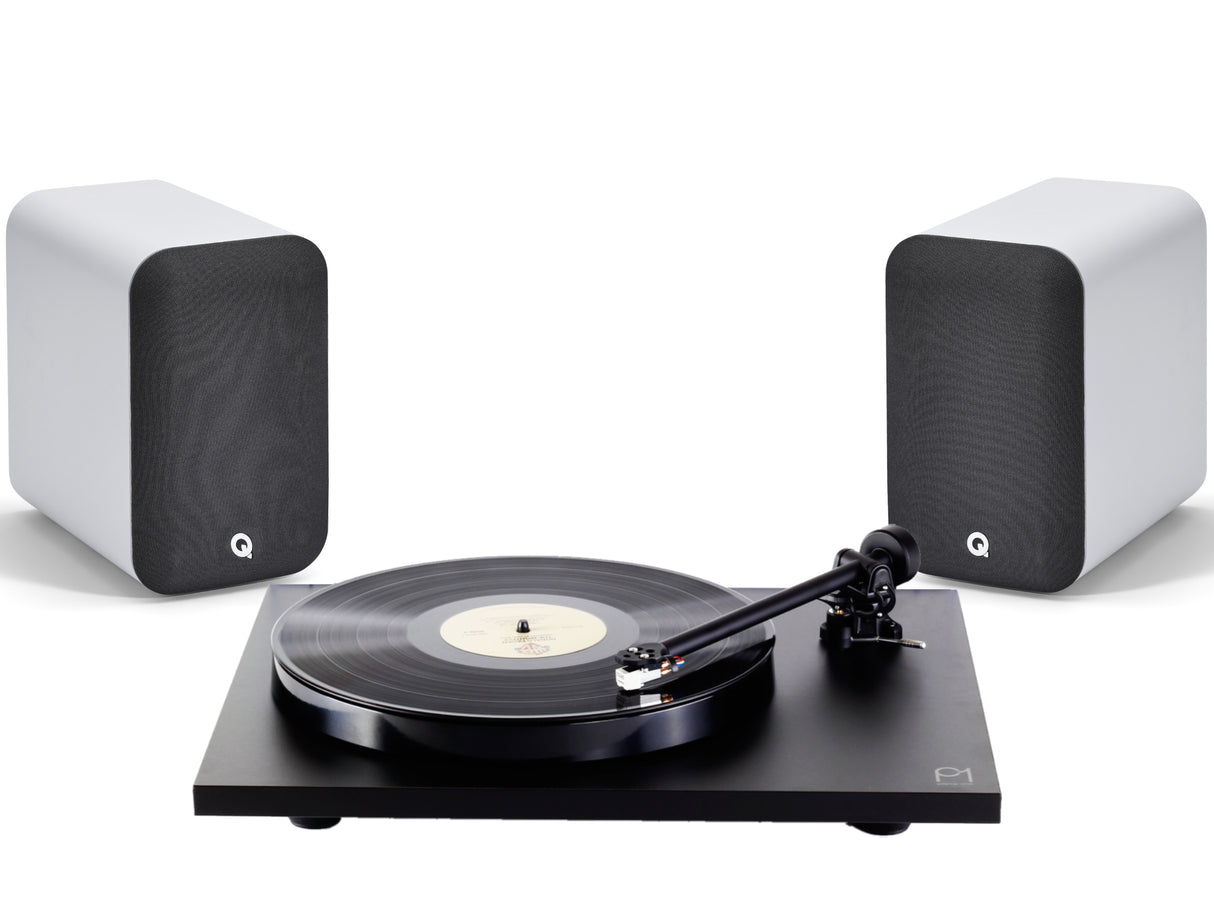

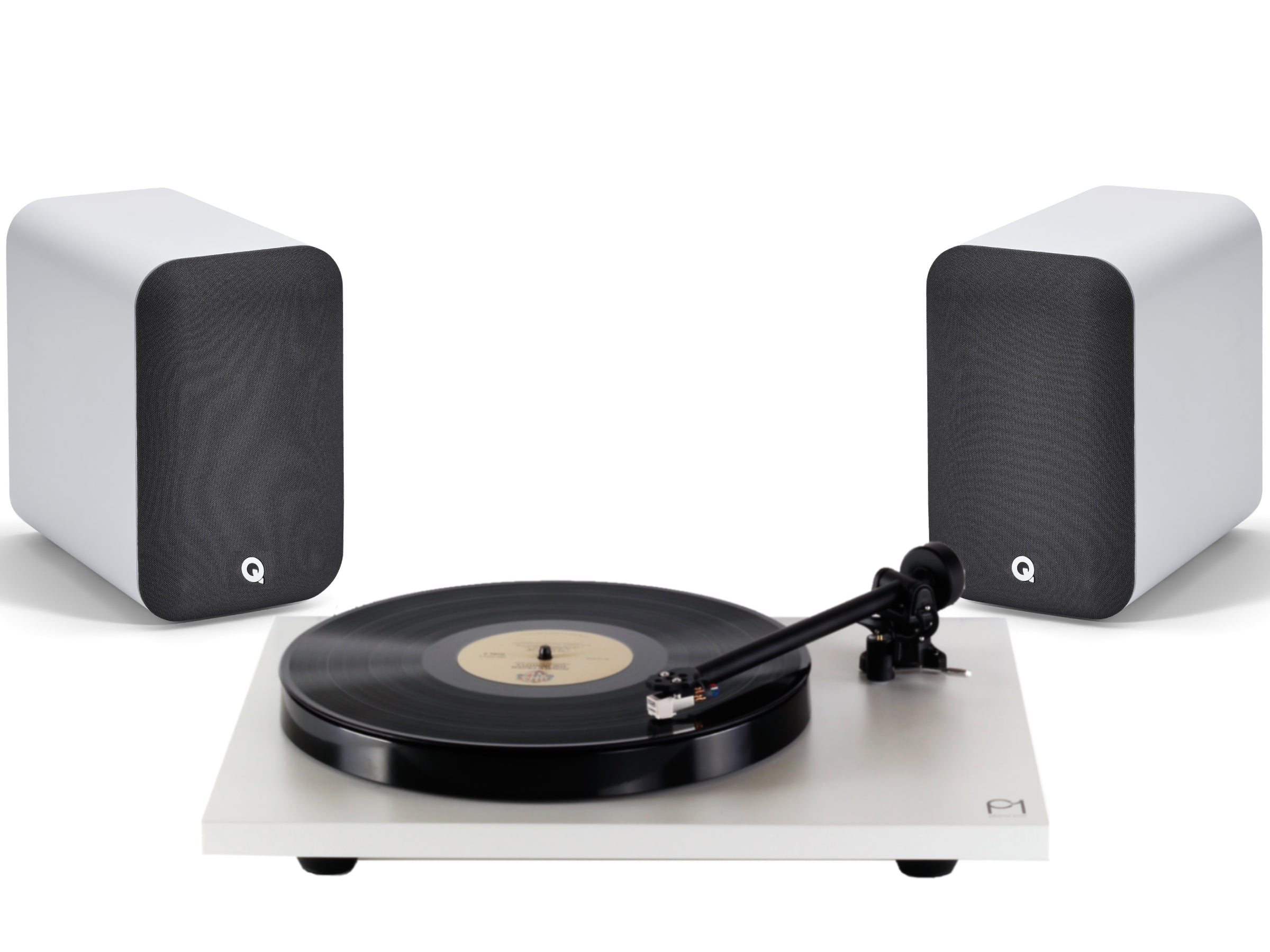

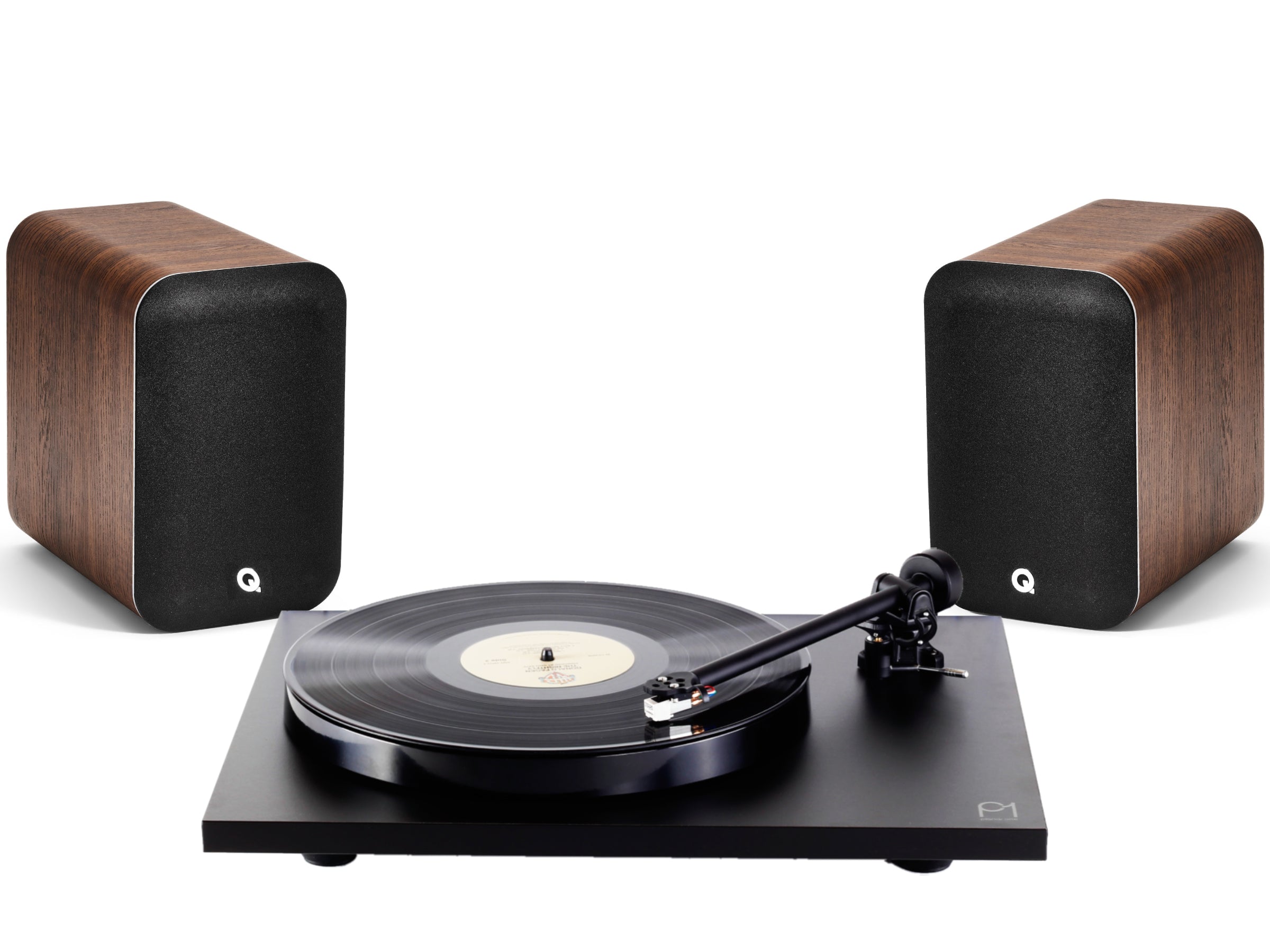

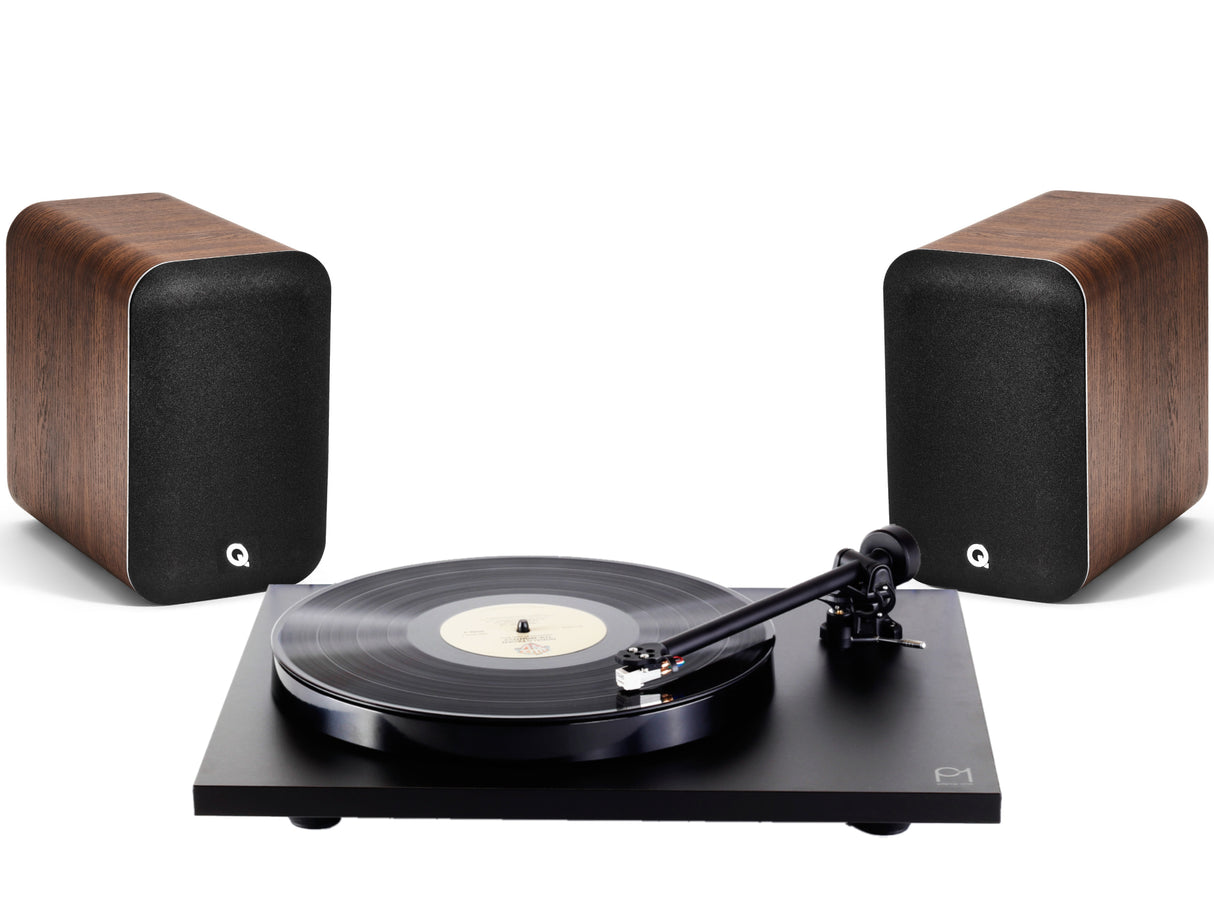

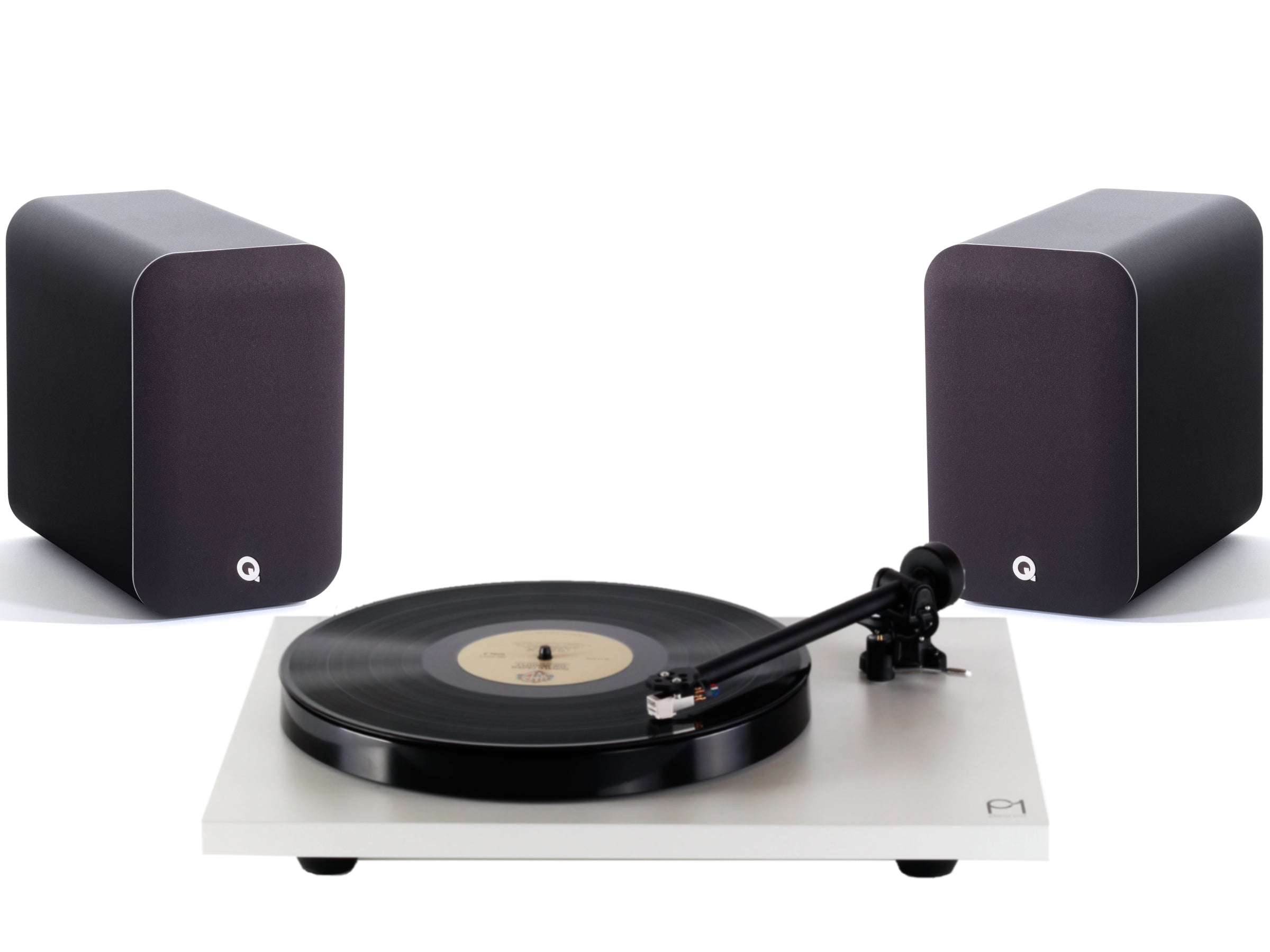

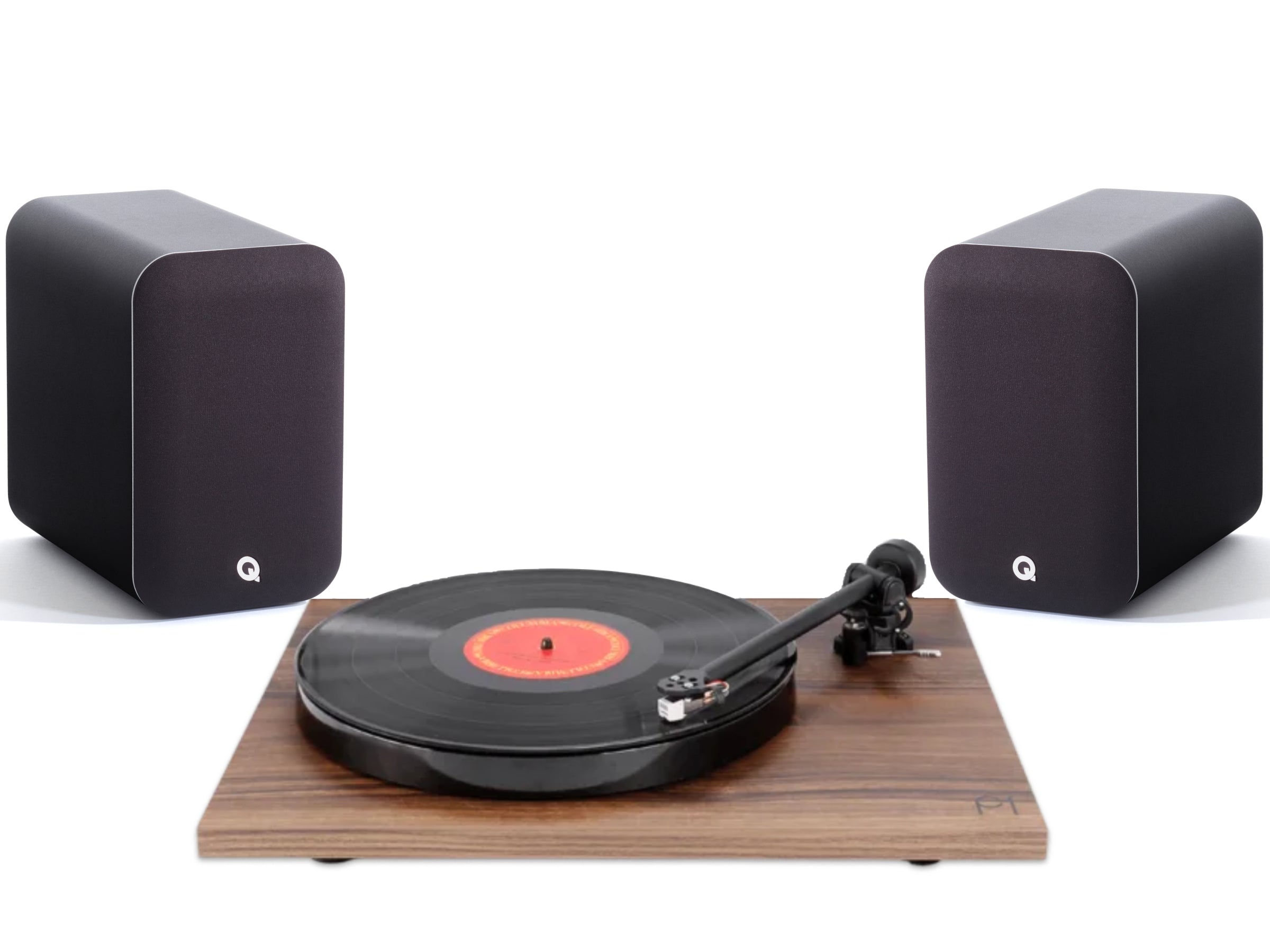

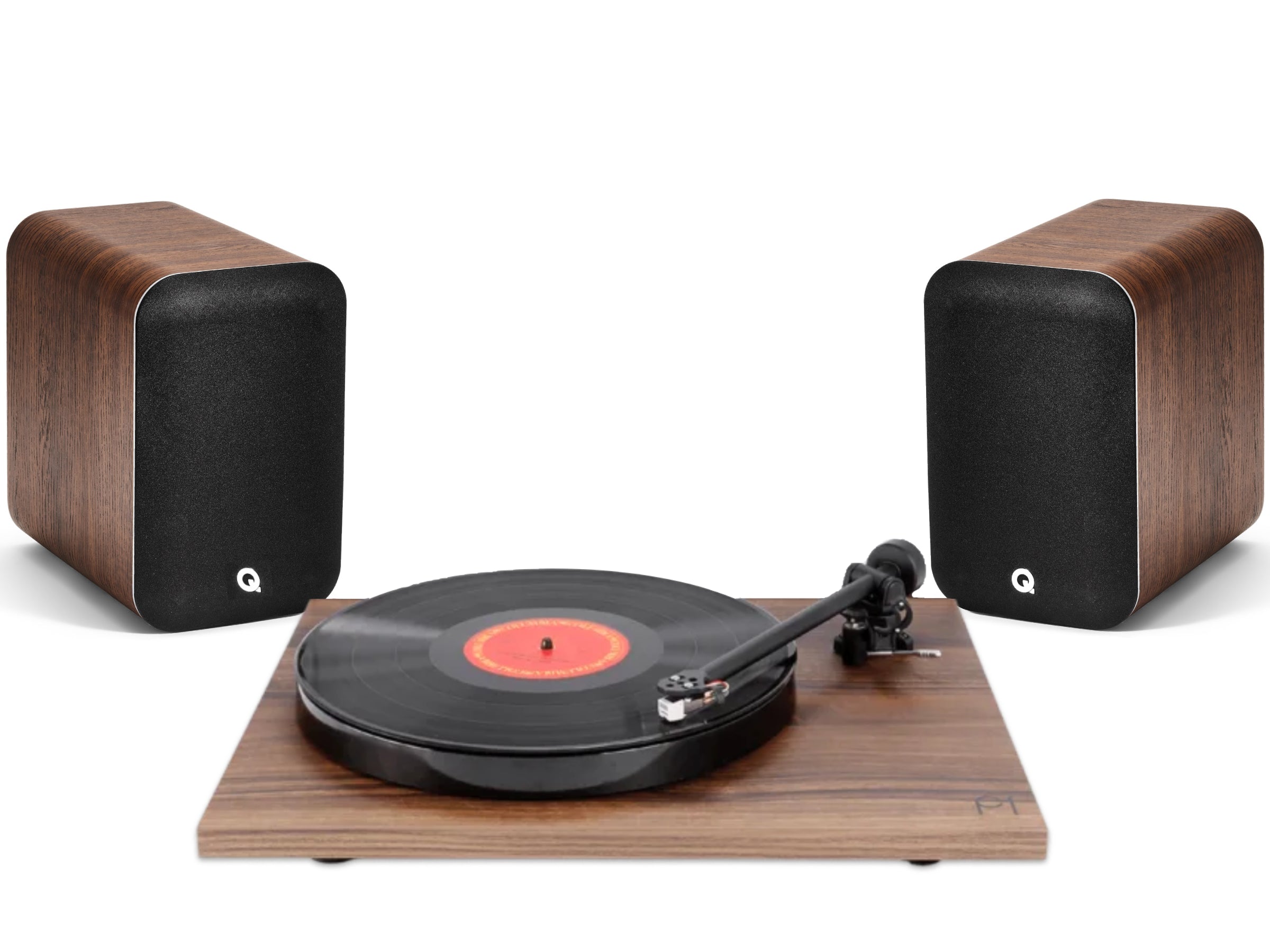

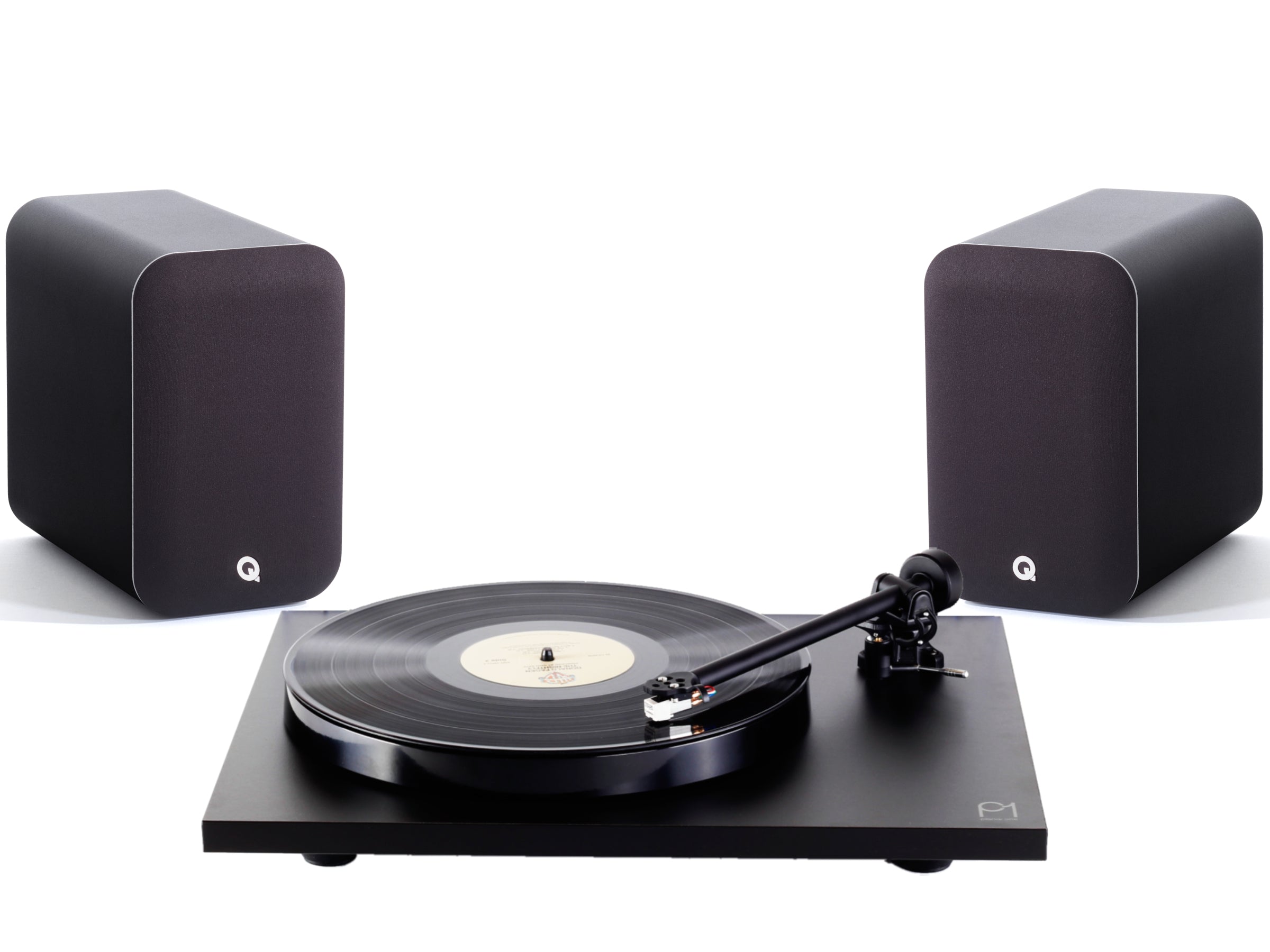

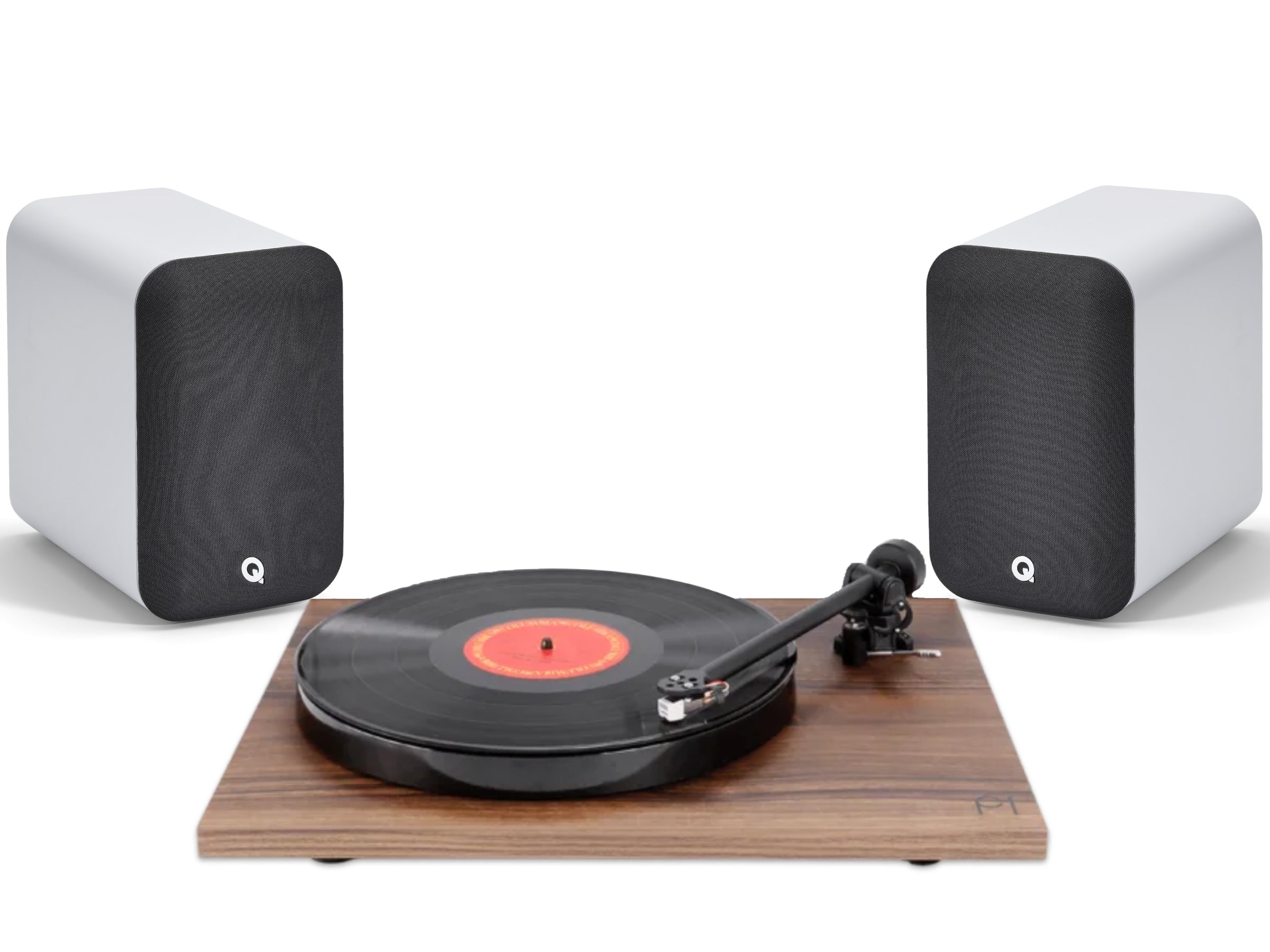

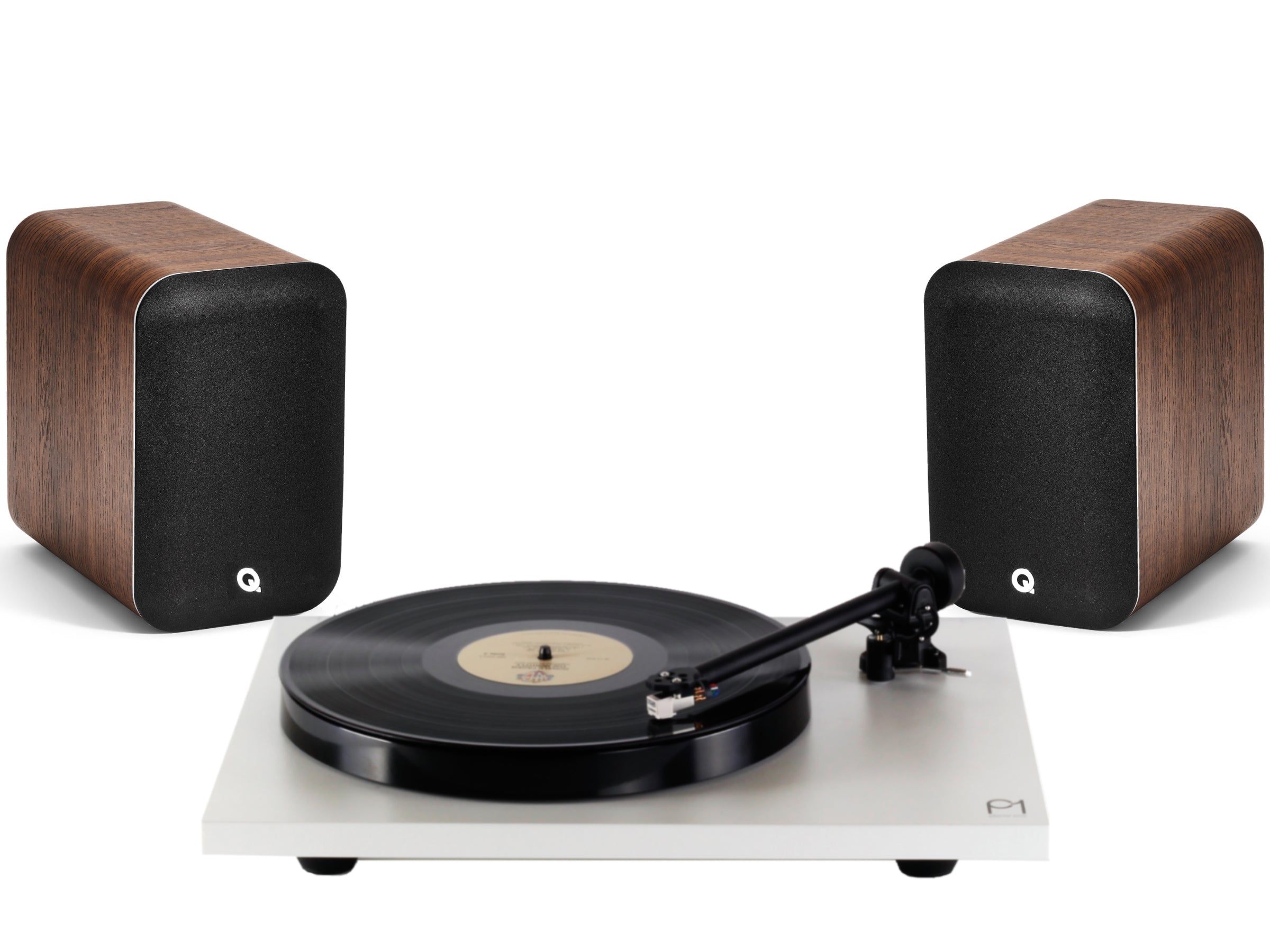

Rega Planar 1 Plus & Q Acoustics M20 Wireless Turntable System
The Rega Planar 1 Plus & Q Acoustics M20 Powered Speaker System is our most affordable turntable system. It offers incredible value and is perfect for customers who want a compact turntable system with true hi-fi sound at an affordable price.

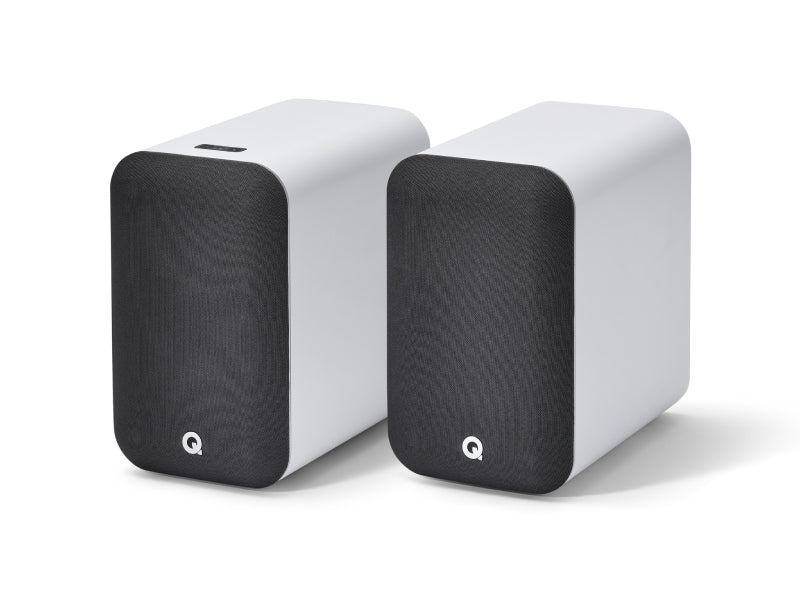

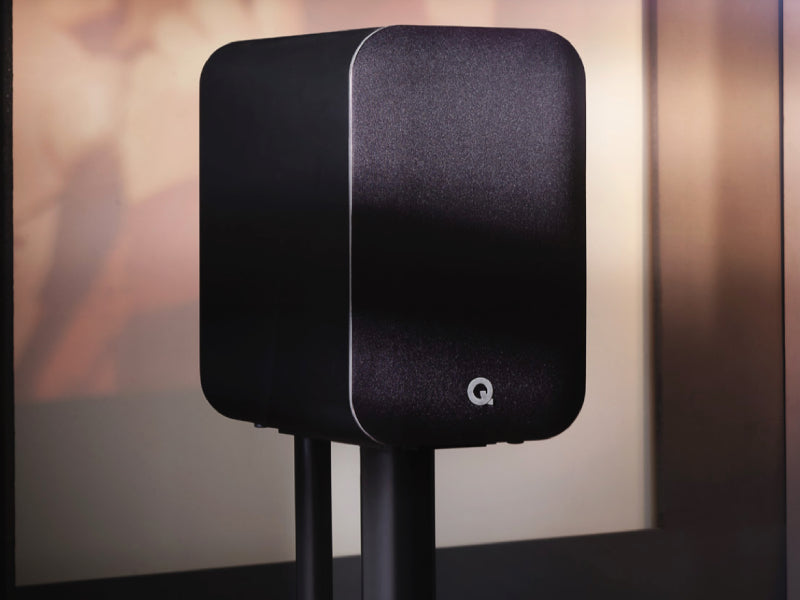

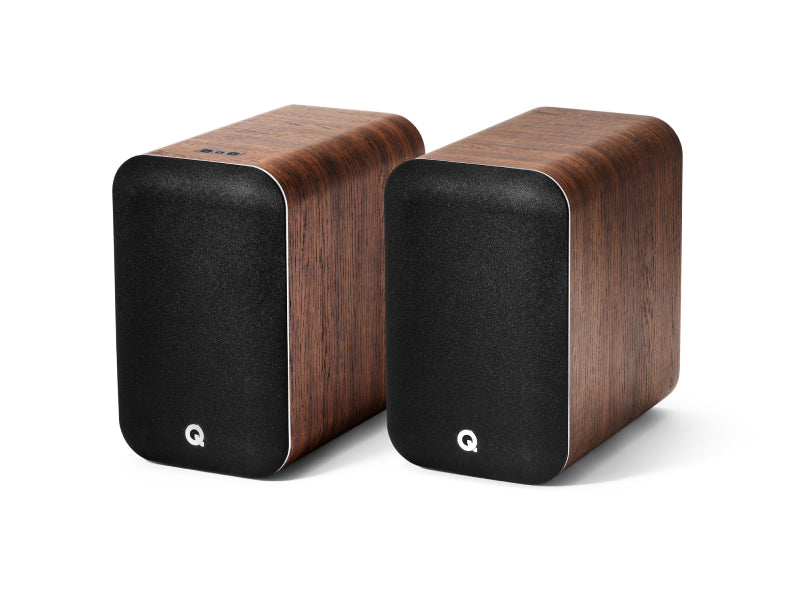

You can play all your favourite music, digital or vinyl, with incredible clarity through the Q Acoustics M20 HD Wireless music system. The flexible active M20 HD system from Q Acoustics is a powerful set of stereo speakers with both the pre-amplifier and power amplifier built into one of the speakers. With 2 x 64 watts of digital power, the M20 provides a neat wireless audio solution without the clutter of extra components.
Simplicity
Easy to set up, this compact system will fit almost anywhere. There is an EQ switch that allows the system to recognise whether each speaker is positioned in a corner, against a wall, or in free space, enabling its digital sound processing to optimise the audio performance. You can also designate the powered speaker as either the left or right channel, making it easier to access mains power and connect the Rega turntable.
The Rega Planar 1 plus turntable plugs directly into one of the Q Acoustics M20 speakers, delivering superb vinyl playback, while the speakers also allow you to stream all your digital music via the built-in Bluetooth receiver.
The Rega Planar 1 Plus benefits from all the advantages of its sibling, the Planar 1, including a low-noise 24 V motor, precision hub bearing assembly, and hand-made RB110 tonearm with a factory-fitted Rega Carbon cartridge. Set-up can be completed in under 30 seconds, making this the easiest-to-use and most flexible Rega turntable to date.
Our Rega Planar 1 Plus & Q Acoustics M20 Wireless Turntable System comes with all the connection leads you require and can be set up in minutes, ready for you to spin your vinyl or stream your favourite digital tunes.
Built-in Phono Stage
The built-in phono stage is a high-specification pre-amplifier. It is designed to amplify the signal from a moving magnet cartridge to a suitable level for any line-level input on an appropriate system or audio amplifier. This allows simple connection to a wide variety of products using either the standard twin phono-to-phono lead (supplied) or a phono-to-3.5 mm plug (not supplied).
Planar 1 Plus Turntable Specifications
| Use | Use only with a Rega PS1 350 mA power supply. |
| Power Requirements | 50 Hz: 24 V AC 0.142 mA maximum power consumption 3.4 W. 60 Hz: 24 V AC 0.129 mA maximum power consumption 3.1 W. |
| Maximum Output Level | 370-410 mV (3.54 cm/s RMS 45 degrees CBS STR100 Band 6a and 7a). |
| Output Impedance | 1 kΩ |
| Frequency Response | 14 Hz (-3 dB Point) to 100 kHz (-0.6 dB Point) (pre-amplifier only). |
| RIAA Accuracy | (100 Hz to 20 kHz) ± 0.4 dB typically better than ± 0.25 dB (pre-amplifier only). |
| Pre-amplifier Gain | 40 dB |
| Pre-amplifier Input Loading | 47 kΩ in parallel with 220 pF |
| Signal to Noise Ratio | -75 dB A-weighted ref maximum output. |
| Dimensions (lid closed) | H 11.7 x W 44.7 x D 36 cm |
| Weight | 4.35 kg |
M20 Active Speaker Specifications
| Frequency response | 55 Hz – 22 kHz |
| Crossover frequency | 2.4 kHz |
| Inputs | • Bluetooth® 5.0 (with aptX™, aptX™ HD, aptX™ Low Latency, SBC and AAC compatibility) • USB (24-bit/192 kHz compatibility) • Digital optical (24-bit/192 kHz compatibility) • Stereo RCA (line level) • 3.5 mm (line level) |
| Power | 2 × 65 W |
| Cabinet type | Two-way reflex-ported |
| Dimensions | 279 mm (H) × 170 mm (W) × 296 mm (D) |
| Weight | 5.1 kg (passive speaker), 5.5 kg (powered speaker) |
