REL Acoustics T/5x Subwoofer

£699
✓ Free UK Delivery
✓ 3 Year warranty
✓ Authorised UK Premium Dealer

✓ Est. Independent Since 1960

Perfect for small and medium rooms, T/5x seats perfectly into any décor. Floor-firing is part of its secret; bass energy strikes the floor and spreads uniformly throughout the space making it perform like a larger model. For those picky about style, the hidden bonus is this design eliminates even the grill, rendering it the purest of forms.

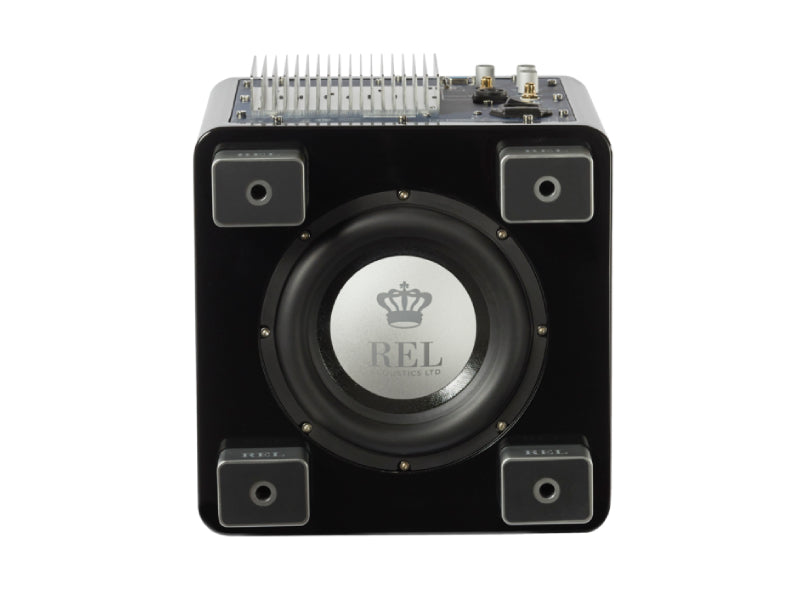

T/5x borrows a single longthrow 8” (200mm) bass engine from its elder sibling, T/7x. Developed using a composite of aluminum and light paper, this cone captures details that will amaze, while supplying sufficient energy to plumb deeper than one would expect for its size. In T/5x, its throw–the ability to play louder–has been increased. Internally, the suspension received numerous upgrades akin to transforming the handling of a car from a family sedan to a true sports car. More power, greater finesse.

T/5x builds on its predecessor’s reliable, expensive 125 W Class A/B amplifiers. Internally, key items significant to upgrading transparency and speed have been upgraded at no cost to REL’s legendary reliability. Separate inputs for High Level Inputs, Low Level Input (necessary for the increasing number of powered active speakers emerging on the market) allow for a natural, perfect transition from speaker to subwoofer. And in theater a separate, dedicated .1/LFE Input for Theatre performance permits automatic transition between music in high end 2-channel applications and home theater without needing to change a single setting. Magic? No, superior engineering.

Standby Mode switch is only included on 220V units.

Specifications.

TYPE
Closed Box, down-firing driver

ACTIVE DRIVER SIZE & MATERIAL
8 in. FibreAlloy™, 200mm long-throw, inverted alloy dust cap, steel chassis

PASSIVE RADIATOR SIZE & MATERIAL
N/A

LOW FREQUENCY EXTENTION
-6dB at 32 Hz

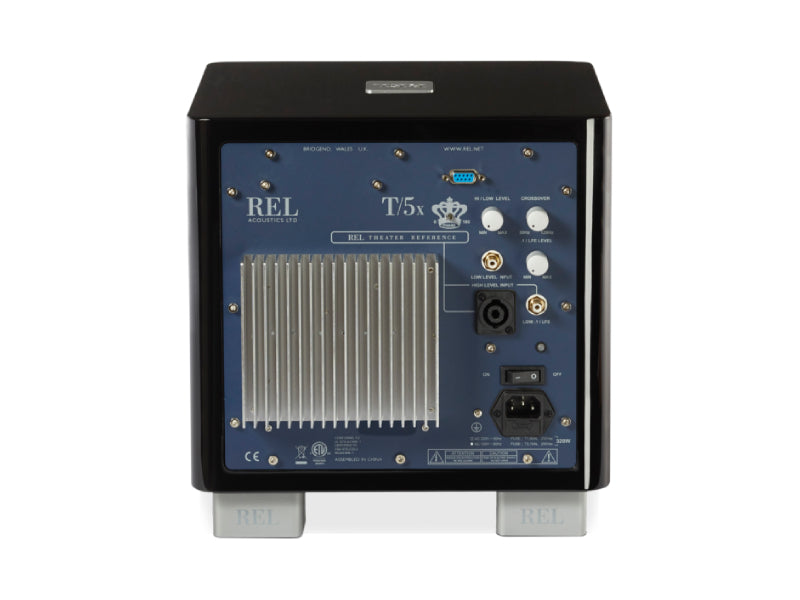

INPUT CONNECTORS
High Level Neutrik Speakon, Low Level single RCA, LFE RCA

OUTPUT CONNECTORS
N/A

POWER OUTPUT
125 watts (RMS)

AMPLIFIER TYPE
Class A/B

WIRELESS CAPABILITY
Arrow (Optional), Zero Compression, Single Large Scale Integrated Chip

Protection System
FULLY ELECTRONIC SET SAFE
Yes

D.C. FAULT
Yes

OUTPUT SHORT
Yes

MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets

FUSES
1.6 Amp semi delay 230 volts operation, 3.15 Amp semi delay 115 volts operation

Dimensions
W X H X D
11.8 x 12 x 12.3 in., (300 x 307 x 313 mm)

NET WEIGHT
31.5 lbs. (14.3 kg)

FINISH

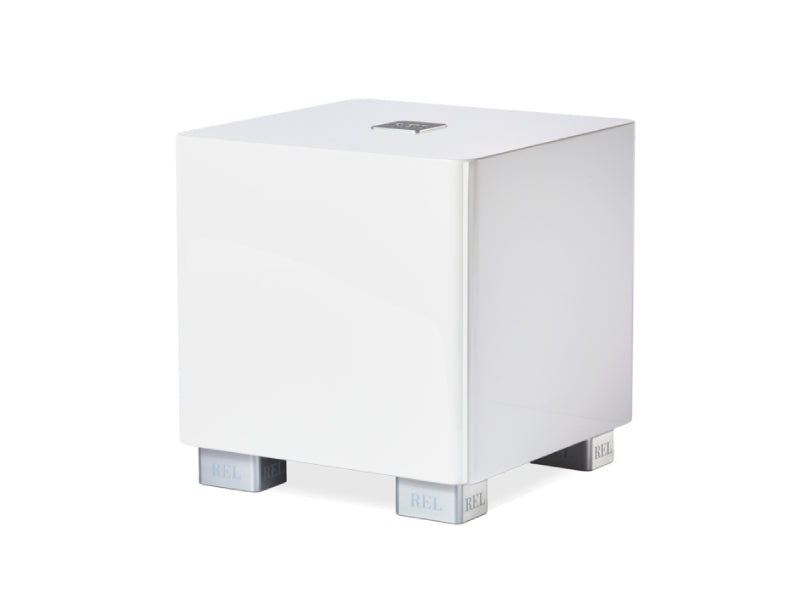

High Gloss Black, High Gloss White, 5 coats

Supplied Accessories
MAINS LEAD
Yes

NEUTRIK SPEAKON
Yes (10 Meters Nominal)

INTERCONNECT
USERS MANUAL
Yes

In the interest of product development, REL Acoustics Limited reserve the right to vary these specifications without notice.
