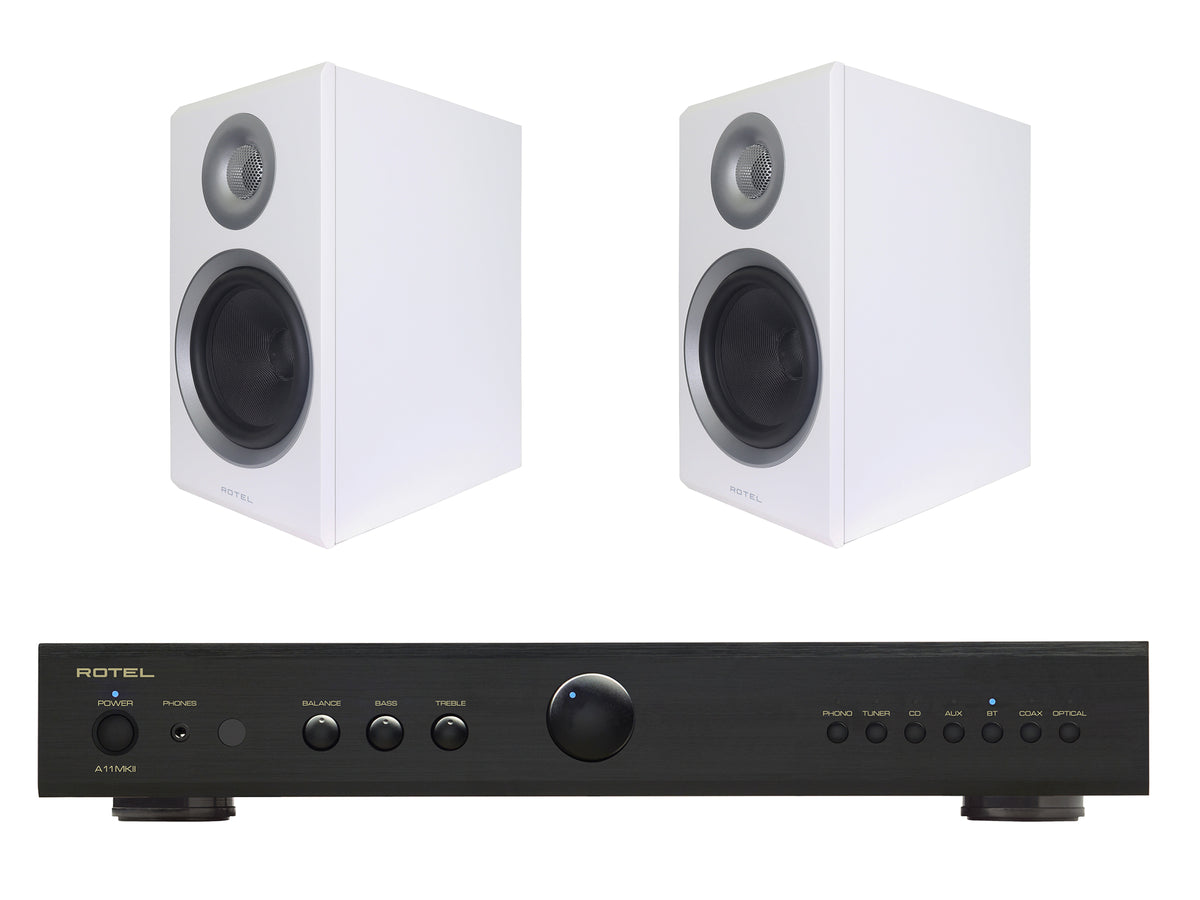

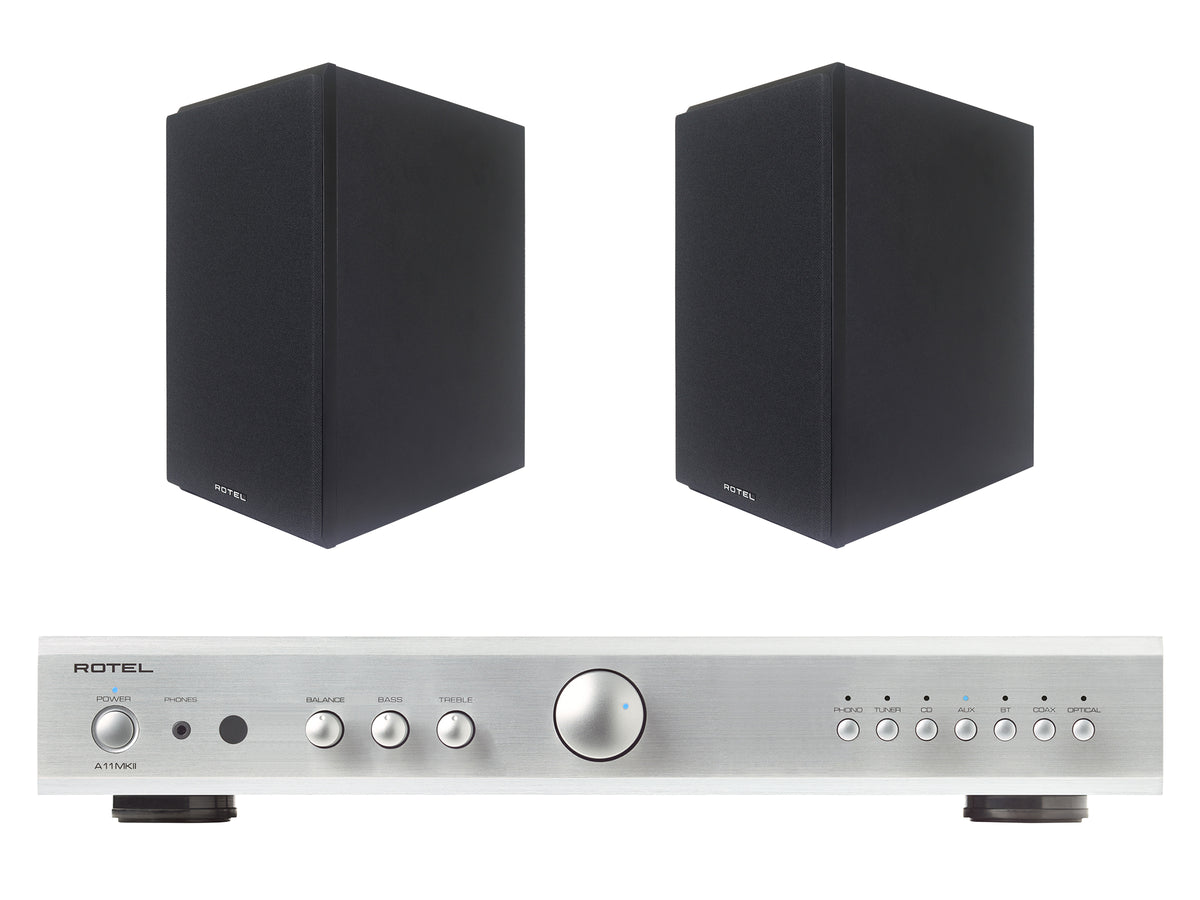

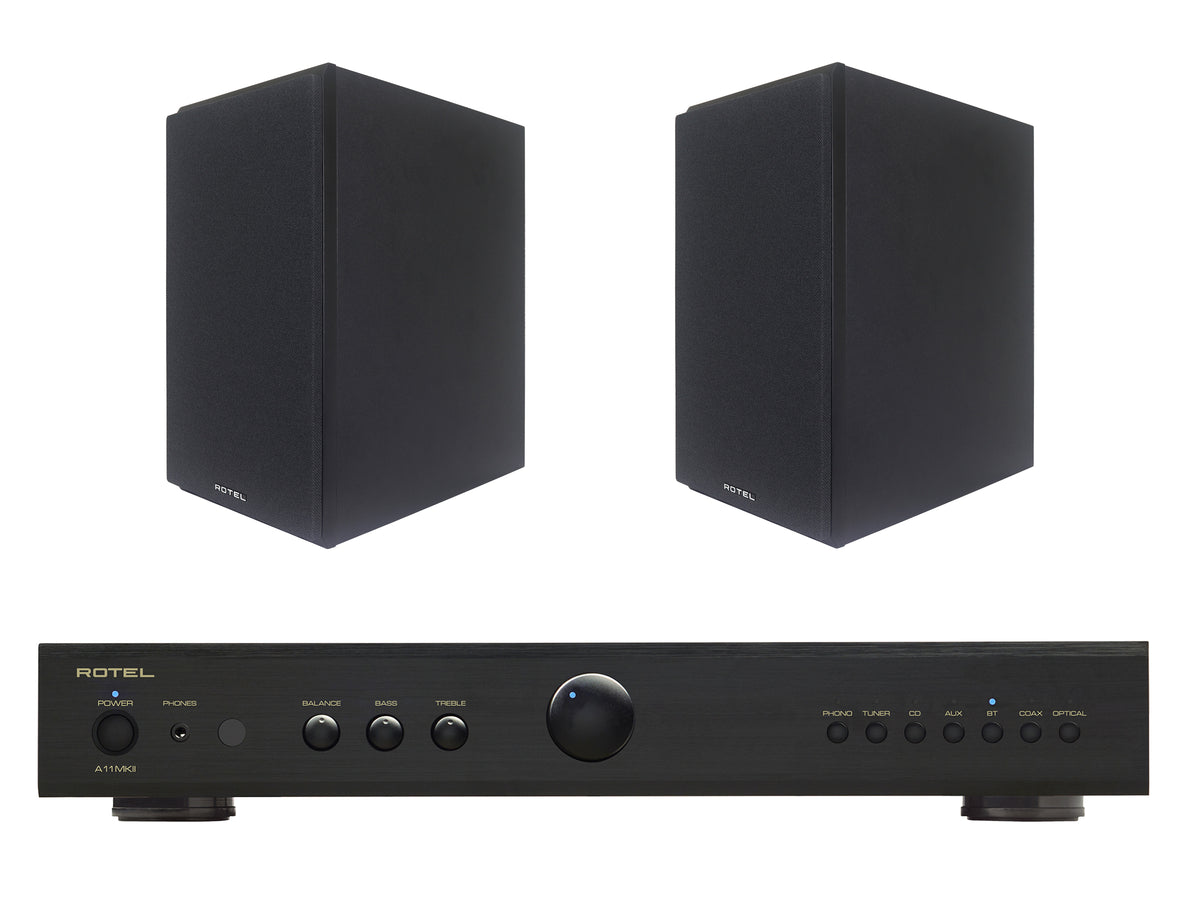

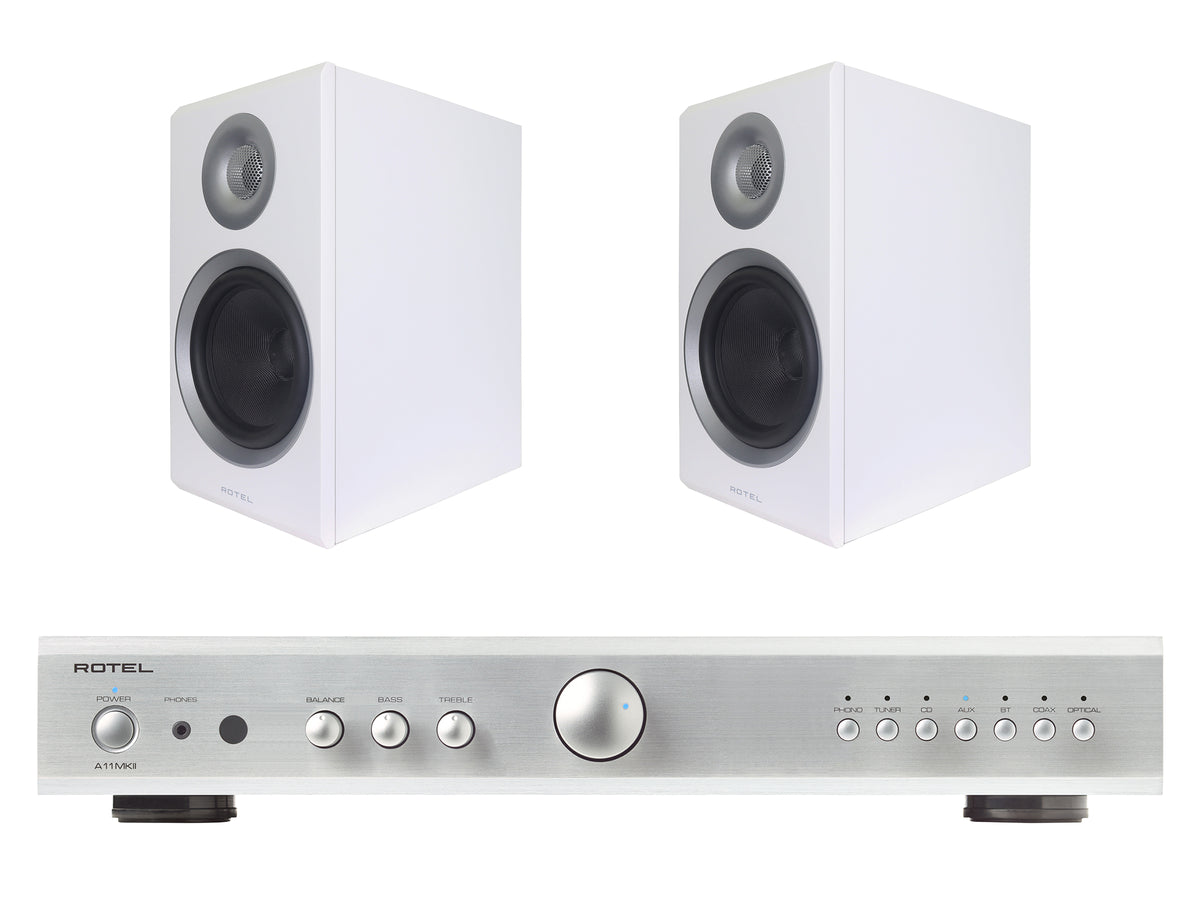

Rotel A11 MkII Integrated Amplifier with Amora 5 Bookshelf Speakers
Couldn't load pickup availability
Free Next Day Delivery*
Free Next Day Delivery*
Returns Policy
Returns Policy
Rotel A11 MkII Integrated Amplifier with Amora 5 Bookshelf Speakers
Rotel A11 MkII
The Rotel A11MKII Integrated Amplifier offers an ideal combination of power and connectivity for the music lover seeking to elevate their listening experience. Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A11 MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into demanding loudspeakers.
Exclusive Rotel power supply innovations and critical circuit layout provide physical and electrical separation to lower the noise floor and increase musical dynamics. The A11MKII’s multi-tap transformer delivers power to sensitive low-voltage circuits and the high current amplifier output stage independently, isolating the signal path from noise and reducing unwanted distortion. This sound-first design supports fast transients and delivers an expressive, open musical performance.
Both analogue and digital sources are welcome, with three line-level RCA inputs, coaxial and optical digital inputs, a Moving Magnet Phono stage, and aptXTM HD Bluetooth. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions. The intuitive front panel layout includes Bass, Treble, and Balance rotary controls and source input selection ensuring the A11MKII is personal and a pleasure to operate up close.
The included IR remote drives a motorized analogue volume controller for ease of use at the listening position. User friendly features such as a detachable IEC power cord, two 12V trigger outputs, heavy 5-way speaker binding posts, and signal sensing auto power on/off functions ensure compatibility with any installation.
The A11MKII is available in both black and silver colours.
Rotel Amora 5
Drawing on Rotel’s decades-long audio engineering heritage, the Amora 5 is a loudspeaker built to deliver clarity, energy and natural expression. Inspired by Rotel’s amplifier and audio component design heritage and built from the same foundation of disciplined engineering expertise, it presents music with a natural, engaging character that feels effortless to listen to.
The Amora 5 driver system combines a 1-inch (25 mm) silk dome tweeter, extending to 28 kHz, with a 6.5-inch (165 mm) woven fiber composite midrange/bass driver chosen for effective damping and balanced musical response. A precision-tuned 2.5 kHz crossover integrates both drivers with carefully considered component choices, supporting a smooth transition, coherent imaging, and a wide, stable soundstage. Every detail of the cabinet contributes to performance and presentation. The resonance-controlled MDF enclosure is engineered to reduce unwanted coloration, while the rear-mounted reflex port supports low-frequency extension to 48 Hz.
Laminate finishes, a screwless front assembly, and a removable acoustic fabric front grille give the Amora 5 a refined appearance suited to modern listening spaces. Dual sets of gold-plated speaker terminals support standard single-wire or bi-wire connections, allowing flexible system setup. Measuring 13.8 inches (350 mm) high, 7.5 inches (190 mm) wide, and 11.8 inches (300 mm) deep, and weighing 17 lb (7.7 kg), the Amora 5 balances efficient placement with meaningful cabinet volume and material substance. The result is an engaging loudspeaker that pairs beautifully with Rotel systems while standing confidently in any quality audio setup.
Rotel A11 MkII Specifications
| Power Output: | 50 Watts per channel (8 Ohms), 62 Watts per channel (4 Ohms) |
| Total Harmonic Distortion: | <0.03% |
| Intermodulation Distortion: | <0.03% (60 Hz : 7 kHz, 4:1) |
| Frequency Response – Phono Input: | 20 Hz – 20 kHz (-0.5 dB, +0.3 dB) |
| Frequency Response – Line Inputs: | 10 Hz – 100 kHz (-0.5 dB, +0.05 dB) |
| Damping Factor: | 120 (20 Hz – 20 kHz, 8 Ohms) |
| Input Sensitivity / Impedance – Phono: | 1.6 mV / 43 Ohms |
| Input Sensitivity / Impedance – Line: | 130 mV / 45 kOhms |
| Input Overload – Phono: | 50 mV |
| Input Overload – Line: | 4 V |
| Tone Controls – Bass / Treble: | ±6 dB at 100 Hz / 10 kHz |
| Signal-to-Noise Ratio – Phono: | 85 dB (IHF “A” weighted) |
| Signal-to-Noise Ratio – Line: | 90 dB (IHF “A” weighted) |
| Digital Frequency Response: | 20 Hz – 20 kHz (-0.15 dB, +0 dB) |
| Digital Input Sensitivity / Impedance: | -20 dBFS / 75 Ohms |
| Digital Inputs: | SPDIF LPCM (up to 24-bit / 192 kHz) |
| Power Requirements – USA: | 120 V, 60 Hz |
| Power Requirements – Europe: | 230 V, 50 Hz |
| Power Consumption: | 150 W |
| Standby Power Consumption: | <0.5 W |
| BTU Rating (4 Ohms, 1/8 power): | 450 BTU/h |
| Dimensions (W × H × D): | 430 × 73 × 347 mm (17 × 2 7/8 × 13 5/8 in) |
| Front Panel Height: | 60 mm (2 3/8 in) |
| Weight (Net): | 6.8 kg (15 lb) |
| Finish: | Black and Silver |
Rotel Amora 5 Specifications
| Design: | 2-way bass-reflex loudspeaker |
| Drive units: | 1 x ø 25 mm (1 in) silk dome tweeter 1 x ø 165 mm (6.5 in) woven fibre composite midrange/bass driver |
| Crossover frequency: | 2.5 kHz |
| Frequency response: | 48 Hz – 28 kHz |
| Sensitivity (2.83 Vrms / 1 m): | 87 dB |
| Nominal impedance: | 8 Ω |
| Recommended amplifier power: | 30 – 120 watts |
| Dimensions (H x W x D): | 350 x 190 x 300 mm 13.8 x 7.5 x 11.8 in |
| Net weight: | 7.7 kg (17 lb) |
| Cabinet structure: | MDF |
| Cabinet finishes: | Matte black Matte white |
| Grille finish: | Black |
| Speaker terminals: | Dual gold-plated |
