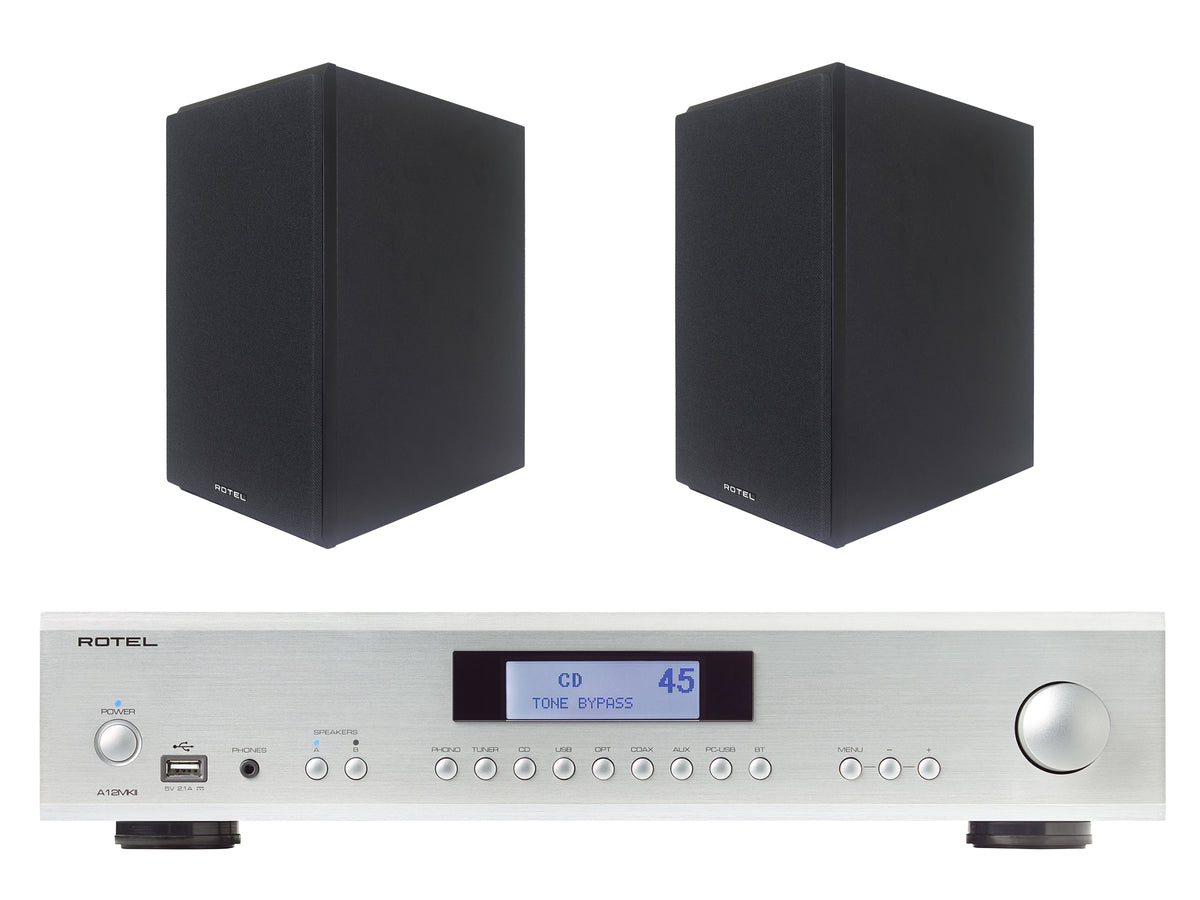

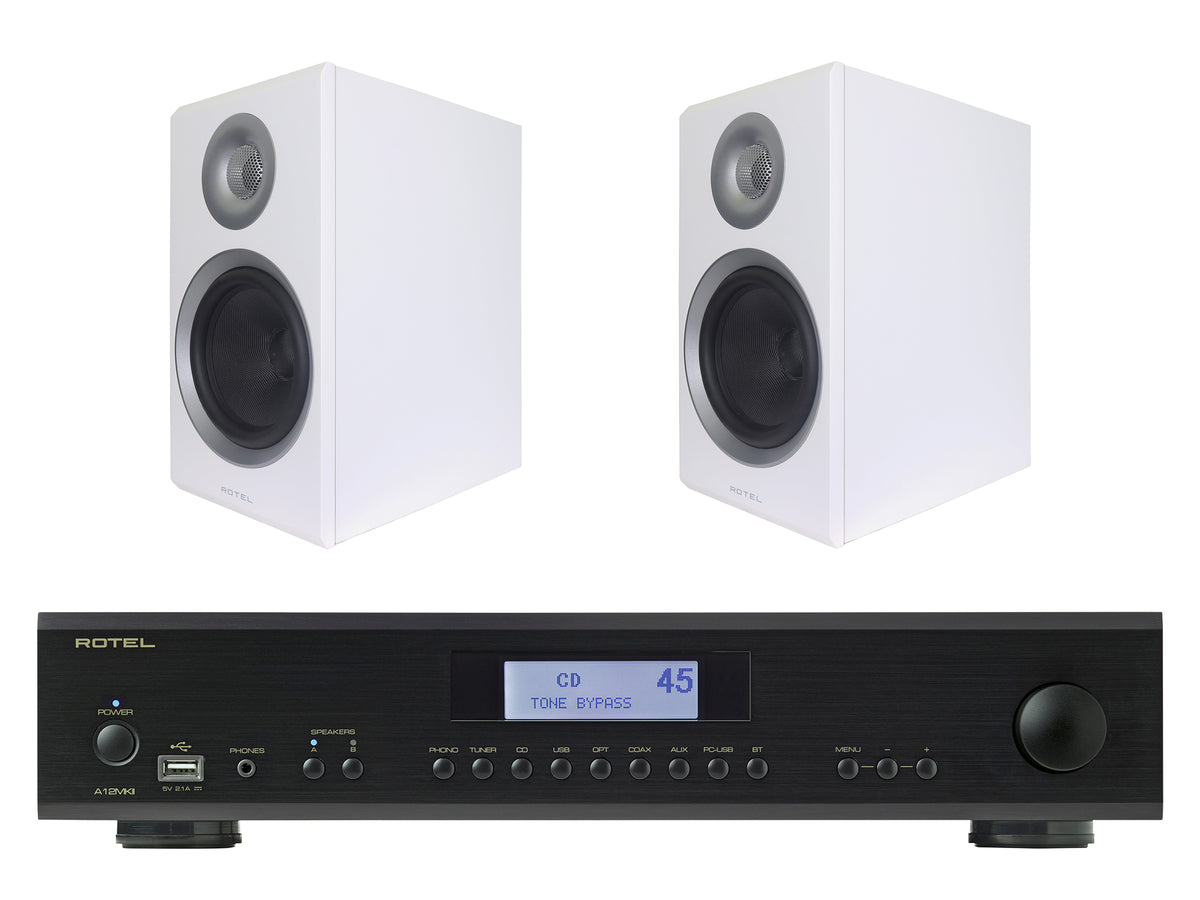

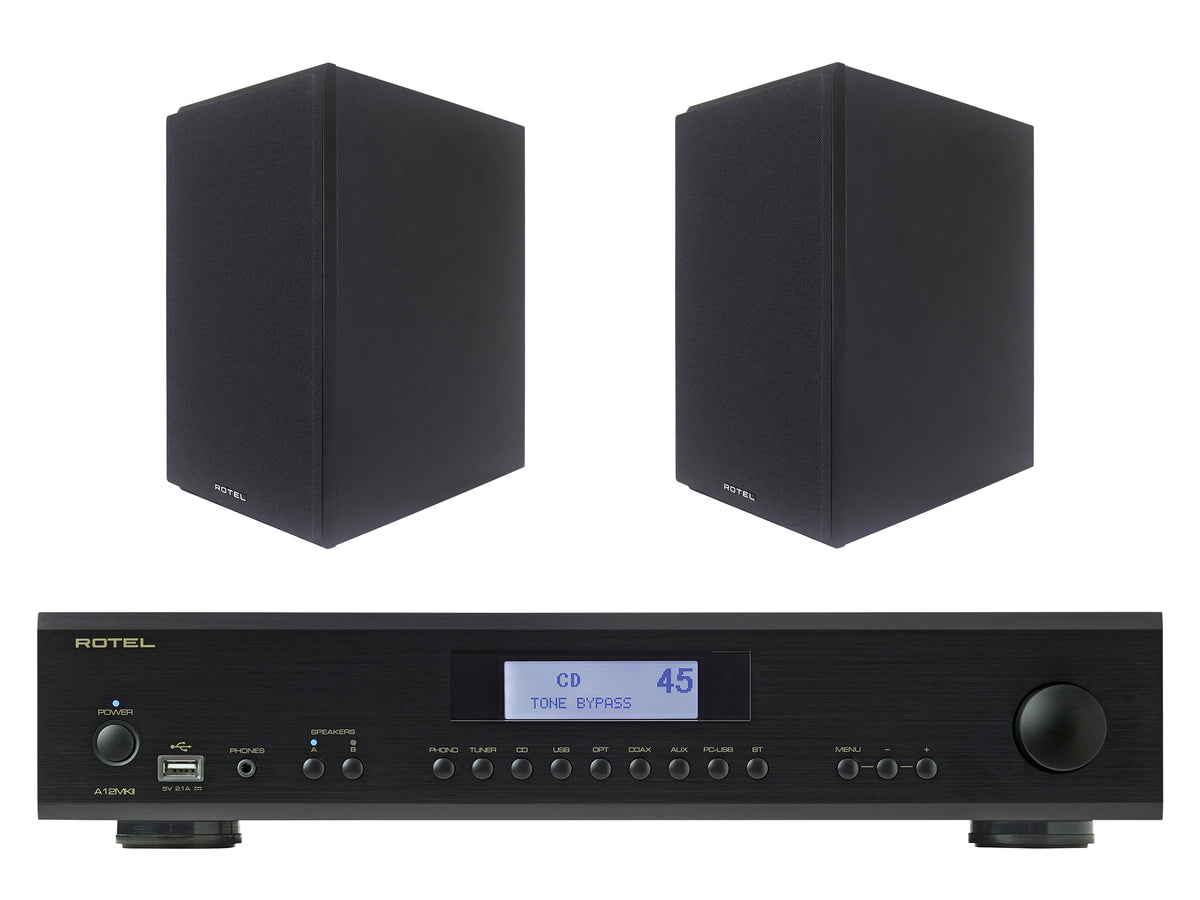

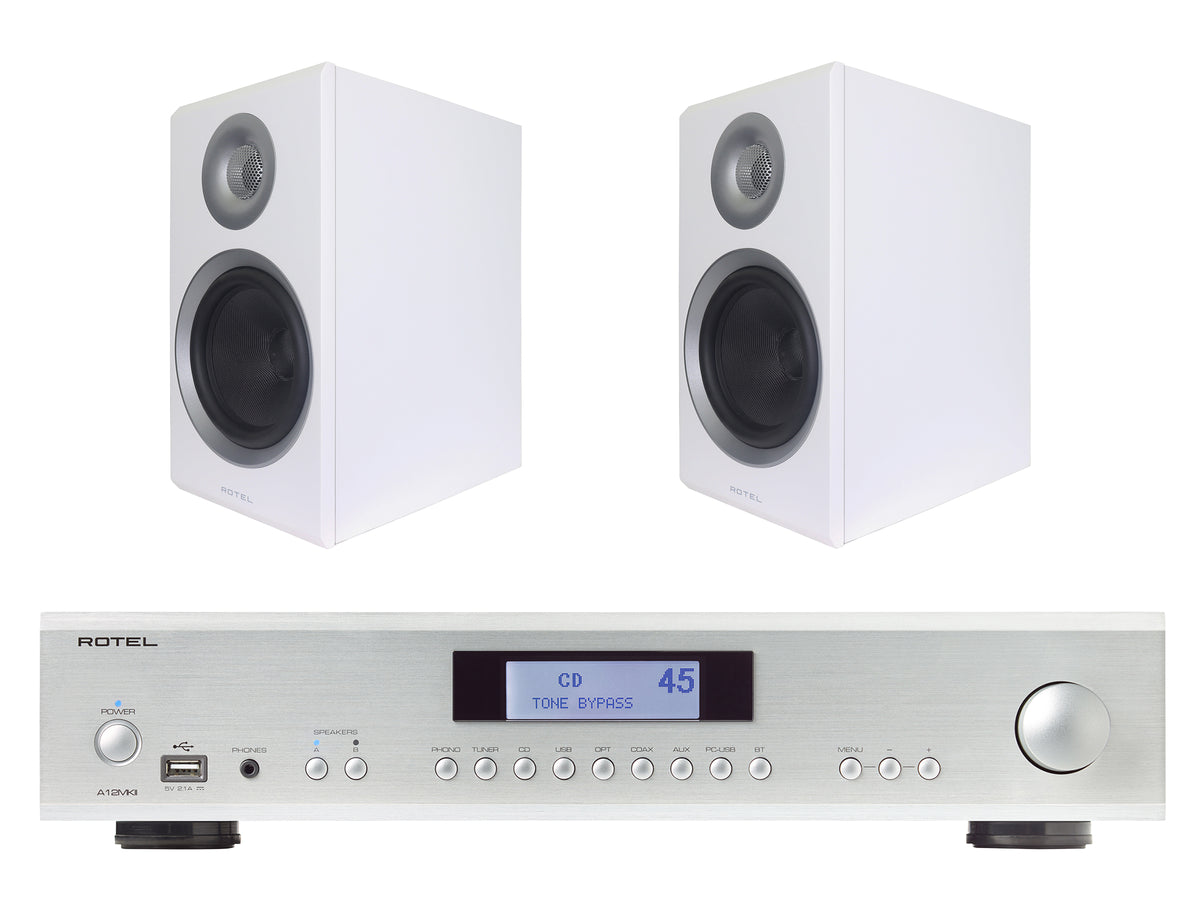

Rotel A12 MkII Integrated Amplifier with Rotel Amora 5 Bookshelf Speaker
Couldn't load pickup availability
Free Next Day Delivery*
Free Next Day Delivery*
Returns Policy
Returns Policy
Rotel A12 MkII Integrated Amplifier with Rotel Amora 5 Bookshelf Sp...
Rotel A12 MkII

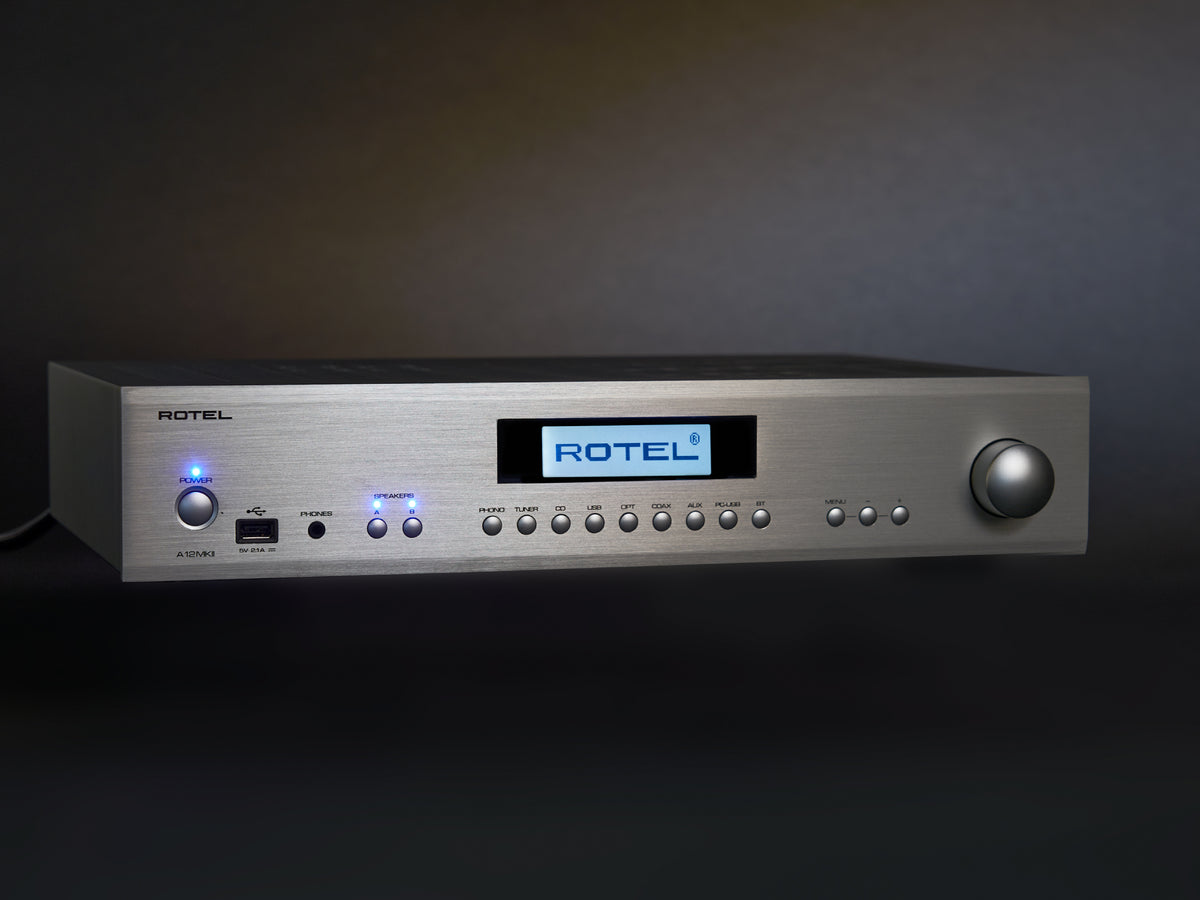

The A12MKII Integrated Amplifier measures only a slim 80 mm (3 inches) tall but stands well above its sleek design profile in performance and feature set for all music lovers. The heart of the A12MKII begins with Rotel’s in-house manufactured oversized toroidal transformer feeding high efficiency storage and smoothing capacitors for deep, controlled bass energy.
The power supply features multiple voltage and current regulators delivering independent power to critical analogue, digital and amplification stage circuits isolating sensitive low voltage signals from high power speaker outputs lowering the noise floor and reducing unwanted distortion. Circuit design follows Rotel’s proprietary Balanced Design Concept with physical and electrical isolation techniques delivering exceptionally clean audio.
The A12MKII is replete with inputs supporting your favourite sources including a Moving Magnet Phono Stage for vinyl fans, 4 RCA analogue, 4 digital, PC-USB and high quality aptXTM Bluetooth for wireless streaming. A premium 32-bit Texas Instruments Digital to Analog converter extracts genuine and accurate details of the music with custom output filters and preamplifier circuits preserving the integrity of the audio stream.
The Class AB amplifier delivers 60 Watts of dynamic power into 8 ohms utilizing high current, fast transient output devices for improved accuracy of the music timing and a more lifelike reproduction of audio into dual A-B speaker binding posts. The IR remote, front panel controls, and graphic display ensure effortless operation. RS232, 12V triggers and remote input ensure seamless integration with control systems. Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.
Rotel Amora 5
Drawing on Rotel’s decades-long audio engineering heritage, the Amora 5 is a loudspeaker built to deliver clarity, energy and natural expression. Inspired by Rotel’s amplifier and audio component design heritage and built from the same foundation of disciplined engineering expertise, it presents music with a natural, engaging character that feels effortless to listen to.
The Amora 5 driver system combines a 1-inch (25 mm) silk dome tweeter, extending to 28 kHz, with a 6.5-inch (165 mm) woven fiber composite midrange/bass driver chosen for effective damping and balanced musical response. A precision-tuned 2.5 kHz crossover integrates both drivers with carefully considered component choices, supporting a smooth transition, coherent imaging, and a wide, stable soundstage. Every detail of the cabinet contributes to performance and presentation. The resonance-controlled MDF enclosure is engineered to reduce unwanted coloration, while the rear-mounted reflex port supports low-frequency extension to 48 Hz.
Laminate finishes, a screwless front assembly, and a removable acoustic fabric front grille give the Amora 5 a refined appearance suited to modern listening spaces. Dual sets of gold-plated speaker terminals support standard single-wire or bi-wire connections, allowing flexible system setup. Measuring 13.8 inches (350 mm) high, 7.5 inches (190 mm) wide, and 11.8 inches (300 mm) deep, and weighing 17 lb (7.7 kg), the Amora 5 balances efficient placement with meaningful cabinet volume and material substance. The result is an engaging loudspeaker that pairs beautifully with Rotel systems while standing confidently in any quality audio setup.
Rotel A12 MkII Specifications
| Maximum Power Output: | 120 watts/ch (4 ohms) |
| Continuous Power Output: | 60 watts/ch (8 ohms) |
| Total Harmonic Distortion: | < 0.018% |
|
Intermodulation Distortion: (60 Hz : 7k Hz, 4:1) |
< 0.03% |
| Frequency Response: | Phono Input: 20 Hz - 20k Hz (0 ± 0.5 dB) Line Level Inputs: 10 Hz - 100k Hz (0 ± 0.5 dB) |
|
Damping Factor: (20 Hz - 20k Hz, 8 ohms) |
220 |
| Input Sensitivity / Impedance: | Phono Input (MM): 3.4 mV / 47k ohms Line Level Inputs (RCA): 230 mV / 24k ohms |
| Input Overload: | Phono Input (MM): 50 mV Line Level Inputs: 4 V |
| Preamplifier Output / Impedance: | 1.2 V / 470 ohms |
| Tone Controls - Bass / Treble: | ± 10 dB at 100 Hz / 10k Hz |
|
Signal to Noise Ratio: (IHF A-weighted) |
Phono Input (MM): 90 dB Line Level Inputs: 100 dB |
| Digital Section | |
| Frequency Response: | 10 Hz - 90k Hz (0 ± 2 dB, Max) |
|
Signal to Noise Ratio (IHF A-weighted): |
103 dB |
| Input Sensitivity / Impedance: | 0 dBfs / 75 ohms |
| Preamplifier Output Level: | 1.4 V (at -20 dB) |
| Coaxial / Optical Digital Signals: | SPDIF LPCM (up to 24-bit / 192k Hz ) |
| PC-USB: | USB Audio Class 1.0 (up to 24-bit / 96k Hz ) USB Audio Class 2.0 (up to 32-bit / 384k Hz ) Driver installation required Roon Tested |
| Power Requirements: | 230 V, 50 Hz |
| Power Consumption: | 230 watts |
| Standby Power Consumption: | < 0.5 watts |
| BTU (4 ohms, 1/8th power): | 632 BTU/h |
| Dimensions (W x H x D): | 430 x 93 x 345 mm 17 x 3 5/8 x 13 1/2 in |
| Front Panel Height: | 80 mm, 3 1/8 in |
| Weight (net): | 8.76 kg, 19.31 lbs. |
| Finish: | Silver and Black |
Rotel Amora 5 Specifications
| Design: | 2-way bass-reflex loudspeaker |
| Drive units: | 1 x ø 25 mm (1 in) silk dome tweeter 1 x ø 165 mm (6.5 in) woven fibre composite midrange/bass driver |
| Crossover frequency: | 2.5 kHz |
| Frequency response: | 48 Hz – 28 kHz |
| Sensitivity (2.83 Vrms / 1 m): | 87 dB |
| Nominal impedance: | 8 Ω |
| Recommended amplifier power: | 30 – 120 watts |
| Dimensions (H x W x D): | 350 x 190 x 300 mm 13.8 x 7.5 x 11.8 in |
| Net weight: | 7.7 kg (17 lb) |
| Cabinet structure: | MDF |
| Cabinet finishes: | Matte black Matte white |
| Grille finish: | Black |
| Speaker terminals: | Dual gold-plated |
