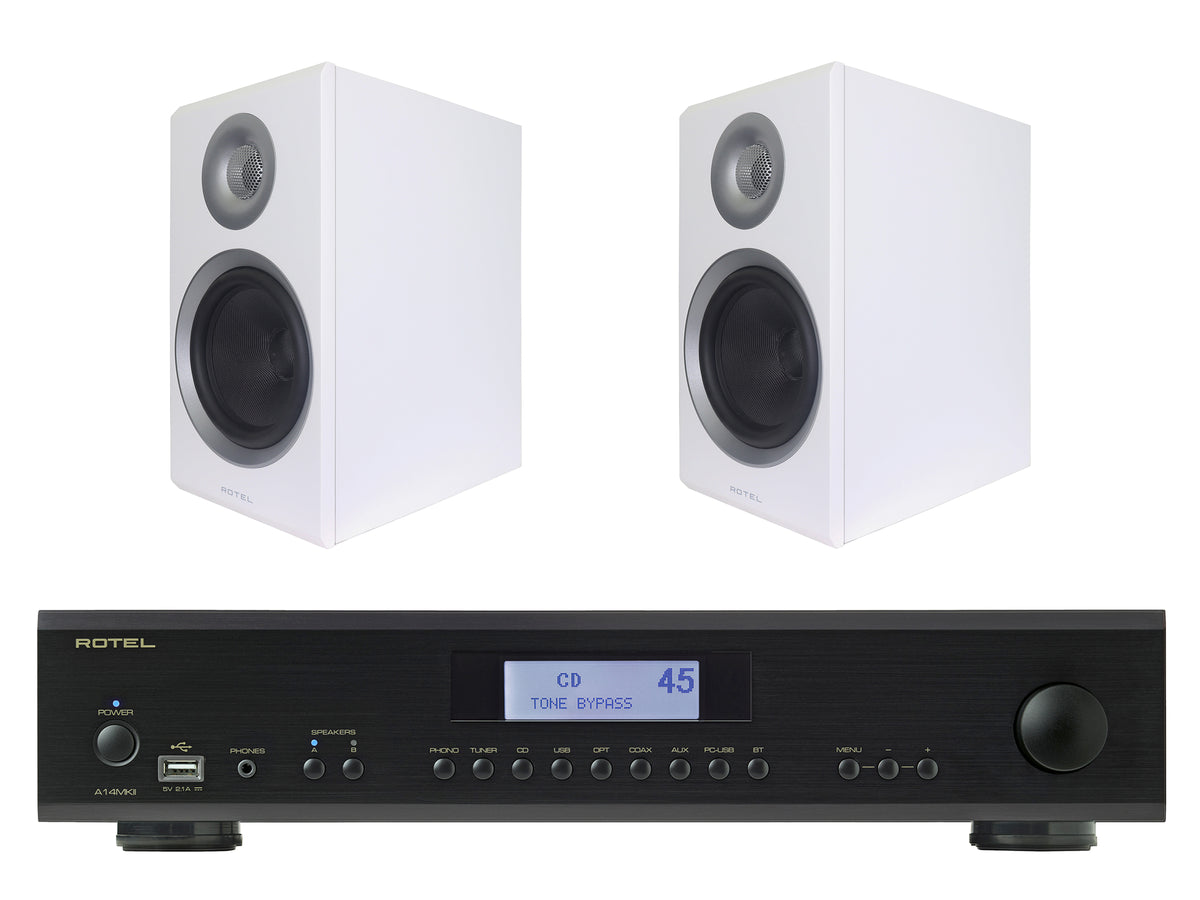

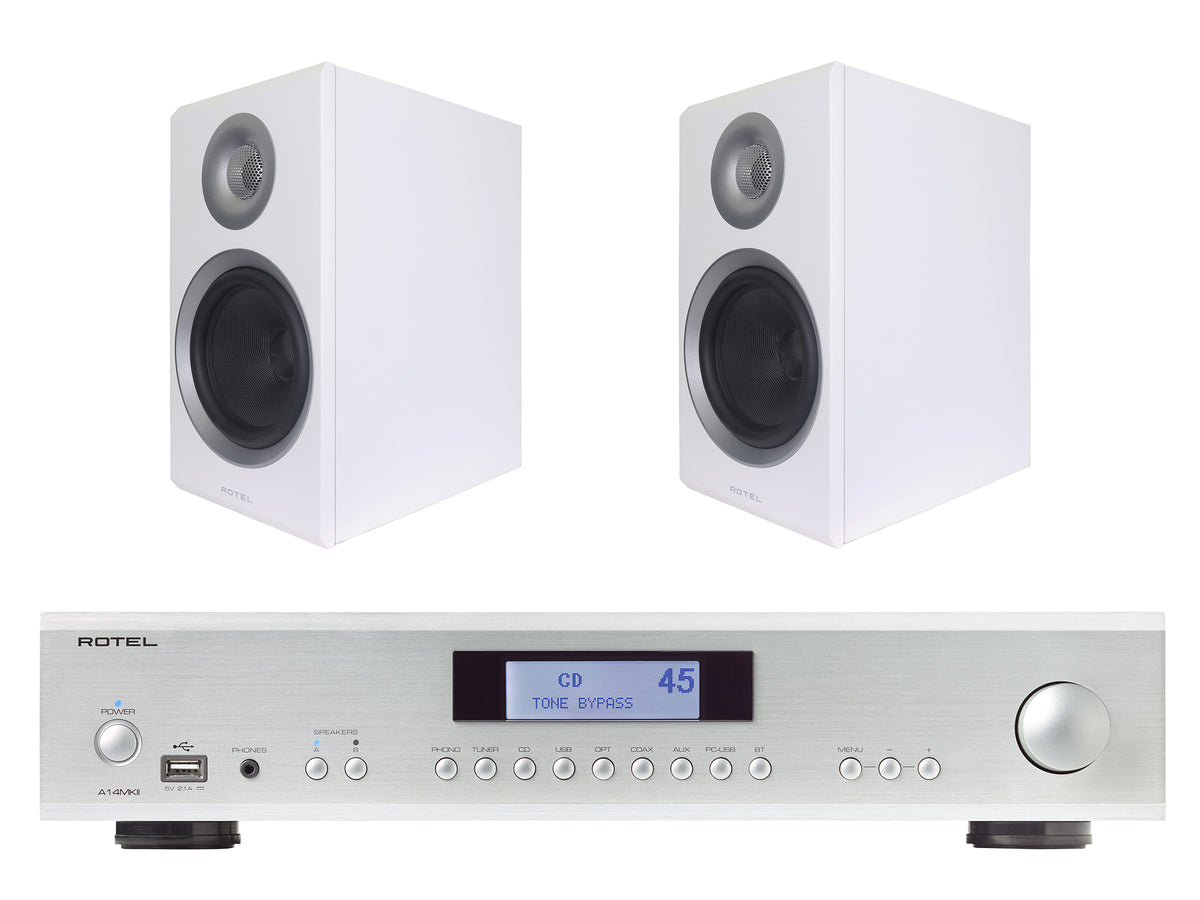

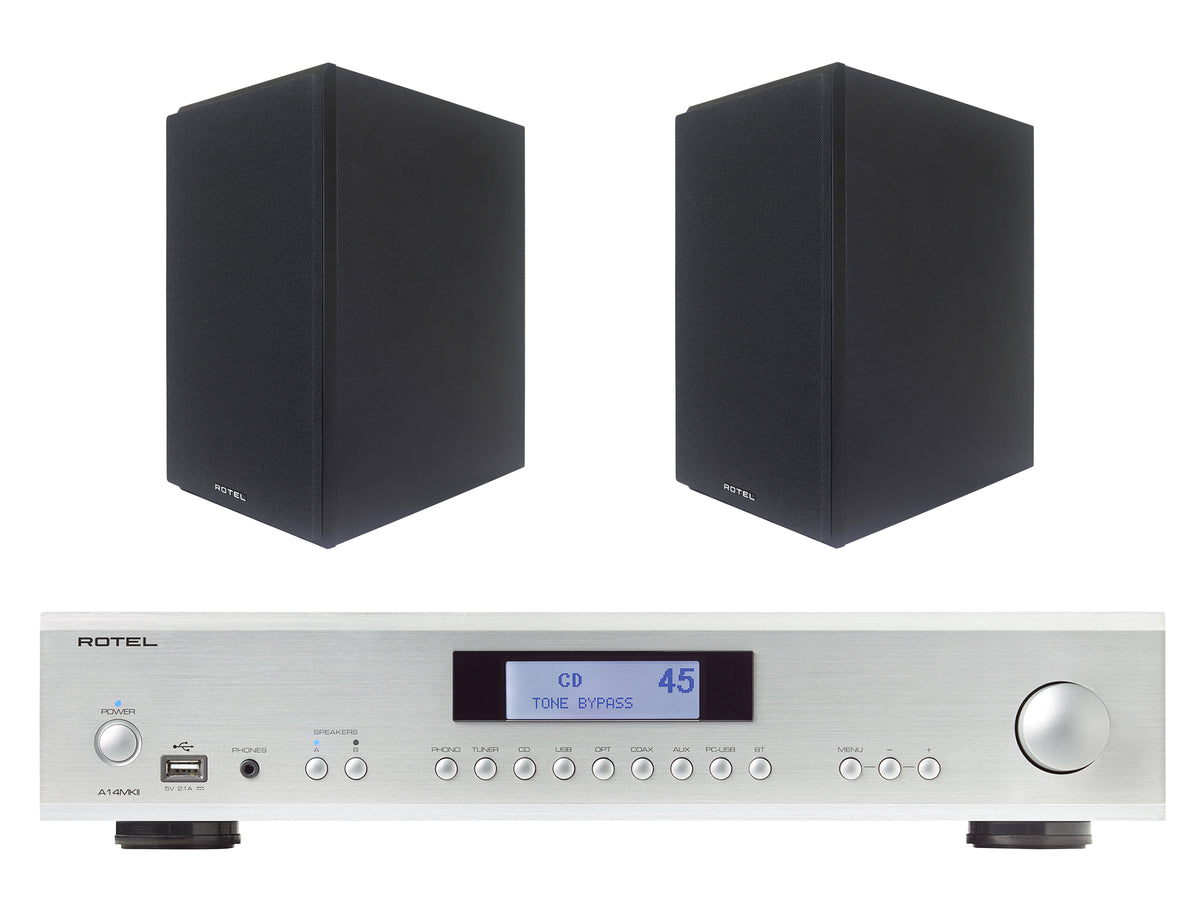

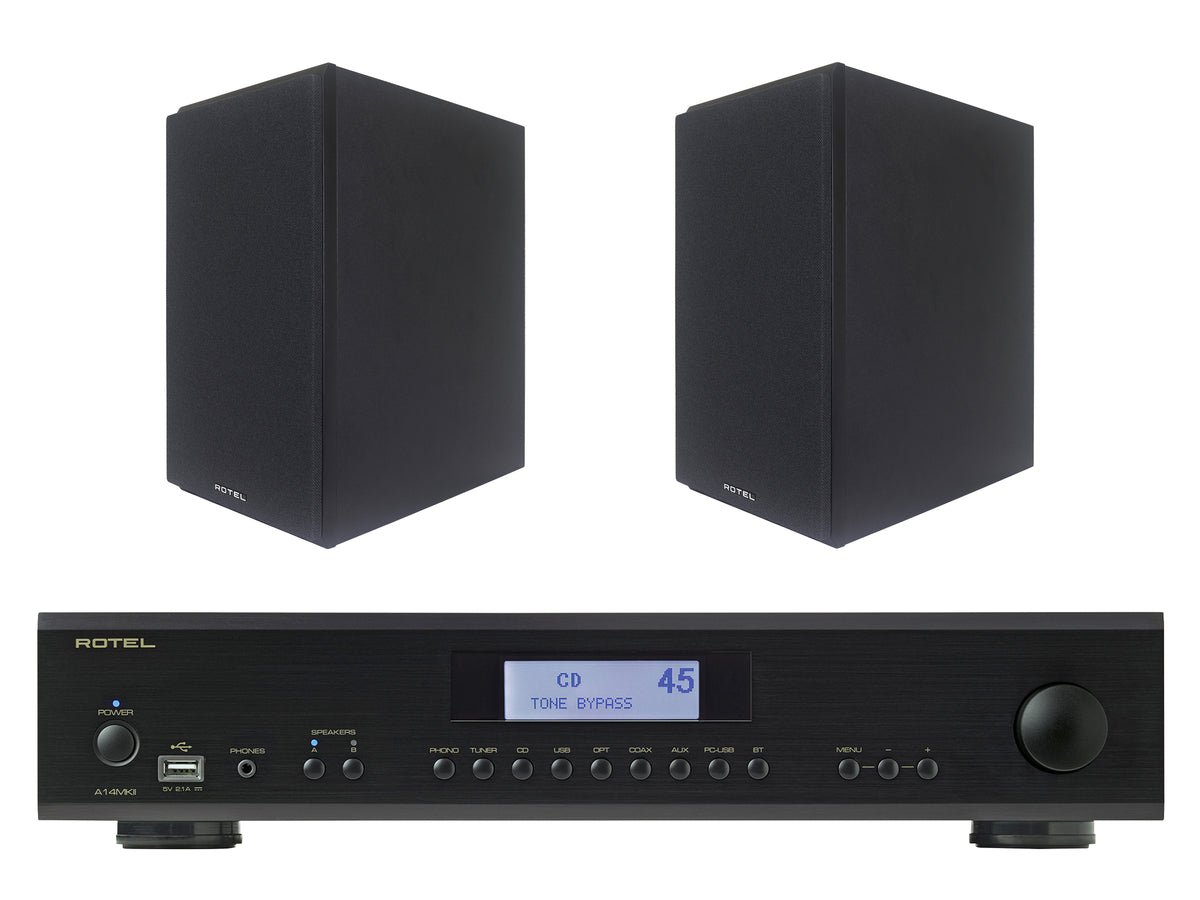

Rotel A14 MkII Integrated Amplifier with Rotel Amora 5 Bookshelf Speaker

Rotel A14MKII

Introducing the Rotel A14MKII, an Integrated Amplifier which is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel's in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.

Features

• 80W per channel Class AB amplification (8Ω)
• Texas Instruments 32-bit/384kHz DAC
• Moving magnet phono stage
• PC-USB with MQA, plus aptX™ and AAC Bluetooth
• Roon Tested
• Ethernet, RS232, 12V trigger and IR control integration

A fully redesigned Digital to Analogue circuit topology utilises a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.

Tone controls provide treble and bass adjustments in 1dB steps up to ±10dB personalising your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion.

The A14MKII supports your favourite sources including analogue, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans. The A14MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

Control system integration is available utilising Ethernet, RS232, 12V-Trigger and remote IR connections. Dual 5-way speaker binding posts allow Zone 2 installations with relay-controlled selection of the A-B speaker outputs. The front panel graphic display includes a large volume indication and audio stream information.

The A14MKII is comfortable in any setting delivering countless hours of audio entertainment.

Rotel Amora 5

Drawing on Rotel's decades-long audio engineering heritage, the Amora 5 is a loudspeaker built to deliver clarity, energy and natural expression. Inspired by Rotel's amplifier and audio component design heritage and built from the same foundation of disciplined engineering expertise, it presents music with a natural, engaging character that feels effortless to listen to.

Features

• 25mm silk dome tweeter and 165mm woven fibre composite mid/bass driver
• 2.5kHz crossover
• Resonance-controlled MDF cabinet with rear reflex port
• Dual gold-plated terminals for single-wire or bi-wire connection
• Screwless front assembly with removable fabric grille

The Amora 5 driver system combines a 25mm (1-inch) silk dome tweeter, extending to 28kHz, with a 165mm (6.5-inch) woven fibre composite midrange/bass driver chosen for effective damping and balanced musical response. A precision-tuned 2.5kHz crossover integrates both drivers with carefully considered component choices, supporting a smooth transition, coherent imaging, and a wide, stable soundstage. Every detail of the cabinet contributes to performance and presentation. The resonance-controlled MDF enclosure is engineered to reduce unwanted colouration, while the rear-mounted reflex port supports low-frequency extension to 48Hz.

Laminate finishes, a screwless front assembly, and a removable acoustic fabric front grille give the Amora 5 a refined appearance suited to modern listening spaces. Dual sets of gold-plated speaker terminals support standard single-wire or bi-wire connections, allowing flexible system setup. Measuring 350mm high, 190mm wide, and 300mm deep, and weighing 7.7kg, the Amora 5 balances efficient placement with meaningful cabinet volume and material substance. The result is an engaging loudspeaker that pairs beautifully with Rotel systems while standing confidently in any quality audio setup.

Rotel A14MKII Specifications

Rotel Amora 5 Specifications
