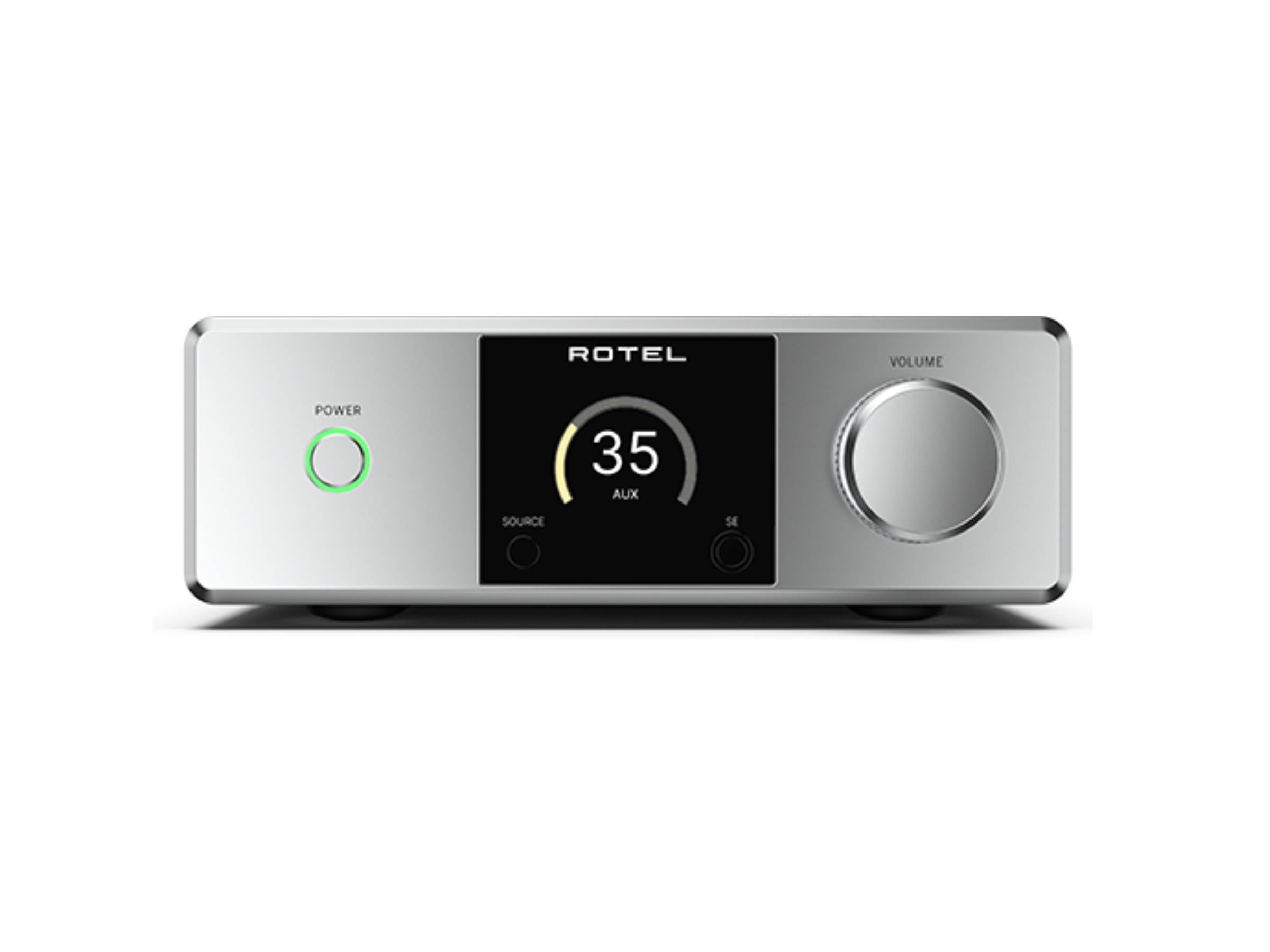

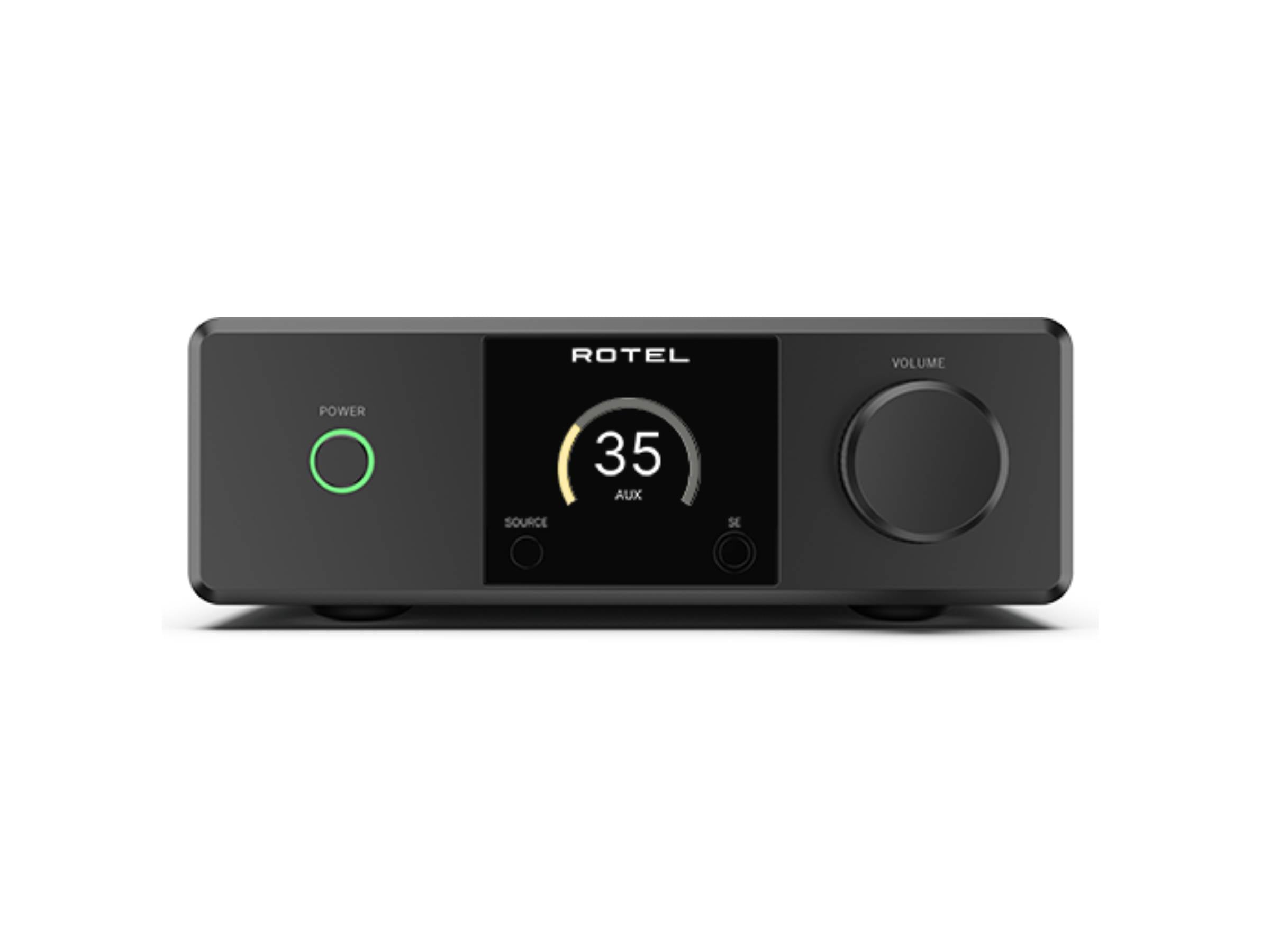

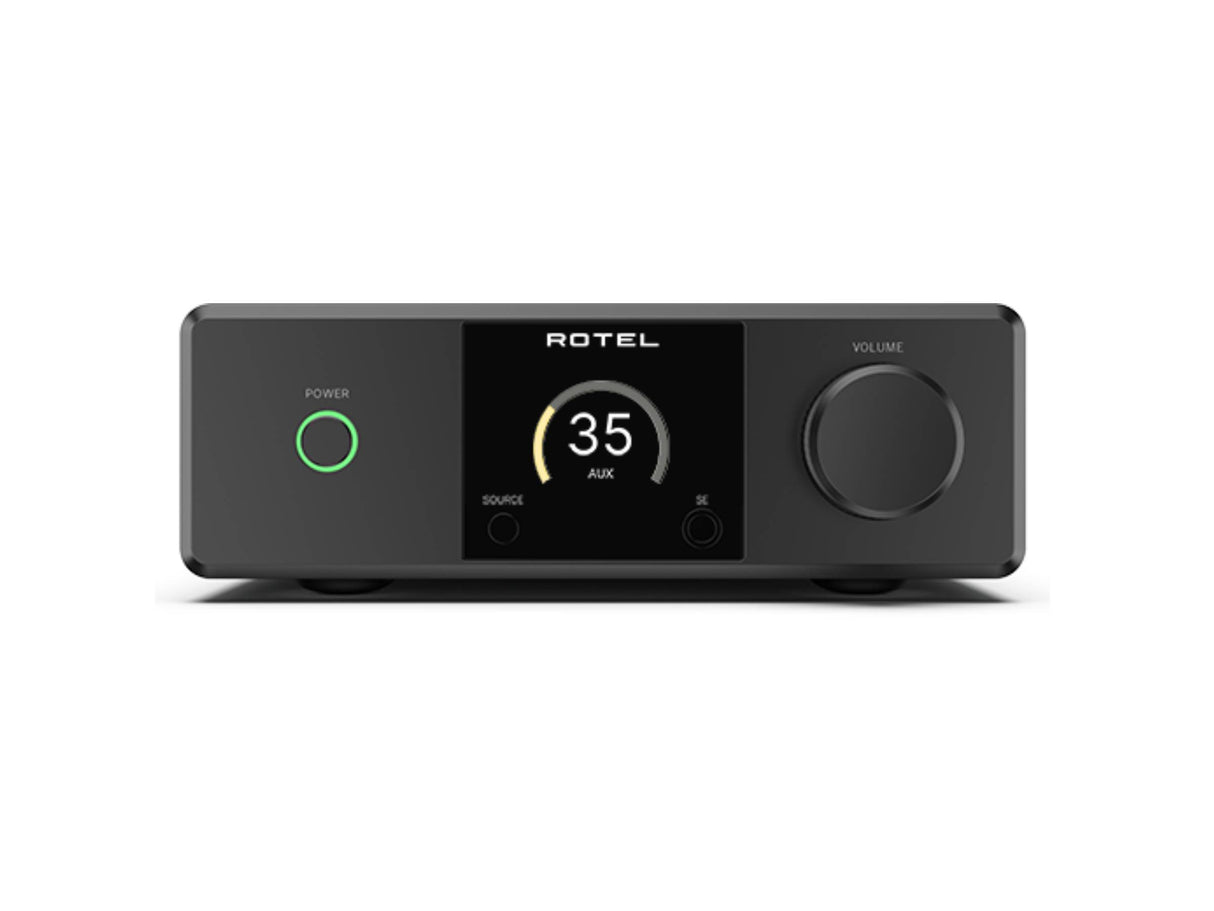

Rotel DX-5 Integrated Amplifier

£1,399.00

Tax included Shipping calculated at checkout.

The Rotel DX-5 is a compact integrated amplifier delivering 25 watts per channel into 8 ohms (33 watts into 4 ohms) with Rotel's Class AB amplification. Featuring an ESS ES9039Q2M DAC, HDMI ARC, Bluetooth aptX HD, USB, optical, coaxial and RCA inputs, it also includes a TFT display, headphone output and remote control for superb hi-fi and TV sound.

Includes Rotel 2 Year Manufacturer Warranty

Finish

Product variants

Free Next Day Delivery*

Free next weekday delivery

When you spend over £75, we will send you a tracking number where DPD will give a one hour delivery window. Services available Monday to Friday (excluding public holidays) to most mainland UK addresses for in stock items ordered before our cut-off time at 3:30pm. Terms apply.

Free Saturday delivery

When you spend over £299. We will send you a tracking number where DPD will give a one hour delivery window. Services available to most mainland UK addresses for in stock items ordered before our cut-off time on Friday 3pm. Terms apply.

Free Sunday delivery

Free next-day delivery with DPD is available when you spend over £299. Orders must be placed before 3:30pm on Friday to qualify. You will receive a tracking number, and DPD will provide a one-hour delivery window on the day of delivery. This service is available to most mainland UK addresses for in-stock items ordered before our daily cut-off time. During peak holiday periods, cut off time is Saturday 2:00pm. Sunday delivery is available in selected locations. Terms and conditions apply.

Reserve for Collection

Some of our manufacturers request for their items not to be sold online. For these items please call to order 01925 828009

Remote locations

Standard next day delivery is free for all orders to most UK mainland addresses. All other delivery prices are determined by the destination, the service chosen and the value and weight of your order. Addresses in the Scottish Highlands, offshore, Northern Ireland & Ireland may incur additional delivery costs, depending on the items ordered.

Returns Policy

If for any reason you’re not completely satisfied with your purchase, we’re happy to offer a refund within 30 days, provided you inform us of your intention within 14 days of receiving your item and return it to us within the 30-day period.

For our full returns policy, click here.

The Rotel DX-5 is the ultimate Personal Audio Integrated Amplifier blending cutting-edge technologies, versatile connectivity, packaged in a sleek, elegant, industrial design. Engineered for audiophiles, music lovers, and home entertainment enthusiasts, the DX-5 delivers 33 watts @ 4 ohms (25 watts @ 8 ohms) of classic Rotel Class AB amplification in an ultra size-efficient chassis.

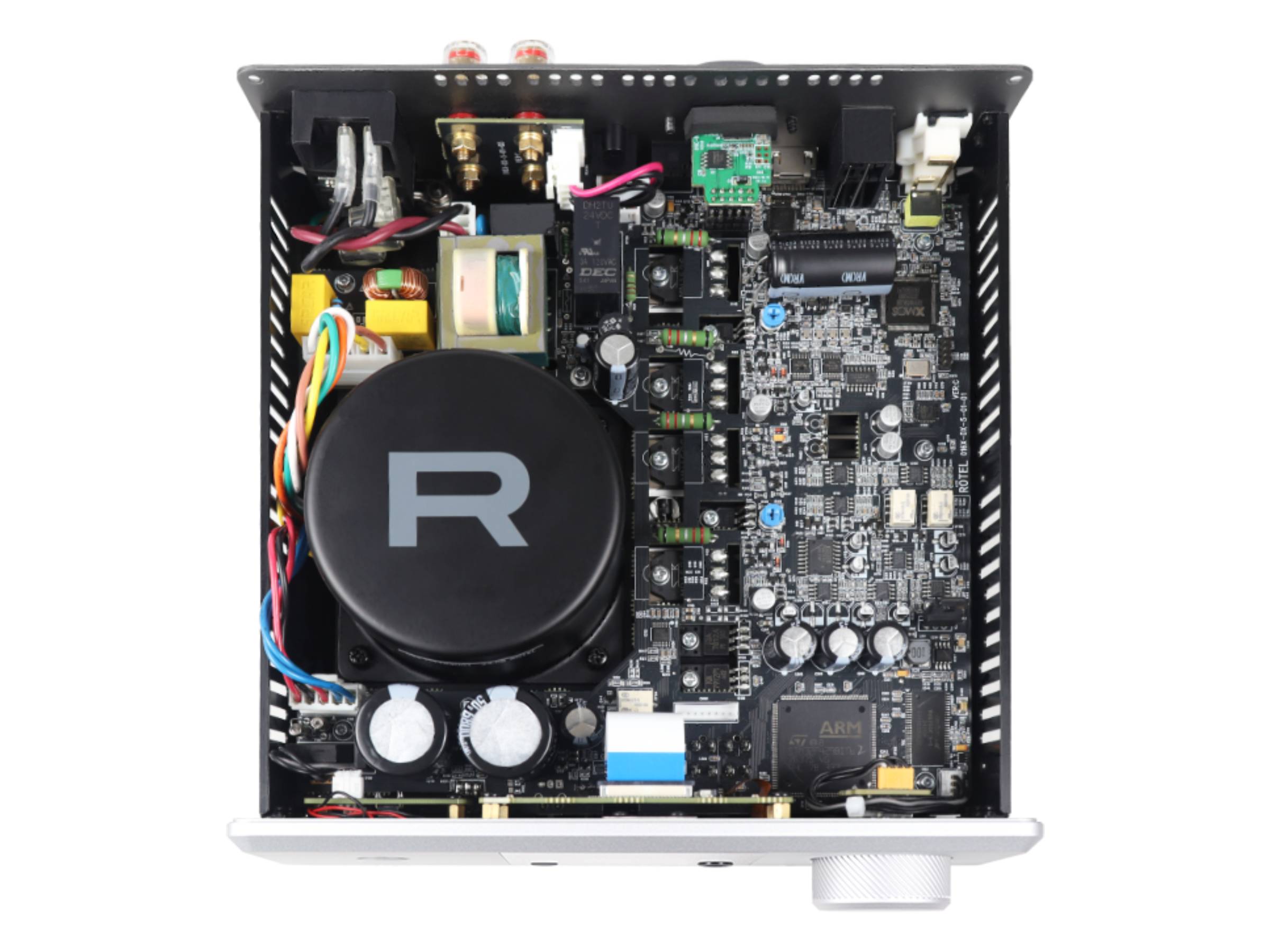

The Rotel DX-5 is the ultimate high-performance Personal Audio Integrated Amplifier packaged in a sleek, modern, elegant industrial design. Engineered with passion and driven by a precision Class AB amplifier powered by an in-house wound high-current toroidal transformer delivering 33 watts per channel into 4 ohms (25 watts into 8 ohms).

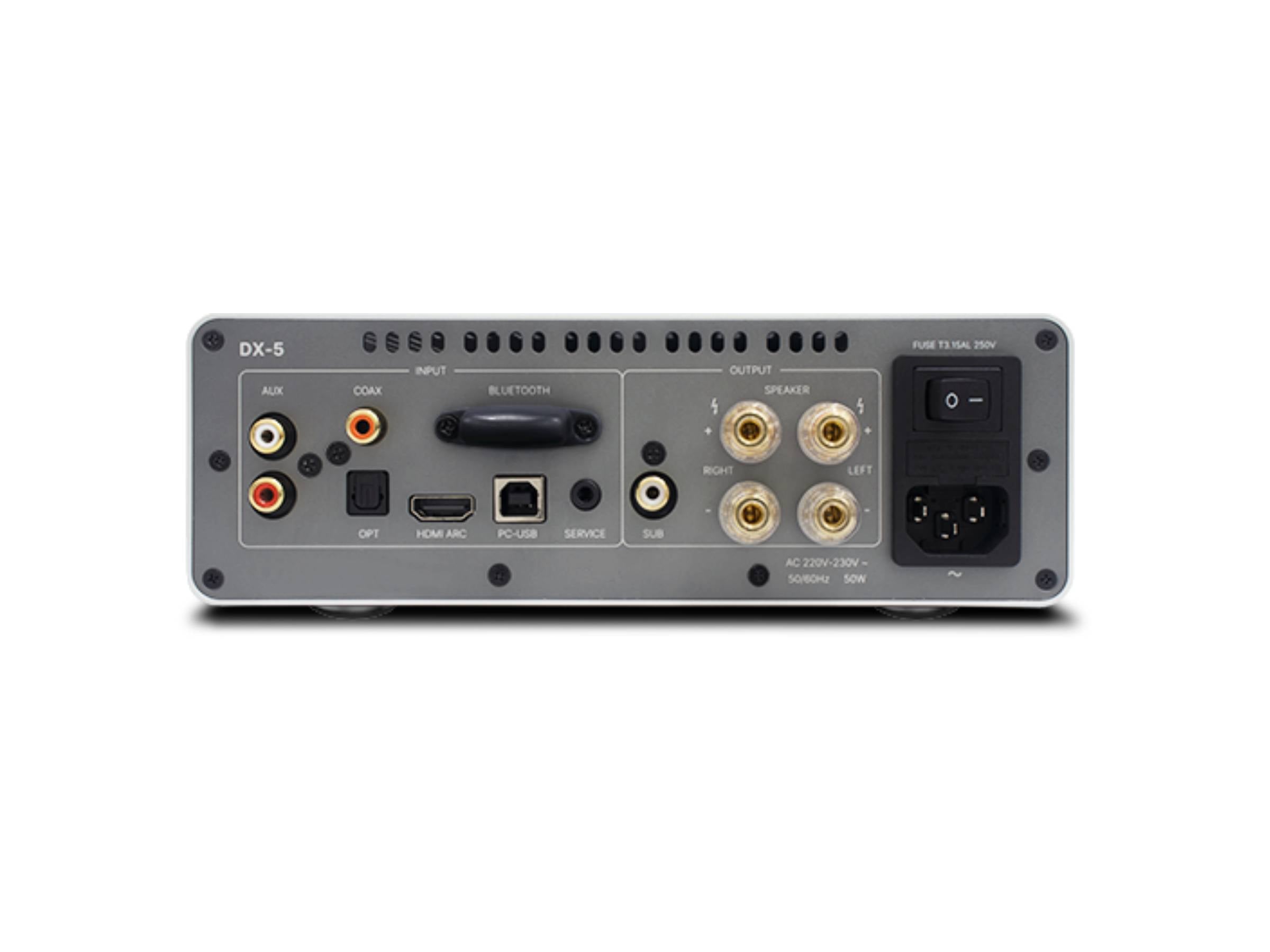

The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptX™ HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with CEC and a subwoofer output.

The DX-5 features a full-color TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control perfect for music lovers and home entertainment enthusiasts.

Specifications

Power Output (FTC):	25 W/ch
Maximum Power Output (Non-FTC):	33 W/ch (4 Ω)
Continuous Power Output (Non-FTC):	25 W/ch (8 Ω)
Total Harmonic Distortion:	< 0.03%
Frequency Response:	10 Hz – 100 kHz (0 ± 0.19 dB)
Damping Factor (20 Hz – 20 kHz, 8 Ω):	140
Input Sensitivity / Impedance:	680 mV / 100 kΩ
Input Overload:	4.2 V
S/N Ratio (IHF "A" Weighted):	>100 dB
Intermodulation Distortion (60 Hz : 7 kHz, 4:1):	< 0.03%
Frequency Response (Digital):	10 Hz – 80 kHz (0 ± 2 dB, Max)
Input Sensitivity / Impedance (Digital):	-10.3 dBFS / 75 Ω
S/N Ratio (Digital, IHF "A" Weighted):	>100 dB
HDMI:	Supports ARC function
Digital Inputs:	SPDIF LPCM (up to 24-bit / 192 kHz)
PC-USB:	USB Audio Class 2.0 (up to 32-bit / 384 kHz)*
DSD Support:	Up to 4× (11.2 MHz)
DoP Support:	Up to 2× (5.6 MHz)
Roon Tested:	Yes
