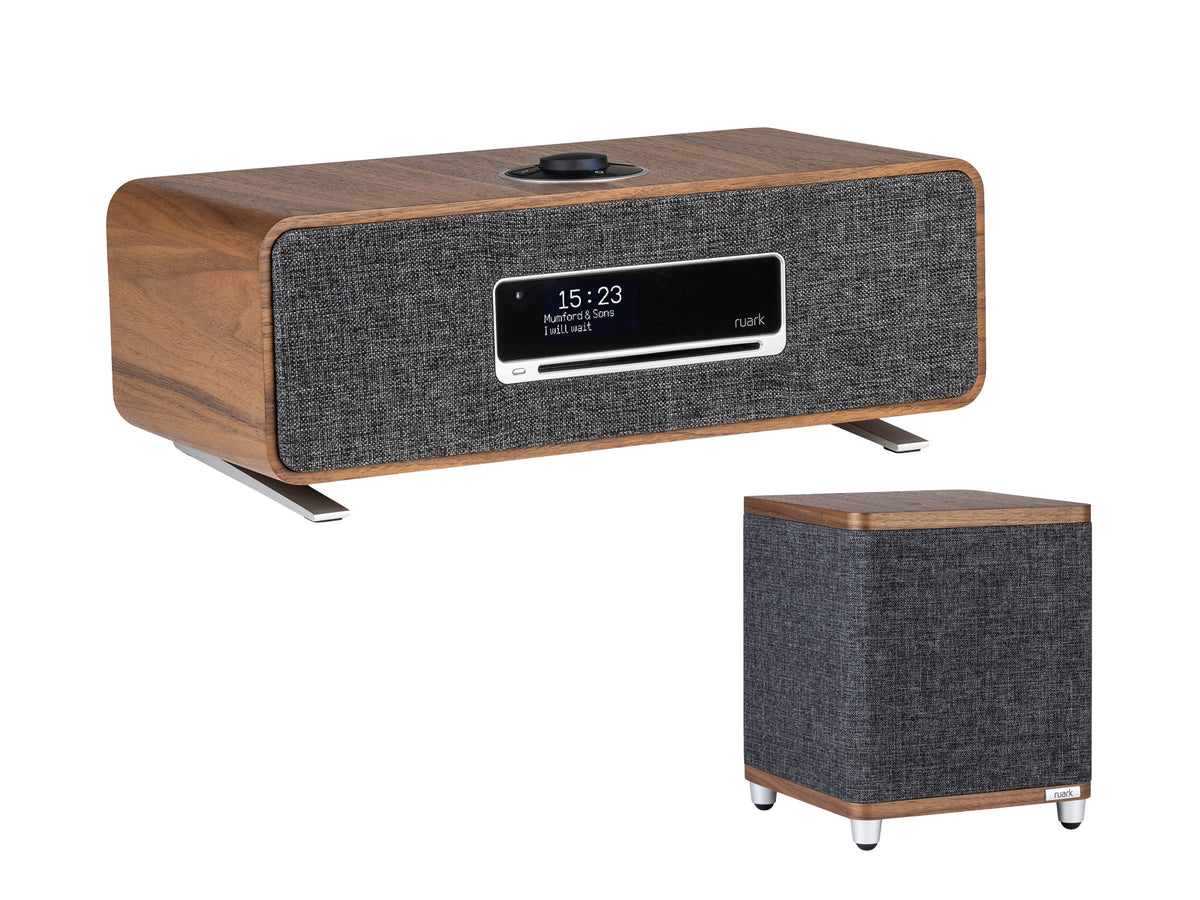

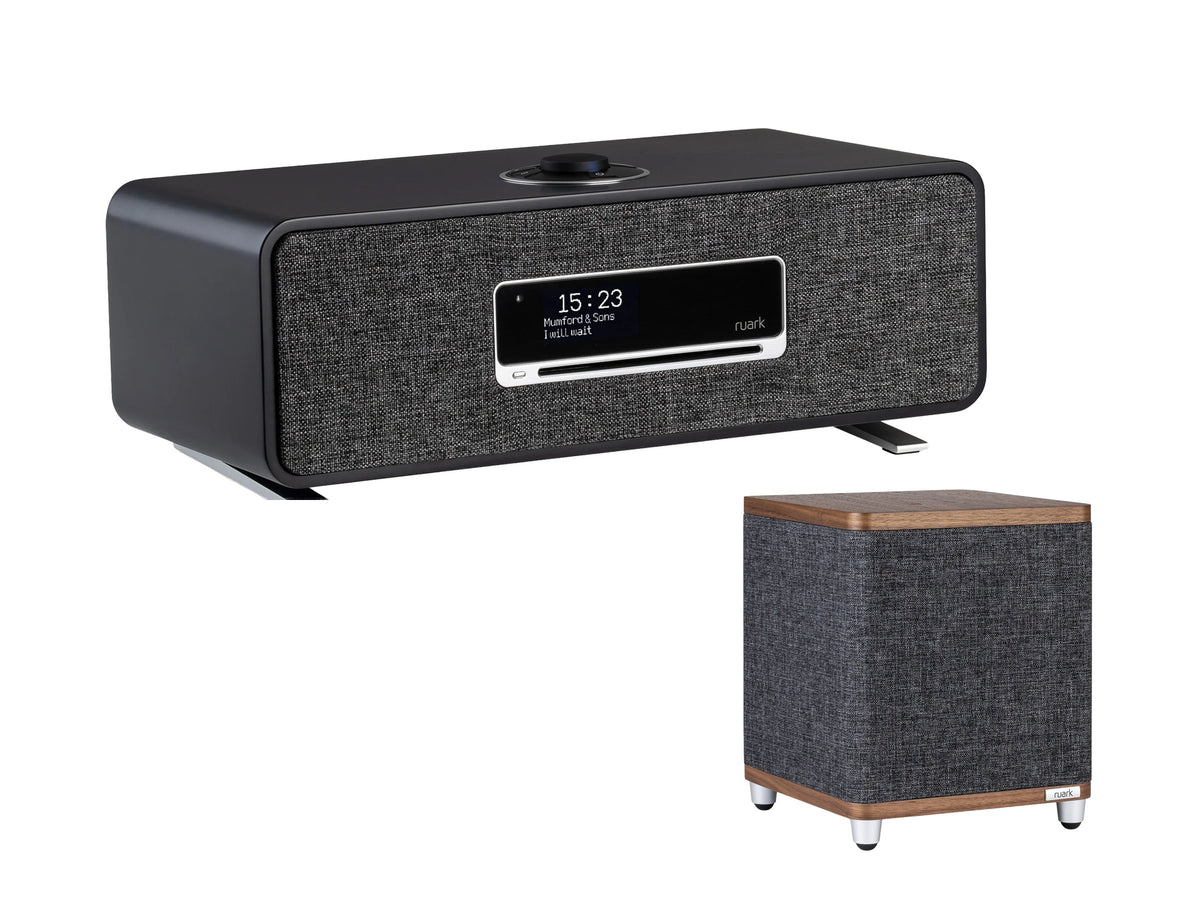

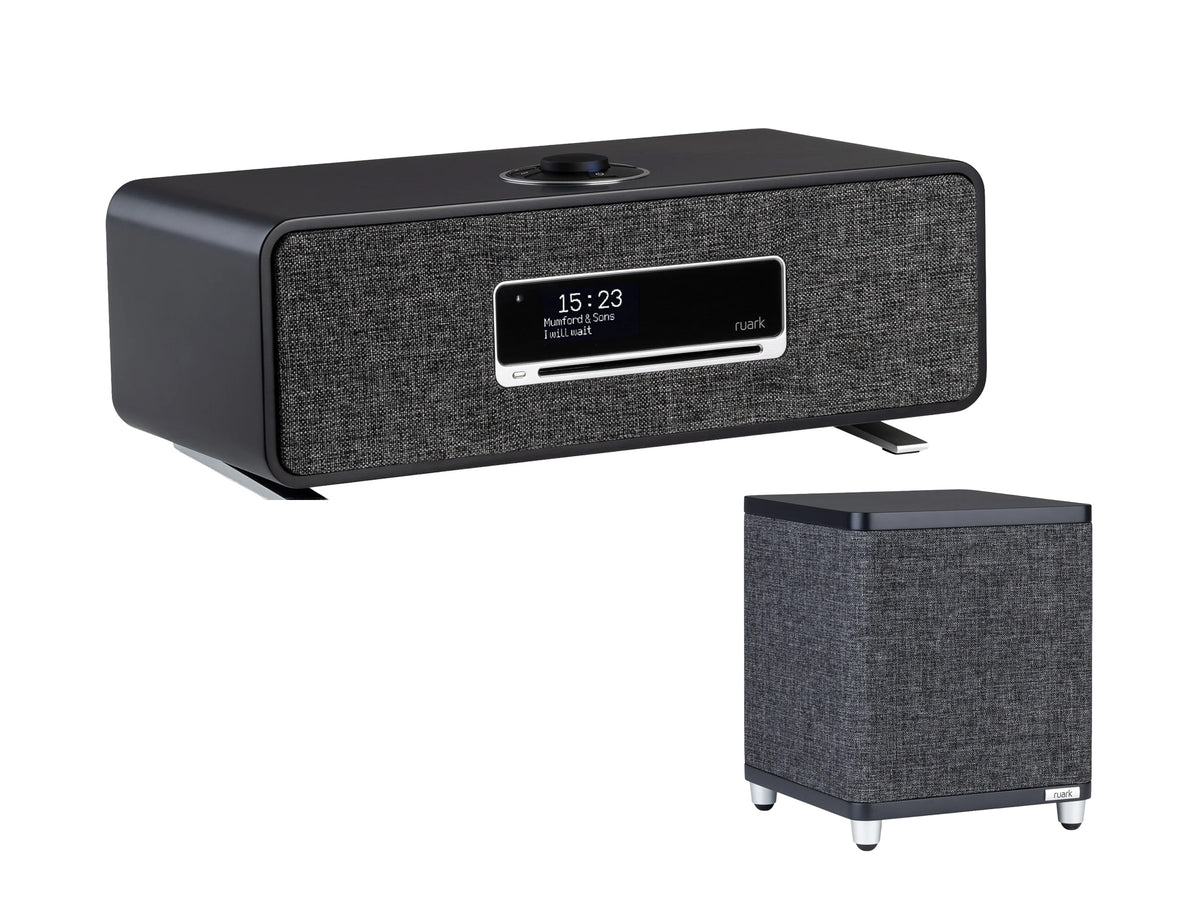

Ruark R3S Music System with Ruark RS1 Subwoofer
Ruark R3S Music System
Building upon its already impressive performance for 2023, R3 has been further refined and is now named the Ruark R3S. Outwardly, R3S retains the same beautiful compact design with its acoustically tuned handcrafted cabinet and high-contrast OLED display, but inwardly R3S features a powerful new processor and revised circuitry to deliver slicker performance and an even more engaging sound.
Features
- Stereo+ sound processing with adaptive equalisation for ideal sound at all volumes
- High-fidelity Class A-B amplifier with Ruark NS+ neodymium full-range drivers
- Multi-format slot-loading CD player
- Wi-Fi streaming with Spotify Connect, Amazon Music and Deezer, plus Bluetooth 5.2
- SmartRadio tuner with DAB/DAB+, FM and internet radio, plus a dedicated podcast source
- Analogue and optical inputs, switchable line/subwoofer output, headphone output and USB-C
Driving the system is a dynamic high-fidelity Class A-B amplifier combined with Ruark’s custom NS+ drivers, and for R3S Ruark has now included Stereo+ sound processing, first developed for the limited edition R5 Signature. This creates a broader soundstage with depth and realism that extends way beyond R3S’s compact stature. Whatever your taste in music, R3S will fulfil the needs of even the most discerning listener.
Music, Radio and Podcasts, Live and On-Demand
R3S directly supports key streaming services including Spotify Connect, Amazon Music and Deezer, and with its latest generation Bluetooth 5 receiver every other streaming service available. Bluetooth 5 provides excellent sound quality with a more robust and efficient connection, meaning that connected devices will run longer without needing a recharge. The Bluetooth function also seamlessly integrates with the volume control on phones and tablets, so when volume is adjusted this also shows on the display of R3S.
Radio is evolving, and with its SmartRadio tuner R3S will maximise your enjoyment of this timeless medium. DAB/DAB+ and FM tuners provide access to local and national broadcasts, and its internet tuner allows you to access high-quality streams and stations worldwide. In addition, with the growth of podcasts, R3S now has a source dedicated to this increasingly popular format. For listen-again shows and whatever your interest, a podcast to suit your taste is only a few clicks away using the RotoDial controller or supplied IR remote. Also available is a free Android and iOS control app called UNDOK. This also allows full control of R3S and is particularly useful for searching internet radio stations and podcasts.
CD Playback and Much More
CD is still a fantastic way to enjoy music, and with its high-specification player R3S allows customers to reconnect with their CDs and rediscover the fun of browsing cover art and the liner notes on the pull-out sleeves. Alongside standard CDs, R3S will also play self-made CDs encoded with MP3, WMA and AAC files, and displays track and artist information when the data is available on the disc.
On the rear panel, Ruark has included a USB-C playback and charge port, a headphone output and switchable analogue and digital inputs, so devices such as a TV, or a turntable with a phono stage, can be easily connected. For film buffs and lovers of bass-orientated music, the line output can be switched for connection to an active subwoofer. Ruark’s own RS1 subwoofer is the natural partner, but many good-quality active subwoofers will work with R3S to add an extra level of dynamic realism to its already impressive sound.
Ruark RS1 Subwoofer
Born from the desire to enhance the already impeccable sound of the Ruark MR1 Mk3 Bluetooth speakers, the Ruark RS1 subwoofer can transform the audio performance of any home speaker with driving rhythm and rich harmony. Beautifully controlled and fundamentally musical, RS1 is the bedrock of larger-than-life sound that you can both hear and feel.
Features
- 170mm long-throw active driver paired with a 170mm passive radiator
- 100W RMS Class D amplifier with soft clipping filter
- Frequency response down to 25Hz
- Adjustable crossover (50–180Hz), level control and 180-degree phase switch
- Auto on and 15-minute auto-sleep
- Compatible with Ruark’s MR1, R3S and R410, or any active speaker or amplifier with a subwoofer or pre-out
Ruark R3S Specification
| Frequency Response: | 40Hz – 20kHz |
| Drivers: | 2 x 75mm Ruark NS+ |
| Amplifier: | 30W Class A-B |
| Enhancements: | Bass, treble, loudness, 3D audio |
| Cabinet Type: | Tuned bass reflex enclosure |
| DAC/ADC: | Up to 24-bit/192kHz |
| Radio: | DAB/DAB+, FM with RDS (87.5–108MHz) and internet radio |
| Radio Presets: | 8 presets per mode |
| Bluetooth: | Bluetooth 5.2, SBC, BLE, A2DP |
| Wi-Fi: | 802.11b/g/n, WPS2 setup, WEP, WPA & WPA2 |
| Music Services: | Spotify Connect, Deezer, Amazon Music |
| CD Support: | CD, CD-ROM, CD-R/RW discs; MP3, WMA & AAC up to 320kbps |
| Line Input: | Stereo RCA (max 2.3Vrms) |
| Optical Input: | TOSLINK digital input (24-bit/192kHz) |
| Sub Out/Line Out: | RCA (2.0Vrms) |
| Headphone Output: | 3.5mm jack, 25mW into 16–32Ω |
| USB 2.0 Type-C: | FAT32 flash drive compatible, MP3 playback up to 48kHz/320kbps |
| USB Type-C Charging: | 5V 1A (5W) |
| Aerial: | Removable telescopic |
| Aerial Connector: | 75Ω F-type |
| Display: | Auto-dimming high-contrast OLED |
| App Control: | UNDOK (iOS & Android) |
| Remote Control: | Infrared, with direct-access presets |
| Remote Batteries: | 2 x 1.5V AAA |
| Dual Alarms: | Daily, once, weekends, weekdays; sleep function |
| Auto Standby: | Automatic power-saving mode after 20 minutes of inactivity |
| Adjustable Input Levels: | Line in, optical |
| Real-Time Clock: | Yes, with internal battery backup |
| Software Updates: | Over-the-air and USB |
| User Interface Languages: | EN, DA, DE, ES, FR, IT, NL, NO, PL, SE |
| Finishes: | Rich walnut veneer or soft grey, with grey woven grille fabric |
| Power Adapter: | 100–240V AC, 50/60Hz input; 14V DC, 2.85A, 40W output; 1.8m cable; 2.1 x 5.5mm DC plug |
| Power Consumption: | 1.6W network standby, 5.0W idle |
| Product Dimensions (H x W x D): | 167 x 420 x 220mm |
| Product Weight: | 5.2kg |
| Packaged Dimensions (H x W x D): | 370 x 600 x 190mm (inner carton) |
| Packaged Weight: | 6.9kg |
Ruark RS1 Specification
| Frequency Response: | 25Hz – 200Hz |
| Cabinet: | Tuned passive radiator enclosure |
| Drivers: | 170mm treated fibre long-throw active driver and 170mm passive radiator |
| Amplifier: | 100W RMS Class D with soft clipping filter |
| Controls: | Adjustable crossover 50–180Hz, input/volume level control and 180-degree phase switch |
| Auto On: | Automatically turns on, and sleeps after 15 minutes when no signal is detected |
| Input: | Mono RCA subwoofer input (up to 2.3Vrms) |
| Finishes: | Lead Grey cabinet cloth with Rich Walnut or Soft Grey lacquer top and bottom panels |
| Product Compatibility: | Compatible with Ruark’s MR1, R3S and R410 models, or any other active speaker or amplifier with subwoofer or pre-out phono connectors |
| Box Contents: | RS1 subwoofer, mains lead, 1.5m RCA connector lead and quick start guide |
| Power Consumption: | 0.5W standby, 2.0W idle |
| AC Power Input: | 100–240V, 50–60Hz |
| Product Dimensions (H x W x D): | 300 x 250 x 265mm (including feet and controls) |
| Product Weight: | 6.7kg |
