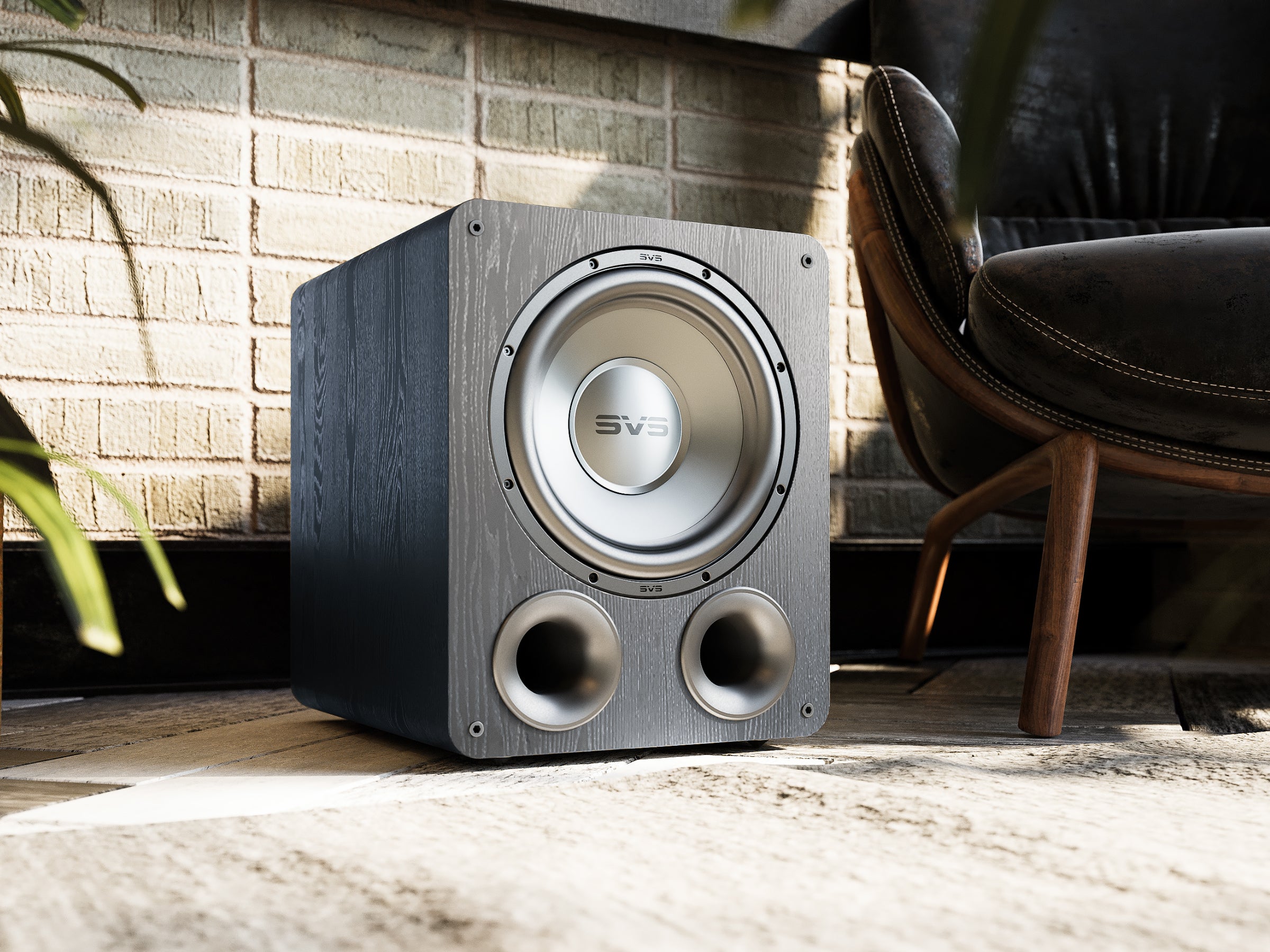

SVS PB-1000 PRO Subwoofer
PB-1000 Pro stands alone in its excellence with massive output well below the threshold of human hearing, where bass is only felt, with flawless tonal accuracy and precise control. The deepest, most effortless, and refined bass at a truly breakthrough price, PB-1000 Pro defies expectations at every level with performance-driven innovation.
Room-shaking bass

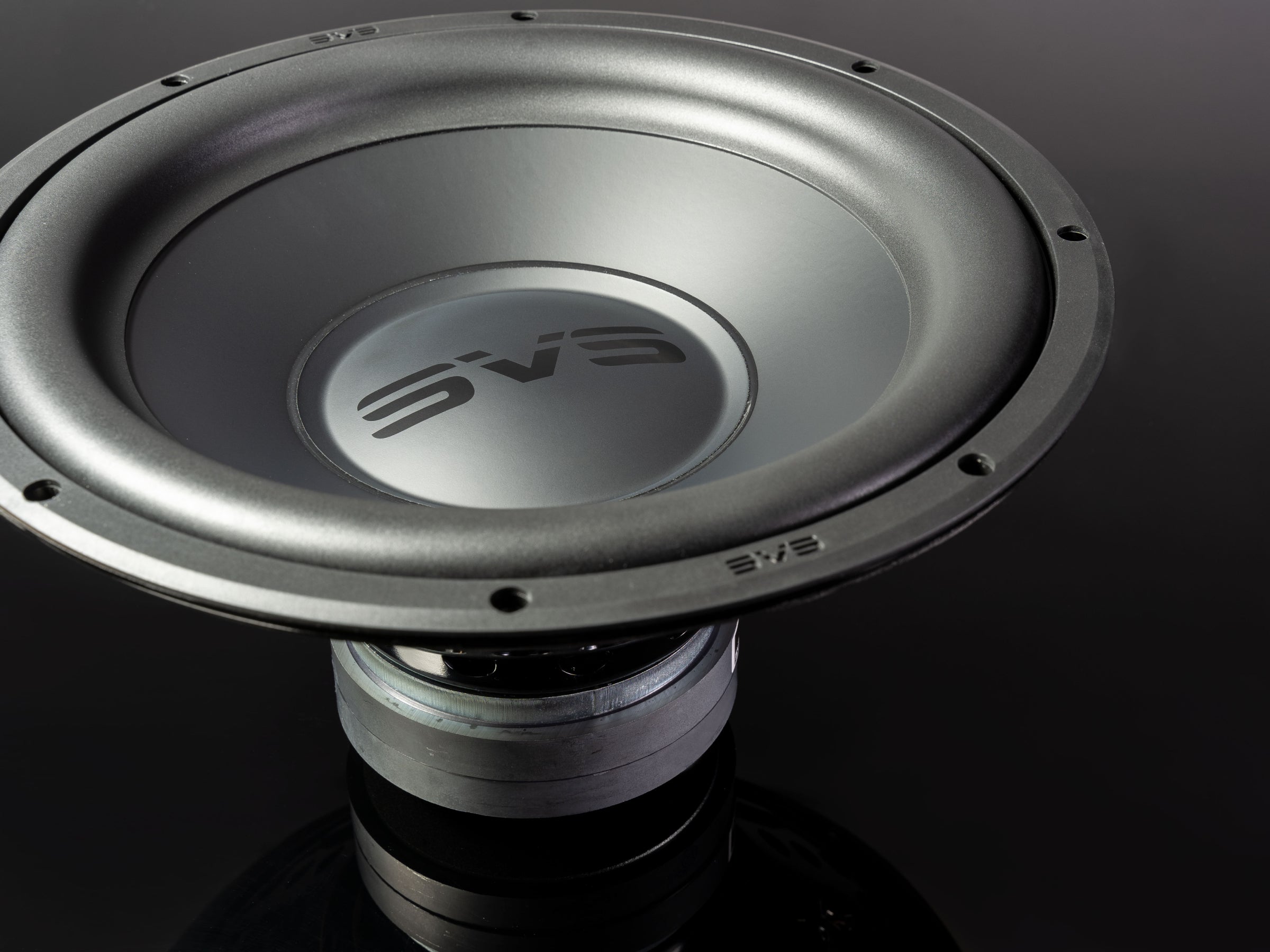

Substantially upgraded from the previous 10-inch 1000 Series driver design, the PB-1000 Pro features a reimagined 12-inch high-excursion driver with dual ferrite motor assembly. Capable of moving massive amounts of air with crisp precision, the added surface area provides a major performance upgrade over the previous model and features multiple enhancements.
- Fiber composite cone with exceptional stiffness-to-mass-ratio generates huge SPLs while starting and stopping on a dime with crisp precision.
- Proprietary injection molded extreme-excursion surround ensures flawless pistonic motion for pinpoint control and accuracy without distortion, even at the highest drive levels.
- Dual ferrite magnet motor assembly with extended aluminum polepiece produces effortless on-demand driving-force for subtle and over-the-top bass thrills.
- Powder coated FEA optimized driver basket provides maximum rigidity, tensile strength, and thermal energy transference.
- Dual layer voice coil design enhances linearity and fidelity at full excursion while minimizing distortion and power compression.
Effortless power
The Sledge STA-325D amplifier maximizes the full potential of the 12-inch driver with effortless power and precise control. The innovative design combines the efficiency of a Class D amplifier with the ability to move colossal amounts of current through the fully discrete MOSFETs for outstanding real-world subwoofer performance at all drive levels, in any room, allows easy integration with any home theater or stereo speaker system.
- High Current Output from Fully Discrete MOSFETs coupled with efficiency of Class D amplification allows the Sledge STA-325D amplifier to produce massive amounts of current enabling immense output with surgical precision.
- Sophisticated 50MHz High Resolution Analog Devices Audio DSP is the most advanced digital processor ever used in a subwoofer and maintains pristine sound quality through advanced in-room tuning, powerful DSP controls, custom presets, and more.
- Optimized frequency response curves for the ported PB-1000 Pro cabinet allow the subwoofer to take control of a room and completely pressurize it with accurate, heart-pounding bass.
Control
The most convenient way ever to control volume, access multiple DSP functions, and program custom presets for one-touch tuning optimized for music, movies, gaming, and more. Adjust crossover frequencies, dial-in the three-band parametric EQ, polarity, room gain and more, all from your favourite seat.

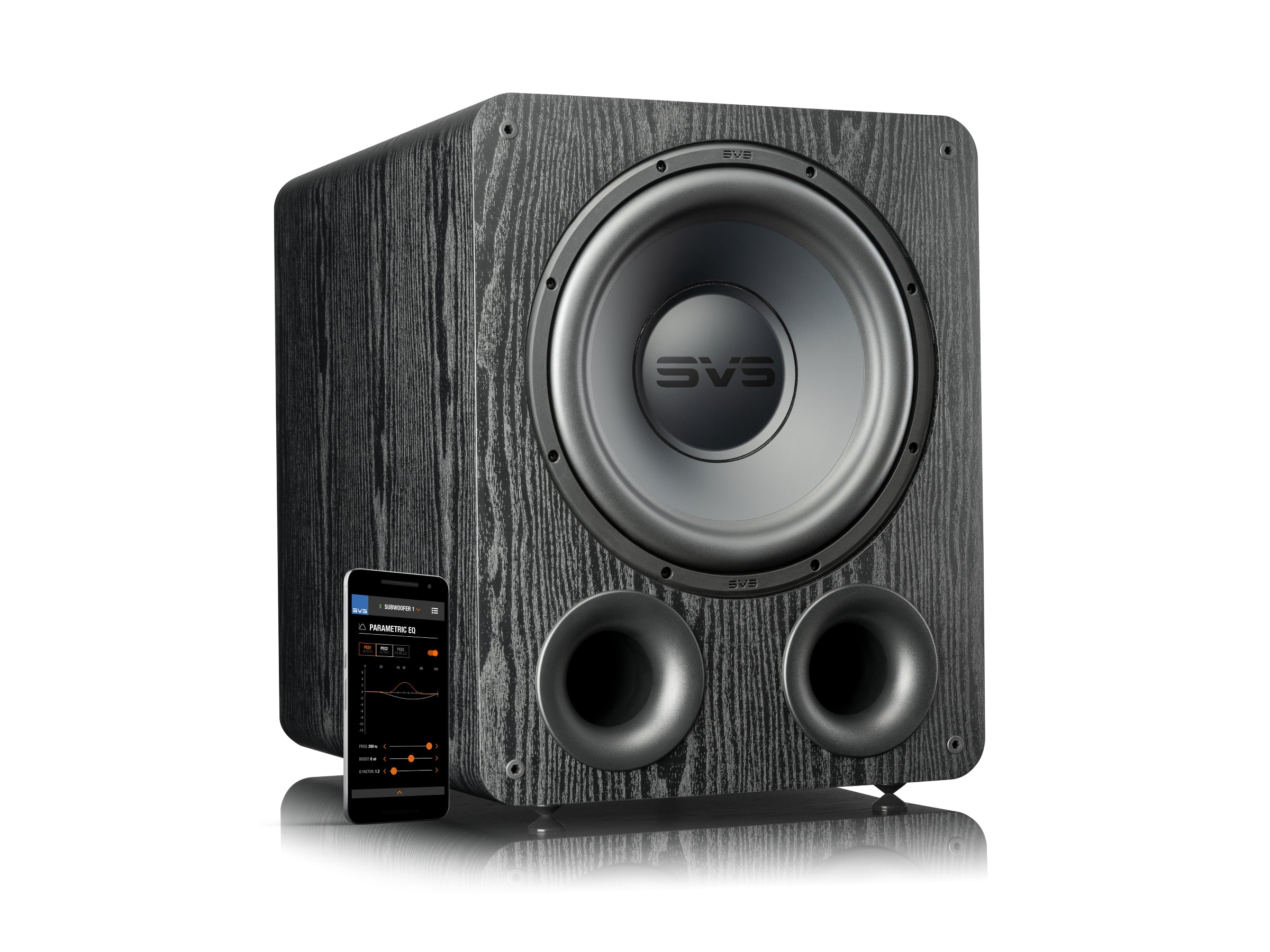

- Connects via Bluetooth for convenient control even when subwoofer is out of sight.
- Saved custom presets for one-touch tuning with optimized settings based on listening preferences for movies, music, and more. All accessible from a single touch.
- Variable port tuning modes with customized frequency response curves for “Standard” and “Sealed” allow tuning for maximum output or deep bass extension and transient speed.
- 3-band parametric EQ controller allows precise adjustments for boost or cut, Q-factor, and frequency down to the single Hz level with so users can customize performance by eliminating peaks, nulls and other room issues.
Intelligent Control Interface (ICI)

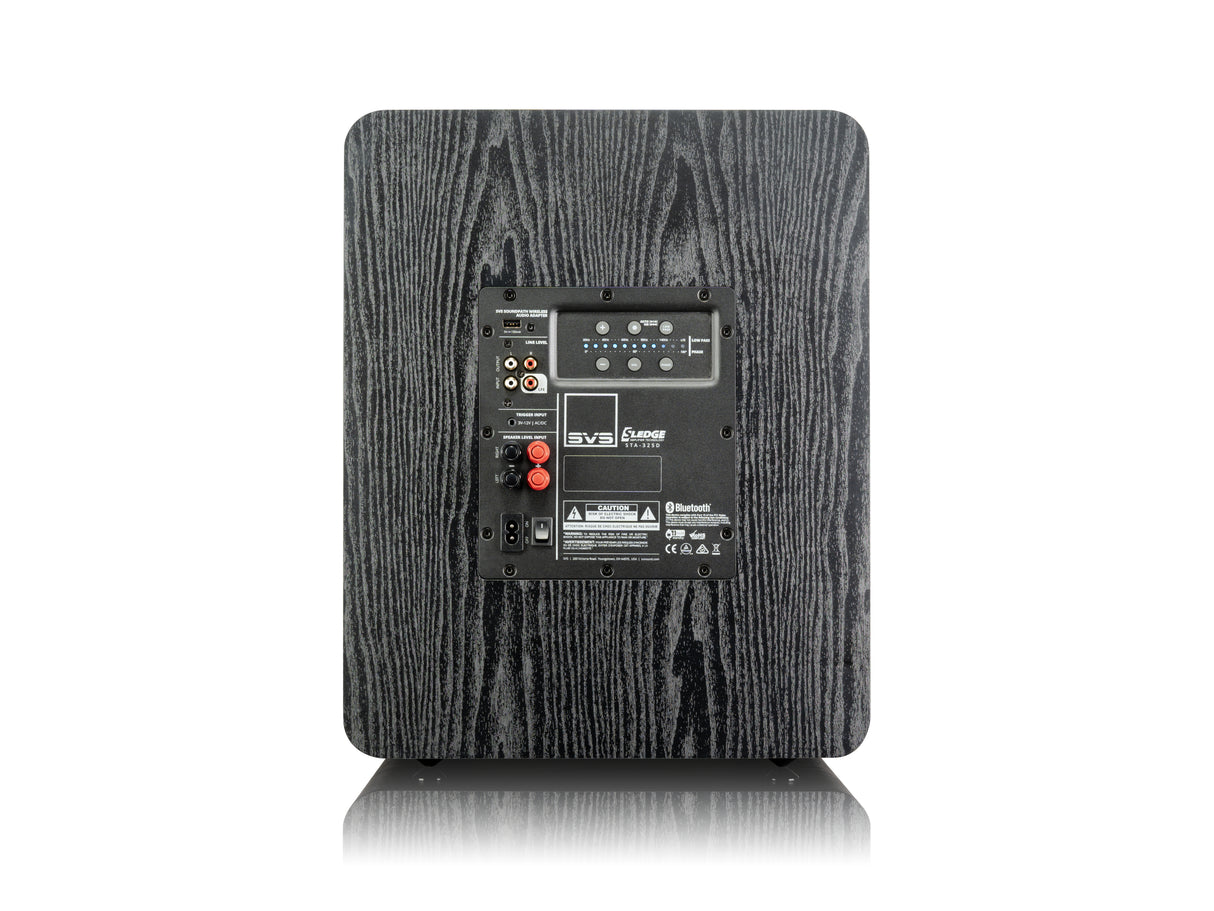

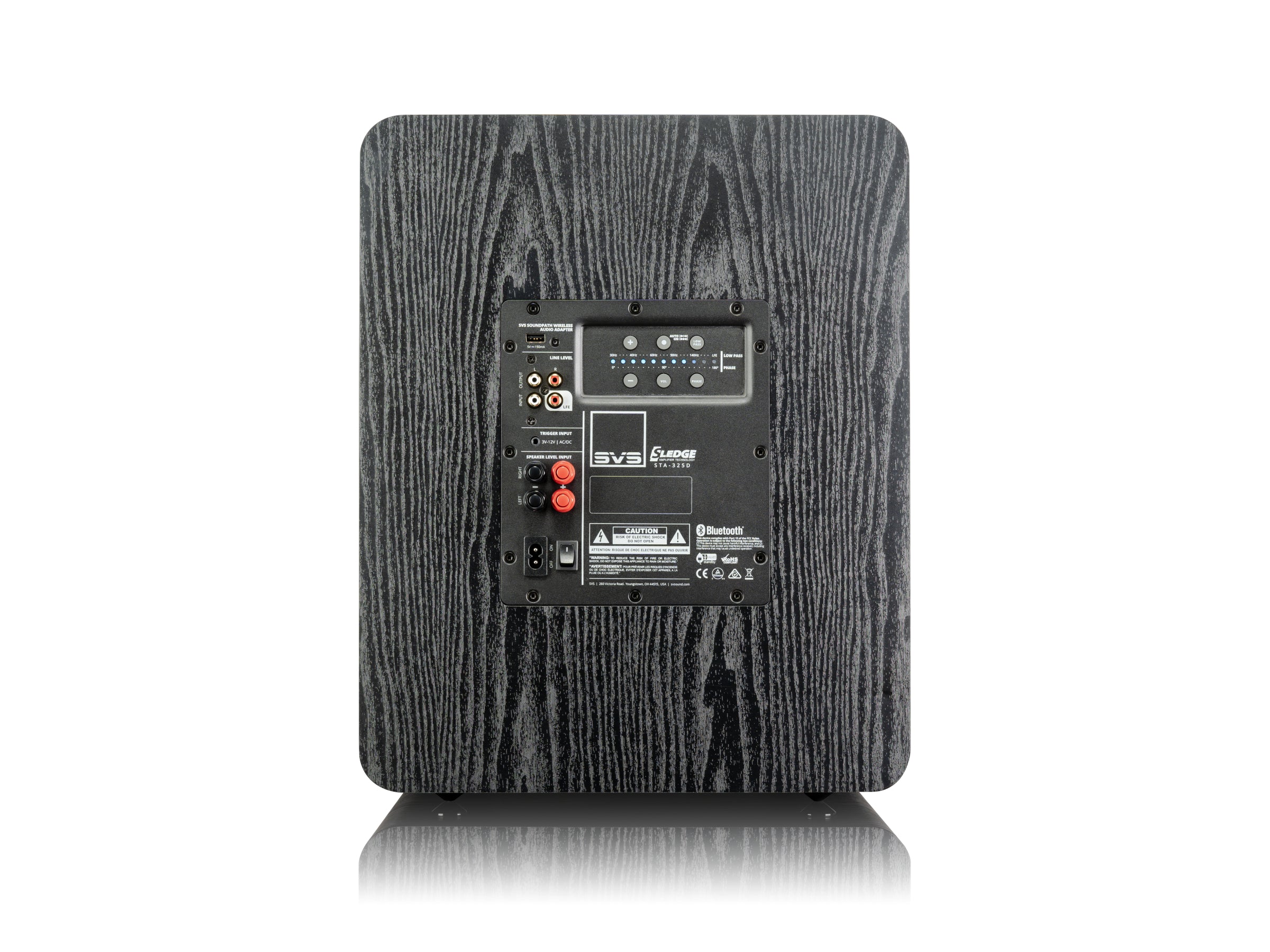

Intelligent Control Interface (ICI) on the rear panel of the 2000 Pro Series cabinets provide control options for the subwoofer’s most critical functions. Adjustments can be made for volume based on listening preferences and content to achieve full and balanced bass response.
Other features of the ICI include a low pass filter frequency to ensure smooth sonic transitions and seamless blending with loudspeakers and phase control to shift timing of subwoofer output to align with main speakers or additional subwoofers.

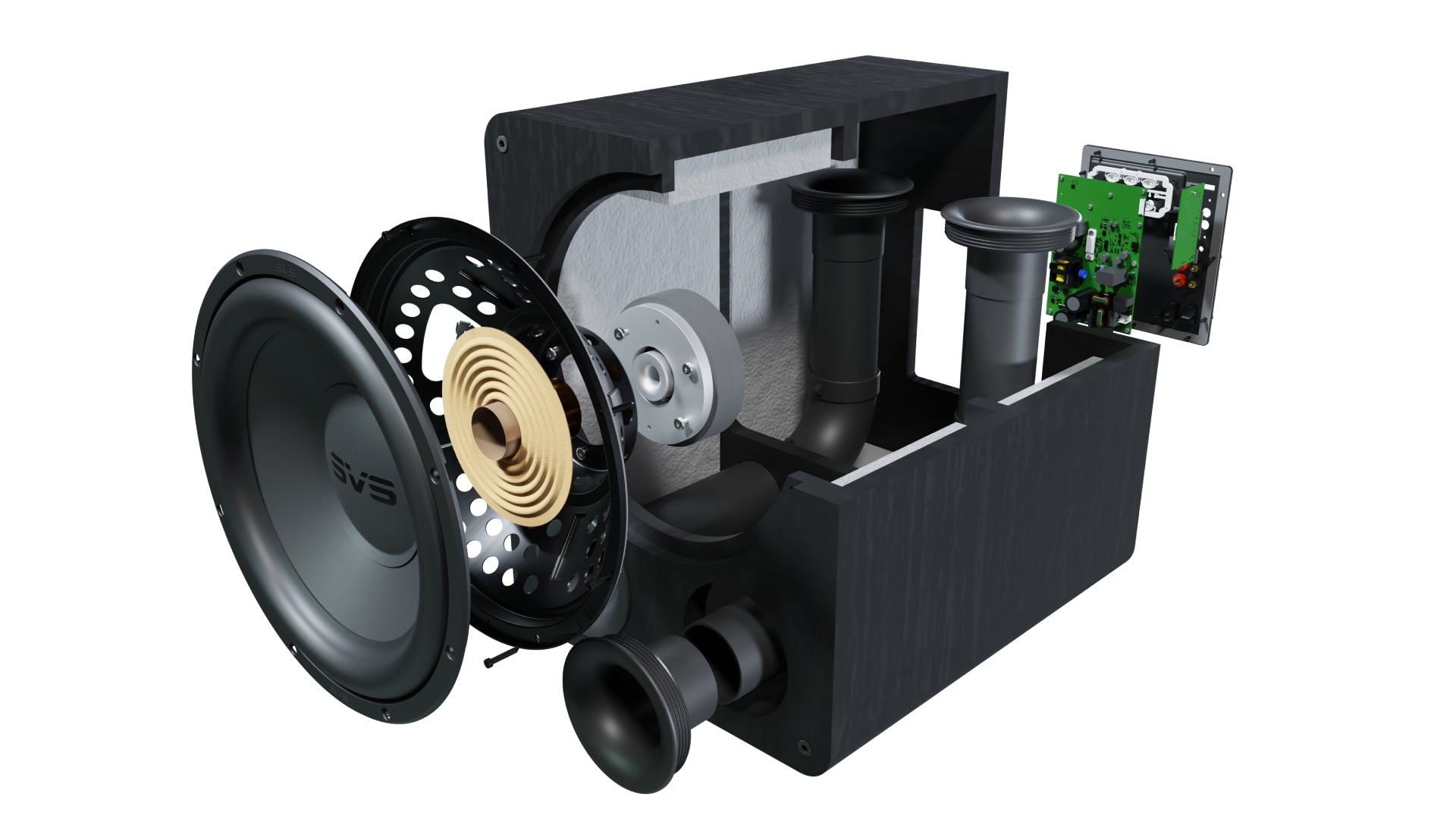

Braced Ported Cabinet Design
Classically handsome, the acoustically optimized ported cabinet features extra-thick MDF front baffle and rigid internal bracing for a resonance-free environment. Serves as a blank canvas for uncompromised subwoofer performance.
- Dual port design allows for maximum airflow without distortion, enhancing the quantity and quality of bass output at all drive levels
- Acoustic insulation eliminates all coloration from the cabinet, even when the deepest low frequencies are played at reference volume

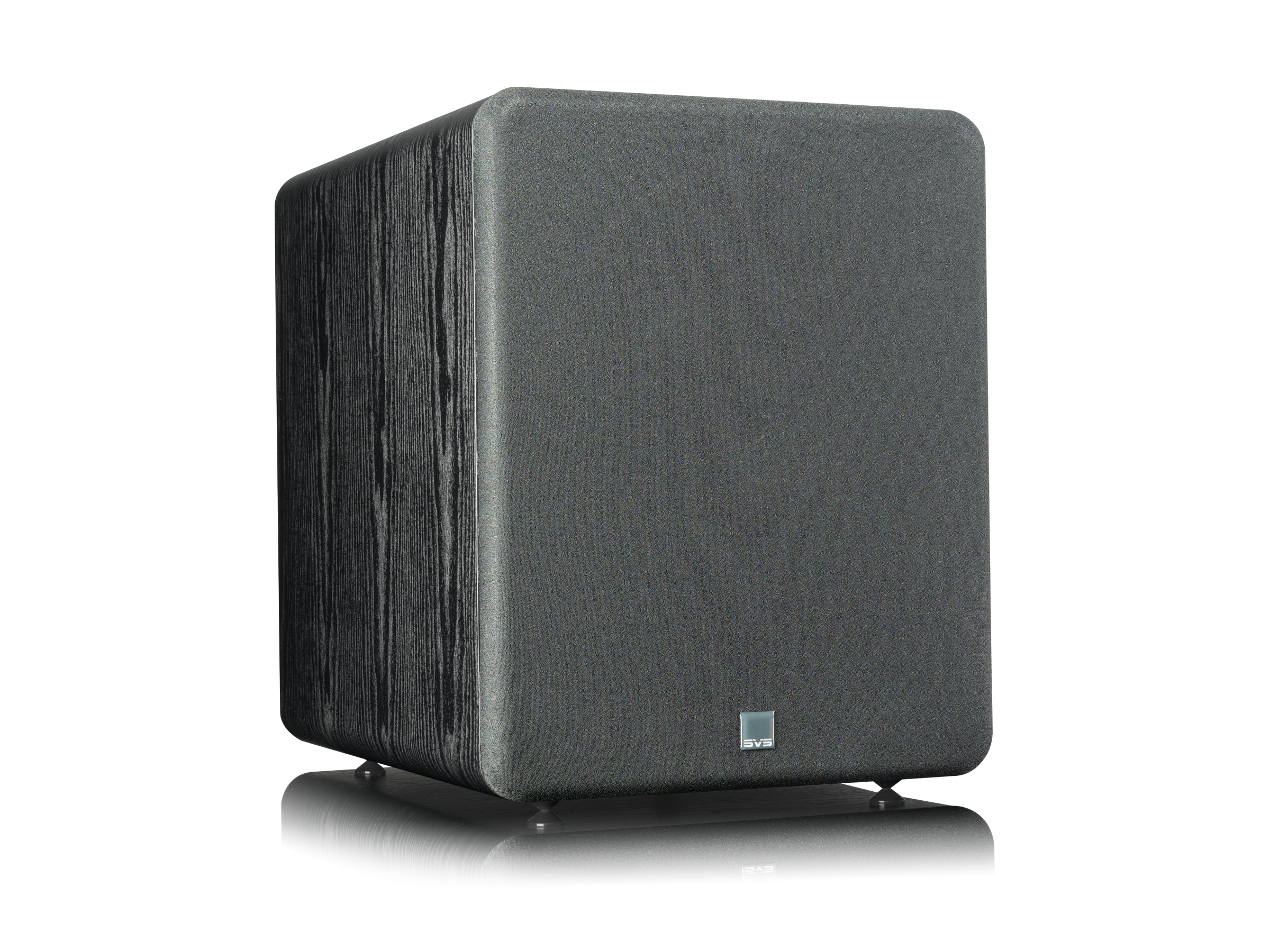

- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shield driver to prevent damage while ensuring longevity
- Reinforced internal bracing for resonance free performance at highest drive levels
- Custom iso-elastomer screw-in feet reduce noise artifacts and improve stability
Uncompromised Performance
The SVS 1000 Pro Series features technology breakthroughs from the 16-Ultra Series, 4000 Series, 3000 Series, and 2000 Pro Series. This technology joins with exclusive 1000 Pro Series innovations to set a new standard for subwoofer performance value. More people than ever can now enjoy room-shaking bass below the threshold of human hearing with unerring accuracy and control.
Specifications
| Frequency Response / Acoustic Data: |
17–260 Hz ± 3 dB (standard mode) 19–260 Hz ± 3 dB (sealed mode) Expect 2–3 Hz deeper extension in small to mid-sized rooms. 2-metre ground plane away from reflective structures (quasi-anechoic). Roll-off slope specifically optimised to take maximum advantage of available room gain. |
| Subwoofer Specs: |
Unbalanced stereo input/output Speaker-level stereo input Auto/On and trigger options through app, 3–12V AC/DC trigger RoHS-compliant, lead-free construction, worldwide safety certifications Green 0.5-watt low standby power consumption Dual 2.5-inch portsDimensions (with grille): 18.9” (479mm) H × 15” (380mm) W × 20” (509mm) D Dimensions (without grille): 18.9” (479mm) H × 15” (380mm) W × 19.2” (488mm) D Shipped dimensions: 23.4” (594mm) H × 19.9” (506mm) W × 24.4” (619mm) D Weight (unboxed): 42.5lbs (19.3kg) with grille Shipped weight: 51.6lbs (23.4kg) |
| Driver Specs: |
All-new proprietary 12-inch long-throw driver with high-precision tuned overhung motor configuration 9.26lb (4.2kg) woofer with 6.91lb (3.14kg) motor 13.1mm Xmax, 26.8mm Xmech precision-aligned excursion 1.5-inch diameter voice coil with high-current 6-layer high-purity copper wire windings Premium high-purity copper voice coil winding design minimises distortion and power compression with maximum heat dissipation, linearity, and tuned magnetics for high excursion Two-piece high-grade oversized Y35 ferrite magnet motor High-temperature 3003-H18 aluminium former/bobbing 6-inch composite cotton-poly extreme excursion linear spider Dual 24-strand copper-alloy high-temperature leads Proprietary injection-moulded gasket and NBR extreme-excursion surround Lightweight treated fibre composite cone for enhanced sensitivity and transient response Top plate assembly with low-carbon 1010 steel for optimal magnetics Oversized low-carbon 1008 steel T-yoke with integrated pole-piece extension for maximum cooling and electromagnetics 12-inch premium powder-coated basket with FEA-optimised analysis for maximum rigidity, tensile strength, and energy transference Oversized motor system for driving full excursion and industry-best SPL, with pinpoint transient speed Precision machining for motor and narrow-tolerance suspension parts ensure flawless linearity at full range of excursion |
| SVS Sledge-325D Amplifier Specs: |
Sledge STA-325D with 325 watts RMS continuous power (820+ watts peak dynamic power) 50MHz Analog Devices Audio DSP, high-resolution double-precision 56-bit filteringWide input voltage bandwidth compliant for consumer and professional audio up to 4V line-level input High-efficiency LLC resonant SMPS with 17A 650V MOSFET; resonant switching results in lower EMI and highest efficiency Cool-running Class D amplifier switching topology with massive 34A 120V MOSFETsSVS BLE control app for iOS and Android contains 3 complete nameable and customisable user presets, supports iOS (iPhone 5 or newer) or Android (4.42 or newer), 3 PEQs per preset, adjustable low pass, phase, polarity, room gain compensation, and control for best alignment with speakers Custom EQ and DSP limiter settings specifically for the 1000 ProInput impedance 16kohm (unbalanced RCA)Input impedance 1kohm (speaker level)New Intelligent Feature Control (IFC) user interface on the amplifier with bright blue 11 LED bar display and easy push-button controls |
| SVS App Specs: |
Bluetooth-controlled subwoofer DSP smartphone app works with iOS, Android, and Amazon operating systems Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain, and all other bass management functions Three convenient custom presets allow for perfect tuning in any room or system, from your favourite seat Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface Easy-to-follow tutorial provides clear guidance for all functions |
| Accessories: |
Protective non-resonant extra-thick ABS fabric mesh grille Iso-elastomer feet included 2 foam port tuning plugsExtra heavy-duty, high-current 6-foot power cable Quick Start Guide |
