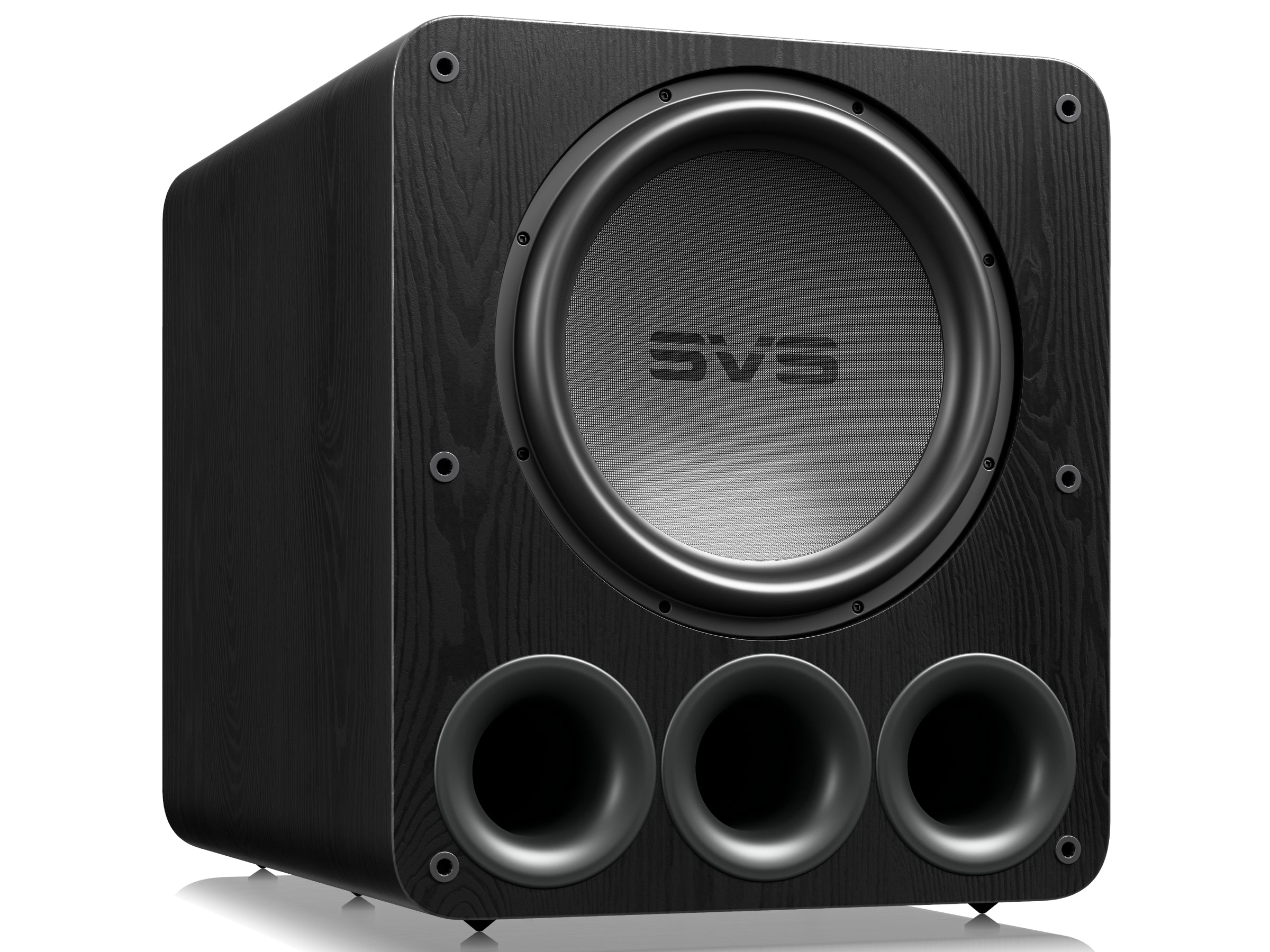

SVS PB-5000 R|Evolution Subwoofer
Combining thunderous low-frequency extension with refined precision, PB-5000 R|Evolution sets a new standard for ported subwoofers in its class. Reaching down to a staggering 13Hz, it energises rooms with cinematic slam and musical detail in perfect harmony.
A reimagined 15-inch high-excursion driver with dual voice coils, driven by a 2,000-watt continuous, 5,000+ peak, dual monoblock amplifier, delivers effortless, controlled power. The 295MHz DSP ensures flawless tuning, while the SVS Subwoofer Control app gives you total command of performance and personalisation.
With the emergence of new flagship SVS subwoofers, it was only a matter of time before the unprecedented technology made its way to newer models at prices within reach of more people. Now, the 5000 R|Evolution Series brings a level of performance and a user experience that far exceeds anything in its class.
Featuring a triple-ported cabinet design, PB-5000 R|Evolution pressurises your listening room with heart-pounding sound that extends down to 13Hz, all without sacrificing refinement and musicality. It suspends your sense of disbelief with seismic power and fathomless extension you can feel from head to toe.
Effortless low-frequency output and extreme SPLs without a hint of distortion are rendered by a formidable 15-inch driver with dual edge-wound voice coils driven by a 2,000-watt continuous, 5,000+ watts peak dual monoblock amplifier.
There are also brains to match the brawn. A 295MHz Analog Devices DSP, the most powerful processor ever deployed in a home audio subwoofer, ensures pinpoint accurate frequency response and optimal performance under any conditions.
PB-5000 R|Evolution demolishes all performance benchmarks for subwoofers in its class. With trickle-down technology from the 17-Ultra R|Evolution Series, named the top subwoofers in the world by nearly every reviewer and industry group, it obliterates expectations, making reference experiences possible for more people than ever.
15-inch SVS driver
The most formidable ported cabinet subwoofer driver in its class features all-new dual edge-wound voice coils, suspension, basket, and extreme-excursion surround to achieve visceral sound pressure levels with pinpoint accuracy.
- Lightweight and rigid 15-inch glass-fibre composite cone with optimal stiffness-to-mass ratio for maximum efficiency and acoustic linearity
- Two-piece toroidal ferrite electromagnetic motor generates massive force with precise control, remaining authoritative yet detailed and controlled
- Extreme-excursion catenary SBR surround maintains pure, long-throw pistonic driver motion
Dual edge-wound voice coils
Precision-engineered dual edge-wound voice coils ensure stable transfer of electromagnetic current to the 15-inch driver for authoritative output and exacting driver control.
- Six-layer bi-filar dual voice coils conduct the massive power from the dual-mono amplifier to the motor with maximum thermal efficiency, resulting in effortless acoustic output
- Flat edge-wound aluminium voice coil wire maximises density for optimal magnetic field strength and thermal capacity
Discrete MOSFET output
A revolutionary new amplifier platform with technology adapted from the flagship SVS subwoofers. Conservatively rated at 2,000 watts continuous and 5,000+ watts peak, the innovative design maximises driver potential with refined behaviour and pristine response at any volume.
- High-current output from fully discrete MOSFET transistors with the efficiency of a Class D amplifier generates immense sonic force with precise control for outstanding real-world performance at all volumes
- Each monoblock amplifier drives one of the dual three-inch voice coils within the motor to assert pinpoint control and maximise power fed to the driver
- Eight 60 Amp 200 Volt MOSFET transistors deliver extreme high current for reference-level output with maximum efficiency
Switch mode power supply
Regardless of the power coming from your household circuit, the PB-5000 R|Evolution always maintains peak performance and remains impervious to voltage fluctuations.
- Onboard AC line conditioner filters and stabilises incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interference to optimise signal quality and audio performance
- Ensures clean and consistent 160V rail voltage and optimal power delivery from a standard 15-amp home circuit
- Power Factor Correction (PFC) time-aligns the AC voltage to the AC current, resulting in less heat, greater efficiency, reliable peak power output, and the ability to maintain rated power across a wide range of voltages
- FEA-optimised convection cooling system has no exterior heatsinks, an extraordinary feat for such a powerful amplifier
Extreme subwoofer intelligence
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer.
- Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction
- Monitors every function of the amplifier to stabilise AC voltage delivery to the power supply and maintain consistent peak output
- Multi-point thermal, voltage, and current monitoring systems ensure maximum output and efficiency
- Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120dB signal-to-noise ratio provide greater headroom, lower noise, and pristine fidelity
Smartphone control app
Convenient subwoofer tuning and control from the comfort of your favourite seat. Works via Bluetooth with Apple iOS, Google Android, and Amazon Fire platforms.
- Controls for volume, low-pass filter, phase, polarity, six parametric equalisers, room gain compensation, port tuning modes, power management settings, and more
- Includes three convenient memory presets for fast and easy system adjustments to match your listening preferences, including music, movies, and night mode

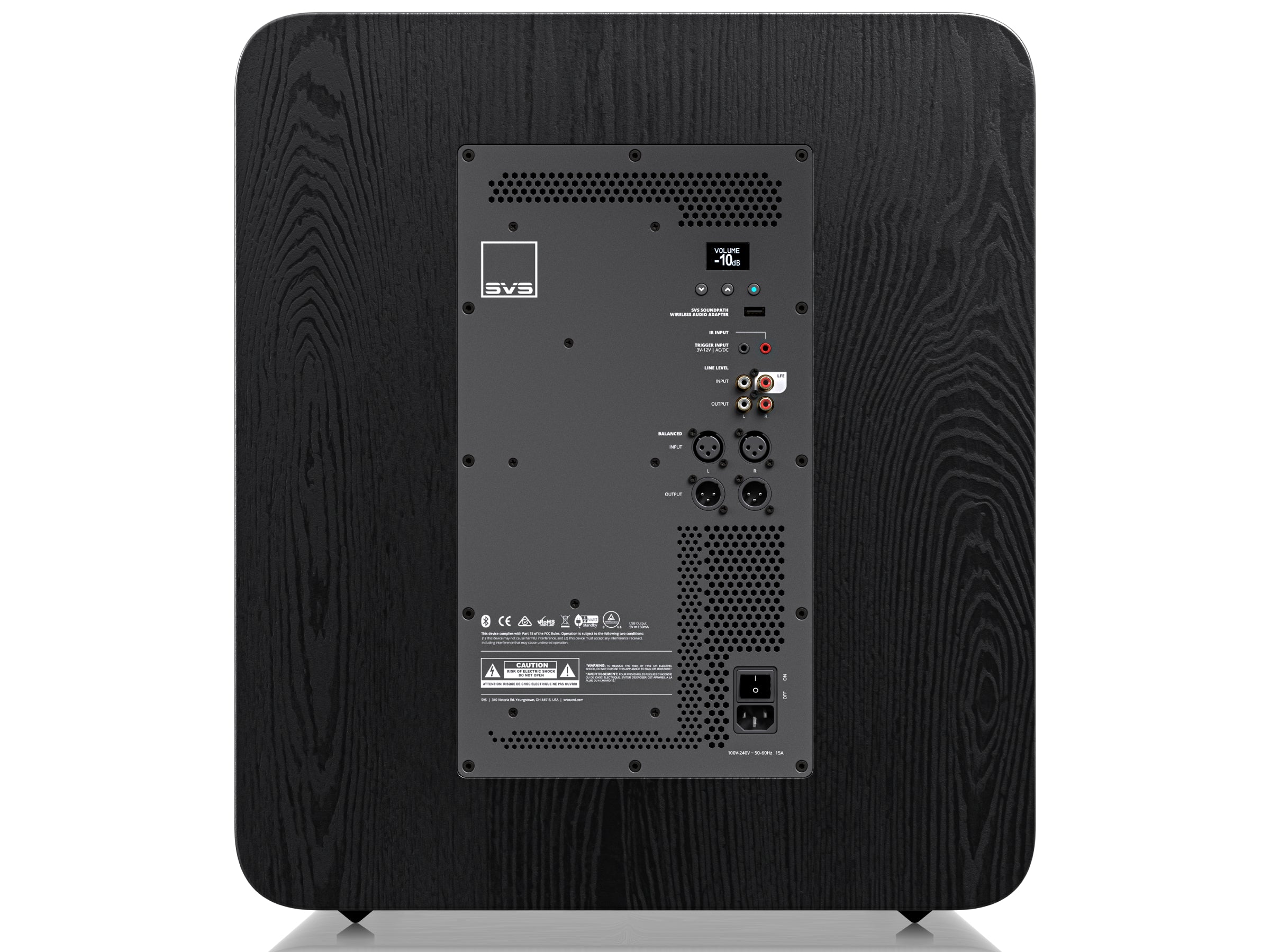

- Amplifier rear panel OLED and control interface provide fast and direct control of the most important features and include a convenient “Display Flip” function
SVS Subwoofer Auto EQ room correction
Achieves pristine fidelity by resolving acoustic issues caused by your room in a few easy steps.
- Automatically tunes subwoofer output using your smartphone microphone or an external microphone and the SVS subwoofer app
-
Applies equalisation, capitalises on available room gain, and shapes in-room frequency response at the main listening positions for optimal in-room performance
Ported box cabinet design

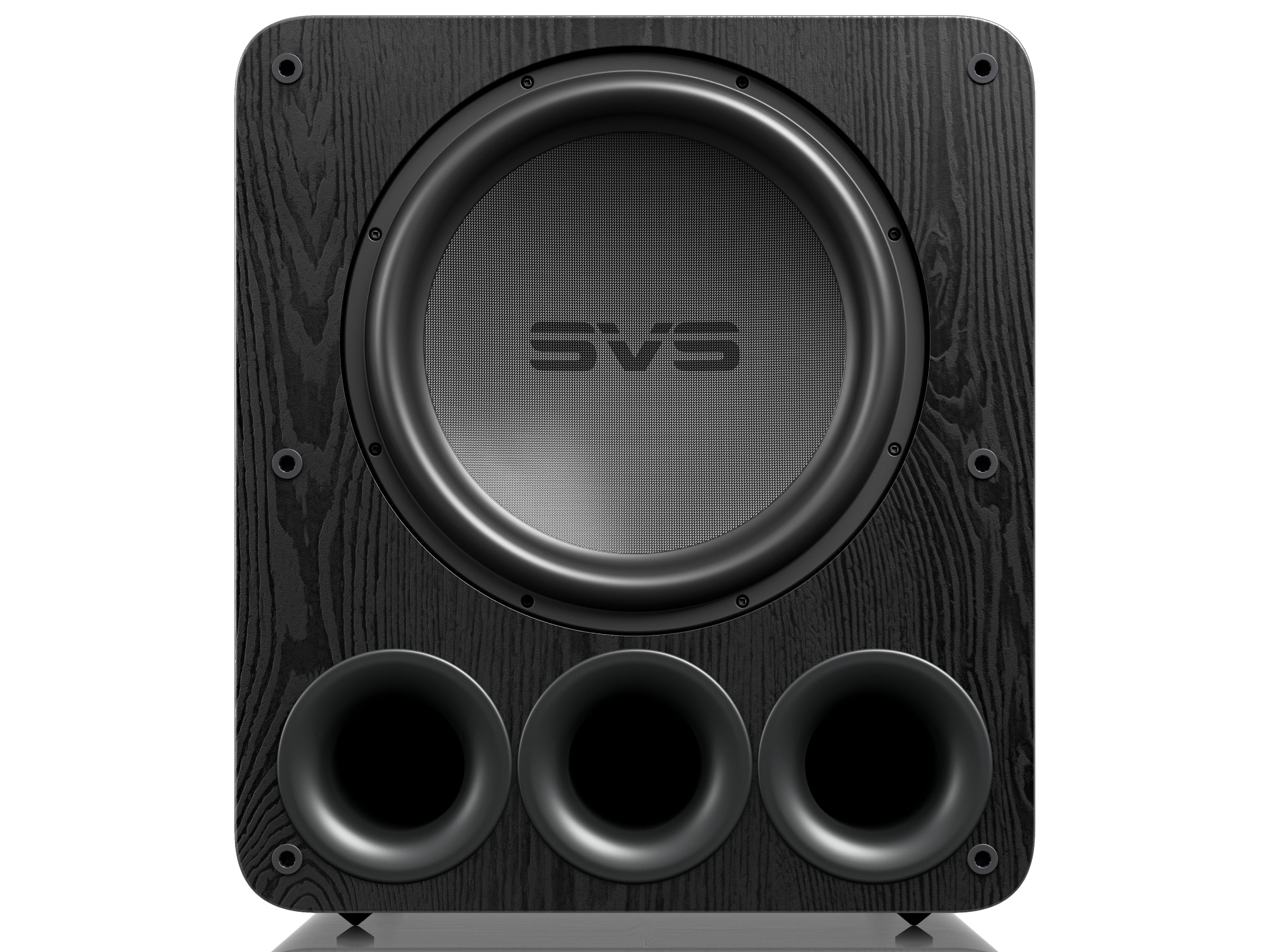

Triple-ported cabinet design results in subterranean deep bass extension with room-energising output that fills even the largest home theatres.
- Double-thick 2-inch MDF front baffle and rigid internal bracing support the massive drive unit and ensure an acoustically inert environment
- Three high-flow 3.5-inch rounded ports enable massive airflow for greater dynamic headroom
- Highly reinforced internal design and acoustic insulation eliminate all colouration and resonance from the cabinet, even when the deepest low frequencies are played at reference volume
-

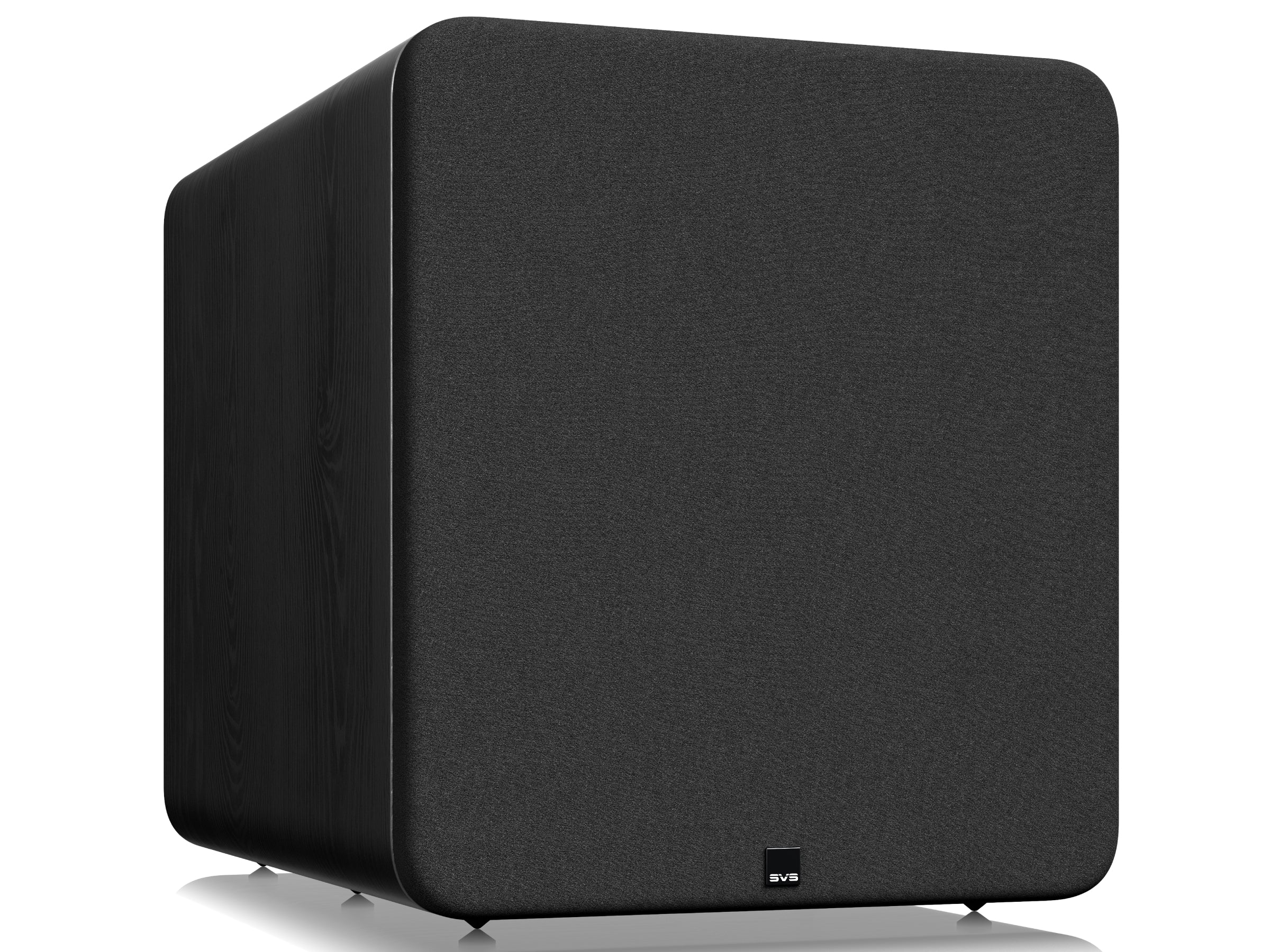

Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields the driver to prevent damage while ensuring longevity
* Custom elastomer feet reduce noise artefacts within a room
Specifications
| Frequency Response / Acoustic Data: |
15Hz to 180Hz ±3dB (standard mode – all ports open) 13Hz to 180Hz ±3dB (extended mode – 2 ports open) 16Hz to 270Hz ±3dB (sealed mode – all ports sealed) Expect 2–3Hz deeper extension in small to mid-sized rooms Roll-off slope specifically optimised to take maximum advantage of available room gain 2-metre ground plane away from reflective structures (quasi-anechoic) |
| Subwoofer Specifications: |

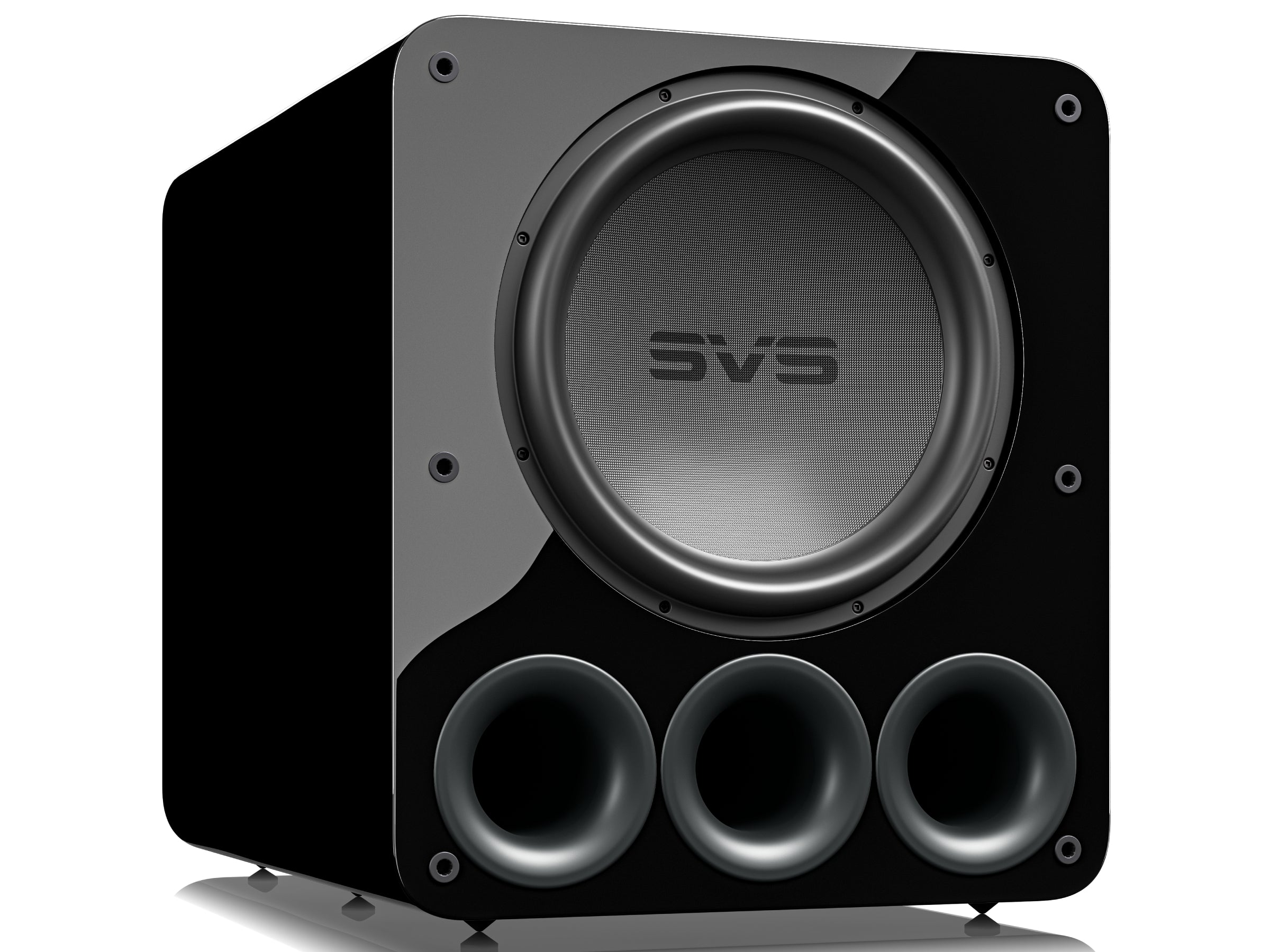

Piano Gloss Black and Black Ash options Front-firing 15-inch high-excursion driver Triple high-flow 3.5-inch ports; amplifier rear panel OLED and control interface provide fast and direct control of the most important features and include a convenient “Display Flip” function Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity; Robust Medium Density Fibreboard (MDF) cabinet construction with internal bracing for resonance-free performance at highest drive levels Screw-in iso-elastomer feet reduce noise artefacts and improve stability Dimensions (with grille): 23.4in (595mm) H × 20.5in (520mm) W × 28.7in (727mm) D Dimensions (without grille): 23.4in (595mm) H × 20.5in (520mm) W × 27.6in (701mm) D Shipped dimensions: 29.1in (738mm) H × 26.0in (661mm) W × 36.0in (915mm) D Weight (unboxed with grille): 153.9lb (69.8kg); Shipped weight: 174.3lb (79.1kg) |
| Driver Specifications: |
All-new proprietary 15-inch long-throw driver with high-precision tuned overhung motor configuration 46.3lb (21kg) woofer with 38.4lb (17.46kg) motor; 46.32mm Xmax, 77.44mm Xmech precision-aligned excursion 3-inch diameter voice coil with high-current 6-layer bifilar flat-edge wound aluminium wire winding Dual voice coil design captures power delivery from dual-mono amplifier outputs into a single voice coil for maximum acoustic output; high-temperature glass-fibre composite former/bobbing Two-piece high-grade oversized Y30 ferrite magnet motor produces effortless on-demand driving force for subtle and over-the-top bass performance Copper shorting sleeve around T-yoke reduces gap inductance and lowers distortion Dual 24-strand silver-plated copper-alloy and Nomex composite high-temperature leads woven through the spider provide a pristine electrical connection from the amplifiers to the voice coils Precision-machined and narrow-tolerance top plate and oversized T-yoke with integrated pole-piece extension made from zinc-plated low-carbon 1010 steel for optimal magnetics and thermal capacity Dual Nomex-composite extreme-excursion linear suspension spiders Proprietary injection-moulded extreme-excursion parabolic NBR rubber surround ensures flawless pistonic motion for pinpoint control and accuracy without distortion at the highest drive levels Premium glass-fibre laminated dustcap and vented composite cone sub-structure with exceptional stiffness-to-mass ratio ensures a light, rigid, and neutral radiating surface capable of moving massive amounts of air with crisp precision High-density 15-inch powder-coated cast aluminium basket FEA optimised for maximum rigidity, tensile strength, and energy transference; nickel-plated high-tension spring terminals provide secure connections |
| Amplifier Specifications: |
Massively powerful 2,000-watt continuous Class D design with over 5,000 watts of peak power High-resolution 295MHz Analog Devices Audio DSP with double-precision 56-bit filtering and over five times the processing power of previous subwoofers DSP monitors every function of the amplifier, ensuring precisely regulated clean voltage is delivered to and from the switch mode power supply and maximum current is pushed to the driver’s voice coils DSP continuously runs complex power management algorithms and multi-point thermal, voltage, and current monitoring systems to optimise AC voltage delivery Advanced digital audio processing and DACs with 120dB signal-to-noise ratio provide greater headroom, lower noise, and flawless fidelity Dual-mono discrete Class D amplifiers create effortless power from eight massive 60A 200V MOSFETs, resulting in lower EMI and highest efficiency All-new switch mode power supply (SMPS) includes a two-stage 100V–240V full-range active power factor correction (PFC) Power factor correction (PFC) time-aligns AC voltage to AC current, resulting in less heat, greater efficiency, and peak power output Onboard AC line conditioner filters and stabilises incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interference New convective cooling plate design eliminates the need for external heatsinks Customer EQ and DSP limiter settings specifically for the 5000 series allow accurate, acoustically tuned bass performance Unbalanced RCA 10kohm input impedance (compatible with consumer and professional audio up to 4Vrms inputs) Balanced XLR 14kohm input impedance (compatible with consumer and professional audio up to 4Vrms / +14dBu inputs) OLED and control interface with easy control of the most important features USB provides power for the SVS SoundPath Wireless Audio Adapter (sold separately) Auto/On and Trigger options through app for maximum installation convenience (3.5mm trigger input 3–12V AC/DC) 3.5mm IR input for easy integration with control systems Green 0.5-watt low standby power consumption RoHS-compliant, lead-free construction with worldwide safety certifications |
| SVS App Features: |
Compatible with Apple iOS, Google Android, and Amazon Fire platforms; allows convenient and intuitive management of all subwoofer controls; Supports volume, fully adjustable low-pass filter, phase, polarity, six PEQs, room gain compensation, tuning modes, and power management settings Includes three convenient memory presets for fast and easy global system adjustments; Subwoofer Auto Room Equalisation (coming soon) will use your mobile device microphone or optional accessory microphone Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface Easy-to-follow tutorial provides clear guidance for all functions |
| Included Accessories: |
Protective non-resonant extra-thick ABS grille frame with fabric mesh cover iso-elastomer feet 3 foam port tuning plugs Extra heavy-duty, high-current 6ft power cord Quick Start Guide |
