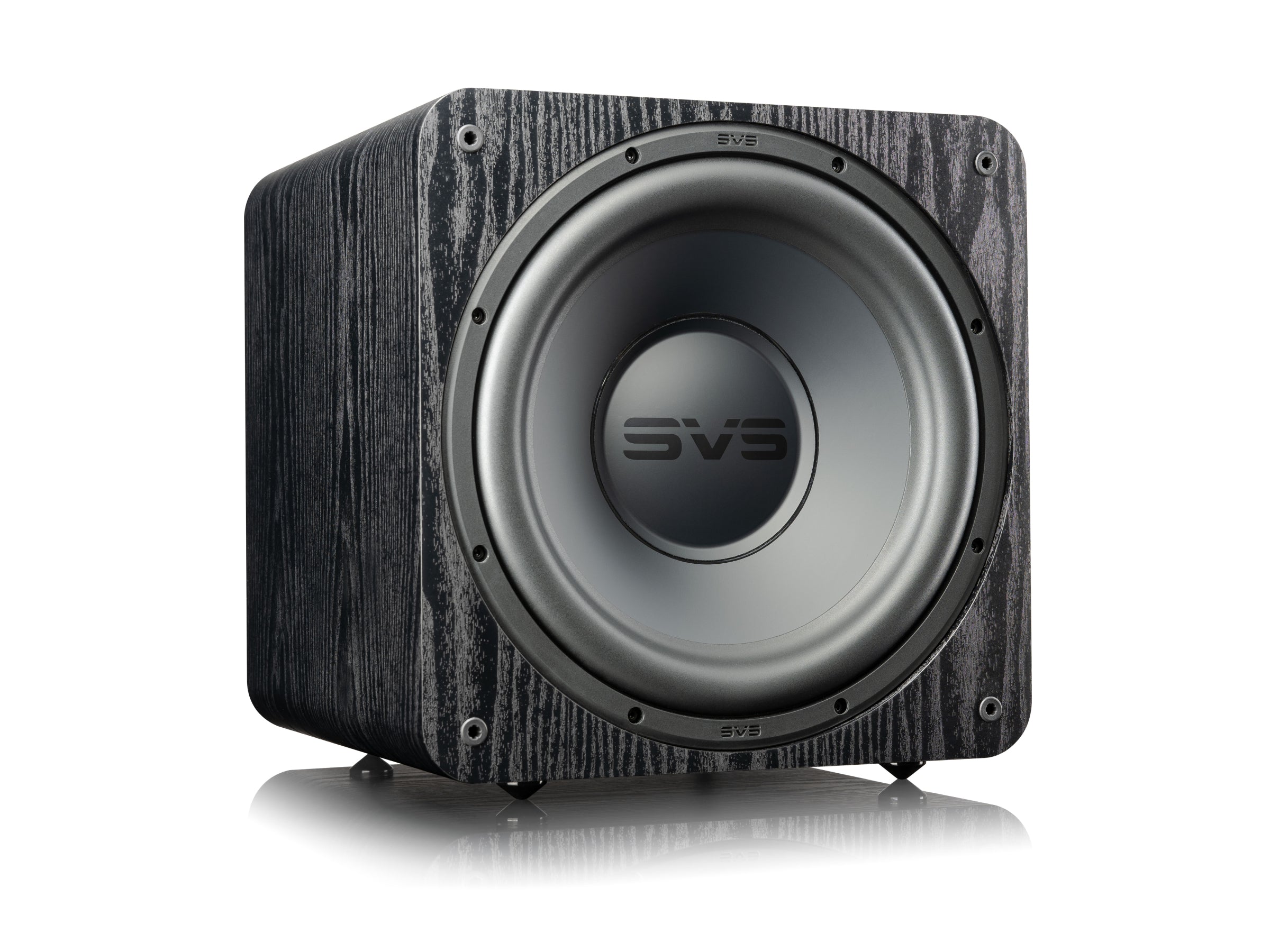

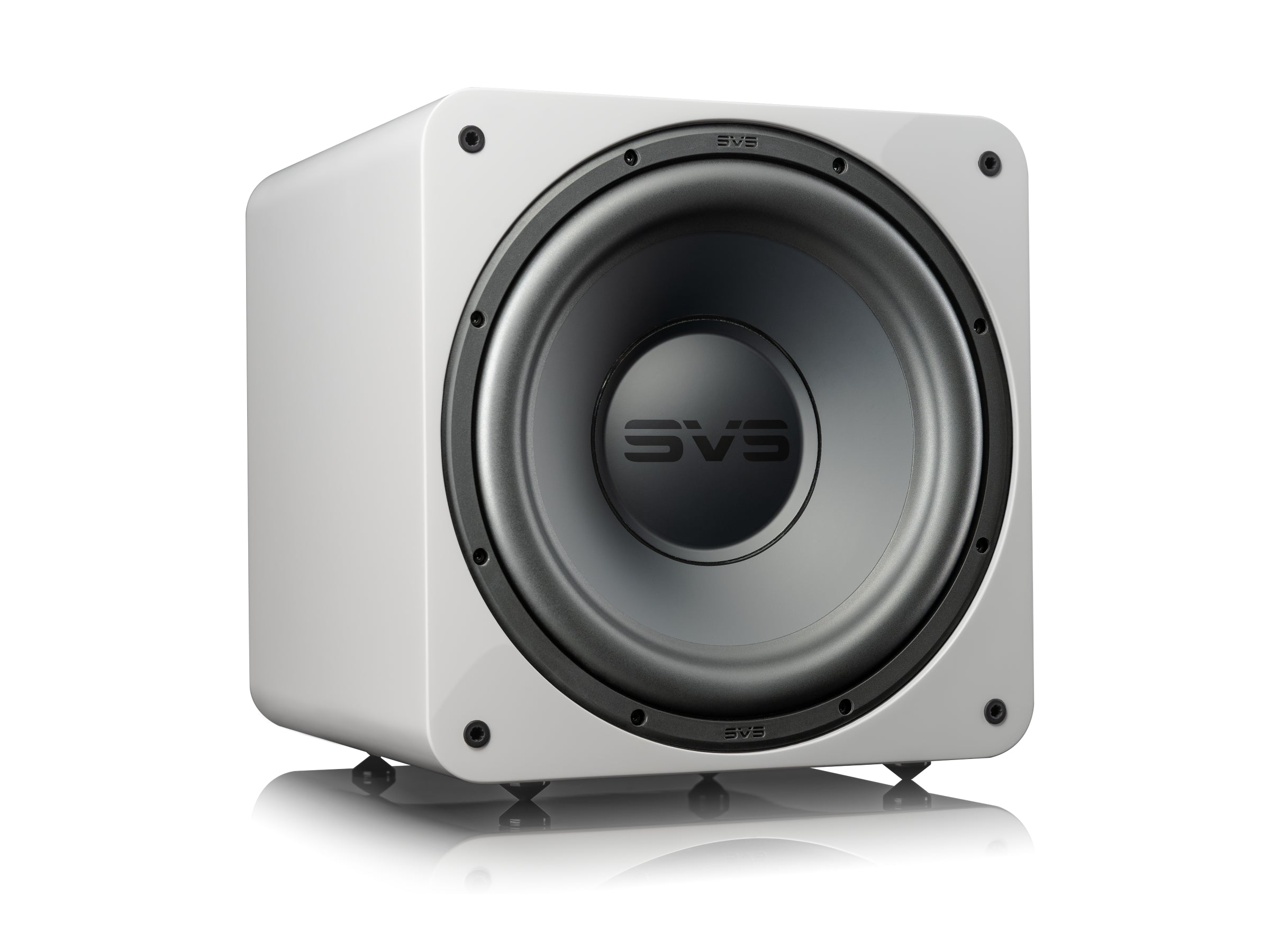

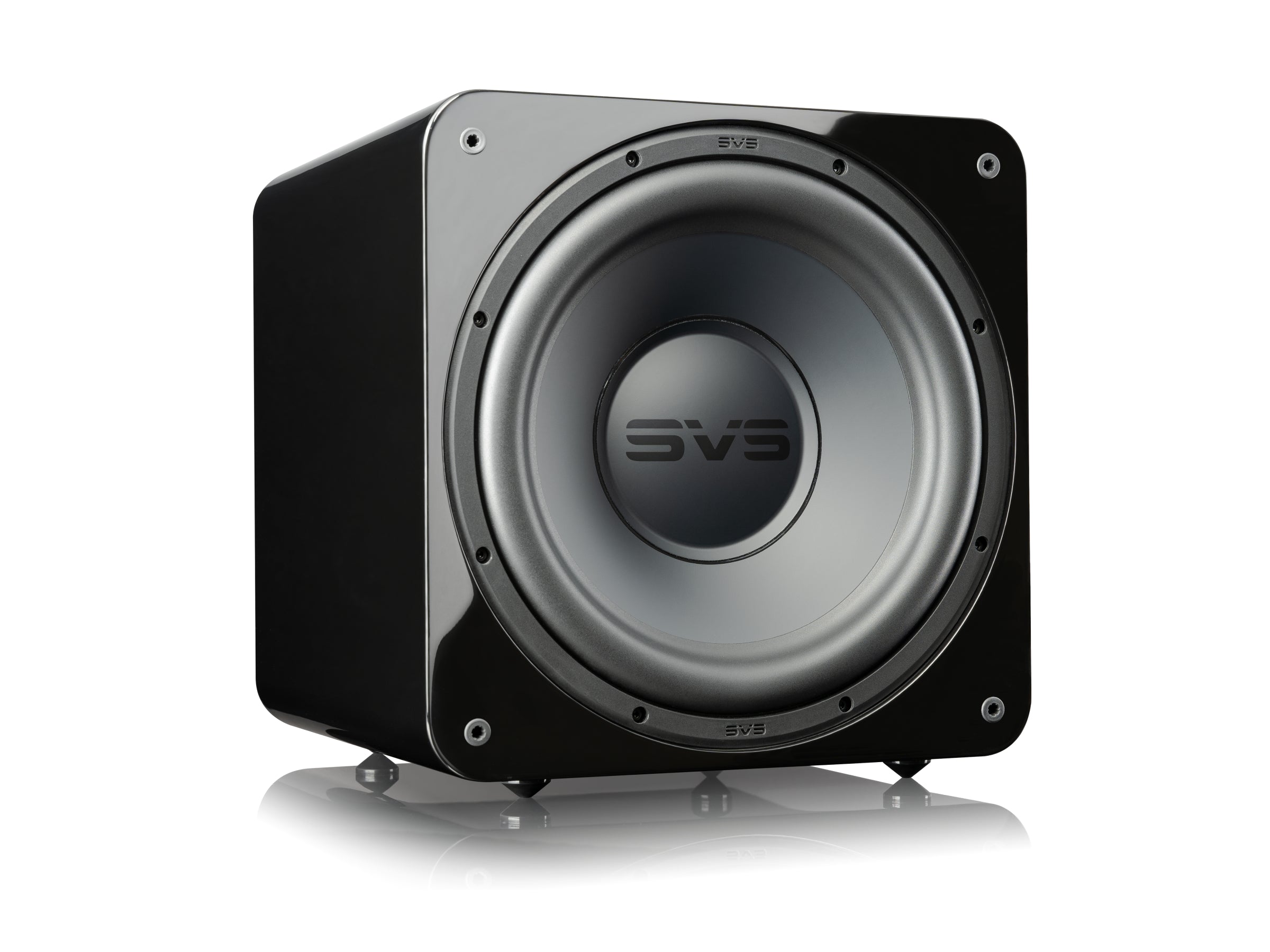

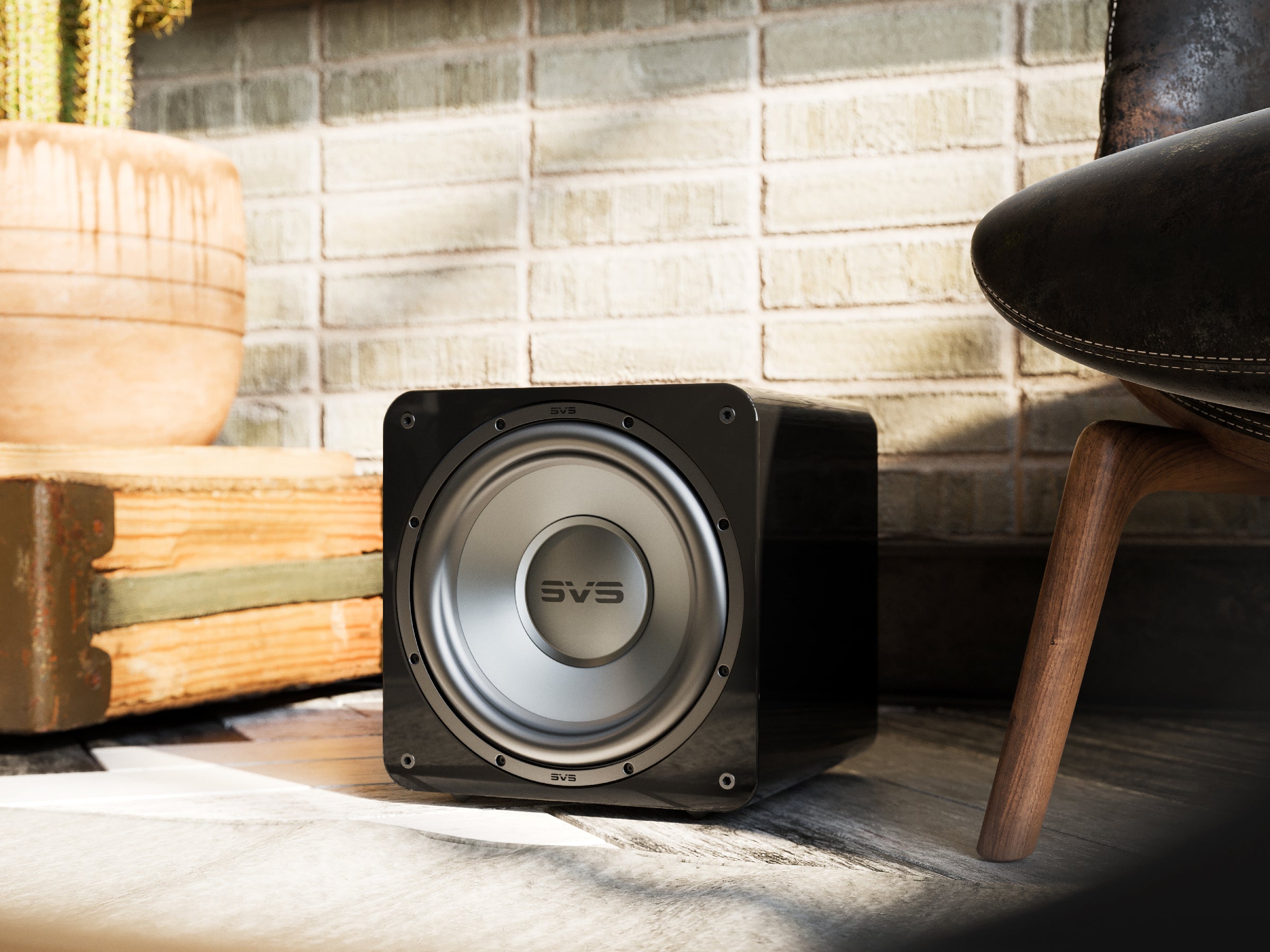

SVS SB-1000 PRO Subwoofer
Energize your stereo or home theater speaker system with room-shaking bass that’s musical and accurate down to 20Hz. SB-1000 Pro demolishes all performance benchmarks in its price range and features innovative technology for an unrivaled user experience. Simply put, it’s in a class of its own.
Room-shaking Bass
Maximizing every available square-inch of surface area, SVS packed a high-excursion 12-inch driver and dual ferrite motor assembly into an acoustically inert, 13-inch cabinet. Thermal management is critical when dealing with such a powerful amplifier and motor in a relatively compact sealed cabinet. SVS engineered a vented pole piece and efficient high-power voice coil to keep the SB-1000 Pro subwoofer cool without impacting performance.
Multiple innovations enhance performance within a sealed cabinet enclosure, all aimed at generating subterranean deep bass extension and seismic output while remaining accurate and controlled.
- Fiber composite cone with exceptional stiffness-to-mass ratio moves massive amounts of air while starting and stopping on a dime with crisp precision.
- Proprietary injection-molded extreme-excursion surround ensures flawless pistonic motion for pinpoint control and accuracy without distortion at the highest drive levels.
- Dual ferrite magnet motor assembly with extended aluminum polepiece produces effortless on-demand driving-force for subtle and over-the-top bass thrills.
- Powder coated FEA optimized driver basket provides maximum rigidity, tensile strength, and thermal energy transference.
- Dual layer voice coil design enhances linearity and fidelity at full excursion while minimizing distortion and power compression.
Effortless Power
The Sledge STA-325D amplifier maximizes the full potential of the 12-inch driver with effortless power and precise control. The innovative design combines the efficiency of a Class D amplifier with the ability to generate colossal current through the fully discrete MOSFETs for outstanding real-world subwoofer performance at all drive levels, in any room, allowing seamless integration with any home theater or stereo speaker system.
- High Current Output from Fully Discrete MOSFETs with the efficiency of Class D amplification allows the Sledge STA-325D amplifier to generate massive amounts of current enabling immense output with surgical precision.
- Sophisticated 50MHz High Resolution Analog Devices Audio DSP is the most advanced digital processor ever used in a subwoofer and maintains pristine sound quality through advanced in-room tuning, powerful DSP controls, custom presets, and more.
- Optimized frequency response curves for the sealed cabinet SB-1000 Pro allow the subwoofer to take control of a room and pressurize it with accurate, heart-pounding, acoustically tuned bass.
SB-1000 Pro Smartphone App
The most convenient way ever to control volume, access multiple DSP functions, and program custom preset tuning profiles optimized for music, movies, gaming, and more.
All accessible with a single touch. Adjust crossover frequencies, a three-band parametric EQ, polarity, room gain and more, all from your favorite seat.
- Connects via Bluetooth for convenient control even when subwoofer is out of sight.
- Saved custom presets for one-touch tuning with optimized settings based on listening preferences for movies, music, and more. All accessible from a single touch.
- Variable port tuning modes with customized frequency response curves for “Standard” and “Sealed” allow tuning for maximum output or deep bass extension and transient speed.
- 3-band parametric EQ controller allows precise adjustments for boost or cut, Q-factor, and frequency down to the single Hz level with so users can customize performance by eliminating peaks, nulls and other room issues.
Intelligent Control Interface (ICI)

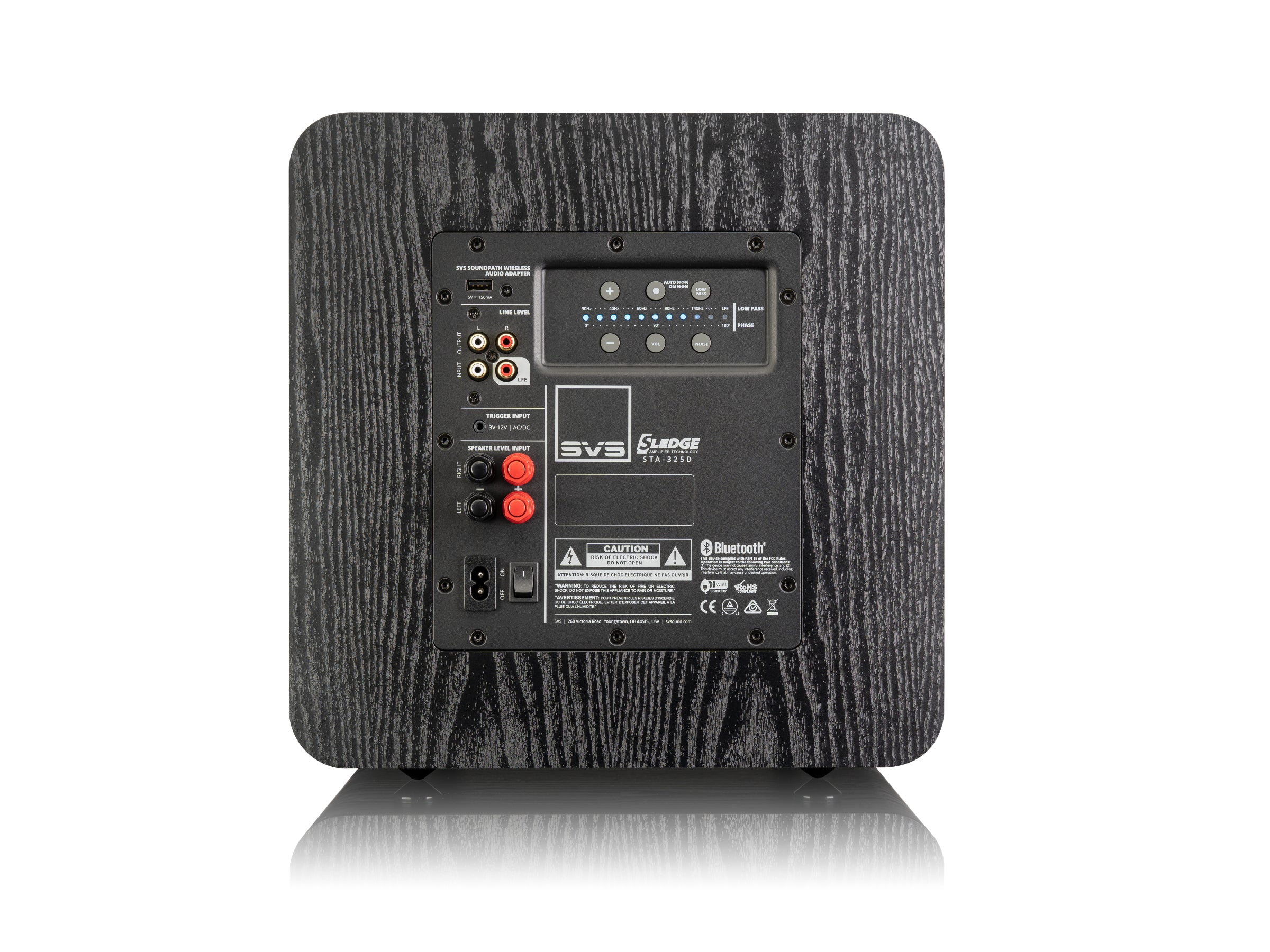

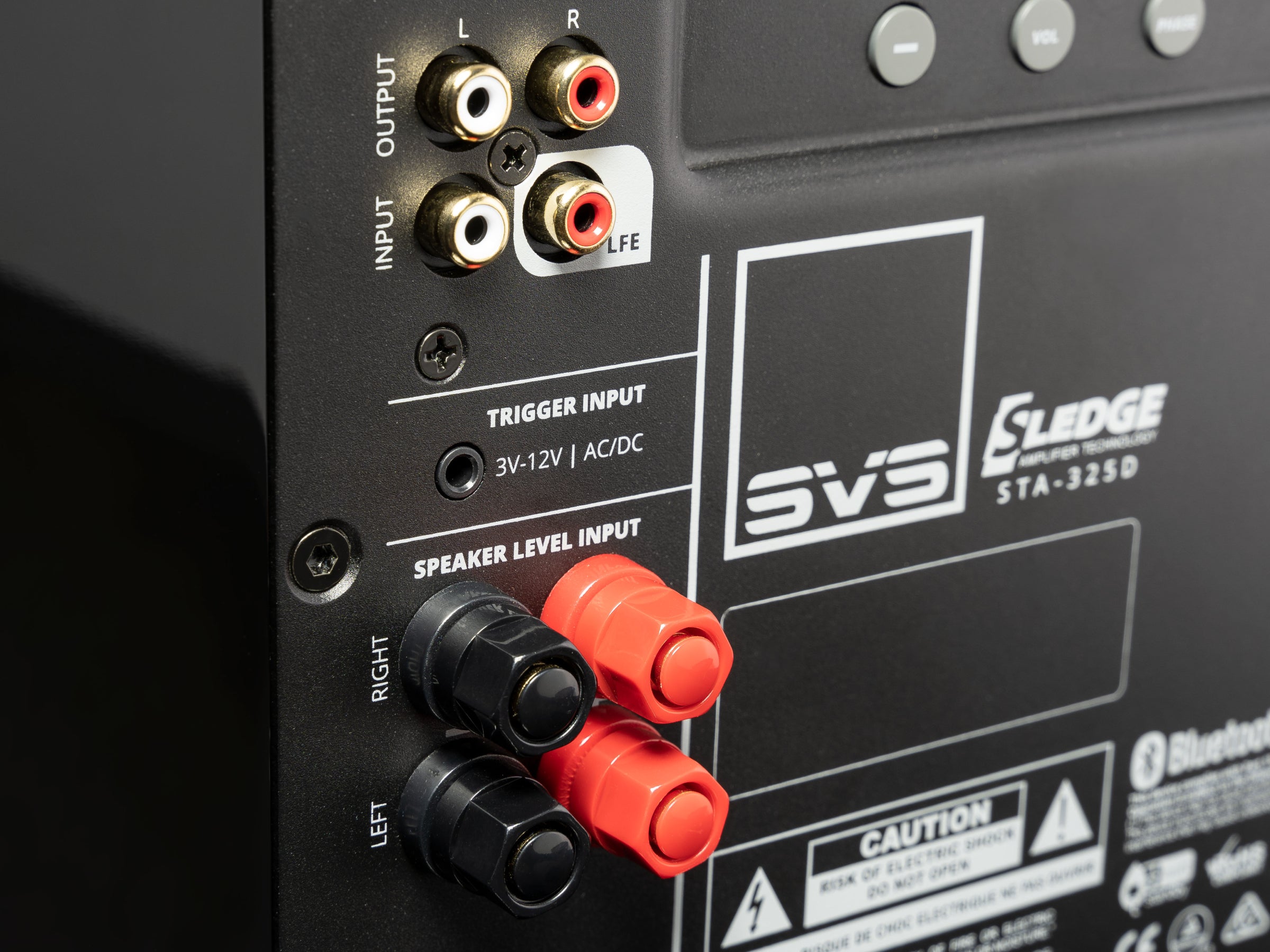

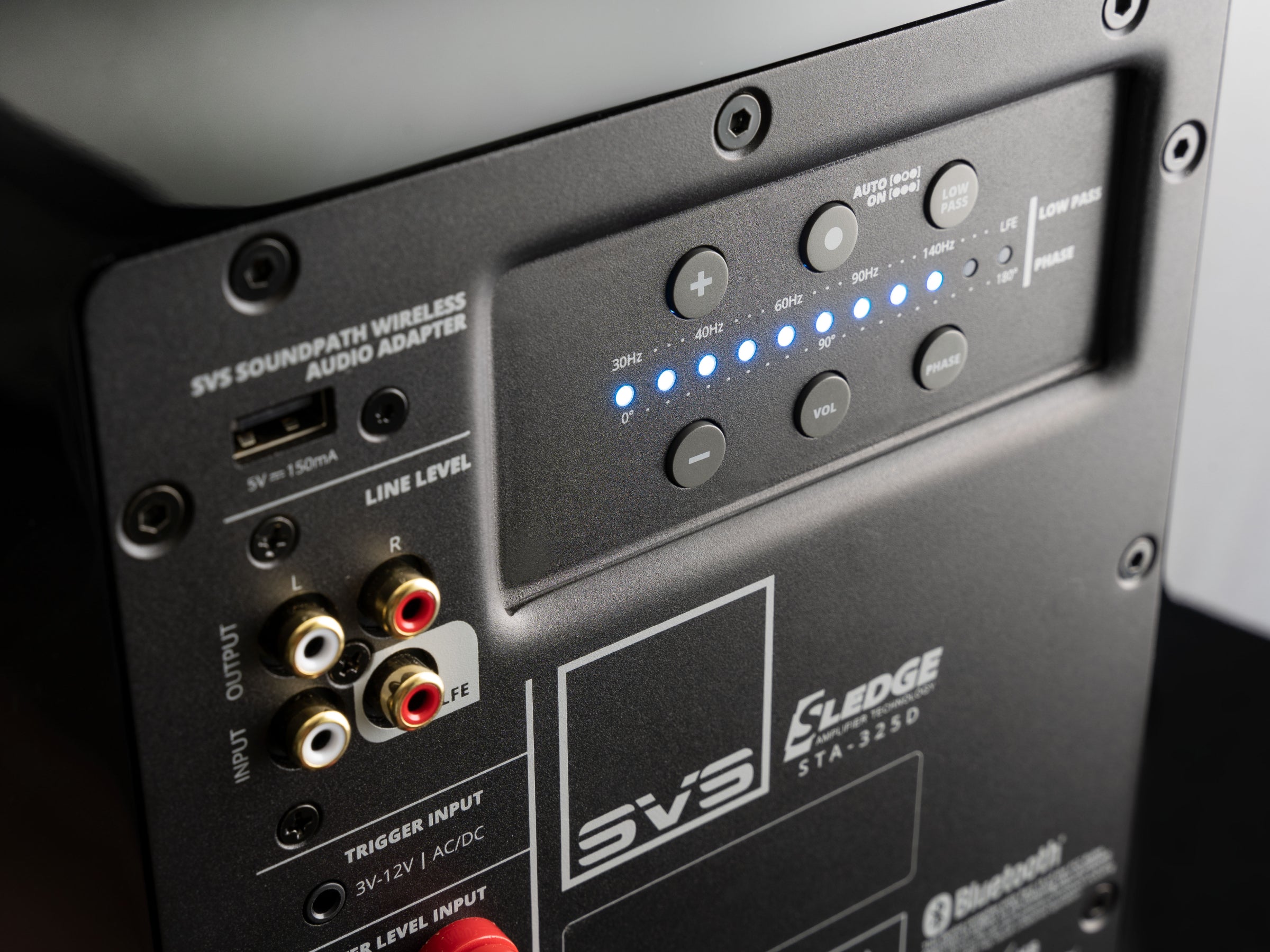

The rear-panel SVS Intelligent Control Interface (ICI) provides control options and connections for the subwoofer’s most critical functions.
- Level Control to fine tune the overall output level that best matches the system and room
- Low pass filter control to ensure smooth sonic transitions and seamless blending with the main speakers
- Phase control to align the subwoofer’s output timing with the main speakers or additional subwoofers
- USB port also provides power for the optional SVS SoundPath Wireless Audio Adapter which eliminates the need for a cable run to the subwoofer from the source component.
- RCA Audio Interconnect Input for use with most AV receivers and preamplifiers
- Speaker Level Stereo Inputs for use with older legacy receivers
Sealed-Cabinet Design
Understated yet stylish, the acoustically optimized sealed cabinet features extra-thick MDF front baffle and rigid internal bracing to create a resonance-free environment. Compact enough to fit in nearly any room or system, it serves as a blank canvas for uncompromised subwoofer performance.
- Acoustic absorption eliminates all coloration from the cabinet, even when the deepest low frequencies are played at reference volume.

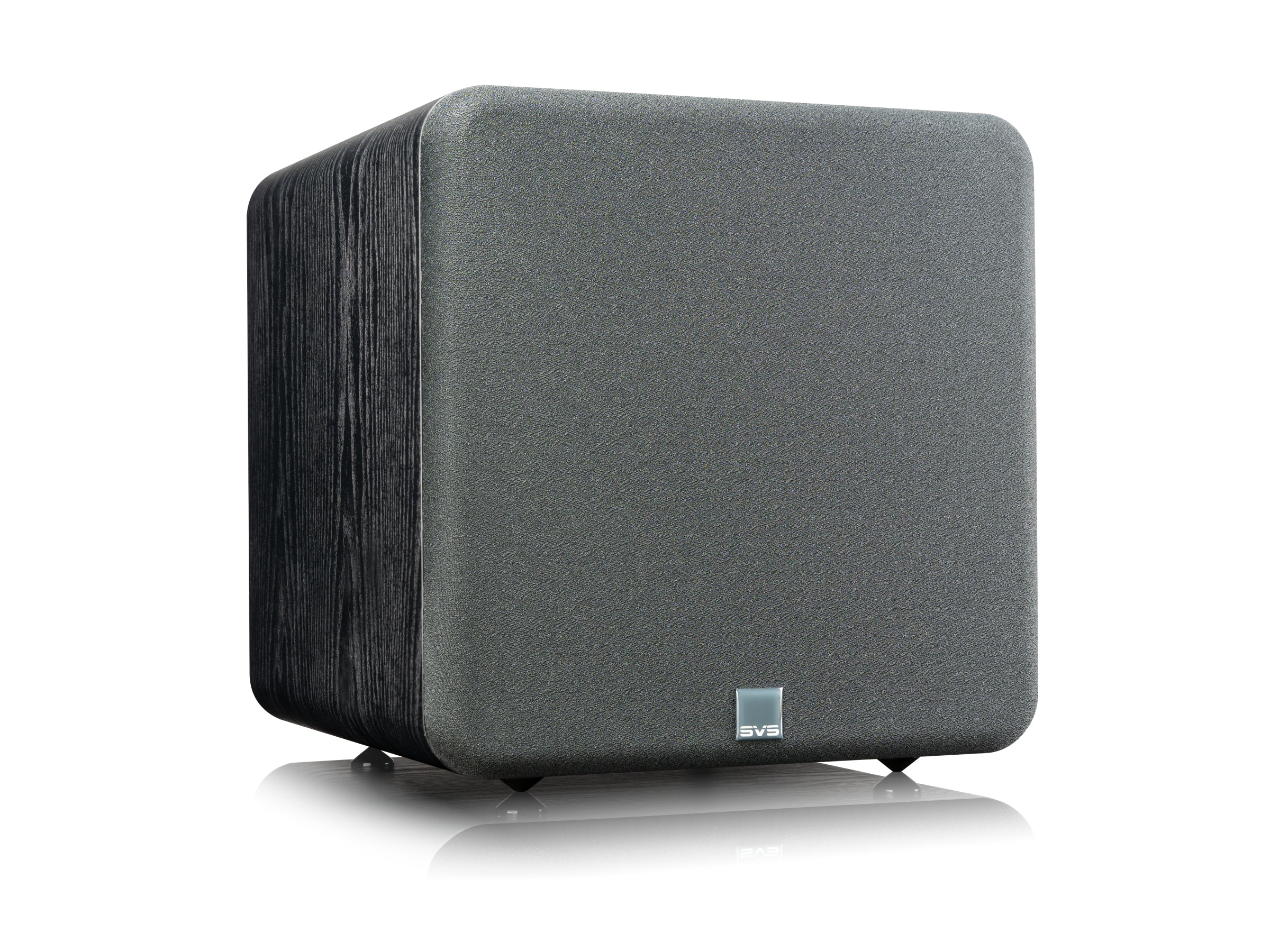

- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity
- Reinforced internal bracing for resonance free performance at highest drive levels
- Custom iso-elastomer screw-in feet reduce noise artifacts and improve stability
Inspired Subwoofer Engineering for Uncompromised Performance
The new SVS 1000 Pro Series features technology breakthroughs from the 16-Ultra Series, 4000 Series, 3000 Series, and 2000 Pro Series. This technology joins with exclusive 1000 Pro Series innovations to set a new standard for subwoofer performance value. More people than ever can now enjoy room-shaking bass below the threshold of human hearing with unerring accuracy and control.
Specifications
| Frequency Response: | 20–270 Hz ± 3 dB |
| In-Room Extension: | Expect 2–3 Hz deeper extension in small to mid-sized rooms |
| Measurement Method: | 2-metre ground plane away from reflective structures (quasi-anechoic) |
| Roll-Off Optimisation: | Roll-off slope specifically optimised to take maximum advantage of available room gain |
| Grille: | Protective non-resonant extra-thick ABS fabric mesh grille |
| Feet: | Iso-elastomer feet included |
| Power Cord: | Extra heavy-duty, high-current 6-foot power cord |
| Guide Included: | Quick Start Guide |
| Input/Output Connections: | Unbalanced stereo input/output |
| Speaker Level Input: | Speaker-level stereo input |
| Power Modes: | Auto/On and trigger options through app, 3–12V AC/DC trigger |
| Compliance: | RoHS-compliant, lead-free construction with worldwide safety certifications |
| Standby Power Consumption: | Green 0.5-watt low standby power consumption |
| Dimensions With Grille: | 13.5” (342 mm) H × 13” (330 mm) W × 14.76” (375 mm) D |
| Dimensions Without Grille: | 13.5” (342 mm) H × 13” (330 mm) W × 13.9” (352 mm) D |
| Shipped Dimensions: | 17.4” (455 mm) H × 17.4” (442 mm) W × 18.4” (471 mm) D |
| Weight Unboxed: | 26 lbs (11.9 kg) with grille |
| Shipped Weight: | 31.1 lbs (15 kg) |
| Driver Type: | All-new proprietary 12-inch long-throw driver with high-precision tuned overhung motor configuration |
| Woofer Weight: | 8.33 lb (3.78 kg) woofer with 5.73 lb (2.6 kg) motor |
| Excursion: | 13.3 mm Xmax, 26.9 mm Xmech precision-aligned excursion |
| Voice Coil: | 1.5” diameter voice coil with high-current 6-layer high-purity copper wire windings |
| Voice Coil Design: | Premium high-purity copper voice coil winding design minimises distortion and power compression while maximising heat dissipation, linearity and tuned magnetics for high excursion |
| Magnet Motor: | Two-piece high-grade oversized Y30 ferrite magnet motor |
| Former/Bobbing: | High-temperature 3003-H18 aluminium former/bobbing |
| Spider: | 6” composite cotton-poly extreme excursion linear spider |
| Leads: | Dual 24-strand copper-alloy high-temperature leads |
| Surround: | Proprietary injection-moulded gasket and NBR extreme-excursion surround |
| Cone Material: | Lightweight treated fibre composite cone for enhanced sensitivity and transient response |
| Top Plate Assembly: | Low carbon 1010 steel for optimal magnetics |
| T-Yoke: | Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling and electromagnetics |
| Basket: | 12” premium powder-coated basket with FEA-optimised analysis for maximum rigidity, tensile strength and energy transference |
| Motor System: | Oversized motor system for driving full excursion and industry-leading SPL with pinpoint transient speed |
| Machining Precision: | Precision machining for motor and narrow-tolerance suspension parts ensures flawless linearity across full excursion range |
| Amplifier Model: | SVS Sledge STA-325D |
| Amplifier Power: | 325 watts RMS continuous power (820+ watts peak dynamic power) |
| DSP Processor: | 50 MHz Analog Devices Audio DSP with high-resolution double-precision 56-bit filtering |
| Input Voltage Bandwidth: | Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line-level input |
| Power Supply: | High-efficiency LLC resonant SMPS with 17A 650V MOSFET; resonant switching reduces EMI and maximises efficiency |
| Amplifier Topology: | Cool-running Class D amplifier switching topology with massive 34A 120V MOSFETs |
| App Control: | SVS BLE control app for iOS and Android with three complete nameable and customisable user presets |
| EQ Features: | Three PEQs per preset, adjustable low-pass filter, phase, polarity, room gain compensation and speaker alignment controls |
| Limiter Settings: | Custom EQ and DSP limiter settings specifically for the 1000 Pro |
| Input Impedance RCA: | 16 kΩ (unbalanced RCA) |
| Input Impedance Speaker Level: | 1 kΩ (speaker level) |
| Amplifier Interface: | Intelligent Feature Control (IFC) interface with bright blue 11-LED bar display and push-button controls |
| App Compatibility: | Compatible with iOS, Android and Amazon operating systems |
| App Functions: | Bluetooth-controlled DSP app allows adjustment of crossover frequencies, parametric EQ, polarity, room gain and other bass management functions |
| Custom Presets: | Three custom presets for tuning different rooms or listening positions |
| Real-Time Feedback: | Bidirectional feedback displays adjustments in real time on both app and subwoofer interface |
| Tutorial Support: | Easy-to-follow tutorial provides guidance for all functions |
| Included Accessories: | Protective ABS fabric mesh grille, Iso-elastomer feet, heavy-duty 6-foot power cord and Quick Start Guide |
