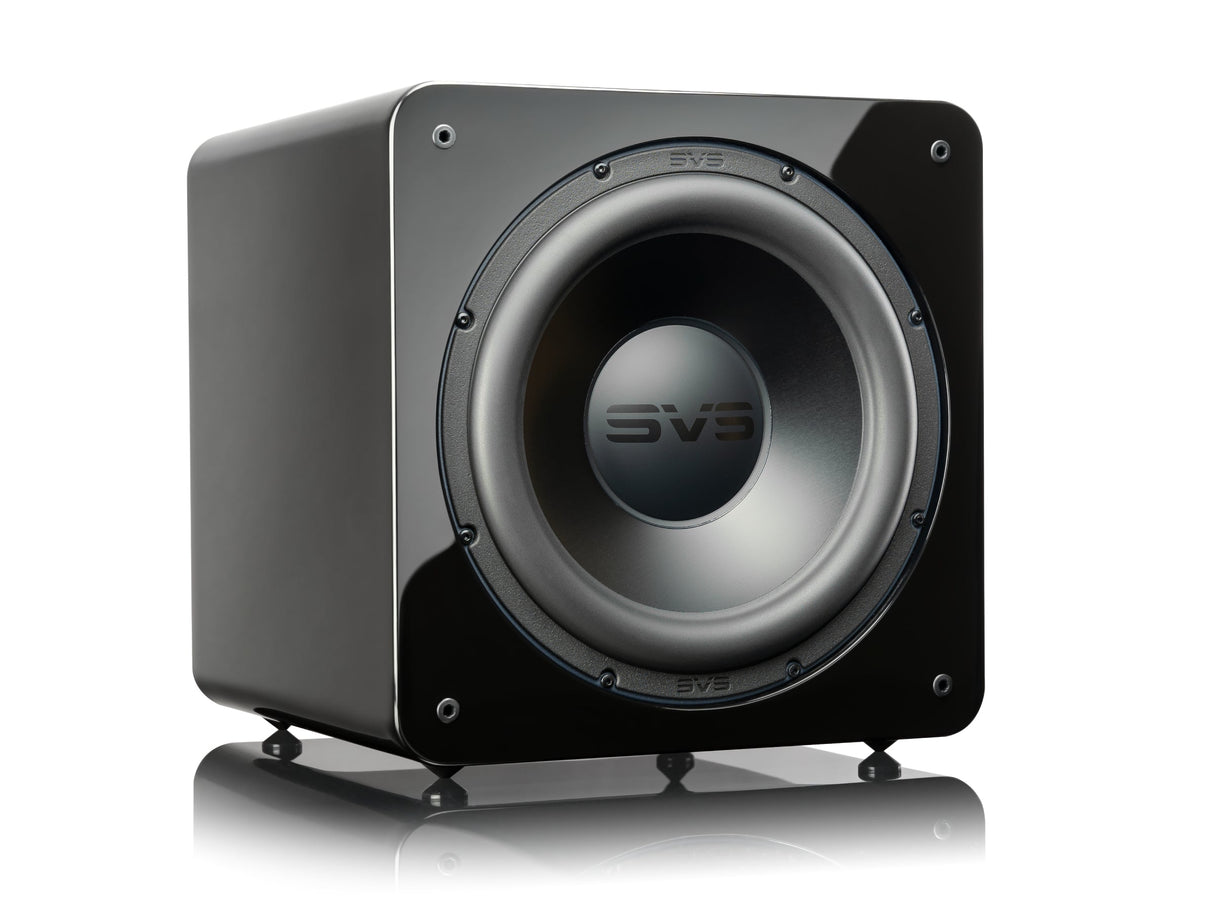

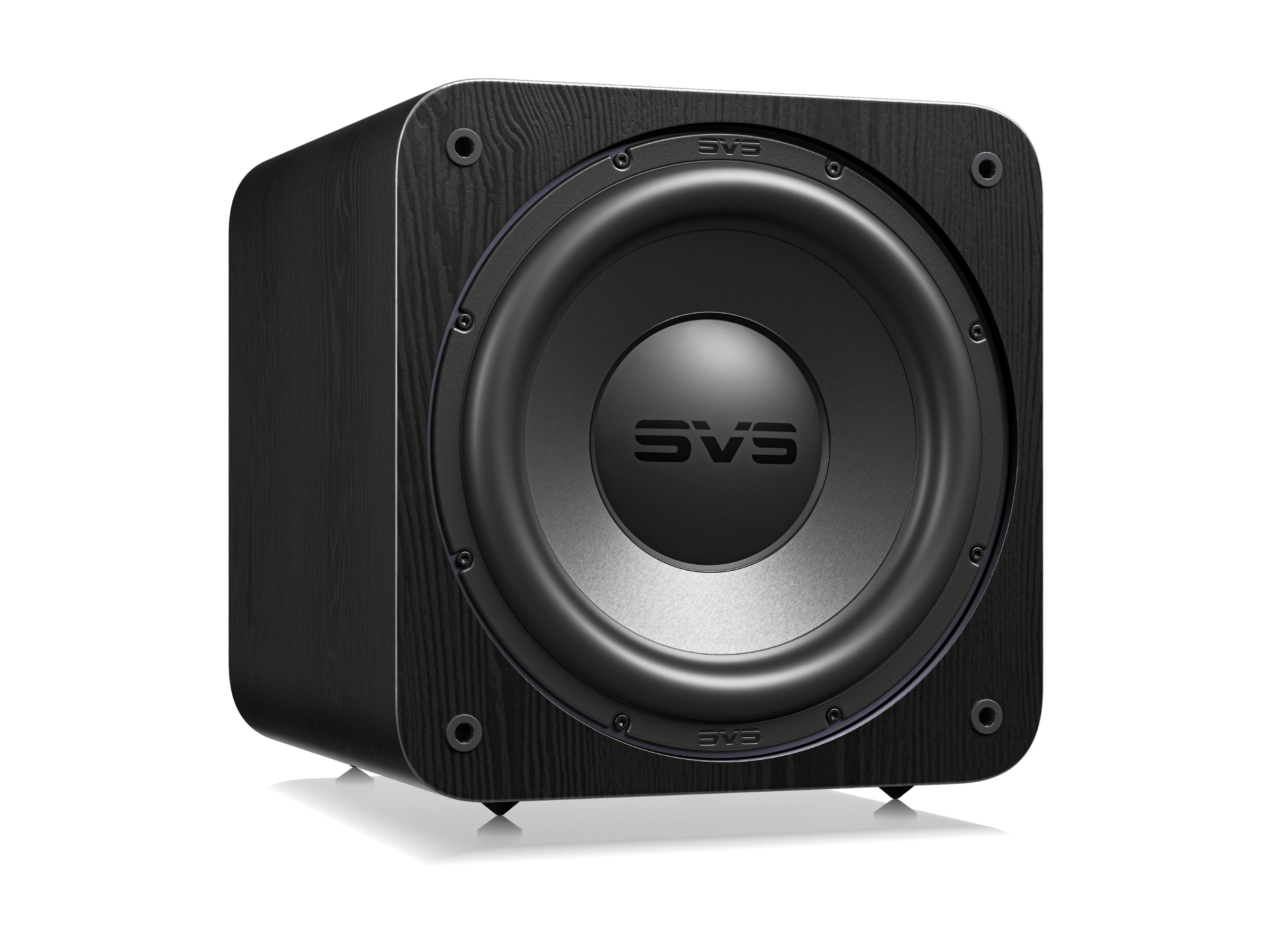

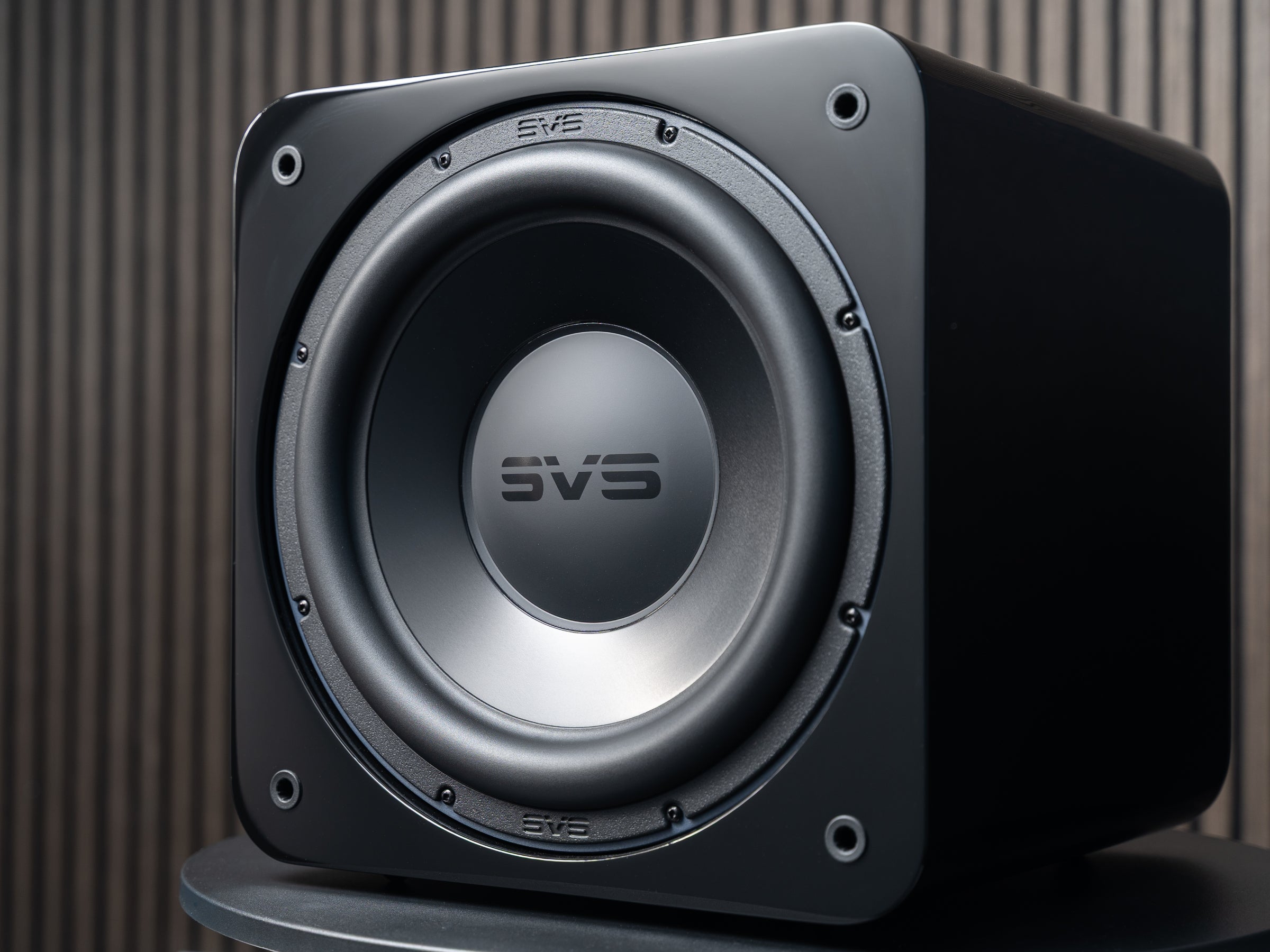

SVS SB-3000 R|Evolution Subwoofer
Staggering cinematic output and extension to 17Hz with musical performance you expect from the finest subwoofers in the world, SB-3000 R|Evolution delivers a reference experience on every level. The all-new 13-inch high-excursion SVS driver and a groundbreaking MOSFET amplifier generate deep, chest-thumping bass with stunning depth, transient response, and tonal accuracy. The result is low frequencies that hit with authority yet reveal every detail, bringing sound to life with breathtaking impact and musicality.
Reference Subwoofer Performance
A subwoofer shouldn't just be heard, it should be felt, lived, and remembered. The 3000 R|Evolution Series embodies that philosophy. Building on flagship SVS 17-Ultra R|Evolution Series technologies that reshaped the industry, these models are the sweet spot of SVS subwoofers, delivering unrivaled output, extension, and transient response, with nearly unmeasurable distortion.
3000 R|Evolution is the culmination of 20+ years of SVS acoustic breakthroughs - engineering that elevates music, home theater, and gaming into emotionally charged, high-impact experiences. These subwoofers don't just play bass; they unleash it with precision, musicality, and authority that captivates listeners and reshapes expectations.
SB-3000 R|Evolution combines the most sophisticated SVS subwoofer technology ever developed with trailblazing innovations to set a new standard for sealed subwoofer performance in its class and beyond.
Breakthrough Driver Architecture
The beating heart of SB-3000 R|Evolution is an all-new high-excursion 13" driver with groundbreaking voice coil design engineered for immense, effortless output with surgical accuracy.
- Flat-Edge Split-Wind Voice Coil maximizes magnetic force at high excursion while maintaining ultra-low mass for responsiveness and efficiency. The result is room-shaking output with unerring accuracy and a highly visceral experience.
- Two-Piece Toroidal Ferrite Magnet Overhung Motor maintains precise linearity to drive the highest levels of excursion, SPL, and start/stop power for the deepest, most authoritative bass possible from a 13" driver.
- Rigid 1100 Pure Aluminum Cone is lightweight and neutral for convincing, distortion-free output, even at extreme levels.
- Long-Throw Extreme Excursion SBR Surround maintains ideal pistonic motion while enabling massive driver movement for clean,room-pressurizing low end.
STA-1200D2 MOSFET Amplifier
Conservatively rated at 1,200 watts Continuous and 4,000+ watts peak power, the STA-1200D2 amplifier maximizes the 13" driver's full potential with effortless power and absolute control.
The pioneering design combines the efficiency of a Class D amplifier with the ability to move massive current through the fully discrete MOSFETs for outstanding real-world subwoofer performance at all drive levels.
- High Current MOSFET Output with Class-D Efficiency allows the STA-1200D2 amplifier to move massive amounts of current through the fully discrete MOSFETs, enabling the 13" driver to fully maximize on its potential with output beyond reference levels with control and accuracy.
- Performance Enhancing SVS Switch Mode Power Supply maximizes system performance and reliability under all operating conditions by monitoring amplifier and AC main output voltage/current as well as multiple temperature sensors.
- Premium Grade 56bit Digital Audio Processing and premium DACs (Digital-to-Analog Converters) with more than 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and flawless fidelity.
- Balanced XLR Input for pristine audiophile performance and long-distance cable runs. Compatible with consumer and pro audio systems.
The Brains Behind the Brawn
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer.
- Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction
- Monitors every function of the amplifier to stabilize AC voltage delivery to the power supply to maintain consistent peak output
- Multi-point thermal, voltage, and current monitoring systems ensure maximum output and efficiency
- Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and pristine fidelity

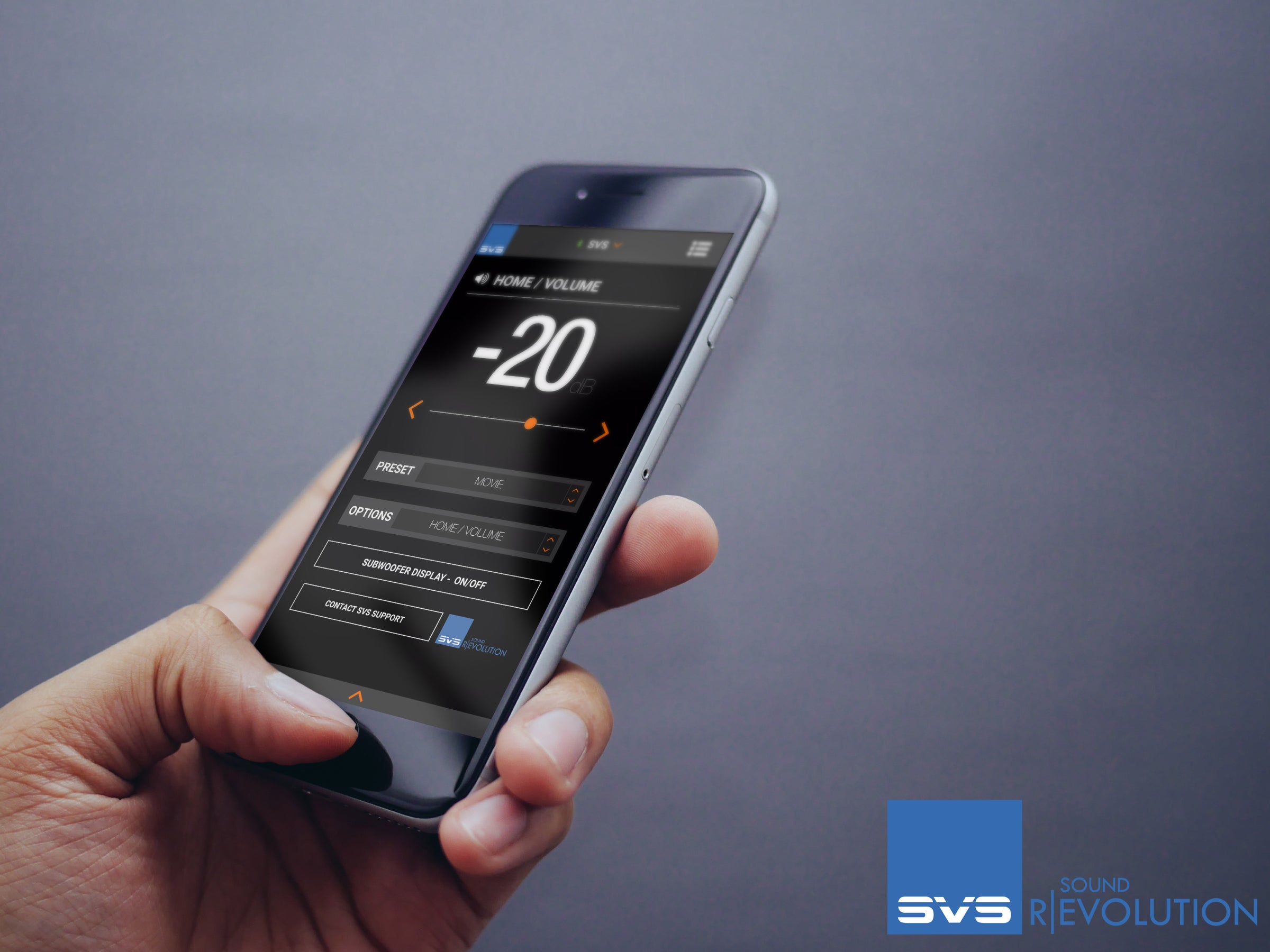

Smartphone Control App
Convenient subwoofer tuning and control from the comfort of your favourite seat. Works via Bluetooth with Apple iOS, Google Android, and Amazon Fire platforms.
- Controls for volume, low pass filter, phase, polarity, six parametric equalizers, room gain compensation, tuning modes, power management settings, and more.
- Three memory presets to save system settings matched to your listening preferences - music, movies, night mode, and more.
- SVS Auto Room EQ for optimal in-room performance.
Braced Sealed Cabinet Design
Sealed cabinet design yields tighter, more musical bass and makes it significantly more compact than ported-box subwoofers with comparable drivers and amplifiers.
- Rigid MDF front baffle and internal support massive drive unit and ensure an acoustically inert environment.
- Highly reinforced internal design and acoustic insulation eliminate all coloration or resonance from the cabinet, even when the deepest low frequencies are played at reference volume.
- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity.
- Custom elastomer feet reduce noise artifacts within a room.

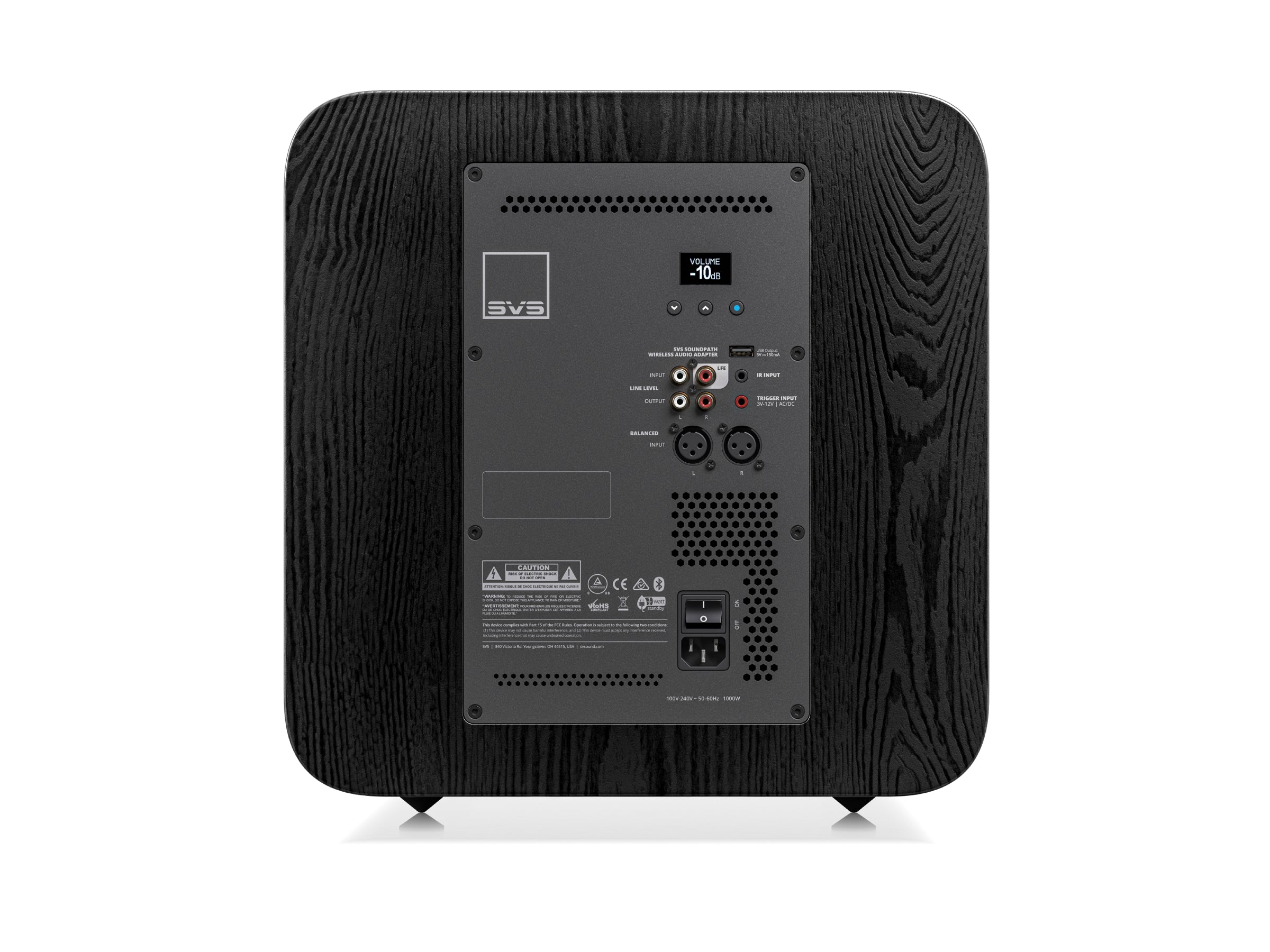

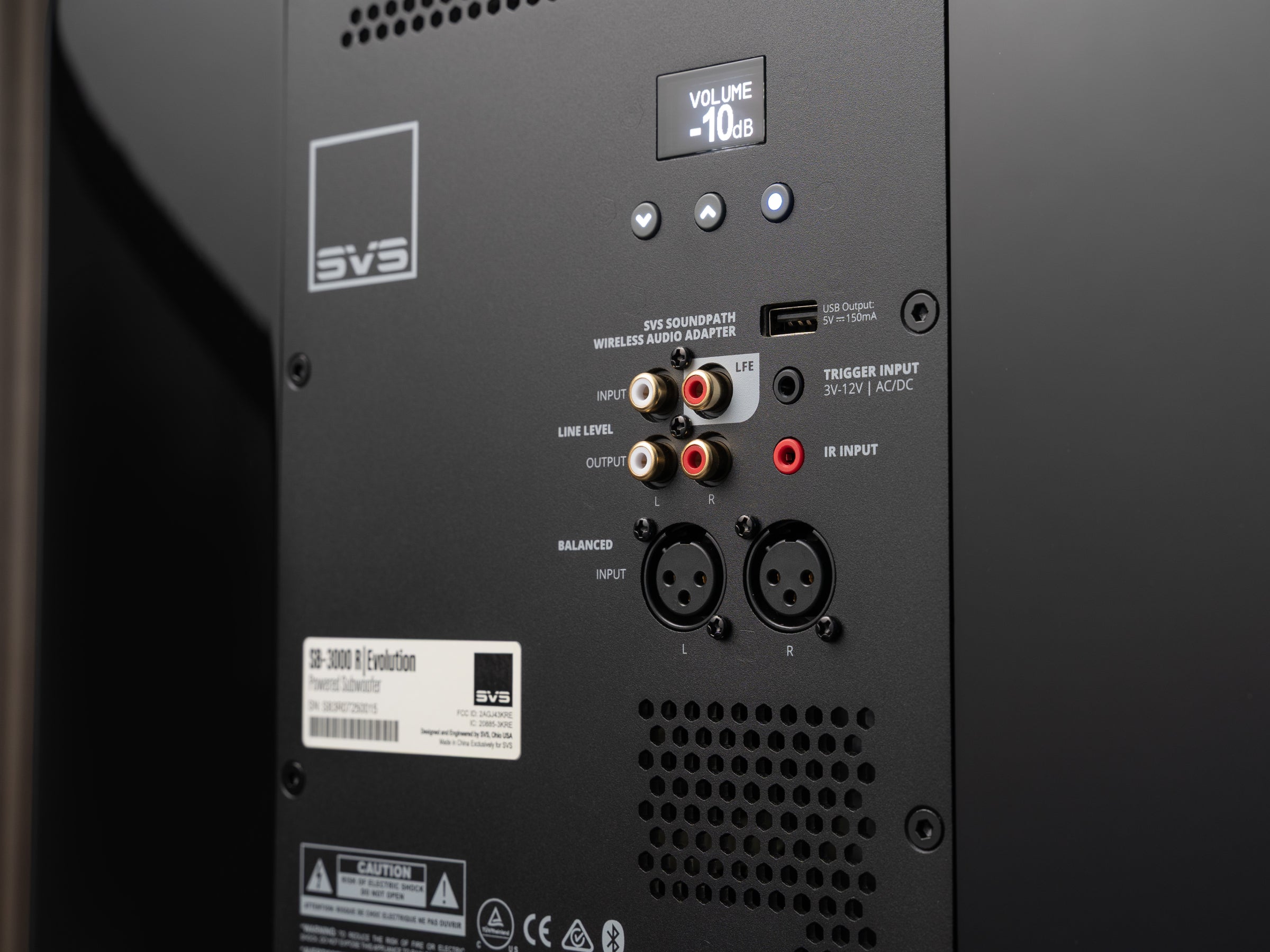

- Rear Panel OLED and Control Interface provide fast and direct control of the most important features. Includes a convenient "Display Flip" function.
Specifications
| Frequency Response / Acoustic Data: | 17–230Hz ± 3 dB |
| Room Extension: | Expect 2–3Hz deeper extension in small to mid-size rooms. |
| Roll-Off Slope: | Specifically optimised to take maximum advantage of available room gain. |
| Measurement Conditions: | 2-metre ground plane away from reflective structures (quasi-anechoic). |
| Acoustic THD+N: | 20% to 60% lower acoustic THD+N in the critical low-frequency bandwidth compared to the previous generation. |

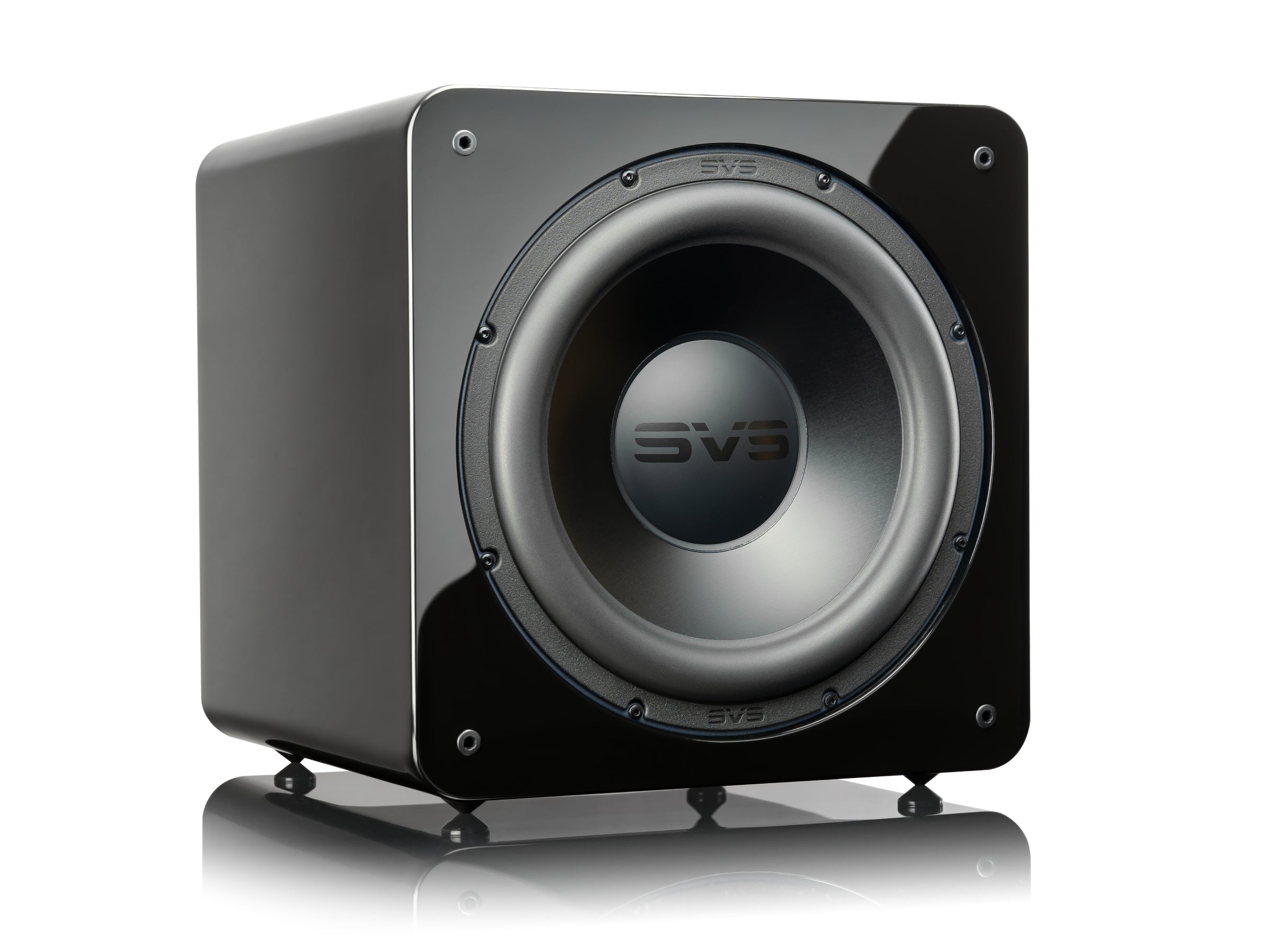

| Finish Options: | Piano Gloss Black and Black Ash options. |

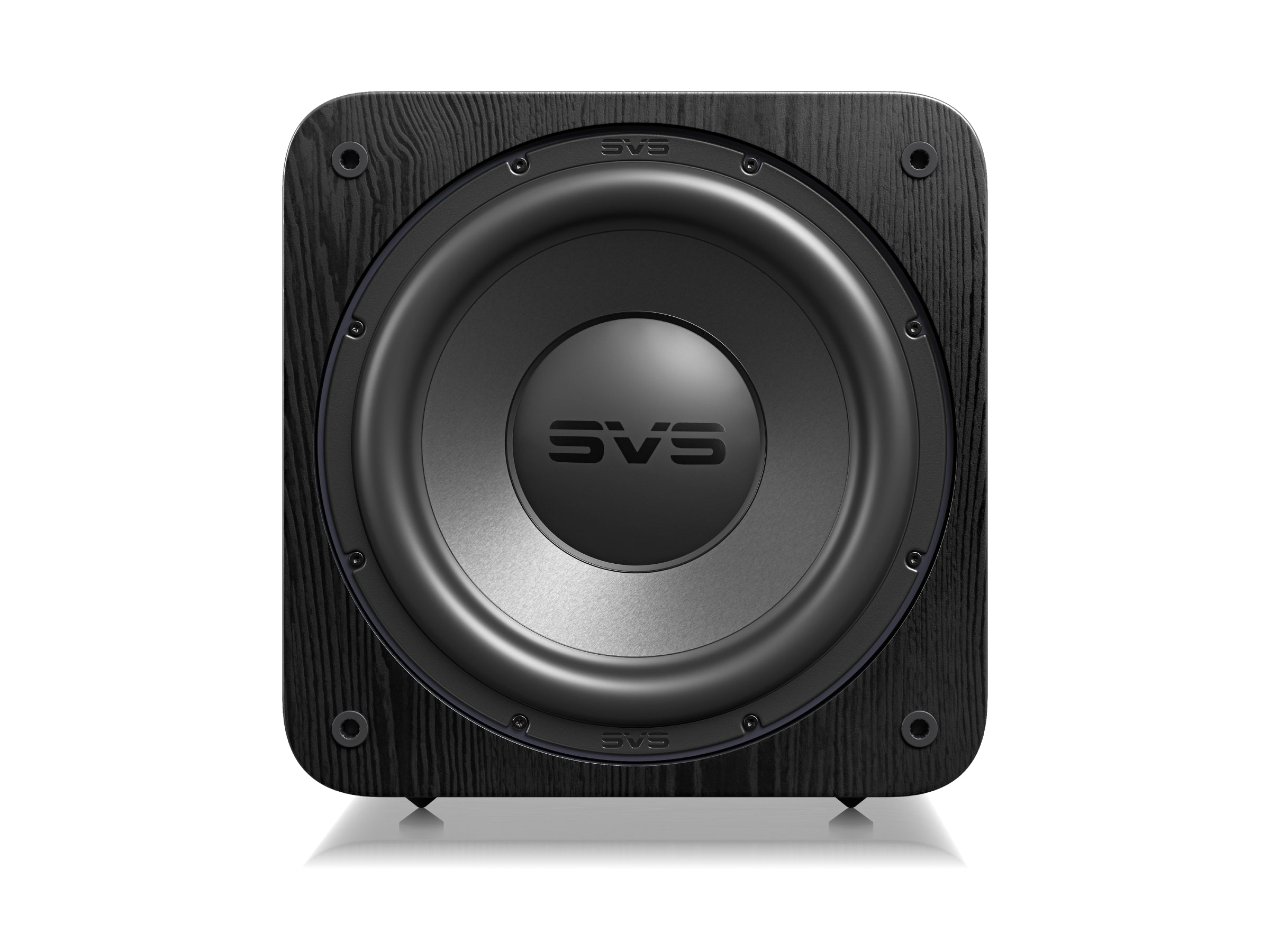

| Driver Configuration: | Front-firing 13-inch high-excursion driver. |
| Amplifier Interface: | Rear panel OLED and control interface provide fast and direct control of the most important features and include a convenient “Display Flip” function. |

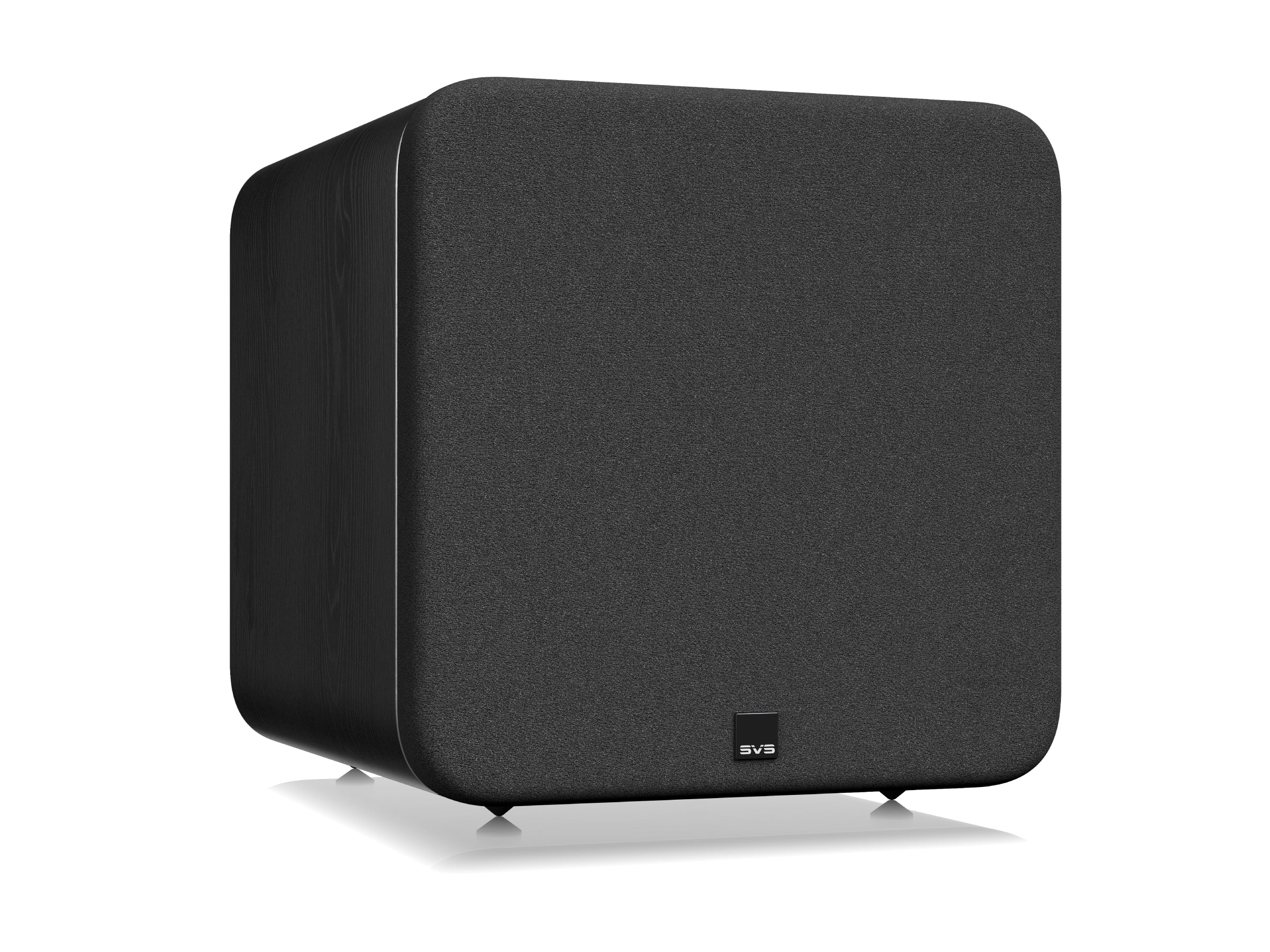

| Protective Grille: | Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields the driver to prevent damage while ensuring longevity. |
| Cabinet Construction: | Robust Medium Density Fibreboard (MDF) cabinet construction with internal bracing for resonance-free performance at the highest drive levels. |
| Feet: | Screw-in iso-elastomer feet reduce noise artefacts and improve stability. |

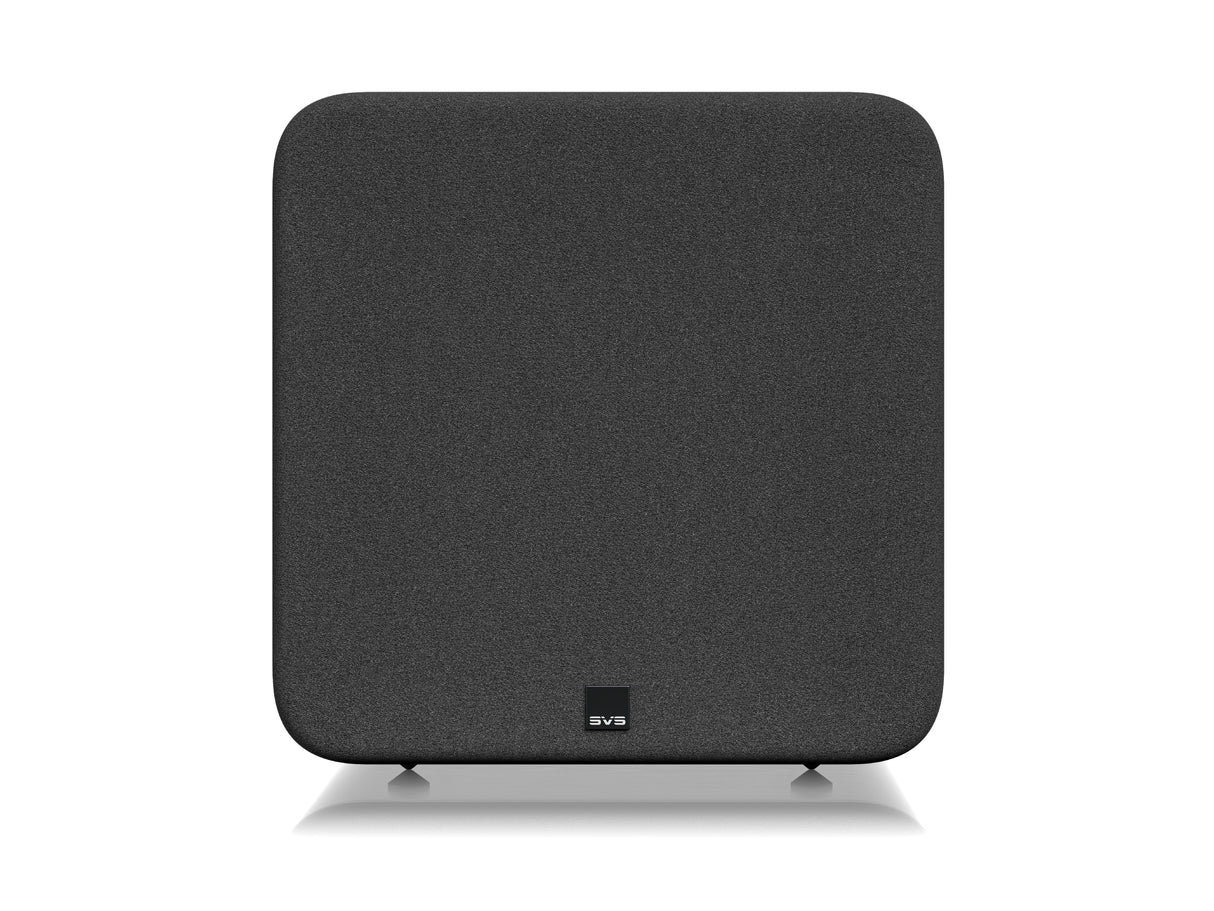

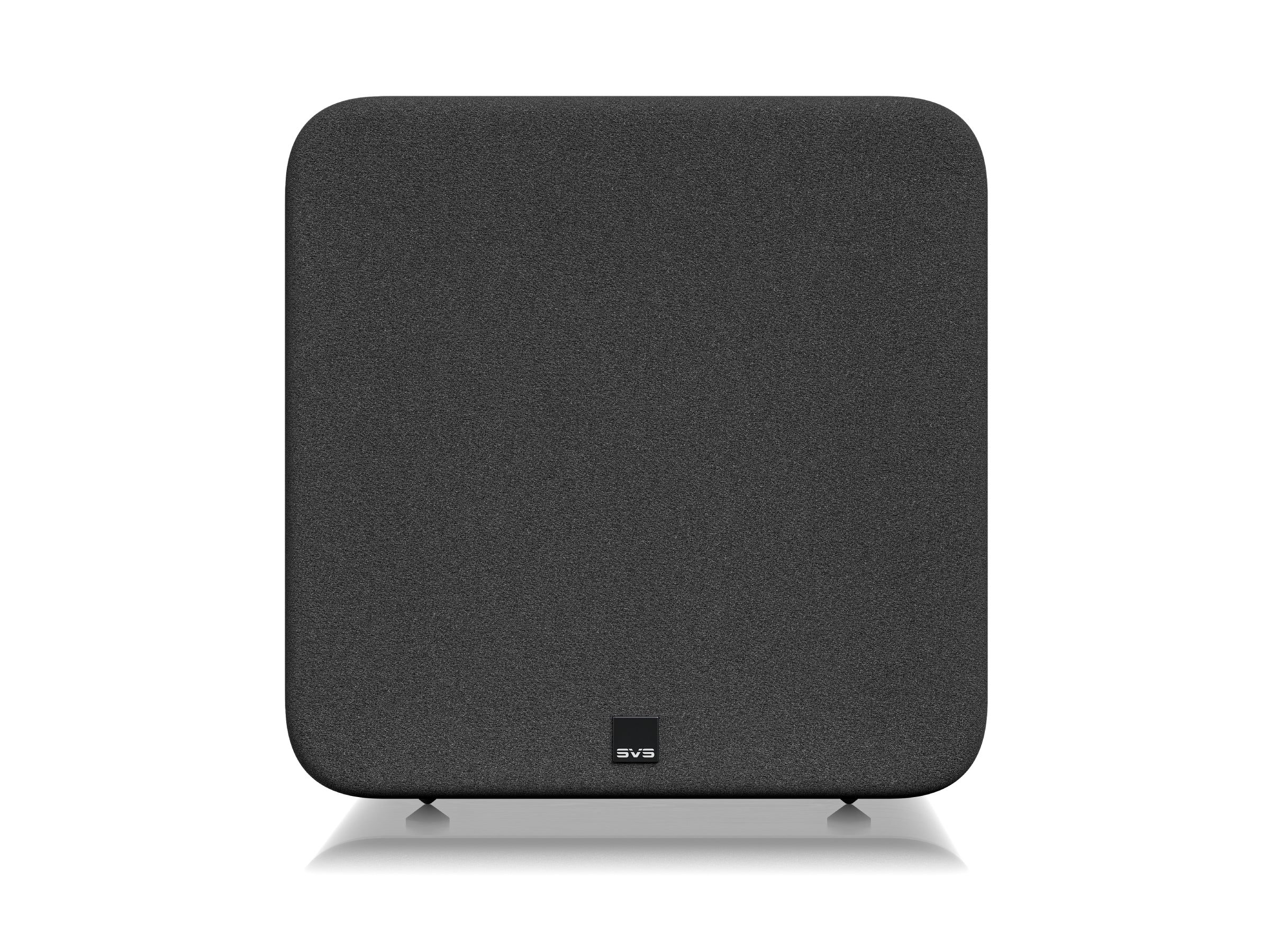

| Dimensions (With Grille): | 15.6” (397mm) H × 15.2” (385mm) W × 16.8” (426mm) D |
| Dimensions (Without Grille): | 15.6” (397mm) H × 15.2” (385mm) W × 15.6” (397mm) D |
| Shipped Dimensions: | 21.2” (530mm) H × 20.3” (516mm) W × 20.3” (516mm) D |
| Weight (Unboxed): | 54.8 lbs (24.9kg) |
| Shipped Weight: | 66.1 lbs (30.0kg) |
| Driver Design: | Proprietary 13-inch long-throw driver with high-precision tuned overhung motor configuration. |
| Woofer Weight: | 24.1lb (10.5kg) woofer with 18.5lb (8.4kg) motor. |
| Excursion: | 30.1mm Xmax, 72.9mm Xmech precision-aligned excursion. |
| Voice Coil: | SVS industry-leading flat edge wound split-wind voice coil provides maximum magnetics at high excursion while reducing mass and improving overall driver efficiency. Built around a premium-grade aluminium 2" former for maximum thermal conductivity. |
| Magnets: | Two massive, dedicated toroidal Y30 ferrite magnets generate unparalleled levels of magnetic force to drive the highest levels of excursion, SPL, and start/stop power for the deepest and most authoritative bass possible. |
| Basket Construction: | High-density FEA-optimised powder-coated cast aluminium basket provides unrivalled levels of rigidity, tensile strength, and energy transference. |
| Lead Wires: | Two balanced 24-strand silver-plated Litz wire high-temperature leads woven through the 6.5" 2-ply Nomex composite linear spider provide a pristine electrical connection from the amplifier to the voice coil. |
| Cone Material: | Vented 13" 1100 aluminium cone ensures a light, rigid, and neutral radiating surface. |
| Linearity: | Precision-machined motor elements and narrow-tolerance suspension parts produce unmatched linearity at full excursion for exceptionally tight and fast output, even at reference volumes. |
| Cooling And Magnetics: | Extreme oversized low-carbon T07A steel T-yoke and SPHC steel top plate provide superior cooling and improved magnetics for maximum performance and efficiency. |
| Shorting Sleeve: | 6063 aluminium shorting sleeve reduces gap induction and distortion, enhances thermal conductivity, and improves magnetic linearity. |
| Terminals: | Nickel-plated high-tension spring terminals. |
| Surround And Gasket: | Proprietary injection-moulded gasket and SBR extreme-excursion surround maintain ideal pistonic motion for pinpoint accuracy and control. |
| Amplifier Power: | Massively powerful 1,200-watt continuous Class D design with over 4,000 watts of peak power. |
| Continuous Power Increase: | 50% higher continuous power output than the previous generation. |
| DSP Processor: | High-resolution 295MHz Analog Devices Audio DSP with double-precision 56-bit filtering and over 5× the processing power of previous subwoofers. |
| Power Supply: | The Switch Mode Power Supply (SMPS) employs dual discrete 65MHz PMUs that work with the DSP to monitor amplifier output voltage and current, AC mains input voltage and current, and numerous temperature sensors for optimal efficiency and reliability. |
| Power Management: | DSP runs real-time complex power management algorithms, monitoring real-time power, driver excursion, and current thousands of times per second for optimised efficiency and clean voltage delivery. |
| Audio Processing: | Advanced audiophile-grade 56-bit digital audio processing and premium DACs with more than 120dB signal-to-noise ratio provide greater headroom, lower noise, and flawless fidelity. |
| Amplifier Components: | Discrete Class D amplifiers create effortless and continuous power from four massive 60A 200V MOSFETs, resulting in lower EMI and maximum efficiency. |
| SMPS Design: | All-new SMPS with a highly efficient resonant LLC ensuring a consistent regulated 160V rail voltage for the amplifier. |
| THD+N Performance: | < 0.05% THD+N at rated power (70% to 90% lower than the previous generation). |
| Cooling System: | New convective cooling plate design pulls cool outside air through vents at the bottom of the amplifier plate, eliminating the need for external heatsinks. |
| Room Control: | Customer EQ and DSP limiter settings specifically for the 3000 R|Evolution series allow the subwoofer to pressurise a room with accurate, acoustically tuned bass. |
| RCA Input: | Unbalanced RCA 10kohm input impedance compatible with consumer and professional audio up to 4Vrms inputs. |
| XLR Input: | Balanced XLR 18kohm input impedance compatible with consumer and professional audio up to 4Vrms / +14dBu inputs. |
| OLED Control Interface: | OLED and control interface with easy access to the most important features. |
| Wireless Adapter Support: | USB provides power for the SVS SoundPath Wireless Audio Adapter (sold separately), eliminating the need for a cable run to the subwoofer. |
| Power Options: | Auto/On and Trigger options through the app for maximum installation convenience (3.5mm trigger input 3–12V AC/DC). |
| IR Input: | 3.5mm IR input for easy integration with control systems. |
| Standby Power Consumption: | Green 0.5-watt low standby power consumption. |
| Compliance: | RoHS-compliant, lead-free construction with worldwide safety certifications. |
| App Compatibility: | Compatible with Apple iOS, Google Android, and Amazon Fire platforms. |
| App Functions: | The SVS Subwoofer Control Smartphone app allows convenient and intuitive management of all subwoofer controls. |
| DSP App Controls: | Supports volume, fully adjustable low-pass filter, phase, polarity, six PEQs, room gain compensation, tuning modes, power management settings, and more. |
| Memory Presets: | Includes three convenient memory presets for fast and easy global system adjustments. |
| Auto Room Equalisation: | Coming soon — will use your mobile device microphone or an accessory microphone to measure room acoustics and automatically calculate precision equalisation filters. |
| Bidirectional Feedback: | Unique bidirectional feedback shows adjustments in real time on both the app and subwoofer interface. |
| Tutorials: | Easy-to-follow tutorial provides clear guidance for all functions. |
| Accessories |
Protective non-resonant extra-thick ABS grille frame with fabric mesh cover. Iso-elastomer feet Extra heavy-duty, high current 6' power cord Quick Start Guide |
