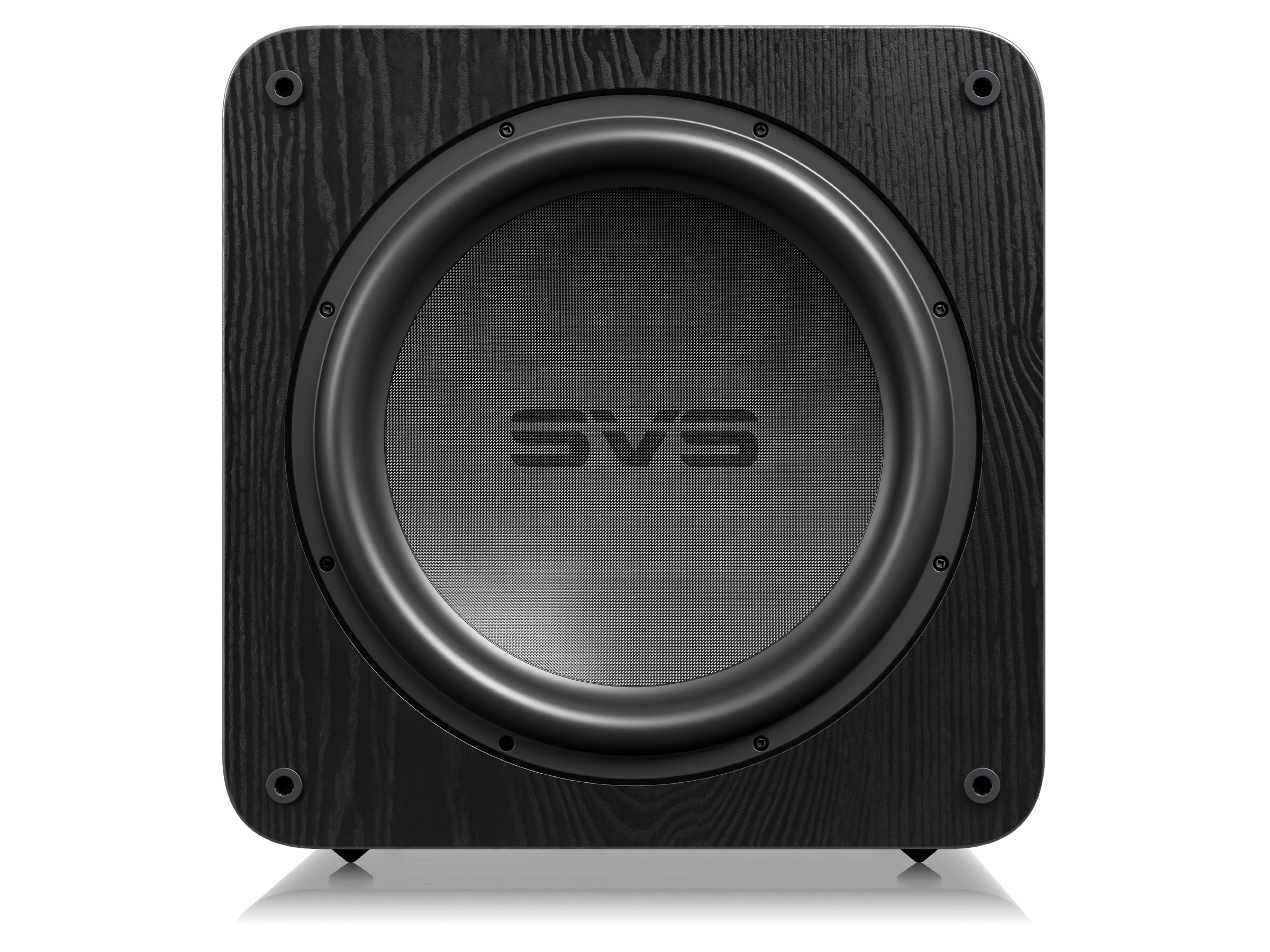

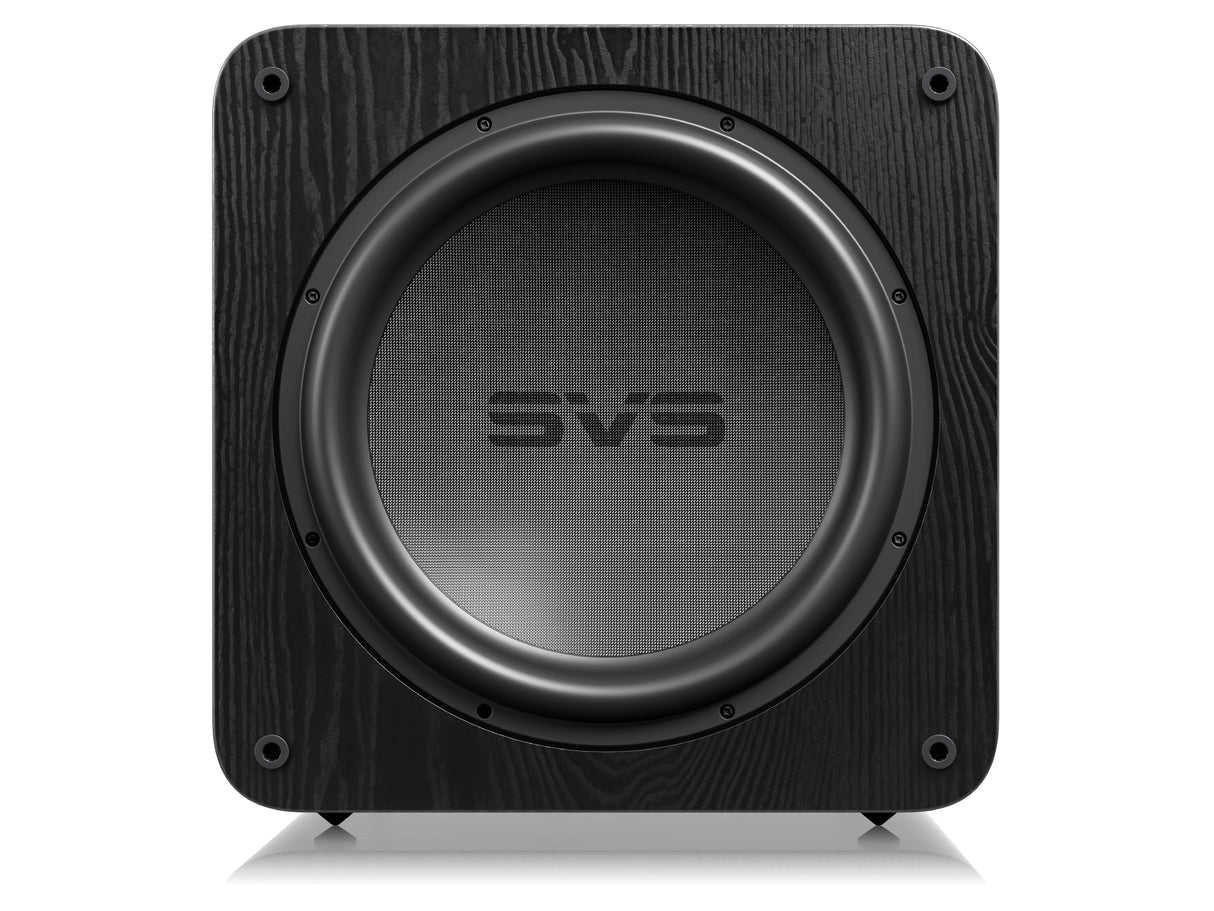

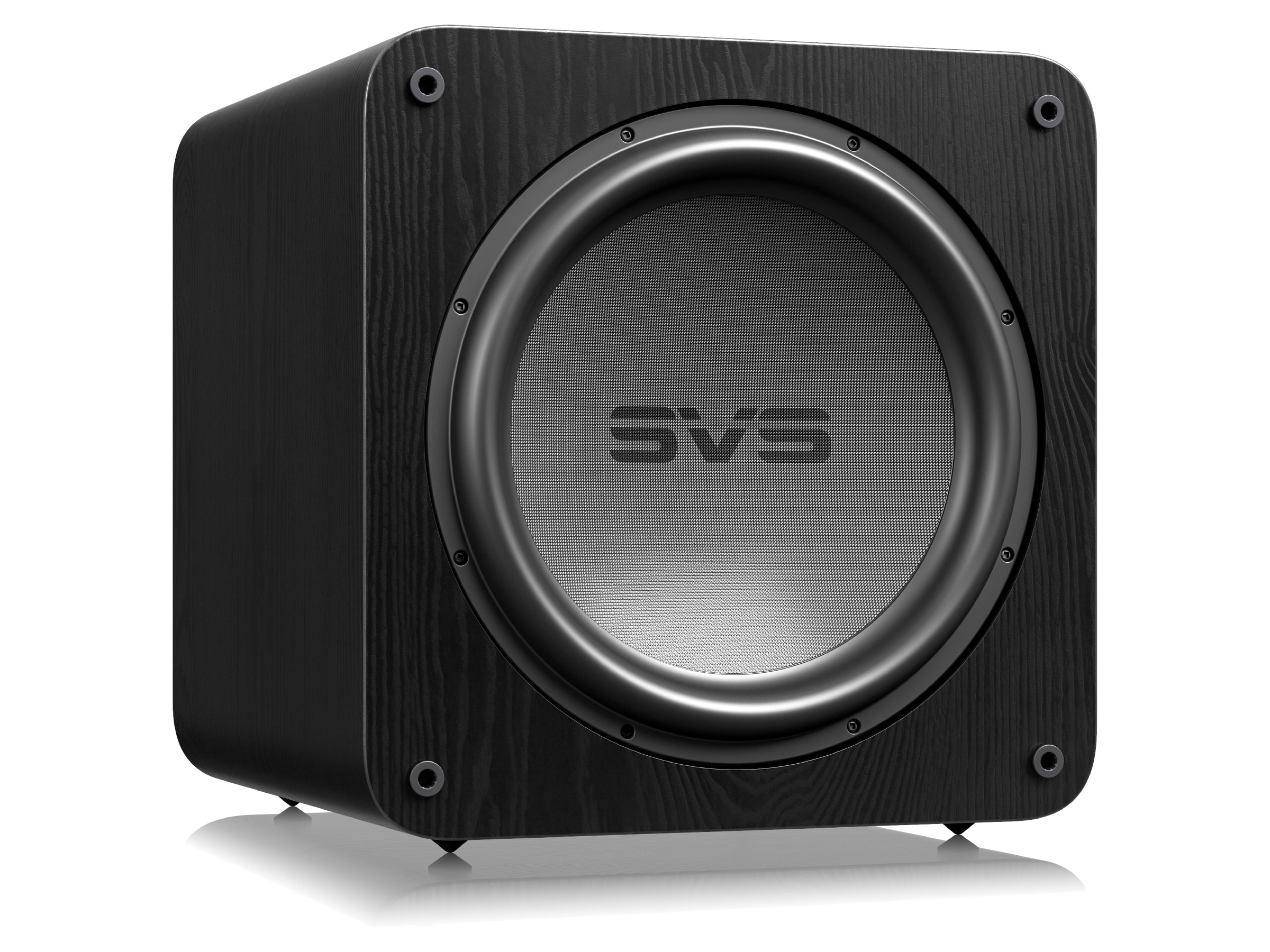

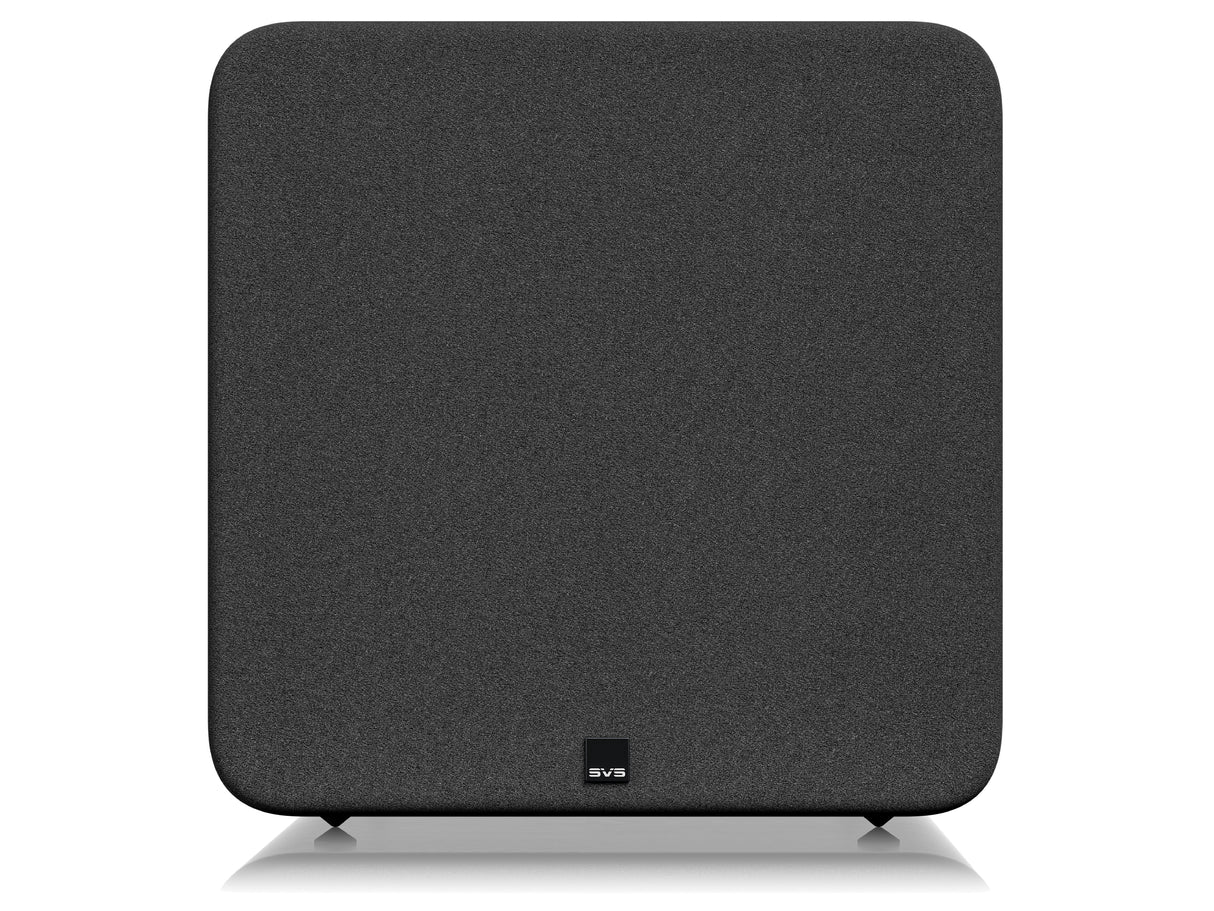

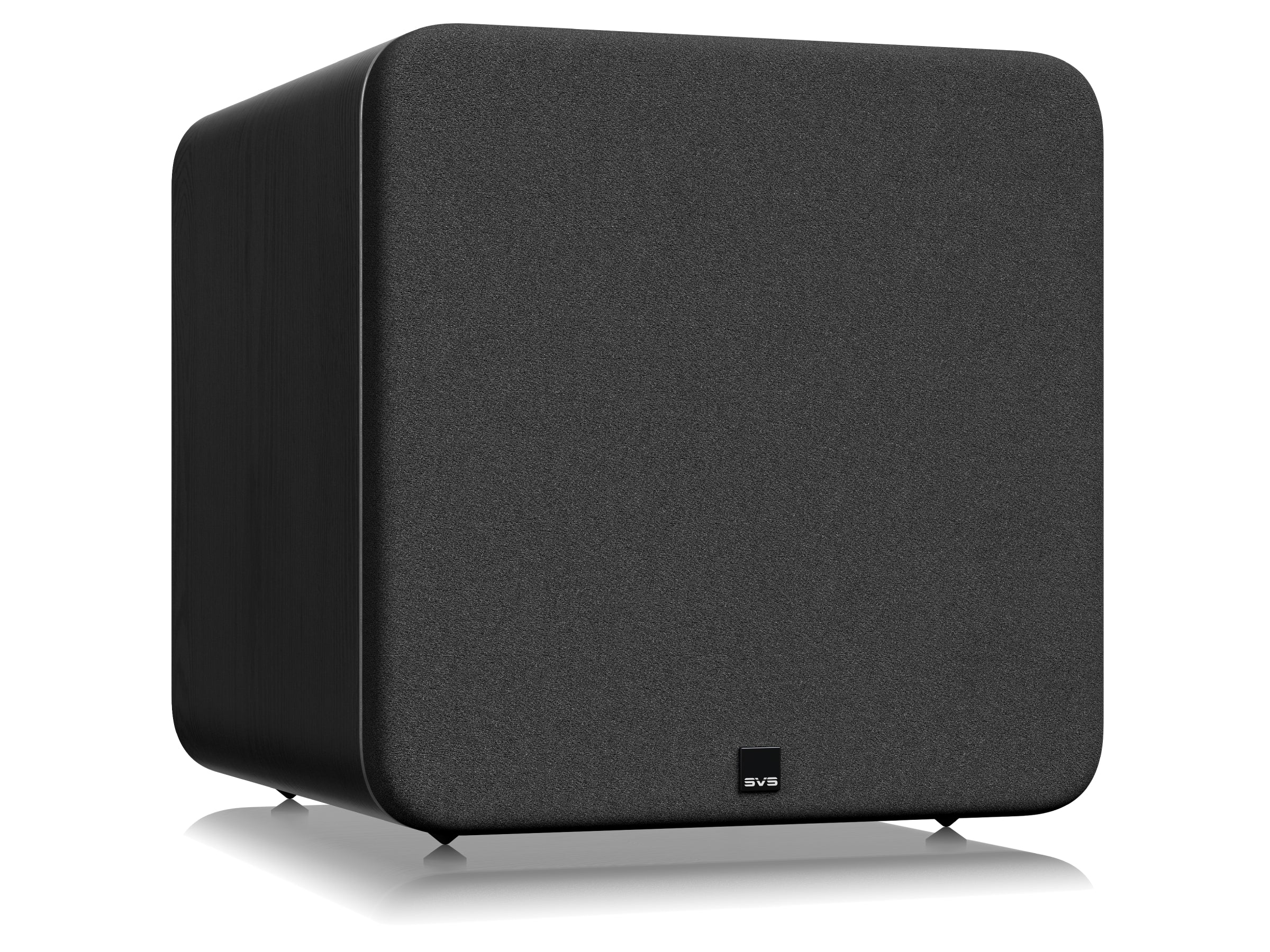

SVS SB-5000 R|Evolution Subwoofer
With the emergence of new flagship SVS subwoofers, it was only a matter of time before the unprecedented technology made its way to newer models at prices within reach of more people. Now, the 5000 R|Evolution Series brings a level of performance and a user experience that far exceeds anything in its class.
Featuring a sealed cabinet design, SB-5000 R|Evolution delivers pristine musical output with flawless tonal accuracy and unerring control to delight the most discerning audiophiles. Yet, it still wields enough power to pressurize a room and extend down to 17Hz for the most demanding cinematic action scenes.
Effortless low-frequency output and extreme SPLs without a hint of distortion are rendered by a formidable 15-inch driver with dual edge-wound voice coils driven by a 2,000 Watt Continuous, 5,000+ Watts Peak power dual monoblock amplifier.
There are also brains to match the brawn. A 295MHz Analog Devices DSP, the most powerful processor ever deployed in a home audio subwoofer, ensures pinpoint accurate frequency response and optimal performance under any conditions.
SB-5000 R|Evolution demolishes all performance benchmarks for subwoofers in its class. With trickle-down technology from the 17-Ultra R|Evolution Series, named the top subwoofers in the world by nearly every reviewer and industry group, it obliterates expectations making reference experiences possible for more people than ever.
Effortless Output from High-Excursion 15-inch SVS Driver
The most formidable sealed cabinet subwoofer driver in its class features all-new dual edge-wound voice coils, suspension, basket, and extreme-excursion surround to achieve visceral sound pressure levels with pinpoint accuracy.
- Lightweight and rigid 15-inch glass fiber composite cone with optimal stiffness-to-mass ratio for maximum efficiency and acoustic linearity
- Two-piece toroidal ferrite electromagnetic motor generates massive force with precise control, remaining authoritative yet detailed and controlled
- Extreme-excursion catenary SBR surround maintains pure, long-throw pistonic driver motion
Switch Mode Power Supply
Regardless of the power coming out of your household circuit, the SB-5000 R|Evolution always maintains peak performance and remains impervious to voltage fluctuations.
- Onboard AC line conditioner filters and stabilizes incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interferences to optimize signal quality and audio performance
- Ensures clean and consistent 160V rail voltage and optimal power delivery from a standard 15-amp home circuit
- Power-Factor-Correction (PFC) time aligns the AC voltage to the AC current, resulting in less heat, greater efficiency, reliable peak power output, and the ability to maintain rated power over a wide range of voltages
- FEA-optimized convection cooling system has no exterior heatsinks, an extraordinary feat for such a powerful amplifier
Extreme Subwoofer Intelligence
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer.
- Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction
- Monitors every function of the amplifier to stabilize AC voltage delivery to the power supply to maintain consistent peak output
- Multi-point thermal, voltage, and current monitoring systems ensure maximum output and efficiency
- Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and pristine fidelity
Smartphone Control App
Convenient subwoofer tuning and control from the comfort of your favorite seat. Works via Bluetooth with Apple iOS, Google Android, and Amazon Fire platforms.
- Controls for volume, low pass filter, phase, polarity, six parametric equalizers, room gain compensation, tuning modes, power management settings, and more
- Includes three convenient memory presets for fast and easy system adjustments to match your listening preferences — music, movies, night mode, and more

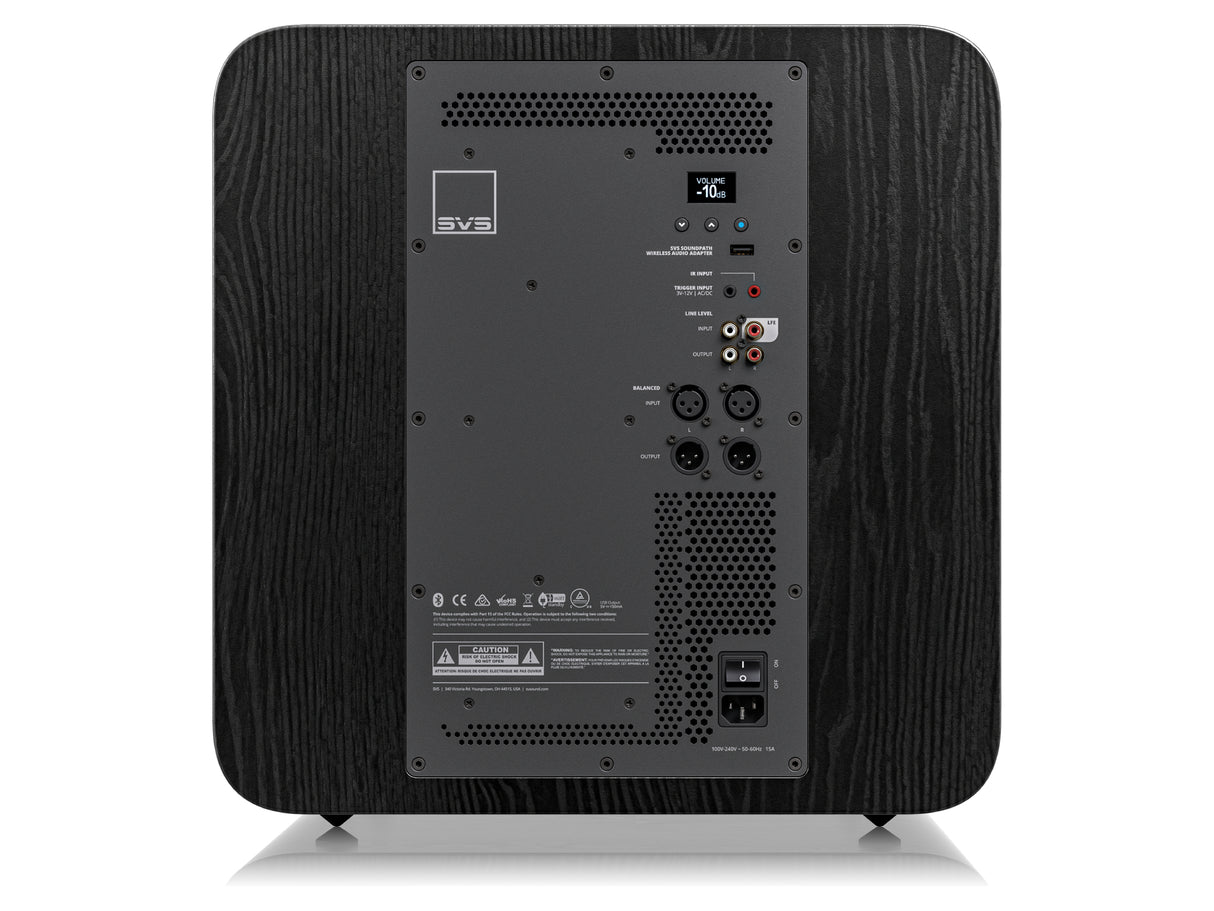

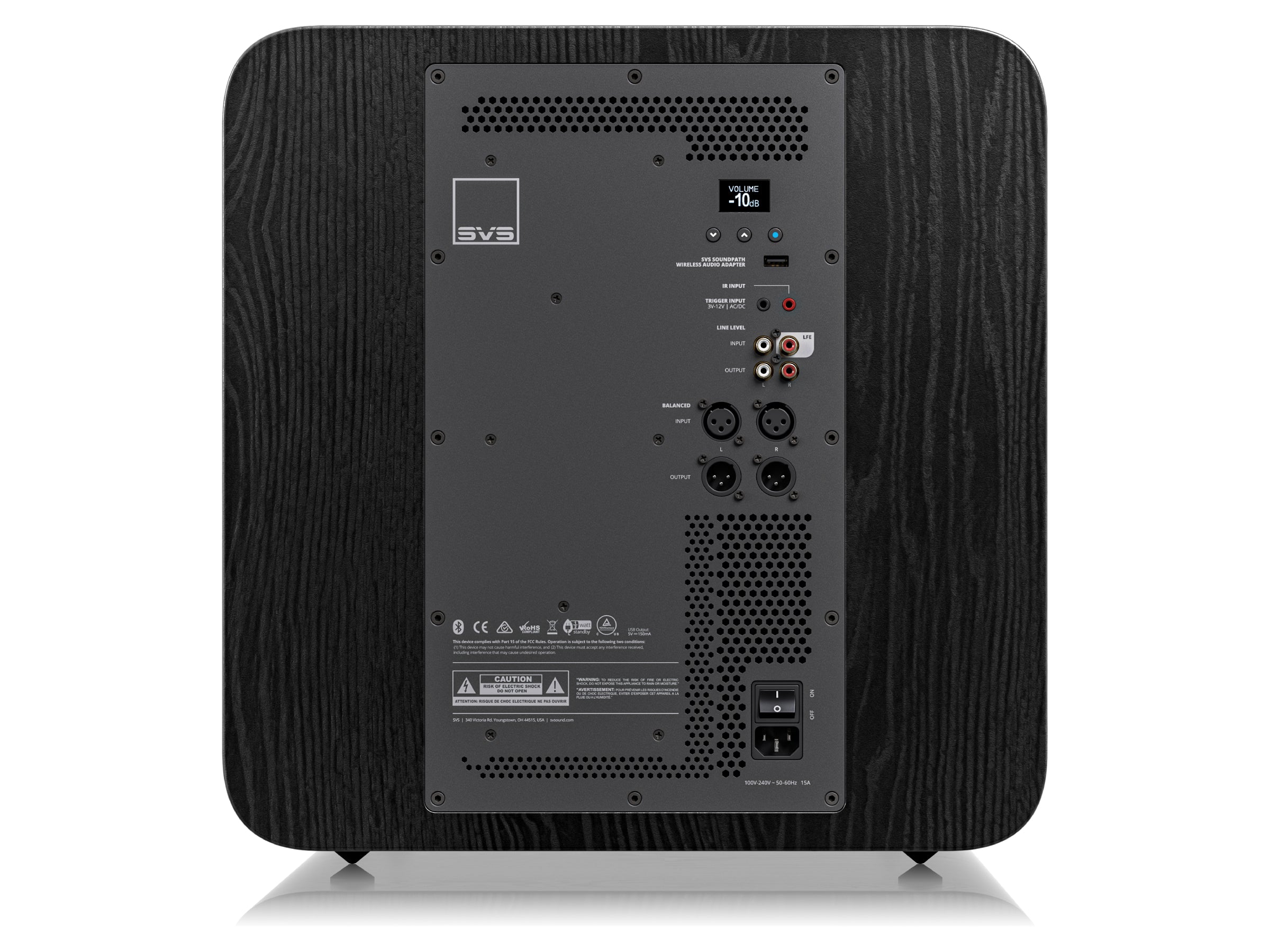

- Amplifier rear panel OLED and control interface provide fast and direct control of the most important features and include a convenient “Display Flip” function
Auto EQ Room Correction
Achieves pristine fidelity by resolving acoustic issues caused by your room in a few easy steps.
- Automatically tunes subwoofer output using your smartphone microphone or an external microphone and the SVS subwoofer app
- Applies equalization, capitalizes on available room gain, and shapes in-room frequency response at the main listening positions for optimal in-room performance
- Will be available soon via an over-the-air SVS Subwoofer Control App update
Braced Sealed Box Cabinet Design
Sealed cabinet design results in tighter, more musical bass and makes it significantly more compact than ported box subwoofers with similar specs.
- Double-thick 2-inch MDF front baffle and rigid internal bracing support the massive drive unit and ensure an acoustically inert environment
- Highly reinforced internal design and acoustic insulation eliminate all coloration or resonance from the cabinet, even when the deepest low frequencies are played at reference volume
- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields the driver to prevent damage while ensuring longevity
- Custom elastomer feet reduce noise artifacts within a room
Specifications
| Frequency Response Chart: | 17Hz to 280Hz ±3dB |
| Room Extension: | Expect 2–3Hz deeper extension in small to mid-sized rooms |
| Roll-Off Optimisation: | Roll-off slope specifically optimised to take maximum advantage of available room gain |
| Measurement Method: | 2-metre ground plane away from reflective structures (quasi-anechoic) |

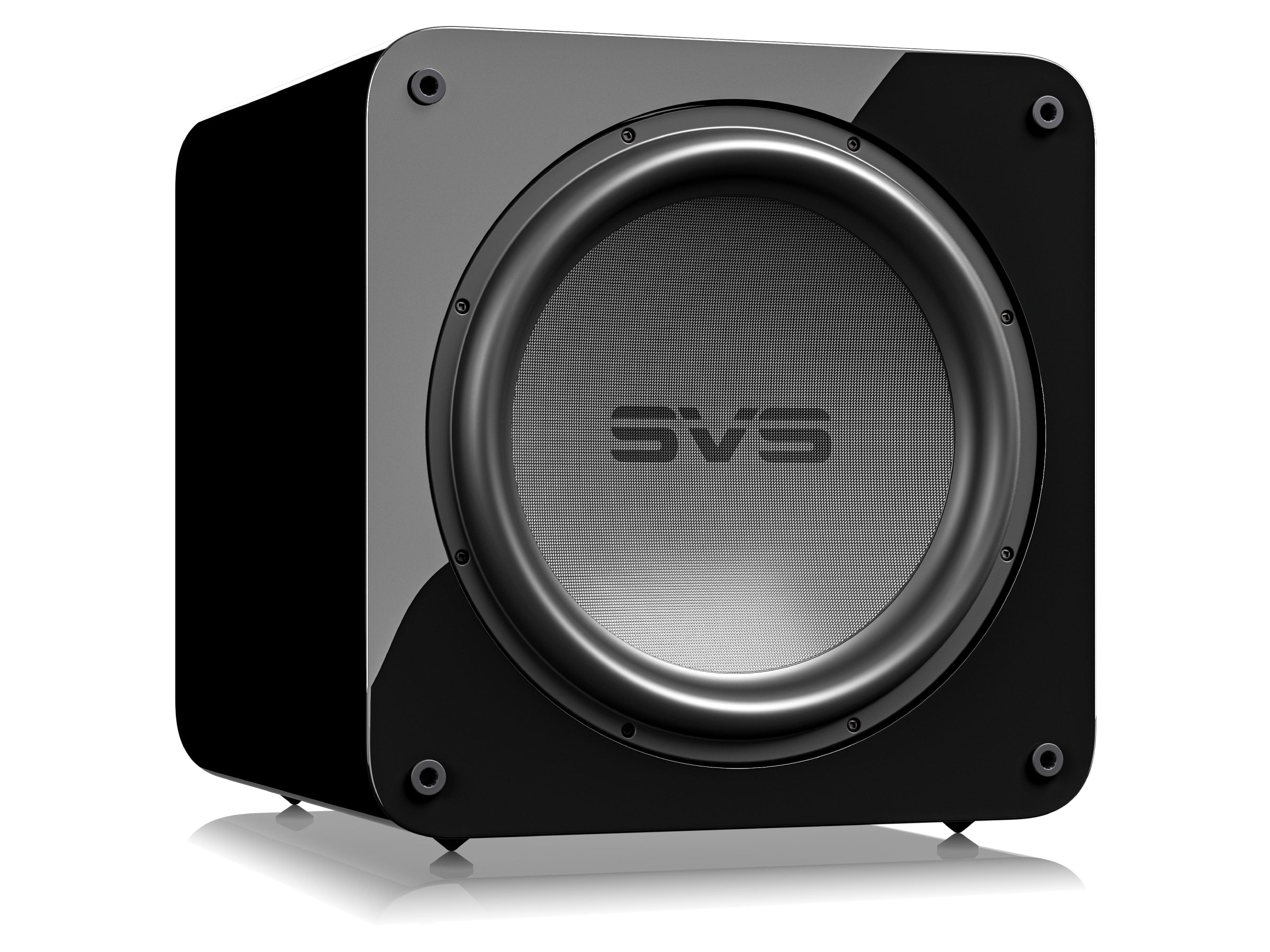

| Finish Options: | Piano Gloss Black and Black Ash |
| Driver Configuration: | Front-firing 15-inch high-excursion driver |
| OLED Control Interface: | Amplifier rear panel OLED and control interface provide fast and direct control of key features and include a convenient “Display Flip” function |

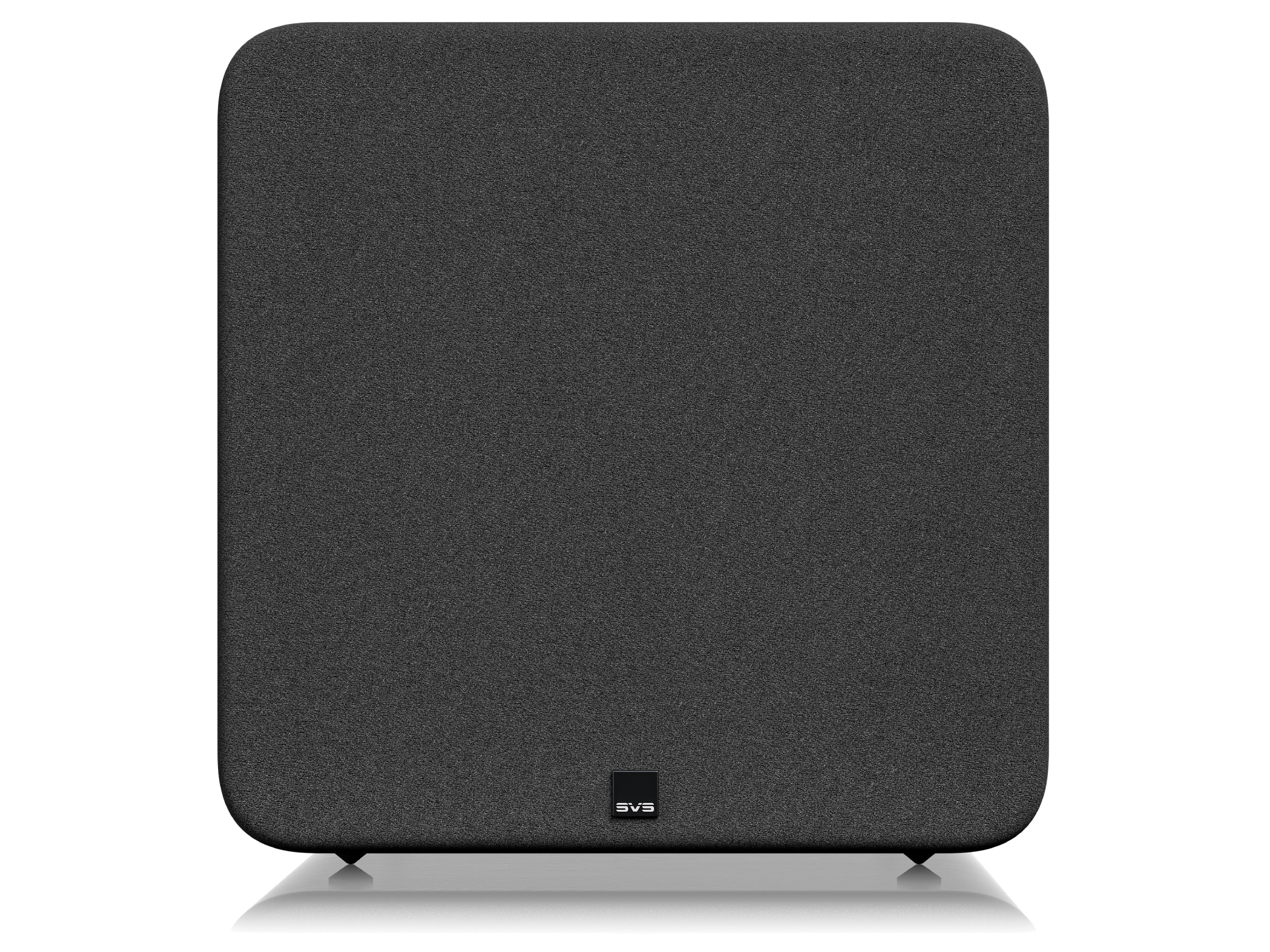

| Grille Protection: | Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields the driver to prevent damage while ensuring longevity |
| Cabinet Construction: | Robust Medium Density Fibreboard (MDF) cabinet construction with internal bracing for resonance-free performance at the highest drive levels |
| Feet Design: | Screw-in iso-elastomer feet reduce noise artefacts and improve stability |
| Dimensions With Grille: | 18.3in (465mm) H × 17.8in (453mm) W × 19.5in (495mm) D |
| Dimensions Without Grille: | 18.3in (465mm) H × 17.8in (453mm) W × 18.4in (468mm) D |
| Shipped Dimensions: | 23.2in (588mm) H × 23.5in (598mm) W × 28.0in (712mm) D |
| Weight Unboxed: | 102.1lbs (46.3kg) |
| Shipped Weight: | 120.7lbs (54.8kg) |
| Driver Design: | All-new proprietary 15-inch long-throw driver with high-precision tuned overhung motor configuration |
| Woofer Weight: | 46.3lb (21kg) woofer with 38.4lb (17.46kg) motor |
| Excursion Capability: | 46.32mm Xmax, 77.44mm Xmech precision-aligned excursion |
| Voice Coil: | 3-inch diameter voice coil with high-current 6-layer bifilar flat edge-wound aluminium wire windings |
| Dual Voice Coil Design: | Captures power delivery from dual-mono amplifier outputs into a single voice coil for maximum acoustic output |
| Former Material: | High-temperature glass-fibre composite former/bobbing |
| Magnet Motor: | Two-piece high-grade oversized Y30 ferrite magnet motor produces effortless on-demand driving force for subtle and extreme bass performance |
| Copper Shorting Sleeve: | Reduces gap inductance and lowers distortion |
| Lead Construction: | Dual 24-strand silver-plated copper-alloy and Nomex composite high-temperature leads woven through the spider provide a pristine electrical connection from the amplifiers to the voice coils |
| Top-Plate And T-Yoke: | Precision-machined narrow-tolerance top-plate and oversized T-yoke with integrated pole-piece extension made from zinc-plated low-carbon 1010 steel for optimal magnetics and thermal capacity |
| Suspension System: | Dual Nomex-composite extreme-excursion linear suspension spiders |
| Surround Design: | Proprietary injection-moulded extreme-excursion parabolic NBR rubber surround ensures flawless pistonic motion for pinpoint control and accuracy without distortion at the highest drive levels |
| Cone Structure: | Premium glass-fibre laminated dustcap and vented composite cone sub-structure with exceptional stiffness-to-mass ratio for a light, rigid, and neutral radiating surface |
| Basket Design: | High-density 15-inch powder-coated cast aluminium basket FEA-optimised for maximum rigidity, tensile strength, and energy transference |
| Speaker Terminals: | Nickel-plated high-tension spring terminals provide secure connections |
| Amplifier Power: | 2,000-watt continuous Class D design with over 5,000 watts peak power |
| DSP Processor: | High-resolution 295MHz Analog Devices Audio DSP with double-precision 56-bit filtering and over five times the processing power of previous SVS subwoofers |
| DSP Monitoring: | DSP monitors every amplifier function to ensure precisely regulated clean voltage delivery and maximum current to the driver’s voice coils |
| Power Management: | DSP continuously runs complex power management algorithms and multi-point thermal, voltage, and current monitoring systems for continuous peak performance |
| Digital Audio Processing: | Advanced digital audio processing and DACs with 120dB Signal-to-Noise Ratio provide greater headroom, lower noise, and flawless fidelity |
| Dual-Mono Amplifiers: | Dual-mono discrete Class D amplifiers create effortless power from eight massive 60A 200V MOSFETs for lower EMI and maximum efficiency |
| Switch Mode Power Supply: | Includes a two-stage 100V–240V full-range active Power Factor Correction (PFC) system ensuring a consistent 160V rail voltage |
| Power Factor Correction: | Aligns AC voltage to AC current for reduced heat, greater efficiency, and reliable peak power output |
| AC Line Conditioner: | Filters and stabilises incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interference |
| Cooling System: | Convective cooling plate design eliminates the need for external heatsinks |
| EQ And DSP Limiter Settings: | Custom EQ and DSP limiter settings specifically tuned for the 5000 Series |
| RCA Input Impedance: | Unbalanced RCA 10kohm input impedance compatible with consumer and professional audio up to 4Vrms inputs |
| XLR Input Impedance: | Balanced XLR 14kohm input impedance compatible with consumer and professional audio up to 4Vrms / +14dBu inputs |
| Control Interface: | OLED and control interface provide easy access to key features |
| USB Connectivity: | USB port provides power for the SVS SoundPath Wireless Audio Adapter (sold separately) |
| Power Options: | Auto/On and Trigger options available through the app for installation convenience |
| IR Input: | 3.5mm IR input for easy integration with control systems |
| Standby Consumption: | Green 0.5-watt low standby power consumption |
| Compliance: | RoHS compliant, lead-free construction with worldwide safety certifications |
| App Compatibility: | Compatible with Apple iOS, Google Android, and Amazon Fire platforms |
| App Controls: | Includes volume, fully adjustable low-pass filter, phase, polarity, six PEQs, room gain compensation, tuning modes, power management settings, and more |
| Memory Presets: | Includes three convenient memory presets for quick global system adjustments |
| Auto Room Equalisation: | Coming soon via mobile device microphone or optional accessory microphone |
| Bidirectional Feedback: | Real-time adjustment feedback shown on both the app and subwoofer interface |
| Tutorial Support: | Easy-to-follow tutorial provides guidance for all functions |
| Accessories | Protective non-resonant extra-thick ABS grille frame with fabric mesh cover, Iso-elastomer feet, Extra heavy-duty high-current 6ft power cord, Quick Start Guide |
